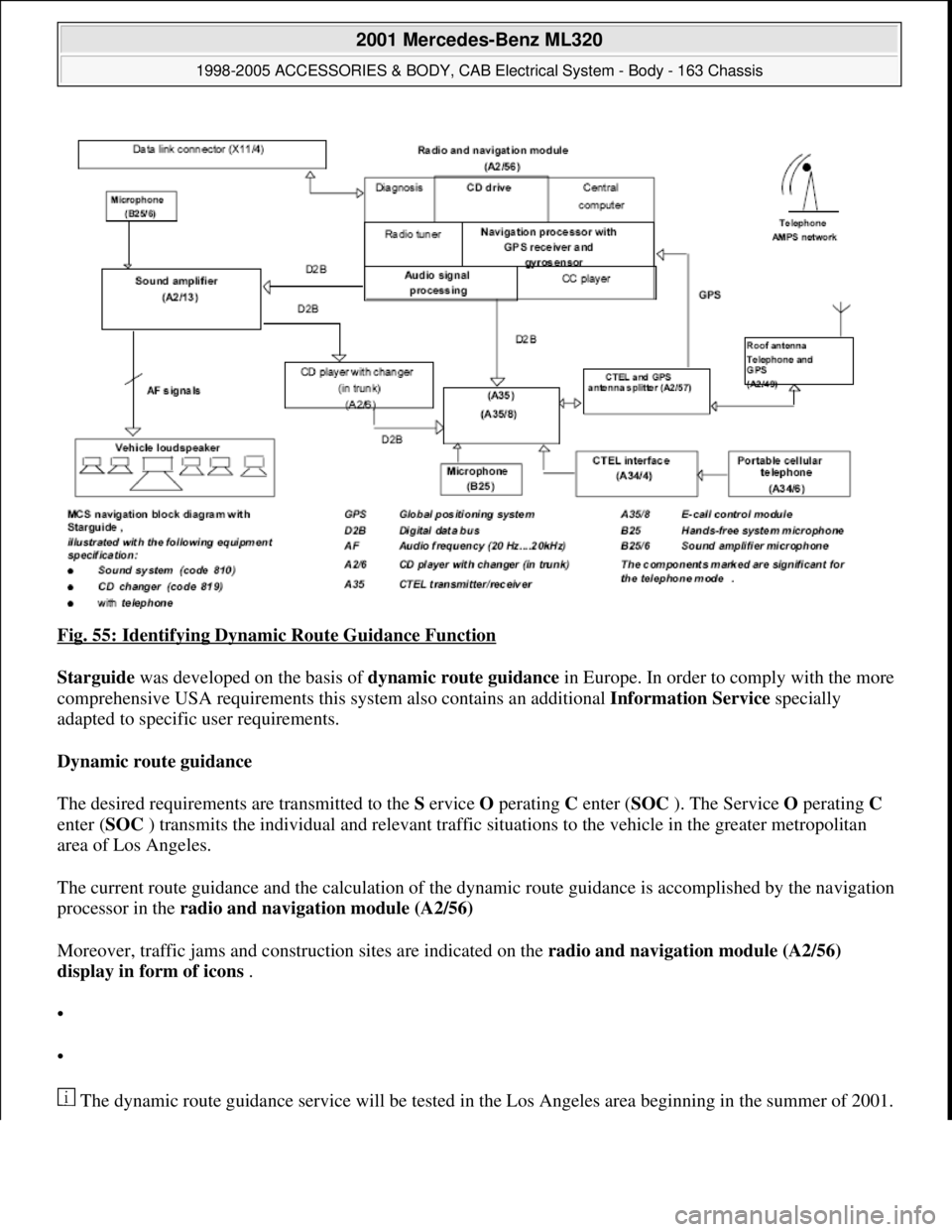

Fig. 55: Identifying Dynamic Route Guidance Function
Starguide was developed on the basis of dynamic route guidancein Europe. In order to comply with the more
comprehensive USA requirements this system also contains an additional Information Service specially
adapted to specific user requirements.
Dynamic route guidance
The desired requirements are transmitted to the S ervice O perating C enter (SOC ). The Service O perating C
enter (SOC ) transmits the individual and relevant traffic situations to the vehicle in the greater metropolitan
area of Los Angeles.
The current route guidance and the calculation of the dynamic route guidance is accomplished by the navigation
processor in the radio and navigation module (A2/56)
Moreover, traffic jams and construction sites are indicated on the radio and navigation module (A2/56)
display in form of icons .
•
•
The dynamic route guidance service will be tested in the Los Angeles area beginning in the summer of 2001.

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 96 © 2006 Mitchell Repair Information Company, LLC.

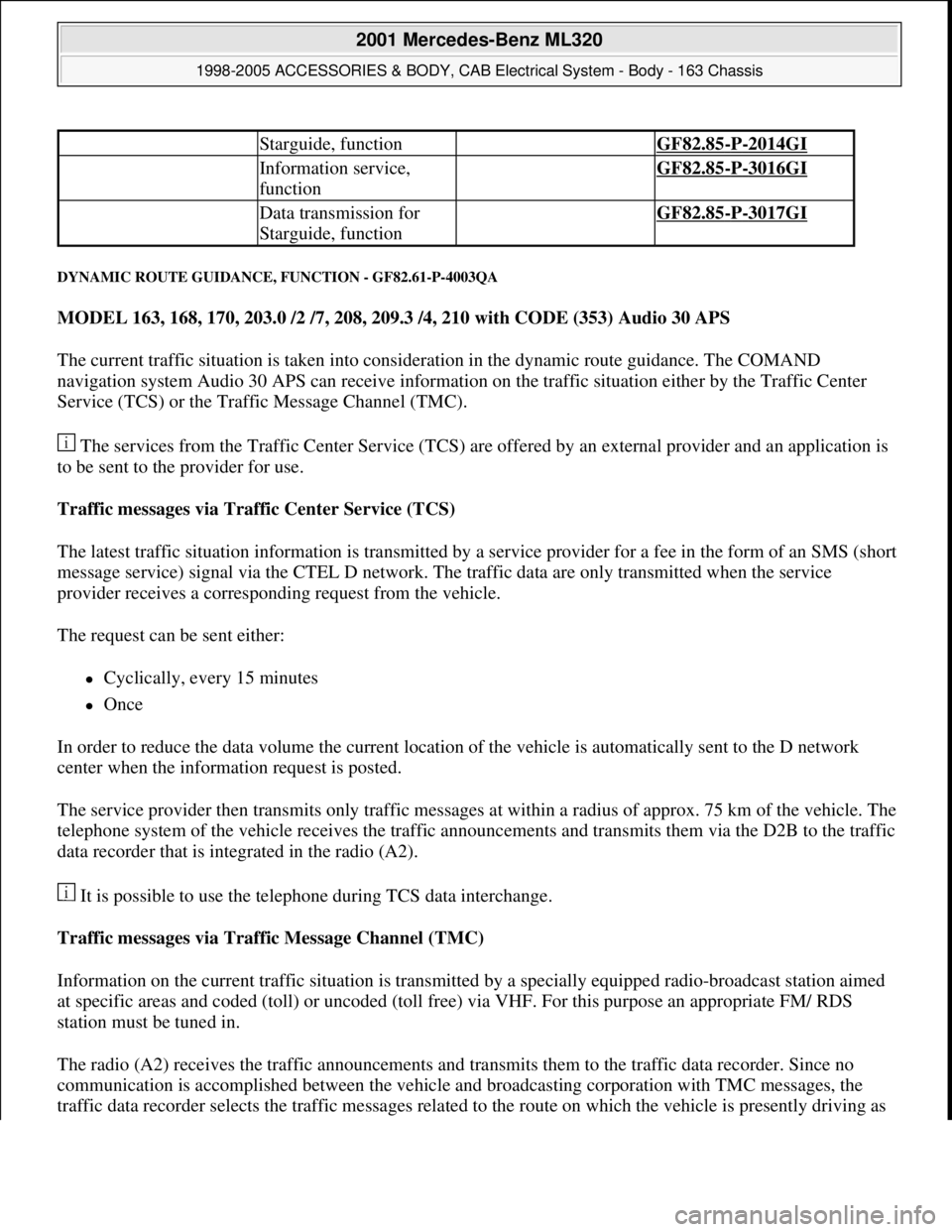

DYNAMIC ROUTE GUIDANCE, FUNCTION - GF82.61-P-4003QA
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
The current traffic situation is taken into consideration in the dynamic route guidance. The COMAND
navigation system Audio 30 APS can receive information on the traffic situation either by the Traffic Center
Service (TCS) or the Traffic Message Channel (TMC).
The services from the Traffic Center Service (TCS) are offered by an external provider and an application is
to be sent to the provider for use.
Traffic messages via Traffic Center Service (TCS)
The latest traffic situation information is transmitted by a service provider for a fee in the form of an SMS (short
message service) signal via the CTEL D network. The traffic data are only transmitted when the service
provider receives a corresponding request from the vehicle.
The request can be sent either:
Cyclically, every 15 minutes
Once
In order to reduce the data volume the current location of the vehicle is automatically sent to the D network
center when the information request is posted.
The service provider then transmits only traffic messages at within a radius of approx. 75 km of the vehicle. The
telephone system of the vehicle receives the traffic announcements and transmits them via the D2B to the traffic
data recorder that is integrated in the radio (A2).
It is possible to use the telephone during TCS data interchange.
Traffic messages via Traffic Message Channel (TMC)
Information on the current traffic situation is transmitted by a specially equipped radio-broadcast station aimed
at specific areas and coded (toll) or uncoded (toll free) via VHF. For this purpose an appropriate FM/ RDS
station must be tuned in.
The radio (A2) receives the traffic announcements and transmits them to the traffic data recorder. Since no
communication is accomplished between the vehicle and broadcasting corporation with TMC messages, the
traffic data recorder selects the traffic messa
ges related to the route on which the vehicle is presently driving as
Starguide, function GF82.85-P-2014GI
Information service,
function GF82.85-P-3016GI
Data transmission for
Starguide, function GF82.85-P-3017GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 97 © 2006 Mitchell Repair Information Company, LLC.

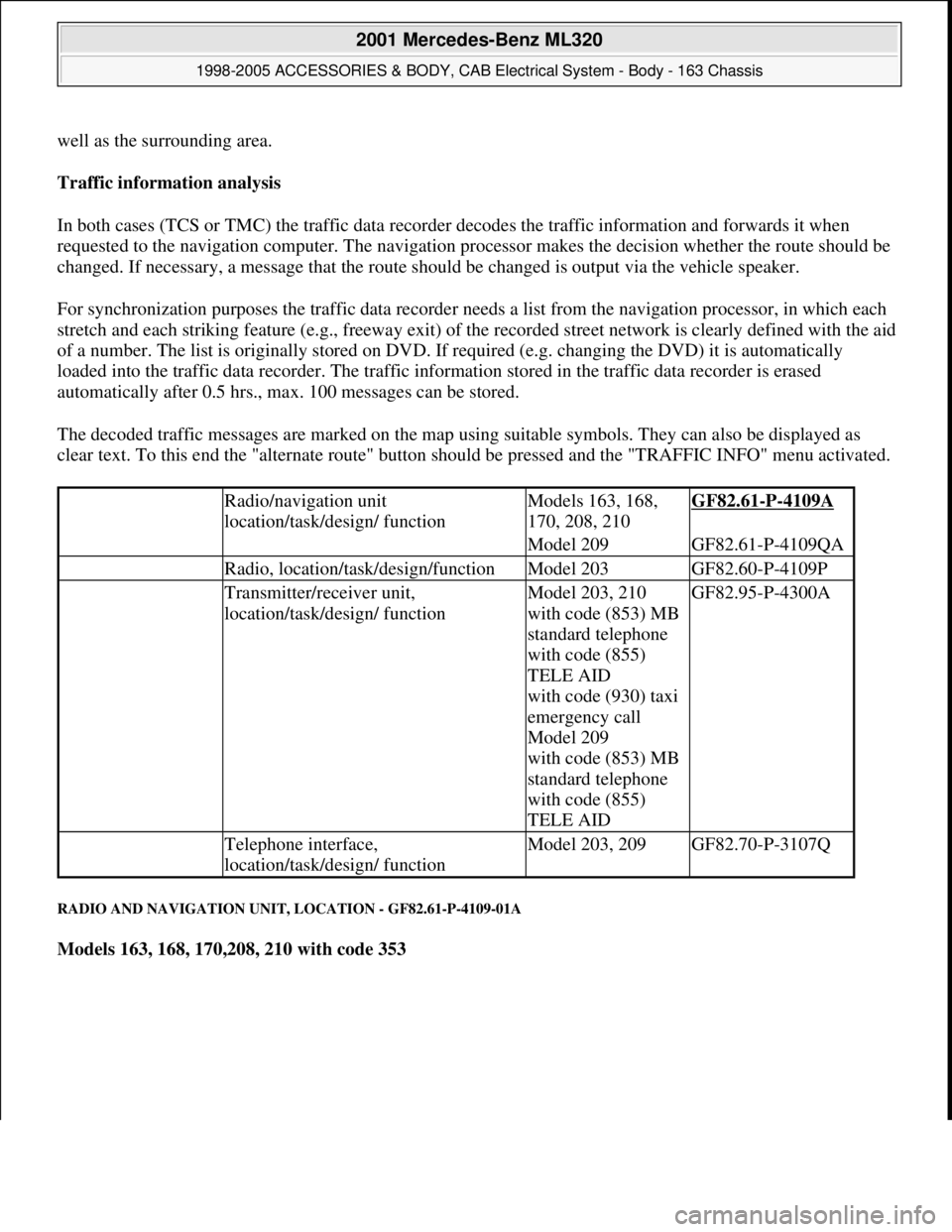

well as the surrounding area.
Traffic information analysis
In both cases (TCS or TMC) the traffic data recorder decodes the traffic information and forwards it when
requested to the navigation computer. The navigation processor makes the decision whether the route should be
changed. If necessary, a message that the route should be changed is output via the vehicle speaker.
For synchronization purposes the traffic data recorder needs a list from the navigation processor, in which each
stretch and each striking feature (e.g., freeway exit) of the recorded street network is clearly defined with the aid
of a number. The list is originally stored on DVD. If required (e.g. changing the DVD) it is automatically
loaded into the traffic data recorder. The traffic information stored in the traffic data recorder is erased
automatically after 0.5 hrs., max. 100 messages can be stored.
The decoded traffic messages are marked on the map using suitable symbols. They can also be displayed as
clear text. To this end the "alternate route" button should be pressed and the "TRAFFIC INFO" menu activated.
RADIO AND NAVIGATION UNIT, LOCATION - GF82.61-P-4109-01A
Models 163, 168, 170,208, 210 with code 353
Radio/navigation unit
location/task/design/ functionModels 163, 168,
170, 208, 210GF82.61-P-4109A
Model 209GF82.61-P-4109QA
Radio, location/task/design/functionModel 203GF82.60-P-4109P
Transmitter/receiver unit,
location/task/design/ functionModel 203, 210
with code (853) MB
standard telephone
with code (855)
TELE AID
with code (930) taxi
emergency call
Model 209
with code (853) MB
standard telephone
with code (855)
TELE AIDGF82.95-P-4300A
Telephone interface,
location/task/design/ functionModel 203, 209GF82.70-P-3107Q

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 98 © 2006 Mitchell Repair Information Company, LLC.

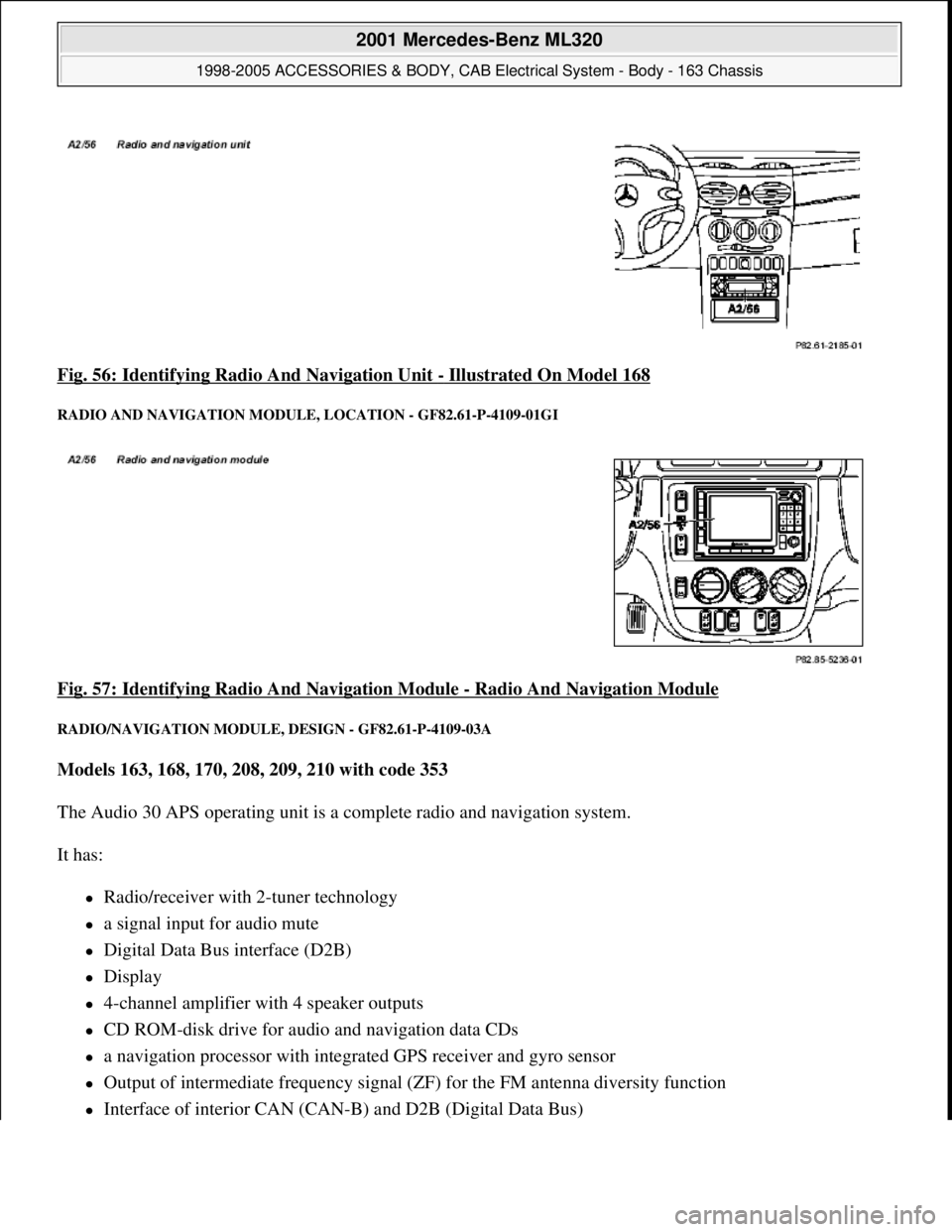

Fig. 56: Identifying Radio And Navigation Unit - Illustrated On Model 168
RADIO AND NAVIGATION MODULE , LOCATION - GF82.61-P-4109-01GI
Fig. 57: Identifying Radio And Navigation Module - Radio And Navigation Module
RADIO/NAVIGATION MODULE , DESIGN - GF82.61-P-4109-03A
Models 163, 168, 170, 208, 209, 210 with code 353
The Audio 30 APS operating unit is a co mplete radio and navigation system.
It has:
Radio/receiver with 2-tuner technology
a signal input for audio mute
Digital Data Bus interface (D2B)
Display
4-channel amplifier with 4 speaker outputs
CD ROM-disk drive for audio and navigation data CDs
a navigation processor with integrated GPS receiver and gyro sensor
Output of intermediate frequency signal (Z F) for the FM antenna diversity function
Interface of interior CAN (CAN-B) and D2B (Digital Data Bus)

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 99 © 2006 Mitchell Repair Information Company, LLC.

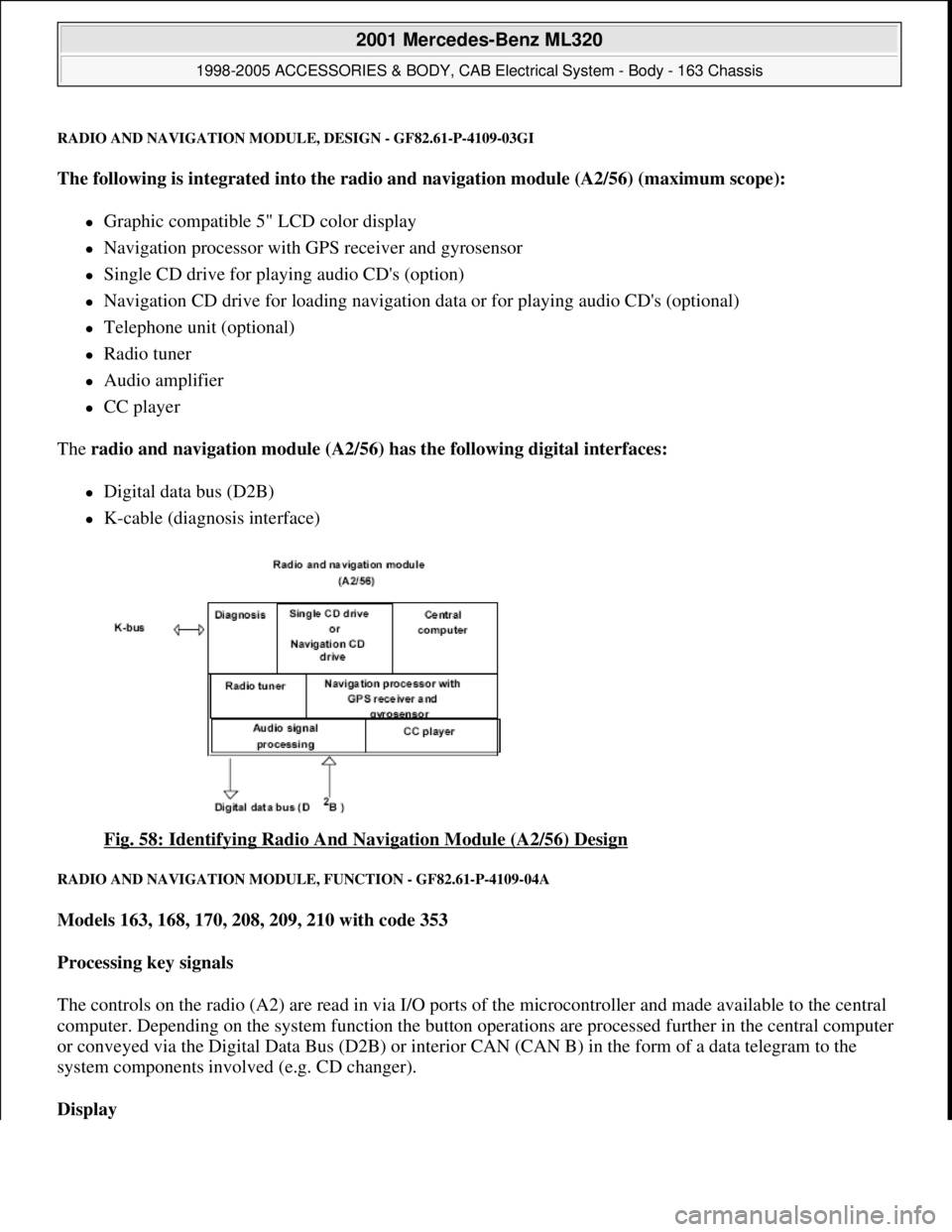

RADIO AND NAVIGATION MODULE, DESIGN - GF82.61-P-4109-03GI
The following is integrated into the radio and navigation module (A2/56) (maximum scope):
Graphic compatible 5" LCD color display
Navigation processor with GPS receiver and gyrosensor
Single CD drive for playing audio CD's (option)
Navigation CD drive for loading navigation data or for playing audio CD's (optional)
Telephone unit (optional)
Radio tuner
Audio amplifier
CC player
The radio and navigation module (A2/56) has the following digital interfaces:
Digital data bus (D2B)
K-cable (diagnosis interface)
Fig. 58: Identifying Radio And Navigation Module (A2/56) Design

RADIO AND NAVIGATION MODULE, FUNCTION - GF82.61-P-4109-04A
Models 163, 168, 170, 208, 209, 210 with code 353
Processing key signals
The controls on the radio (A2) are read in via I/O ports of the microcontroller and made available to the central
computer. Depending on the system function the button operations are processed further in the central computer
or conveyed via the Digital Data Bus (D2B) or interior CAN (CAN B) in the form of a data telegram to the
system components involved (e.g. CD changer).
Display

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 100 © 2006 Mitchell Repair Information Company, LLC.

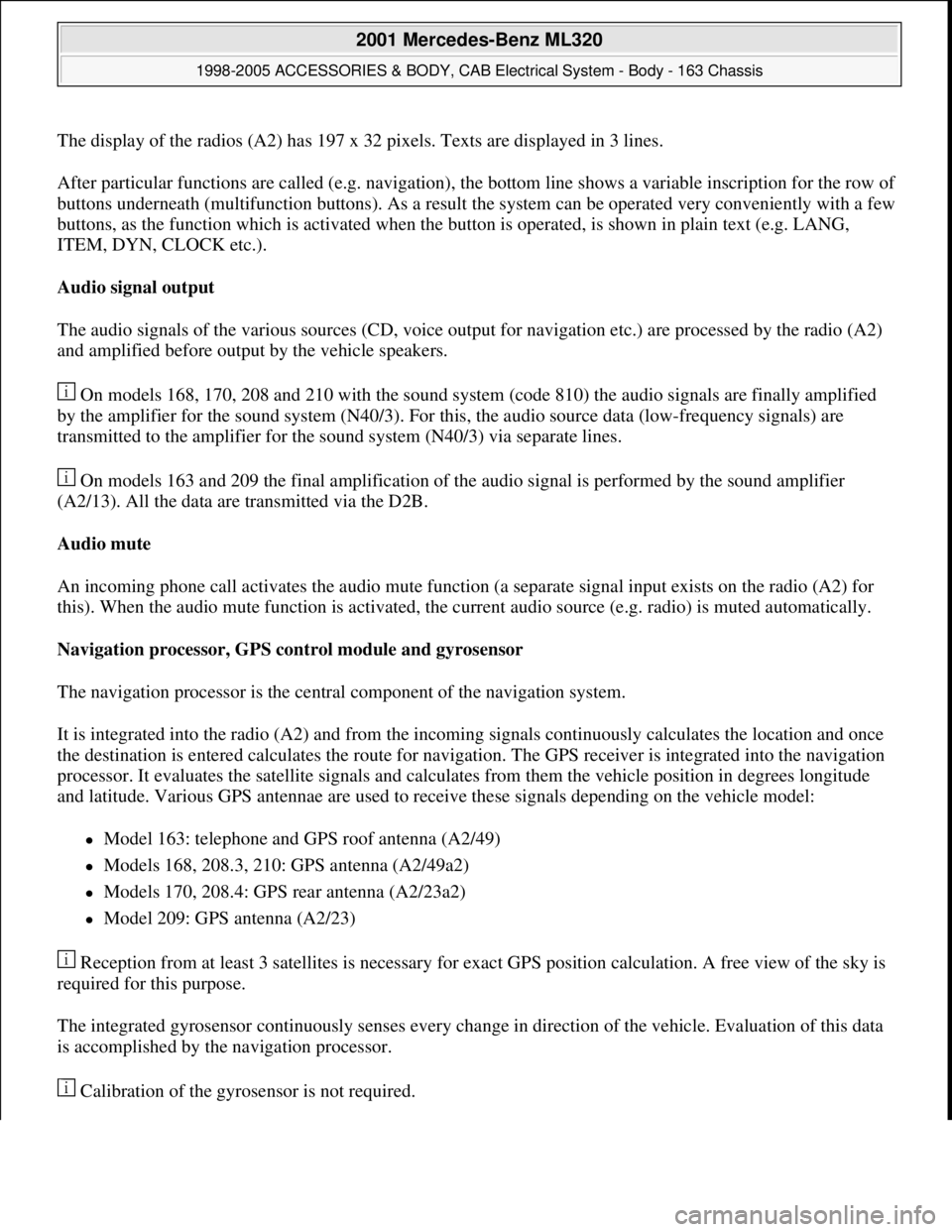

The display of the radios (A2) has 197 x 32 pixels. Texts are displayed in 3 lines.
After particular functions are called (e.g. navigation), the bottom line shows a variable inscription for the row of
buttons underneath (multifunction buttons). As a result the system can be operated very conveniently with a few
buttons, as the function which is activated when the button is operated, is shown in plain text (e.g. LANG,
ITEM, DYN, CLOCK etc.).
Audio signal output
The audio signals of the various sources (CD, voice output for navigation etc.) are processed by the radio (A2)
and amplified before output by the vehicle speakers.
On models 168, 170, 208 and 210 with the sound system (code 810) the audio signals are finally amplified
by the amplifier for the sound system (N40/3). For this, the audio source data (low-frequency signals) are
transmitted to the amplifier for the sound system (N40/3) via separate lines.
On models 163 and 209 the final amplification of the audio signal is performed by the sound amplifier
(A2/13). All the data are transmitted via the D2B.
Audio mute
An incoming phone call activates the audio mute function (a separate signal input exists on the radio (A2) for
this). When the audio mute function is activated, the current audio source (e.g. radio) is muted automatically.
Navigation processor, GPS control module and gyrosensor
The navigation processor is the central component of the navigation system.
It is integrated into the radio (A2) and from the incoming signals continuously calculates the location and once
the destination is entered calculates the route for navigation. The GPS receiver is integrated into the navigation
processor. It evaluates the satellite signals and calculates from them the vehicle position in degrees longitude
and latitude. Various GPS antennae are used to receive these signals depending on the vehicle model:
Model 163: telephone and GPS roof antenna (A2/49)
Models 168, 208.3, 210: GPS antenna (A2/49a2)
Models 170, 208.4: GPS rear antenna (A2/23a2)
Model 209: GPS antenna (A2/23)
Reception from at least 3 satellites is necessary for exact GPS position calculation. A free view of the sky is
required for this purpose.
The integrated gyrosensor continuously senses every change in direction of the vehicle. Evaluation of this data
is accomplished by the navigation processor.
Calibration of the gyrosensor is not required.

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 101 © 2006 Mitchell Repair Information Company, LLC.

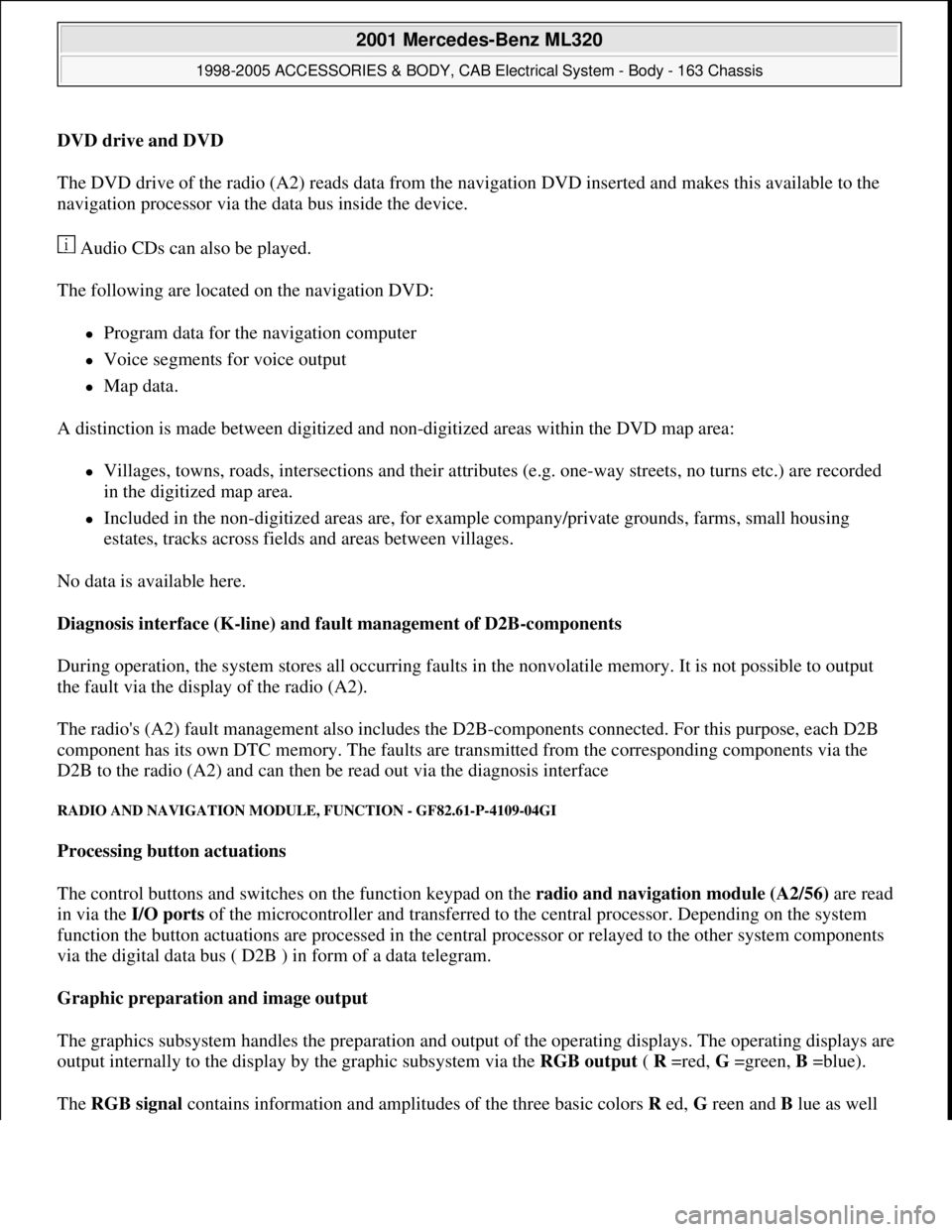

DVD drive and DVD
The DVD drive of the radio (A2) reads data from the navigation DVD inserted and makes this available to the
navigation processor via the data bus inside the device.
Audio CDs can also be played.
The following are located on the navigation DVD:
Program data for the navigation computer
Voice segments for voice output
Map data.
A distinction is made between digitized and non-digitized areas within the DVD map area:
Villages, towns, roads, intersections and their attributes (e.g. one-way streets, no turns etc.) are recorded
in the digitized map area.
Included in the non-digitized areas are, for example company/private grounds, farms, small housing
estates, tracks across fields and areas between villages.
No data is available here.
Diagnosis interface (K-line) and fault management of D2B-components
During operation, the system stores all occurring faults in the nonvolatile memory. It is not possible to output
the fault via the display of the radio (A2).
The radio's (A2) fault management also includes the D2B-components connected. For this purpose, each D2B
component has its own DTC memory. The faults are transmitted from the corresponding components via the
D2B to the radio (A2) and can then be read out via the diagnosis interface
RADIO AND NAVIGATION MODULE, FUNCTION - GF82.61-P-4109-04GI
Processing button actuations
The control buttons and switches on the function keypad on the radio and navigation module (A2/56)are read
in via the I/O ports of the microcontroller and transferred to the central processor. Depending on the system
function the button actuations are processed in the central processor or relayed to the other system components
via the digital data bus ( D2B ) in form of a data telegram.
Graphic preparation and image output
The graphics subsystem handles the preparation and output of the operating displays. The operating displays are
output internally to the display by the graphic subsystem via the RGB output ( R =red, G =green, B =blue).
The RGB signal contains information and amplitudes of the three basic colors Red, G reen and Blue as well

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 102 © 2006 Mitchell Repair Information Company, LLC.

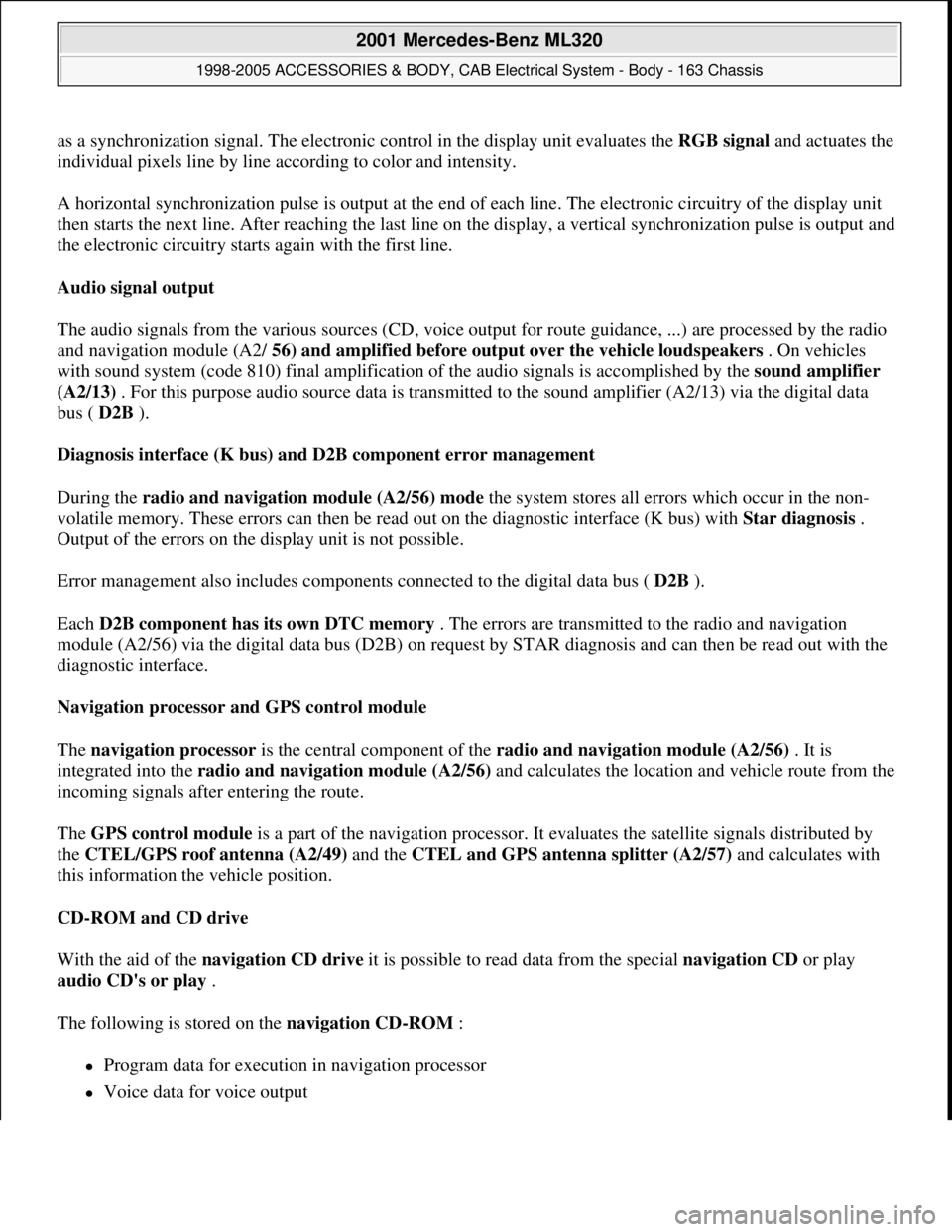

as a synchronization signal. The electronic control in the display unit evaluates the RGB signaland actuates the
individual pixels line by line according to color and intensity.
A horizontal synchronization pulse is output at the end of each line. The electronic circuitry of the display unit
then starts the next line. After reaching the last line on the display, a vertical synchronization pulse is output and
the electronic circuitry starts again with the first line.
Audio signal output
The audio signals from the various sources (CD, voice output for route guidance, ...) are processed by the radio
and navigation module (A2/ 56) and amplified before output over the vehicle loudspeakers . On vehicles
with sound system (code 810) final amplification of the audio signals is accomplished by the sound amplifier
(A2/13) . For this purpose audio source data is transmitted to the sound amplifier (A2/13) via the digital data
bus ( D2B ).
Diagnosis interface (K bus) and D2B component error management
During the radio and navigation module (A2/56) mode the system stores all errors which occur in the non-
volatile memory. These errors can then be read out on the diagnostic interface (K bus) with Star diagnosis .
Output of the errors on the display unit is not possible.
Error management also includes components connected to the digital data bus ( D2B ).
Each D2B component has its own DTC memory . The errors are transmitted to the radio and navigation
module (A2/56) via the digital data bus (D2B) on request by STAR diagnosis and can then be read out with the
diagnostic interface.
Navigation processor and GPS control module
The navigation processor is the central component of the radio and navigation module (A2/56) . It is
integrated into the radio and navigation module (A2/56)and calculates the location and vehicle route from the
incoming signals after entering the route.
The GPS control module is a part of the navigation processor. It evaluates the satellite signals distributed by
the CTEL/GPS roof antenna (A2/49) and the CTEL and GPS antenna splitter (A2/57) and calculates with
this information the vehicle position.
CD-ROM and CD drive
With the aid of the navigation CD drive it is possible to read data from the special navigation CD or play
audio CD's or play .
The following is stored on the navigation CD-ROM :
Program data for execution in navigation processor
Voice data for voice output

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 103 © 2006 Mitchell Repair Information Company, LLC.

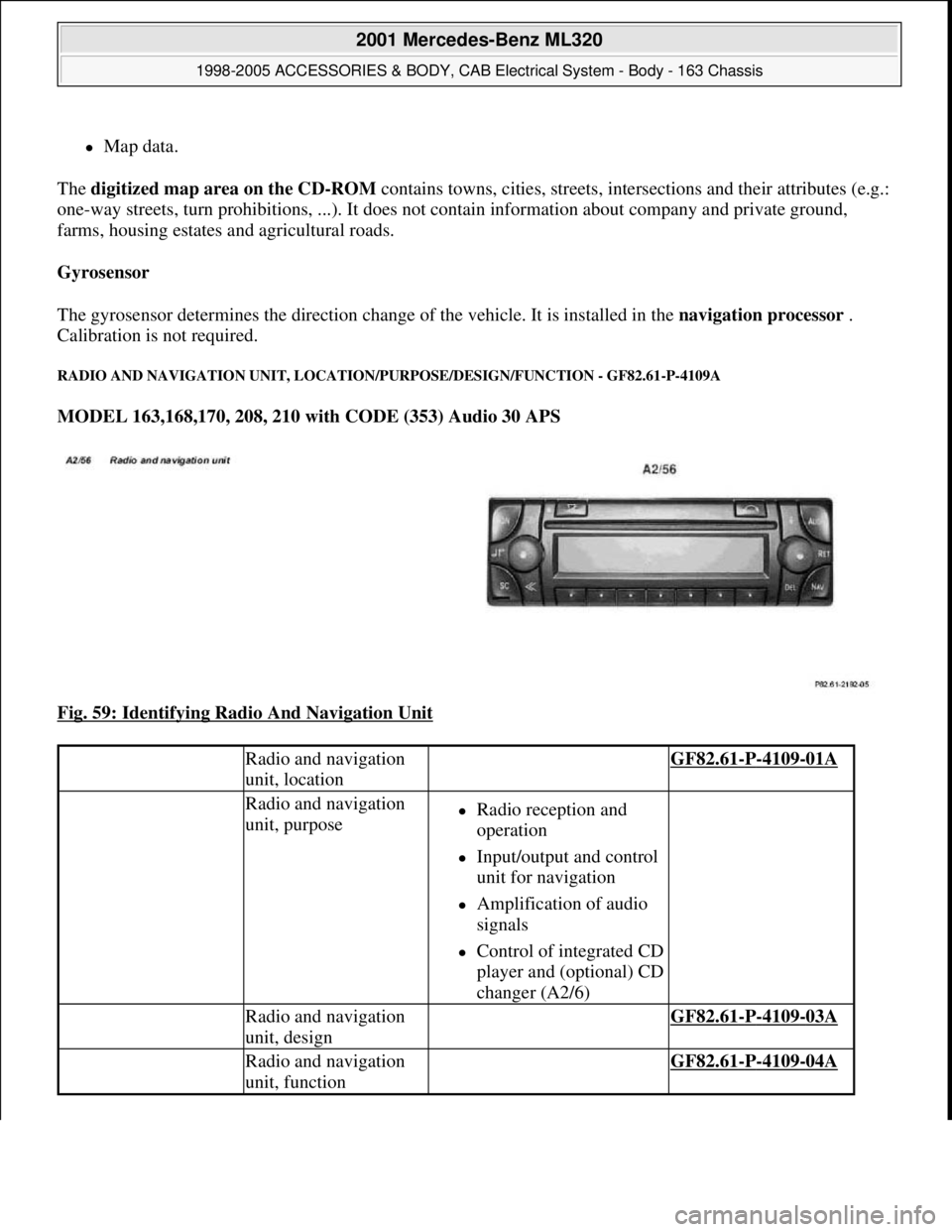

Map data.
The digitized map area on the CD-ROM contains towns, cities, streets, intersections and their attributes (e.g.:
one-way streets, turn prohibitions, ...). It does not contain information about company and private ground,
farms, housing estates and agricultural roads.
Gyrosensor
The gyrosensor determines the direction change of the vehicle. It is installed in the navigation processor .
Calibration is not required.
RADIO AND NAVIGATION UNIT, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.61-P-4109A
MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS
Fig. 59: Identifying Radio And Navigation Unit

Radio and navigation
unit, location GF82.61-P-4109-01A
Radio and navigation
unit, purposeRadio reception and
operation
Input/output and control
unit for navigation
Amplification of audio
signals
Control of integrated CD
player and (optional) CD
changer (A2/6)

Radio and navigation
unit, design GF82.61-P-4109-03A
Radio and navigation
unit, function GF82.61-P-4109-04A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 104 © 2006 Mitchell Repair Information Company, LLC.

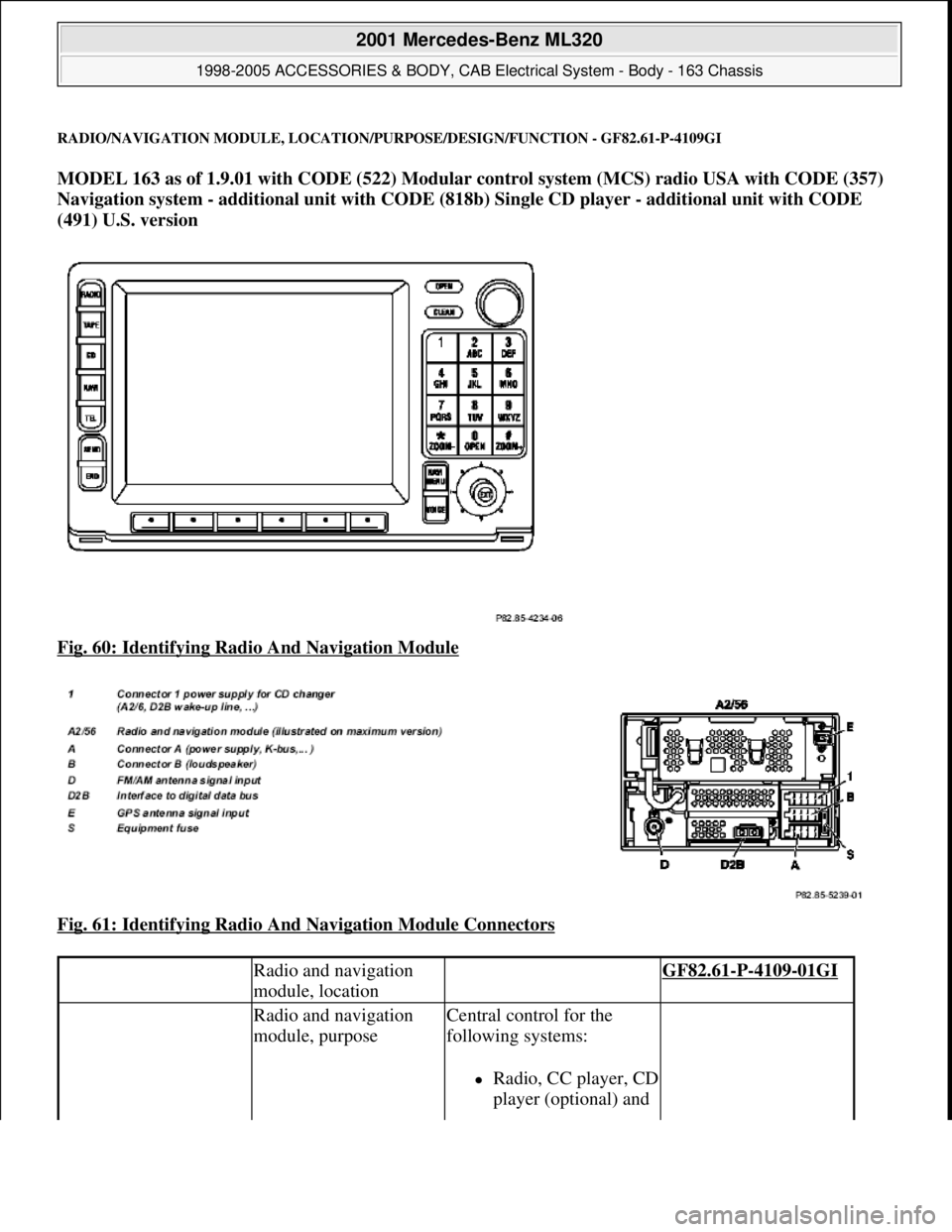

RADIO/NAVIGATION MODULE , LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.61-P-4109GI
MODEL 163 as of 1.9.01 with CODE (522) Modular cont rol system (MCS) radio USA with CODE (357)
Navigation system - additional uni t with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
Fig. 60: Identifying Radio And Navigation Module

Fig. 61: Identifying Radio And Navigation Module Connectors

Radio and navigation
module, location GF82.61-P-4109-01GI
Radio and navigation
module, purposeCentral control for the
following systems:
Radio, CC player, CD
player (optional) and


2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 105 © 2006 Mitchell Repair Information Company, LLC.
