MERCEDES-BENZ ML430 1997 Complete Repair Manual

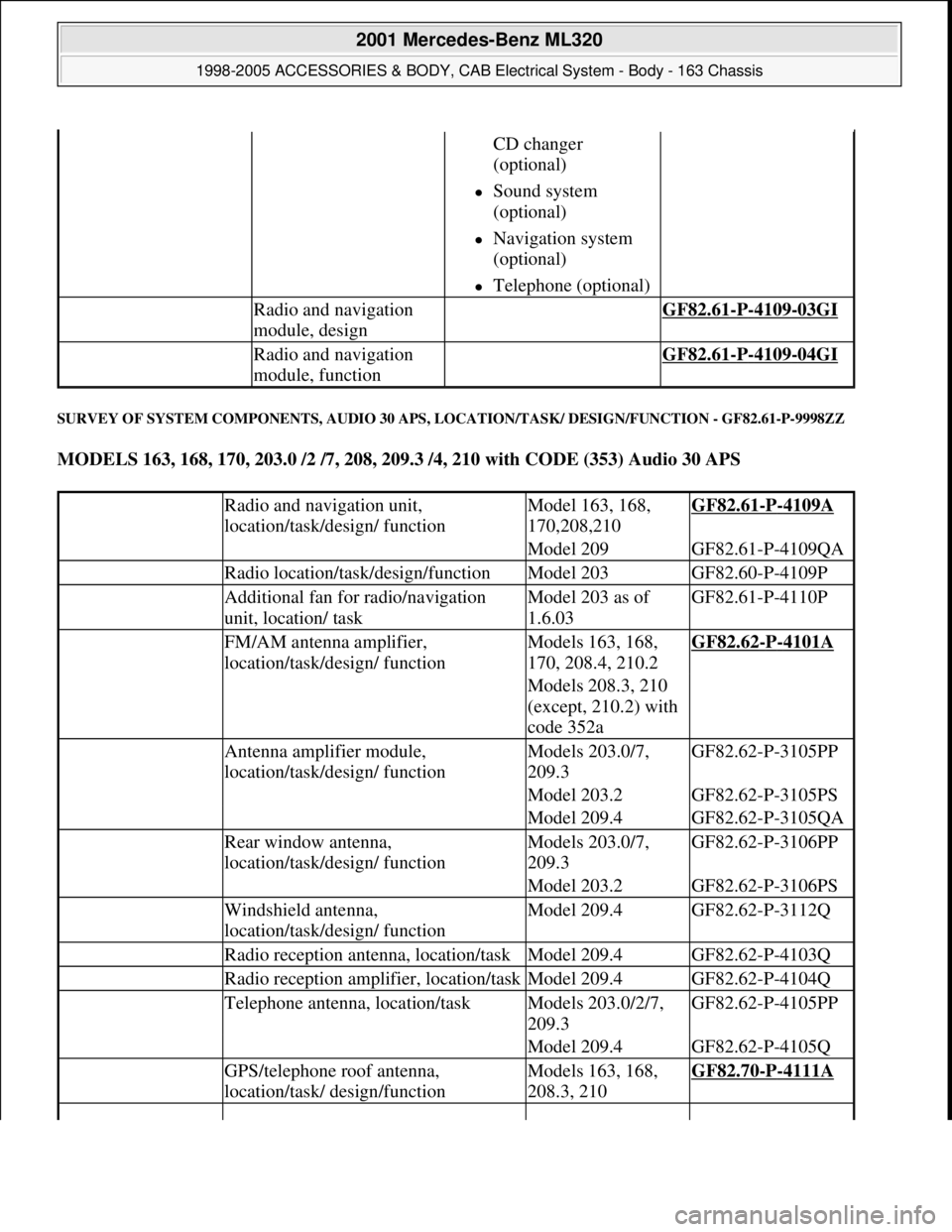

SURVEY OF SYSTEM COMPONENTS, AUDIO 30 APS, LOCATION/TASK/ DESIGN/FUNCTION - GF82.61-P-9998ZZ
MODELS 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
CD changer
(optional)
Sound system
(optional)
Navigation system
(optional)
Telephone (optional)
Radio and navigation
module, design GF82.61-P-4109-03GI
Radio and navigation
module, function GF82.61-P-4109-04GI
Radio and navigation unit,
location/task/design/ functionModel 163, 168,
170,208,210GF82.61-P-4109A
Model 209GF82.61-P-4109QA
Radio location/task/design/functionModel 203GF82.60-P-4109P
Additional fan for radio/navigation
unit, location/ taskModel 203 as of
1.6.03GF82.61-P-4110P
FM/AM antenna amplifier,
location/task/design/ functionModels 163, 168,
170, 208.4, 210.2GF82.62-P-4101A
Models 208.3, 210
(except, 210.2) with
code 352a
Antenna amplifier module,
location/task/design/ functionModels 203.0/7,
209.3GF82.62-P-3105PP
Model 203.2GF82.62-P-3105PS
Model 209.4GF82.62-P-3105QA
Rear window antenna,
location/task/design/ functionModels 203.0/7,
209.3GF82.62-P-3106PP
Model 203.2GF82.62-P-3106PS
Windshield antenna,
location/task/design/ functionModel 209.4GF82.62-P-3112Q
Radio reception antenna, location/taskModel 209.4GF82.62-P-4103Q
Radio reception amplifier, location/taskModel 209.4GF82.62-P-4104Q
Telephone antenna, location/taskModels 203.0/2/7,
209.3GF82.62-P-4105PP
Model 209.4GF82.62-P-4105Q
GPS/telephone roof antenna,
location/task/ design/functionModels 163, 168,
208.3, 210GF82.70-P-4111A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 106 © 2006 Mitchell Repair Information Company, LLC.

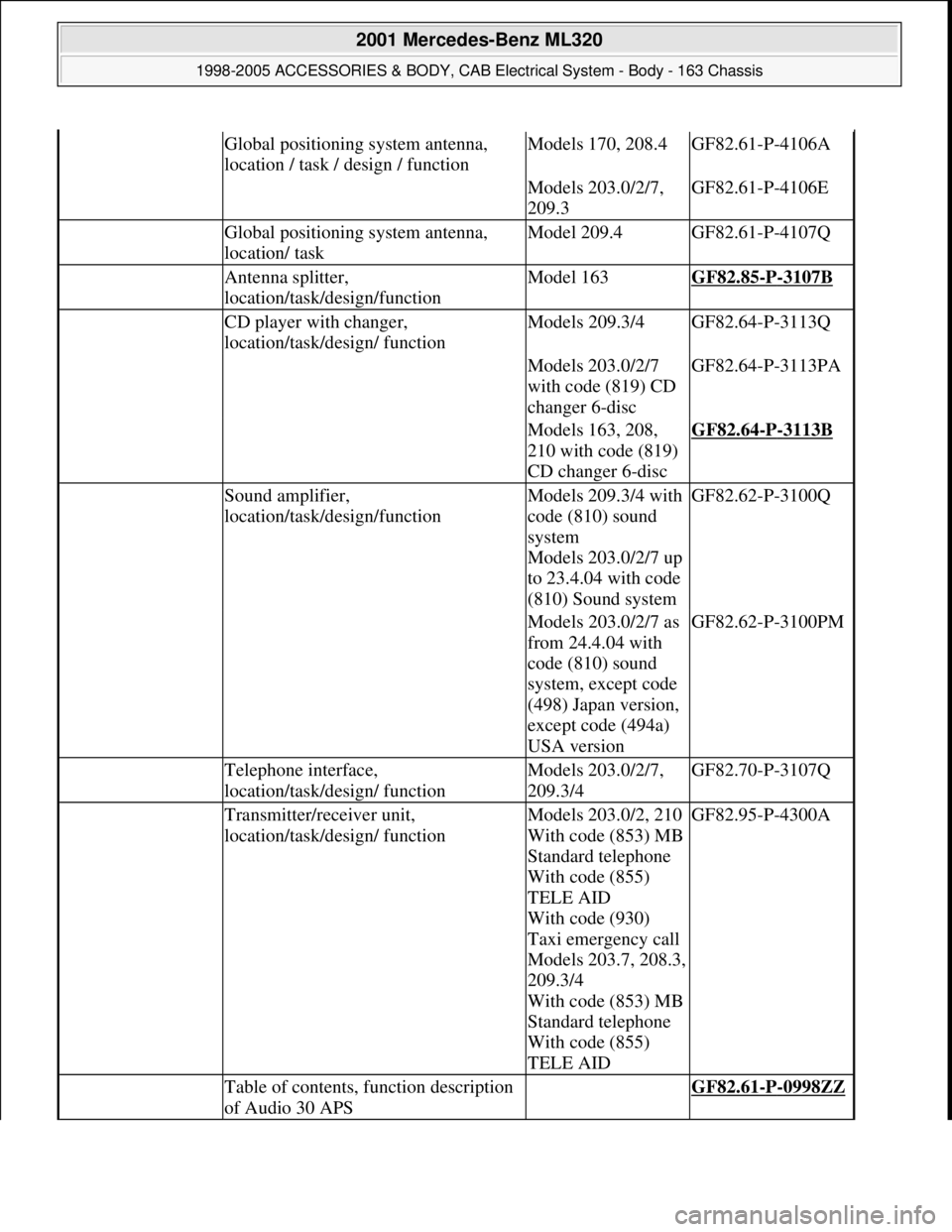

Global positioning system antenna,
location / task / design / functionModels 170, 208.4GF82.61-P-4106A
Models 203.0/2/7,
209.3GF82.61-P-4106E
Global positioning system antenna,
location/ taskModel 209.4GF82.61-P-4107Q
Antenna splitter,
location/task/design/functionModel 163GF82.85-P-3107B
CD player with changer,
location/task/design/ functionModels 209.3/4GF82.64-P-3113Q
Models 203.0/2/7
with code (819) CD
changer 6-discGF82.64-P-3113PA
Models 163, 208,
210 with code (819)
CD changer 6-discGF82.64-P-3113B
Sound amplifier,
location/task/design/functionModels 209.3/4 with
code (810) sound
system
Models 203.0/2/7 up
to 23.4.04 with code
(810) Sound systemGF82.62-P-3100Q
Models 203.0/2/7 as
from 24.4.04 with
code (810) sound
system, except code
(498) Japan version,
except code (494a)
USA versionGF82.62-P-3100PM
Telephone interface,
location/task/design/ functionModels 203.0/2/7,
209.3/4GF82.70-P-3107Q
Transmitter/receiver unit,
location/task/design/ functionModels 203.0/2, 210
With code (853) MB
Standard telephone
With code (855)
TELE AID
With code (930)
Taxi emergency call
Models 203.7, 208.3,
209.3/4
With code (853) MB
Standard telephone
With code (855)
TELE AIDGF82.95-P-4300A
Table of contents, function description
of Audio 30 APS GF82.61-P-0998ZZ

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 107 © 2006 Mitchell Repair Information Company, LLC.

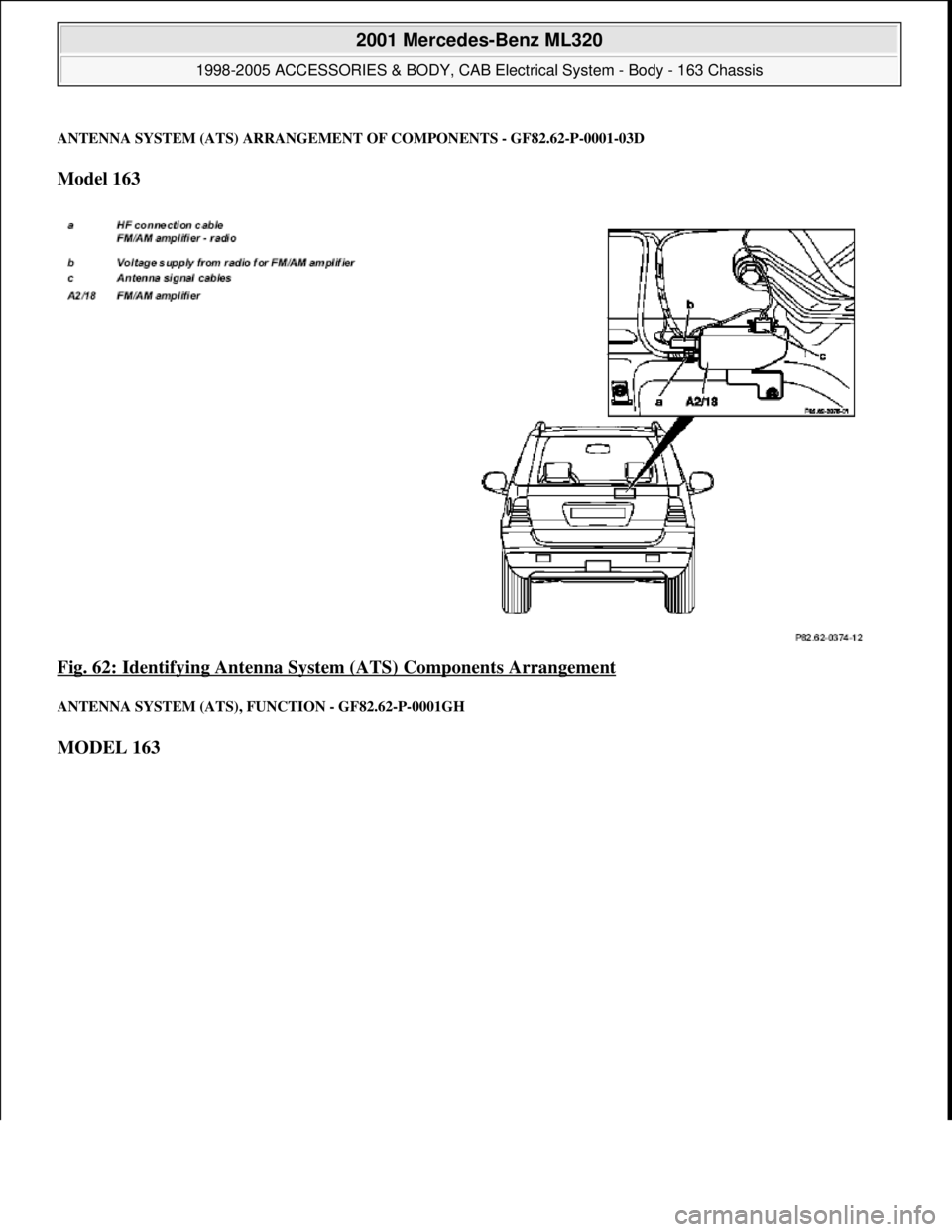

ANTENNA SYSTEM (ATS) ARRANGEMENT OF COMPONENTS - GF82.62-P-0001-03D
Model 163
Fig. 62: Identifying Antenna System (ATS) Components Arrangement

ANTENNA SYSTEM (ATS), FUNCTION - GF82.62-P-0001GH
MODEL 163

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 108 © 2006 Mitchell Repair Information Company, LLC.

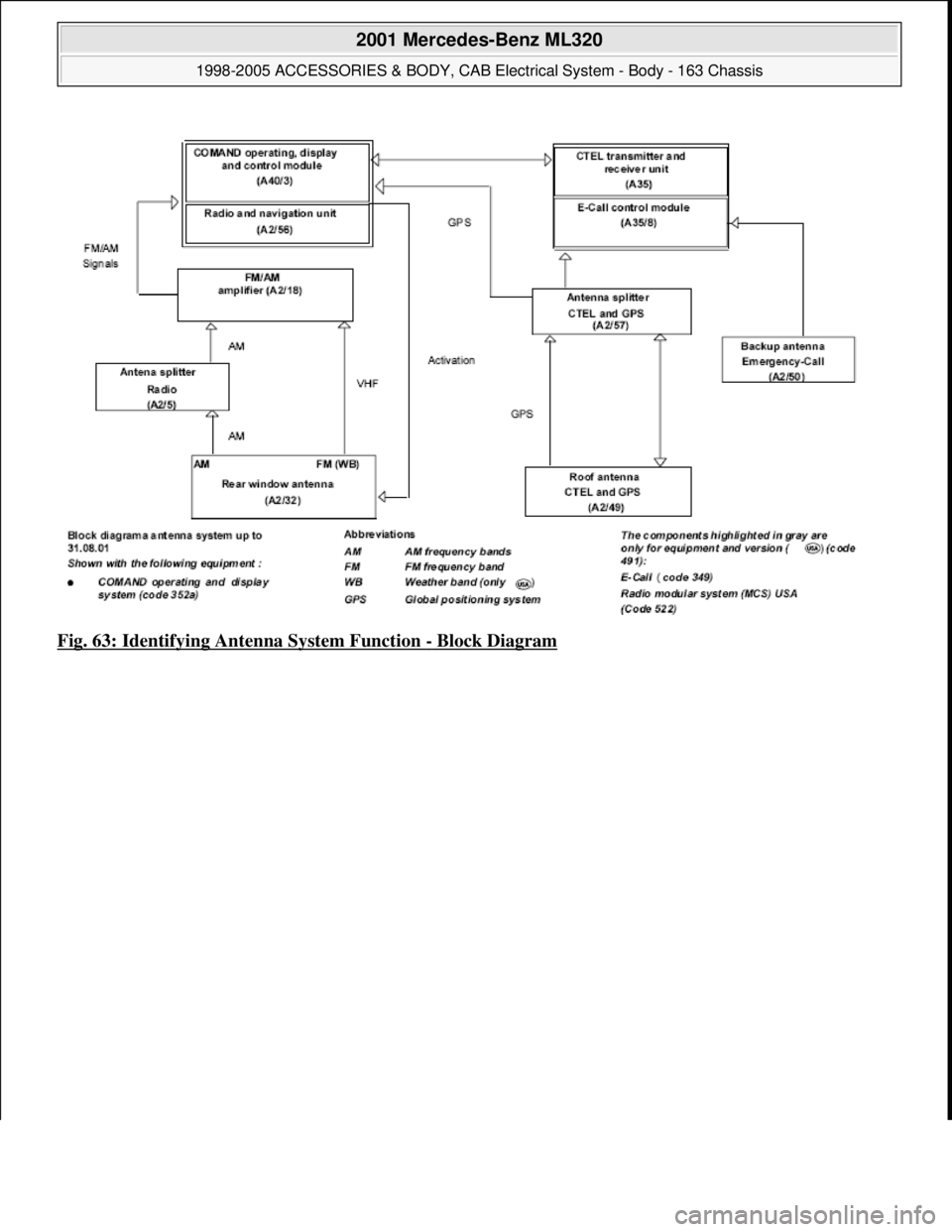

Fig. 63: Identifying Antenna System Function - Block Diagram

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 109 © 2006 Mitchell Repair Information Company, LLC.

Fig. 64: Identifying Antenna System Block Diagram (01.09.01)
Preliminary remark
This description concerns mainly the audio, CTEL and navigation antenna system for vehicles fitted with
COMAND or radio and navigation unit (MCS).
General
The different antennas are matched in terms of design to their specific reception and transmitting ranges.
A distinction must be made between passive and active antennas:
Passive antennas do not require a voltage supply, they can therefore not directly amplify the radio signal
received.
Active antennas are supplied with voltage. They feature an integrated amplifier.
The voltage can be supplied over separate cables or over the coaxial cables over which the actual signals are
transmitted simultaneously ( phantom feed ) . In this case, no separate leads are required for the power
supply .

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 110 © 2006 Mitchell Repair Information Company, LLC.

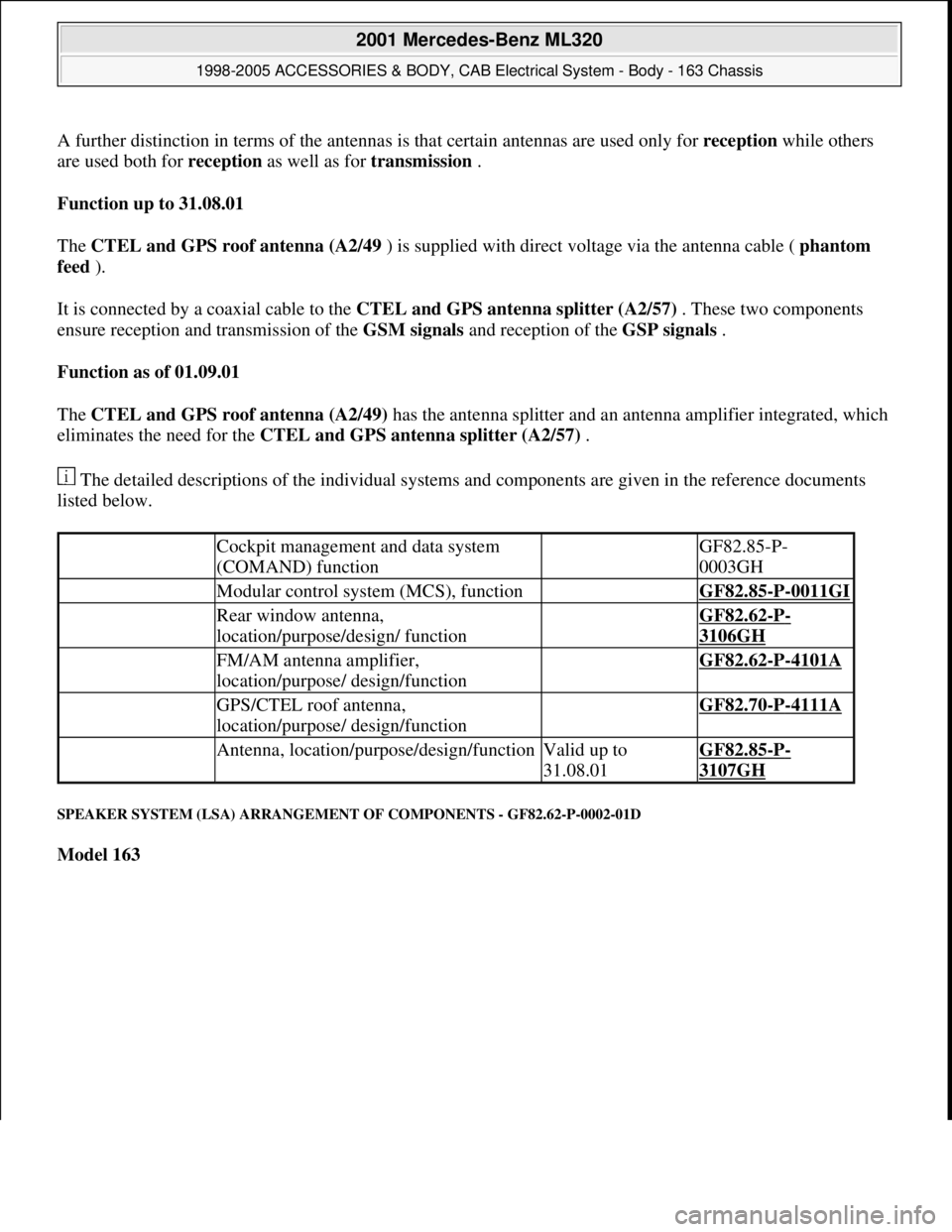

A further distinction in terms of the antennas is that certain antennas are used only for receptionwhile others
are used both for reception as well as for transmission .
Function up to 31.08.01
The CTEL and GPS roof antenna (A2/49 ) is supplied with direct voltage via the antenna cable ( phantom
feed ).
It is connected by a coaxial cable to the CTEL and GPS antenna splitter (A2/57) . These two components
ensure reception and transmission of the GSM signals and reception of the GSP signals .
Function as of 01.09.01
The CTEL and GPS roof antenna (A2/49) has the antenna splitter and an antenna amplifier integrated, which
eliminates the need for the CTEL and GPS antenna splitter (A2/57) .
The detailed descriptions of the individual systems and components are given in the reference documents
listed below.
SPEAKER SYSTEM (LSA) ARRANGEMENT OF COMPONENTS - GF82.62-P-0002-01D
Model 163
Cockpit management and data system
(COMAND) function GF82.85-P-
0003GH
Modular control system (MCS), function GF82.85-P-0011GI
Rear window antenna,
location/purpose/design/ function GF82.62-P-
3106GH
FM/AM antenna amplifier,
location/purpose/ design/function GF82.62-P-4101A
GPS/CTEL roof antenna,
location/purpose/ design/function GF82.70-P-4111A
Antenna, location/purpose/design/functionValid up to
31.08.01GF82.85-P-
3107GH

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 111 © 2006 Mitchell Repair Information Company, LLC.

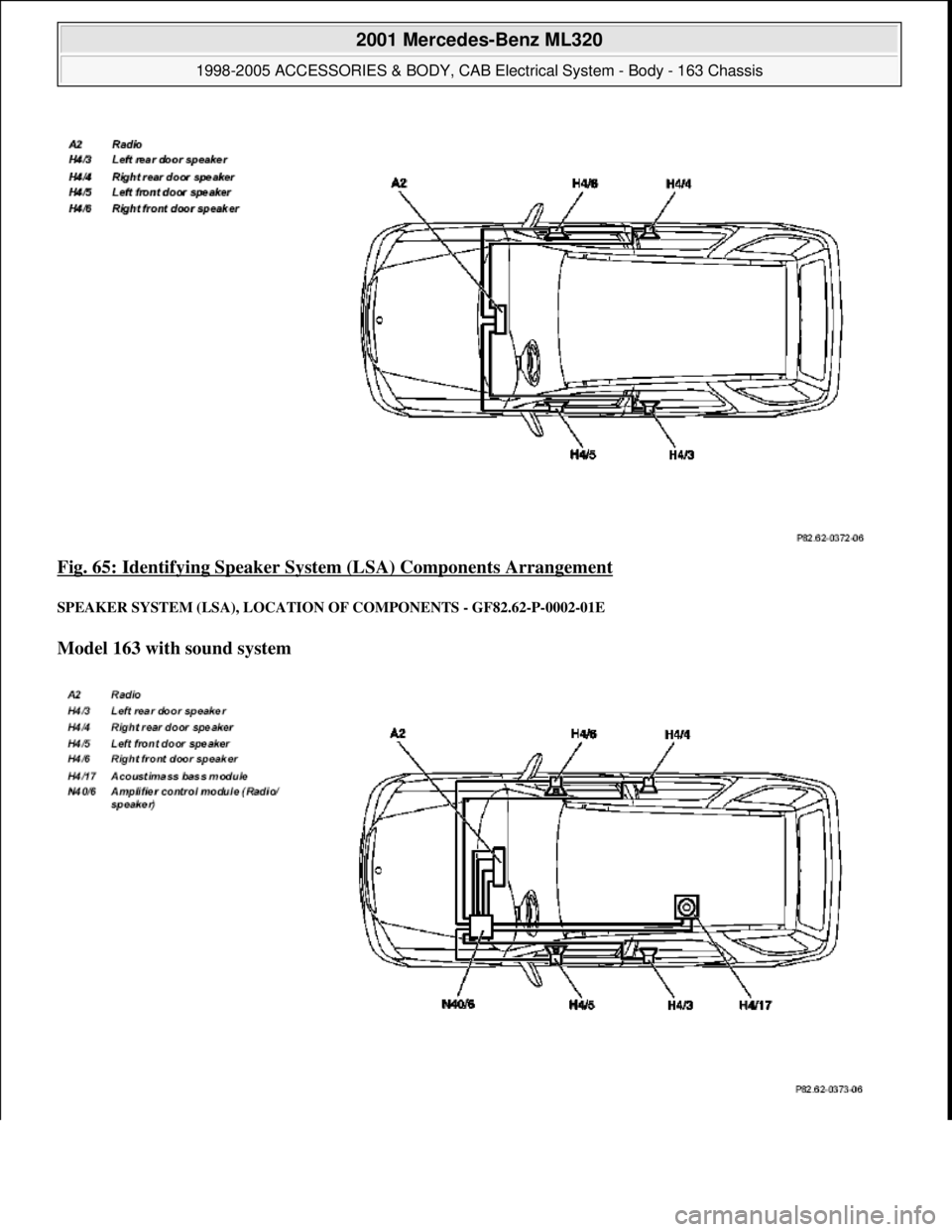

Fig. 65: Identifying Speaker System (LSA) Components Arrangement
SPEAKER SYSTEM (LSA), LOCATION OF COMPONENTS - GF82.62-P-0002-01E
Model 163 with sound system

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 112 © 2006 Mitchell Repair Information Company, LLC.

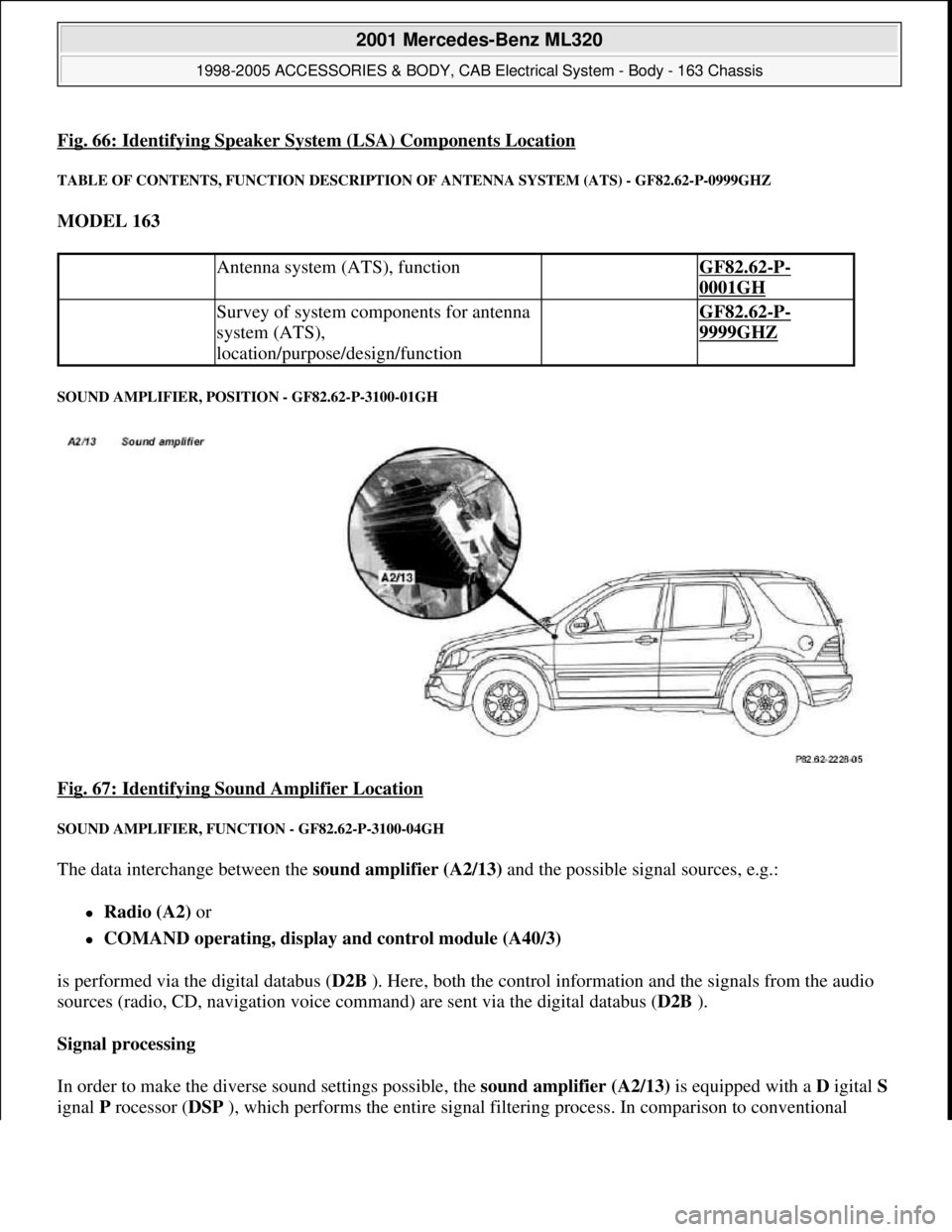

Fig. 66: Identifying Speaker System (LSA) Components Location
TABLE OF CONTENTS, FUNCTION DESCRIPTION OF ANTENNA SYSTEM (ATS) - GF82.62-P-0999GHZ
MODEL 163
SOUND AMPLIFIER, POSITION - GF82.62-P-3100-01GH
Fig. 67: Identifying Sound Amplifier Location
SOUND AMPLIFIER, FUNCTION - GF82.62-P-3100-04GH
The data interchange between the sound amplifier (A2/13) and the possible signal sources, e.g.:
Radio (A2) or
COMAND operating, display and control module (A40/3)
is performed via the digital databus (D2B ). Here, both the control information and the signals from the audio
sources (radio, CD, navigation voice command) are sent via the digital databus (D2B ).
Signal processing
In order to make the diverse sound settings possible, the sound amplifier (A2/13) is equipped with a D igital S
ignal P rocessor (DSP ), which performs the entire signal filtering process. In comparison to conventional
Antenna system (ATS), function GF82.62-P-
0001GH
Survey of system components for antenna
system (ATS),
location/purpose/design/function GF82.62-P-
9999GHZ

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 113 © 2006 Mitchell Repair Information Company, LLC.

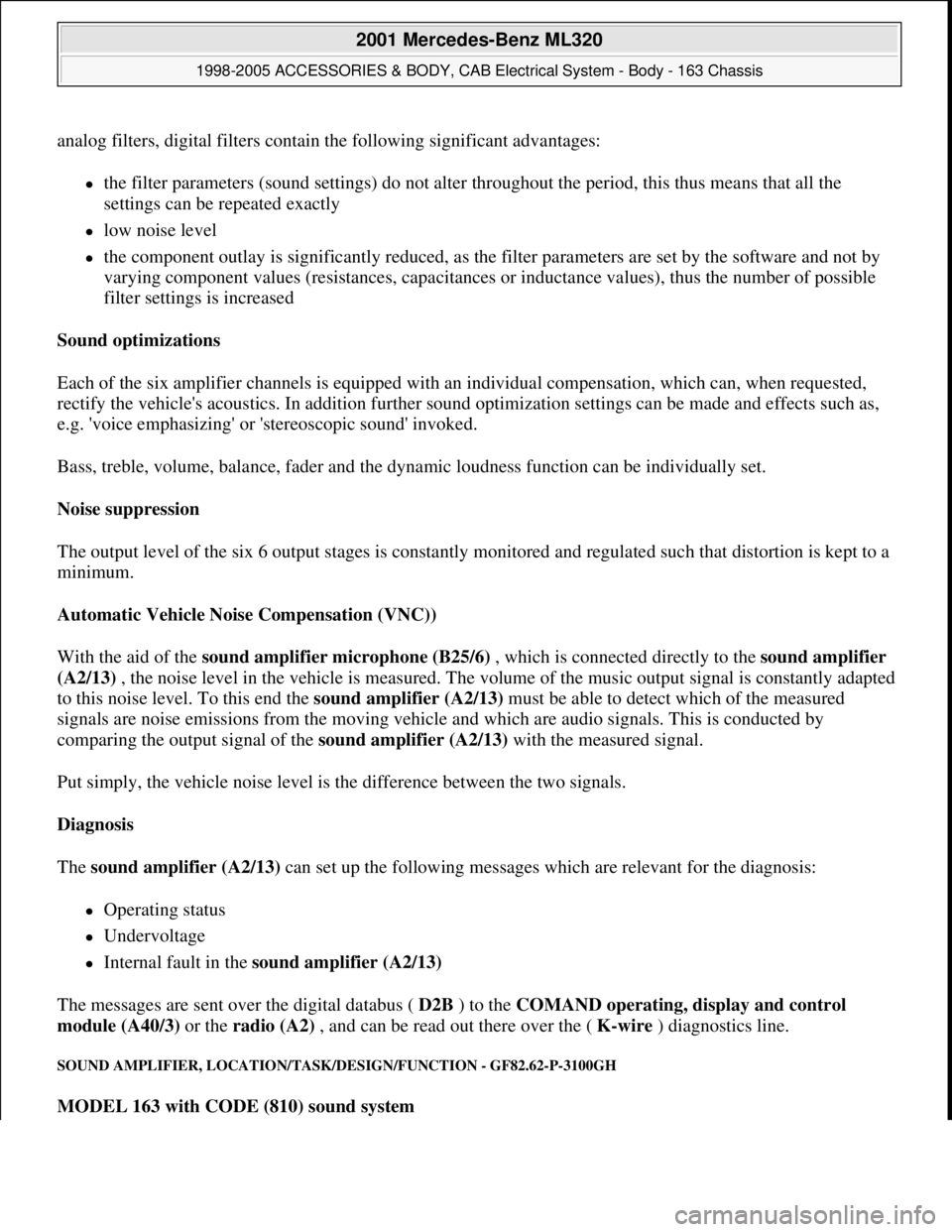

analog filters, digital filters contain the following significant advantages:
the filter parameters (sound settings) do not alter throughout the period, this thus means that all the
settings can be repeated exactly
low noise level
the component outlay is significantly reduced, as the filter parameters are set by the software and not by
varying component values (resistances, capacitances or inductance values), thus the number of possible
filter settings is increased
Sound optimizations
Each of the six amplifier channels is equipped with an individual compensation, which can, when requested,
rectify the vehicle's acoustics. In addition further sound optimization settings can be made and effects such as,
e.g. 'voice emphasizing' or 'stereoscopic sound' invoked.
Bass, treble, volume, balance, fader and the dynamic loudness function can be individually set.
Noise suppression
The output level of the six 6 output stages is constantly monitored and regulated such that distortion is kept to a
minimum.
Automatic Vehicle Noise Compensation (VNC))
With the aid of the sound amplifier microphone (B25/6) , which is connected directly to the sound amplifier
(A2/13) , the noise level in the vehicle is measured. The volume of the music output signal is constantly adapted
to this noise level. To this end the sound amplifier (A2/13) must be able to detect which of the measured
signals are noise emissions from the moving vehicle and which are audio signals. This is conducted by
comparing the output signal of the sound amplifier (A2/13) with the measured signal.
Put simply, the vehicle noise level is the difference between the two signals.
Diagnosis
The sound amplifier (A2/13) can set up the following messages which are relevant for the diagnosis:
Operating status
Undervoltage
Internal fault in the sound amplifier (A2/13)
The messages are sent over the digital databus ( D2B ) to the COMAND operating, display and control
module (A40/3) or the radio (A2) , and can be read out there over the ( K-wire ) diagnostics line.
SOUND AMPLIFIER, LOCATION/TASK/DESIGN/FUNCTION - GF82.62-P-3100GH
MODEL 163 with CODE (810) sound system

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 114 © 2006 Mitchell Repair Information Company, LLC.

REAR WINDOW ANTENNAS, DESIGN - GF82.62-P-3106-03GH
Model 163
Antenna ranges

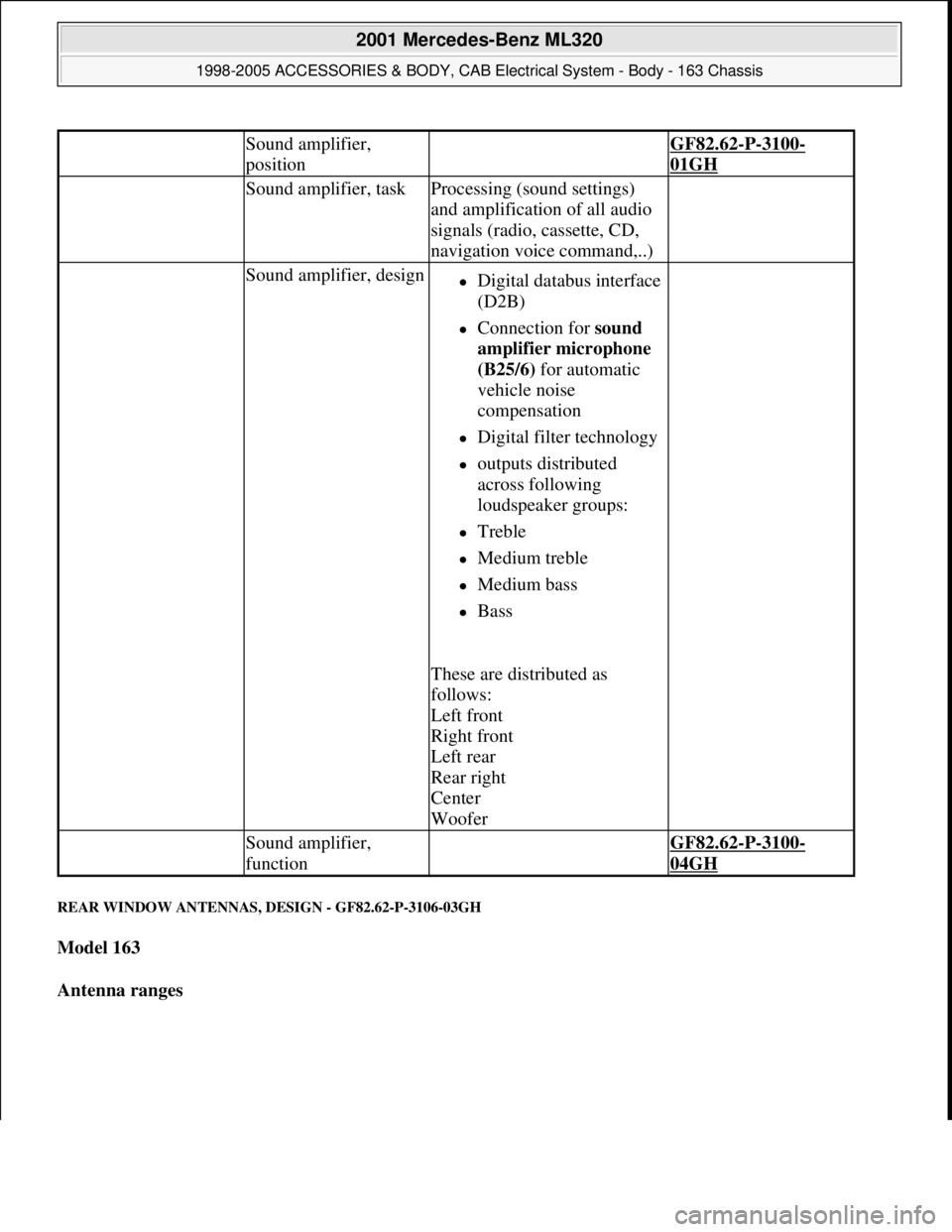

Sound amplifier,
position GF82.62-P-3100-
01GH
Sound amplifier, taskProcessing (sound settings)
and amplification of all audio
signals (radio, cassette, CD,
navigation voice command,..)
Sound amplifier, designDigital databus interface
(D2B)
Connection for sound
amplifier microphone
(B25/6) for automatic
vehicle noise
compensation
Digital filter technology
outputs distributed
across following
loudspeaker groups:
Treble
Medium treble
Medium bass
Bass

These are distributed as
follows:
Left front
Right front
Left rear
Rear right
Center
Woofer

Sound amplifier,
function GF82.62-P-3100-
04GH

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 115 © 2006 Mitchell Repair Information Company, LLC.
