MERCEDES-BENZ ML430 1997 Complete Repair Manual

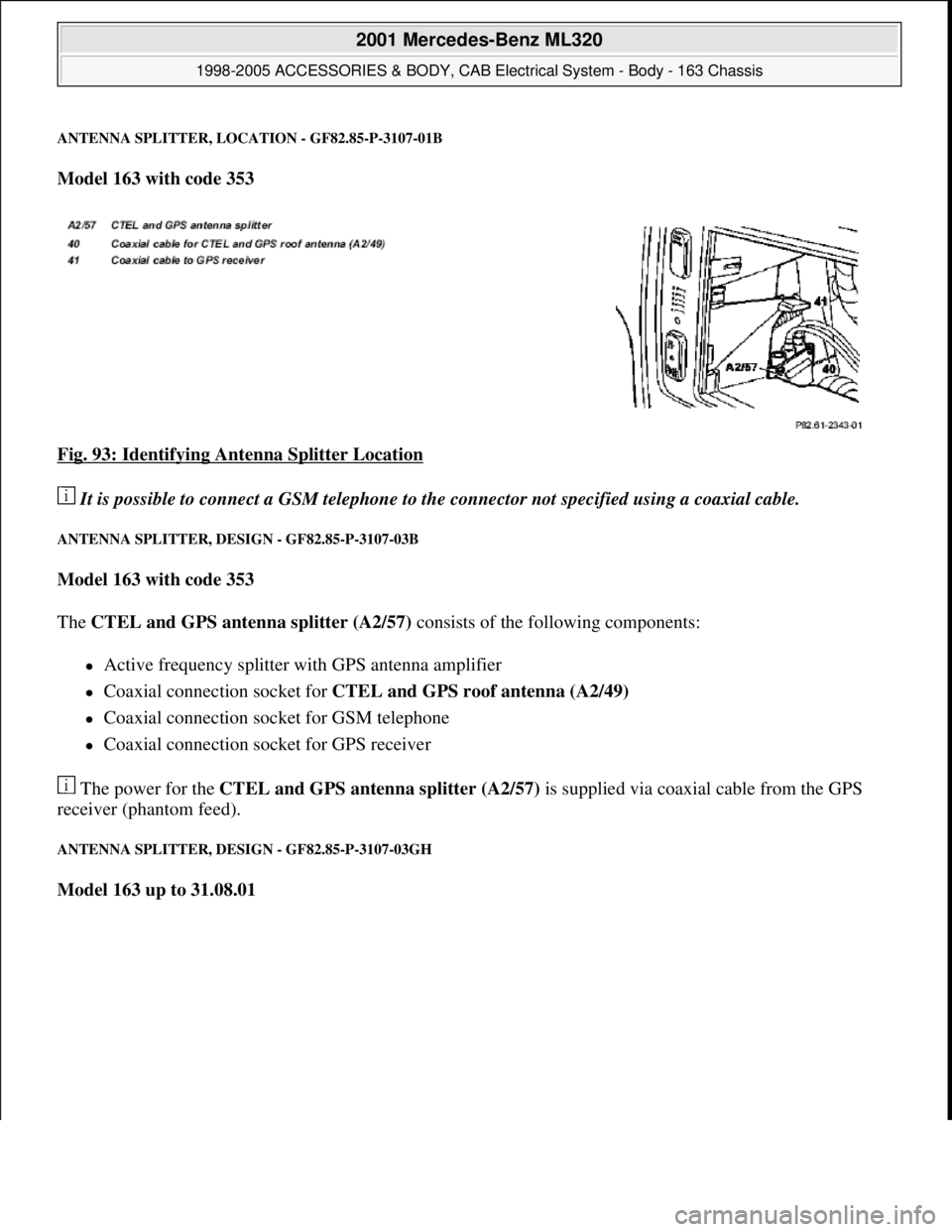

ANTENNA SPLITTER, LOCATION - GF82.85-P-3107-01B
Model 163 with code 353
Fig. 93: Identifying Antenna Splitter Location

It is possible to connect a GSM telephone to the connector not specified using a coaxial cable.
ANTENNA SPLITTER, DESIGN - GF82.85-P-3107-03B
Model 163 with code 353
The CTEL and GPS antenna splitter (A2/57) consists of the following components:
Active frequency splitter with GPS antenna amplifier
Coaxial connection socket for CTEL and GPS roof antenna (A2/49)
Coaxial connection socket for GSM telephone
Coaxial connection socket for GPS receiver
The power for the CTEL and GPS antenna splitter (A2/57) is supplied via coaxial cable from the GPS
receiver (phantom feed).
ANTENNA SPLITTER, DESIGN - GF82.85-P-3107-03GH
Model 163 up to 31.08.01

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 156 © 2006 Mitchell Repair Information Company, LLC.

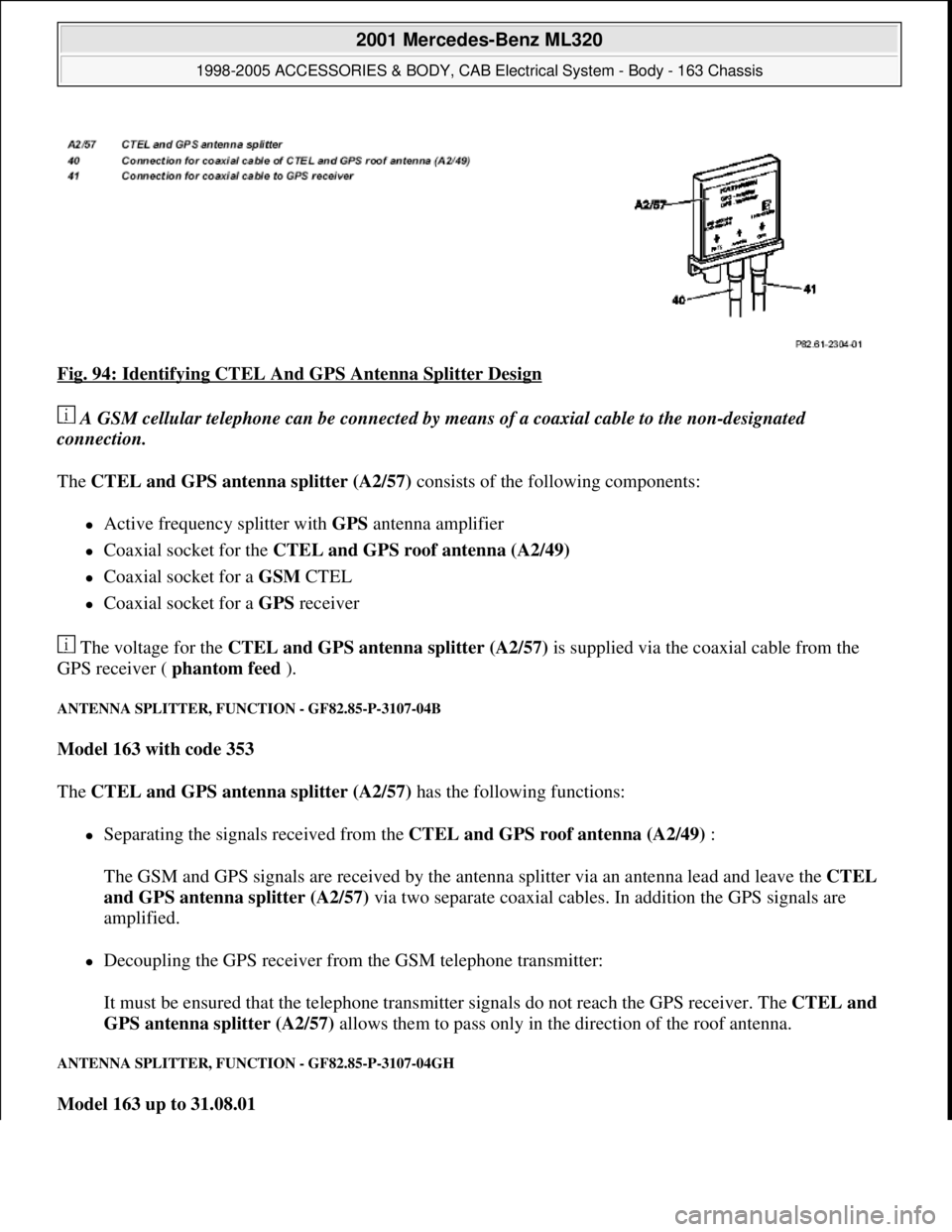

Fig. 94: Identifying CTEL And GPS Antenna Splitter Design
A GSM cellular telephone can be connected by means of a coaxial cable to the non-designated
connection.
The CTEL and GPS antenna splitter (A2/57) consists of the following components:
Active frequency splitter with GPS antenna amplifier
Coaxial socket for the CTEL and GPS roof antenna (A2/49)
Coaxial socket for a GSM CTEL
Coaxial socket for a GPS receiver
The voltage for the CTEL and GPS antenna splitter (A2/57) is supplied via the coaxial cable from the
GPS receiver ( phantom feed ).
ANTENNA SPLITTER, FUNCTION - GF82.85-P-3107-04B
Model 163 with code 353
The CTEL and GPS antenna splitter (A2/57) has the following functions:
Separating the signals received from the CTEL and GPS roof antenna (A2/49) :
The GSM and GPS signals are received by the antenna splitter via an antenna lead and leave the CTEL
and GPS antenna splitter (A2/57) via two separate coaxial cables. In addition the GPS signals are
amplified.
Decoupling the GPS receiver from the GSM telephone transmitter:
It must be ensured that the telephone transmitter signals do not reach the GPS receiver. The CTEL and
GPS antenna splitter (A2/57) allows them to pass only in the direction of the roof antenna.
ANTENNA SPLITTER, FUNCTION - GF82.85-P-3107-04GH
Model 163 up to 31.08.01

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 157 © 2006 Mitchell Repair Information Company, LLC.

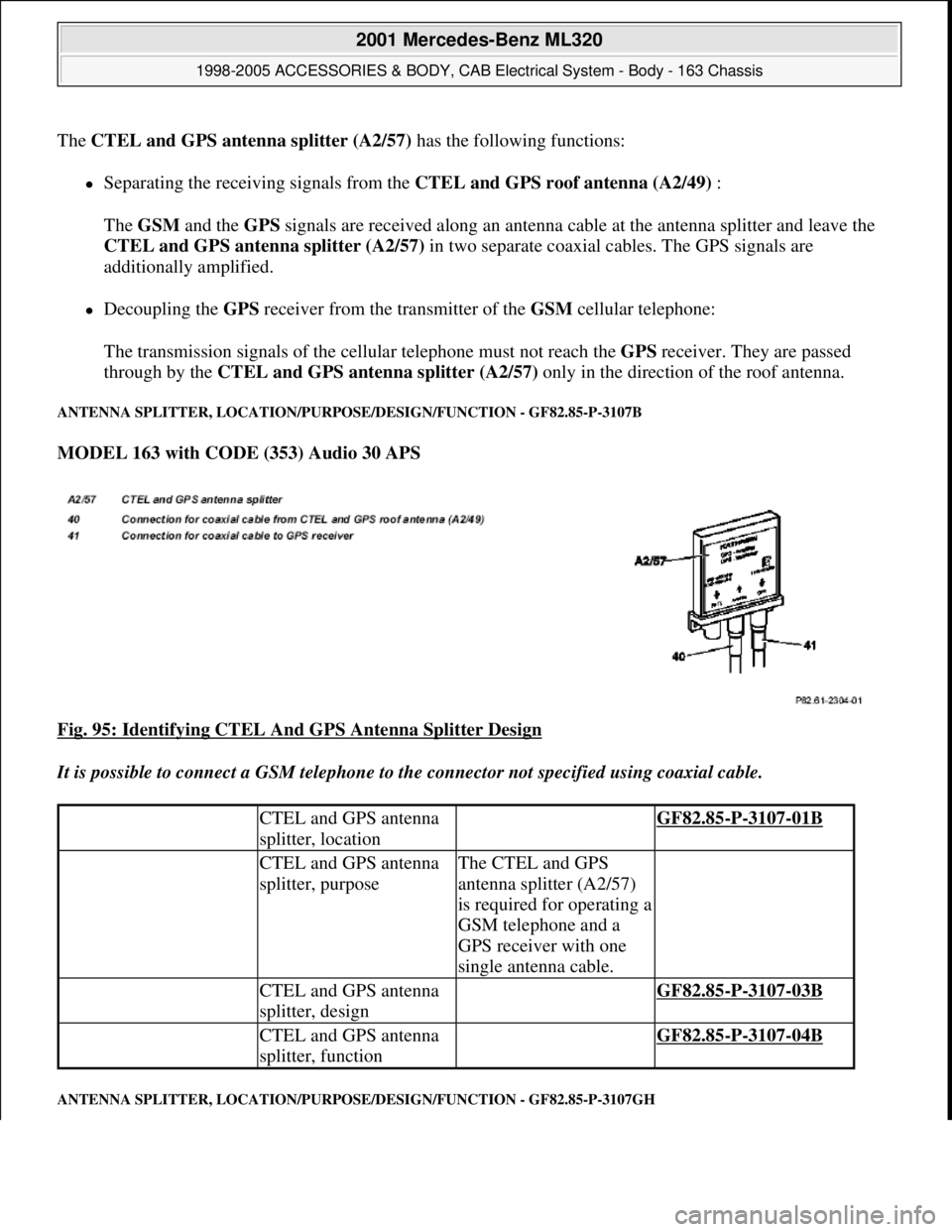

The CTEL and GPS antenna splitter (A2/57)has the following functions:
Separating the receiving signals from the CTEL and GPS roof antenna (A2/49) :
The GSM and the GPS signals are received along an antenna cable at the antenna splitter and leave the
CTEL and GPS antenna splitter (A2/57) in two separate coaxial cables. The GPS signals are
additionally amplified.
Decoupling the GPS receiver from the transmitter of the GSM cellular telephone:
The transmission signals of the cellular telephone must not reach the GPS receiver. They are passed
through by the CTEL and GPS antenna splitter (A2/57) only in the direction of the roof antenna.
ANTENNA SPLITTER, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.85-P-3107B
MODEL 163 with CODE (353) Audio 30 APS
Fig. 95: Identifying CTEL And GPS Antenna Splitter Design

It is possible to connect a GSM telephone to the connector not specified using coaxial cable.
ANTENNA SPLITTER, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.85-P-3107GH
CTEL and GPS antenna
splitter, location GF82.85-P-3107-01B
CTEL and GPS antenna
splitter, purposeThe CTEL and GPS
antenna splitter (A2/57)
is required for operating a
GSM telephone and a
GPS receiver with one
single antenna cable.
CTEL and GPS antenna
splitter, design GF82.85-P-3107-03B
CTEL and GPS antenna
splitter, function GF82.85-P-3107-04B

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 158 © 2006 Mitchell Repair Information Company, LLC.

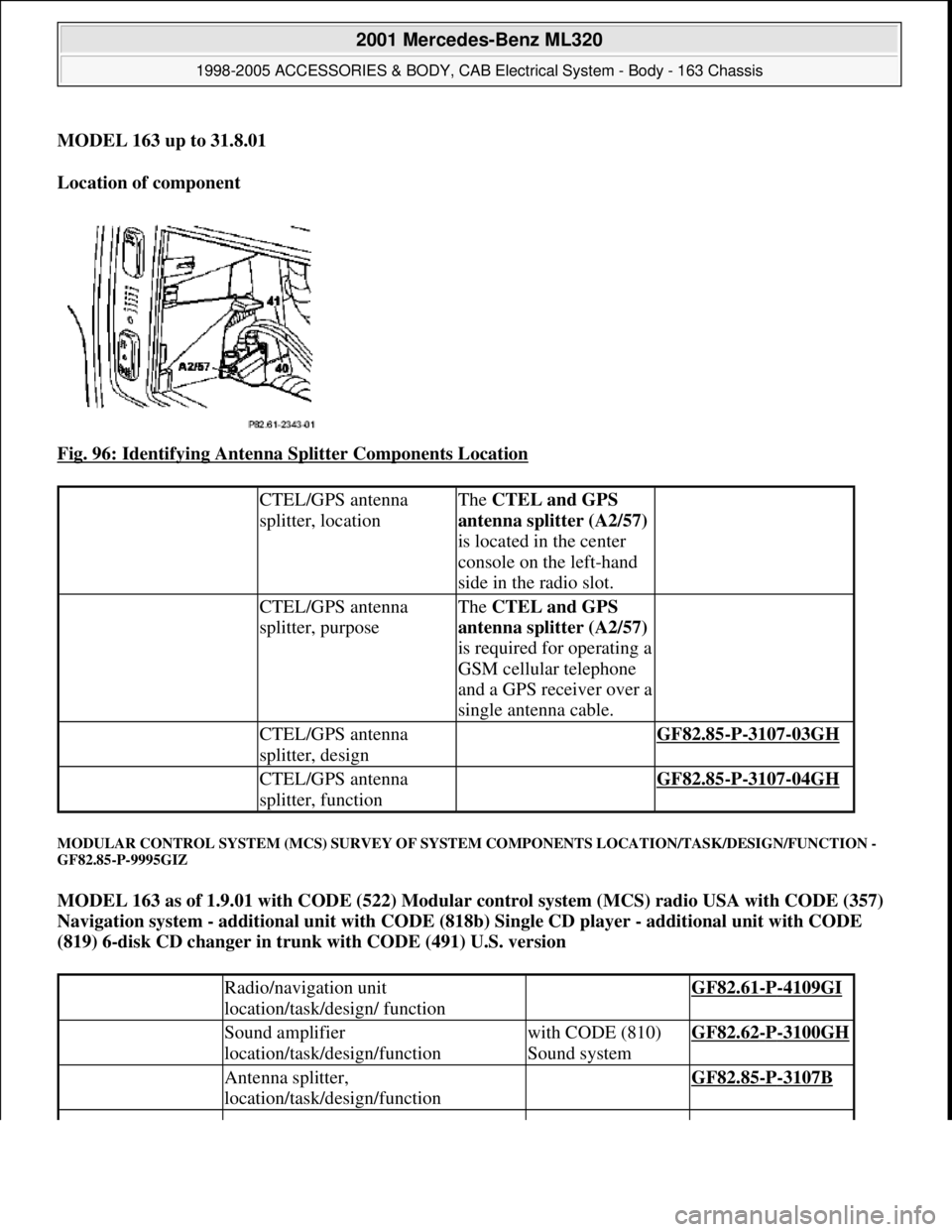

MODEL 163 up to 31.8.01
Location of component
Fig. 96: Identifying Antenna Splitter Components Location

MODULAR CONTROL SYSTEM (MCS) SURVEY OF SYSTEM COMPONENTS LOCATION/TASK/DESIGN/FUNCTION -
GF82.85-P-9995GIZ
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(819) 6-disk CD changer in trunk with CODE (491) U.S. version
CTEL/GPS antenna
splitter, locationThe CTEL and GPS
antenna splitter (A2/57)
is located in the center
console on the left-hand
side in the radio slot.
CTEL/GPS antenna
splitter, purposeThe CTEL and GPS
antenna splitter (A2/57)
is required for operating a
GSM cellular telephone
and a GPS receiver over a
single antenna cable.
CTEL/GPS antenna
splitter, design GF82.85-P-3107-03GH
CTEL/GPS antenna
splitter, function GF82.85-P-3107-04GH
Radio/navigation unit
location/task/design/ function GF82.61-P-4109GI
Sound amplifier
location/task/design/functionwith CODE (810)
Sound systemGF82.62-P-3100GH
Antenna splitter,
location/task/design/function GF82.85-P-3107B

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 159 © 2006 Mitchell Repair Information Company, LLC.

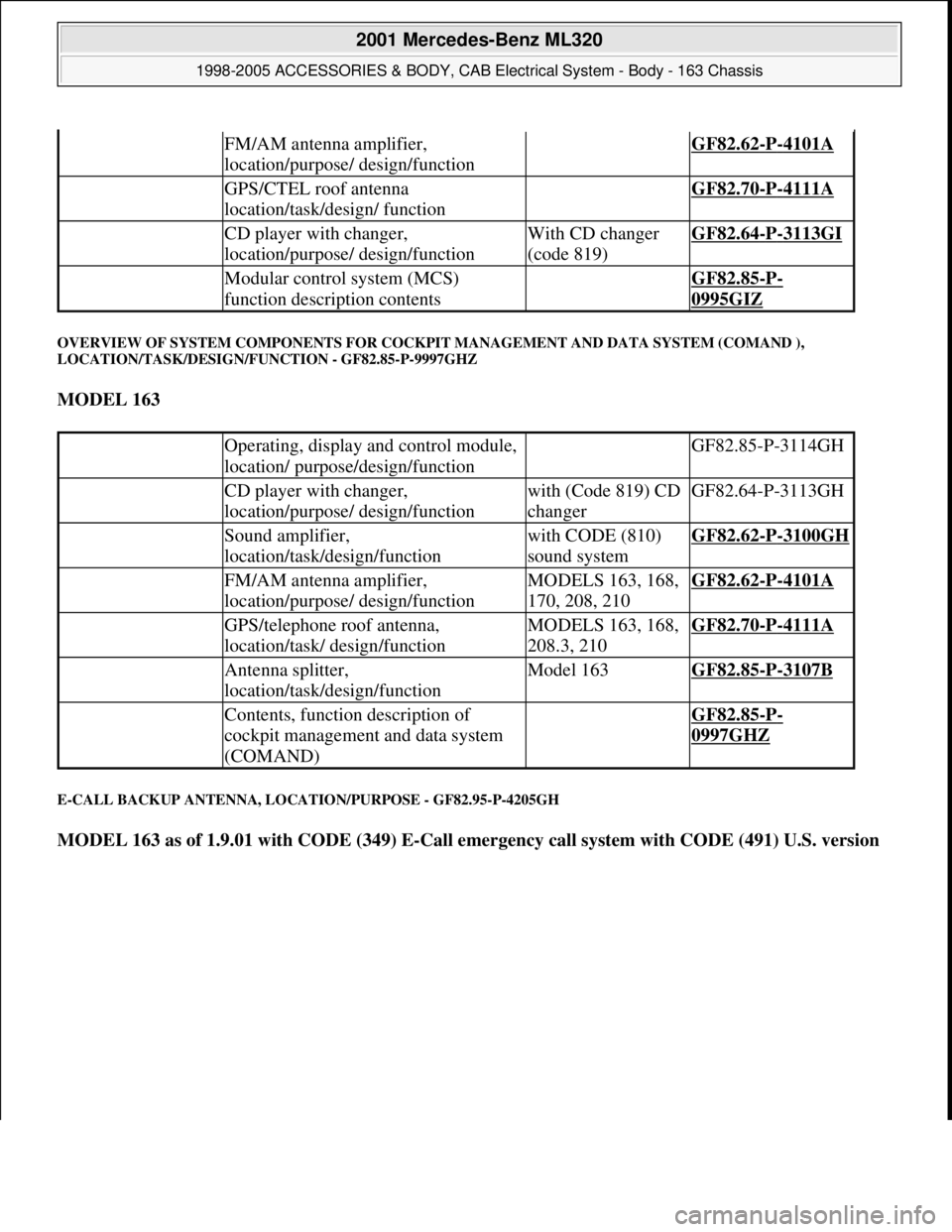

OVERVIEW OF SYSTEM COMPONENTS FOR COCKPIT MANAGEMENT AND DATA SYSTEM (COMAND ),
LOCATION/TASK/DESIGN/FUNCTION - GF82.85-P-9997GHZ
MODEL 163
E-CALL BACKUP ANTENNA, LOCATION/PURPOSE - GF82.95-P-4205GH
MODEL 163 as of 1.9.01 with CODE (349) E-Call emergency call system with CODE (491) U.S. version
FM/AM antenna amplifier,
location/purpose/ design/function GF82.62-P-4101A
GPS/CTEL roof antenna
location/task/design/ function GF82.70-P-4111A
CD player with changer,
location/purpose/ design/functionWith CD changer
(code 819)GF82.64-P-3113GI
Modular control system (MCS)
function description contents GF82.85-P-
0995GIZ
Operating, display and control module,
location/ purpose/design/function GF82.85-P-3114GH
CD player with changer,
location/purpose/ design/functionwith (Code 819) CD
changerGF82.64-P-3113GH
Sound amplifier,
location/task/design/functionwith CODE (810)
sound systemGF82.62-P-3100GH
FM/AM antenna amplifier,
location/purpose/ design/functionMODELS 163, 168,
170, 208, 210GF82.62-P-4101A
GPS/telephone roof antenna,
location/task/ design/functionMODELS 163, 168,
208.3, 210GF82.70-P-4111A
Antenna splitter,
location/task/design/functionModel 163GF82.85-P-3107B
Contents, function description of
cockpit management and data system
(COMAND) GF82.85-P-
0997GHZ

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 160 © 2006 Mitchell Repair Information Company, LLC.

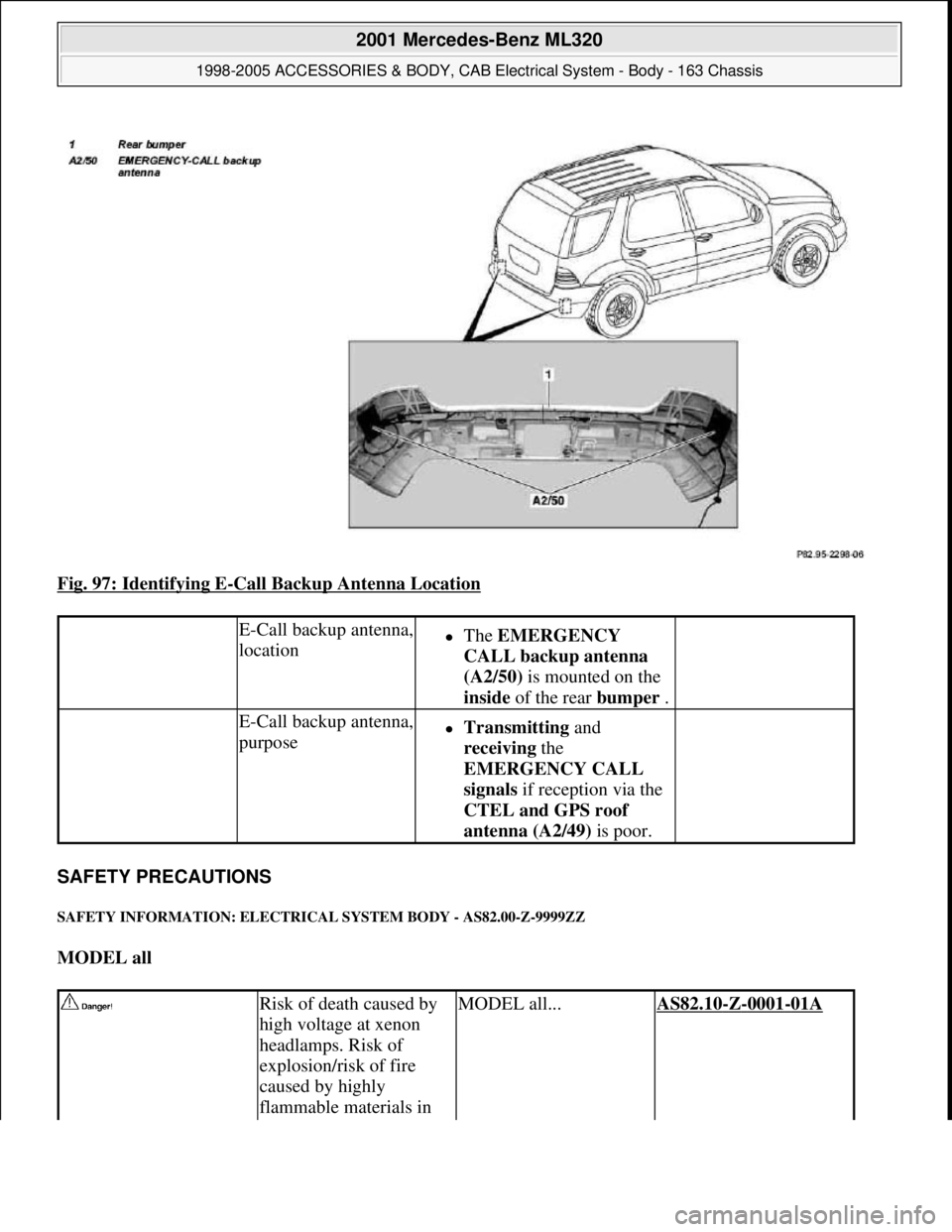

Fig. 97: Identifying E-Call Backup Antenna Location
SAFETY PRECAUTIONS
SAFETY INFORMATION: ELECTRICAL SYSTEM BODY - AS82.00-Z-9999ZZ
MODEL all
E-Call backup antenna,
locationThe EMERGENCY
CALL backup antenna
(A2/50) is mounted on the
inside of the rear bumper .
E-Call backup antenna,
purposeTransmitting and
receiving the
EMERGENCY CALL
signals if reception via the
CTEL and GPS roof
antenna (A2/49) is poor.
Risk of death caused by
high voltage at xenon
headlamps. Risk of
explosion/risk of fire
caused by highly
flammable materials in MODEL all...AS82.10-Z-0001-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 161 © 2006 Mitchell Repair Information Company, LLC.

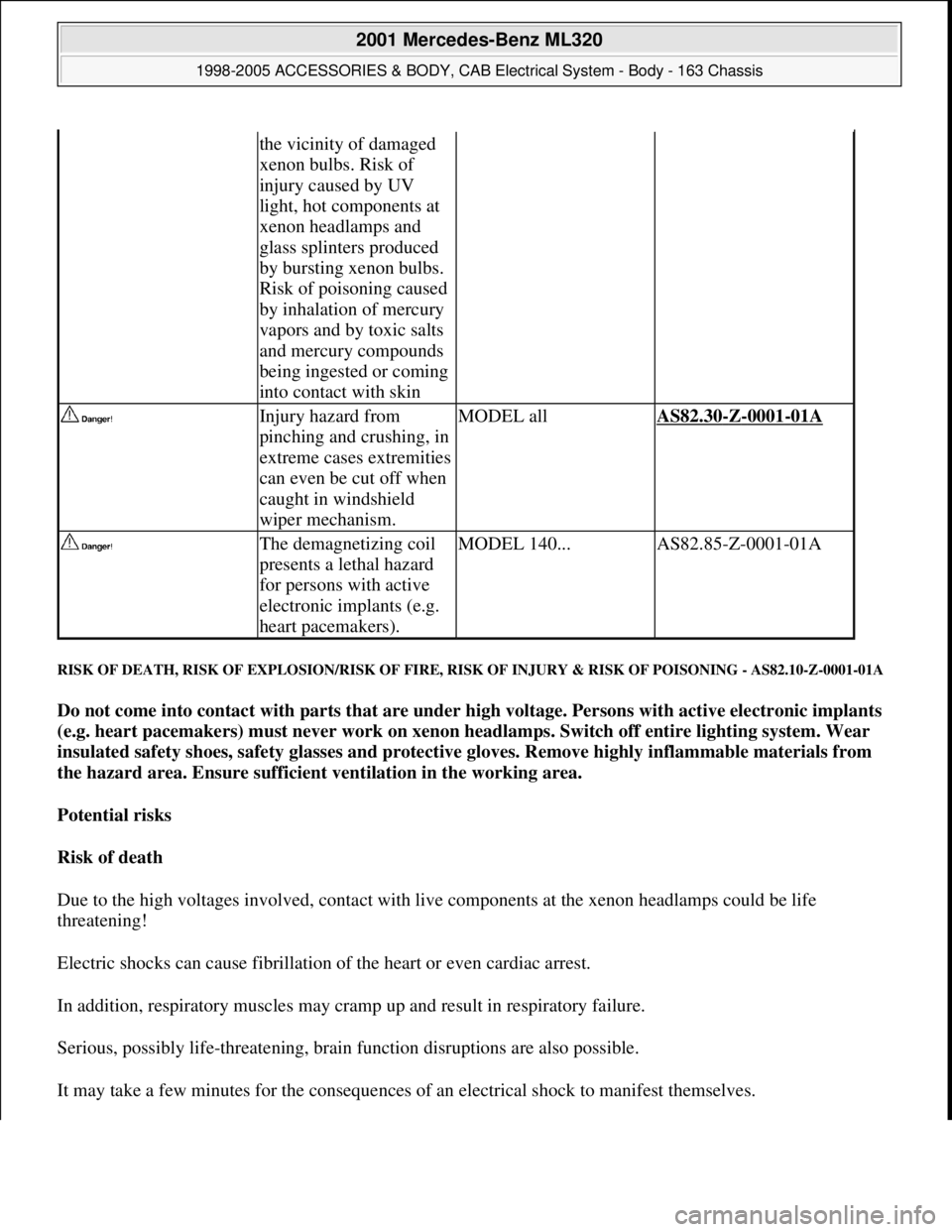

RISK OF DEATH, RISK OF EXPLOSION/RISK OF FIRE, RISK OF INJURY & RISK OF POISONING - AS82.10-Z-0001-01A
Do not come into contact with parts that are under high voltage. Persons with active electronic implants
(e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear
insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from
the hazard area. Ensure sufficient ventilation in the working area.
Potential risks
Risk of death
Due to the high voltages involved, contact with live components at the xenon headlamps could be life
threatening!
Electric shocks can cause fibrillation of the heart or even cardiac arrest.
In addition, respiratory muscles may cramp up and result in respiratory failure.
Serious, possibly life-threatening, brain function disruptions are also possible.
It ma
y take a few minutes for the consequences of an electrical shock to manifest themselves.
the vicinity of damaged
xenon bulbs. Risk of
injury caused by UV
light, hot components at
xenon headlamps and
glass splinters produced
by bursting xenon bulbs.
Risk of poisoning caused
by inhalation of mercury
vapors and by toxic salts
and mercury compounds
being ingested or coming
into contact with skin
Injury hazard from
pinching and crushing, in
extreme cases extremities
can even be cut off when
caught in windshield
wiper mechanism.MODEL allAS82.30-Z-0001-01A
The demagnetizing coil
presents a lethal hazard
for persons with active
electronic implants (e.g.
heart pacemakers).MODEL 140...AS82.85-Z-0001-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 162 © 2006 Mitchell Repair Information Company, LLC.

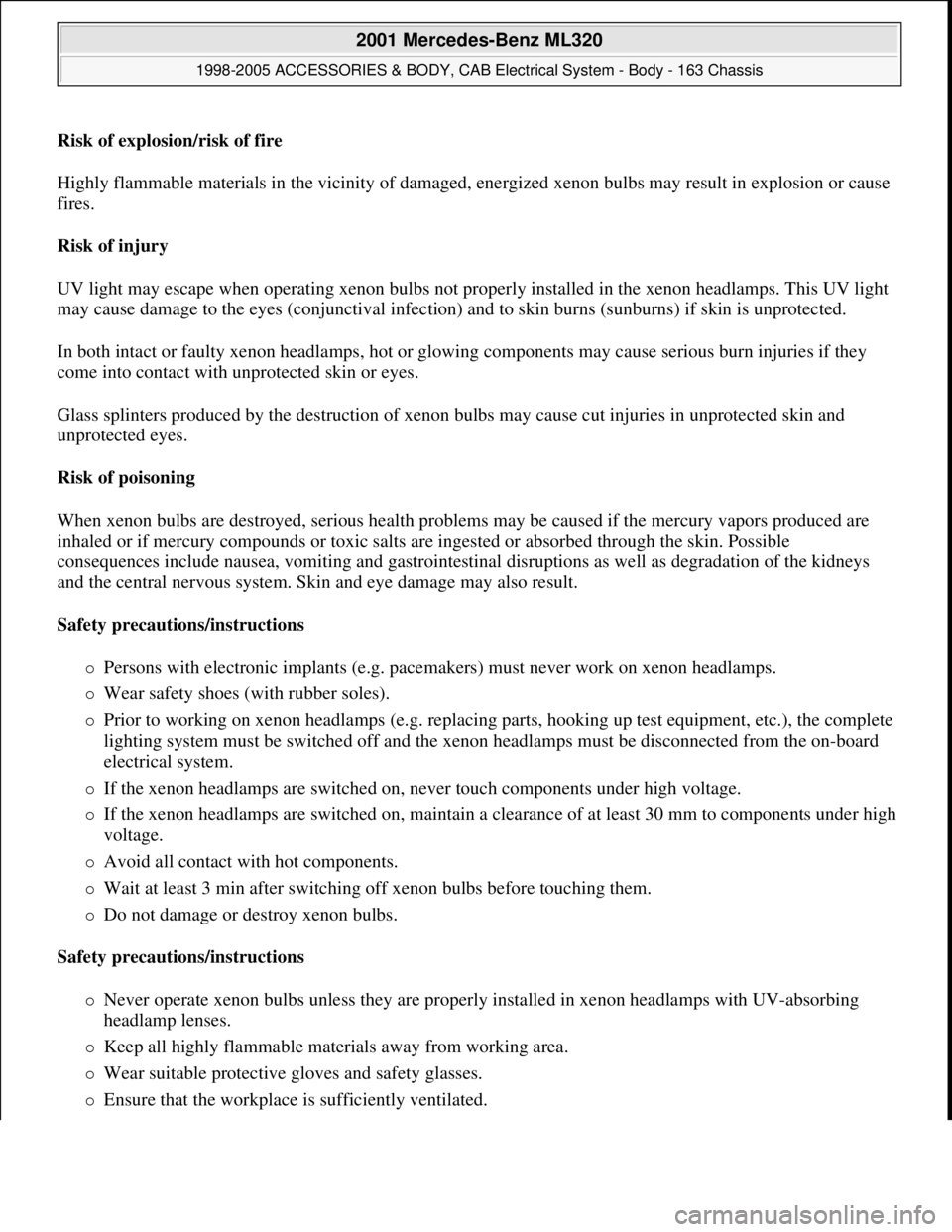

Risk of explosion/risk of fire
Highly flammable materials in the vicinity of damaged, energized xenon bulbs may result in explosion or cause
fires.
Risk of injury
UV light may escape when operating xenon bulbs not properly installed in the xenon headlamps. This UV light
may cause damage to the eyes (conjunctival infection) and to skin burns (sunburns) if skin is unprotected.
In both intact or faulty xenon headlamps, hot or glowing components may cause serious burn injuries if they
come into contact with unprotected skin or eyes.
Glass splinters produced by the destruction of xenon bulbs may cause cut injuries in unprotected skin and
unprotected eyes.
Risk of poisoning
When xenon bulbs are destroyed, serious health problems may be caused if the mercury vapors produced are
inhaled or if mercury compounds or toxic salts are ingested or absorbed through the skin. Possible
consequences include nausea, vomiting and gastrointestinal disruptions as well as degradation of the kidneys
and the central nervous system. Skin and eye damage may also result.
Safety precautions/instructions
Persons with electronic implants (e.g. pacemakers) must never work on xenon headlamps.
Wear safety shoes (with rubber soles).
Prior to working on xenon headlamps (e.g. replacing parts, hooking up test equipment, etc.), the complete
lighting system must be switched off and the xenon headlamps must be disconnected from the on-board
electrical system.
If the xenon headlamps are switched on, never touch components under high voltage.
If the xenon headlamps are switched on, maintain a clearance of at least 30 mm to components under high
voltage.
Avoid all contact with hot components.
Wait at least 3 min after switching off xenon bulbs before touching them.
Do not damage or destroy xenon bulbs.
Safety precautions/instructions
Never operate xenon bulbs unless they are properly installed in xenon headlamps with UV-absorbing
headlamp lenses.
Keep all highly flammable materials away from working area.
Wear suitable protective gloves and safety glasses.
Ensure that the workplace is sufficiently ventilated.

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 163 © 2006 Mitchell Repair Information Company, LLC.

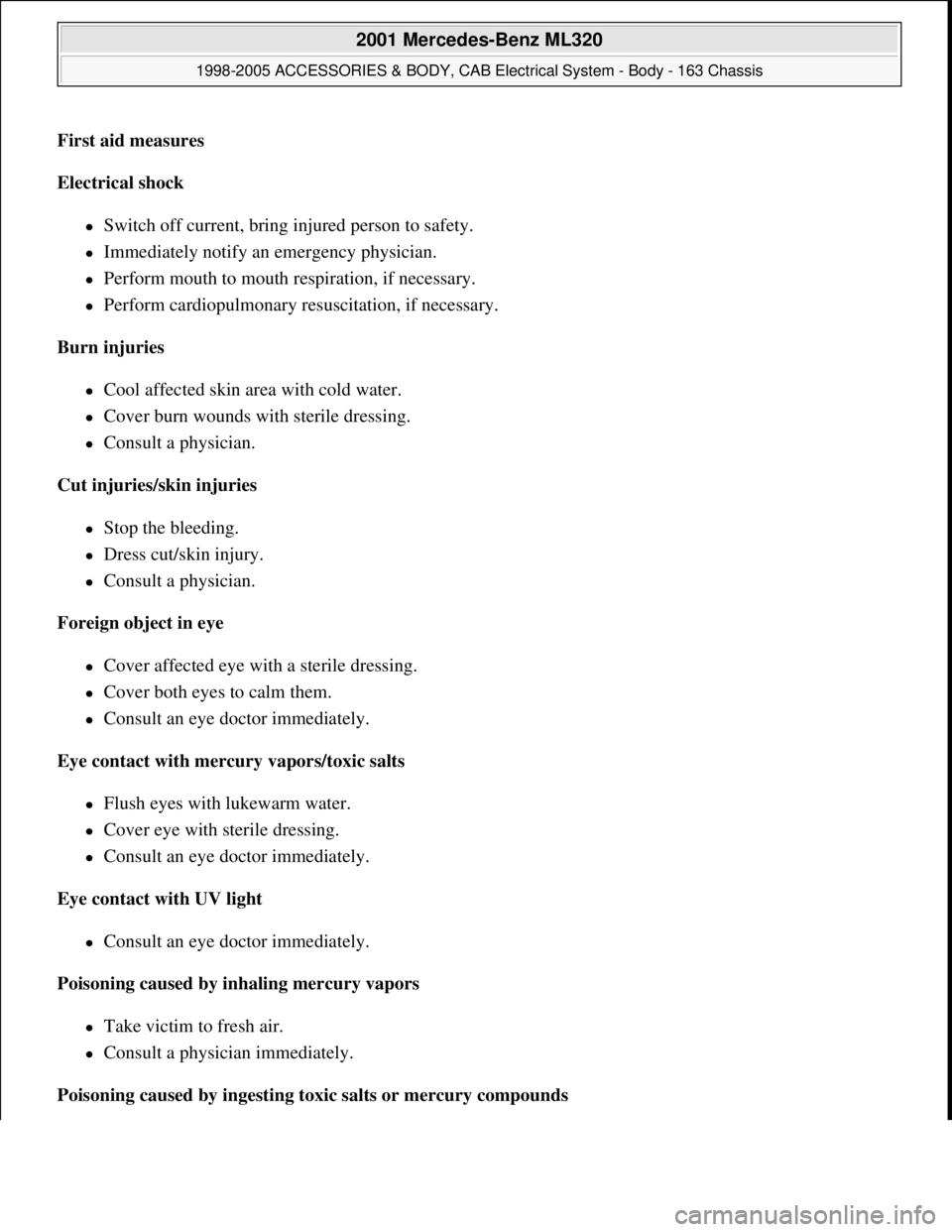

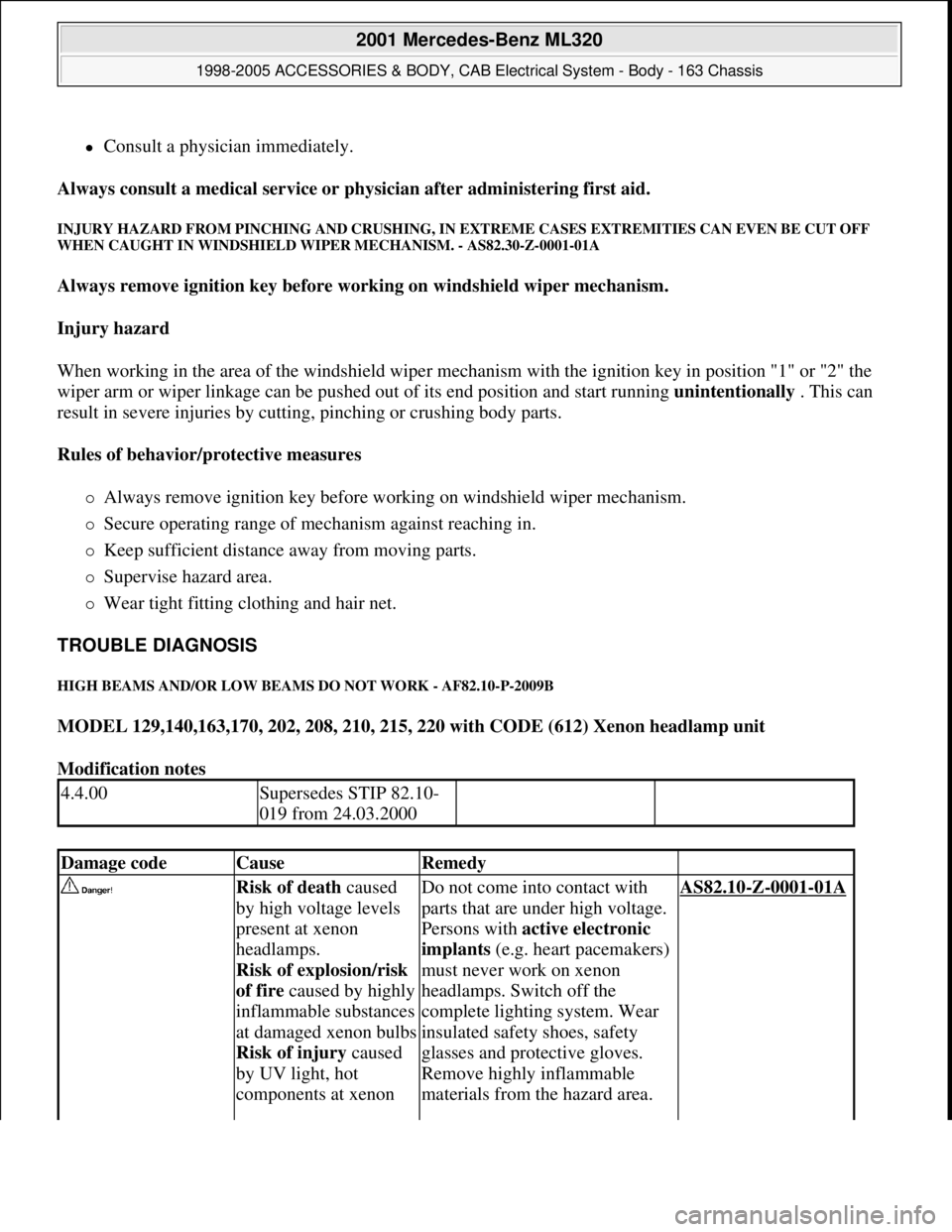

First aid measures
Electrical shock
Switch off current, bring injured person to safety.
Immediately notify an emergency physician.
Perform mouth to mouth respiration, if necessary.
Perform cardiopulmonary resuscitation, if necessary.
Burn injuries
Cool affected skin area with cold water.
Cover burn wounds with sterile dressing.
Consult a physician.
Cut injuries/skin injuries
Stop the bleeding.
Dress cut/skin injury.
Consult a physician.
Foreign object in eye
Cover affected eye with a sterile dressing.
Cover both eyes to calm them.
Consult an eye doctor immediately.
Eye contact with mercury vapors/toxic salts
Flush eyes with lukewarm water.
Cover eye with sterile dressing.
Consult an eye doctor immediately.
Eye contact with UV light
Consult an eye doctor immediately.
Poisoning caused by inhaling mercury vapors
Take victim to fresh air.
Consult a physician immediately.
Poisoning caused by ingesting toxic salts or mercury compounds

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 164 © 2006 Mitchell Repair Information Company, LLC.

Consult a physician immediately.
Always consult a medical service or physician after administering first aid.
INJURY HAZARD FROM PINCHING AND CRUSHING, IN EXTREME CASES EXTREMITIES CAN EVEN BE CUT OFF
WHEN CAUGHT IN WINDSHIELD WIPER MECHANISM. - AS82.30-Z-0001-01A
Always remove ignition key before working on windshield wiper mechanism.
Injury hazard
When working in the area of the windshield wiper mechanism with the ignition key in position "1" or "2" the
wiper arm or wiper linkage can be pushed out of its end position and start running unintentionally . This can
result in severe injuries by cutting, pinching or crushing body parts.
Rules of behavior/protective measures
Always remove ignition key before working on windshield wiper mechanism.
Secure operating range of mechanism against reaching in.
Keep sufficient distance away from moving parts.
Supervise hazard area.
Wear tight fitting clothing and hair net.
TROUBLE DIAGNOSIS
HIGH BEAMS AND/OR LOW BEAMS DO NOT WORK - AF82.10-P-2009B
MODEL 129,140,163,170, 202, 208, 210, 215, 220 with CODE (612) Xenon headlamp unit
Modification notes
4.4.00Supersedes STIP 82.10-
019 from 24.03.2000
Damage codeCauseRemedy
Risk of death caused
by high voltage levels
present at xenon
headlamps.
Risk of explosion/risk
of fire caused by highly
inflammable substances
at damaged xenon bulbs
Risk of injury caused
by UV light, hot
components at xenon Do not come into contact with
parts that are under high voltage.
Persons with active electronic
implants (e.g. heart pacemakers)
must never work on xenon
headlamps. Switch off the
complete lighting system. Wear
insulated safety shoes, safety
glasses and protective gloves.
Remove highly inflammable
materials from the hazard area. AS82.10-Z-0001-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 165 © 2006 Mitchell Repair Information Company, LLC.
