Page 2001 of 4133

AR88.20-P-2200GH
Remove/install rear bumper
6.4.99
MODEL
163.113 #A up to 289564,
163.154 #X up to 754619,
163.154 #A up to 289564,
163.136 /172
P88.20-0372-09
A
Covers
C
Screws
B
Nuts
Remove/install
1.1
Disconnect antenna connector of E-call
emergency call system
Only with emergency call system E-Call,
code 349.
Connector is located behind side flap of right
C-pillar paneling at jack mounting point.
2
Remove covers (A)
Do not damage paint. Do not break off
clips.
Installation wedge
*115589035900
3
Unscrew mounting nuts (B) from bumper
*BA88.20-P-1004-01B
4
Unscrew screws (C)
*BA88.20-P-1005-01B
5.1
Remove nut from rear mud guard
Only if present
*BA88.30-P-1004-01A
6
Remove bumper toward rear
Do not damage paint.
Installation:
Align bumper at tailgate and
at taillamps
7.1
Remove rubber seal for E-call emergency call
system antenna from body at right
Only with emergency call system E-Call,
code 349.
8
Install in the reverse order
Bumper
Number
Designation
Model 163
BA88.20-P-1004-01B
Nut, rear bumper to frame
Nm
8
BA88.20-P-1005-01BScrews, rear bumper on frame
Nm
8
Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2002 of 4133

Number
Designation
Model 163
up to
31.8.01
Model 163
as of
1.9.01
BA88.30-P-1004-01A
Nut for retaining strap on mud guard on vehicle
underbody
Nm
66
Long wedge
115 589 03 59 00
Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2
Page 2003 of 4133

AR88.20-P-2200GJ

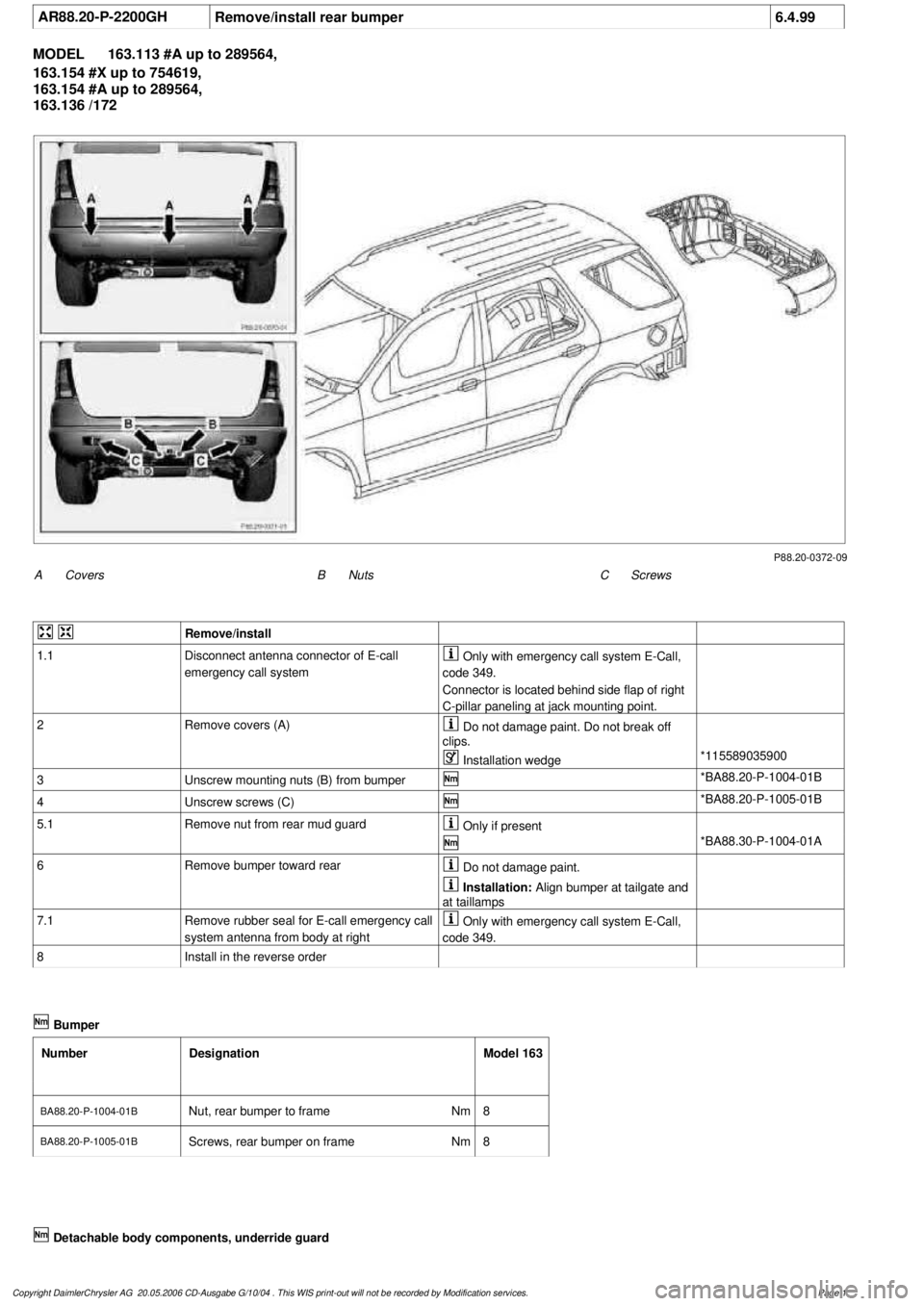

Remove/install rear bumper
6.4.99
MODEL
163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package
MODEL
163.174
P88.20-2090-09
Remove/install
1.1
Separate antenna of emergency call system
E-Call connector
Only with E-call emergency call system,
code 349. The connector is located behind
the side flap of the right C-pillar paneling at
the jack socket point.
2
Unscrew screws (A) on energy absorber
retaining straps at bottom of cross member
2 each.
*BA88.20-P-1005-01B
3
Pull cover strip off of screws (B) at top of
bumper
Velcro strips
4
Unscrew screws (B) at top of bumper
*BA88.20-P-1005-01B
5
Pull bumper to the rear and remove
Do not damage paintwork/wiring harness.
Installation:
Align bumper at tailgate and
at taillamps.
6.1
Remove rubber seal of antenna of emergency
call system E-Call on right at body
Only with emergency call system E-Call,
Code 349.
7.1
Disconnect connector from Parktronic system
Only with Parktronic system (PTS), code
220a. Remove left rubber seal at body.
8
Install in the reverse order
Bumper
Number
Designation
Model 163
BA88.20-P-1005-01B
Screws, rear bumper to frame
Nm
8
Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2004 of 4133

AR88.20-P-2200GK

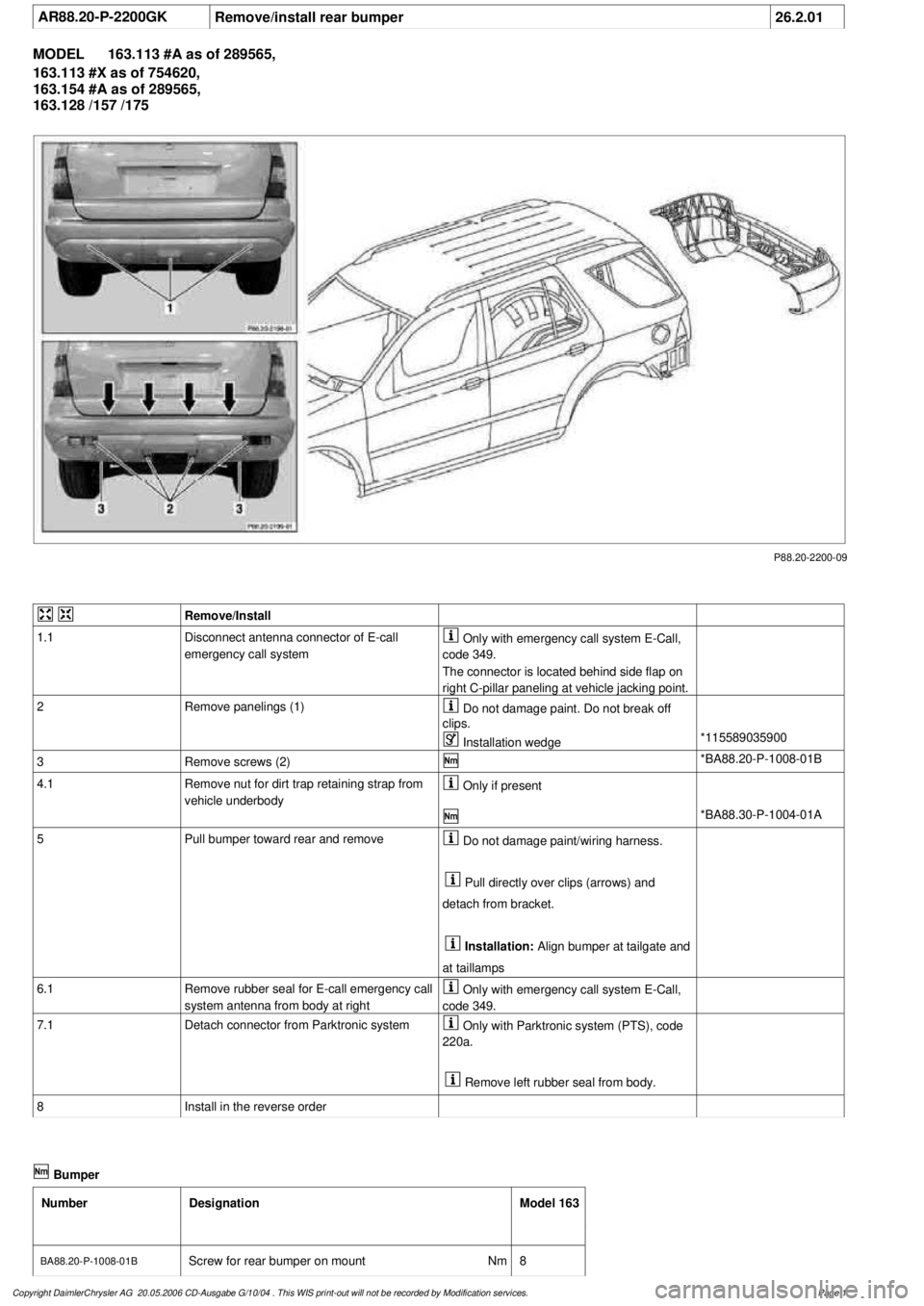

Remove/install rear bumper
26.2.01
MODEL
163.113 #A as of 289565,
163.113 #X as of 754620,
163.154 #A as of 289565,
163.128 /157 /175
P88.20-2200-09
Remove/Install
1.1
Disconnect antenna connector of E-call
emergency call system
Only with emergency call system E-Call,
code 349.
The connector is located behind side flap on
right C-pillar paneling at vehicle jacking point.
2
Remove panelings (1)
Do not damage paint. Do not break off
clips.
Installation wedge
*115589035900
3
Remove screws (2)
*BA88.20-P-1008-01B
4.1
Remove nut for dirt trap retaining strap from
vehicle underbody
Only if present
*BA88.30-P-1004-01A
5
Pull bumper toward rear and remove
Do not damage paint/wiring harness.
Pull directly over clips (arrows) and
detach from bracket.
Installation:
Align bumper at tailgate and
at taillamps
6.1
Remove rubber seal for E-call emergency call
system antenna from body at right
Only with emergency call system E-Call,
code 349.
7.1
Detach connector from Parktronic system
Only with Parktronic system (PTS), code
220a.
Remove left rubber seal from body.
8
Install in the reverse order
Bumper
Number
Designation
Model 163
BA88.20-P-1008-01B
Screw for rear bumper on mount
Nm
8
Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2005 of 4133

Detachable body components, underride guard
Number
Designation
Model 163
as of
1.9.01
BA88.30-P-1004-01A
Nut for retaining strap on mud guard on vehicle
underbody
Nm
6

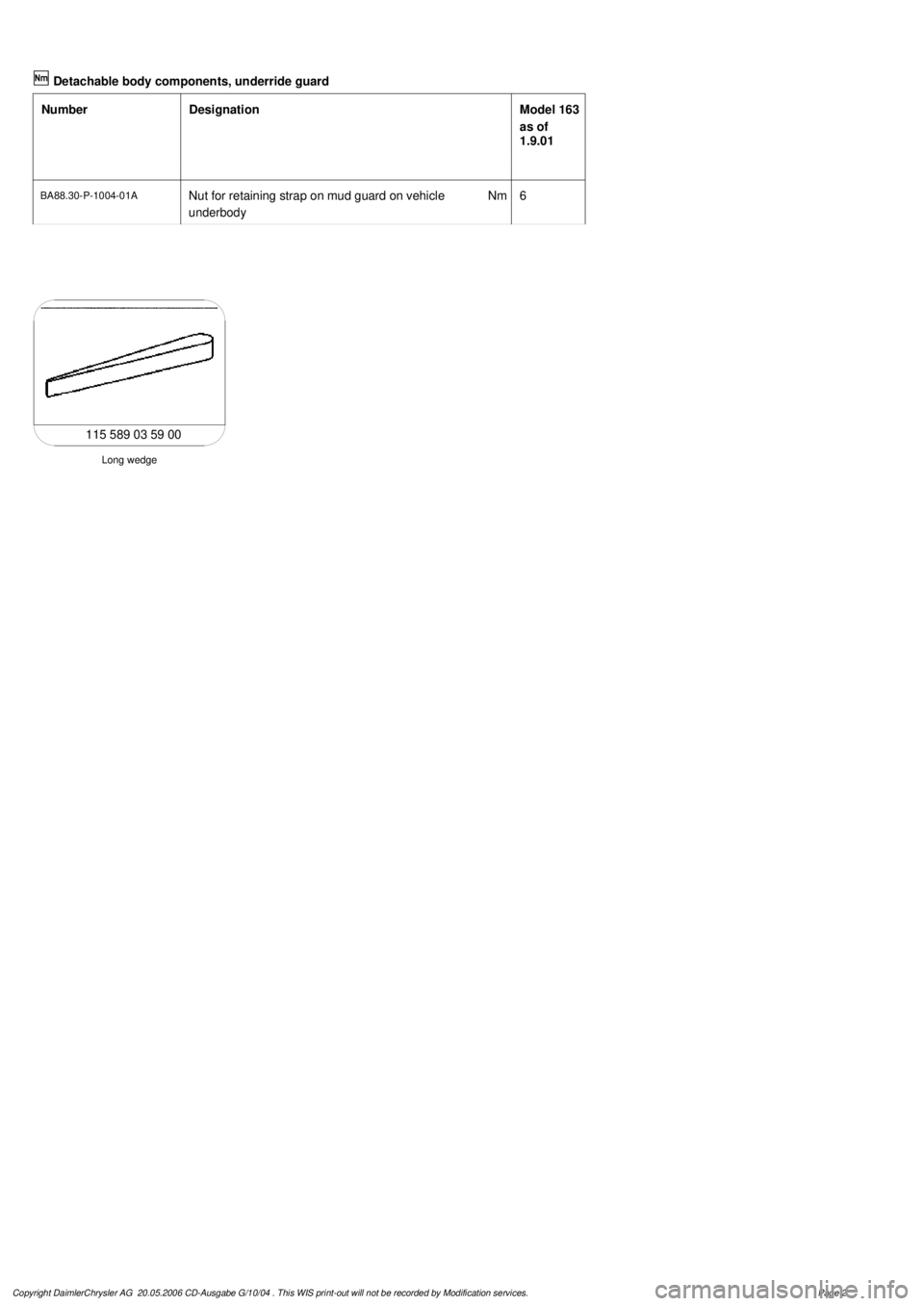

Long wedge
115 589 03 59 00
Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2
Page 2006 of 4133

AD54.30-P-6000-04GH
CAN data lines test electrics IC
Model 163
t
A
Scope of test
Measuring instrument/
Test connection
Operation/
Requirement
Specified value
D
Possible cause/
Remedy
1.0
CAN data buses
Resistance
9
w
(B.9)
A1
bL
10
(B.10)
Ignition:
OFF
Coupling "B" (12-pin)
disconnected
(N3 is connected to CAN)
approx.
120
WD
CAN:
-
//
-
,
d e
D
N3
Value in order:
#
t
1.1
1.1
CAN data buses
Voltages, low line
oc
A1
L
10
(B.10)
Ignition: ON
approx. 2.3 V
D
N3
Value in order:
#
t
1.2
1.2
CAN data buses
Voltages, high line
oc
A1
L
9
(B.9)
Ignition: ON
approx. 2.6 V
D
N3
Copyright DaimlerChrysler AG 05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2007 of 4133

AD54.30-P-6000-05GH
CAN input resistance, testing electrical
system of IC
Model 163
t
A
Scope of test
Measuring instrument/
Test connection
Operation/
Requirement
Specified value
D
Possible cause/
Remedy
1.0Instrument cluster (A1)
CAN input resistance
9
v
(B.9)
A1
bK
10
(B.10)
Ignition:
OFF
Coupling "B" (12-pin)
disconnected
approx.
120
WD
A1
Copyright DaimlerChrysler AG 05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2008 of 4133

BT27.19-P-0003-01A

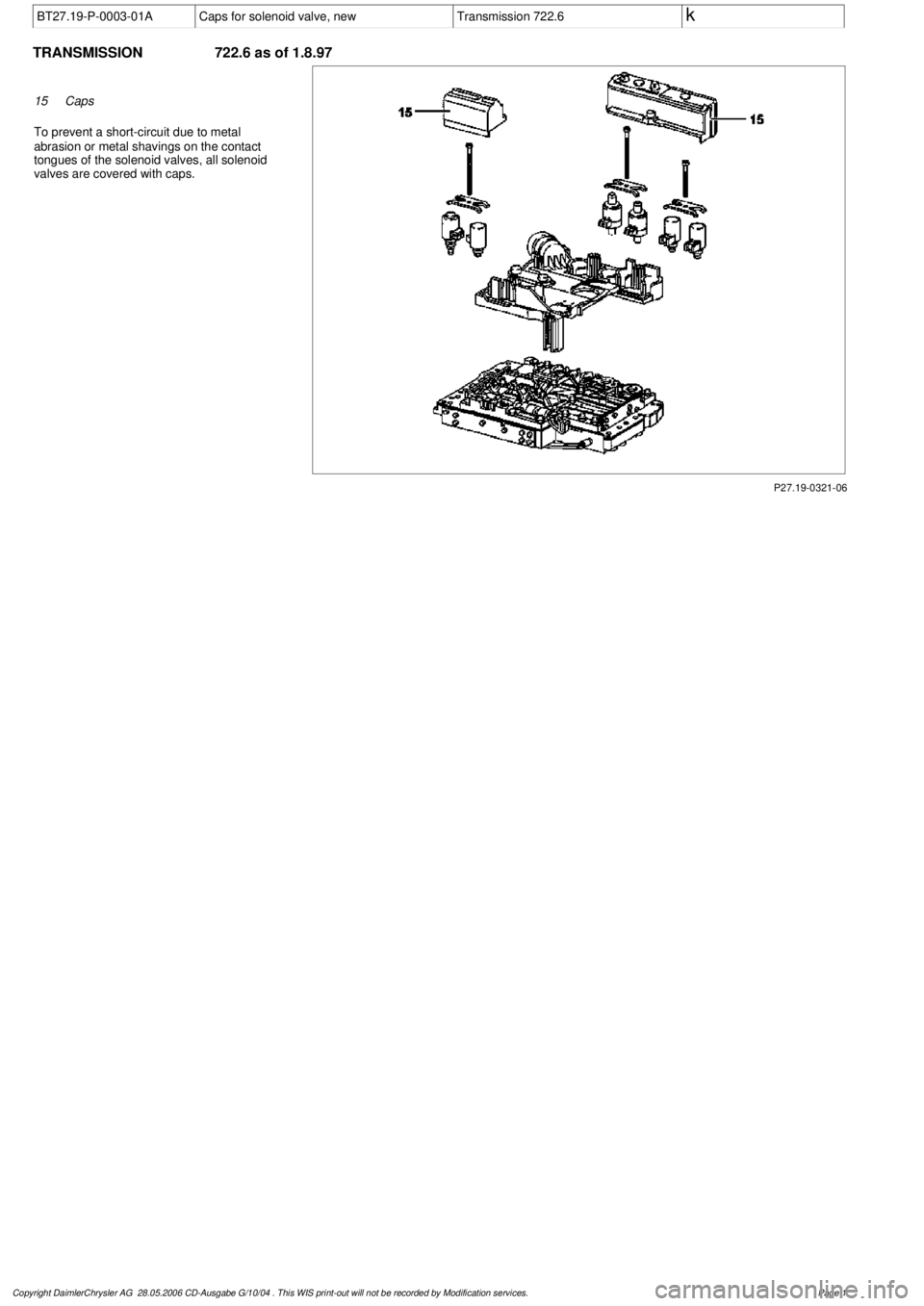

Caps for solenoid valve, new
Transmission 722.6
k
TRANSMISSION
722.6 as of 1.8.97
P27.19-0321-06
15
Caps
To prevent a short-circuit due to metal
abrasion or metal shavings on the contact
tongues of the solenoid valves, all solenoid
valves are covered with caps.
Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2009 of 4133

AR68.20-P-2150GI

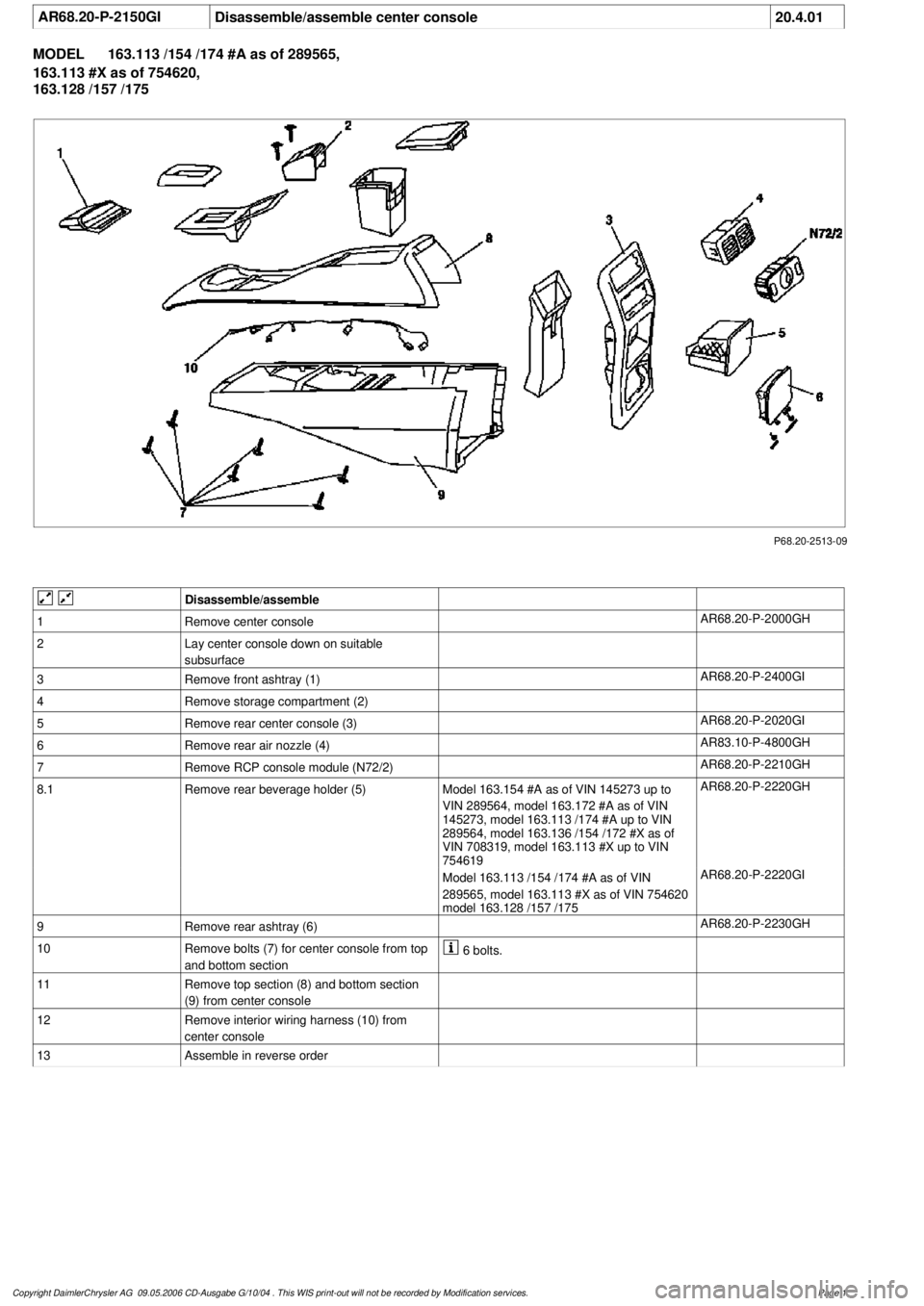

Disassemble/assemble center console
20.4.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2513-09
Disassemble/assemble
1
Remove center console
AR68.20-P-2000GH
2
Lay center console down on suitable
subsurface
3
Remove front ashtray (1)
AR68.20-P-2400GI
4
Remove storage compartment (2)
5
Remove rear center console (3)
AR68.20-P-2020GI
6
Remove rear air nozzle (4)
AR83.10-P-4800GH
7
Remove RCP console module (N72/2)
AR68.20-P-2210GH
8.1
Remove rear beverage holder (5)
Model 163.154 #A as of VIN 145273 up to
VIN 289564, model 163.172 #A as of VIN
145273, model 163.113 /174 #A up to VIN
289564, model 163.136 /154 /172 #X as of
VIN 708319, model 163.113 #X up to VIN
754619
AR68.20-P-2220GH
Model 163.113 /154 /174 #A as of VIN
289565, model 163.113 #X as of VIN 754620
model 163.128 /157 /175
AR68.20-P-2220GI
9
Remove rear ashtray (6)
AR68.20-P-2230GH
10
Remove bolts (7) for center console from top
and bottom section
6 bolts.
11
Remove top section (8) and bottom section
(9) from center console
12
Remove interior wiring harness (10) from
center console
13
Assemble in reverse order
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
Page 2010 of 4133

AR68.20-P-2400GI

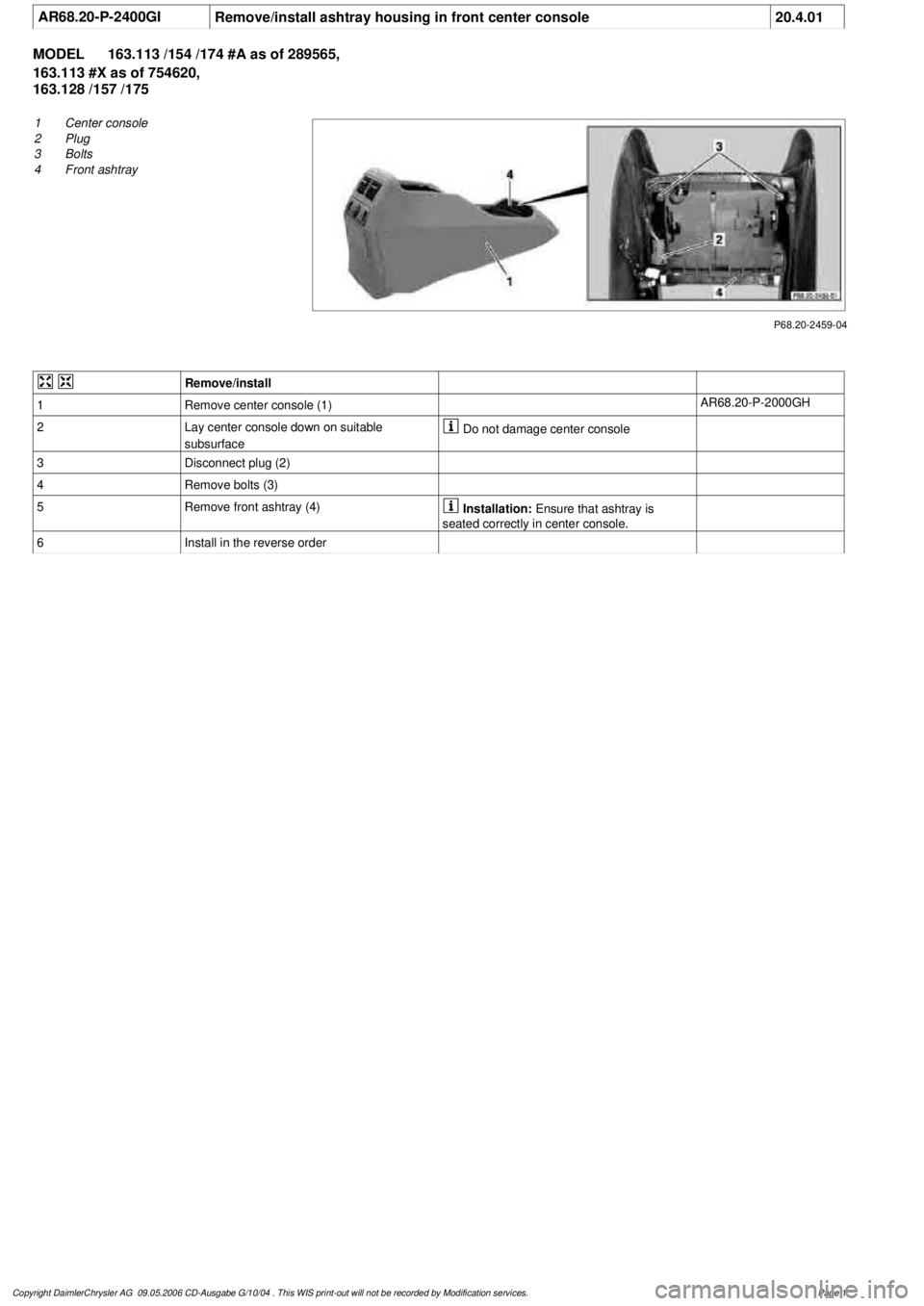

Remove/install ashtray housing in front center console
20.4.01
MODEL
163.113 /154 /174 #A as of 289565,
163.113 #X as of 754620,
163.128 /157 /175
P68.20-2459-04
1
Center console
2
Plug
3
Bolts
4
Front ashtray
Remove/install
1
Remove center console (1)
AR68.20-P-2000GH
2
Lay center console down on suitable
subsurface
Do not damage center console
3
Disconnect plug (2)
4
Remove bolts (3)
5
Remove front ashtray (4)
Installation:
Ensure that ashtray is
seated correctly in center console.
6
Install in the reverse order
Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
