AR47.20-P-1070M
Removing and installing fuel full-flow filter
24.8.99

ENGINE
612.963 in MODEL 163.113

P47.20-2043-06

1
Fuel feed line

2
Fuel return flow line

3
Fuel cooler

4
Bolts of fuel cooler

70
Fuel full-flow filter

Operation no. of operation texts or standard texts and flat rates
Sector

Op. no.
Operation text

P
075560
REMOVING AND INSTALLING FUEL FULL-FLOW FILTER

P
075563
REPLACING FUEL FULL-FLOW FILTER

P
075564
REPLACING FUEL FULL-FLOW FILTER (AFTER INSPECTING)

Removing, installing

Danger!

Risk of injury
from fingers being
jammed or

bruised
when removing or installing and

aligning hood, doors, trunk lid/tailgate or

sliding roof
Ensure that no parts of your body or limbs are

within the operating range when moving such

components.

AS00.00-Z-0011-01A

Danger!

Risk of explosion
as a result of fuel vapors

igniting.
Risk of poisoning
as a result of

inhaling fuel vapors.
Risk of injury
as a

result of fuel coming into contact with skin

and eyes.
No fire, naked flame or smoking.

Pour fuels only into suitable and appropriate

marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

1
Open hood and raise to vertical position


Have assistant secure hood.

AR88.40-P-1000GI

2
Remove trim panel of charge air distribution

pipe

AR01.20-P-5014-02B

*BA01.20-P-1002-01A
*BA01.20-P-1003-01A

3
Disconnect fuel lines (1, 2) at fuel full-flow

filter (70)


Collect fuel which flows out.

Pay attention to use of locking arm. See:
#

Disconnecting and connecting fuel lines at

engine.

AR47.25-P-1000-01A

4
Take off fuel cooler (3)

Take off only the bolts (4) and raise fuel

cooler slightly.

5
Remove fuel full-flow filter (70)


Collect fuel which flows out.

Installation:
If the fuel full-flow filter has been

drained, it must be filled with fuel after being

installed and before starting the engine to

ensure engine starts properly.

*BA47.20-P-1001-02A

6
Install in the reverse order

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Danger!

Risk of accident
as a result of vehicle

starting off when engine running.
Risk of

injury as a result of bruises and burns if you

insert your hands into engine when it is being

started or when it is running.
Secure vehicle to prevent it starting off.

Wear closed and close-fitting work clothes.

Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

7
Run engine and inspect fuel system for leaks

Crankcase ventilation, cylinder head cover

Number

Designation
Engine

612.963

BA01.20-P-1002-01A
Screw of trim panel of cylinder head cover

to cylinder head cover
Nm
10

BA01.20-P-1003-01A
Screw of trim panel of charge air distribution

pipe to charge air distribution pipe
Nm
10


Fuel filter

Number

Designation
Engine

612.961/

963

BA47.20-P-1001-02A
Bolt of fuel filter to charge air distribution pipe
Nm
14

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

AR47.20-P-1070HBRemove/install fuel full-flow filter
21.11.97

ENGINE
611.960 /961 /962, 612.961 /963, 613.960 /961

P07.57-0222-12

Shown on Engine 611.960

1
Fuel outlet line

2
Fuel feed line

70
Fuel full-flow filter

P47.20-2024-12

Illustrated on Engine 613.961

1
Fuel feed line of fuel tank

2
Fuel feed line to predelivery pump

3
Fuel return line from rail

4
Fuel return line to fuel cooler (fuel tank)

70
Fuel full-flow filter


Remove/install


Danger!
Risk of explosion
due to combustion,
Risk

of poisoning
due to inhalation and

swallowing of fuel
Injury hazard
due to skin

and eye contact with fuel
Fire, sparks, open flames or smoking

forbidden.

Pour fuels only into suitable and appropriately

marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

1
Remove trim panel of charge air distribution

pipe
Engine 611

AR01.20-P-5014-02A

Engine 612

AR01.20-P-5014-02B

Engine 613

AR01.20-P-5014-02C

*BA01.20-P-1003-01A

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

2.1
Disconnect fuel lines (1,2) at main fuel filter

(70)
Engine 611


Collect escaping fuel.

Pay attention to use of locking arm. Refer

to:

#

Separate fuel lines from engine, reconnect

AR47.25-P-1000-01A

2.2
Disconnect fuel lines (1,2,3,4) at main fuel

filter (70)
Engine 612, 613


Collect escaping fuel.

Pay attention to use of locking arm. Refer

to:

#

Disconnect, connect fuel lines at engine.

AR47.25-P-1000-01A

3
Remove main fuel filter (70)


If the main fuel filter has been emptied, it

must be filled with fuel after being installed

before starting, the engine starts more easily.

*BA47.20-P-1001-02A

4
Install in the reverse order


Danger!

Risk of accident
due to automatic starting-off

when engine is running.
Injury hazard
due to

crimped connection and combustion when

meshing during starting procedure or when

engine is running
Secure vehicle to prevent it from moving off

by itself.

Wear closed and close-fitting work clothes.

Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

5
Run engine and inspect fuel system for leaks

Crankcase ventilation, cylinder head cover

Number

Designation
Engine

611.960/

961/962
Engine

612.961/

962/967
Engine

612.963
Engine

613.960/

961

BA01.20-P-1003-01A
Screw attaching cover panel to charge air

distribution pipe
Nm
10101010


Fuel filter

Number

Designation
Engine

611.960/

961
Engine

611.962
Engine

612.961/

963
Engine

613.960/

961

BA47.20-P-1001-02A
Bolt of fuel filter to charge air distribution pipe
Nm
14141414

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

AF54.30-P-2064A
Fuel gauge not registering correctly after refueling vehicle
4.2.03

MODEL
163.### #A as of 221506 up to 364039,

163.### #X as of 734088 up to 777100

Operation no. of operation texts or standard texts and flat rates

Sector

Op. no.
Operation text

Time
Acc. no.
Code

P
023803
RECODE INSTRUMENT CLUSTER
003 WU/0.3 h
54 208 50
---

Damage Code
Cause
Remedy

Refuel recognition software may not

recognize incremental refueling (< 7 L).

In case of complaint
#

The fuel gauge operation defaults to back-

up mode, and continuously decreases last

stored sensor value based on consumption

data supplied via engine management. This

continues until either refuel recognition or

instrument cluster (A1) reset occurs (via

STAR Diagnosis or power disconnect).
Vehicles with 83 L fuel tank (as of MY2002)
are more susceptible to this condition.

This applies only to instrument clusters

(A1) with diagnostic version 3/05, 3/06,

and 3/07.
1
Connect STAR Diagnosis.

2
Under "Control module adaptations" in

"ICM" menu, set "Fuel tank characteristic

curve" from "Normal" to "Direct sensor

value".

DO NOT replace the instrument cluster

(A1) or fuel pump assembly (M3) for this

condition.

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR47.10-P-7000GI
Remove/install fuel level sensor
21.2.01

MODEL
163.113 with ENGINE 612.963

MODEL
163.128 with ENGINE 628.963

P47.10-2128-06

1
Rear seat console

2
Left C-pillar cover

4
Wiring harness

5
Seat retaining cable

P47.10-2083-09

3
Housing

84
Closing cover

89
Union nut

6
Seal

90/10
Fuel intake line
90/11

Fuel-return line

90/12
Fuel feed line

90/13
Stationary heater connection

B4
Fuel level gage sensor


Remove, Install

Danger!

Risk of explosion
from fuel igniting,
risk of

poisoning
from inhaling and swallowing fuel

as well as
risk of injury
to eyes and skin

from contact with fuel.
Fire, sparks, naked flame and smoking

prohibited.

Pour fuels only into suitable and appropriately

marked containers

Wear protective clothing when handling fuel

AS47.00-Z-0001-01A

1
Drain fuel

Fuel tank must not be filled to more than

3/4. If fuel tank is full, drain at least

23 liters of fuel.

AR47.10-P-4000GH

Pay attention to filling capacity of fuel tank.

*BF47.10-P-1001-01A

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

2
Remove covers at seat frame of 60% bench

seat

As of VIN A145273, X708319.

AR91.12-P-1100GH

Only remove the covers which are
identified in the document with A, D and E.

3
Fold 60% bench seat forward into footwell

As of VIN A145273, X708319. See

operator's manual.

4
Pull floor covering below rear seat mounting

bracket (1) of 60% seat forward

Ensure that the floor covering is not torn

when pulled forward.

As of VIN A145273, X708319.

5
Pull floor covering below front corner of trim

panel of C-pillar (2) forward

Ensure that the floor covering is not torn

when pulled forward.

As of VIN A145273, X708319.

6
Cut into floor covering directly behind seat

retaining cable (5)

Ensure that the wiring harness (4) is not

damaged when cutting into floor covering.

As of VIN A145273, X708319. broken line

marks cut-in.

7
Turn back floor covering to gain access to

cap (84)


Do not kink floor covering.

8
Remove cap (84)


Cap (84) is sealed in with body sealer.

Heat with hot air blower to make it easier to

remove.


Installation:
Replace cap and install with

new sealing compound.

9
Detach fuel feed line (90/12) and fuel return

line (90/11) and, if fitted, the fuel line at

connection (90/13)


Do not kink the fuel lines.


If no stationary heater is fitted to vehicle,

do not remove connection (90/13) otherwise

housing will be damaged.

*163589003700

10
Remove nut (89)

*163589010700


*BA47.20-P-1006-01B

11
Remove housing (3)

Fuel lever sensor and housing are a

single part and cannot be removed separately.


Installation:
Re-install nut (89) together

with seal (89/2).

Apply a thin film of oil to seal.

12
Install in the reverse order


Fuel pump

Number

Designation
Engine 612Engine 628

BA47.20-P-1006-01B
Union nut for fuel tank sensor on fuel

tank
Nm
6565


Fuel tank

Number

Designation
Models

163.113/
136/154/

172 up to

31.08.01
Model

163.113/
136/154/

172 as of

01.09.01


Model

163.157/

175
Model

163.128

BF47.10-P-1001-01A
Fuel tank capacity
Total capacity
Liter
728383

Reserve capacity
Liter
101212

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

163 589 01 07 00

Claw-type wrench

Pliers

163 589 00 37 00

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 3

AR47.25-P-1000-01A
Separate fuel lines from engine, reconnect

P47.25-0212-03

1
Release arm

2
Sealing ring

A
Release position

B
Assembly position

P47.25-0213-03

The low pressure lines of the fuel system have plug connections

with a release arm (1) in place of screw connections.

The lines are sealed by means of a seal (2).

Disconnecting
1
Press the release arms (1) down to the stop in release position

as shown in picture A (arrow).

2
Disconnect connector on low-pressure line.

3
Pull back the release arms (1) again immediately to the stop

into the assembly position as shown in picture B (arrow).

The release arms (1) must not be kept over a long period in

the release position (A) otherwise leaks can occur due to

deformation of the low-pressure line.
Attaching

4
Check whether the release arm (1) is in the installed position
(b).

If the release arms (1) were kept for a long time in the

release position (A) the low-pressure line must be replaced

otherwise leaks can occur due to deformation of the low-

pressure line.

5
Insert connector on low-pressure line.

6
Ensure that the connector is firmly seated and free of leaks.
Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR47.10-P-4000GH
Empty fuel tank if fuel pump is faulty
28.10.97

MODEL
163.113 with ENGINE 612.963

MODEL
163.128 with ENGINE 628.963

MODEL
163.136 with ENGINE 111.977

MODEL
163.154 with ENGINE 112.942

MODEL
163.157 with ENGINE 112.970

MODEL
163.172 with ENGINE 113.942

MODEL
163.174 with ENGINE 113.981

MODEL
163.175 with ENGINE 113.965

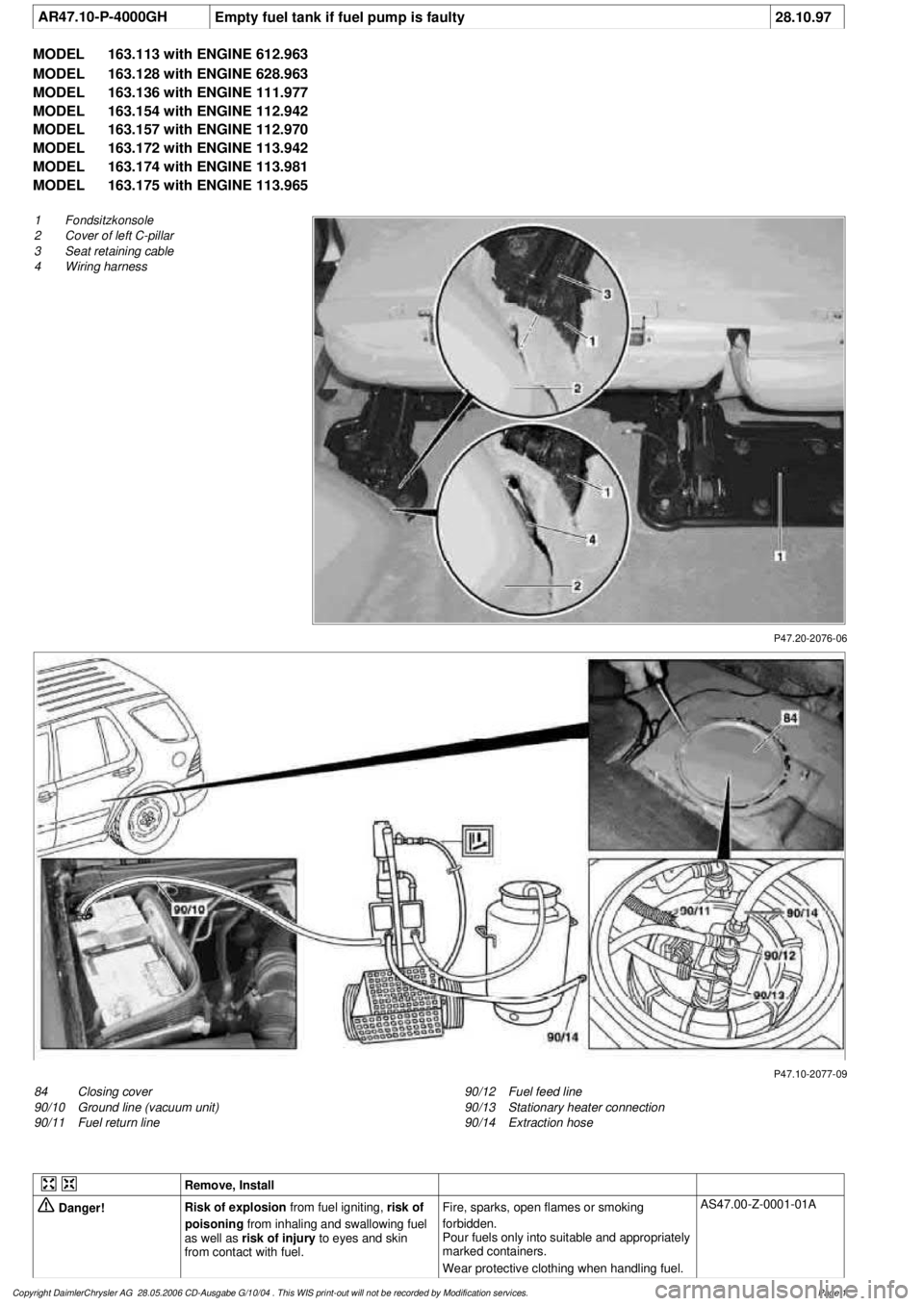

P47.20-2076-06

1
Fondsitzkonsole

2
Cover of left C-pillar

3
Seat retaining cable

4
Wiring harness

P47.10-2077-09

84
Closing cover

90/10
Ground line (vacuum unit)

90/11
Fuel return line
90/12

Fuel feed line

90/13
Stationary heater connection

90/14
Extraction hose


Remove, Install


Danger!
Risk of explosion
from fuel igniting,
risk of

poisoning
from inhaling and swallowing fuel

as well as
risk of injury
to eyes and skin

from contact with fuel.
Fire, sparks, open flames or smoking

forbidden.

Pour fuels only into suitable and appropriately

marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
