Page 2631 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 10: Fuse Assignments Fuse & Relay Box F1 (1 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday

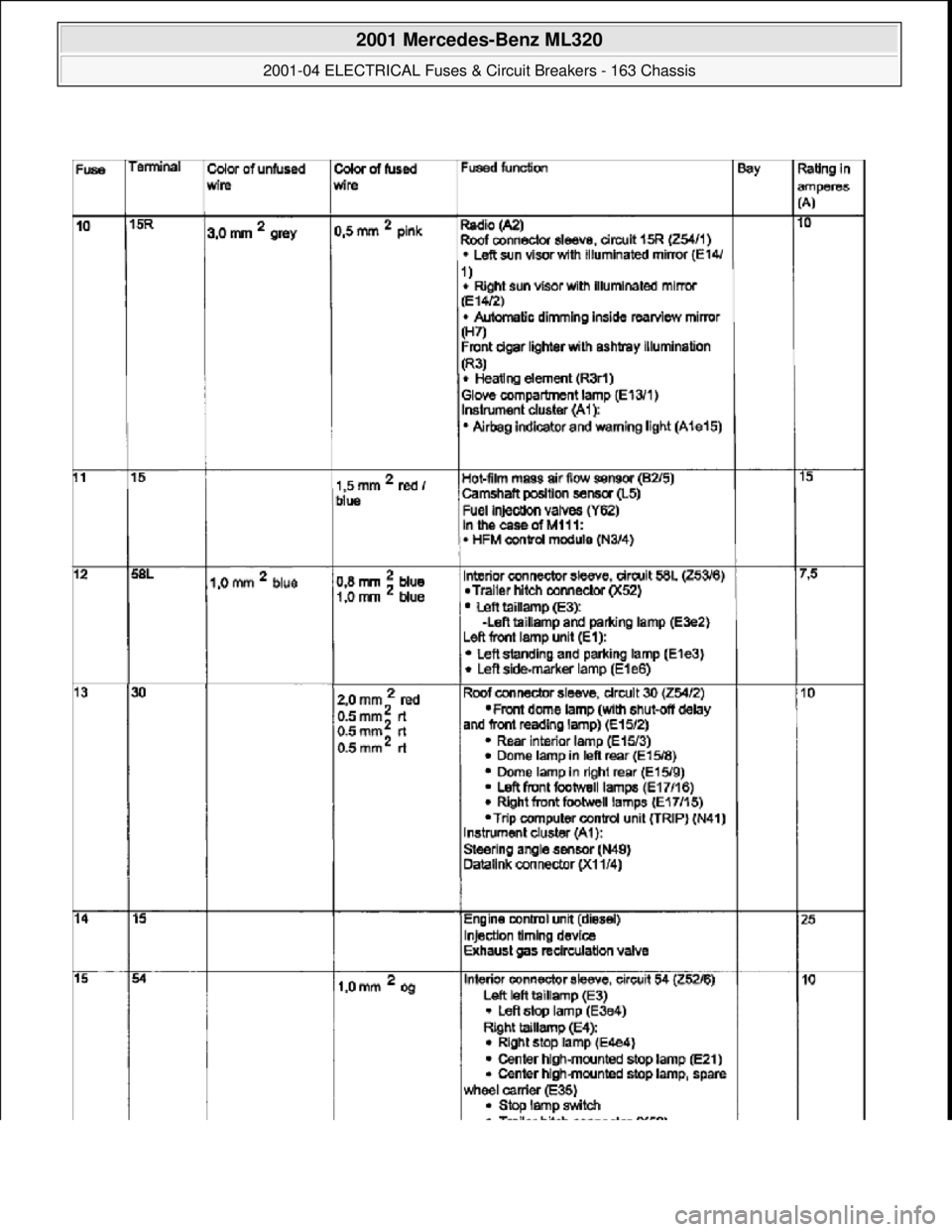

Page 2632 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 18 © 2006 Mitchell Repair Information Company, LLC.

Page 2633 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 11: Fuse Assignments Fuse & Relay Box F1 (2 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday

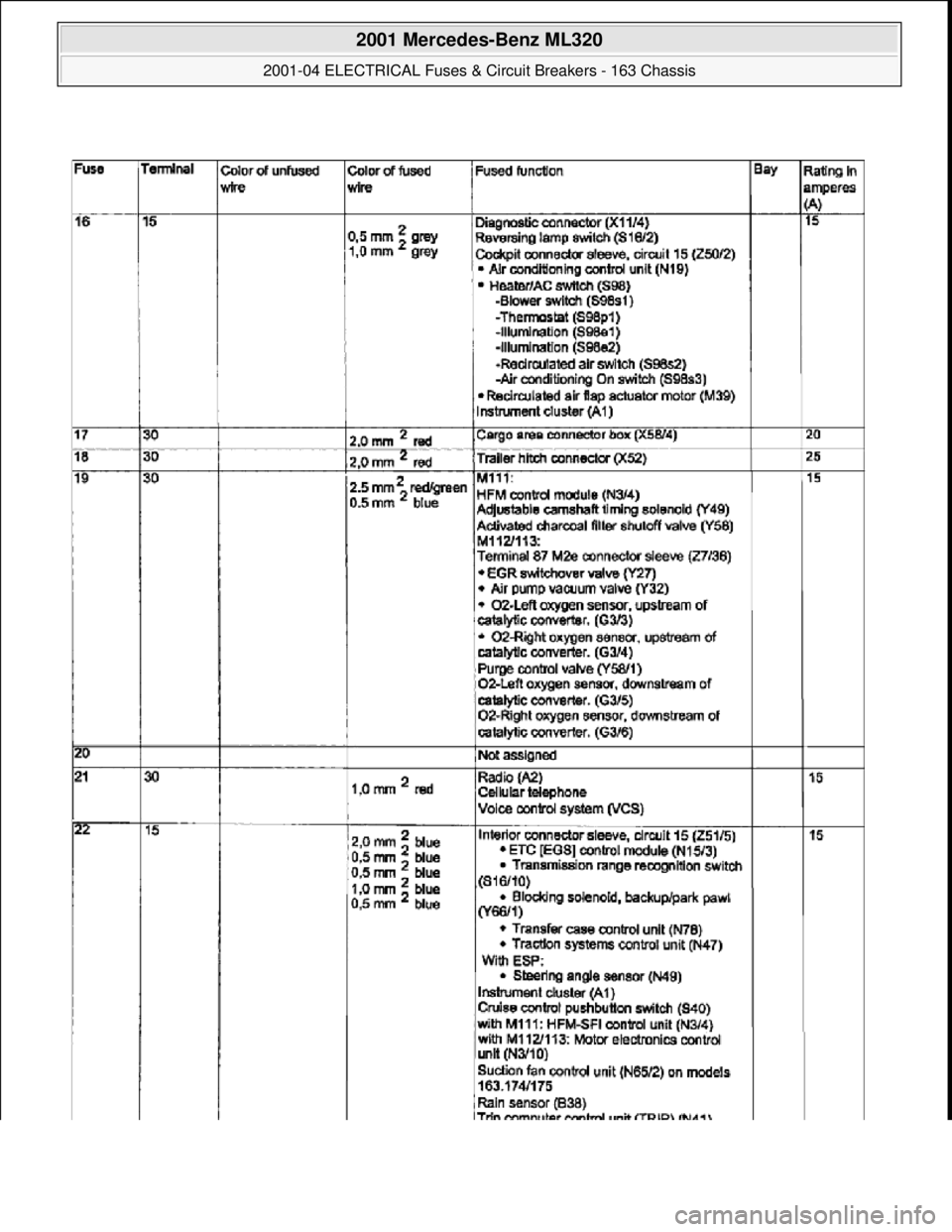

Page 2634 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 20 © 2006 Mitchell Repair Information Company, LLC.

Page 2635 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 12: Fuse Assignments Fuse & Relay Box F1 (3 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday

Page 2636 of 4133

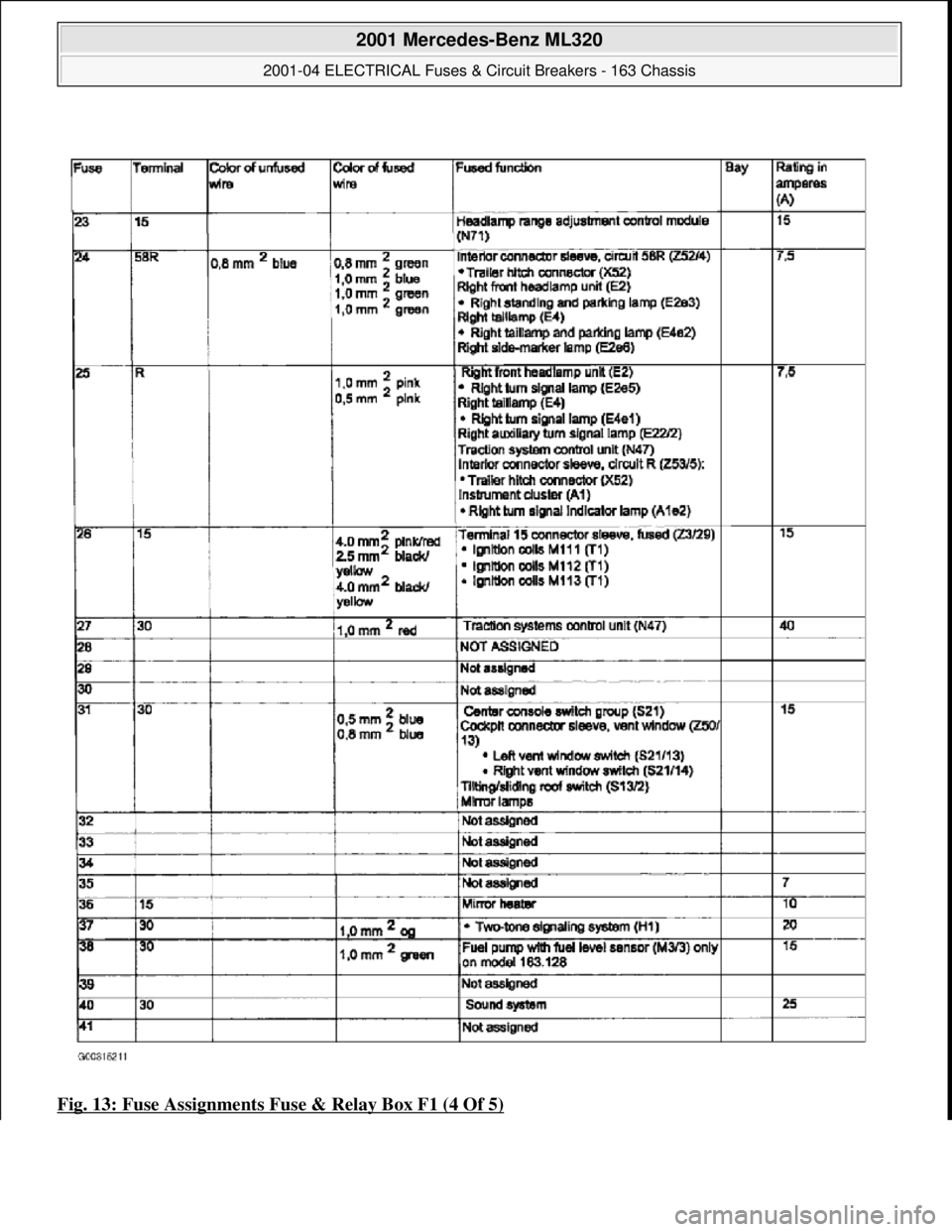

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 13: Fuse Assignments Fuse & Relay Box F1 (4 Of 5) 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 22 © 2006

Page 2637 of 4133

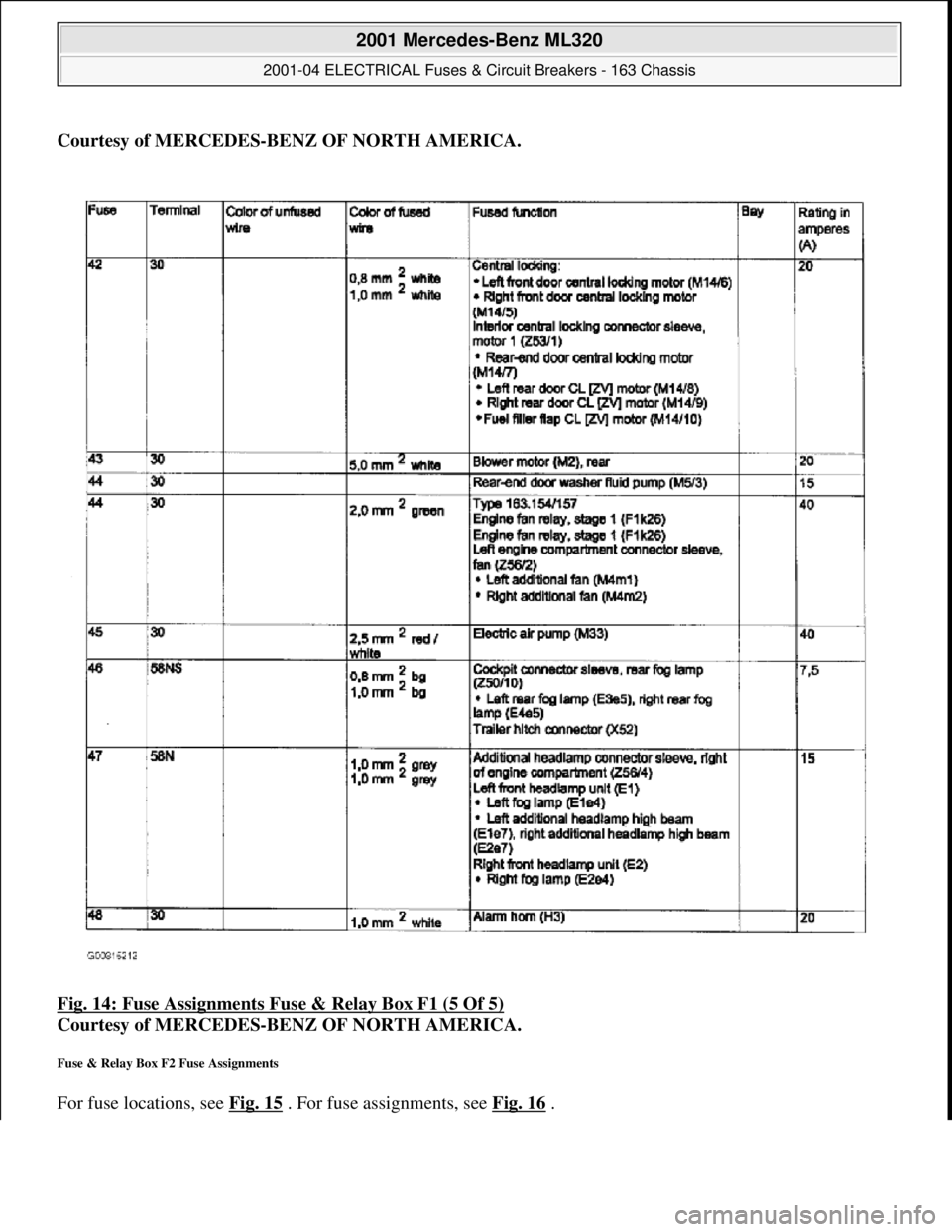

MERCEDES-BENZ ML430 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 14: Fuse Assignments Fuse & Relay Box F1 (5 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fuse & Relay Box F2 Fuse Assignments For fuse loc

Page 2638 of 4133

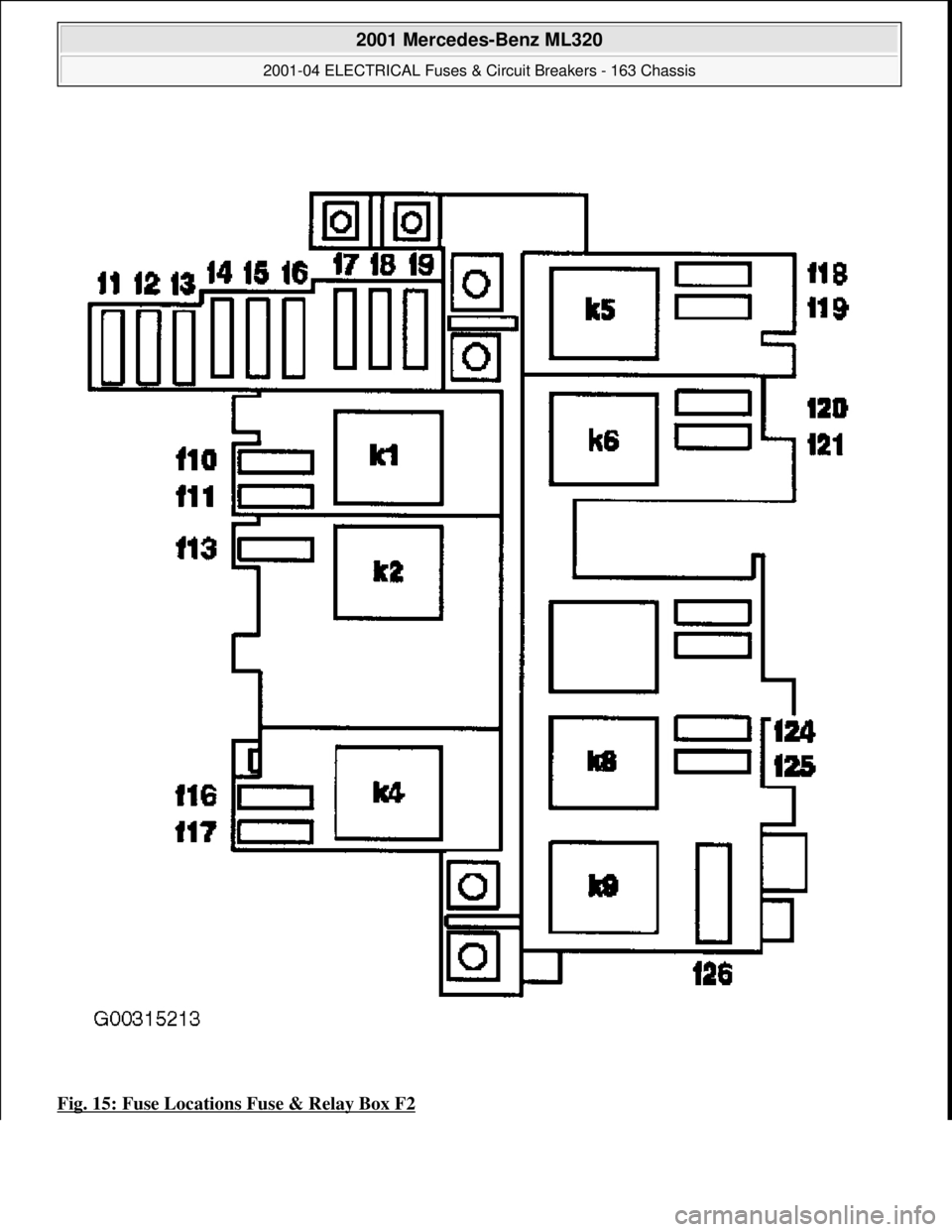

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 15: Fuse Locations Fuse & Relay Box F2 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 24 © 2006 Mitchell R

Page 2639 of 4133

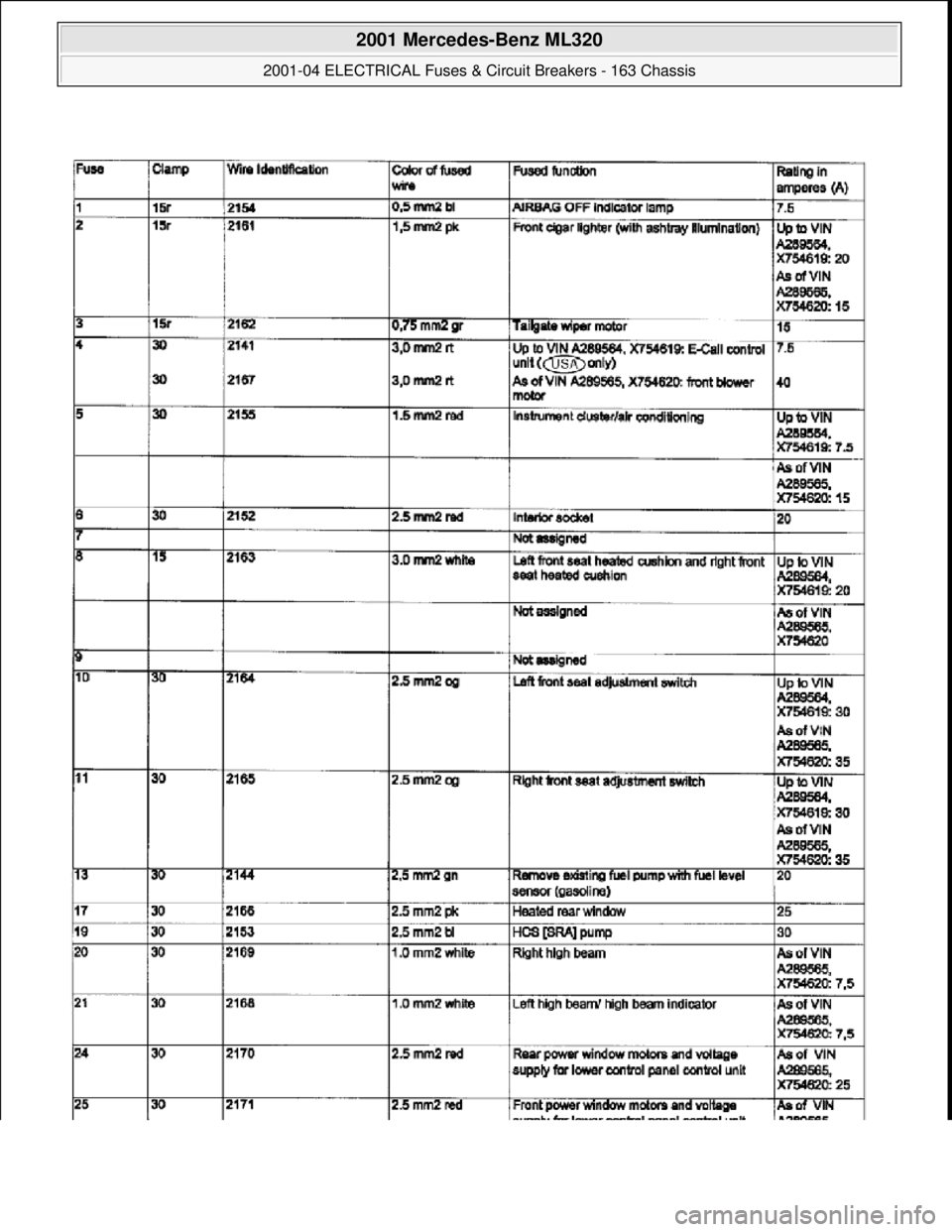

MERCEDES-BENZ ML430 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 25 © 2006 Mitchell R

Page 2640 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis me Saturday, October 02, 2010 3:22:06 PMPage 26 © 2006 Mitchell Repair Information Company, LLC.
