Fig. 183: Identifying Sun Sensor And Connector
Fig. 184: Identifying Longitudinal Wedge (115 589 03 59 00)

REMOVE AND INSTALL REFRIGERANT COMPRESSOR - AR83.55-P-5300GH
ENGINE 112 in MODEL 163 with CODE (580) Air conditioning or Tempmatic for USA

Remove/install
1Pull sun sensor (B32) upwards out of the
instrument panel Do not damage sun sensor and
instrument panel.
Installation wedgeFig.
184
2Disconnect plug (1) from sun sensor (B32)
3Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 227 © 2006 Mitchell Repair Information Company, LLC.

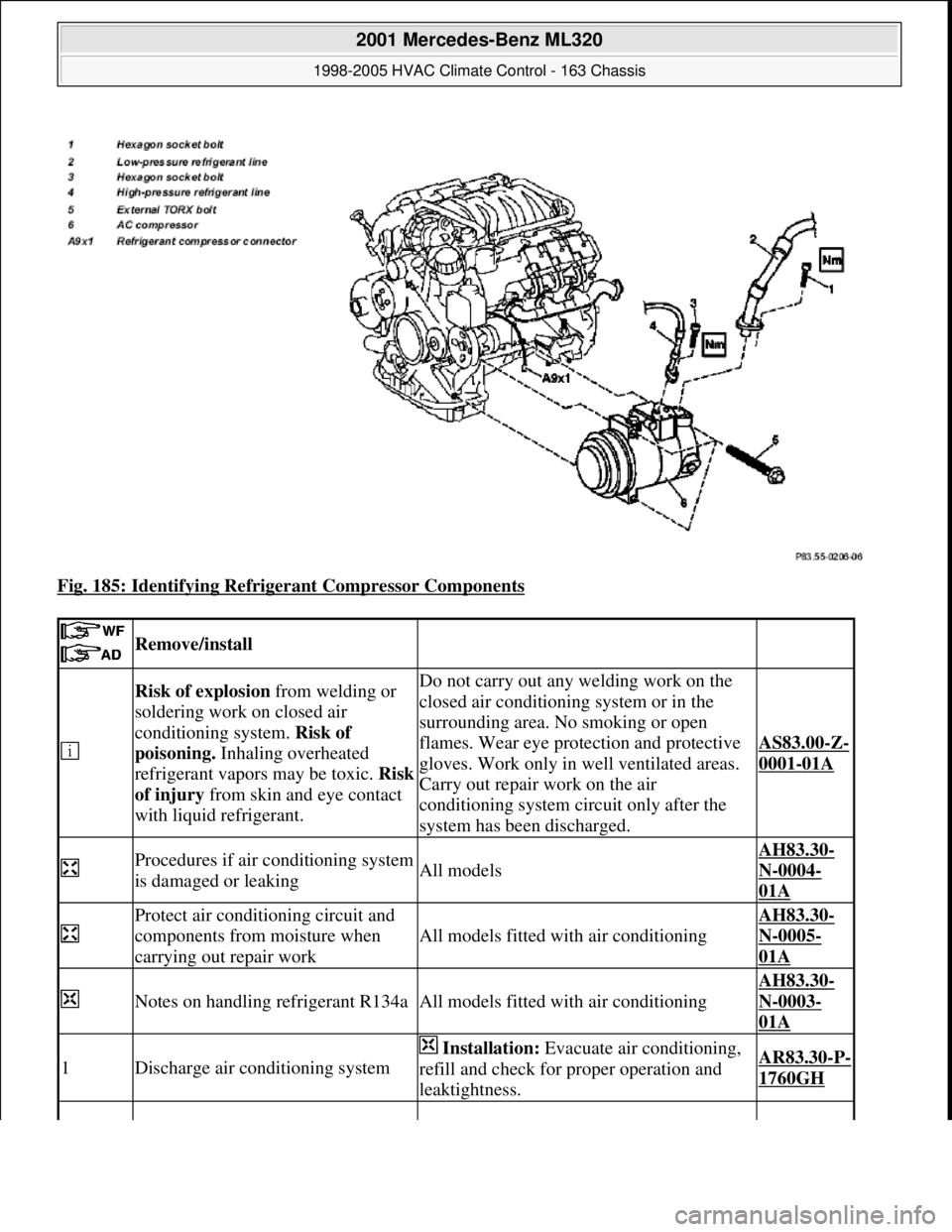

Fig. 185: Identifying Refrigerant Compressor Components

Remove/install

Risk of explosion from welding or
soldering work on closed air
conditioning system. Risk of
poisoning. Inhaling overheated
refrigerant vapors may be toxic. Risk
of injury from skin and eye contact
with liquid refrigerant.Do not carry out any welding work on the
closed air conditioning system or in the
surrounding area. No smoking or open
flames. Wear eye protection and protective
gloves. Work only in well ventilated areas.
Carry out repair work on the air
conditioning system circuit only after the
system has been discharged.
AS83.00-Z-
0001-01A
Procedures if air conditioning system
is damaged or leakingAll models
AH83.30-
N-0004-
01A

Protect air conditioning circuit and
components from moisture when
carrying out repair work
All models fitted with air conditioning
AH83.30-
N-0005-
01A
Notes on handling refrigerant R134aAll models fitted with air conditioning
AH83.30-
N-0003-
01A
1Discharge air conditioning system
Installation: Evacuate air conditioning,
refill and check for proper operation and
leaktightness.AR83.30-P-
1760GH

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 228 © 2006 Mitchell Repair Information Company, LLC.

AC compressor
Refrigerant compressor
2Remove poly V-belt AR13.22-P-
1202B
3
Unscrew hexagon socket head screw
(1) securing low-pressure refrigerant
line (2) to refrigerant compressor (6) Detach low-pressure refrigerant line (2)
from refrigerant compressor (6).
Installation: Install new sealing rings
and moisten with compressor oil.
*BA83.55-
P-1002-01A
4
Unscrew hexagon socket head screw
(3) securing high-pressure refrigerant
line (4) to refrigerant compressor (6)
*BA83.55-
P-1002-01A
5
Detach refrigerant compressor
connector (A9x1) at refrigerant
compressor (6) Installation: Install new sealing rings
and moisten with compressor oil.
6
Unscrew external Torx drive bolt (5)
from refrigerant compressor (6) at
crankcase
External torx setFig. 172
7Remove refrigerant compressor (6)
from below Installation: Note additional oil filling
capacity when replacing the fluid reservoir.*BF83.55-
P-1005-01A
8Install in the reverse order
9Remove receiver/drier
The fluid reservoir must be replaced
every time after the refrigerant compressor
is removed and installed.AR83.30-P-
6520GH

Installation: Note additional oil filling
capacity when replacing the refrigerant
compressor.*BF83.55-
P-1008-01A
NumberDesignationEngines 111.977,112.942,
112.970,113.942/ 965/981
in MODEL 163
BA83.55-P-1002-01ABolt of refrigerant lines to
AC compressorNM20
NumberDesignationRefrigerant
compressor 7SB16,
refrigerant R134a
in model 163
BF83.55-P-1005-
01AAdditional oil filling
capacity when
replacing fluid
reservoirCompressor oilcm3 10
Specifications for
Operating FluidsSheetBB00.40-P-0362-
00A

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 229 © 2006 Mitchell Repair Information Company, LLC.

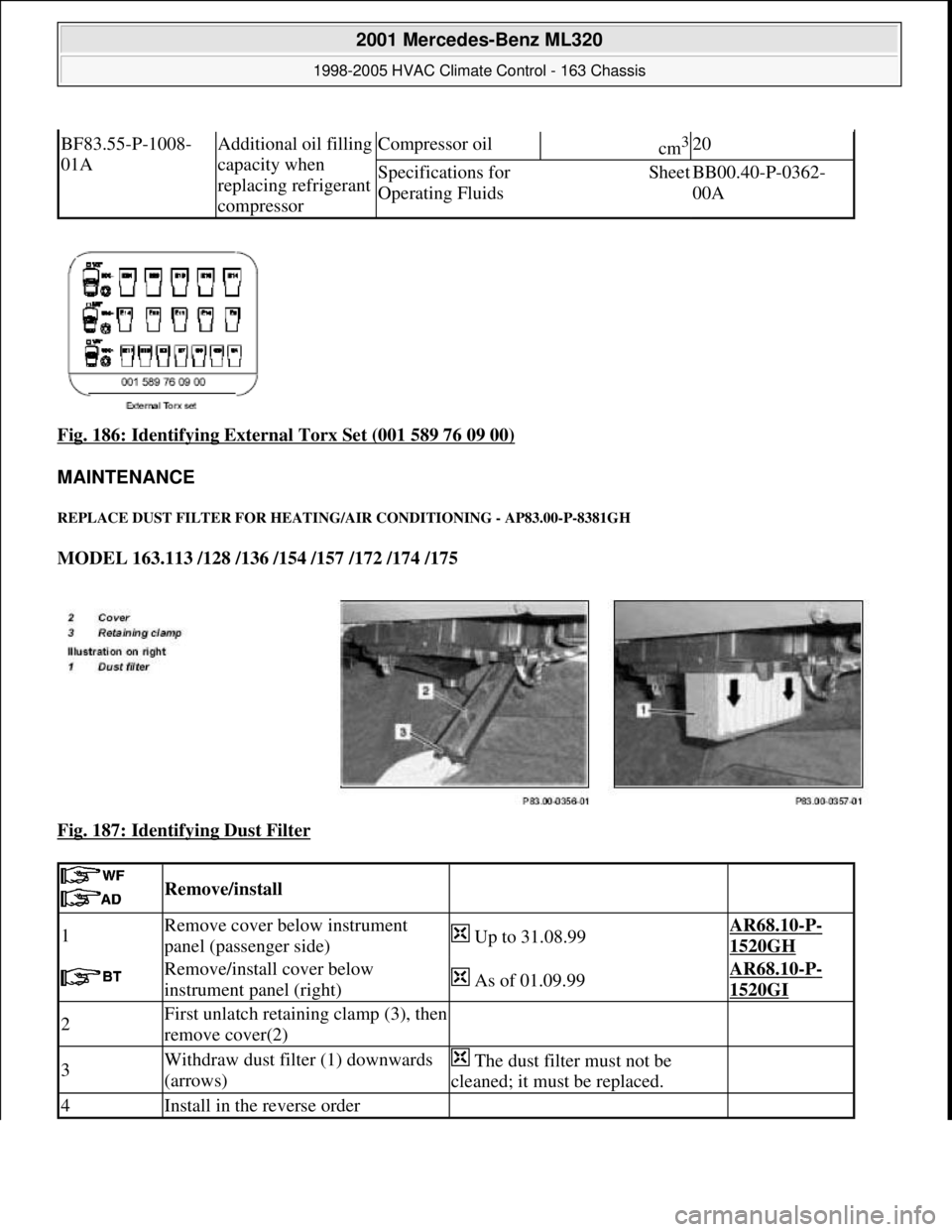

Fig. 186: Identifying External Torx Set (001 589 76 09 00)
MAINTENANCE
REPLACE DUST FILTER FOR HEATIN G/AIR CONDITIONING - AP83.00-P-8381GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Fig. 187: Identifying Dust Filter

BF83.55-P-1008-
01AAdditional oil filling
capacity when
replacing refrigerant
compressorCompressor oilcm3 20
Specifications for
Operating FluidsSheetBB00.40-P-0362-
00A

Remove/install
1Remove cover below instrument
panel (passenger side) Up to 31.08.99AR68.10-P-
1520GH
Remove/install cover below
instrument panel (right) As of 01.09.99AR68.10-P-
1520GI
2First unlatch retaining clamp (3), then
remove cover(2)
3Withdraw dust filter (1) downwards
(arrows) The dust filter must not be
cleaned; it must be replaced.
4Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 230 © 2006 Mitchell Repair Information Company, LLC.

REMOVAL & INSTALLATION
INSTALL AUXILIARY WIRING HARNESS - SM83.30-P-0009GH
MODEL 163.154 #A up to 289564, 163.154 #X, 163.136 /172 with CODE (580) Air conditioning (or
Tempmatic for USA)

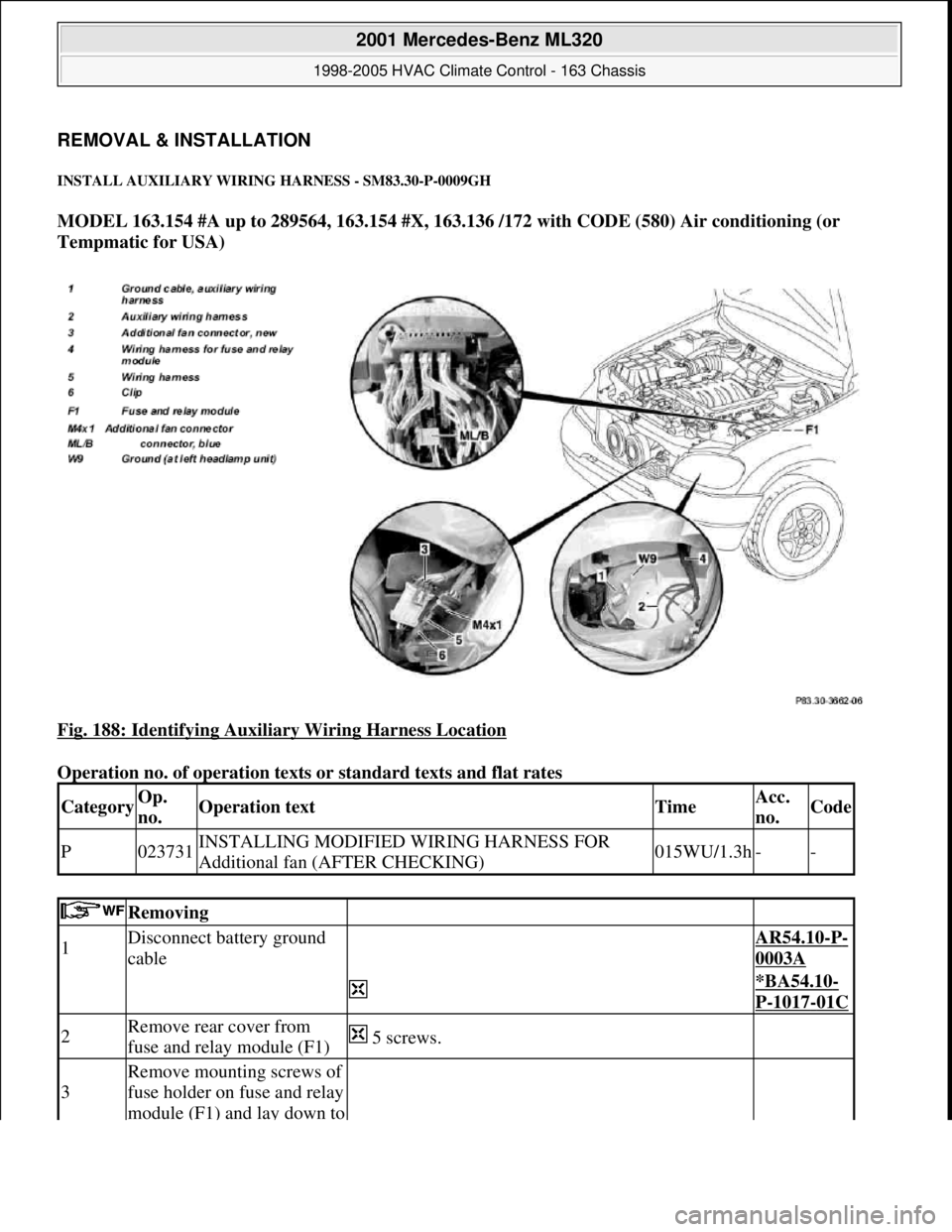

Fig. 188: Identifying Auxiliary Wiring Harness Location

Operation no. of operation texts or standard texts and flat rates
CategoryOp.
no.Operation textTimeAcc.
no.Code
P023731INSTALLING MODIFIED WIRING HARNESS FOR
Additional fan (AFTER CHECKING)015WU/1.3h--
Removing
1Disconnect battery ground
cable AR54.10-P-
0003A
*BA54.10-
P-1017-01C
2Remove rear cover from
fuse and relay module (F1) 5 screws.
3
Remove mounting screws of
fuse holder on fuse and relay
module (F1) and lay down to


2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 231 © 2006 Mitchell Repair Information Company, LLC.

side
4
Disconnect blue connector
(ML/B) from bottom of fuse
holder

5Remove lamp unit AR82.10-P-
4730GH
6
Remove original additional
fan connector (M4x1) from
additional fan and fasten to
present wiring harness (5)
with adhesive tape on clip
(6)

Install
7
Route new additional fan
connector (3) on auxiliary
wiring harness (2) to
additional fan connector and
insert
Route along original wiring harness at rear of
installation opening of lamp unit
8
Fasten auxiliary wiring
harness (2) to original wiring
harness in area of clips with
cable straps.

9
Fasten auxiliary wiring
harness ground cable (1) to
left front ground (W9)
*BA54.10-
P-1017-01C
10
Route auxiliary wiring
harness (2) into fuse and
relay module
Route fuse and relay module along wiring harness
for fuse and relay module (4) below installation
opening of lamp unit between washer water reservoir
and fender to grommet on left side of fuse and relay
module. Remove adhesive tape from rubber
grommet, thread wiring harness through and reinstall
adhesive tape.

11
Route connection terminal
of auxiliary wiring harness
(2) to blue connector
(ML/B) at bottom of fuse
holder

12
Open housing of connector
(ML/B) and remove lead
from plug location 1

13
Separate present lead
approx. 100 mm in front
connection terminal

Insert connection terminal
for auxiliary wiring harness
Ensure that connection terminal arrests correctly

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 232 © 2006 Mitchell Repair Information Company, LLC.

Battery
Parts ordering notes
14
(2) into plug location 1 of
connector (ML/B) and close
connector housing.in connector.

15
Insert blue connector
(ML/B) at bottom of fuse
holder and fasten auxiliary
wiring harness (2) to
separated lead with adhesive
tape
Ensure that stripped wire ends are insulated with
adhesive tape.
16
Fasten fuse holder to fuse
and relay module with
screws

17Insert new 40 A fuse at
position f44 in fuse holder The larger line diameter of the auxiliary wiring
harness (2) allows installation of a 40 A fuse.
18Install in the reverse order
19Check function of additional
fan
NumberDesignationModel 163
BA54.10-P-1017-01CNut, ground cable to bodyNm18
Part no.DesignationQuantity
163 540 00 35Auxiliary wiring harness1
910153 000000Fuse, 40 A1

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 233 © 2006 Mitchell Repair Information Company, LLC.

AD54.30-P-6000-42GH
IC test of electrical system coolant level

indicator
Model 163 as of 3.98

t
A

Scope of test

Measuring instrument/

Test connection
Operation/Requirement

Specified value
D

Possible cause/Remedy

1.0
Coolant level indicator

electronic switch (S41)

Model 163 as of 3.98

1
w

S41

BL
2

Ignition:
OFF

Disconnect coupling at S41,

connect Ohm decade

device,

set 70 k
W,

Start engine,

wait for up to 1min

Set 30 k
W

wait for up to 1min

Low ECL

indicator lamp

(A1e11)

illuminated

A1e11 goes out

Values in order:

D
Coolant level indicator
electronic switch (S41)

Values not in order:

D
Cables to A1

D
A1

Copyright DaimlerChrysler AG 05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

BT27.00-Z-9999AZ
Technical modifications: Passenger cars: Automatic transmission
30.4.97

MODEL all

Vacuum unit for modulating pressure modified
TRANSMISSION 722.3 /5 as of 15.8.92

BT27.10-P-0001-01A

Secondary pump dispensed with
TRANSMISSION 722.5## ## as of 3652931

BT27.10-P-0002-01A

Control pressure cable with vacuum actuators

standardized
TRANSMISSION 722.3 /4 /5 as of 1.7.93

BT27.10-P-0003-01A

Sump volume modified
TRANSMISSION 722.7## ## as of 0054011

as of 29.7.99

BT27.10-P-0004-01A

Additional shim between deep-groove ball

bearing and output flange
TRANSMISSION 722 ...

BT27.10-P-0005-01A

Oil pan and overflow tube modified
TRANSMISSION 722.901

BT27.10-P-0006-01W

Retaining lug added to electrohydraulic

control module
TRANSMISSION 722.6## # as of 0026195

BT27.19-P-0001-01A

Caps for solenoid valve, new
TRANSMISSION 722.6 as of 1.8.97

BT27.19-P-0003-01A

Oil drain plug on torque converter deleted
TRANSMISSION 722.6## /6## ## as of

1772285 as of 22.9.99

BT27.20-P-0001-01A

Small intermediate plate modified
TRANSMISSION 722.5## ## as of 3987361

as of 15.3.94

BT27.35-P-0001-01A

Installation of a pressure feed valve
TRANSMISSION 722.6## # as of 0027083

BT27.35-P-0002-01A

Primary pump non-return valve dispensed with
TRANSMISSION 722.5## ## as of 3652931

BT27.35-P-0003-01A

Strainer for modulating pressure and shift

pressure control solenoid valve, new
TRANSMISSION 722.6## ## as of 0538312

BT27.35-P-0004-01A

Strainer in inlet to converter lock-up control

solenoid valve, newTRANSMISSION 722.6## ## as of 0485895

BT27.35-P-0005-01A

Feed B1 enlarged
TRANSMISSION 722.5 as of 15.8.91

BT27.40-P-0001-01A

Fluid reservoir deleted
TRANSMISSION 722.7## ## as of 0111673

as of 11.9.00

BT27.40-P-0002-01A

Magnet in oil pan, new part
TRANSMISSION 722.6## ## as of 2871384

as of 17.4.01, 722.7## ## as of 0153700 as

of 9.7.01

BT27.40-P-0003-01A

Piston B1 modified
TRANSMISSION 722.5## ## as of 3746852

as of 15.6.92, 722.3## ## as of 3969172

BT27.50-P-0002-01A

Plain bearing of input shaft changed to an anti-

friction bearing
TRANSMISSION 722 ...

BT27.50-P-0002-02A

One-way valve dispensed with
TRANSMISSION 722.5## ## as of 3652931

BT27.50-P-0007-01A

Outer multiple-disc carrier B1 modified
TRANSMISSION 722.6## # as of 0005900

BT27.50-P-0008-01A

Peak-to-valley height on piston B2 modified
TRANSMISSION 722.6## # as of 0023104

BT27.50-P-0009-01A

Piston B2 changed
TRANSMISSION 722.6## ## as of 0552036

as of 1.8.97

BT27.50-P-0010-01A

Friction bearing in sun wheel of rear planet

gear set converted to anti-friction bearing
TRANSMISSION 722 ...

BT27.50-P-0011-01A

Conversion from 18° to 23° gearing in front

and rear planetary gear system
TRANSMISSION 722 ...

BT27.50-P-0012-01A

Multi-disks for B1, K1 and K3 changed
TRANSMISSION 722.6## ## as of 3947440

as of 2.9.02

BT27.50-P-0013-01A

Thickness of friction and steel disks K3

changed
TRANSMISSION 722.6

BT27.51-P-0001-01A

Thickness of steel plates of B1, K1 and K2

modified
TRANSMISSION 722.6## ## as of 1596205

as of 15.6.99

BT27.51-P-0002-01A
Additional dished washer in multi-plate set K2
TRANSMISSION 722.6## ## as of 1596205

as of 15.6.99

BT27.51-P-0003-01A

Center shift modified
TRANSMISSION 722.6

BT27.60-P-0001-01A

Deletion shift lock cable ignition lock to

transmission
TRANSMISSION 722.7 in MODEL

WDB168.### ## as of 548031 as of 10.1.01

BT27.60-P-0001-02A

Selector lever soldered
TRANSMISSION 722.6 as of 1.5.96

BT27.60-P-0002-01A

Deletion of lever for shift lock cable ignition

lock at transmission
TRANSMISSION 722.700 ## as of 0129631

as of 24.1.01, 722.701 ## as of 0132072 as

of 8.2.01

BT27.60-P-0003-01A

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

GF54.30-P-2001A
Indicator / warning displays, function
24.10.96

MODEL
129, 140 as of 1.6.96,

163, 168, 170,

202 as of 1.8.96,

208 up to 31.7.99,

210 as of 1.6.96 up to 30.6.99

The table below lists the various warning alarms and indications

according to type (visual/acoustic) and their actuation (direct/CAN).

Visual warning and indicator signals actuated over direct lines:
D
Left turn signal indicator lamp (A1e1)

D
Right turn signal indicator lamp (A1e2)

D
High beam indicator lamp (A1e3)

D
Fuel reserve warning lamp (A1e4)

D
Brake fluid / parking brake warning lamp (A1e7) (except model

163)

D
Low windshield washer fluid level warning lamp (A1e13) (as of

01.09.01 also valid for model 163)

D
Low engine coolant level warning lamp (A1e11) (except model

168, model 163 as of 3.99)

D
Coolant level and temperature warning lamp (A1e11) (only model

168 as of 9.99 and only coolant level function)

D
Generator charge indicator/warning lamp (A1e5)

D
Seat belt warning lamp (A1e9)

D
Seatbelt/backrest lock warning lamp (A1e9)

D
Exterior lamp failure indicator lamp (A1e14)

-----------------------------------------------------------------------------------------
D

Hydraulic fluid level warning lamp (A1e37)

D
ADS warning lamp, suspension (A1e27)

D
Steering lock warning lamp (A1e40) (only

I
)

D
SRS airbag malfunction indicator lamp (A1e15)

D
AIRBAG OFF indicator lamp (A1e56), only model 163 except

I

Also refer to document: Indicator and warning signals triggered

over CAN data lines
Acoustic warning and indicator signals actuated over direct

lines:
D
Turn signal ticker

D
Seat belt reminder

D
Switched-on lights reminder

D
Key warning

D
Soft top warning, only model 170


Also refer to document: Acoustic warnings, function

Acoustic warning and indicator signals actuated over CAN data

lines:
D
Parking brake warning

D
Vehicle speed warning

D
Vehicle speed limit warning

D
Gear warning, only model 168


Also refer to document: Acoustic warnings, function

Indicator and warning signals triggered over

direct lines

GF54.30-P-3002A

Indicator and warning signals triggered over

CAN data lines

GF54.30-P-3003A
Acoustic warnings, function
GF54.30-P-3010A

Copyright DaimlerChrysler AG 04.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
