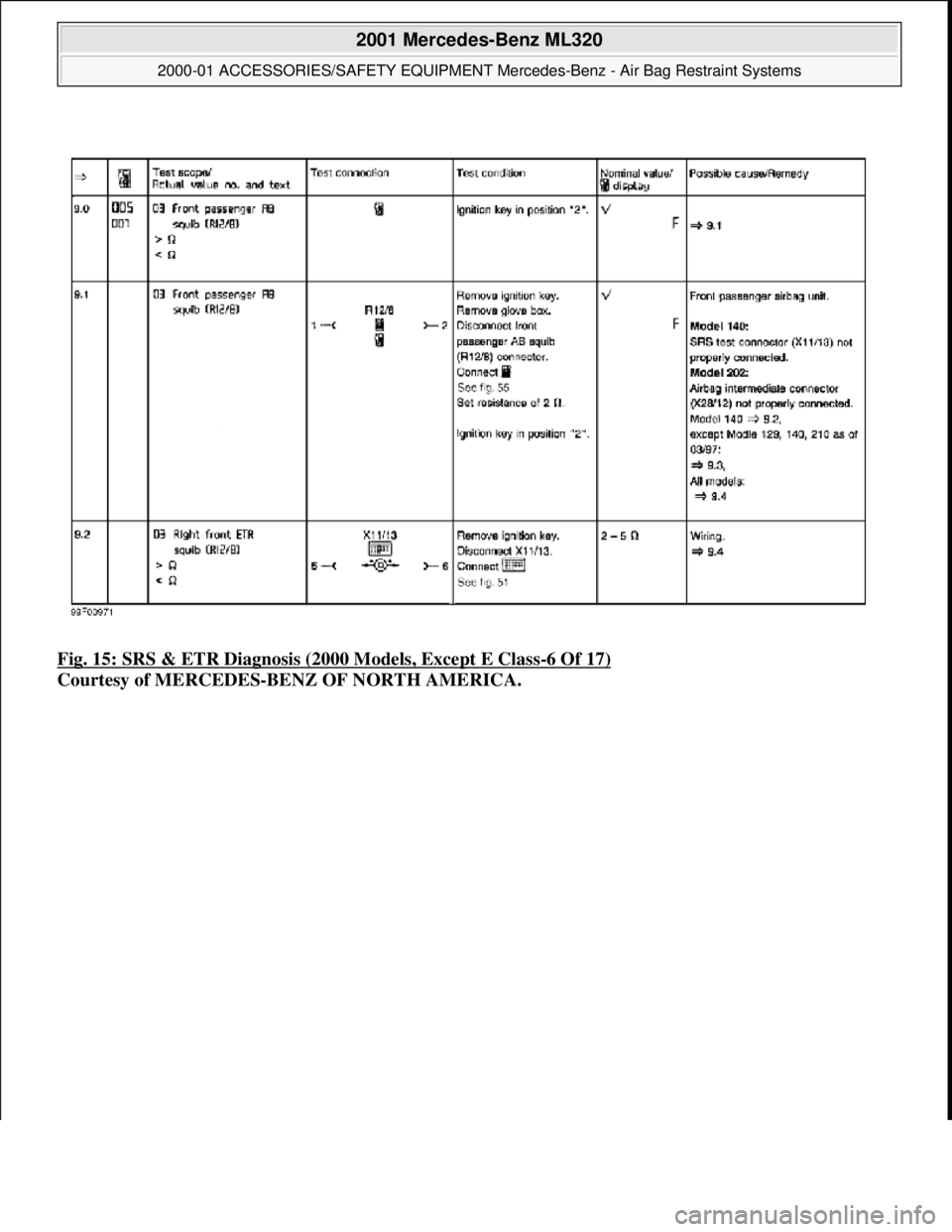

Fig. 15: SRS & ETR Diagnosis (2000 Models, Except E Class-6 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 27 © 2006 Mitchell Repair Information Company, LLC.

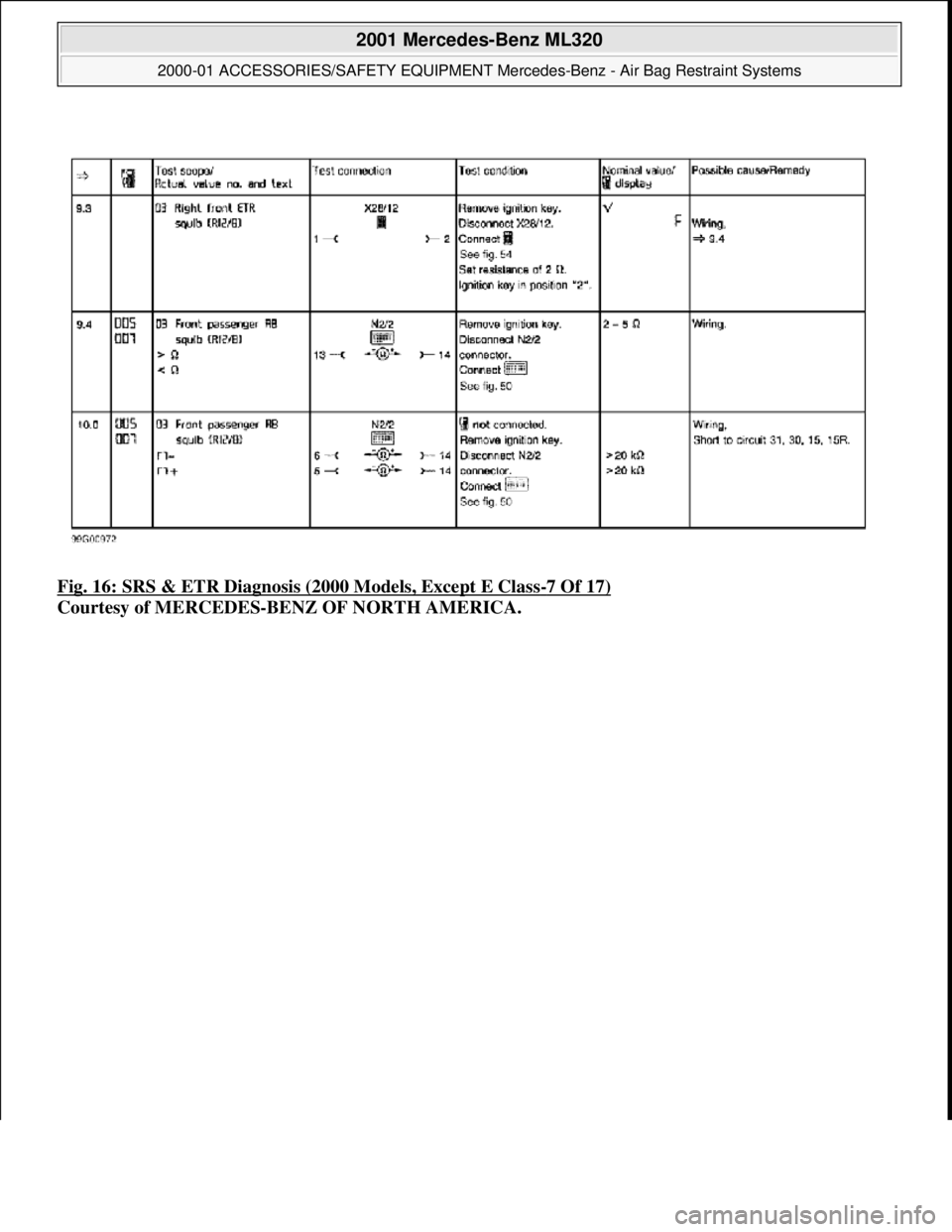

Fig. 16: SRS & ETR Diagnosis (2000 Models, Except E Class-7 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 28 © 2006 Mitchell Repair Information Company, LLC.

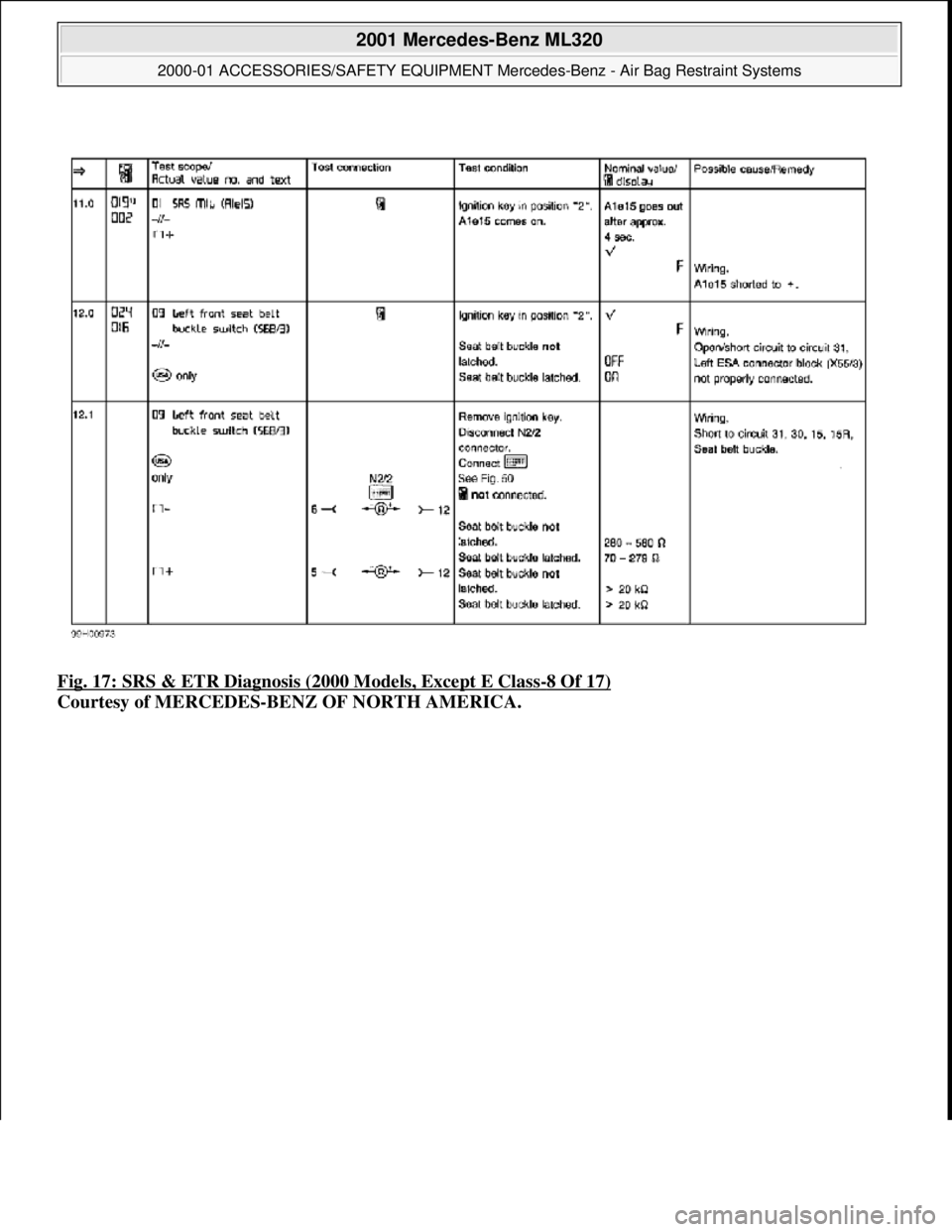

Fig. 17: SRS & ETR Diagnosis (2000 Models, Except E Class-8 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 29 © 2006 Mitchell Repair Information Company, LLC.

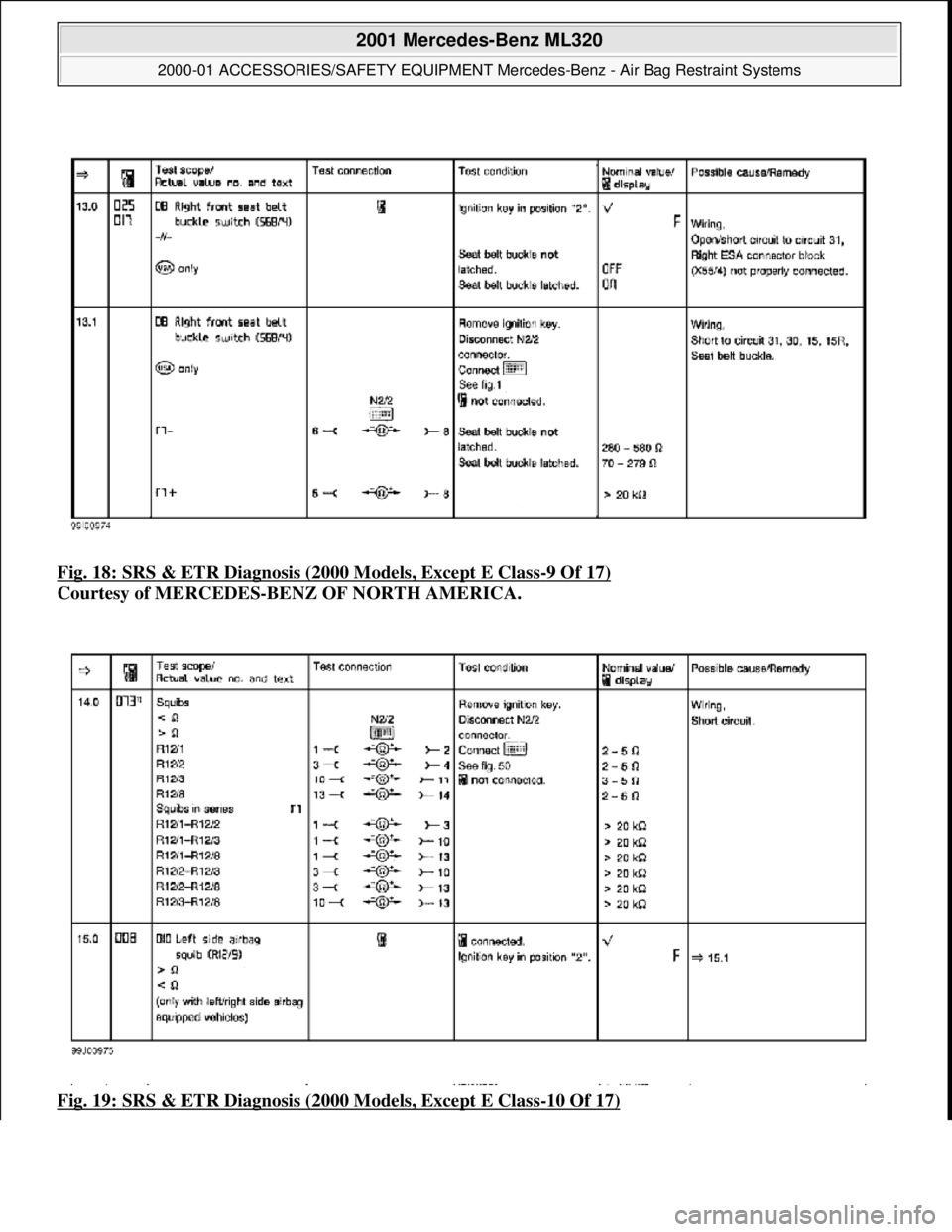

Fig. 18: SRS & ETR Diagnosis (2000 Models, Except E Class-9 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig. 19: SRS & ETR Diagnosis (2000 Models, Except E Class
-10 Of 17)

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 30 © 2006 Mitchell Repair Information Company, LLC.

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

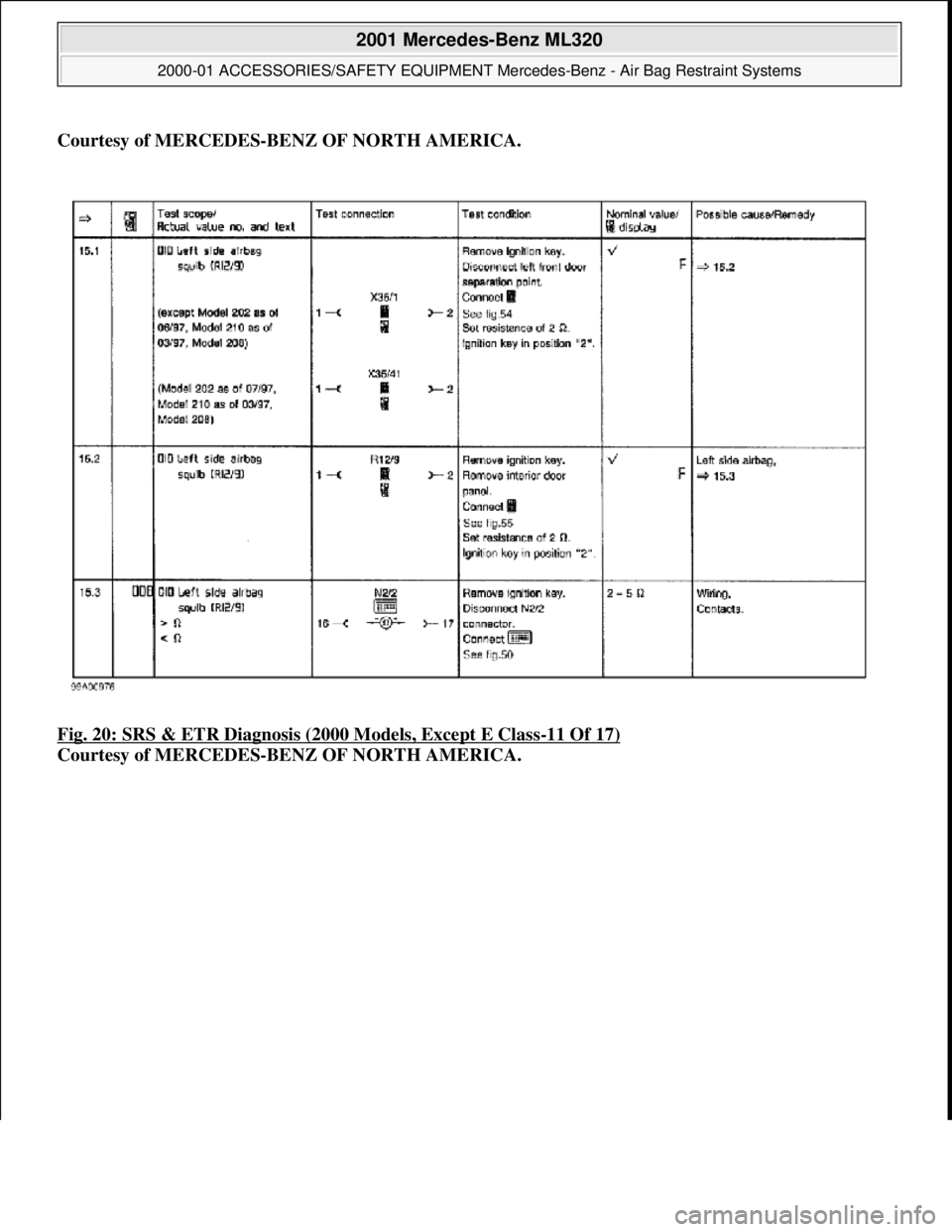

Fig. 20: SRS & ETR Diagnosis (2000 Models, Except E Class
-11 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 31 © 2006 Mitchell Repair Information Company, LLC.

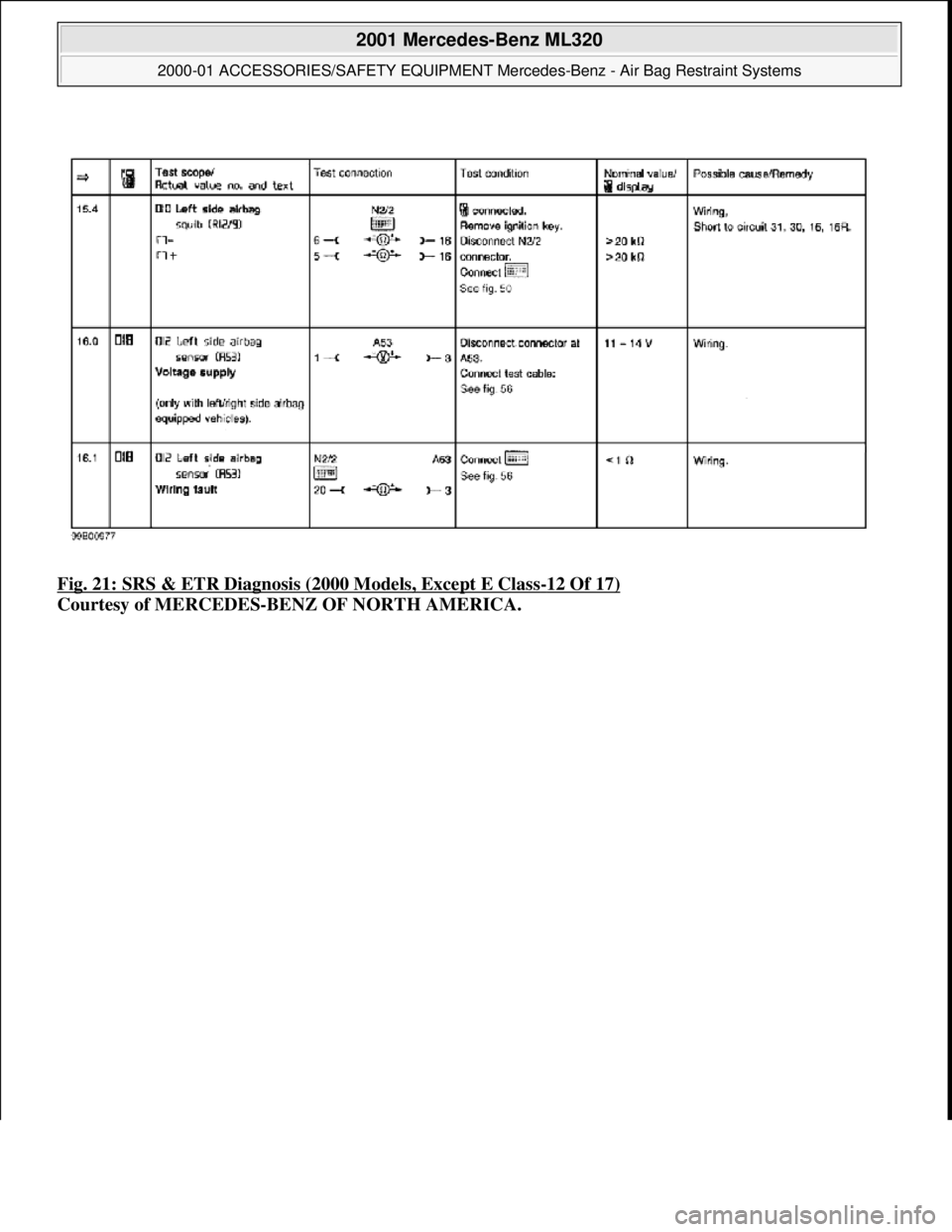

Fig. 21: SRS & ETR Diagnosis (2000 Models, Except E Class-12 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 32 © 2006 Mitchell Repair Information Company, LLC.

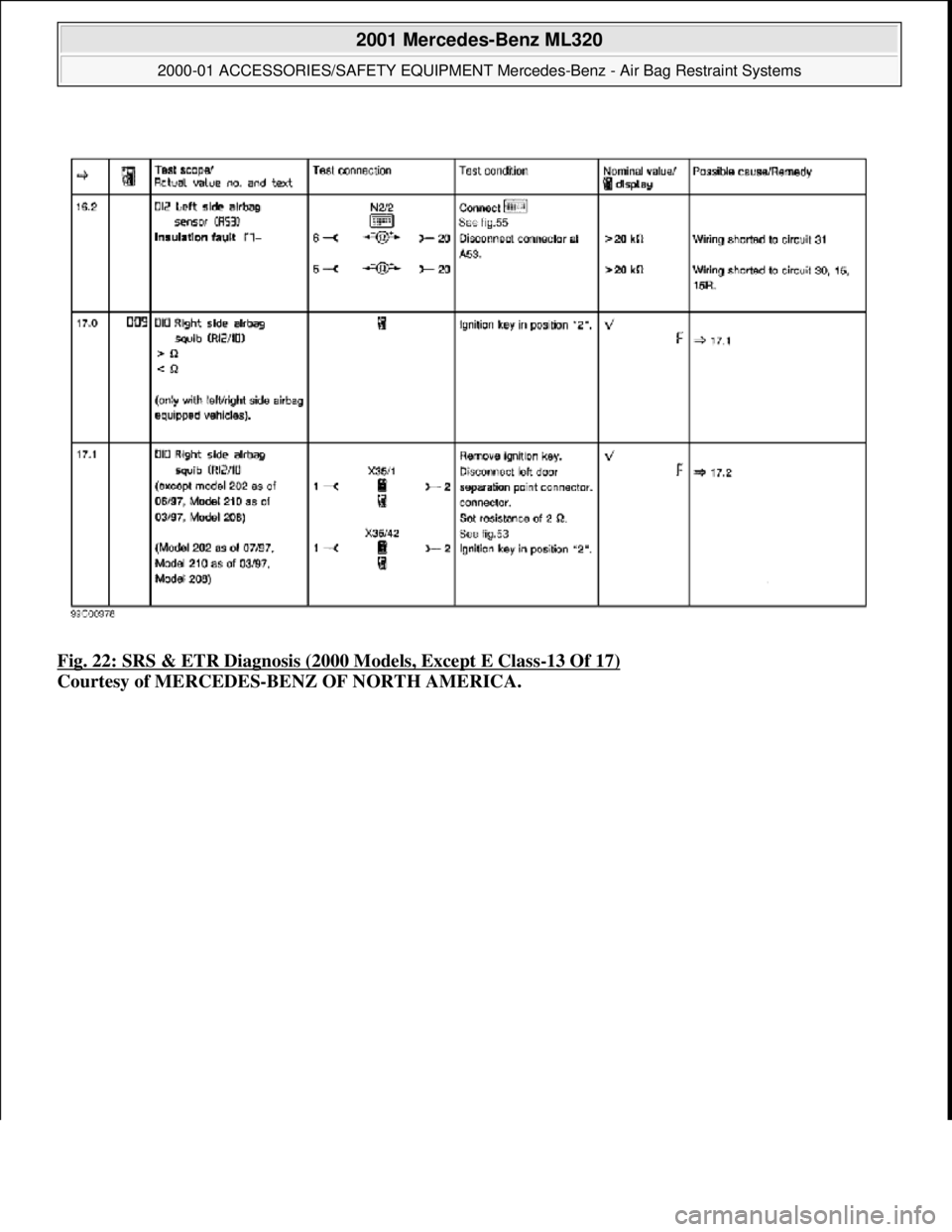

Fig. 22: SRS & ETR Diagnosis (2000 Models, Except E Class-13 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 33 © 2006 Mitchell Repair Information Company, LLC.

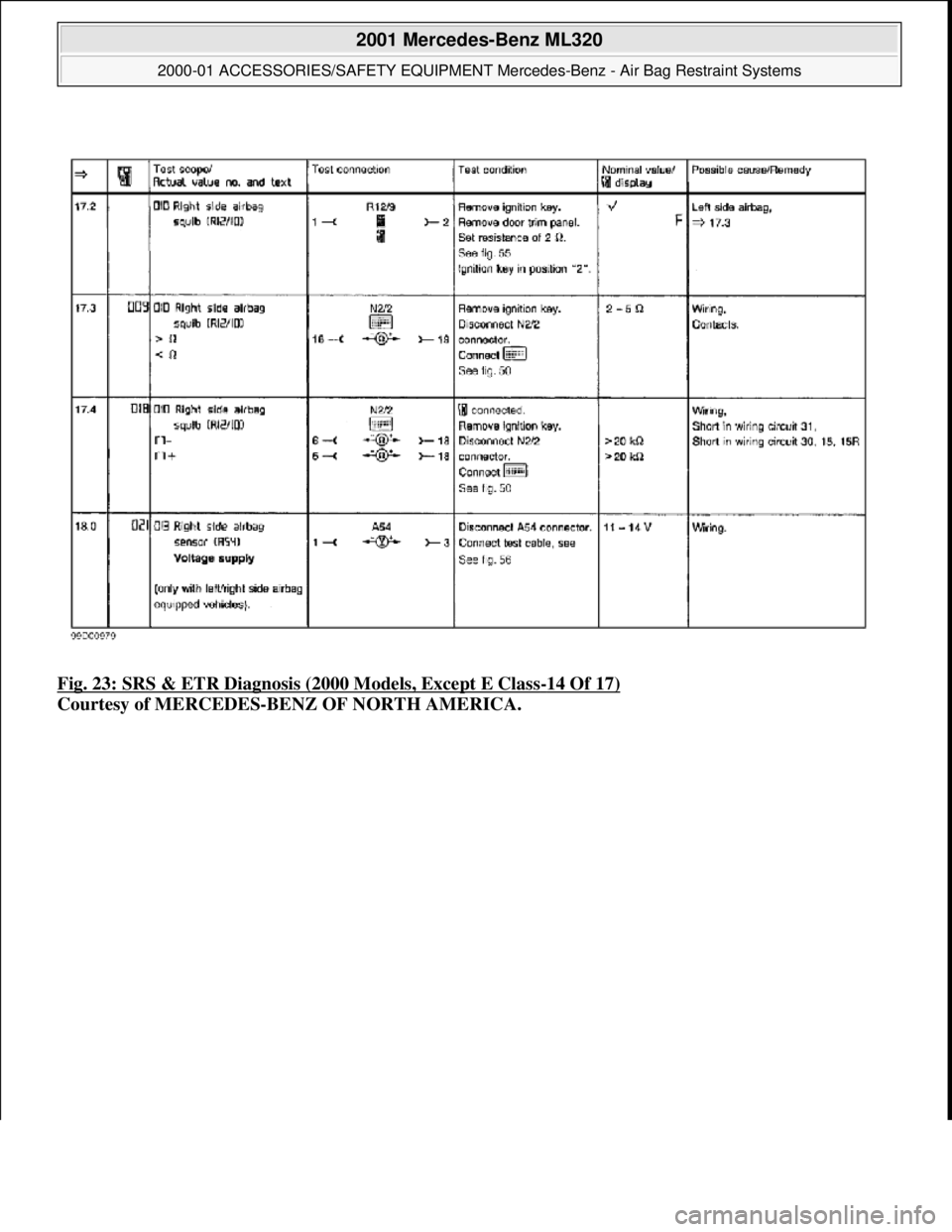

Fig. 23: SRS & ETR Diagnosis (2000 Models, Except E Class-14 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 34 © 2006 Mitchell Repair Information Company, LLC.

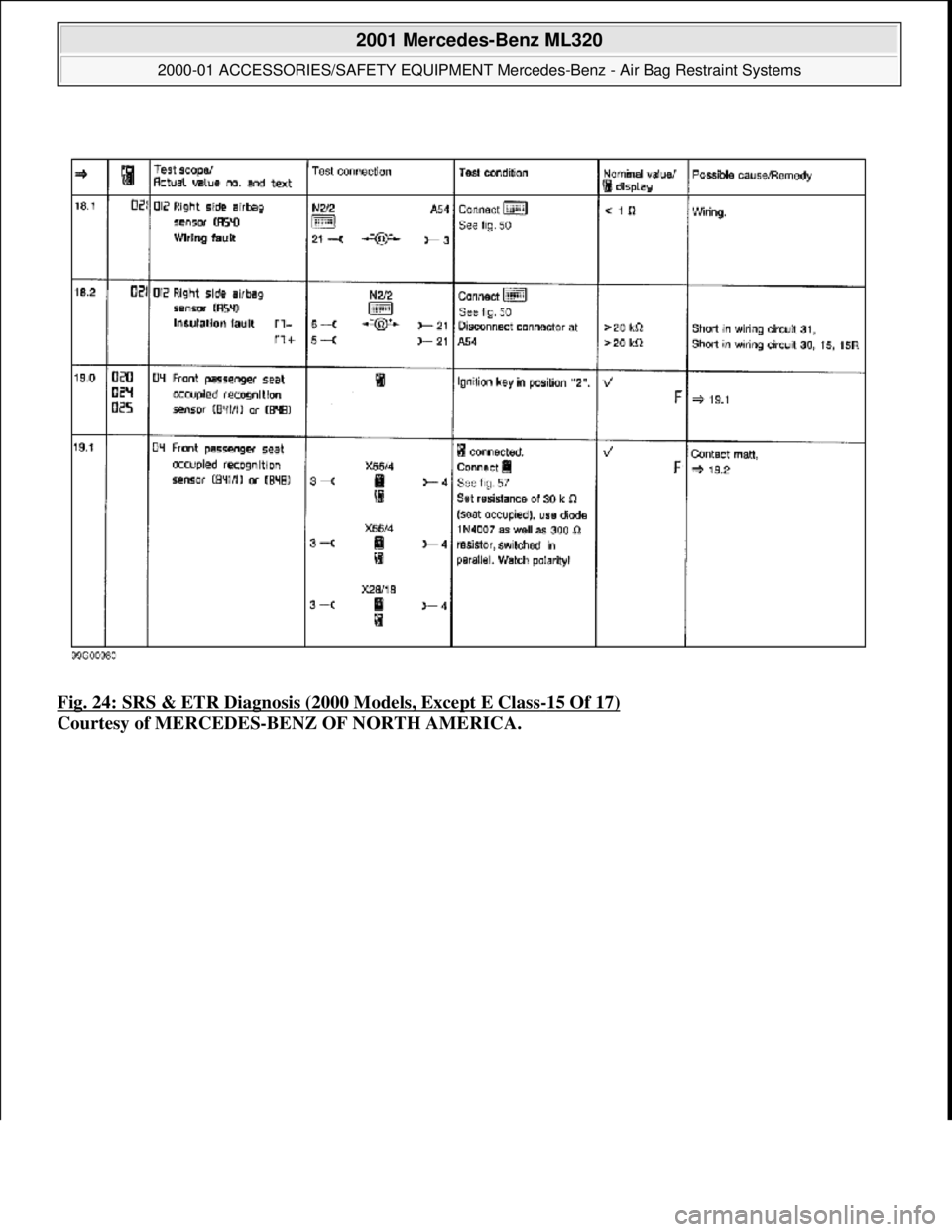

Fig. 24: SRS & ETR Diagnosis (2000 Models, Except E Class-15 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 35 © 2006 Mitchell Repair Information Company, LLC.

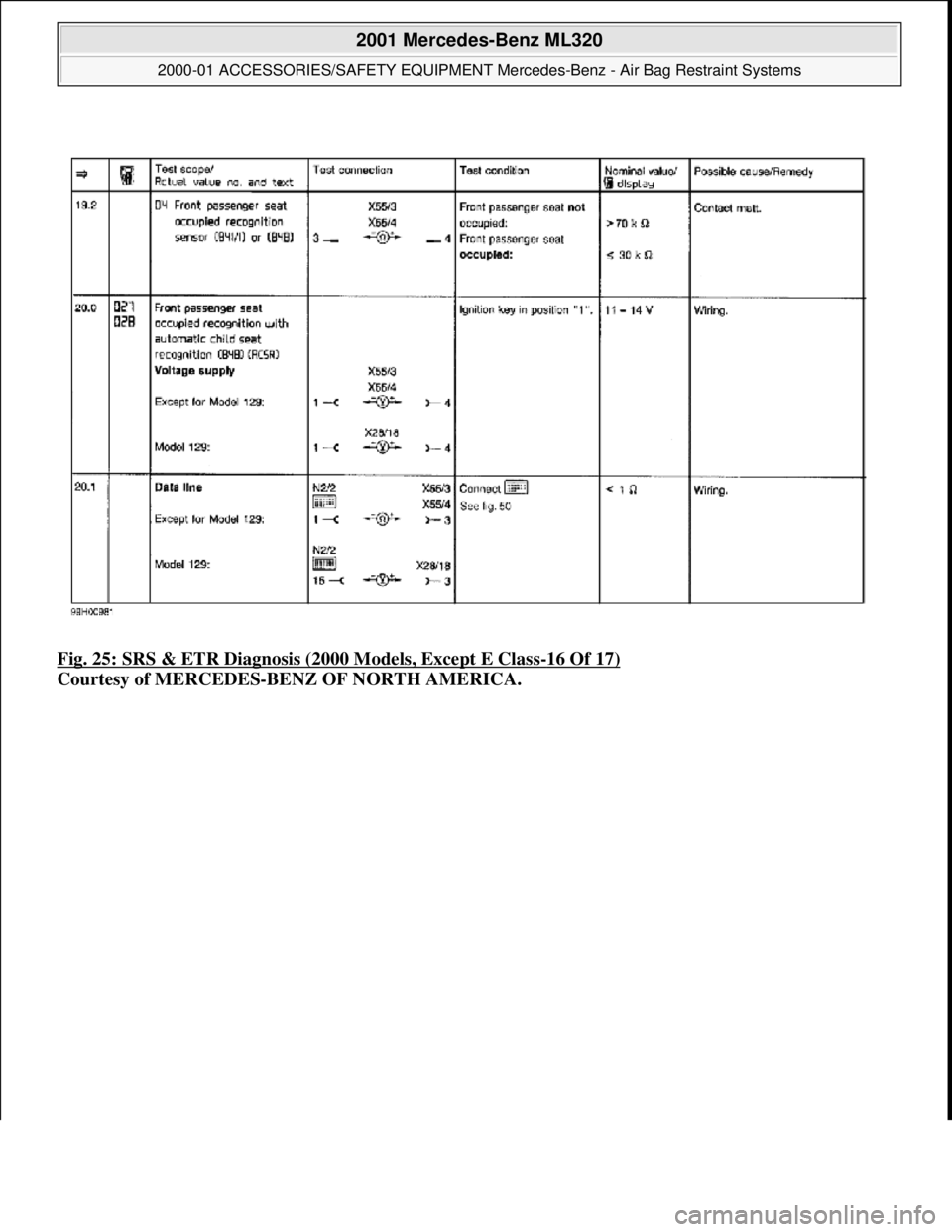

Fig. 25: SRS & ETR Diagnosis (2000 Models, Except E Class-16 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

2001 Mercedes-Benz ML320
2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:44:46 PMPage 36 © 2006 Mitchell Repair Information Company, LLC.
