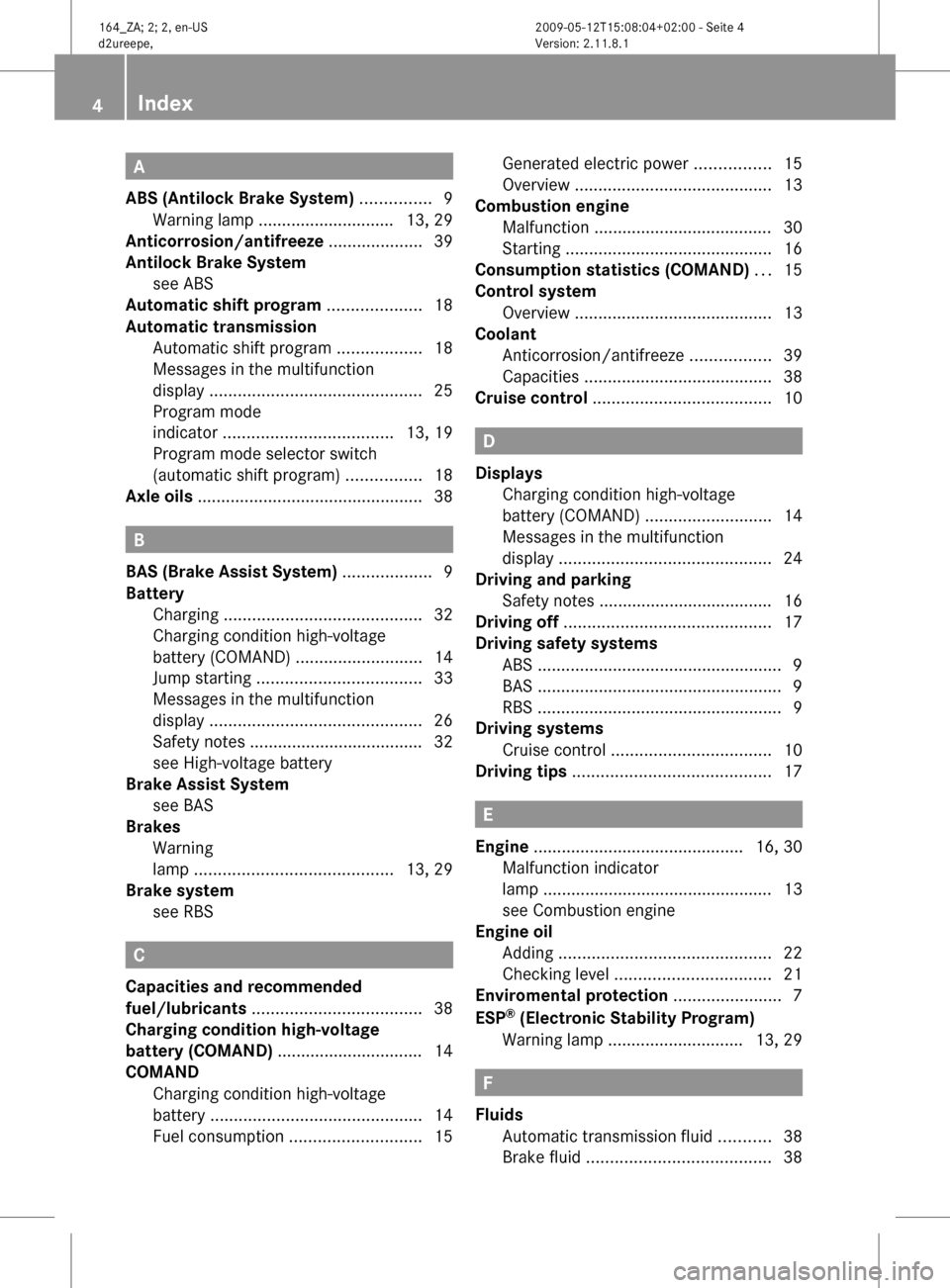

ABS (Antilock Brake System) ............... 9
Warning lamp .............................
13, 29
Anticorrosion/antifreeze ....................39
Antilock Brake System see ABS
Automatic shift program ....................18
Automatic transmission Automatic shift program ..................18
Messages in the multifunction
display ............................................. 25
Program mode
indicator .................................... 13, 19
Program mode selector switch
(automatic shift program) ................18
Axle oils ................................................ 38B
BAS (Brake Assist System) ................... 9
Battery Charging .......................................... 32
Charging condition high-voltage
battery (COMAND) ........................... 14
Jump starting ................................... 33
Messages in the multifunction
display

............................................. 26
Safety notes ..................................... 32
see High-voltage battery
Brake Assist System
see BAS
Brakes
Warning
lamp .......................................... 13, 29
Brake system
see RBS C
Capacities and recommended
fuel/lubricants .................................... 38
Charging condition high-voltage
battery (COMAND) ...............................

14
COMAND
Charging condition high-voltage
battery ............................................. 14
Fuel consumption ............................ 15Generated electric power
................15
Overview .......................................... 13
Combustion engine
Malfunction ......................................

30
Starting ............................................ 16
Consumption statistics (COMAND) ...15
Control system Overview .......................................... 13
Coolant
Anticorrosion/antifreeze ................. 39
Capacities ........................................ 38
Cruise control ...................................... 10 D
Displays
Charging condition high-voltage
battery (COMAND) ........................... 14
Messages in the multifunction
display

............................................. 24
Driving and parking
Safety notes ..................................... 16
Driving off ............................................ 17
Driving safety systems ABS .................................................... 9
BAS .................................................... 9
RBS .................................................... 9
Driving systems
Cruise control .................................. 10
Driving tips .......................................... 17 E
Engine .............................................

16, 30
Malfunction indicator
lamp ................................................. 13
see Combustion engine
Engine oil
Adding ............................................. 22
Checking level ................................. 21
Enviromental protection ....................... 7
ESP ®
(Electronic Stability Program)
Warning lamp ............................. 13, 29 F
Fluids
Automatic transmission fluid ........... 38
Brake fluid ....................................... 384
Index 164_ZA; 2; 2, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-12T15:08:04+02:00 - Seite 4

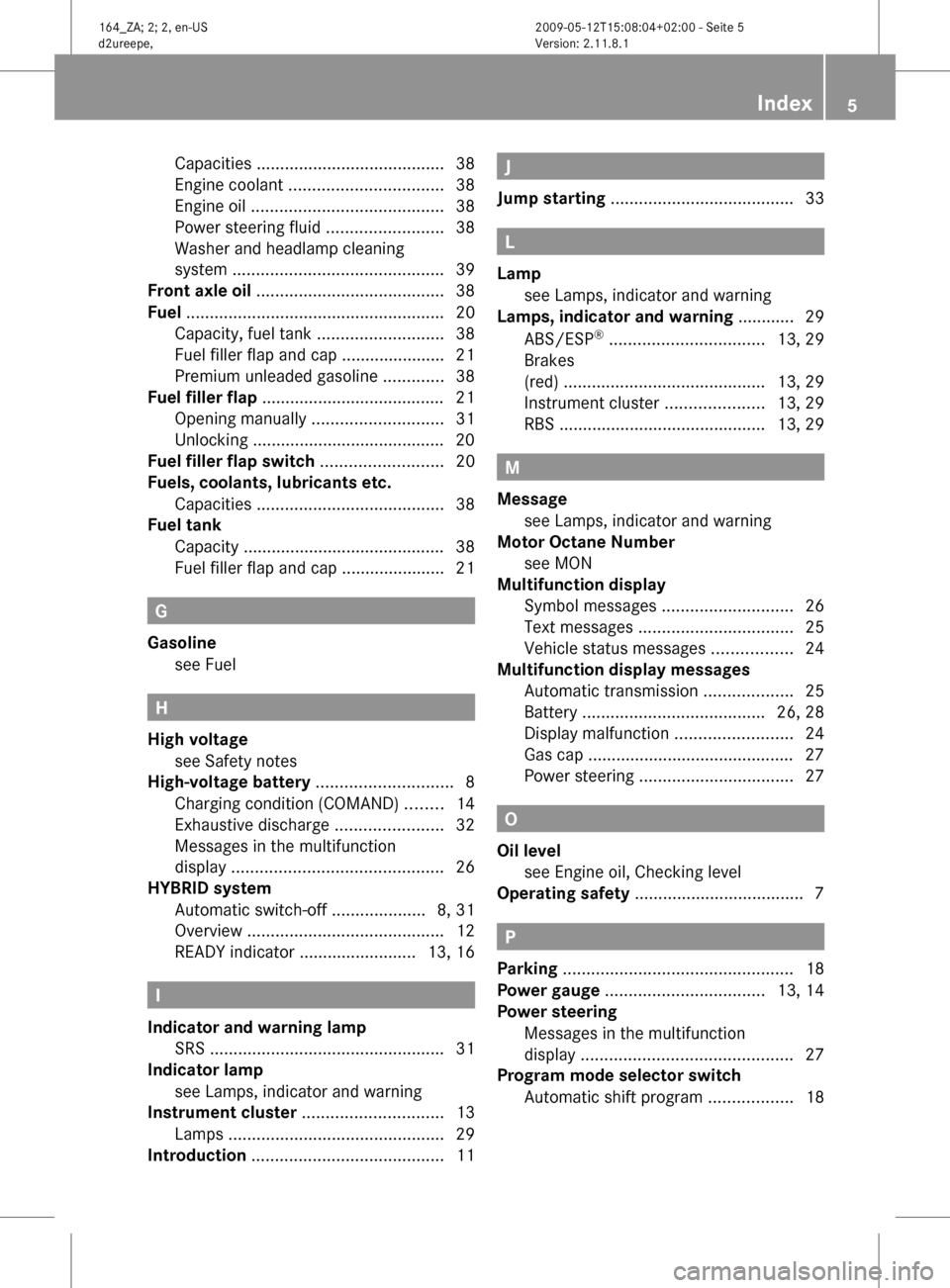

Capacities ........................................
38
Engine coolant ................................. 38
Engine oil ......................................... 38
Power steering fluid ......................... 38
Washer and headlamp cleaning
system ............................................. 39
Front axle oil ........................................ 38
Fuel ....................................................... 20
Capacity, fuel tank ........................... 38
Fuel filler flap and cap ...................... 21
Premium unleaded gasoline .............38
Fuel filler flap ....................................... 21
Opening manually ............................ 31
Unlocking ......................................... 20
Fuel filler flap switch ..........................20
Fuels, coolants, lubricants etc.
Capacities ........................................ 38
Fuel tank
Capacity ........................................... 38
Fuel filler flap and cap ...................... 21 G
Gasoline see Fuel

H
High voltage see Safety notes


High-voltage battery ............................. 8
Charging condition (COMAND) ........ 14
Exhaustive discharge .......................32
Messages in the multifunction
display ............................................. 26
HYBRID system
Automatic switch-off .................... 8, 31
Overview .......................................... 12
READY indicator ......................... 13, 16 I
Indicator and warning lamp SRS .................................................. 31
Indicator lamp
see Lamps, indicator and warning


Instrument cluster .............................. 13
Lamps .............................................. 29
Introduction ......................................... 11 J
Jump starting ....................................... 33 L
Lamp see Lamps, indicator and warning


Lamps, indicator and warning ............ 29
ABS/ESP ®
................................. 13, 29
Brakes
(red) ........................................... 13, 29
Instrument cluster .....................13, 29
RBS ............................................ 13, 29 M
Message see Lamps, indicator and warning


Motor Octane Number
see MON
Multifunction display
Symbol messages ............................ 26
Text messages ................................. 25
Vehicle status messages ................. 24
Multifunction display messages
Automatic transmission ................... 25
Battery ....................................... 26, 28
Display malfunction .........................24
Gas cap ............................................ 27
Power steering ................................. 27 O
Oil level see Engine oil, Checking level


Operating safety .................................... 7 P
Parking ................................................. 18
Power gauge .................................. 13, 14
Power steering
Messages in the multifunction
display

............................................. 27
Program mode selector switch
Automatic shift program ..................18 Index
5 164_ZA; 2; 2, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-12T15:08:04+02:00 - Seite 5

X

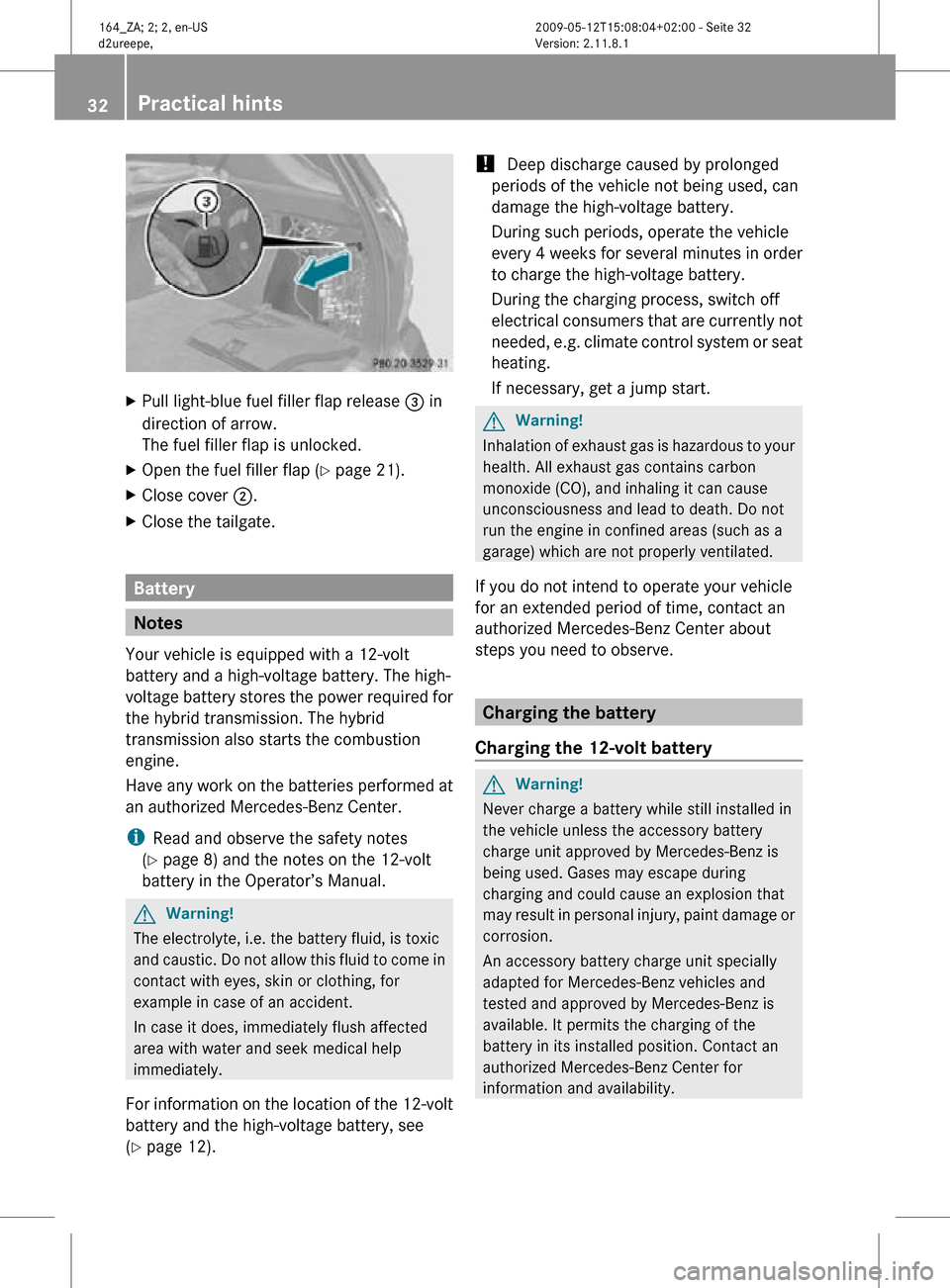

Pull light-blue fuel filler flap release = in
direction of arrow.
The fuel filler flap is unlocked.
X Open the fuel filler flap ( Y page 21).
X Close cover ;.
X Close the tailgate. Battery
Notes
Your vehicle is equipped with a 12-volt
battery and a high-voltage battery. The high-
voltage battery stores the power required for
the hybrid transmission. The hybrid
transmission also starts the combustion
engine.
Have any work on the batteries performed at
an authorized Mercedes-Benz Center.
i Read and observe the safety notes
(Y page 8) and the notes on the 12-volt
battery in the Operator’s Manual. G
Warning!
The electrolyte, i.e. the battery fluid, is toxic
and caustic. Do not allow this fluid to come in
contact with eyes, skin or clothing, for
example in case of an accident.
In case it does, immediately flush affected
area with water and seek medical help
immediately.
For information on the location of the 12-volt
battery and the high-voltage battery, see
(Y page 12). !
Deep discharge caused by prolonged
periods of the vehicle not being used, can
damage the high-voltage battery.
During such periods, operate the vehicle
every 4 weeks for several minutes in order
to charge the high-voltage battery.
During the charging process, switch off
electrical consumers that are currently not
needed, e.g. climate control system or seat
heating.
If necessary, get a jump start. G
Warning!
Inhalation of exhaust gas is hazardous to your
health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause
unconsciousness and lead to death. Do not
run the engine in confined areas (such as a
garage) which are not properly ventilated.
If you do not intend to operate your vehicle
for an extended period of time, contact an
authorized Mercedes-Benz Center about
steps you need to observe. Charging the battery
Charging the 12-volt battery G
Warning!
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit approved by Mercedes-Benz is
being used. Gases may escape during
charging and could cause an explosion that
may result in personal injury, paint damage or
corrosion.
An accessory battery charge unit specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available. It permits the charging of the
battery in its installed position. Contact an
authorized Mercedes-Benz Center for
information and availability. 32
Practical hints 164_ZA; 2; 2, en-US
d2ureepe,
Version: 2.11.8.1 2009-05-12T15:08:04+02:00 - Seite 32

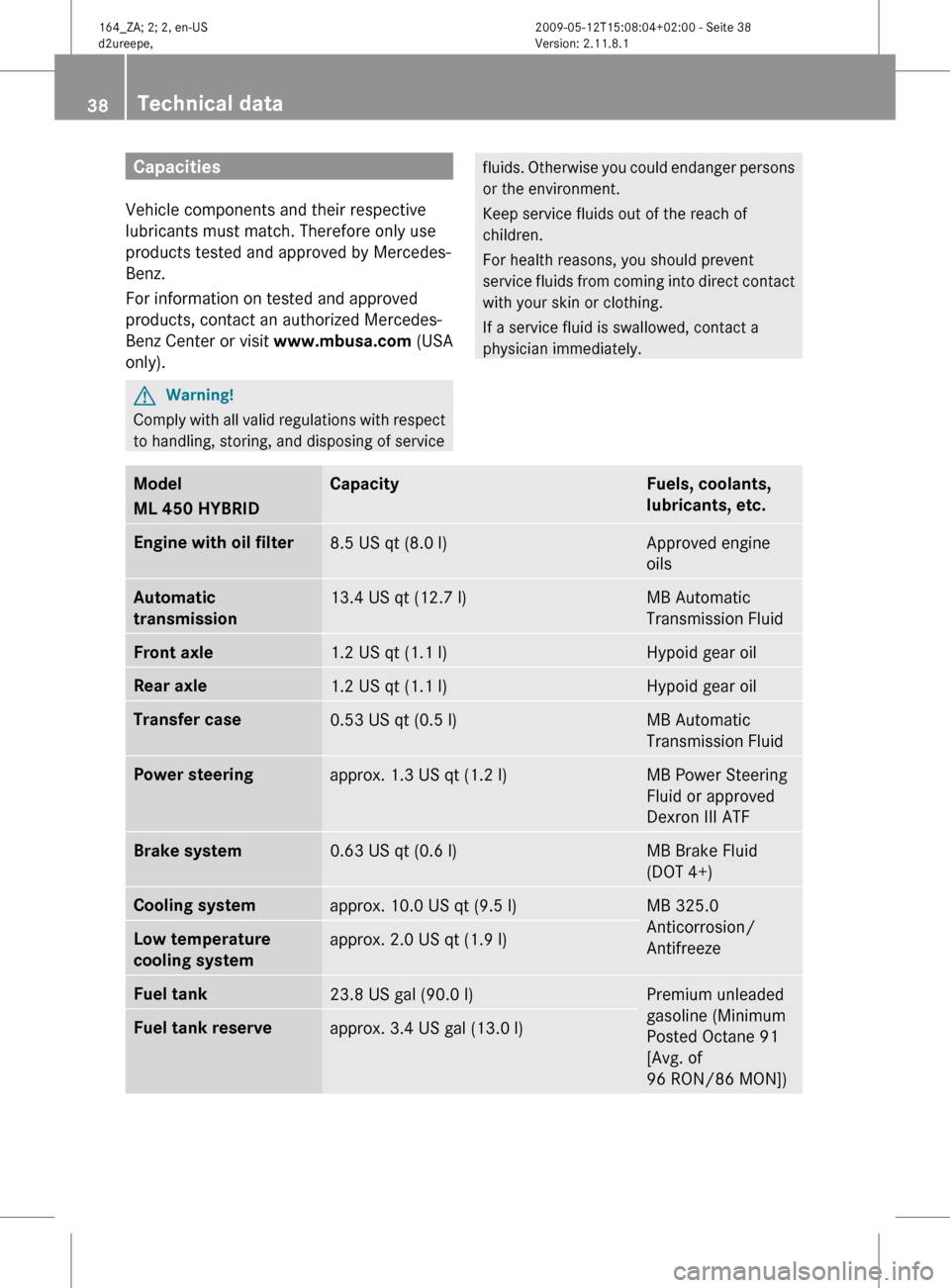

Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by Mercedes-
Benz.
For information on tested and approved
products, contact an authorized Mercedes-
Benz Center or visit www.mbusa.com (USA
only). G
Warning!
Comply with all valid regulations with respect
to handling, storing, and disposing of service fluids. Otherwise you could endanger persons
or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service
fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately. Model
ML 450 HYBRID Capacity Fuels, coolants,
lubricants, etc.
Engine with oil filter
8.5 US qt (8.0 l) Approved engine
oils
Automatic
transmission
13.4 US qt (12.7 l) MB Automatic
Transmission Fluid
Front axle
1.2 US qt (1.1 l) Hypoid gear oil
Rear axle
1.2 US qt (1.1 l) Hypoid gear oil
Transfer case
0.53 US qt (0.5 l) MB Automatic
Transmission Fluid
Power steering
approx. 1.3 US qt (1.2 l) MB Power Steering
Fluid or approved
Dexron III ATF
Brake system
0.63 US qt (0.6 l) MB Brake Fluid
(DOT 4+)
Cooling system
approx. 10.0 US qt (9.5 l) MB 325.0
Anticorrosion/
Antifreeze
Low temperature
cooling system
approx. 2.0 US qt (1.9 l)
Fuel tank
23.8 US gal (90.0 l) Premium unleaded
gasoline (Minimum
Posted Octane 91
[Avg. of
96 RON/86 MON])
Fuel tank reserve
approx. 3.4 US gal (13.0 l)38
Technical data 164_ZA; 2; 2, en-US
d2ureepe,
