:Stowage compartment
Stowage areas
Parcel nets
GWarning!
Vehicles with Occupant Classification System
(OCS)
Do not place objects with a combined weight
of more than 4.4 lbs (2 kg) into the parcel net
on the back of the front passenger seat.
Otherwise, the OCS may not be able to
properly approximate the occupant weight
category.
GWarning
Parcel nets are intended for storing light-
weight items only, such as road maps, mail,
etc.
Heavy objects, objects with sharp edges, or
fragile objects may not be transported in the
parcel nets. In an accident, during hard
braking, or sudden maneuvers, they could be
thrown around inside the vehicle and cause
injury to vehicle occupants.
Parcel nets cannot protect transported goods
in the event of an accident.
Parcel nets are located in the front-passenger
footwell and on the back of the driver's and
the front-passenger seats.
Center console in the 2nd row of seats
Removing the center consoleGWarning
Remove all containers that may be stored in
the cup holder in the rear center console.
Otherwise, liquids could spill on the
occupants and/or vehicle equipment. Hot
fluids spilled on the vehicle occupants may
cause serious injury. Liquids spilled on vehicle
equipment may cause damage that is not
covered by the Mercedes-Benz Limited
Warranty.
The center console contains a stowage
compartment ( Y page 248) and a cup holder
( Y page 260).
If you are using the fully extended cargo
compartment and want an even loading area
( Y page 251), you must remove the center
console.
! To avoid damage to the center console or
its components, close the stowage
compartment before removing the center
console.
i Remove all objects from the stowage
compartment ( Y page 248) to reduce the
weight of the center console.
XPull release handle A.
The front part of center console :
detaches from supporting base ?.XLift center console : upwards in the
direction of arrow B and hold center
console : in this position.Stowage areas249Loading, stowing and featuresBA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 249Z

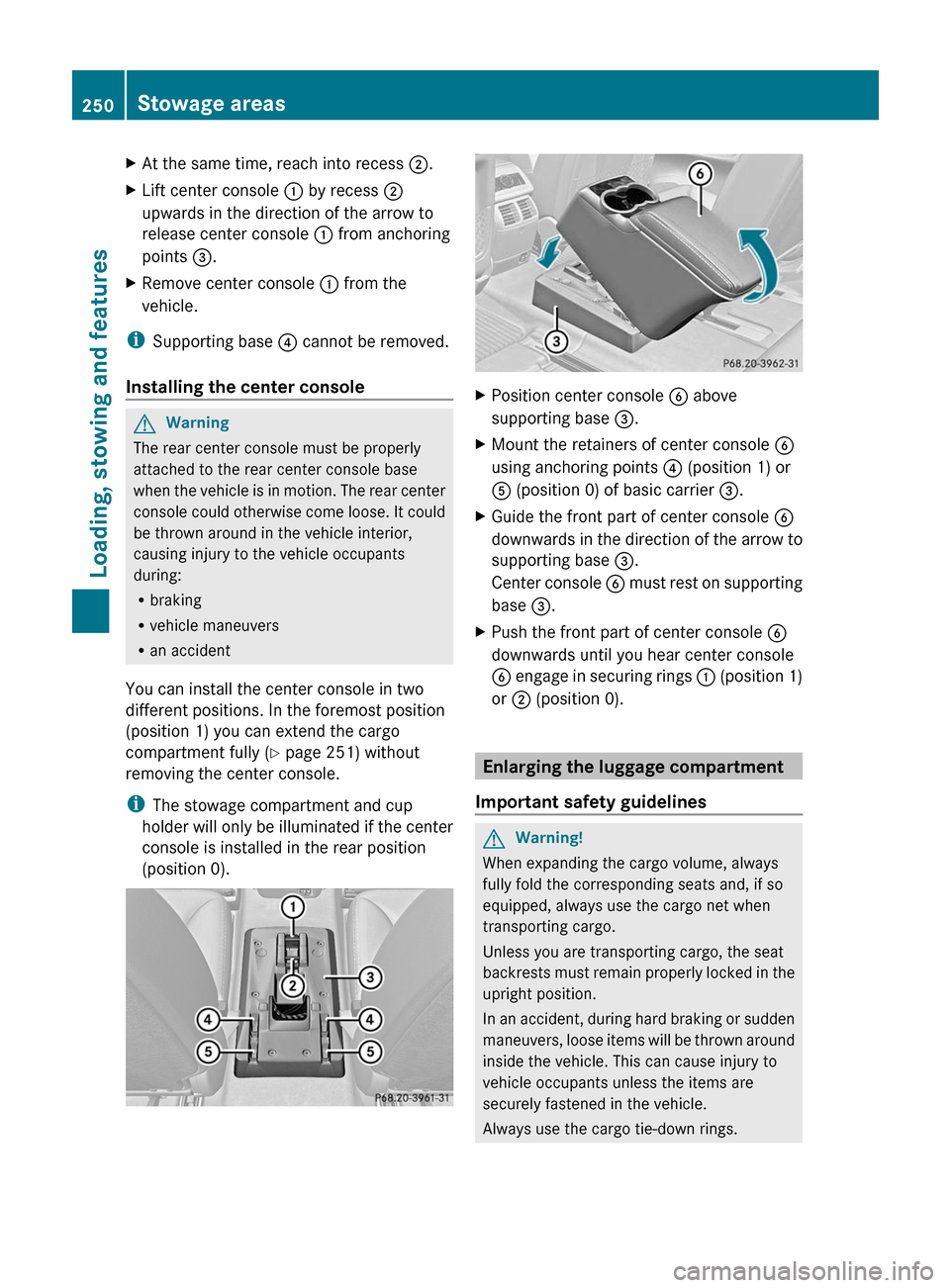

XAt the same time, reach into recess ;.XLift center console : by recess ;
upwards in the direction of the arrow to
release center console : from anchoring
points =.XRemove center console : from the
vehicle.
i Supporting base ? cannot be removed.
Installing the center console
GWarning
The rear center console must be properly
attached to the rear center console base
when the vehicle is in motion. The rear center
console could otherwise come loose. It could
be thrown around in the vehicle interior,
causing injury to the vehicle occupants
during:
R braking
R vehicle maneuvers
R an accident
You can install the center console in two
different positions. In the foremost position
(position 1) you can extend the cargo
compartment fully ( Y page 251) without
removing the center console.
i The stowage compartment and cup
holder will only be illuminated if the center
console is installed in the rear position
(position 0).
XPosition center console B above
supporting base =.XMount the retainers of center console B
using anchoring points ? (position 1) or
A (position 0) of basic carrier =.XGuide the front part of center console B
downwards in the direction of the arrow to
supporting base =.
Center console B must rest on supporting
base =.XPush the front part of center console B
downwards until you hear center console
B engage in securing rings : (position 1)
or ; (position 0).
Enlarging the luggage compartment
Important safety guidelines
GWarning!
When expanding the cargo volume, always
fully fold the corresponding seats and, if so
equipped, always use the cargo net when
transporting cargo.
Unless you are transporting cargo, the seat
backrests must remain properly locked in the
upright position.
In an accident, during hard braking or sudden
maneuvers, loose items will be thrown around
inside the vehicle. This can cause injury to
vehicle occupants unless the items are
securely fastened in the vehicle.
Always use the cargo tie-down rings.
250Stowage areasLoading, stowing and features
BA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 250

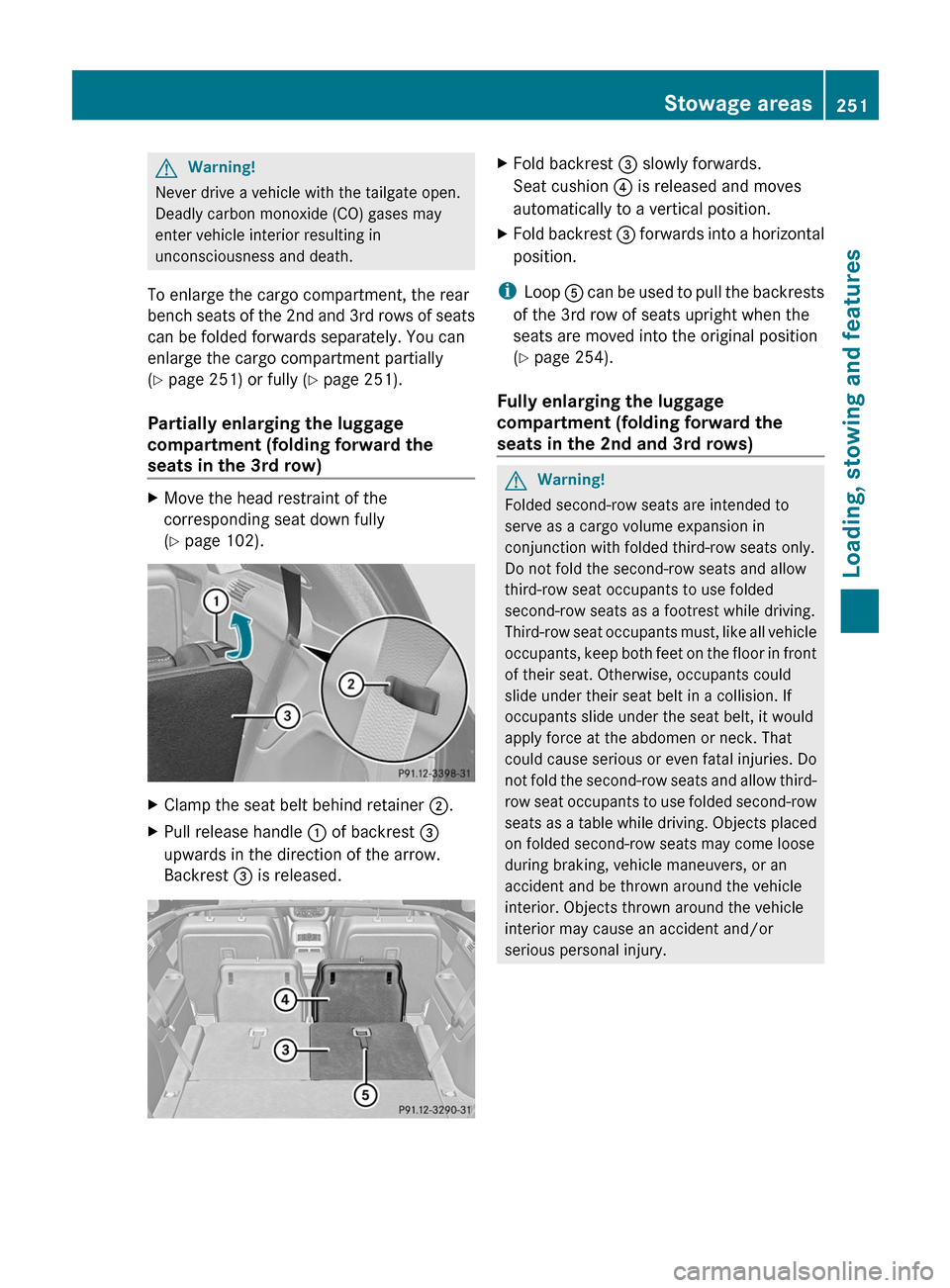

GWarning!
Never drive a vehicle with the tailgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in
unconsciousness and death.
To enlarge the cargo compartment, the rear
bench seats of the 2nd and 3rd rows of seats
can be folded forwards separately. You can
enlarge the cargo compartment partially
( Y page 251) or fully ( Y page 251).
Partially enlarging the luggage
compartment (folding forward the
seats in the 3rd row)
XMove the head restraint of the
corresponding seat down fully
( Y page 102).XClamp the seat belt behind retainer ;.XPull release handle : of backrest =
upwards in the direction of the arrow.
Backrest = is released.XFold backrest = slowly forwards.
Seat cushion ? is released and moves
automatically to a vertical position.XFold backrest = forwards into a horizontal
position.
i Loop A can be used to pull the backrests
of the 3rd row of seats upright when the
seats are moved into the original position
( Y page 254).
Fully enlarging the luggage
compartment (folding forward the
seats in the 2nd and 3rd rows)
GWarning!
Folded second-row seats are intended to
serve as a cargo volume expansion in
conjunction with folded third-row seats only.
Do not fold the second-row seats and allow
third-row seat occupants to use folded
second-row seats as a footrest while driving.
Third-row seat occupants must, like all vehicle
occupants, keep both feet on the floor in front
of their seat. Otherwise, occupants could
slide under their seat belt in a collision. If
occupants slide under the seat belt, it would
apply force at the abdomen or neck. That
could cause serious or even fatal injuries. Do
not fold the second-row seats and allow third-
row seat occupants to use folded second-row
seats as a table while driving. Objects placed
on folded second-row seats may come loose
during braking, vehicle maneuvers, or an
accident and be thrown around the vehicle
interior. Objects thrown around the vehicle
interior may cause an accident and/or
serious personal injury.
Stowage areas251Loading, stowing and featuresBA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 251Z

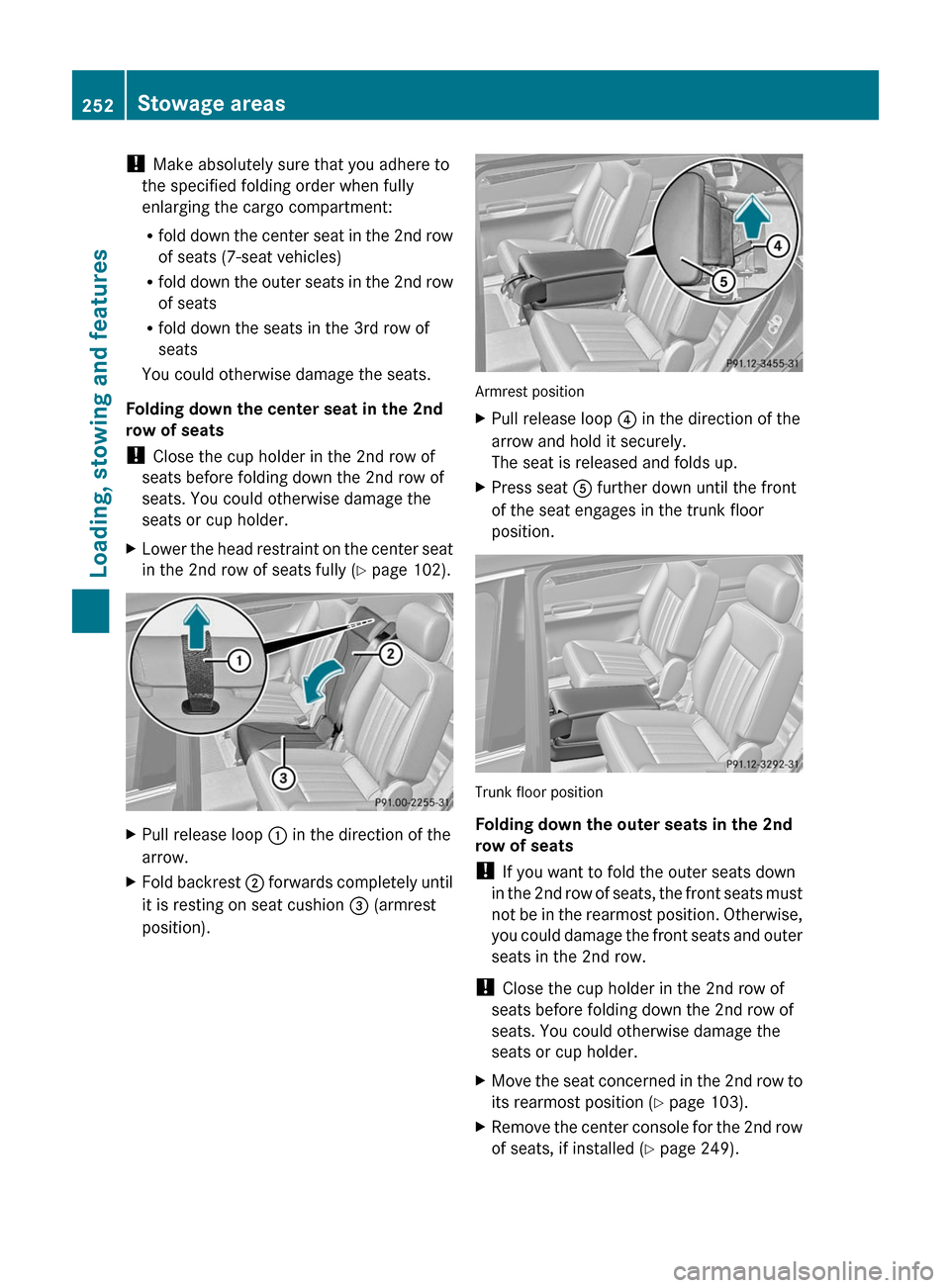

! Make absolutely sure that you adhere to
the specified folding order when fully
enlarging the cargo compartment:
R fold down the center seat in the 2nd row
of seats (7-seat vehicles)
R fold down the outer seats in the 2nd row
of seats
R fold down the seats in the 3rd row of
seats
You could otherwise damage the seats.
Folding down the center seat in the 2nd
row of seats
! Close the cup holder in the 2nd row of
seats before folding down the 2nd row of
seats. You could otherwise damage the
seats or cup holder.XLower the head restraint on the center seat
in the 2nd row of seats fully ( Y page 102).XPull release loop : in the direction of the
arrow.XFold backrest ; forwards completely until
it is resting on seat cushion = (armrest
position).
Armrest position
XPull release loop ? in the direction of the
arrow and hold it securely.
The seat is released and folds up.XPress seat A further down until the front
of the seat engages in the trunk floor
position.
Trunk floor position
Folding down the outer seats in the 2nd
row of seats
! If you want to fold the outer seats down
in the 2nd row of seats, the front seats must
not be in the rearmost position. Otherwise,
you could damage the front seats and outer
seats in the 2nd row.
! Close the cup holder in the 2nd row of
seats before folding down the 2nd row of
seats. You could otherwise damage the
seats or cup holder.
XMove the seat concerned in the 2nd row to
its rearmost position ( Y page 103).XRemove the center console for the 2nd row
of seats, if installed ( Y page 249).252Stowage areasLoading, stowing and features
BA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 252

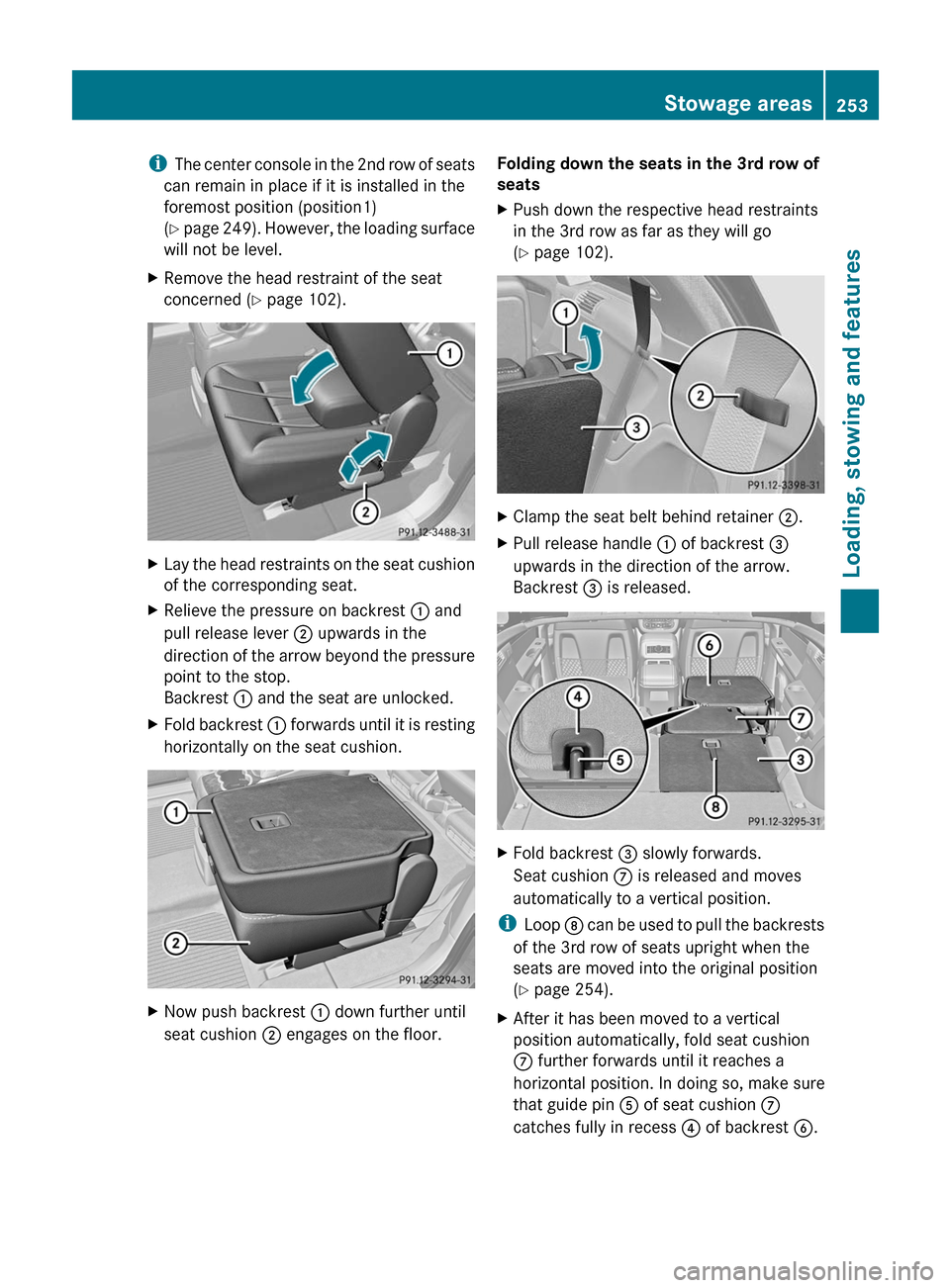

iThe center console in the 2nd row of seats
can remain in place if it is installed in the
foremost position (position1)
( Y page 249). However, the loading surface
will not be level.XRemove the head restraint of the seat
concerned ( Y page 102).XLay the head restraints on the seat cushion
of the corresponding seat.XRelieve the pressure on backrest : and
pull release lever ; upwards in the
direction of the arrow beyond the pressure
point to the stop.
Backrest : and the seat are unlocked.XFold backrest : forwards until it is resting
horizontally on the seat cushion.XNow push backrest : down further until
seat cushion ; engages on the floor.Folding down the seats in the 3rd row of
seatsXPush down the respective head restraints
in the 3rd row as far as they will go
( Y page 102).XClamp the seat belt behind retainer ;.XPull release handle : of backrest =
upwards in the direction of the arrow.
Backrest = is released.XFold backrest = slowly forwards.
Seat cushion C is released and moves
automatically to a vertical position.
i Loop D can be used to pull the backrests
of the 3rd row of seats upright when the
seats are moved into the original position
( Y page 254).
XAfter it has been moved to a vertical
position automatically, fold seat cushion
C further forwards until it reaches a
horizontal position. In doing so, make sure
that guide pin A of seat cushion C
catches fully in recess ? of backrest B.Stowage areas253Loading, stowing and featuresBA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 253Z

iThe seats in the 2nd row of seats must be
in the rearmost position ( Y page 103).XFold backrest = forwards into a horizontal
position.

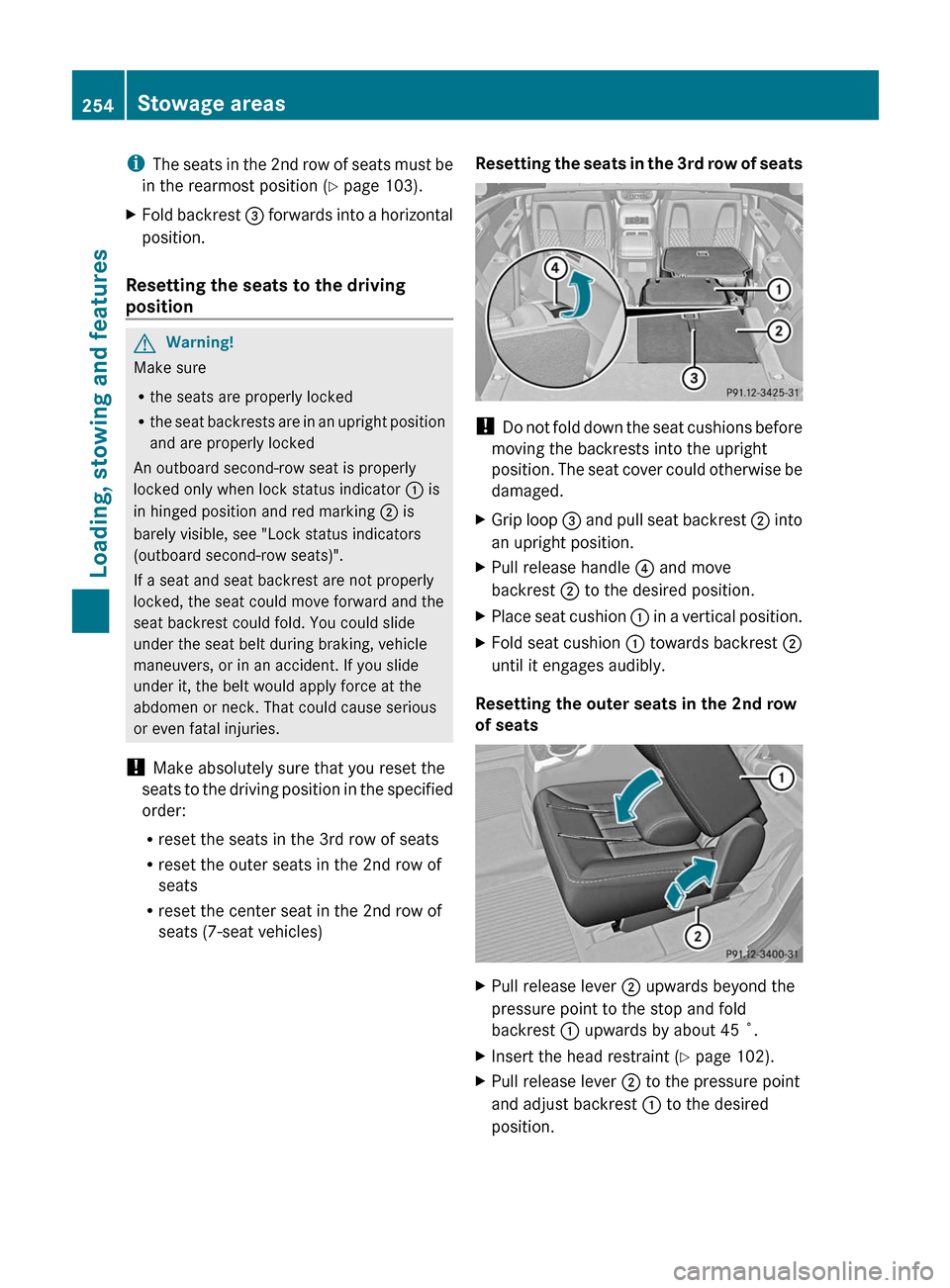

Resetting the seats to the driving
position
GWarning!
Make sure
R the seats are properly locked
R the seat backrests are in an upright position
and are properly locked
An outboard second-row seat is properly
locked only when lock status indicator : is
in hinged position and red marking ; is
barely visible, see "Lock status indicators
(outboard second-row seats)".
If a seat and seat backrest are not properly
locked, the seat could move forward and the
seat backrest could fold. You could slide
under the seat belt during braking, vehicle
maneuvers, or in an accident. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries.
! Make absolutely sure that you reset the
seats to the driving position in the specified
order:
R reset the seats in the 3rd row of seats
R reset the outer seats in the 2nd row of
seats
R reset the center seat in the 2nd row of
seats (7-seat vehicles)
Resetting the seats in the 3rd row of seats
! Do not fold down the seat cushions before
moving the backrests into the upright
position. The seat cover could otherwise be
damaged.
XGrip loop = and pull seat backrest ; into
an upright position.XPull release handle ? and move
backrest ; to the desired position.XPlace seat cushion : in a vertical position.XFold seat cushion : towards backrest ;
until it engages audibly.
Resetting the outer seats in the 2nd row
of seats
XPull release lever ; upwards beyond the
pressure point to the stop and fold
backrest : upwards by about 45 ˚.XInsert the head restraint ( Y page 102).XPull release lever ; to the pressure point
and adjust backrest : to the desired
position.254Stowage areasLoading, stowing and features
BA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 254

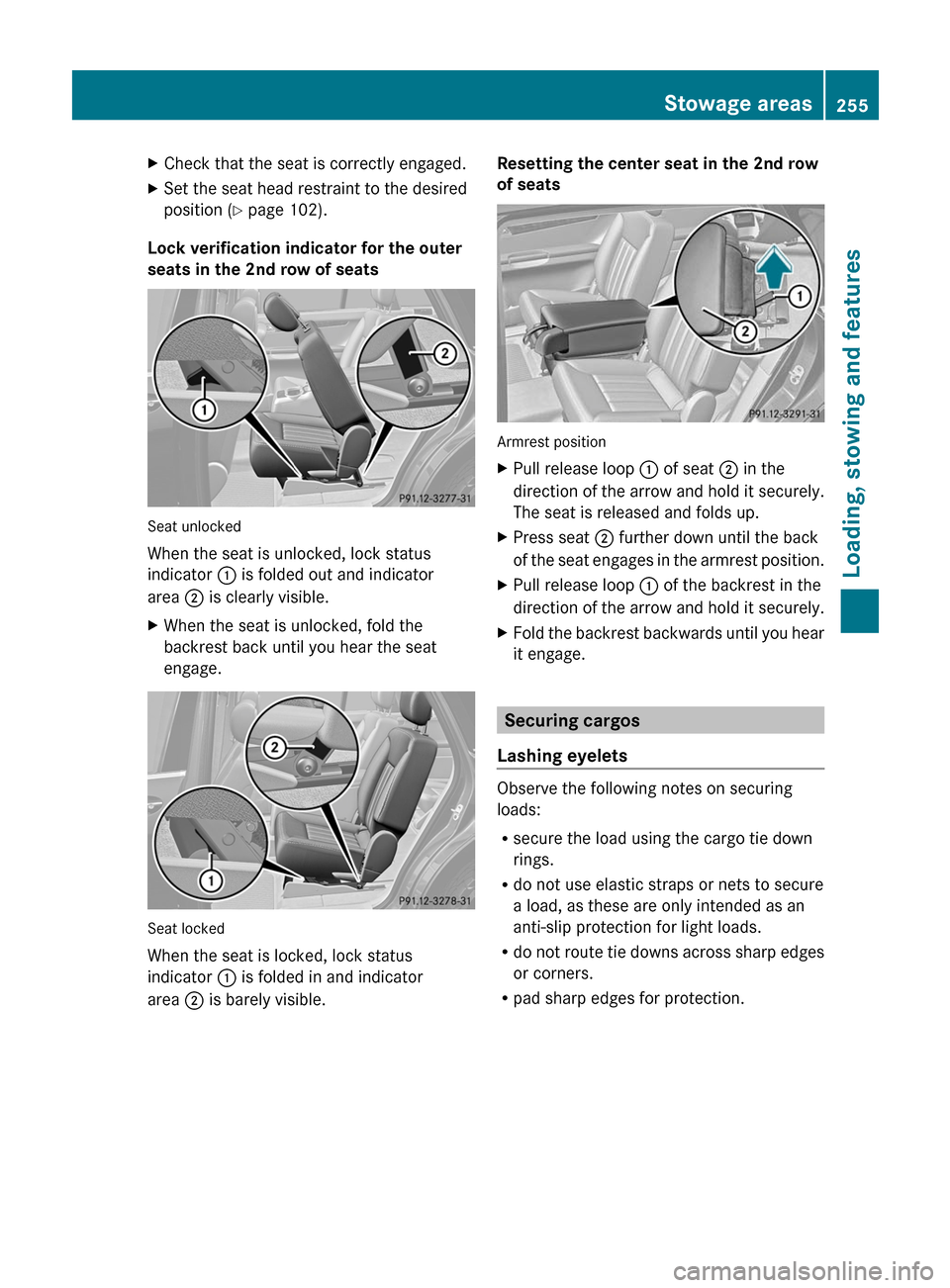

XCheck that the seat is correctly engaged.XSet the seat head restraint to the desired
position ( Y page 102).
Lock verification indicator for the outer
seats in the 2nd row of seats
Seat unlocked
When the seat is unlocked, lock status
indicator : is folded out and indicator
area ; is clearly visible.
XWhen the seat is unlocked, fold the
backrest back until you hear the seat
engage.
Seat locked
When the seat is locked, lock status
indicator : is folded in and indicator
area ; is barely visible.
Resetting the center seat in the 2nd row
of seats
Armrest position
XPull release loop : of seat ; in the
direction of the arrow and hold it securely.
The seat is released and folds up.XPress seat ; further down until the back
of the seat engages in the armrest position.XPull release loop : of the backrest in the
direction of the arrow and hold it securely.XFold the backrest backwards until you hear
it engage.
Securing cargos
Lashing eyelets
Observe the following notes on securing
loads:
R secure the load using the cargo tie down
rings.
R do not use elastic straps or nets to secure
a load, as these are only intended as an
anti-slip protection for light loads.
R do not route tie downs across sharp edges
or corners.
R pad sharp edges for protection.
Stowage areas255Loading, stowing and featuresBA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 255Z

Footwell of the 2nd row of seats
There is one cargo tie-down ring : in the
footwell behind the driver’s seat and one in
the footwell behind the front-passenger seat.
Footwell of the 3rd row of seats
Two cargo tie down rings : are located in
the footwell of the 3rd row of seats.
Cargo compartment
There are four cargo tie down rings : in the
cargo compartment.
Mounting hooks
Only use the mounting hooks to secure items
of luggage up to maximum of 9 lbs (4 kg) in
weight.
There is a mounting hook : on each of the
side panels in the cargo compartment.
Luggage compartment cover
Important safety guidelines
! When loading the vehicle, make sure that
you do not stack the load in the cargo
compartment higher than the lower edge of
the side windows. Do not place heavy
objects on top of the cargo compartment
cover.
The cargo compartment cover can be
attached behind the 2nd or 3rd row of seats.
Extending/retracting the luggage
compartment cover
Cargo compartment cover installed behind the 3rd
row of seats
256Stowage areasLoading, stowing and features
BA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 256

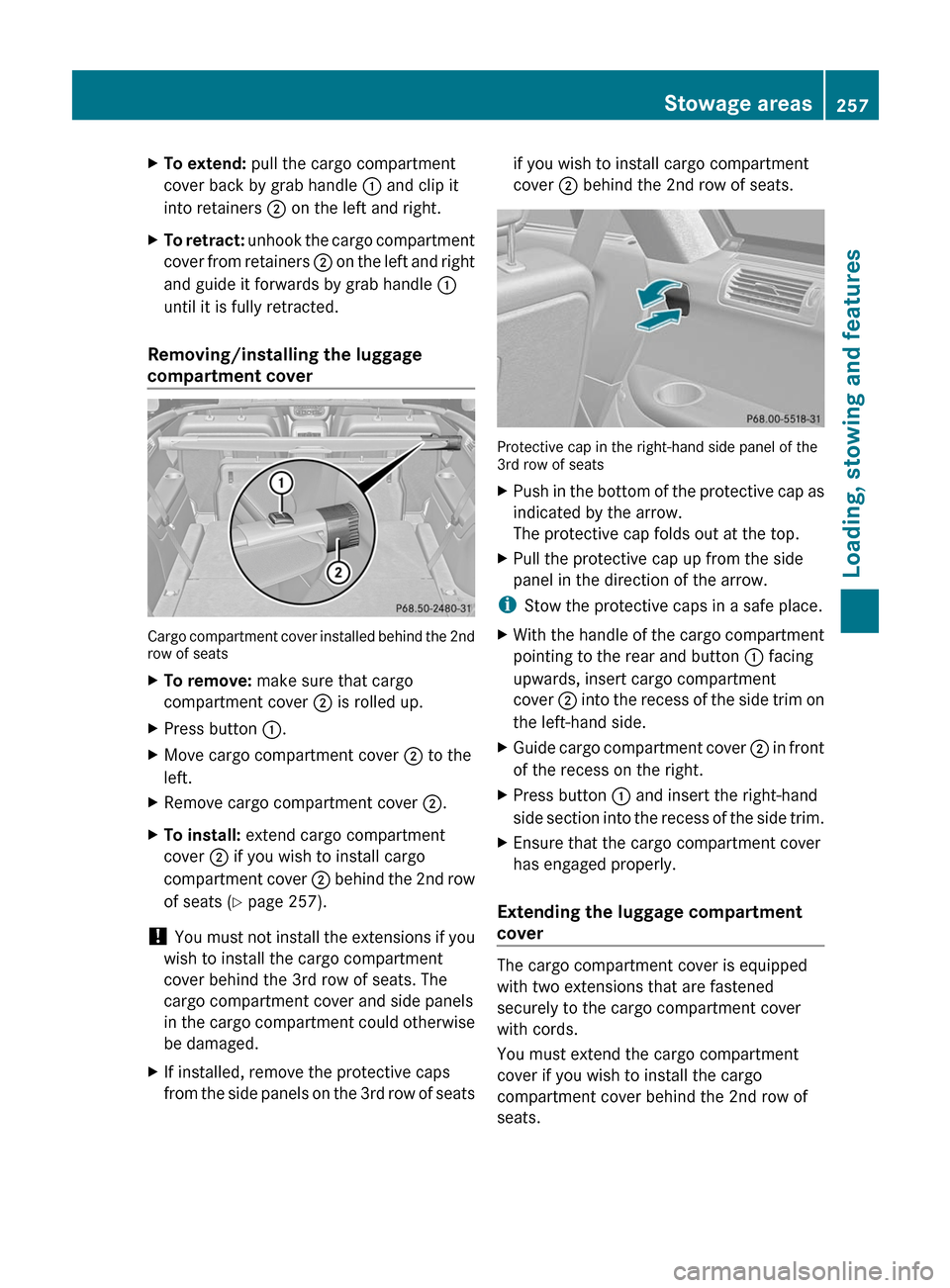

XTo extend: pull the cargo compartment
cover back by grab handle : and clip it
into retainers ; on the left and right.XTo retract: unhook the cargo compartment
cover from retainers ; on the left and right
and guide it forwards by grab handle :
until it is fully retracted.
Removing/installing the luggage
compartment cover
Cargo compartment cover installed behind the 2nd
row of seats
XTo remove: make sure that cargo
compartment cover ; is rolled up.XPress button :.XMove cargo compartment cover ; to the
left.XRemove cargo compartment cover ;.XTo install: extend cargo compartment
cover ; if you wish to install cargo
compartment cover ; behind the 2nd row
of seats ( Y page 257).
!
You must not install the extensions if you
wish to install the cargo compartment
cover behind the 3rd row of seats. The
cargo compartment cover and side panels
in the cargo compartment could otherwise
be damaged.
XIf installed, remove the protective caps
from the side panels on the 3rd row of seatsif you wish to install cargo compartment
cover ; behind the 2nd row of seats.
Protective cap in the right-hand side panel of the
3rd row of seats
XPush in the bottom of the protective cap as
indicated by the arrow.
The protective cap folds out at the top.XPull the protective cap up from the side
panel in the direction of the arrow.
i Stow the protective caps in a safe place.
XWith the handle of the cargo compartment
pointing to the rear and button : facing
upwards, insert cargo compartment
cover ; into the recess of the side trim on
the left-hand side.XGuide cargo compartment cover ; in front
of the recess on the right.XPress button : and insert the right-hand
side section into the recess of the side trim.XEnsure that the cargo compartment cover
has engaged properly.
Extending the luggage compartment
cover
The cargo compartment cover is equipped
with two extensions that are fastened
securely to the cargo compartment cover
with cords.
You must extend the cargo compartment
cover if you wish to install the cargo
compartment cover behind the 2nd row of
seats.
Stowage areas257Loading, stowing and featuresBA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 257Z

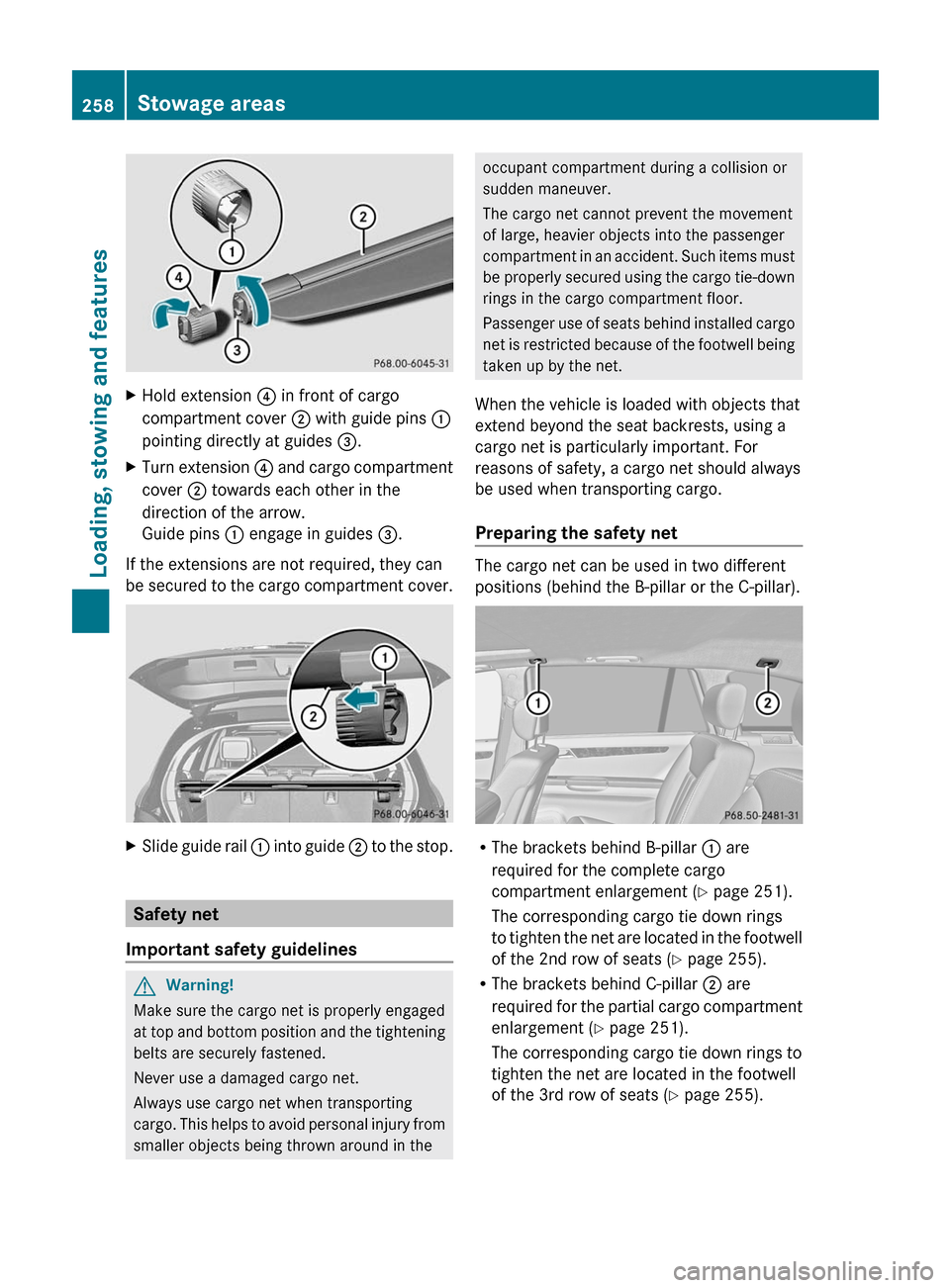

XHold extension ? in front of cargo
compartment cover ; with guide pins :
pointing directly at guides =.XTurn extension ? and cargo compartment
cover ; towards each other in the
direction of the arrow.
Guide pins : engage in guides =.
If the extensions are not required, they can
be secured to the cargo compartment cover.
XSlide guide rail : into guide ; to the stop.
Safety net
Important safety guidelines
GWarning!
Make sure the cargo net is properly engaged
at top and bottom position and the tightening
belts are securely fastened.
Never use a damaged cargo net.
Always use cargo net when transporting
cargo. This helps to avoid personal injury from
smaller objects being thrown around in the
occupant compartment during a collision or
sudden maneuver.
The cargo net cannot prevent the movement
of large, heavier objects into the passenger
compartment in an accident. Such items must
be properly secured using the cargo tie-down
rings in the cargo compartment floor.
Passenger use of seats behind installed cargo
net is restricted because of the footwell being
taken up by the net.
When the vehicle is loaded with objects that
extend beyond the seat backrests, using a
cargo net is particularly important. For
reasons of safety, a cargo net should always
be used when transporting cargo.
Preparing the safety net
The cargo net can be used in two different
positions (behind the B-pillar or the C-pillar).
R The brackets behind B-pillar : are
required for the complete cargo
compartment enlargement ( Y page 251).
The corresponding cargo tie down rings
to tighten the net are located in the footwell
of the 2nd row of seats ( Y page 255).
R The brackets behind C-pillar ; are
required for the partial cargo compartment
enlargement ( Y page 251).
The corresponding cargo tie down rings to
tighten the net are located in the footwell
of the 3rd row of seats ( Y page 255).
258Stowage areasLoading, stowing and features
BA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 258
