Page 7 of 364
B
BAS (Brake Assist System) ................. 68
Battery Charging ........................................ 310
Checking (SmartKey) .......................78
Display message ............................ 226
Important safety guidelines
(SmartKey) ....................................... 77
Jump-starting ................................. 311
Safety notes .................................. 308
Belt
see Seat belts
Blind Spot Assist
Activating/deactivating (on-
board computer) ............................ 210
Display message ............................ 229
Function/notes ............................. 191
Trailer towing ................................. 193
BlueTEC
AdBlue ®
......................................... 353
Adding AdBlue ®
............................. 165
Brake fluid
Notes ............................................. 355
Brake fluid level ................................ 282
Brake lamp (display message) ......... 222
Brakes ABS .................................................. 67
BAS .................................................. 68
Brake fluid (notes) .........................355
Display message ............................ 220
Maintenance .................................. 170
Parking brake ........................ 167, 171
Warning lamp ................................. 236
Braking
Important safety instructions ......... 170
Breakdown
see Accident (notes)
see Flat tire
Bulbs
Backup lamp .................................. 125
High-beam headlamps ...................124
License plate lamp .........................126
Low-beam headlamps ....................123
Overview ........................................ 122
Parking lamps ................................ 124
Replacing ....................................... 125Standing lamps (front) ...................124
Turn signals (front) ......................... 124
C
CAC (Customer Assistance Center) .........22
California
Important notice for retail
customers and lessees ....................20
Calling up a malfunction
see Display messages
Care
Carpets .......................................... 289
Car wash ........................................ 284
Display ........................................... 287
Gear or selector lever ....................288
Headlamps ..................................... 286
Notes ............................................. 283
Paint .............................................. 285
Plastic trim .................................... 287
Power washer ................................ 285
Rear view camera .......................... 287
Roof lining ...................................... 289
Seat belt ........................................ 289
Seat covers .................................... 288
Sensors ......................................... 287
Steering wheel ............................... 288
Tail pipes ....................................... 287
Trim strips ..................................... 288
Washing by hand ........................... 285
Wheels ........................................... 285
Windows ........................................ 286
Wiper blades .................................. 286
Wooden trim .................................. 288
Cargo compartment cover ............... 256
Extending ....................................... 257
Cargo compartment enlargement ... 250
Full ................................................. 251
Partial ............................................ 251
Cargo compartment floor ................. 294
Cargo net Attaching ....................................... 259
Important safety information .........258
Cargo tie down rings ......................... 255
CD player/CD changer (on-board
computer) .......................................... 203
Index5BA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 5

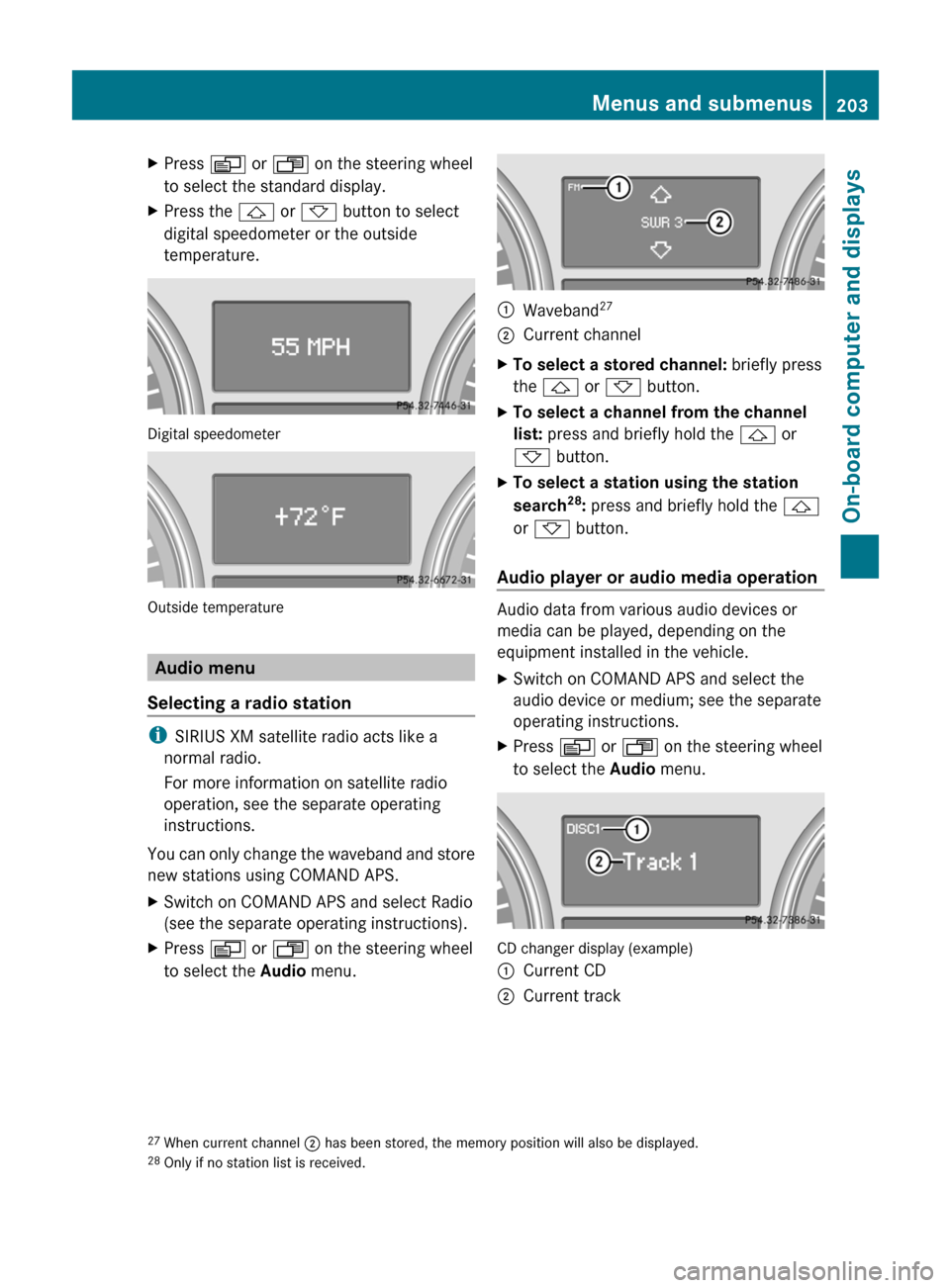

Page 205 of 364
XPress V or U on the steering wheel
to select the standard display.XPress the & or * button to select
digital speedometer or the outside
temperature.
Digital speedometer
Outside temperature
Audio menu
Selecting a radio station
i SIRIUS XM satellite radio acts like a
normal radio.
For more information on satellite radio
operation, see the separate operating
instructions.
You can only change the waveband and store
new stations using COMAND APS.
XSwitch on COMAND APS and select Radio
(see the separate operating instructions).XPress V or U on the steering wheel
to select the Audio menu.:Waveband 27;Current channelXTo select a stored channel:
briefly press
the & or * button.XTo select a channel from the channel
list: press and briefly hold the & or
* button.XTo select a station using the station
search 28
: press and briefly hold the &
or * button.
Audio player or audio media operation
Audio data from various audio devices or
media can be played, depending on the
equipment installed in the vehicle.
XSwitch on COMAND APS and select the
audio device or medium; see the separate
operating instructions.XPress V or U on the steering wheel
to select the Audio menu.
CD changer display (example)
:Current CD;Current track27
When current channel ; has been stored, the memory position will also be displayed.
28 Only if no station list is received.Menus and submenus203On-board computer and displaysBA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 203Z
Page 250 of 364
Stowage compartment under the
armrest
The stowage compartment and the stowage
tray can be opened separately.
i In vehicles with the Rear Seat
Entertainment System, a DVD player is
installed in the stowage compartment; see
the separate operating instructions.
XTo open the stowage tray: press release
button : and fold the armrest upwards.XTo open the stowage compartment:
press release button ; and fold the
armrest upwards.=Stowage tray?Coin holder
i The Roadside Assistance
º (Y page 269) and MB info call
E (Y page 270) buttons are in the
stowage tray = under the armrest.
Stowage compartments in the rear
Stowage compartments above the
center vents in the 2nd row of seats
Depending on the equipment in the vehicle, a
control panel may be installed instead of the
upper stowage compartment, e.g. if the
vehicle has rear-compartment air
conditioning for the 2nd and 3rd rows of
seats.
Stowage compartment in the center
console in the 2nd row of seats
XTo open: press the release button under
the armrest and fold the armrest upwards.
Stowage compartments in the 3rd row
of seats
There is a stowage compartment in the side
trim on both sides. In vehicles with rear-
compartment air conditioning (2nd and 3rd
row of seats), a swiveling side air vent is
installed instead of the stowage
compartment.
248Stowage compartmentsLoading, stowing and features
BA 251 USA, CA Edition A 2011; 1; 3, en-USd2sboikeVersion: 3.0.3.52010-04-16T14:31:55+02:00 - Seite 248
