MERCEDES-BENZ R-CLASS FAMILY TOURER 2012 Owners Manual

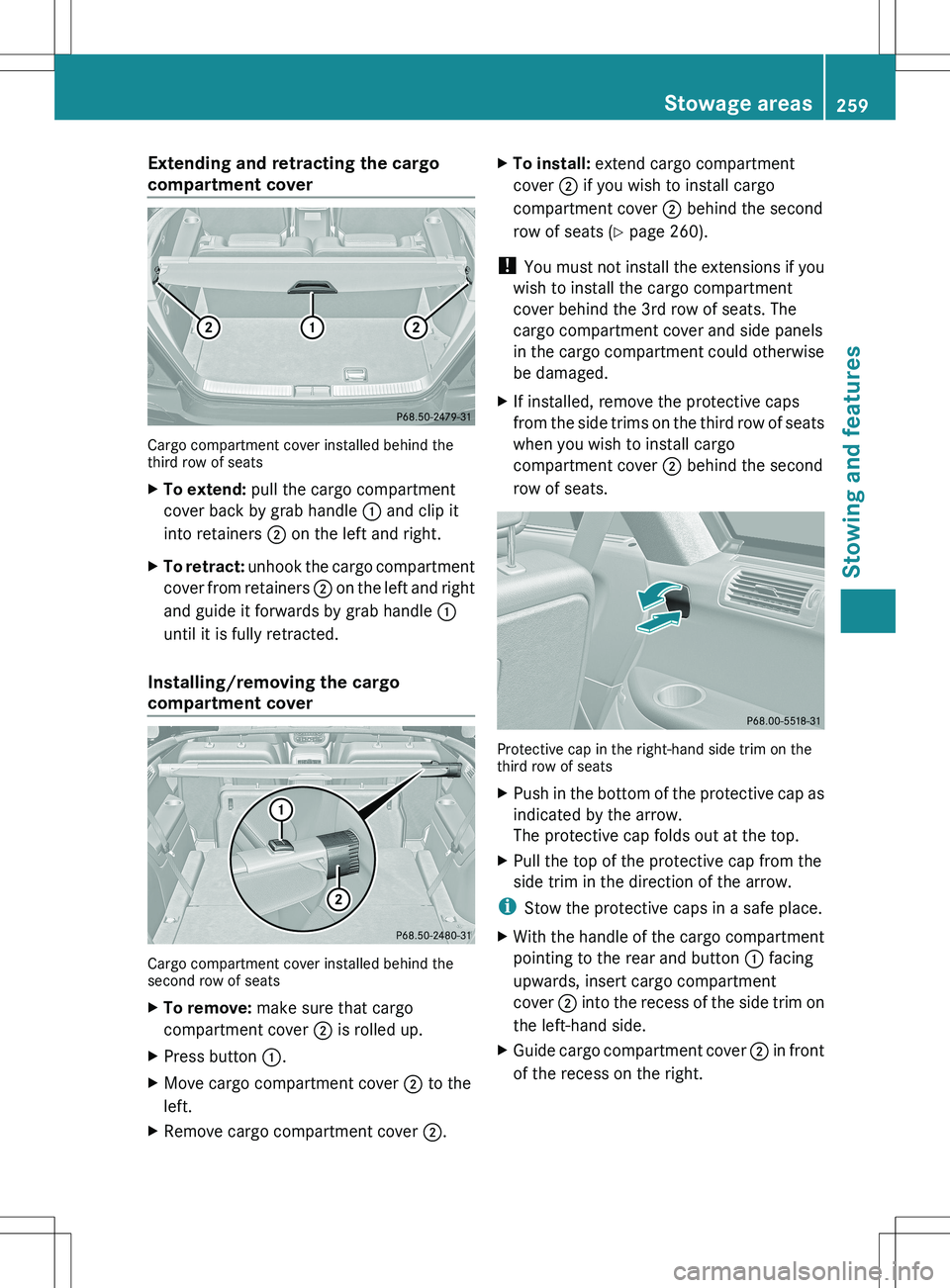

Extending and retracting the cargo
compartment cover
Cargo compartment cover installed behind the
third row of seats
XTo extend: pull the cargo compartment
cover back by grab handle : and clip it
into retainers ; on the left and right.XTo retract: unhook the cargo compartment
cover from retainers ; on the left and right
and guide it forwards by grab handle :
until it is fully retracted.
Installing/removing the cargo
compartment cover
Cargo compartment cover installed behind the
second row of seats
XTo remove: make sure that cargo
compartment cover ; is rolled up.XPress button :.XMove cargo compartment cover ; to the
left.XRemove cargo compartment cover ;.XTo install: extend cargo compartment
cover ; if you wish to install cargo
compartment cover ; behind the second
row of seats ( Y page 260).
!
You must not install the extensions if you
wish to install the cargo compartment
cover behind the 3rd row of seats. The
cargo compartment cover and side panels
in the cargo compartment could otherwise
be damaged.
XIf installed, remove the protective caps
from the side trims on the third row of seats
when you wish to install cargo
compartment cover ; behind the second
row of seats.
Protective cap in the right-hand side trim on the
third row of seats
XPush in the bottom of the protective cap as
indicated by the arrow.
The protective cap folds out at the top.XPull the top of the protective cap from the
side trim in the direction of the arrow.
i Stow the protective caps in a safe place.
XWith the handle of the cargo compartment
pointing to the rear and button : facing
upwards, insert cargo compartment
cover ; into the recess of the side trim on
the left-hand side.XGuide cargo compartment cover ; in front
of the recess on the right.Stowage areas259Stowing and featuresZ

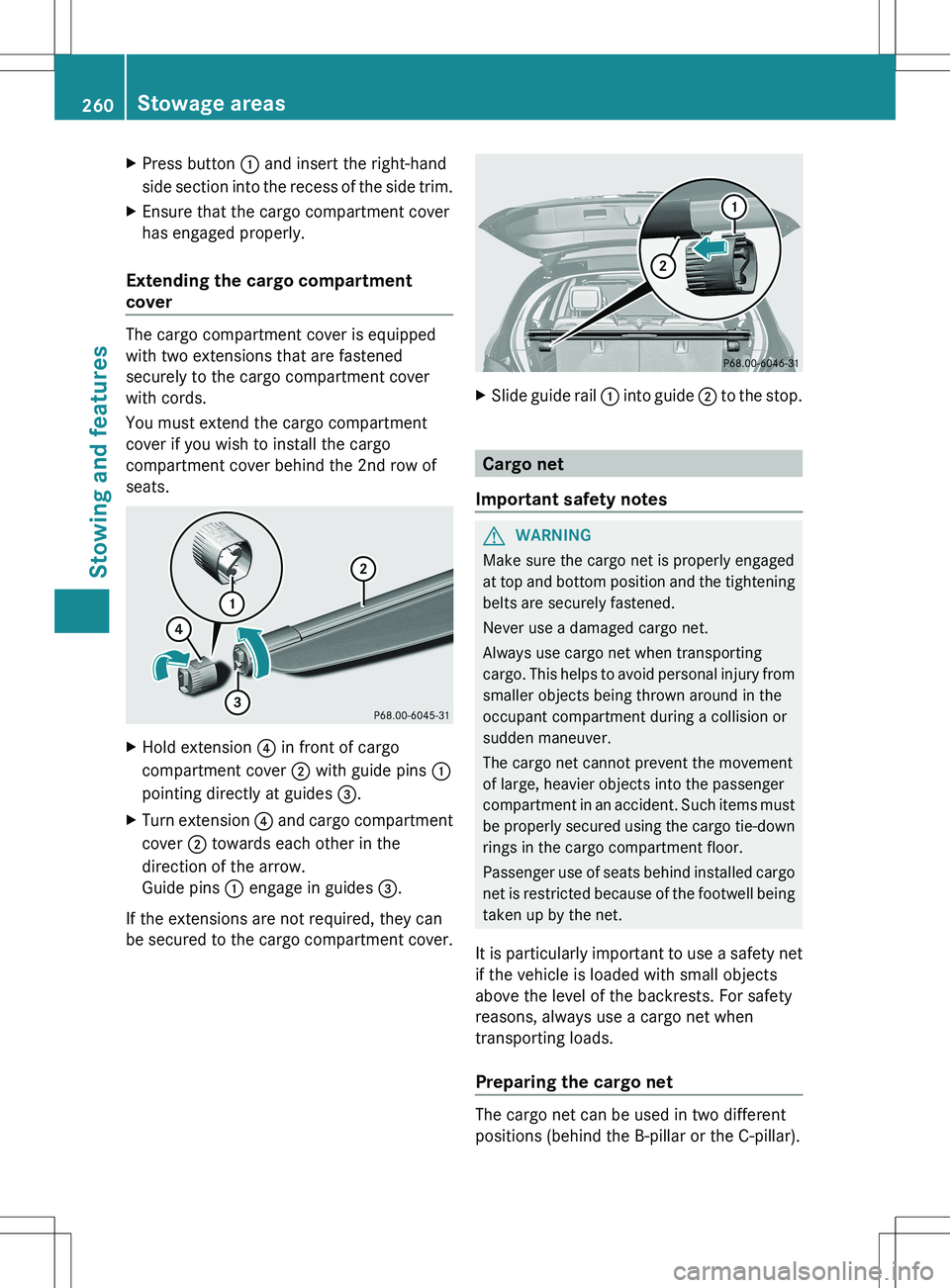

XPress button : and insert the right-hand
side section into the recess of the side trim.XEnsure that the cargo compartment cover
has engaged properly.
Extending the cargo compartment
cover
The cargo compartment cover is equipped
with two extensions that are fastened
securely to the cargo compartment cover
with cords.
You must extend the cargo compartment
cover if you wish to install the cargo
compartment cover behind the 2nd row of
seats.
XHold extension ? in front of cargo
compartment cover ; with guide pins :
pointing directly at guides =.XTurn extension ? and cargo compartment
cover ; towards each other in the
direction of the arrow.
Guide pins : engage in guides =.
If the extensions are not required, they can
be secured to the cargo compartment cover.
XSlide guide rail : into guide ; to the stop.
Cargo net
Important safety notes
GWARNING
Make sure the cargo net is properly engaged
at top and bottom position and the tightening
belts are securely fastened.
Never use a damaged cargo net.
Always use cargo net when transporting
cargo. This helps to avoid personal injury from
smaller objects being thrown around in the
occupant compartment during a collision or
sudden maneuver.
The cargo net cannot prevent the movement
of large, heavier objects into the passenger
compartment in an accident. Such items must
be properly secured using the cargo tie-down
rings in the cargo compartment floor.
Passenger use of seats behind installed cargo
net is restricted because of the footwell being
taken up by the net.
It is particularly important to use a safety net
if the vehicle is loaded with small objects
above the level of the backrests. For safety
reasons, always use a cargo net when
transporting loads.
Preparing the cargo net
The cargo net can be used in two different
positions (behind the B-pillar or the C-pillar).
260Stowage areasStowing and features

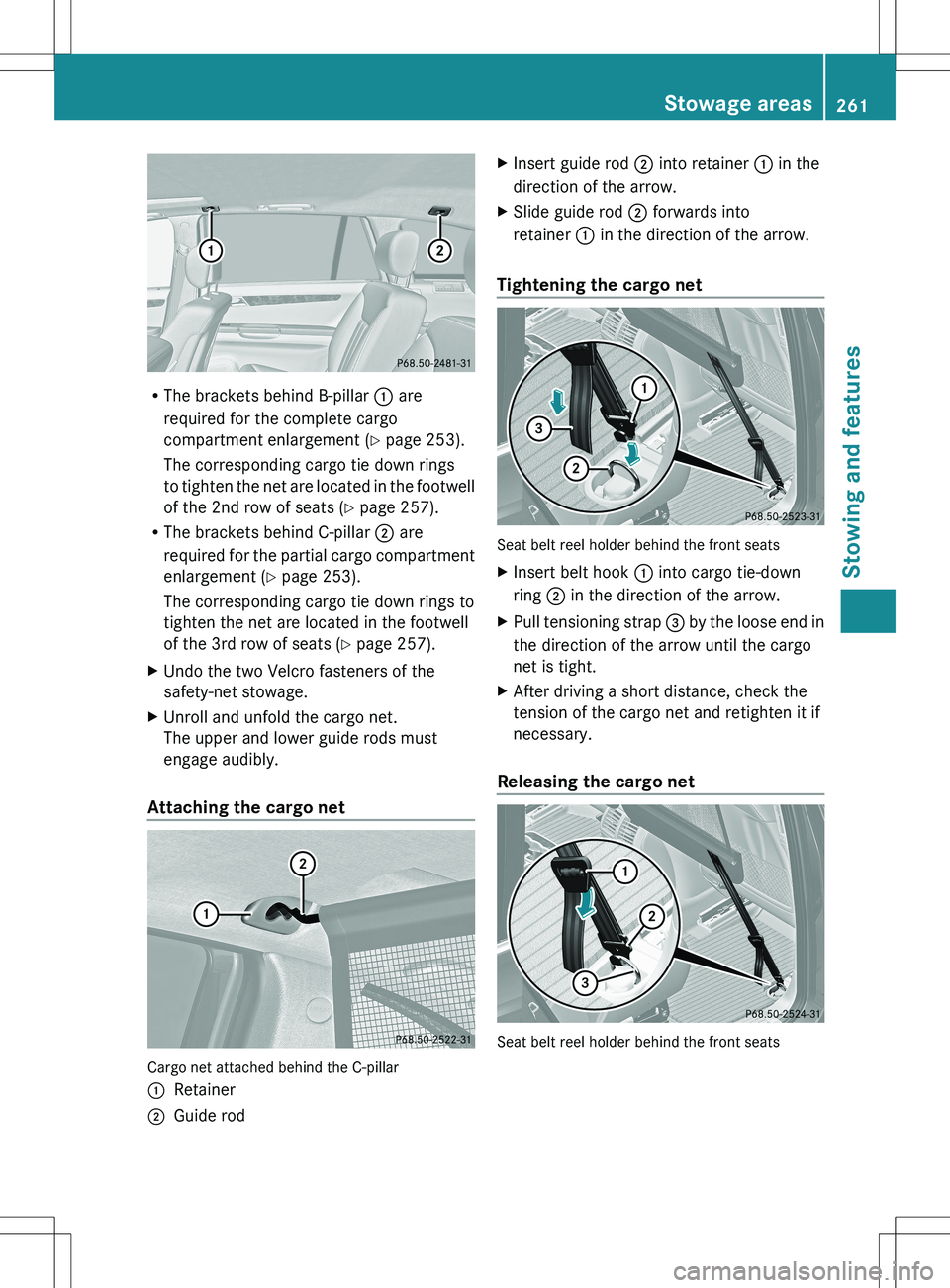

RThe brackets behind B-pillar : are
required for the complete cargo
compartment enlargement ( Y page 253).
The corresponding cargo tie down rings
to tighten the net are located in the footwell
of the 2nd row of seats ( Y page 257).
R The brackets behind C-pillar ; are
required for the partial cargo compartment
enlargement ( Y page 253).
The corresponding cargo tie down rings to
tighten the net are located in the footwell
of the 3rd row of seats ( Y page 257).
XUndo the two Velcro fasteners of the
safety-net stowage.XUnroll and unfold the cargo net.
The upper and lower guide rods must
engage audibly.
Attaching the cargo net
Cargo net attached behind the C-pillar
:Retainer;Guide rodXInsert guide rod ; into retainer : in the
direction of the arrow.XSlide guide rod ; forwards into
retainer : in the direction of the arrow.
Tightening the cargo net
Seat belt reel holder behind the front seats
XInsert belt hook : into cargo tie-down
ring ; in the direction of the arrow.XPull tensioning strap = by the loose end in
the direction of the arrow until the cargo
net is tight.XAfter driving a short distance, check the
tension of the cargo net and retighten it if
necessary.
Releasing the cargo net
Seat belt reel holder behind the front seats
Stowage areas261Stowing and featuresZ

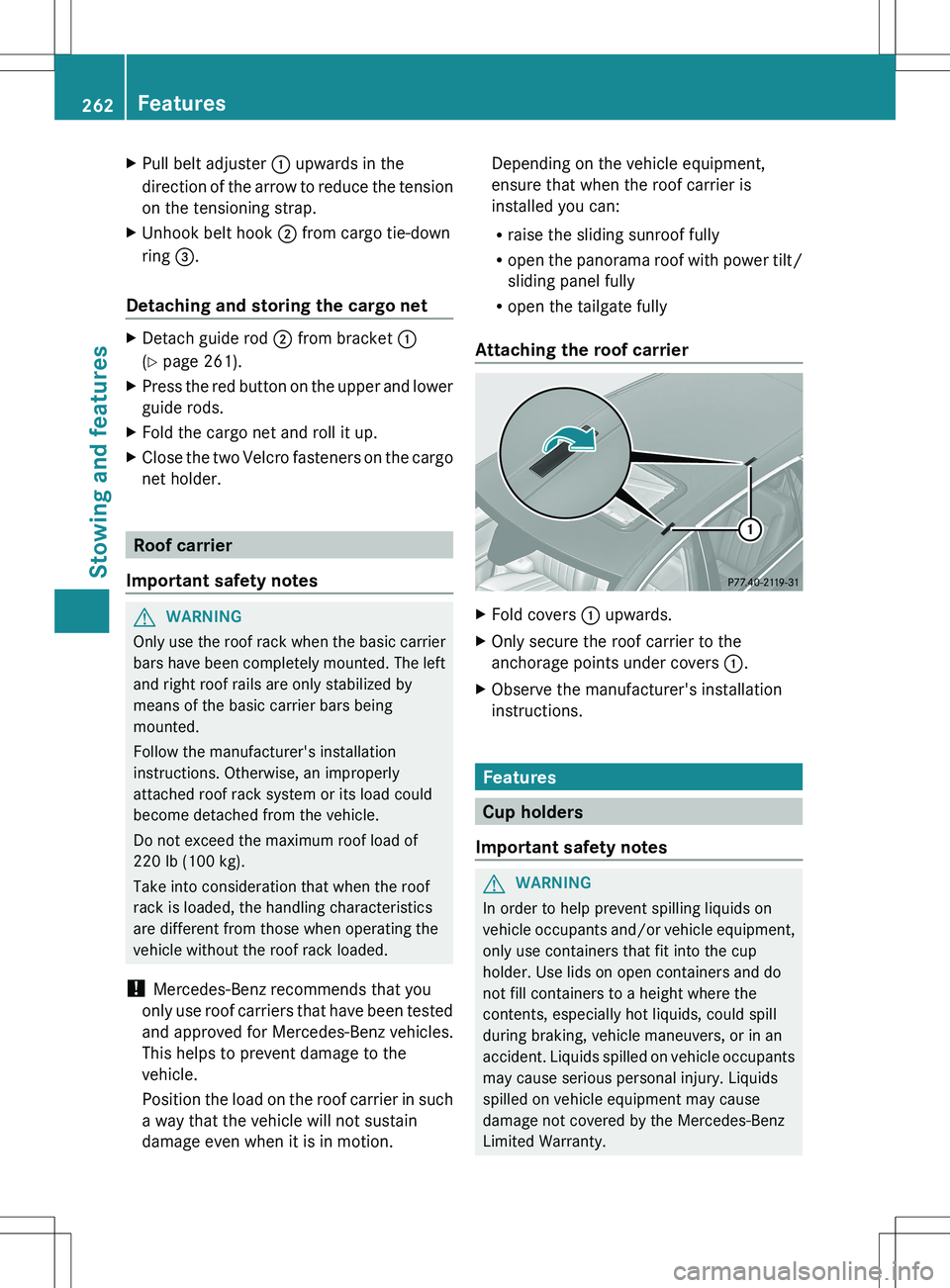

XPull belt adjuster : upwards in the
direction of the arrow to reduce the tension
on the tensioning strap.XUnhook belt hook ; from cargo tie-down
ring =.
Detaching and storing the cargo net
XDetach guide rod ; from bracket :
( Y page 261).XPress the red button on the upper and lower
guide rods.XFold the cargo net and roll it up.XClose the two Velcro fasteners on the cargo
net holder.
Roof carrier
Important safety notes
GWARNING
Only use the roof rack when the basic carrier
bars have been completely mounted. The left
and right roof rails are only stabilized by
means of the basic carrier bars being
mounted.
Follow the manufacturer's installation
instructions. Otherwise, an improperly
attached roof rack system or its load could
become detached from the vehicle.
Do not exceed the maximum roof load of
220 lb (100 kg).
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicle without the roof rack loaded.
! Mercedes-Benz recommends that you
only use roof carriers that have been tested
and approved for Mercedes-Benz vehicles.
This helps to prevent damage to the
vehicle.
Position the load on the roof carrier in such
a way that the vehicle will not sustain
damage even when it is in motion.
Depending on the vehicle equipment,
ensure that when the roof carrier is
installed you can:
R raise the sliding sunroof fully
R open the panorama roof with power tilt/
sliding panel fully
R open the tailgate fully
Attaching the roof carrierXFold covers : upwards.XOnly secure the roof carrier to the
anchorage points under covers :.XObserve the manufacturer's installation
instructions.
Features
Cup holders
Important safety notes
GWARNING
In order to help prevent spilling liquids on
vehicle occupants and/or vehicle equipment,
only use containers that fit into the cup
holder. Use lids on open containers and do
not fill containers to a height where the
contents, especially hot liquids, could spill
during braking, vehicle maneuvers, or in an
accident. Liquids spilled on vehicle occupants
may cause serious personal injury. Liquids
spilled on vehicle equipment may cause
damage not covered by the Mercedes-Benz
Limited Warranty.
262FeaturesStowing and features

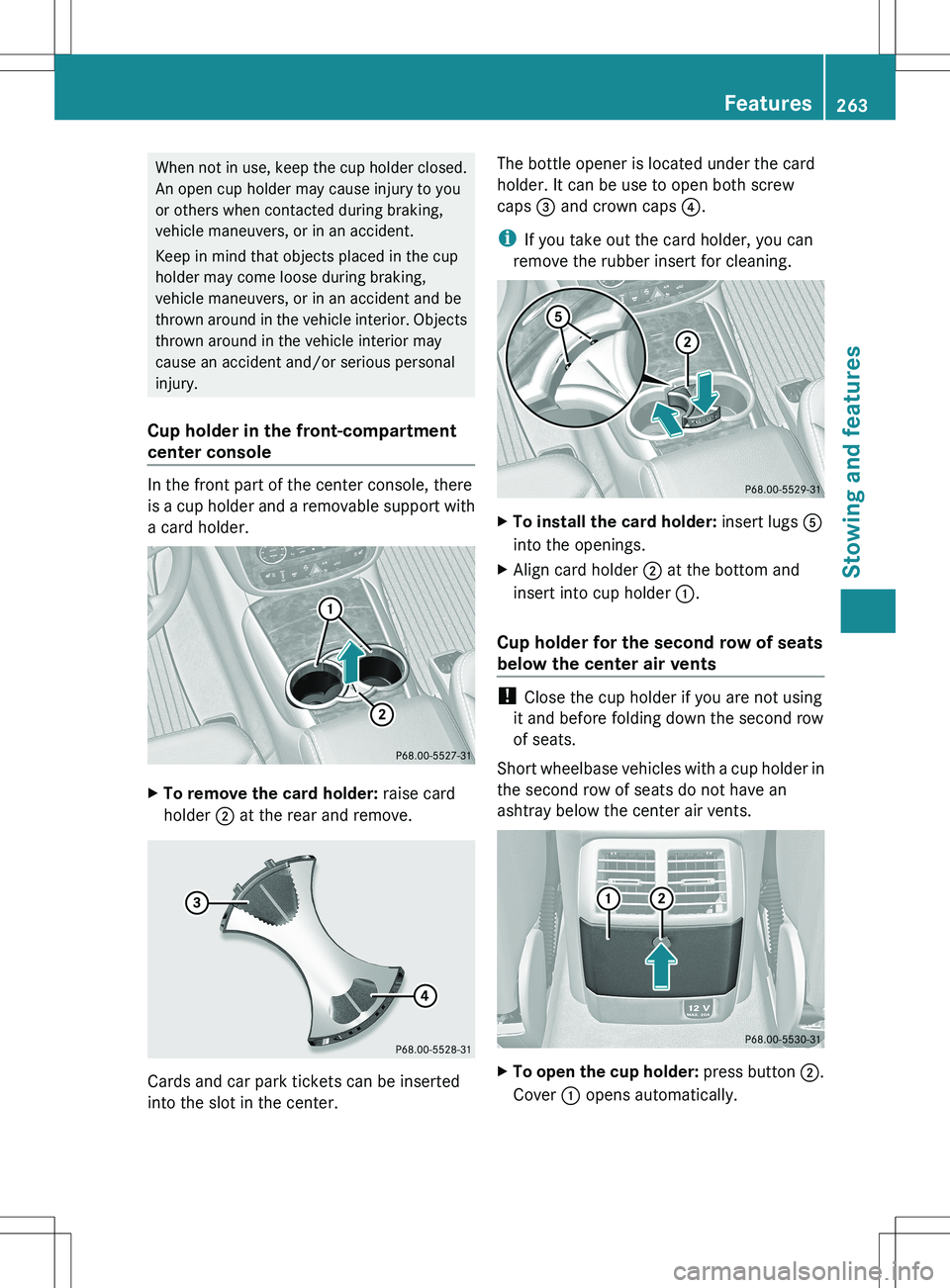

When not in use, keep the cup holder closed.
An open cup holder may cause injury to you
or others when contacted during braking,
vehicle maneuvers, or in an accident.
Keep in mind that objects placed in the cup
holder may come loose during braking,
vehicle maneuvers, or in an accident and be
thrown around in the vehicle interior. Objects
thrown around in the vehicle interior may
cause an accident and/or serious personal
injury.
Cup holder in the front-compartment
center console
In the front part of the center console, there
is a cup holder and a removable support with
a card holder.
XTo remove the card holder: raise card
holder ; at the rear and remove.
Cards and car park tickets can be inserted
into the slot in the center.
The bottle opener is located under the card
holder. It can be use to open both screw
caps = and crown caps ?.
i If you take out the card holder, you can
remove the rubber insert for cleaning.XTo install the card holder: insert lugs A
into the openings.XAlign card holder ; at the bottom and
insert into cup holder :.
Cup holder for the second row of seats
below the center air vents
! Close the cup holder if you are not using
it and before folding down the second row
of seats.
Short wheelbase vehicles with a cup holder in
the second row of seats do not have an
ashtray below the center air vents.
XTo open the cup holder: press button ;.
Cover : opens automatically.Features263Stowing and featuresZ

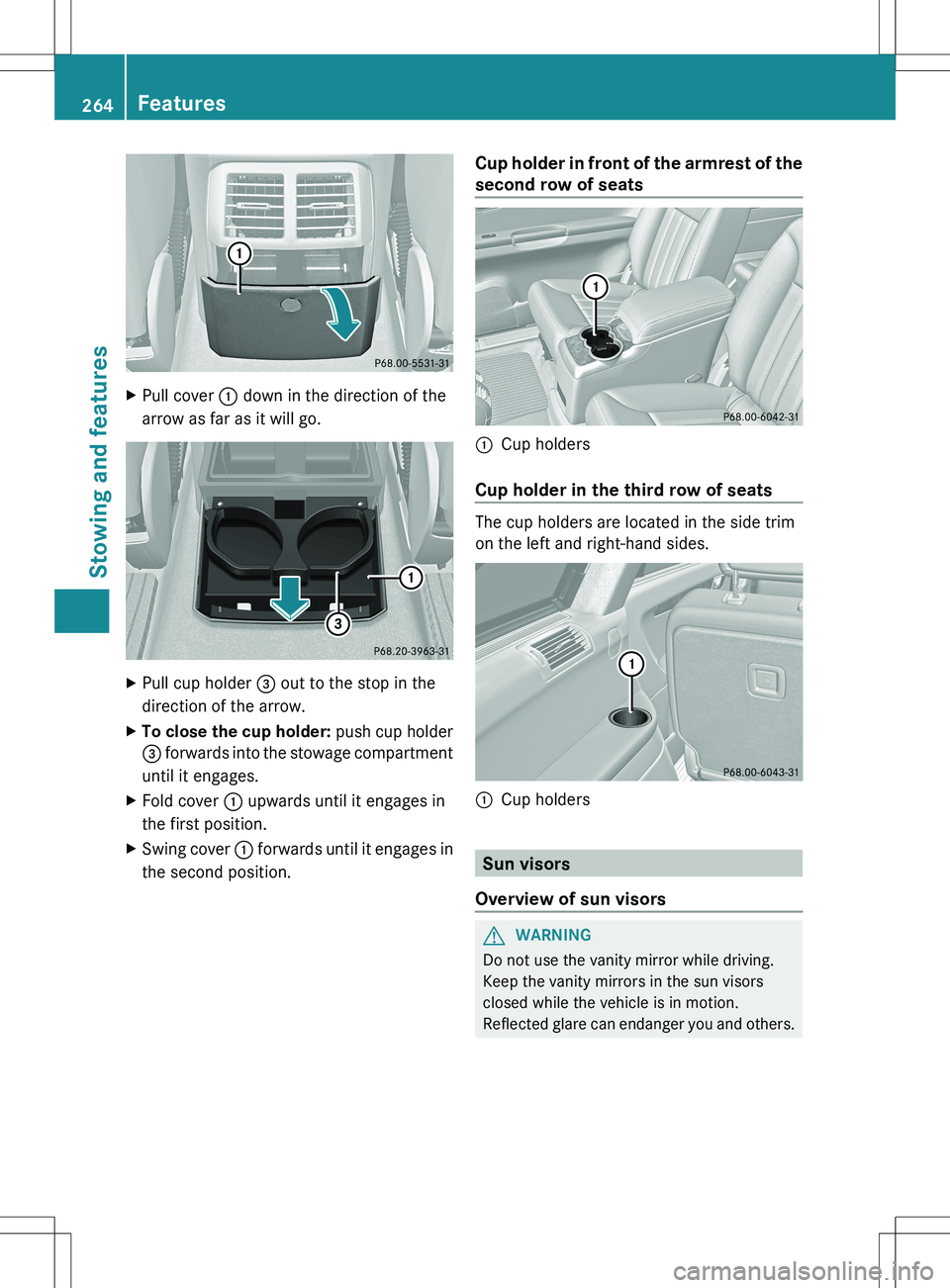

XPull cover : down in the direction of the
arrow as far as it will go.XPull cup holder = out to the stop in the
direction of the arrow.XTo close the cup holder: push cup holder
= forwards into the stowage compartment
until it engages.XFold cover : upwards until it engages in
the first position.XSwing cover : forwards until it engages in
the second position.Cup holder in front of the armrest of the
second row of seats:Cup holders
Cup holder in the third row of seats
The cup holders are located in the side trim
on the left and right-hand sides.
:Cup holders
Sun visors
Overview of sun visors
GWARNING
Do not use the vanity mirror while driving.
Keep the vanity mirrors in the sun visors
closed while the vehicle is in motion.
Reflected glare can endanger you and others.
264FeaturesStowing and features

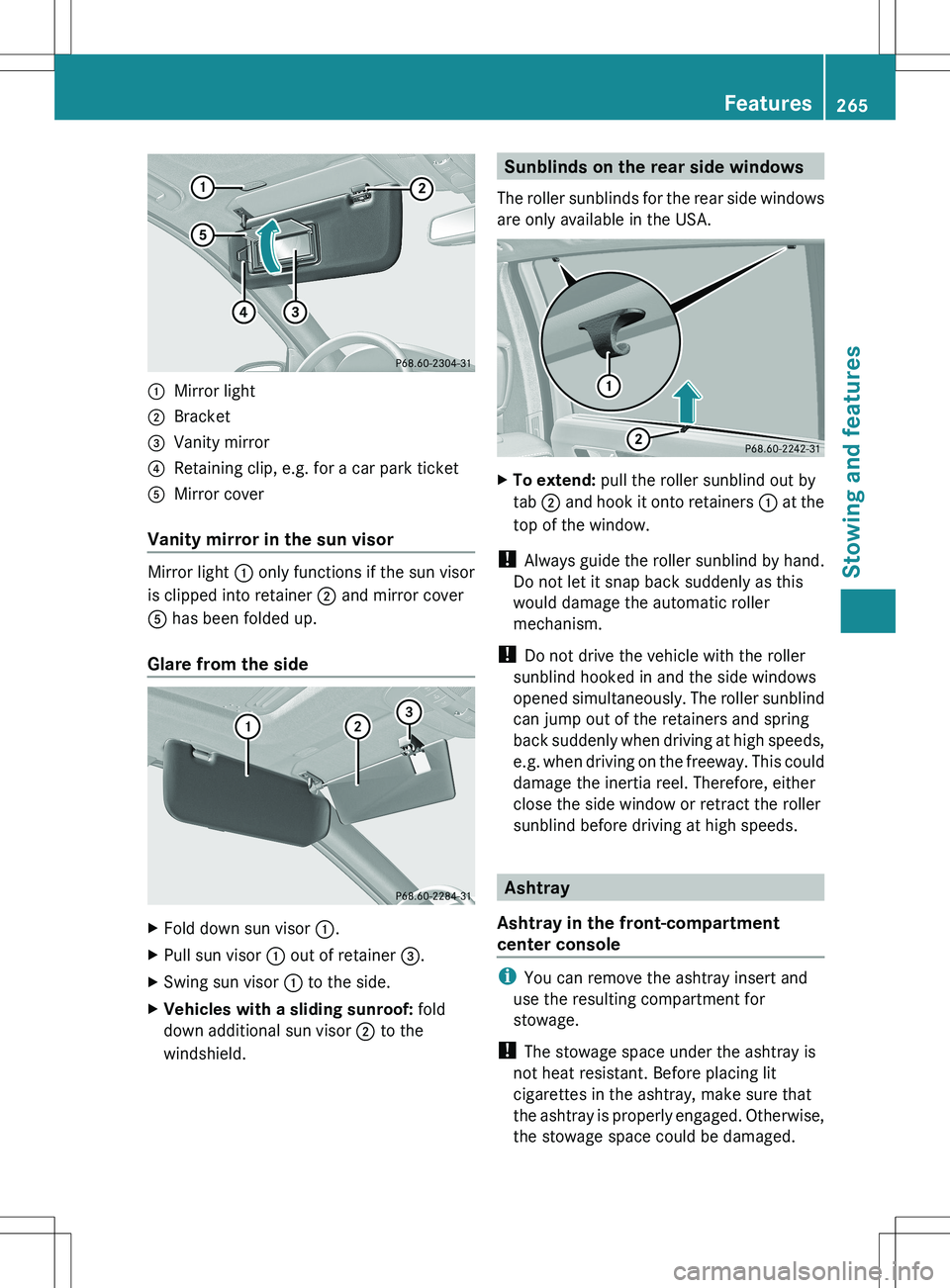

:Mirror light;Bracket=Vanity mirror?Retaining clip, e.g. for a car park ticketAMirror cover
Vanity mirror in the sun visor
Mirror light : only functions if the sun visor
is clipped into retainer ; and mirror cover
A has been folded up.
Glare from the side
XFold down sun visor :.XPull sun visor : out of retainer =.XSwing sun visor : to the side.XVehicles with a sliding sunroof: fold
down additional sun visor ; to the
windshield.Sunblinds on the rear side windows
The roller sunblinds for the rear side windows
are only available in the USA.XTo extend: pull the roller sunblind out by
tab ; and hook it onto retainers : at the
top of the window.
! Always guide the roller sunblind by hand.
Do not let it snap back suddenly as this
would damage the automatic roller
mechanism.
! Do not drive the vehicle with the roller
sunblind hooked in and the side windows
opened simultaneously. The roller sunblind
can jump out of the retainers and spring
back suddenly when driving at high speeds,
e.g. when driving on the freeway. This could
damage the inertia reel. Therefore, either
close the side window or retract the roller
sunblind before driving at high speeds.
Ashtray
Ashtray in the front-compartment
center console
i You can remove the ashtray insert and
use the resulting compartment for
stowage.
! The stowage space under the ashtray is
not heat resistant. Before placing lit
cigarettes in the ashtray, make sure that
the ashtray is properly engaged. Otherwise,
the stowage space could be damaged.
Features265Stowing and featuresZ

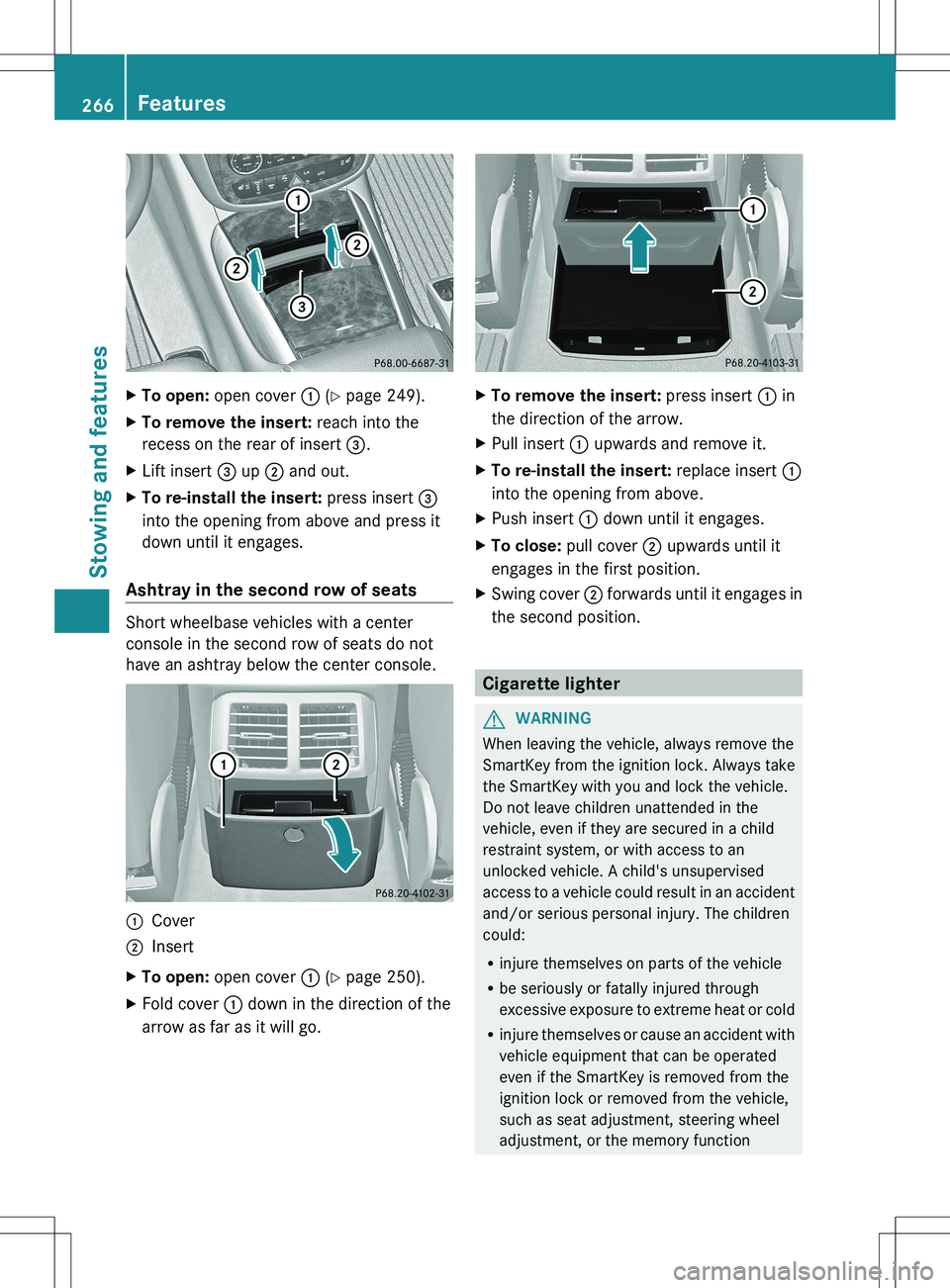

XTo open: open cover : (Y page 249).XTo remove the insert: reach into the
recess on the rear of insert =.XLift insert = up ; and out.XTo re-install the insert: press insert =
into the opening from above and press it
down until it engages.
Ashtray in the second row of seats
Short wheelbase vehicles with a center
console in the second row of seats do not
have an ashtray below the center console.
:Cover;InsertXTo open: open cover : (Y page 250).XFold cover : down in the direction of the
arrow as far as it will go.XTo remove the insert: press insert : in
the direction of the arrow.XPull insert : upwards and remove it.XTo re-install the insert: replace insert :
into the opening from above.XPush insert : down until it engages.XTo close: pull cover ; upwards until it
engages in the first position.XSwing cover ; forwards until it engages in
the second position.
Cigarette lighter
GWARNING
When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system, or with access to an
unlocked vehicle. A child's unsupervised
access to a vehicle could result in an accident
and/or serious personal injury. The children
could:
R injure themselves on parts of the vehicle
R be seriously or fatally injured through
excessive exposure to extreme heat or cold
R injure themselves or cause an accident with
vehicle equipment that can be operated
even if the SmartKey is removed from the
ignition lock or removed from the vehicle,
such as seat adjustment, steering wheel
adjustment, or the memory function
266FeaturesStowing and features

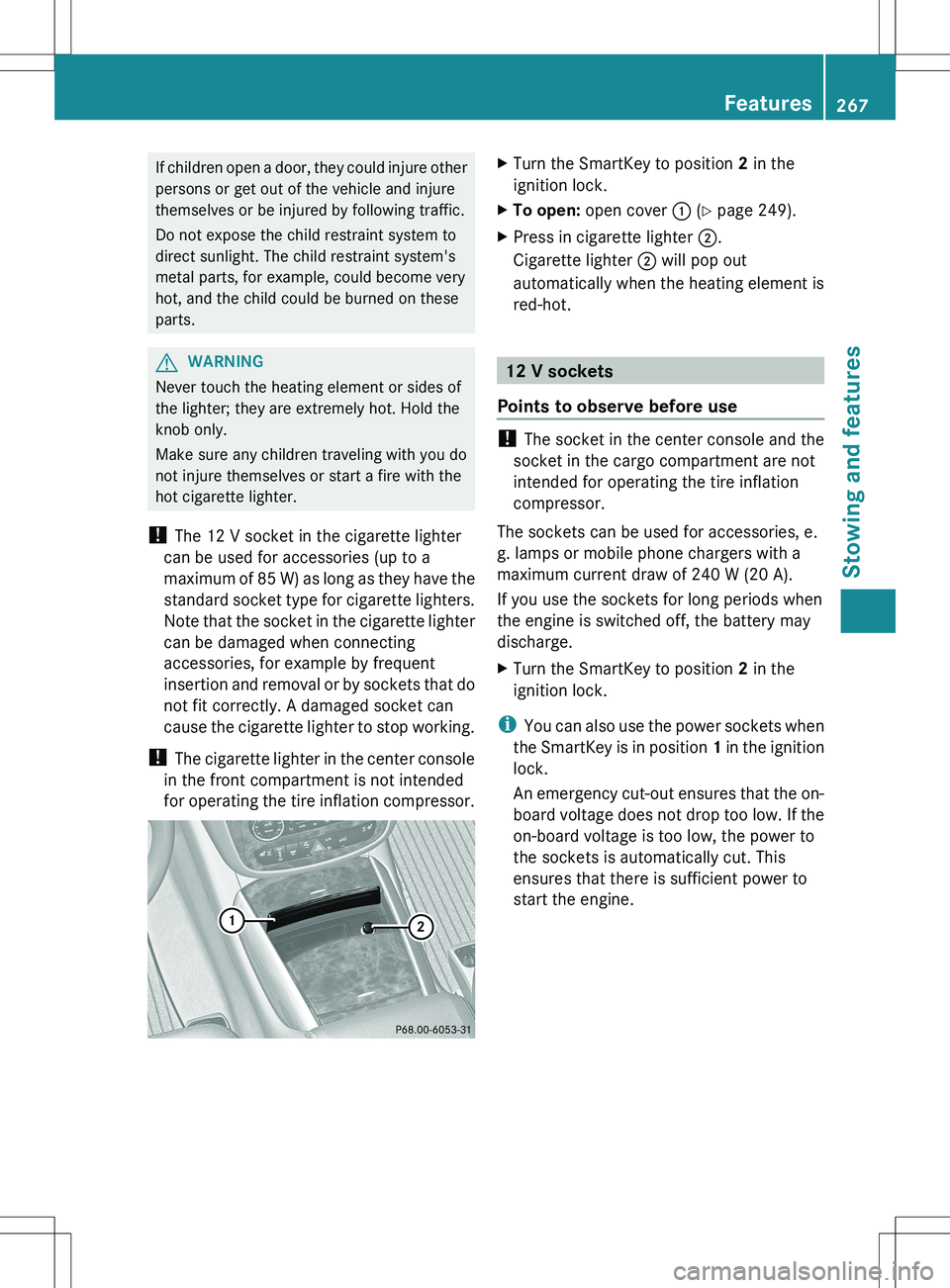

If children open a door, they could injure other
persons or get out of the vehicle and injure
themselves or be injured by following traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very
hot, and the child could be burned on these
parts.GWARNING
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
Make sure any children traveling with you do
not injure themselves or start a fire with the
hot cigarette lighter.
! The 12 V socket in the cigarette lighter
can be used for accessories (up to a
maximum of 85 W) as long as they have the
standard socket type for cigarette lighters.
Note that the socket in the cigarette lighter
can be damaged when connecting
accessories, for example by frequent
insertion and removal or by sockets that do
not fit correctly. A damaged socket can
cause the cigarette lighter to stop working.
! The cigarette lighter in the center console
in the front compartment is not intended
for operating the tire inflation compressor.
XTurn the SmartKey to position 2 in the
ignition lock.XTo open: open cover : (Y page 249).XPress in cigarette lighter ;.
Cigarette lighter ; will pop out
automatically when the heating element is
red-hot.
12 V sockets
Points to observe before use
! The socket in the center console and the
socket in the cargo compartment are not
intended for operating the tire inflation
compressor.
The sockets can be used for accessories, e.
g. lamps or mobile phone chargers with a
maximum current draw of 240 W (20 A).
If you use the sockets for long periods when
the engine is switched off, the battery may
discharge.
XTurn the SmartKey to position 2 in the
ignition lock.
i You can also use the power sockets when
the SmartKey is in position 1 in the ignition
lock.
An emergency cut-out ensures that the on-
board voltage does not drop too low. If the
on-board voltage is too low, the power to
the sockets is automatically cut. This
ensures that there is sufficient power to
start the engine.

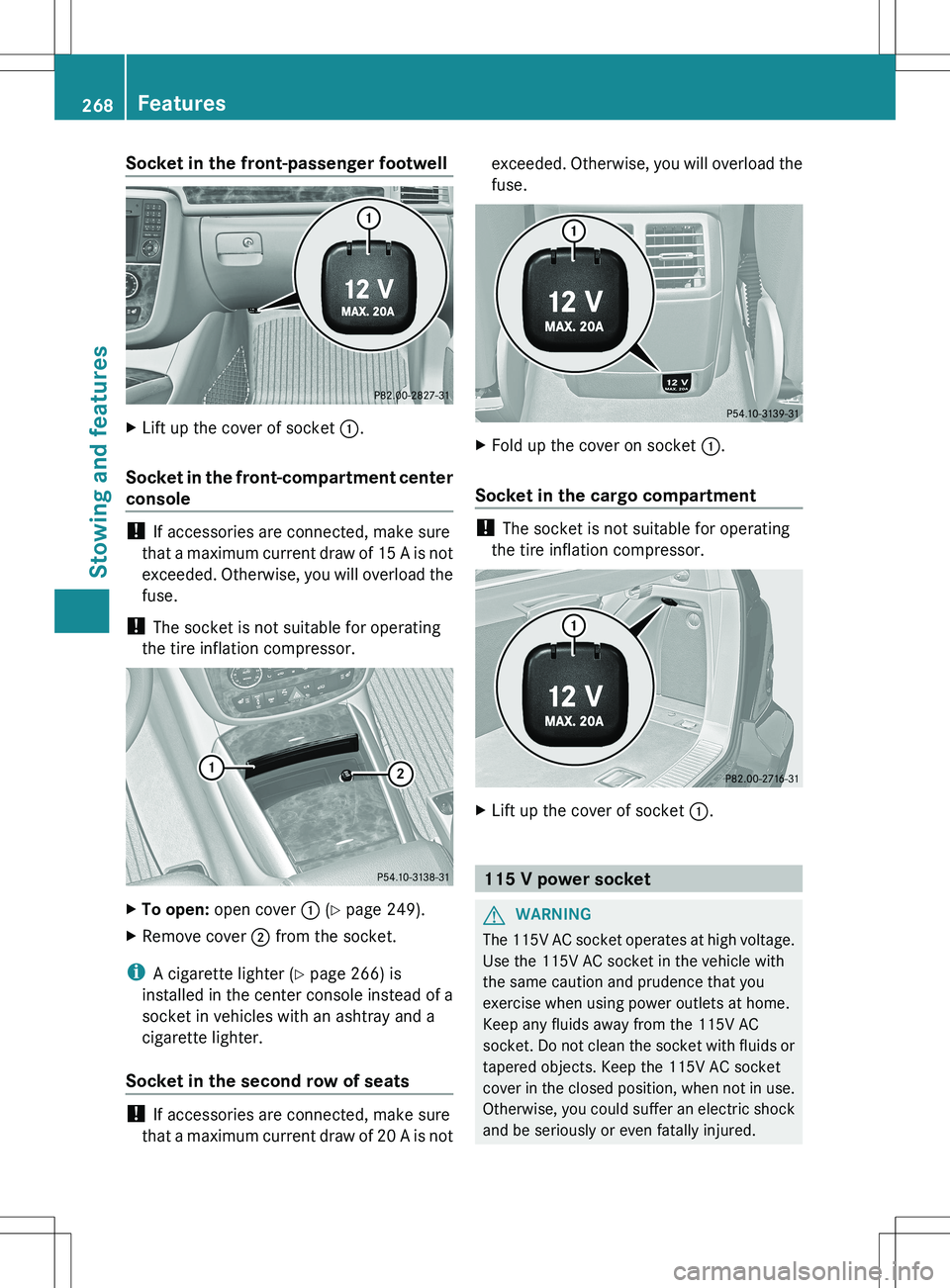

Features267Stowing and featuresZ

Socket in the front-passenger footwellXLift up the cover of socket :.
Socket in the front-compartment center
console
! If accessories are connected, make sure
that a maximum current draw of 15 A is not
exceeded. Otherwise, you will overload the
fuse.
! The socket is not suitable for operating
the tire inflation compressor.
XTo open: open cover : (Y page 249).XRemove cover ; from the socket.
i
A cigarette lighter ( Y page 266) is
installed in the center console instead of a
socket in vehicles with an ashtray and a
cigarette lighter.
Socket in the second row of seats
! If accessories are connected, make sure
that a maximum current draw of 20 A is not
exceeded. Otherwise, you will overload the
fuse.XFold up the cover on socket :.
Socket in the cargo compartment
!
The socket is not suitable for operating
the tire inflation compressor.
XLift up the cover of socket :.
115 V power socket
GWARNING
The 115V AC socket operates at high voltage.
Use the 115V AC socket in the vehicle with
the same caution and prudence that you
exercise when using power outlets at home.
Keep any fluids away from the 115V AC
socket. Do not clean the socket with fluids or
tapered objects. Keep the 115V AC socket
cover in the closed position, when not in use.
Otherwise, you could suffer an electric shock
and be seriously or even fatally injured.
268FeaturesStowing and features
