Air conditioning
159Air conditioning

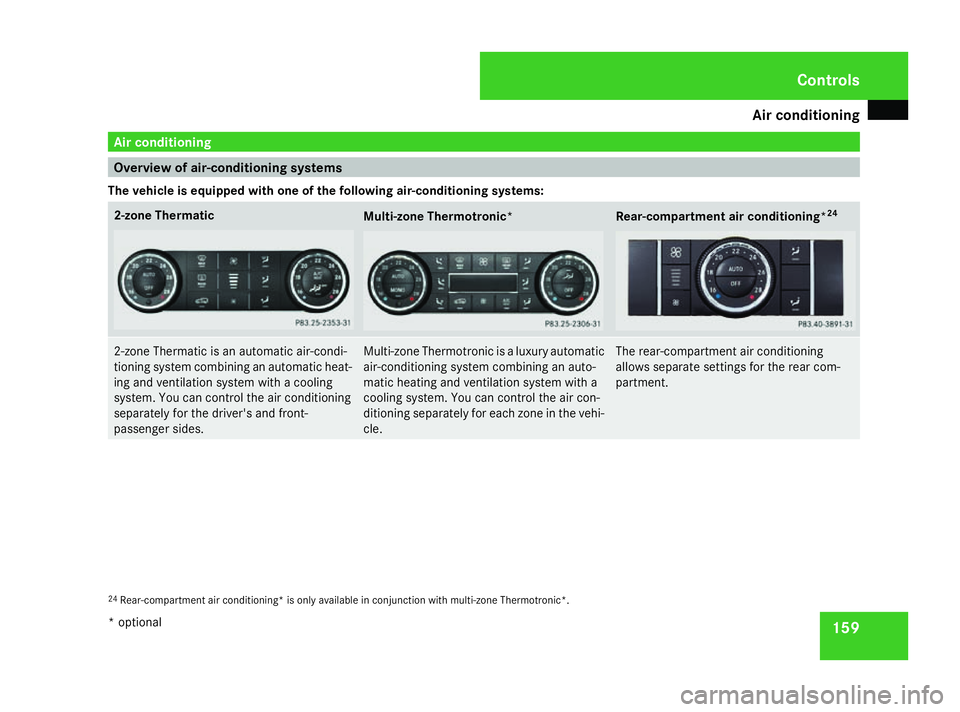

Overview of air-conditioning systems
The vehicle is equipped with one of the following air-conditioning systems: 2-zone Thermatic
Multi-zone Thermotronic* Rear-compartment air conditioning*
242-zone Thermatic is an automatic air-condi-
tioning system combining an automatic heat-
ing and ventilation system with a cooling
system. You can control the air conditioning
separately for the driver's and front-
passenger sides. Multi-zone Thermotronic is a luxury automatic
air-conditioning system combining an auto-
matic heating and ventilation system with a
cooling system. You can control the air con-
ditioning separately for each zone in the vehi-
cle. The rear-compartment air conditioning
allows separate settings for the rear com-
partment.
24
Rear-compartment air conditioning* is only available in conjunction with multi-zone Thermotronic*. Cont
rols
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 159 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning
160 General notes
2-zone Thermatic/multi-zone Thermotronic*
controls the temperature and the humidity of
the vehicle interior and filters out undesirable
substances from the air.
2-zone Thermatic/multi-zone Thermotronic*
is only operational when the engine is run-
ning. Optimum operation is only achieved
when you drive with the side windows and
sliding/tilting sunroof*/panorama sliding
sunroof* closed. i
Ventilate the vehicle for a brief period
during warm weather, e.g. using the sum-
mer opening feature (Y page 108). This will
speed up the cooling process and the
desired interior temperature will be
reached more quickly.
i The integrated filter filters out most par-
ticles of dust and completely filters out
pollen. A clogged filter reduces the amount
of air supplied to the vehicle interior. For
this reason, you should always observe the interval for replacing the filter, which is
specified in the Service Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Service Booklet. G
Risk of accident
Observe the settings recommended on the
following pages. The windows could other-
wise mist up. This may obstruct your view
of the traffic situation, thereby causing an
accident. Cont
rols
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 160 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning

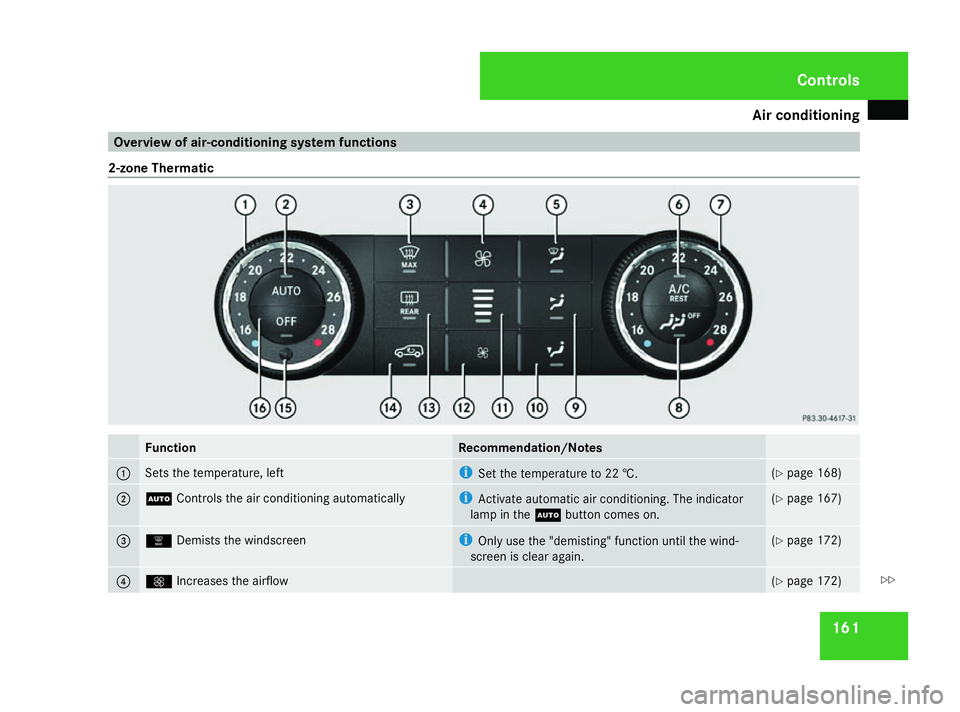

161Overview of air-conditioning system functions
2-zone Thermatic Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (Y
page 168) 2 U
Controls the air conditioning automatically i
Activate automatic air conditioning. The indicator
lamp in the Ubutton comes on. (Y
page 167) 3 |
Demists the windscreen i
Only use the "demisting" function until the wind-
screen is clear again. (Y
page 172) 4 Q
Increases the airflow (Y
page 172) Cont
rols
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 161 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning
162 Function Recommendation/Notes
5 {
Directs the airflow through the demister vents (Y
page 171) 6 9
Activates/deactivates cooling with air dehumidifi-
cation i
Switch on the air conditioning with air-dehumidifica-
tion function. The indicator lamp in the 9button
lights up. (Y
page 167) 9
Switches the residual heat function on/off i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (Y
page 174) 7 Sets the temperature, right i
Set the temperature to 22 †. (Y
page 168) 8 <
Switches the rear-compartment air-conditioning
on/off (Y
page 166) 9 a
Directs the airflow through the centre and side air
vents (Y
page 171) a Y
Directs the airflow to the footwells and side air
vents (Y
page 171) b Displays the airflow level
c ·
Reduces the airflow (Y
page 172) d 1
Switches the rear window heating on/off i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warmed
up. (Y
page 173) e :
Activates/deactivates air-recirculation mode i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows could mist up due to
lack of fresh air. (Y
page 173) Cont
rols
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 162 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning
163Function Recommendation/Notes
f Interior temperature sensor
g ´
Activates/deactivates Thermatic i
Activate Thermatic. The indicator lamp in the ´
button goes out. (Y
page 166) Multi-zone Thermotronic*
Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (Y
page 168) 2 U
Controls the air conditioning automatically i
Activate automatic air conditioning. The indicator
lamp in the Ubutton comes on. (Y
page 167) Cont
rols
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 163 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Air conditioning

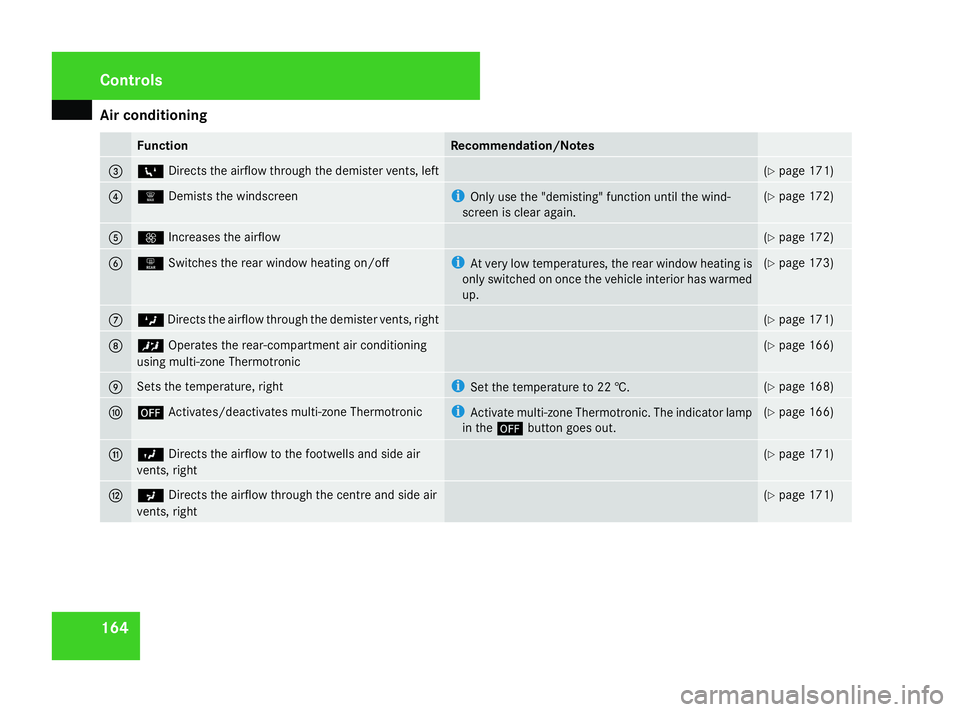

164 Function Recommendation/Notes
3 6
Directs the airflow through the demister vents, left (Y
page 171) 4 |
Demists the windscreen i
Only use the "demisting" function until the wind-
screen is clear again. (Y
page 172) 5 Q
Increases the airflow (Y
page 172) 6 1
Switches the rear window heating on/off i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warmed
up. (Y
page 173) 7 Z
Directs the airflow through the demister vents, right (Y
page 171) 8 ™
Operates the rear-compartment air conditioning
using multi-zone Thermotronic (Y
page 166) 9 Sets the temperature, right i
Set the temperature to 22 †. (Y
page 168) a ´
Activates/deactivates multi-zone Thermotronic i
Activate multi-zone Thermotronic. The indicator lamp
in the ´button goes out. (Y
page 166) b Y
Directs the airflow to the footwells and side air
vents, right (Y
page 171) c a
Directs the airflow through the centre and side air
vents, right (Y
page 171) Cont
rols
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 164 Dateiname: 6515_1825_02_buchblock.pdf; preflight
