Page 26 of 570
25 At a glance
Cockpit
ItemPage
1Cruise control lever267
2Instrument cluster26
3Multifunction steering
wheel30
4Horn
5Steering wheel gearshift
buttons207
6Gear selector lever for
automatic transmission54
7Front Parktronic* warning
indicators293
8Overhead control panel33
9Glove box release
Glove box lock311
312
ItemPage
aGlove box
CD changer*
AUX-socket311
311
311
bCenter console31
cStarter switch39
dSteering wheel adjustment,
manual46
eSteering wheel adjustment,
electrical*47
Heated steering wheel*326
fHood lock release364
gParking brake release57
hParking brake pedal66
ItemPage
jDoor control panel36
kHeadlamp washer switch*212
lExterior lamp switch146
mCombination switch
Turn signals60
High beam59
Windshield wipers60
Rear window wiper62
Page 44 of 570
43 Getting started
Adjusting
Adjusting
Seats
Warning!G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as
fastening of seat belts, must be done before
the vehicle is put into motion.
Warning!G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 51).
Never place hands under the seat or near
any moving parts while a seat is being
adjusted.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional informa-
tion, see “Children in the vehicle”
(
page 84).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Page 45 of 570
44 Getting started
Adjusting
Seat adjustment

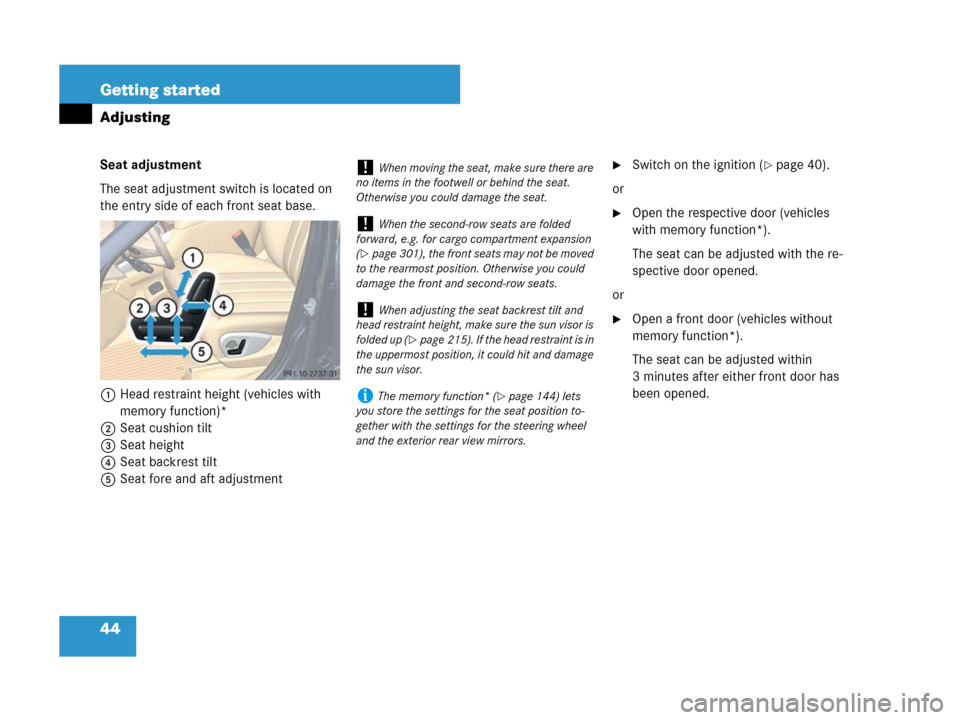

The seat adjustment switch is located on
the entry side of each front seat base.
1 Head restraint height (vehicles with
memory function)*
2Seat cushion tilt
3Seat height
4Seat backrest tilt
5 Seat fore and aft adjustmentSwitch on the ignition (page 40).
or
Open the respective door (vehicles
with memory function*).
The seat can be adjusted with the re-
spective door opened.
or
Open a front door (vehicles without
memory function*).
The seat can be adjusted within
3 minutes after either front door has
been opened.
!When moving the seat, make sure there are
no items in the footwell or behind the seat.
Otherwise you could damage the seat.
!When the second-row seats are folded
forward, e.g. for cargo compartment expansion
(
page 301), the front seats may not be moved
to the rearmost position. Otherwise you could
damage the front and second-row seats.
!When adjusting the seat backrest tilt and
head restraint height, make sure the sun visor is
folded up (
page 215). If the head restraint is in
the uppermost position, it could hit and damage
the sun visor.
iThe memory function* (page 144) lets
you store the settings for the seat position to-
gether with the settings for the steering wheel
and the exterior rear view mirrors.
Page 46 of 570
45 Getting started
Adjusting
Seat fore and aft adjustment
Press the switch forward or backward
in direction of arrow5.
Adjust the seat to a comfortable
seating position that still allows you to
reach the accelerator/brake pedal
safely. The position should be as far to
the rear as possible, consistent with
ability to properly operate controls.
Seat height
Press the switch up or down in
direction of arrow3.
Seat cushion tilt
Press the switch up or down in
direction of arrow2 until your upper
legs are lightly supported.
Seat backrest tilt
Press the switch forward or backward
in direction of arrow4 until your arms
are slightly angled when holding the
steering wheel.Head restraint height
Vehicles with memory function*:
Press switch (page 44) up or down in
direction of arrow1.
Vehicles without memory function:

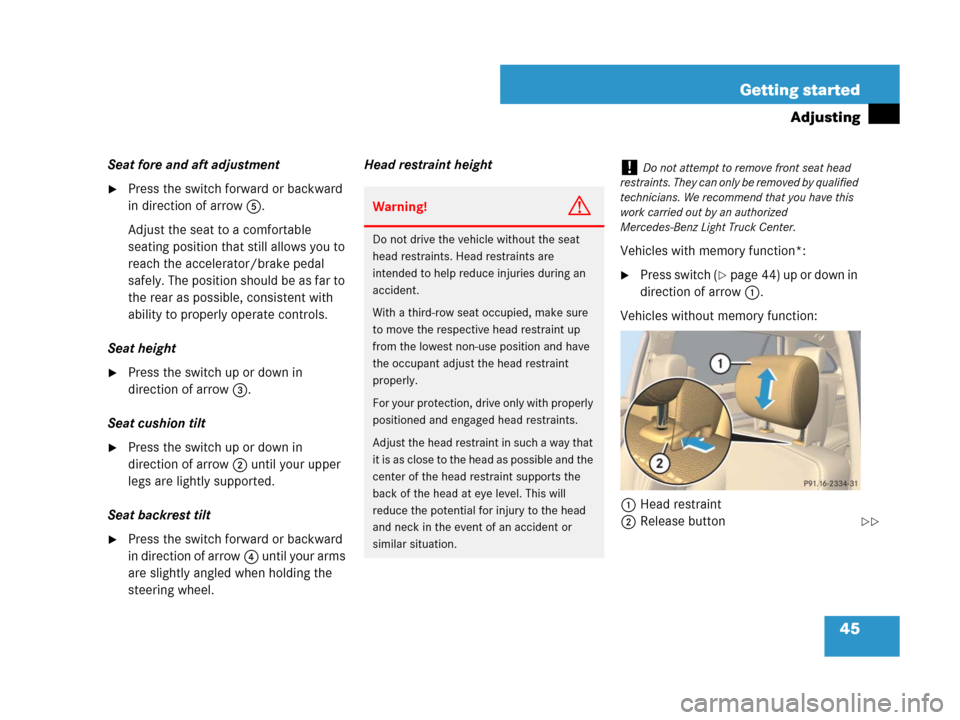

1Head restraint
2Release button
Warning!G
Do not drive the vehicle without the seat
head restraints. Head restraints are
intended to help reduce injuries during an
accident.
With a third-row seat occupied, make sure
to move the respective head restraint up
from the lowest non-use position and have
the occupant adjust the head restraint
properly.
For your protection, drive only with properly
positioned and engaged head restraints.
Adjust the head restraint in such a way that
it is as close to the head as possible and the
center of the head restraint supports the
back of the head at eye level. This will
reduce the potential for injury to the head
and neck in the event of an accident or
similar situation.
!Do not attempt to remove front seat head
restraints. They can only be removed by qualified
technicians. We recommend that you have this
work carried out by an authorized
Mercedes-Benz Light Truck Center.
Page 47 of 570
46 Getting started
Adjusting
Raising:
Manually adjust the height of head
restraint 1 by pulling it upward.
If head restraint 1 is fully retracted,
push release button 2 in direction of
arrow and pull head restraint 1
upward.
Lowering:
To lower head restraint 1, press
release button 2 in direction of arrow
and push down on head restraint 1.Head restraint fore and aft adjustment
Manually adjust the angle of the head
restraint.
While seated, reach behind you with
both hands and find lower edge of the
head restraint.
Adjust the head restraint to the desired
position by pushing or pulling on the
lower edge of the head restraint
cushion.
For more information, see “Seats”
(
page 132).
Steering wheel
Steering wheel adjustment, manual
Warning!G
Only adjust the steering wheel with the
vehicle at a standstill and make sure the
steering wheel is securely locked in place
before driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the
vehicle. Make sure the steering wheel is
securely locked by trying to move it up and
down, and in and out before driving off.
Page 48 of 570
47 Getting started
Adjusting
Make sure that
you can reach the steering wheel with
your arms slightly bent at the elbows
you can move your legs freely
all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment release
handle is located on the lower left of the
steering column.
1Release handle
To unlock the steering wheel, pull
release handle 1 out to its stop limit.
Move steering wheel to the desired
position.
Push release handle 1 back to its
original position to relock the steering
wheel.
The steering wheel is locked into posi-
tion again.
Make sure the steering wheel is
securely locked by trying to move it up
and down as well as in and out before
driving off.Steering wheel adjustment, electrical*
Warning!G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated
when the driver’s door is open. Therefore,
do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Page 49 of 570
48 Getting started
Adjusting
Make sure that
you can reach the steering wheel with
your arms slightly bent at the elbows
you can move your legs freely
all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment stalk is
located on the lower left of the steering
column.1Adjusting steering wheel, in or out
2Adjusting steering wheel, up or down
Switch on the ignition (page 39).
or
Open the driver’s door.
Adjusting steering wheel in or out
Move stalk forward or back in direction
of arrow1.
Adjusting steering wheel up or down
Move stalk up or down in direction of
arrow2.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have
a good view of the road and traffic
conditions.iThe memory function* (page 144) lets
you store the settings for the steering wheel
together with the settings for seat positions and
the exterior rear view mirrors.
Warning!G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!Electrolyte drops coming into contact with
the vehicle paint finish can only be completely
removed while in their liquid state and by apply-
ing plenty of water.
Page 51 of 570
50 Getting started
Adjusting
For more information, see “Rear view mir-
rors” (
page 212).
!Vehicles with power folding exterior rear
view mirrors*:
If an exterior rear view mirror housing is forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front) press fold
button1 (
page 214) to fold mirrors in, then
press fold button1 (
page 214) again to fold
mirrors out. Do not force mirrors by hand as this
may damage the adjustment mechanism.
The mirror housing is then properly positioned
and you can adjust the mirror in the usual man-
ner.
iThe memory function* (page 144) lets
you store the settings for the exterior rear view
mirrors together with the setting for the steering
wheel column and the seat positions.
At low ambient temperatures, the exterior rear
view mirrors will be heated automatically.

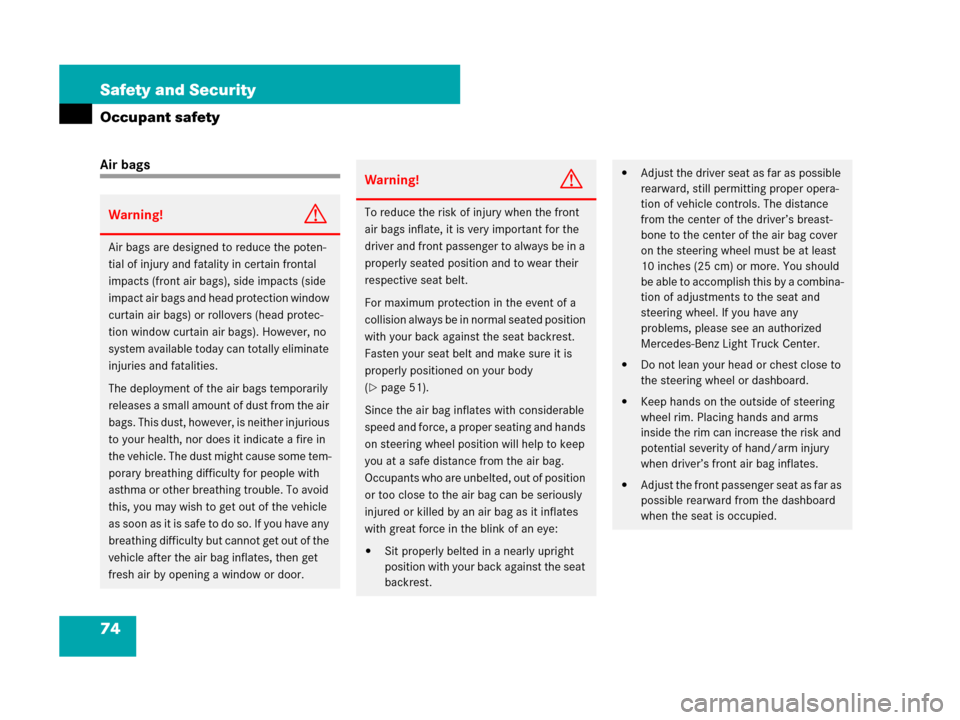

Page 75 of 570
74 Safety and Security
Occupant safety
Air bags
Warning!G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal
impacts (front air bags), side impacts (side
impact air bags and head protection window
curtain air bags) or rollovers (head protec-
tion window curtain air bags). However, no
system available today can totally eliminate
injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
Warning!G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belt.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the seat backrest.
Fasten your seat belt and make sure it is
properly positioned on your body
(
page 51).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:
Sit properly belted in a nearly upright
position with your back against the seat
backrest.
Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any
problems, please see an authorized
Mercedes-Benz Light Truck Center.
Do not lean your head or chest close to
the steering wheel or dashboard.
Keep hands on the outside of steering
wheel rim. Placing hands and arms
inside the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.
Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.
Page 133 of 570
132 Controls in detail
Seats
For information on seat adjustment, see
the “Getting started” section (
page 44).
For more information on folding the seats,
see “Loading” (
page 297).
Easy-entry/exit feature
Easy-entry/exit feature for driver’s
seat*
This feature allows for easier entry into and
exit from the vehicle. When entering and
exiting the vehicle, the steering wheel is in
its uppermost position.
The easy-entry/exit feature can be
activated or deactivated in the
Comfort
submenu of the control system
(
page 190).With the easy-entry/exit feature activated,
the steering wheel will return to the last set
position when you
close the driver’s door with the ignition
switched on
or
insert the SmartKey into the starter
switch or press the KEYLESS-GO*
start/stop button (
page 41) once
with the driver’s door closed
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:
Move steering wheel adjustment stalk*
(
page 47).
Press one of the memory position
buttons or memory buttonM*
(
page 145).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iThe last set steering wheel position is
stored when
the ignition is switched off(page 39)
the position is stored into memory
(
page 145)
