300 Controls in detailUseful featuresCard/ticket holder with bottle opener

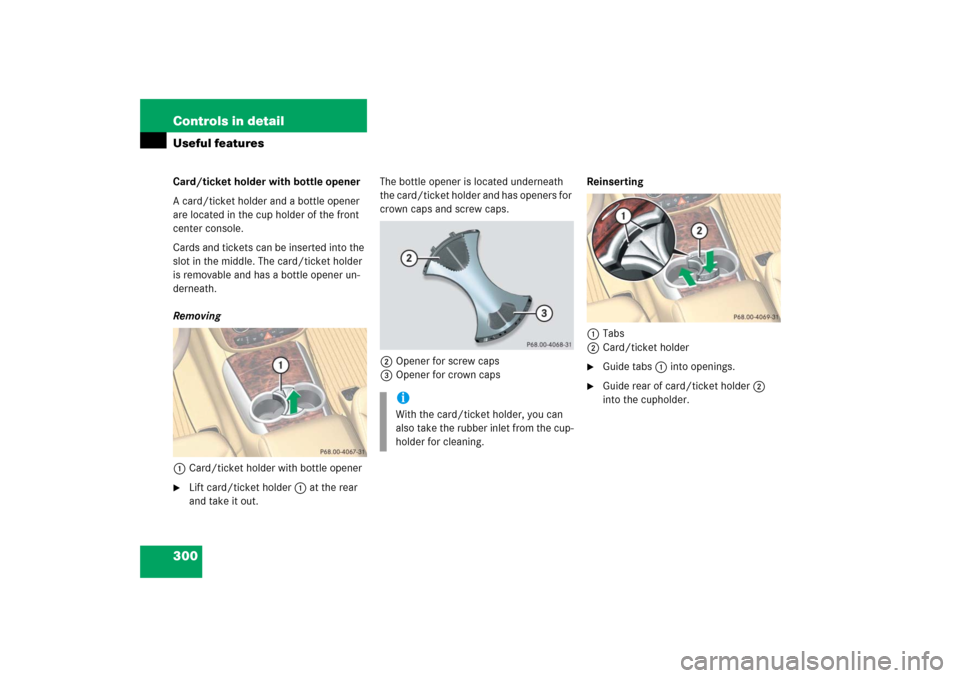

A card/ticket holder and a bottle opener
are located in the cup holder of the front
center console.
Cards and tickets can be inserted into the
slot in the middle. The card/ticket holder
is removable and has a bottle opener un-
derneath.
Removing
1Card/ticket holder with bottle opener
Lift card/ticket holder 1 at the rear
and take it out.The bottle opener is located underneath
the card/ticket holder and has openers for
crown caps and screw caps.
2Opener for screw caps
3Opener for crown capsReinserting
1Tabs
2Card/ticket holder

Guide tabs 1 into openings.

Guide rear of card/ticket holder 2
into the cupholder.
iWith the card/ticket holder, you can
also take the rubber inlet from the cup-
holder for cleaning.

301 Controls in detail
Useful features
Cup holder in front of second-row seats
A cupholder is located in front of the
second-row seats.

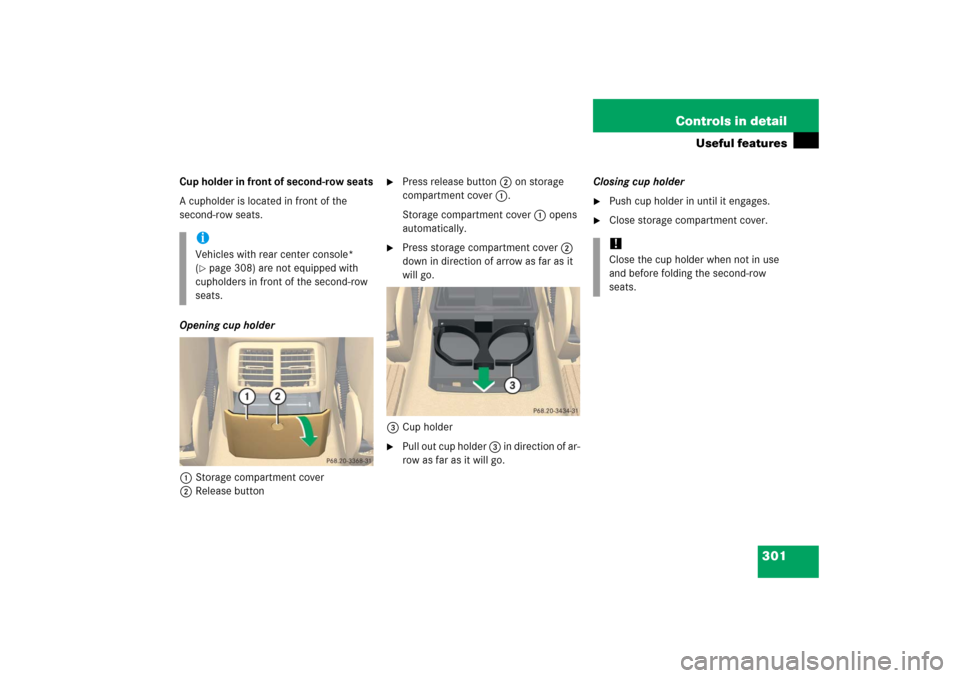

Opening cup holder
1Storage compartment cover
2Release button

Press release button 2 on storage
compartment cover 1.
Storage compartment cover 1 opens
automatically.

Press storage compartment cover 2
down in direction of arrow as far as it
will go.
3Cup holder

Pull out cup holder 3 in direction of ar-
row as far as it will go.Closing cup holder

Push cup holder in until it engages.

Close storage compartment cover.
iVehicles with rear center console*
(page 308) are not equipped with
cupholders in front of the second-row
seats.
!Close the cup holder when not in use
and before folding the second-row
seats.

302 Controls in detailUseful featuresCupholders in rear center console*

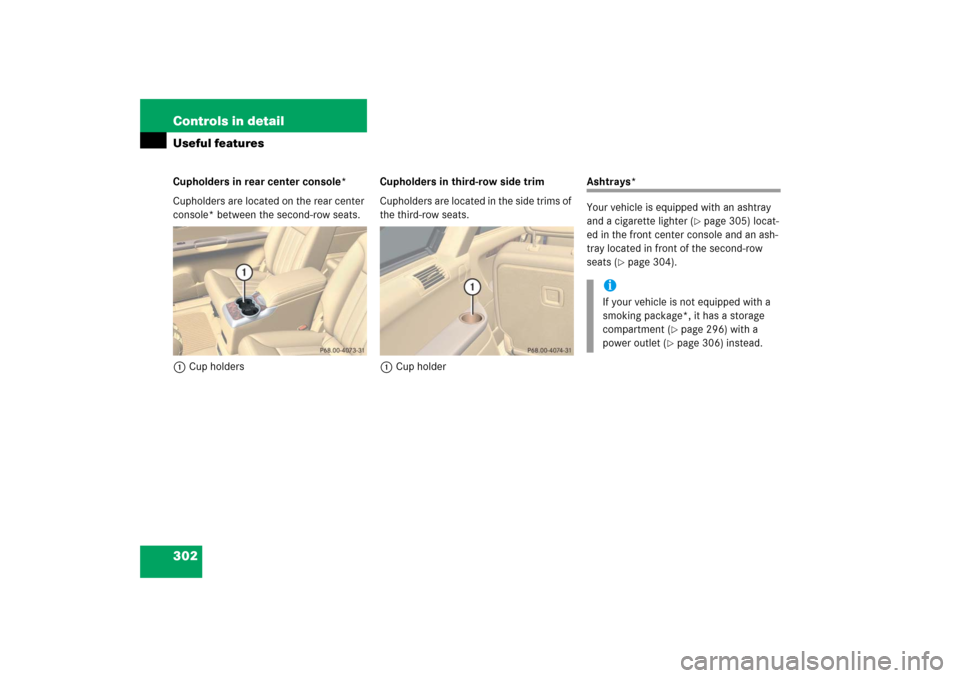

Cupholders are located on the rear center
console* between the second-row seats.
1Cup holdersCupholders in third-row side trim
Cupholders are located in the side trims of
the third-row seats.
1Cup holder
Ashtrays*
Your vehicle is equipped with an ashtray
and a cigarette lighter (
page 305) locat-
ed in the front center console and an ash-
tray located in front of the second-row
seats (
page 304).
iIf your vehicle is not equipped with a
smoking package*, it has a storage
compartment (
page 296) with a
power outlet (
page 306) instead.

303 Controls in detail
Useful features
Ashtray in the front center console

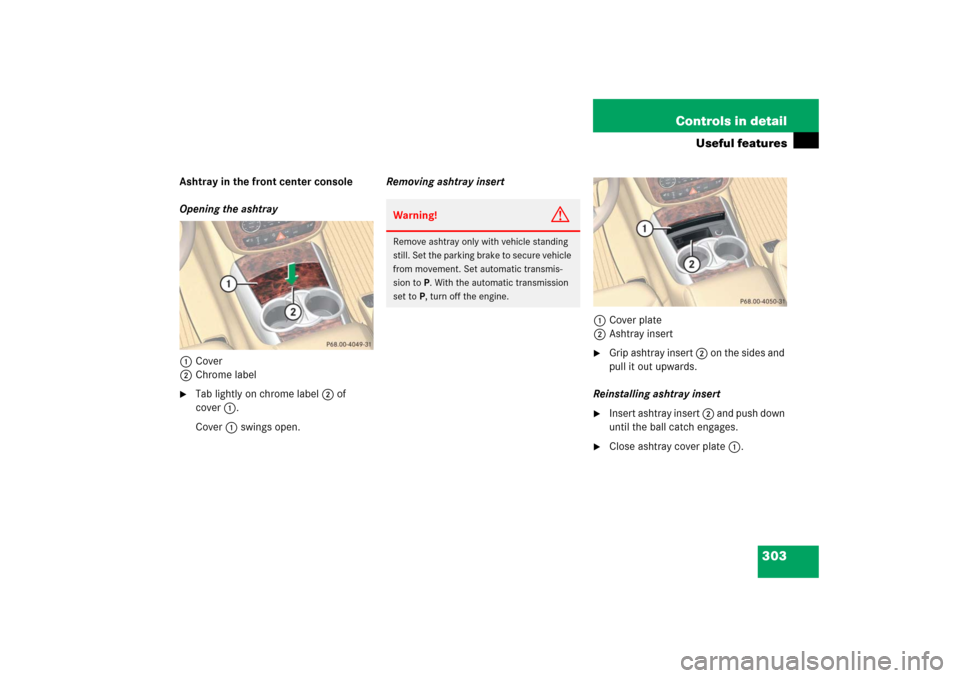

Opening the ashtray
1Cover
2Chrome label
Tab lightly on chrome label 2 of
cover1.
Cover 1 swings open.Removing ashtray insert
1Cover plate
2Ashtray insert

Grip ashtray insert 2 on the sides and
pull it out upwards.
Reinstalling ashtray insert

Insert ashtray insert 2 and push down
until the ball catch engages.

Close ashtray cover plate 1.

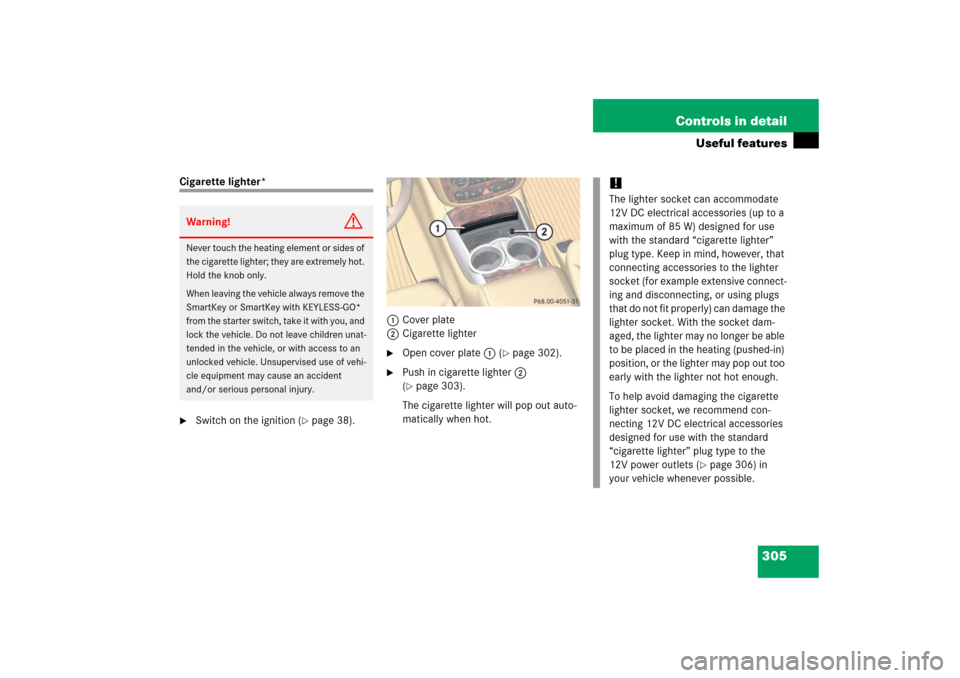

Warning!
G
Remove ashtray only with vehicle standing
still. Set the parking brake to secure vehicle
from movement. Set automatic transmis-
sion toP. With the automatic transmission
set toP, turn off the engine.

304 Controls in detailUseful featuresRear seat ashtray (second row)

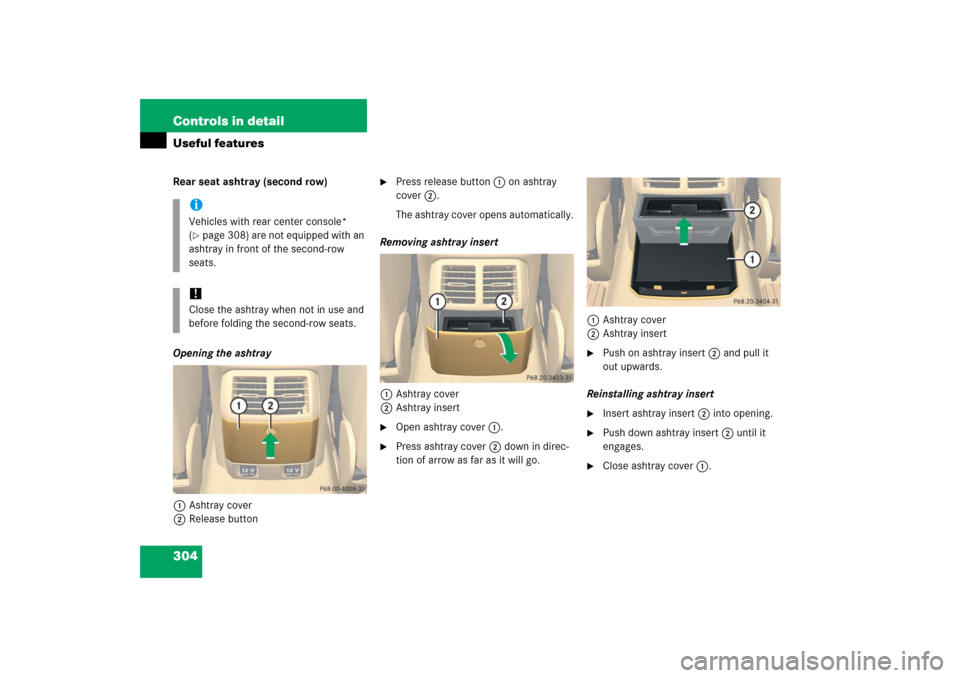

Opening the ashtray
1Ashtray cover
2Release button

Press release button 1 on ashtray
cover 2.
The ashtray cover opens automatically.
Removing ashtray insert
1Ashtray cover
2Ashtray insert

Open ashtray cover 1.

Press ashtray cover 2 down in direc-
tion of arrow as far as it will go.1Ashtray cover
2Ashtray insert

Push on ashtray insert 2 and pull it
out upwards.
Reinstalling ashtray insert

Insert ashtray insert 2 into opening.

Push down ashtray insert 2 until it
engages.

Close ashtray cover 1.
iVehicles with rear center console*
(page 308) are not equipped with an
ashtray in front of the second-row
seats.
!Close the ashtray when not in use and
before folding the second-row seats.

305 Controls in detail
Useful features
Cigarette lighter*
Switch on the ignition (
page 38).1Cover plate
2Cigarette lighter

Open cover plate1 (
page 302).

Push in cigarette lighter2
(page 303).
The cigarette lighter will pop out auto-
matically when hot.
Warning!
G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
When leaving the vehicle always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
!The lighter socket can accommodate
12V DC electrical accessories (up to a
maximum of 85 W) designed for use
with the standard “cigarette lighter”
plug type. Keep in mind, however, that
connecting accessories to the lighter
socket (for example extensive connect-
ing and disconnecting, or using plugs
that do not fit properly) can damage the
lighter socket. With the socket dam-
aged, the lighter may no longer be able
to be placed in the heating (pushed-in)
position, or the lighter may pop out too
early with the lighter not hot enough.
To help avoid damaging the cigarette
lighter socket, we recommend con-
necting 12V DC electrical accessories
designed for use with the standard
“cigarette lighter” plug type to the
12V power outlets (
page 306) in
your vehicle whenever possible.

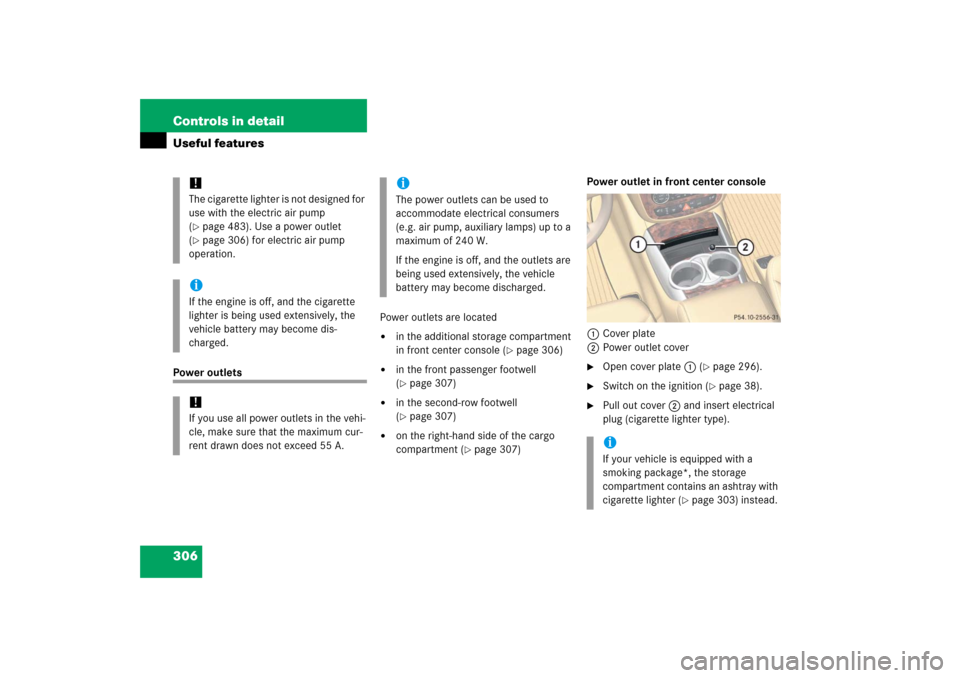

306 Controls in detailUseful featuresPower outletsPower outlets are located


in the additional storage compartment
in front center console (
page 306)


in the front passenger footwell
(page 307)


in the second-row footwell
(page 307)


on the right-hand side of the cargo
compartment (
page 307)Power outlet in front center console
1Cover plate
2Power outlet cover

Open cover plate1 (
page 296).

Switch on the ignition (
page 38).

Pull out cover 2 and insert electrical
plug (cigarette lighter type).
!The cigarette lighter is not designed for
use with the electric air pump
(page 483). Use a power outlet
(page 306) for electric air pump
operation.
iIf the engine is off, and the cigarette
lighter is being used extensively, the
vehicle battery may become dis-
charged.!If you use all power outlets in the vehi-
cle, make sure that the maximum cur-
rent drawn does not exceed 55 A.
iThe power outlets can be used to
accommodate electrical consumers
(e.g. air pump, auxiliary lamps) up to a
maximum of 240 W.
If the engine is off, and the outlets are
being used extensively, the vehicle
battery may become discharged.
iIf your vehicle is equipped with a
smoking package*, the storage
compartment contains an ashtray with
cigarette lighter (
page 303) instead.

307 Controls in detail
Useful features

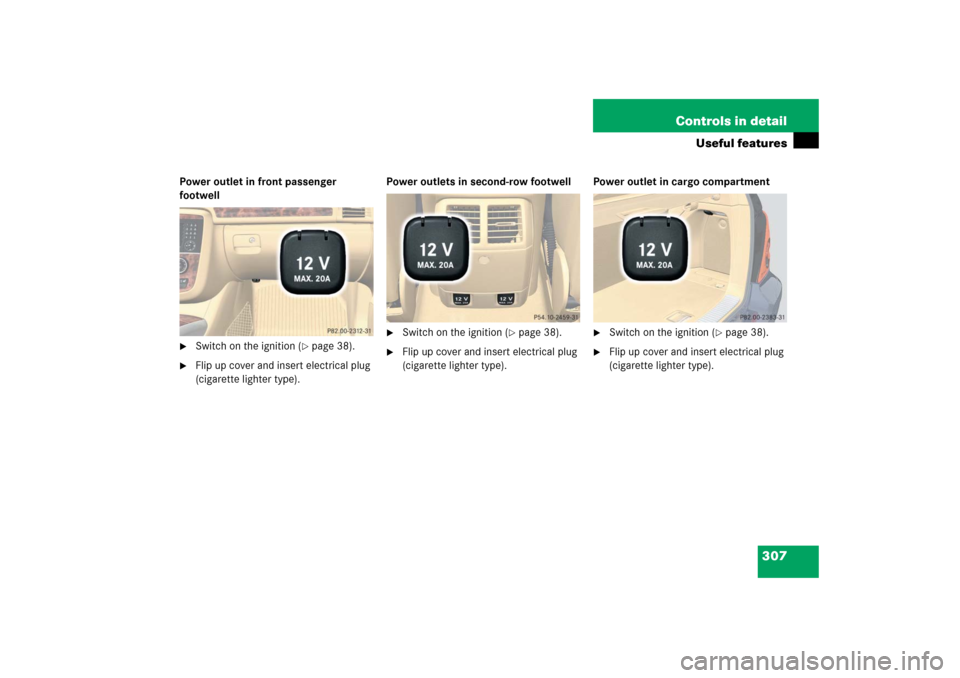

Power outlet in front passenger
footwell
Switch on the ignition (
page 38).

Flip up cover and insert electrical plug
(cigarette lighter type).Power outlets in second-row footwell

Switch on the ignition (
page 38).

Flip up cover and insert electrical plug
(cigarette lighter type).Power outlet in cargo compartment

Switch on the ignition (
page 38).

Flip up cover and insert electrical plug
(cigarette lighter type).

308 Controls in detailUseful featuresRear center console*
The rear center console is located between
the second-row seats.
The rear center console contains:

Storage compartment (
page 297)


Cupholder (
page 302)


DVD-player* (see separate COMAND
operating instructions)Removing
1Rear center console
2Release handle
3Rear center console base
4Folding back
5Handle
6Anchorage pointsiWhen fully expanding the cargo com-
partment, the rear center console has
to be removed from the vehicle in order
for the cargo compartment floor to be
an even plane (
page 284).
Warning!
G
Remove all containers that may be stored in
the cupholders of the rear center console.
Otherwise liquids could spill on vehicle
occupants and/or vehicle equipment. Hot
liquids spilled on vehicle occupants may
cause serious personal injury. Liquids
spilled on vehicle equipment may cause
damage not covered by the Mercedes-Benz
Limited Warranty.!To prevent damage to the rear center
console and/or its components, make
sure the storage compartment
(page 297) and the DVD-console lid*
(see separate COMAND operating
instructions) are closed before remov-
ing the rear center console.
iRemove all items from the storage
compartment (
page 297) of the rear
center console to reduce the weight of
the rear center console.

309 Controls in detail
Useful features

Pull release handle 2.
The front part of center console 1 is
released from base 3.

Lift center console 1 in direction of
arrow 4 and hold it there.

While holding center console 1 up,
grip handle 5.

Lift center console 1 at rear
handle5 to release the center con-
sole from anchorage points 6.

Take center console 1 out of the vehi-

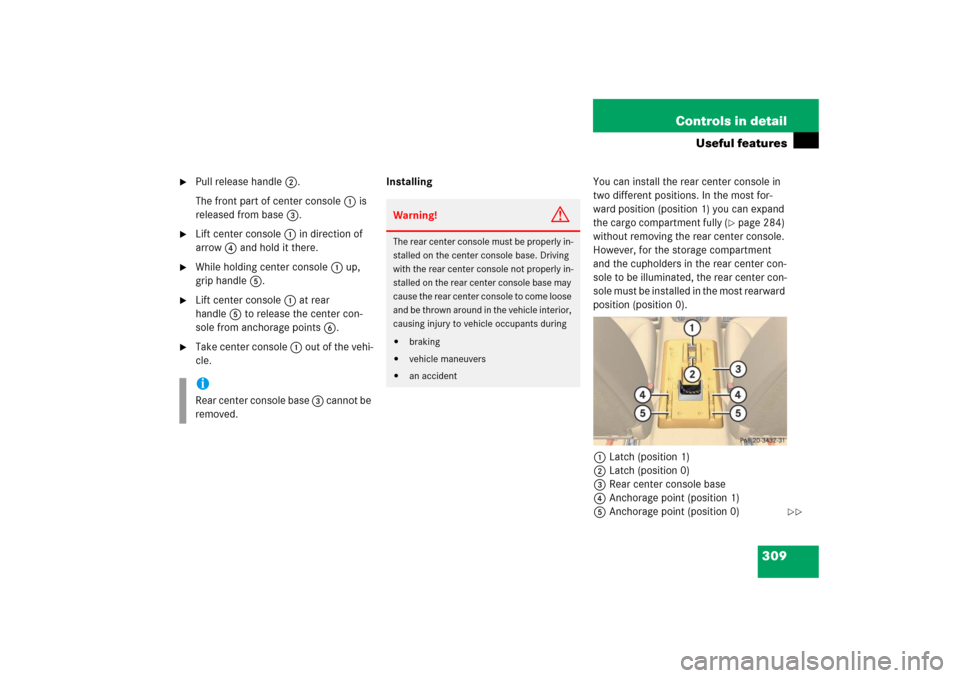

cle.InstallingYou can install the rear center console in
two different positions. In the most for-
ward position (position 1) you can expand
the cargo compartment fully (
page 284)
without removing the rear center console.
However, for the storage compartment
and the cupholders in the rear center con-
sole to be illuminated, the rear center con-
sole must be installed in the most rearward
position (position 0).
1Latch (position 1)
2Latch (position 0)
3Rear center console base
4Anchorage point (position 1)
5Anchorage point (position 0)
iRear center console base 3 cannot be
removed.
Warning!
G
The rear center console must be properly in-
stalled on the center console base. Driving
with the rear center console not properly in-
stalled on the rear center console base may
cause the rear center console to come loose
and be thrown around in the vehicle interior,
causing injury to vehicle occupants during

braking


vehicle maneuvers


an accident
