MERCEDES-BENZ R500 2006 W251 Owner's Manual

270 Controls in detailDriving systemsThe following settings are available:

AUTO (for normal driving situations)
Indicator lamps2 and3 are off.


SPORT (for sporty driving)
Indicator lamp2 comes on.


COMF (for comfort driving)
Indicator lamp3 comes on.

Start the engine (
page 53).

Press ADS switch1 repeatedly until
the desired suspension tuning is
reached.Vehicle level control*
The vehicle level control automatically
regulates the ride height to


reduce fuel consumption


improve driving safety
The vehicle begins adjusting to the set
vehicle level as soon as the doors or tail-
gate are


unlocked
or


opened or closed with the vehicle
unlocked
For major changes in vehicle level, the
engine must be running.
iThe setting is stored when you turn off
the engine.
iChanges to the vehicle level should be
made while the vehicle is moving. The
vehicle will then reach the set level as
fast as possible.
Warning!
G
Make sure that no one is near the wheel
housing or under the vehicle when you lower
the vehicle while it is standing still. Limbs
could become wedged into or under the
vehicle.
For safety reasons, the vehicle can only be
lowered with all doors and the tailgate
closed. Lowering is interrupted if a door or
the tailgate is opened and will continue after
the door is closed again.Warning!
G
Adapt your speed and driving to possible
changed driving behavior of the vehicle after
changing the vehicle level. The ESP
® cannot
prevent accidents, including those resulting
from excessive speed. The ESP
® cannot pre-
vent the natural laws of physics from acting
on the vehicle.

271 Controls in detail
Driving systems
Basic settings
There are two setting from which to
choose:

Raised level, for driving on rough roads


Highway level, for driving on paved
roads in fair or better conditionCompared to the highway level, the vehicle
level changes by


+ 1.97 in (+ 50 mm) in raised level


+/- 0 in (+ 0 mm) in highway level


- 0.78 in (- 20 mm) in highspeed level
The vehicle lowers to highspeed level auto-
matically when


the vehicles speed exceeds
70 mph (112 km/h)


the vehicles speed is between
60 mph (96 km/h) and
70 mph (112 km/h) for longer than 20
seconds
!Keep in mind that in rough or uneven
roads, adjusting the vehicle to a lower
level may cause the vehicle underbody
to come in contact with the road and
result in damage to the vehicle under-
body. Always make sure the vehicle
has sufficient ground clearance before
adjusting it to a lower level.!Before jacking up the vehicle with
equipment that lifts one or more of the
wheels completely off the ground,
remove the SmartKey from the starter
switch.!Please also note the information in the
section on towing (
page 499).
iThe activation threshold is defined by
the set suspension tuning
(page 269).
iThe high-speed level is not available
when towing a trailer.iThe third available level is the
highspeed level that is set automatical-
ly.
iObey local speed limits. Use prudent
driving speeds appropriate to prevail-
ing conditions.

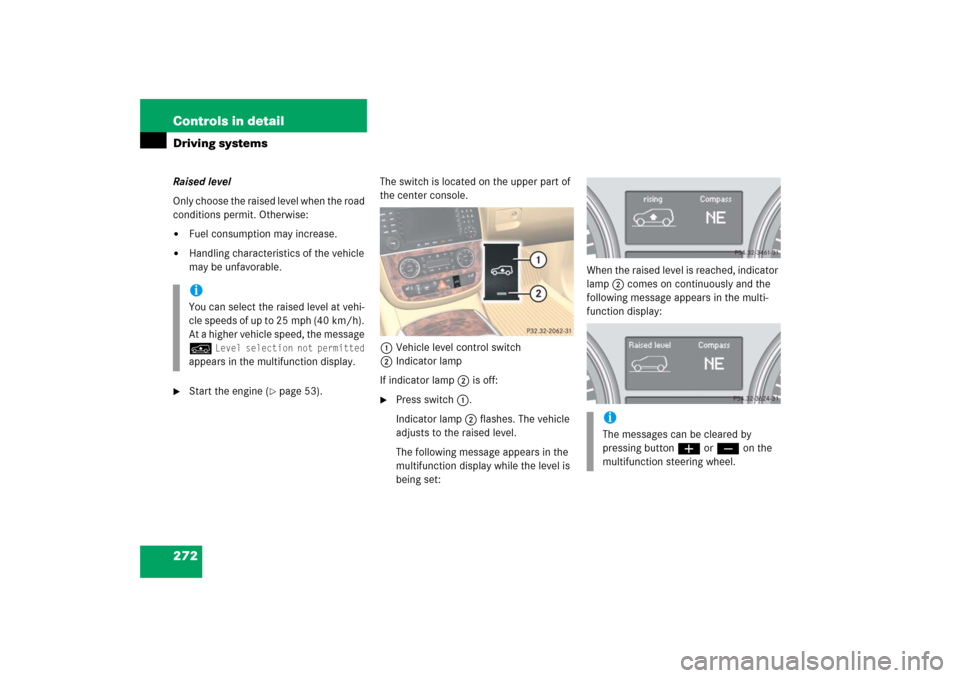

272 Controls in detailDriving systemsRaised level
Only choose the raised level when the road
conditions permit. Otherwise:

Fuel consumption may increase.


Handling characteristics of the vehicle
may be unfavorable.

Start the engine (
page 53).The switch is located on the upper part of
the center console.
1Vehicle level control switch
2Indicator lamp
If indicator lamp2 is off:

Press switch1.
Indicator lamp2 flashes. The vehicle
adjusts to the raised level.
The following message appears in the
multifunction display while the level is
being set:When the raised level is reached, indicator
lamp2 comes on continuously and the
following message appears in the multi-
function display:
iYou can select the raised level at vehi-
cle speeds of up to 25 mph (40 km/h).
At a higher vehicle speed, the message
n
Level selection not permitted

appears in the multifunction display.
iThe messages can be cleared by
pressing buttonæ orç on the
multifunction steering wheel.

273 Controls in detail
Driving systems
Highway level
Close all doors and the tailgate.

Start the engine (
page 53).

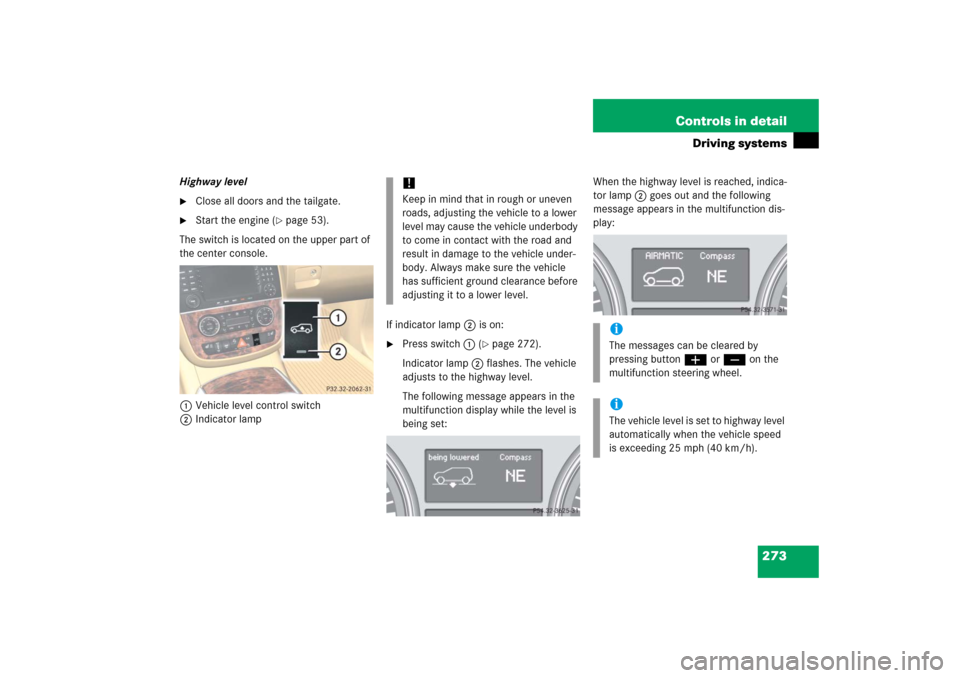

The switch is located on the upper part of
the center console.
1Vehicle level control switch
2Indicator lampIf indicator lamp2 is on:

Press switch1 (
page 272).
Indicator lamp2 flashes. The vehicle
adjusts to the highway level.
The following message appears in the
multifunction display while the level is
being set:When the highway level is reached, indica-
tor lamp2 goes out and the following
message appears in the multifunction dis-
play:
!Keep in mind that in rough or uneven
roads, adjusting the vehicle to a lower
level may cause the vehicle underbody
to come in contact with the road and
result in damage to the vehicle under-
body. Always make sure the vehicle
has sufficient ground clearance before
adjusting it to a lower level.
iThe messages can be cleared by
pressing buttonæ orç on the
multifunction steering wheel.iThe vehicle level is set to highway level
automatically when the vehicle speed
is exceeding 25 mph (40 km/h).

274 Controls in detailDriving systemsParktronic* (Parking assist)
The Parktronic system is an electronic aid
designed to assist the driver during
parking maneuvers. It visually and audibly
indicates the relative distance between the
vehicle and an obstacle.
The Parktronic system is automatically
activated when you switch on the ignition,
release the parking brake, and set the
automatic transmission to positionD,R,
orN.
The Parktronic system deactivates at
vehicle speeds exceeding approximately
11 mph (18 km/h). At lower vehicle
speeds, the Parktronic system turns on
again.The Parktronic system also deactivates
when you set the automatic transmission
to positionP or depress the parking brake
pedal.

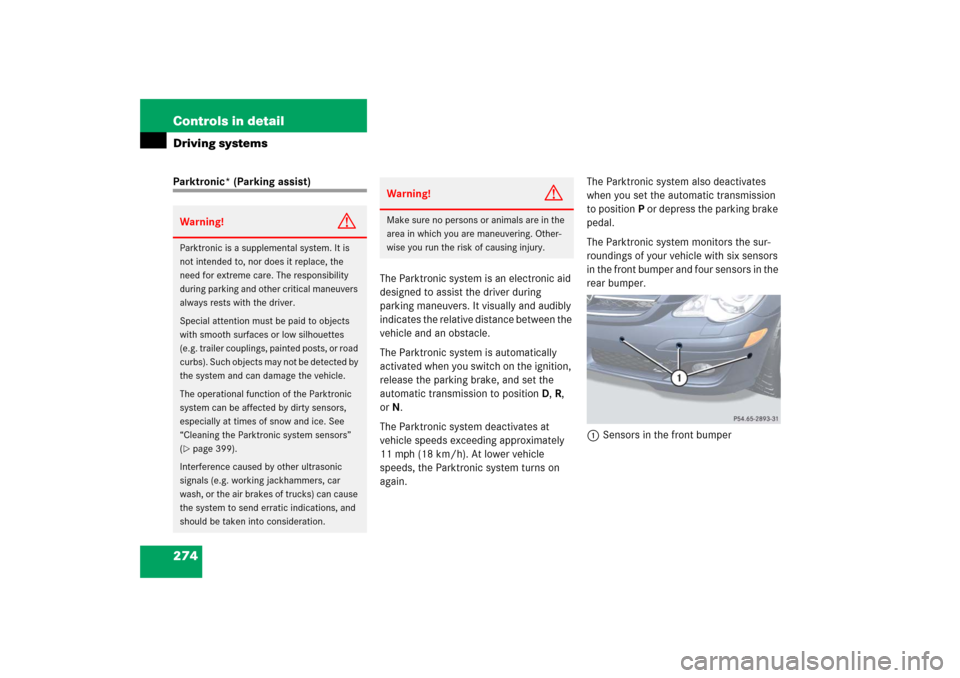

The Parktronic system monitors the sur-
roundings of your vehicle with six sensors
in the front bumper and four sensors in the
rear bumper.
1Sensors in the front bumperWarning!
G
Parktronic is a supplemental system. It is
not intended to, nor does it replace, the
need for extreme care. The responsibility
during parking and other critical maneuvers
always rests with the driver.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts, or road
curbs). Such objects may not be detected by
the system and can damage the vehicle.
The operational function of the Parktronic
system can be affected by dirty sensors,
especially at times of snow and ice. See
“Cleaning the Parktronic system sensors”
(page 399).
Interference caused by other ultrasonic
signals (e.g. working jackhammers, car
wash, or the air brakes of trucks) can cause
the system to send erratic indications, and
should be taken into consideration.
Warning!
G
Make sure no persons or animals are in the
area in which you are maneuvering. Other-
wise you run the risk of causing injury.

275 Controls in detail
Driving systems

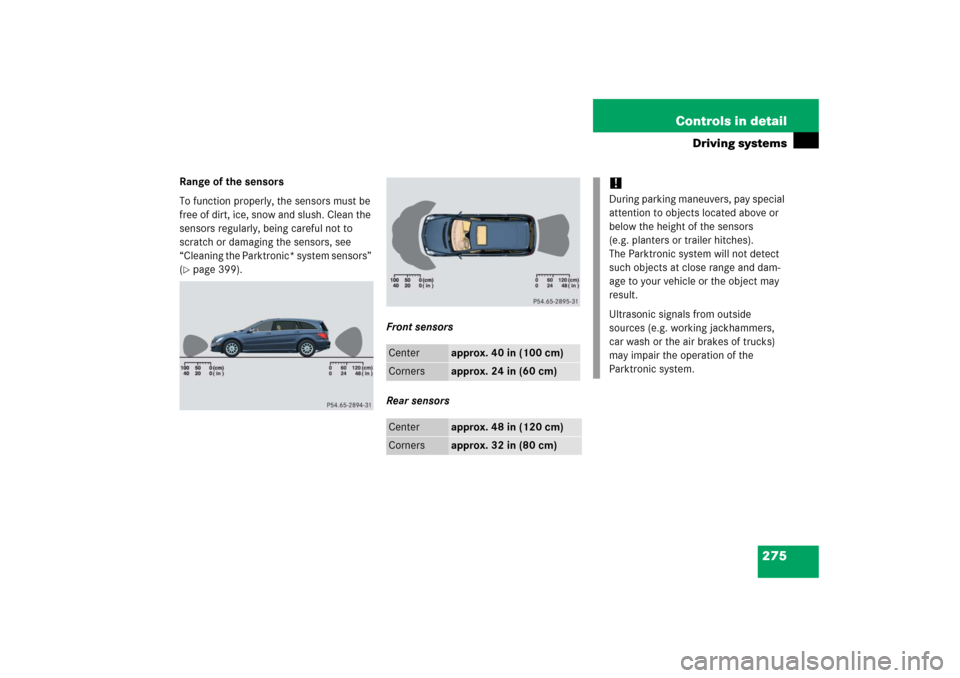

Range of the sensors
To function properly, the sensors must be
free of dirt, ice, snow and slush. Clean the
sensors regularly, being careful not to
scratch or damaging the sensors, see
“Cleaning the Parktronic* system sensors”
(page 399).
Front sensors
Rear sensors
Center
approx. 40 in (100 cm)
Corners
approx. 24 in (60 cm)
Center
approx. 48 in (120 cm)
Corners
approx. 32 in (80 cm)
!During parking maneuvers, pay special
attention to objects located above or
below the height of the sensors
(e.g. planters or trailer hitches).
The Parktronic system will not detect
such objects at close range and dam-
age to your vehicle or the object may
result.
Ultrasonic signals from outside
sources (e.g. working jackhammers,
car wash or the air brakes of trucks)
may impair the operation of the
Parktronic system.

276 Controls in detailDriving systemsMinimum distance
If the system detects an obstacle in this
range, all the distance warning segments
illuminate and you hear a warning signal. If
the obstacle is closer than the minimum
distance, the actual distance may no

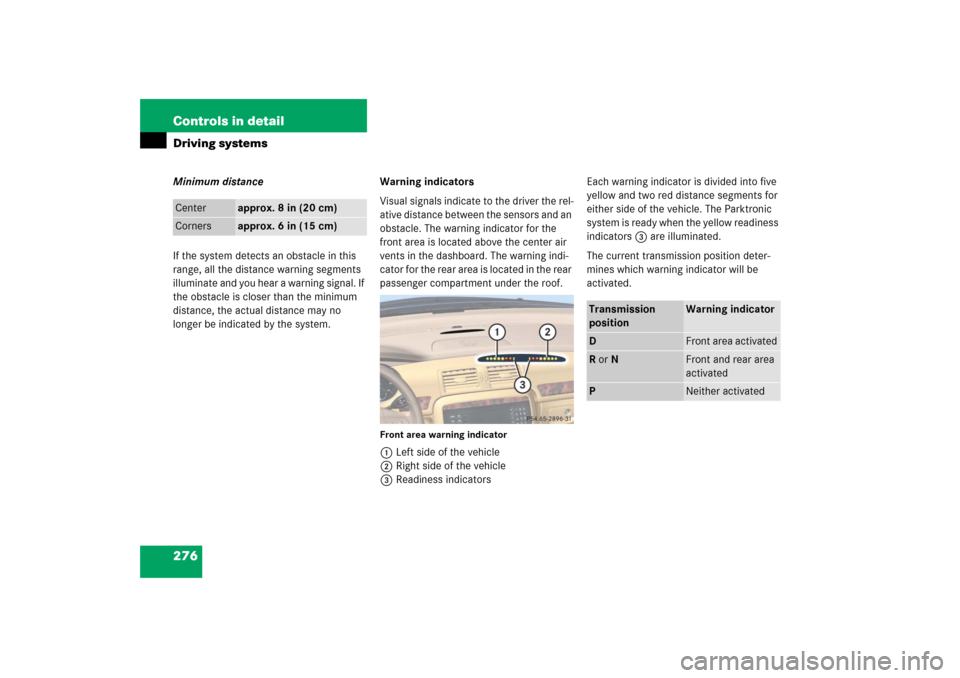

longer be indicated by the system.Warning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle. The warning indicator for the
front area is located above the center air
vents in the dashboard. The warning indi-
cator for the rear area is located in the rear
passenger compartment under the roof.
Front area warning indicator1Left side of the vehicle
2Right side of the vehicle
3Readiness indicatorsEach warning indicator is divided into five
yellow and two red distance segments for
either side of the vehicle. The Parktronic
system is ready when the yellow readiness
indicators3 are illuminated.
The current transmission position deter-
mines which warning indicator will be
activated.
Center
approx. 8 in (20 cm)
Corners
approx. 6 in (15 cm)
Transmission
position
Warning indicator
D
Front area activated
R or N
Front and rear area
activated
P
Neither activated

277 Controls in detail
Driving systems
As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the
seventh distance segment illuminates, you
have reached the minimum distance.

Front area: An intermittent acoustic
warning will sound as the first red
distance segment illuminates and a
constant acoustic warning lasting a
maximum of 2 seconds will sound for
the second red distance segment. The
signal is canceled when the automatic
transmission is set to positionP or the
parking brake is set.


Rear area: An intermittent acoustic
warning will sound as the first red
distance segment illuminates and a
constant acoustic warning lasting a
maximum of 2 seconds will sound for
the second red distance segment. The
signal is canceled when the automatic
transmission is set to positionD, P, or
the parking brake is set.Switching the Parktronic system
on/off
You can switch off the Parktronic system
manually.

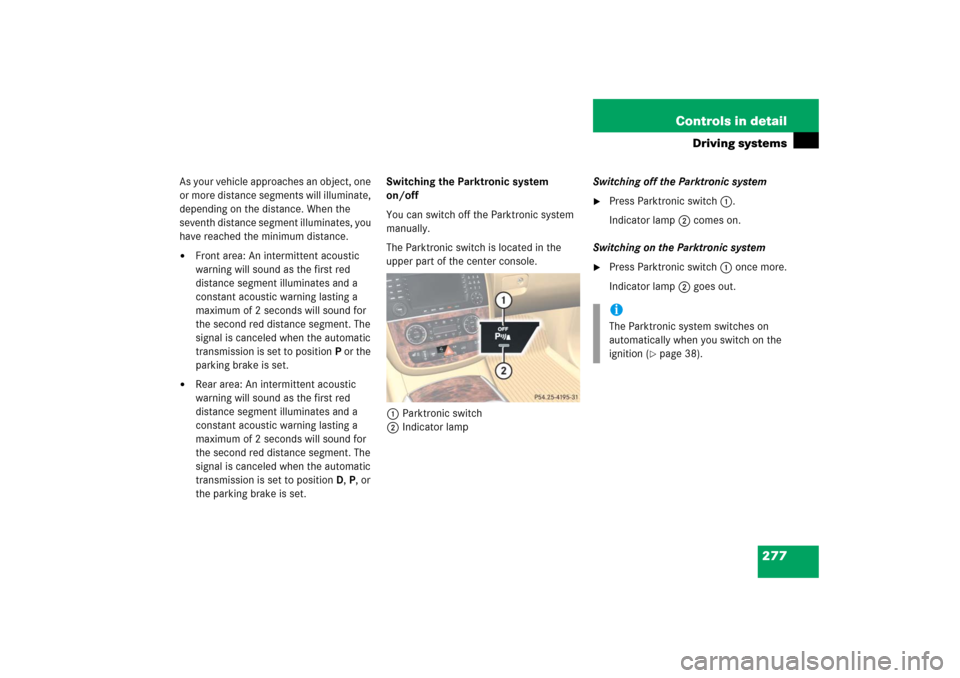

The Parktronic switch is located in the
upper part of the center console.
1Parktronic switch
2Indicator lampSwitching off the Parktronic system

Press Parktronic switch1.
Indicator lamp2 comes on.
Switching on the Parktronic system

Press Parktronic switch1 once more.
Indicator lamp2 goes out.iThe Parktronic system switches on
automatically when you switch on the
ignition (
page 38).

278 Controls in detailDriving systemsParktronic system malfunction
If only the red distance segments illumi-
nate and an acoustic warning sounds,
there is a malfunction in the Parktronic
system. The Parktronic system will auto-
matically switch off after 20 seconds and
the indicator lamp in the Parktronic switch
comes on.
Have the Parktronic system checked
by an authorized Mercedes-Benz Light
Truck Center as soon as possible.
If only the red distance segments illumi-
nate and no acoustic warning sounds, the
Parktronic system sensors are dirty (e.g.
slush, snow or ice) or there is an interfer-
ence from other radio or ultrasonic signals
(e.g. working jackhammers, car wash or
the air brakes of trucks). The Parktronic
system will automatically switch off after
20 seconds and the indicator lamp in the
Parktronic switch comes on.

Switch off the ignition (
page 38).

Clean the Parktronic system sensors
(page 399).

Switch on the ignition (
page 38).
or

Check the Parktronic system operation
at another location to rule out interfer-
ence from outside radio or ultrasonic
signals.

279 Controls in detail
Loading
Loading

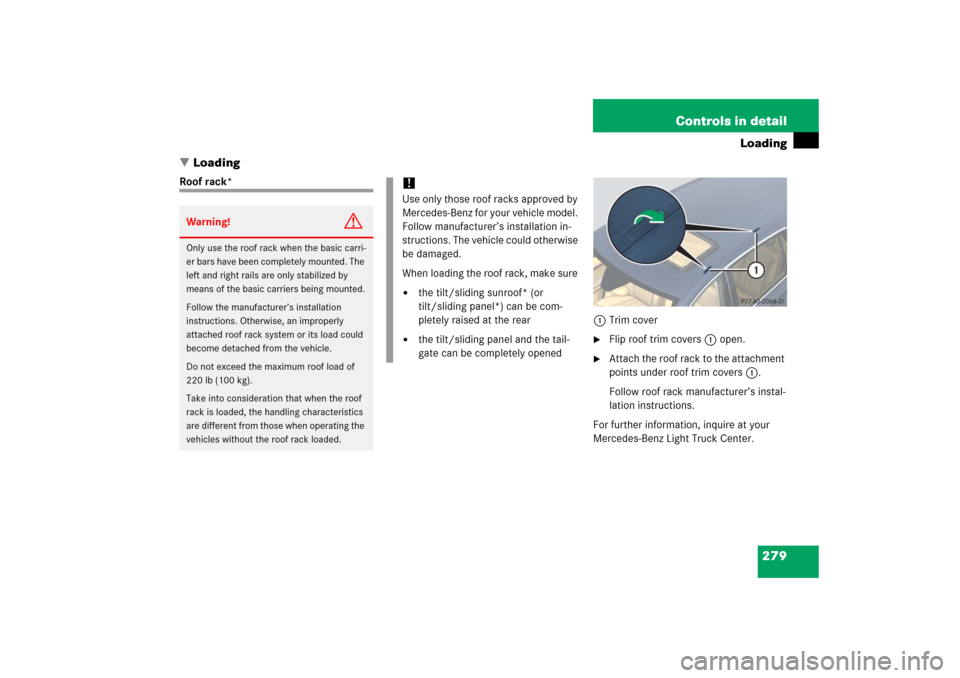

Roof rack*
1Trim cover

Flip roof trim covers 1 open.

Attach the roof rack to the attachment
points under roof trim covers 1.
Follow roof rack manufacturer’s instal-
lation instructions.
For further information, inquire at your
Mercedes-Benz Light Truck Center.
Warning!
G
Only use the roof rack when the basic carri-
er bars have been completely mounted. The
left and right rails are only stabilized by
means of the basic carriers being mounted.
Follow the manufacturer’s installation
instructions. Otherwise, an improperly
attached roof rack system or its load could
become detached from the vehicle.
Do not exceed the maximum roof load of
220 lb (100 kg).
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
!Use only those roof racks approved by
Mercedes-Benz for your vehicle model.
Follow manufacturer’s installation in-
structions. The vehicle could otherwise
be damaged.
When loading the roof rack, make sure

the tilt/sliding sunroof* (or
tilt/sliding panel*) can be com-
pletely raised at the rear


the tilt/sliding panel and the tail-
gate can be completely opened
