87 Control systems
COMAND introduction
COMAND introduction
COMAND (C
ockpit M
anagement and D
ata
System) is an information and operating
center for vehicle sound and communica-
tions systems, including the radio and nav-
igation system, as well as other optional
equipment (satellite radio, telephone*,
etc.).
Availability of functions while the vehi-
cle is in motion
For safety reasons, certain COMAND func-
tions are not available while the vehicle is
in motion or they are only available to a
limited extent. You will notice this, for ex-
ample, by the fact that certain menu items
cannot be selected or that the COMAND
display shows a corresponding message.
Switching COMAND on or off
Press the o shortcut button in the
center console (
page 88).
COMAND calls up the menu last select-
ed.
COMAND components
In your vehicle, COMAND can be used to
operate:

audio functions


the navigation system


the telephone* and communication
functions (SMS*)


external audio and video sources


video DVD


various vehicle settings
COMAND consists of the following:


COMAND shortcut buttons


COMAND display


telephone* keypad


COMAND controller
i
When you switch off COMAND, you also
switch off the currently playing audio source.
During a telephone call, you cannot switch off
COMAND.

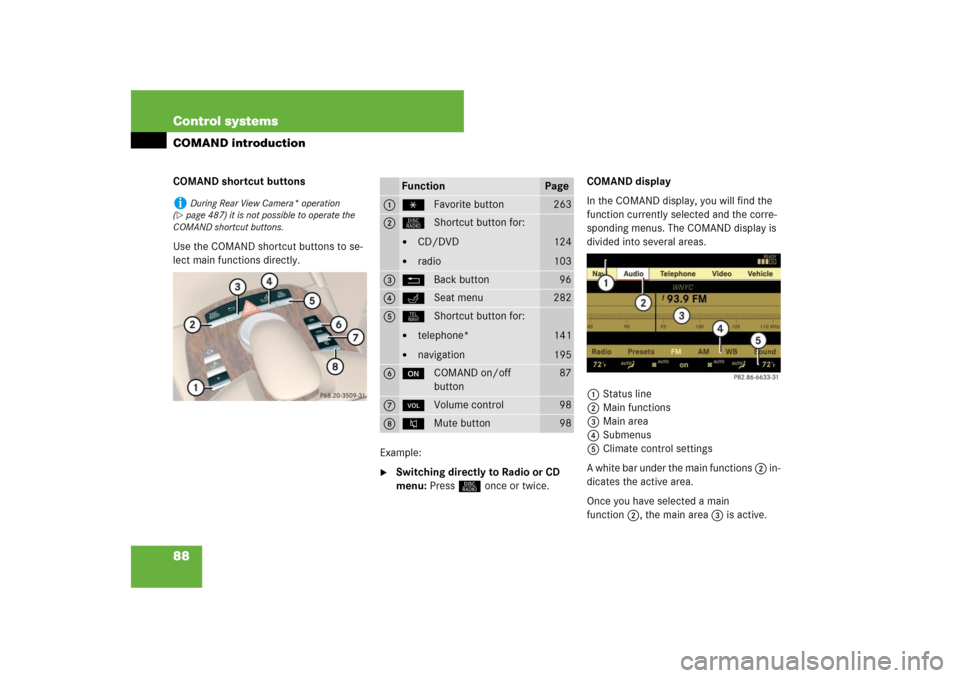

88 Control systemsCOMAND introductionCOMAND shortcut buttons
Use the COMAND shortcut buttons to se-
lect main functions directly.
Example:

Switching directly to Radio or CD
menu: Press M once or twice.COMAND display
In the COMAND display, you will find the
function currently selected and the corre-
sponding menus. The COMAND display is
divided into several areas.
1Status line
2Main functions
3Main area
4Submenus
5Climate control settings
A white bar under the main functions 2 in-
dicates the active area.
Once you have selected a main
function2, the main area 3 is active.
i
During Rear View Camera* operation
(
page 487) it is not possible to operate the
COMAND shortcut buttons.
Function
Page
1
PFavorite button
263
2
MShortcut button for:

CD/DVD


radio
124
103
3
LBack button
96
4
OSeat menu
282
5
NShortcut button for:

telephone*


navigation
141
195
6
oCOMAND on/off
button
87
7
,Volume control
98
8
FMute button
98

89 Control systems
COMAND introduction
Instrument cluster multifunction
display
This section describes features and con-
trols via the COMAND controller, display
and shortcut buttons only.
Please refer to the “Instrument cluster
control system” section of this manual
(page 287) for function descriptions and
operation of the instrument cluster multi-
function display and multifunction steering
wheel buttons as they relate to COMAND
features described in this section.Adjusting COMAND display
illumination
1Knob

Brightening illumination: Turn
knob1 clockwise.

Dimming illumination: Turn knob1
counterclockwise.Swiveling COMAND display
1Button for swiveling display to the left
2Button for swiveling display to the right
You can swivel the COMAND display to the
left or right. The buttons are on the
right-hand side of the instrument cluster.
i
The layout of the menus may vary depending
on your vehicle’s equipment. This manual shows
the menus for a fully equipped vehicle.

104 Control systemsCOMAND FM/AM radioSelecting stations using the station list
Select “Audio”
“Audio”
“FM/AM
Radio”
“FM”.

Select “Radio”
“Station List”.
The station list appears. The dot R in
front of a list entry indicates the cur-
rently selected station. A number in
front of the list entry indicates the pre-
set position in the station preset mem-
ory.

Select a station by rotating ymz or
sliding qmr and press n.Selecting stations/channels using the
search function

Slide omp or rotate ymz when the
main area is selected.
Depending on the direction in which
the controller is being slid or rotated,
the system searches upward or down-
ward and stops at the next receivable
station/channel.Selecting stations using station
presets

Select “Audio”
“Audio”
“FM/AM
Radio”
“FM” or “AM”.

Select “Presets”.
or

Press n when the main area is select-
ed.
The preset menu appears. The dot R
in front of a preset position indicates
that the currently selected station is
saved there.

Select station preset by rotating ymz
or sliding qmr and press n.
or

Enter a position number with the tele-
phone keypad using the A- 9
buttons (
page 90).
i
The station list is only available for the FM
waveband. It contains all the stations that can be
currently received and is sorted by station fre-
quencies.
i
This function is not available for Weather
Band.

105 Control systems
COMAND FM/AM radio
Selecting stations by entering the fre-
quency manually
Select “Audio”
“Audio”
“FM/AM
Radio”
“FM” or “AM”.
Entering the frequency using the
COMAND controller

Select “Radio”
“Frequency Entry”.
The menu for manual frequency entry
appears.

Exiting menu without making an en-
try: Press L back button in the cen-
ter console (
page 88).

Increasing or decreasing number:
Slide qmr or rotate ymz.

Selecting the next number:
Slidemp.

Confirming frequency entry:
Pressn.
COMAND tunes in to the frequency en-
tered.
Entering the frequency using the tele-
phone keypad

Press> on the telephone keypad
(page 90).

Enter frequency using the R- 9
buttons.
COMAND tunes in to the frequency en-
tered.Selecting channels using the channel
list

Select “Audio”
“Audio”
“FM/AM
Radio”
“WB”
“Channel”.
or

Press n when the main area is select-
ed.
The channel list appears. The dotR in
front of a list entry indicates the cur-
rently selected channel.

Select channel by rotating ymz or
slidingqmr and press n.
i
This function is not available for Weather
Band.
i
You can only select currently permitted
numbers.
i
If you enter a frequency in the AM waveband
which is outside the frequency range, COMAND
tunes in to the next lowest frequency.
i
This function is only available for Weather
Band.

112 Control systemsCOMAND satellite radioTuning in channels
You have the following selection options:

The channel search function


The channel presets


The manual channel number entry


The channel list
Tuning in channels using channel
search function

Slide omp or rotate ymz when the
main area is selected.
Depending on the direction in which
the controller is being pressed or rotat-
ed, the system searches upward or
downward and stops at the next receiv-
able channel.Tuning in channels using channel
presets

Select “Audio”
“Audio”
“Sat Ra-
dio”
“Presets”.
or

Press n when the main area is select-
ed.
The preset menu appears. The dotR
in front of a preset position indicates
that this is the channel currently select-
ed and being listened to.

Select station preset and briefly
pressn.
or

Enter a position number with the tele-
phone keypad using the A- 9
buttons (
page 90).
COMAND tunes in the corresponding
channel as long as it is included in your
subscription and is still available.
If the channel is not included in your sub-
scription, you will see the message de-
scribed in the section “Satellite radio
service is not activated” (
page 110).
i
This function is not possible when only the
preview channel is activated. If you try to tune in
a channel in this instance, you will see the
screen described in the section “Satellite radio
service is not activated” (
page 110).
i
Which channels are found by the channel
search function depends on which channels you
have subscribed to and the program category
you have selected (
page 111).

113 Control systems
COMAND satellite radio
If the channel is no longer available or only
the preview channel is activated, you will
see the message “Invalid Channel”.
Closing message: Press n.
Tuning in channels using manual chan-
nel number entry
Entering the channel number using the
COMAND controller

Select “Audio”
“Audio”
“Sat Ra-
dio”
“Sat Radio”
“Channel Entry”.
The menu for manual channel number
entry appears.

Exiting menu without making an en-
try: Press L back button in the cen-
ter console (
page 88).

Increase or decreasing number:
Slide qmr or rotate ymz.

Selecting next number: Slideomp.

Confirming channel entry: Press n.
Further operation depends on whether
the selected channel number is valid or
if the channel is included in your sub-
scription.
Entering the channel number using the
telephone keypad

Press> on the telephone keypad
(page 90).

Enter channel number using the R-
9 buttons.
Further operation depends on whether
the selected channel number is valid or
if the channel is included in your sub-
scription.Channel number is valid and channel is
included in subscription
COMAND tunes in the channel entered.
Channel number is invalid
You will see the message “Invalid Chan-
nel”.

Closing message: Press n.
Channel number is valid but channel is
not included in subscription
You will see the screen described in the
section “Satellite radio service is not acti-
vated” (
page 110).

Closing display: Press n.
i
This function is not possible when only the
preview channel is activated. If you try to tune in
a channel in this instance, you will see the
screen described in the section “Satellite radio
service is not activated” (
page 110).

120 Control systemsCOMAND audio CD/audio DVD/MP3Notes about handling CDs/DVDs

Only hold discs by the edge.


Handle discs carefully to prevent play-
back problems.


Avoid getting scratches, fingerprints
and dust on discs.


Clean discs from time to time with a
commercially-available cleaning cloth.
Do not wipe them with a circular mo-
tion, but only in straight lines from the
center outwards.


Only use a pen designed for such a pur-
pose to label discs.


Place discs back in their boxes after
use.


Protect discs from heat and direct sun-
light.
Inserting CDs and DVDs Loading the CD/DVD changer
The CD/DVD changer can hold up to a to-
tal of 6 audio CDs or DVDs.
1Disc slot
2Load button (all magazine trays)
3Magazine tray buttons 1 – 6Warning!
G
Only insert a CD or DVD when the vehicle is
stationary. There is a risk of accident by be-
ing distracted from road and traffic condi-
tions if you load a CD/DVD while the vehicle
is in motion.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.i
If the CD/DVD has a printed side, this must
face upwards when the CD/DVD is inserted. If
neither side is printed, the side to be played
should face downwards.
i
Each magazine tray button3 indicates the
status of the corresponding magazine tray by
means of an LED.


LED off = magazine tray is empty


LED constantly lit = magazine tray is loaded


LED flashes = CD/DVD changer requesting
disc to be loaded

122 Control systemsCOMAND audio CD/audio DVD/MP3Ejecting CDs and DVDs
Ejecting from the DVD changer
1Disc slot
2Magazine tray buttons 1 – 6
3Eject button (all discs)

Ejecting one disc: Press desired mag-
azine tray button 2.

Take disc out of slot 1.
If you do not take the disc out of
slot1, the DVD changer will draw it
back automatically in approximately
15 seconds.

Ejecting all discs: Press eject
button3.
The DVD changer switches to the first
loaded tray and ejects the disc.

Take disc out of slot 1.
The DVD changer switches to the next
loaded magazine tray and ejects the
disc.

Repeat last step until magazine is
empty.
Ejecting a PCMCIA card
1Eject button
2Slot for PCMCIA card
Press eject button 1 twice.
The PCMCIA card is ejected.

Take PCMCIA card out of slot 2.
Warning!
G
Only eject a disc when the vehicle is station-
ary. You may otherwise be distracted from
the traffic conditions and could cause an ac-
cident.
i
If you eject one disc while playing another
disc, the DVD changer interrupts playback. Play-
back continues once the disc has been ejected.

126 Control systemsCOMAND audio CD/audio DVD/MP3Selecting CD/DVD/MP3 media
Select “Audio”
“Audio”.

Select “CD”, “DVD-Audio” or “MP3”.
COMAND begins playback.

In audio CD, audio DVD and MP3
mode: Select “Changer”.
or

In audio CD and audio DVD mode
only: Press n when the main area is
selected.
The media list appears. The dot R in-
dicates the current medium.

Select a medium or folder.
COMAND changes the medium.
or

Enter a magazine tray number with the
telephone keypad using the A-
9 buttons (
page 90).
Selecting a track
Selecting by skipping to tracks
Skipping forwards or backwards to
a track (in CD or DVD mode only):
Rotate ymz.Selecting from the track list

Select “Audio”
“Audio”.

Select “CD”, “DVD-Audio” or “MP3”.
Selecting a track using the COMAND
controller

Select “Tracks”, “Tracks A-Z” or “Track
list”.
or

Only in MP3 mode: Press n when the
main area is selected.
The track list of the current folder ap-
pears. The dotR indicates the current
track.

Select a track by rotating ymz or slid-
ing qmr.
i
Skipping forwards through the tracks skips
to the next track. Skipping backwards through
the tracks skips to the beginning of the current
track if the track has been playing for more than
8 seconds. If the track has been playing for less
than 8 seconds, it skips to the start of the previ-
ous track.
If you have switched on the “Random Tracks”
playback option, the order of the tracks is ran-
dom.
i
In MP3 mode, the list shows all the tracks in
alphabetical order.
