reset MERCEDES-BENZ S-Class 2008 W221 Comand Manual
[x] Cancel search | Manufacturer: MERCEDES-BENZ, Model Year: 2008, Model line: S-Class, Model: MERCEDES-BENZ S-Class 2008 W221Pages: 801, PDF Size: 10.23 MB
Page 7 of 801
Contents
Off-road and off-map .................... 241
Navigation announcements .......... 243
COMAND navigation system
(during route guidance)...................... 244
Cancel route guidance ................. 244
Continuing cancelled
route guidance ............................. 244
Route browser .............................. 244
Displaying info .............................. 245
Displaying route information ........ 246
Detour function ............................ 246
COMAND navigation system
(real-time traffic) ................................ 248
Real-time traffic notifications
in the map .................................... 248
Displaying real-time
traffic reports ............................... 249
Example message ........................ 250
COMAND navigation system
(destination memory) ......................... 251
Saving a destination in
the destination memory ............... 251
Deleting a destination
from the destination memory ....... 253
Own address ................................ 254COMAND navigation system
(last destinations) .............................. 258
Saving a destination permanently
in the destination memory ........... 258
Saving the vehicle position in
the list of last destinations ........... 258
Saving the crosshair position in
the list of last destinations ........... 258
Deleting one of
the last destinations..................... 258
COMAND system settings ................. 259
System settings menu overview ... 259
Display settings............................ 259
Time settings................................ 259
Voice Control settings .................. 261
Setting the system language ........ 262
Assigning the favorite button ....... 263
Reset............................................ 263
COMAND vehicle menu ..................... 264
Setting night security illumination 264
Locator lighting on/off ................. 265
Exterior mirror
convenience settings ................... 266
Automatic locking on/off ............. 267
Activating easy-entry/exit feature 268
Setting interior ambient lighting... 269Setting interior lighting
delayed switch-off ........................ 270
Extending or retracting rear
window sunshade ........................ 271
Trunk opening-height
restriction* on/off ....................... 272
COMAND automatic climate control . 273
Setting temperature ..................... 274
Adjusting air distribution .............. 275
Adjusting air volume .................... 275
Central climate control menu via
COMAND ..................................... 276
Operating rear climate control*
from the front .............................. 279
COMAND seats ................................. 282
Operating seats via COMAND ...... 282
Lumbar support ........................... 283
Multicontour seats*, front ........... 283
Drive-dynamic multicontour
seats*, front................................. 285
Instrument cluster control system..... 287
Multifunction display.................... 287
Multifunction steering wheel........ 288
Menus .......................................... 289
Trip menu ..................................... 291
Navi menu .................................... 292
Page 11 of 801
Contents
Driving abroad .............................. 567
Control and operation of
radio transmitters......................... 567
Catalytic converter ....................... 568
Emission control........................... 568
Coolant temperature .................... 569
At the gas station............................... 570
Refueling ...................................... 570
Check regularly and
before a long trip .......................... 572
Engine compartment.......................... 573
Hood ............................................ 573
Engine oil...................................... 575
Transmission fluid level ................ 578
Active Body Control* (ABC*)
fluid level ...................................... 579
Coolant level ................................ 579
Windshield washer system and
headlamp cleaning system ........... 580
Tires and wheels ................................ 582
Important guidelines .................... 582
Tire care and maintenance ........... 583
Direction of rotation ..................... 585
Loading the vehicle ...................... 585
Recommended tire
inflation pressure ......................... 590Checking tire inflation pressure ... 592
Tire labeling.................................. 598
Load identification ....................... 601
DOT, Tire Identification Number (TIN) ..
602
Maximum tire load ....................... 603
Maximum tire inflation pressure .. 603
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 604
Tire ply material ........................... 606
Tire and loading terminology ........ 606
Rotating tires ............................... 609
Winter driving .................................... 610
Winter tires .................................. 610
Snow chains ................................. 611
Maintenance ...................................... 612
Maintenance service
indicator message ........................ 612
Calling up the maintenance
service indicator display............... 613
Resetting the maintenance
service indicator........................... 614
Vehicle care ....................................... 615
Cleaning and care of vehicle ........ 615
Practical hints................................. 627
What to do if …? ................................ 628
Lamps in instrument cluster ........ 628
Air bag off indicator lamp............. 640
Vehicle status messages in the
multifunction display.................... 642
Where will I find ...? ........................... 705
First aid kit ................................... 705
Vehicle jack, vehicle tool kit,
luggage bowl, Minispare wheel .... 705
Unlocking/locking in an emergency .. 708
Unlocking the vehicle................... 708
Locking the vehicle ...................... 709
Resetting activated head restraints ... 710
Head restraints (standard) ........... 710
Luxury head restraints* ............... 711
Replacing SmartKey batteries ........... 712
Replacing bulbs ................................. 714
Bulbs ............................................ 715
Replacing bulbs for front lamps ... 717
Replacing wiper blades ...................... 721
Placing wiper arms in
vertical position ........................... 721
Removing wiper blades ................ 722
Installing wiper blades ................. 722
Page 45 of 801
44 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag
i
Air bags are designed to deploy only in cer-
tain frontal impacts (front air bags), and in side
impacts (side impact and window curtain air
bags) which exceed preset thresholds, and in
certain rollovers (window curtain air bags). Only
during these events will they provide their sup-
plemental protection.
The driver and passengers should always wear
their seat belts. Otherwise it is not possible for
air bags to provide their supplemental protec-
tion.
In case of other types of impacts and impacts be-
low air bag deployment thresholds, air bags will
not deploy. The driver and passenger will then be
protected to the extent possible by a properly
fastened seat belt. A properly fastened seat belt
is also needed to provide the best possible pro-
tection in a rollover.
We caution you not to rely on the presence of the
air bags in order to avoid wearing your seat belt.
It is important to your safety and that of your pas-
sengers that you replace deployed air bags and
repair any malfunctioning air bags to make sure
the vehicle will continue to provide supplemental
crash protection for occupants.
Warning!
G
Damaged seat belts or seat belt that
were highly stressed in an accident
must be replaced and their anchoring
points must also be checked. Only use
seat belts installed or supplied by an au-
thorized Mercedes-Benz Center.
Air bags and pyrotechnic emergency
tensioning devices (ETDs) are designed
to function on a one-time-only basis. An
air bag or ETD that is deployed must be
replaced. PRE-SAFE
® has electrically
operated reversible pre-tensioners in
addition to the pyrotechnic ETDs.
Air bags and Emergency Tensioning De-
vices (ETDs) contain Perchlorate materi-
al, which may require special handling
and regard for the environment. Check
with your local government’s disposal
guidelines. California residents, see
http://www.dtsc.ca.gov/HazardousWa
ste/Perchlorate/index.cfm.
Do not pass seat belt over sharp edges.
They could tear.
Do not make any modification that could
change the effectiveness of the seat
belts.
Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.
Page 47 of 801
46 Safety and SecurityOccupant safetyFront air bags
1Driver air bag
2Front passenger front air bag
Driver and front passenger front air bags
are deployed:
in the event of certain frontal impacts
if impact exceeds a preset deployment
threshold
independently of the side impact air
bagsThe air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protec-
ted by the fastened seat belts.The passenger front air bag will only be
deployed if:
the system, based on OCS weight sen-
sor readings, senses that the front
passenger seat is occupied
the 59indicator lamp in
the center console is not lit
(page 51)
the impact exceeds a preset deploy-
ment threshold
Side impact air bags
1Front side impact air bag
2Rear side impact air bag
i
The front air bags in this vehicle have been
designed to inflate in two stages. This allows the
air bag to have different rates of inflation that are
based on the rate of relevant vehicle decelera-
tion as assessed by the air bag control unit.
On the front passenger-side, the front air bag de-
ployment is additionally influenced by the pas-
senger’s weight category as identified by the
Occupant Classification System (OCS)
(
page 47).
The lighter the front passenger-side occupant,
the higher the vehicle deceleration rate required
for the second stage inflation of the air bag.
Page 48 of 801
47 Safety and Security
Occupant safety
The side impact air bags are deployed:
in side impacts exceeding a preset de-
ployment threshold
on the impacted side of the vehicle
independently of the front air bags
The front passenger side impact air bag1
will not deploy if the OCS senses that the
front passenger seat is empty and the front
passenger seat belt is not fastened (latch
plate is not inserted into the buckle). With
an empty front passenger seat and the
seat belt fastened (latch plate properly in-
serted into buckle) the front passenger
side impact air bag will deploy regardless
of the empty seat.
The side impact air bags are not deployed
in impacts which do not exceed the sys-
tem’s deployment threshold.Window curtain air bags
1Window curtain air bag
The side window curtain air bags are de-
ployed:
in side impacts exceeding a preset de-
ployment threshold
on the impacted side of the vehicle
independently of the front air bags
in certain vehicle rollovers
The side window curtain air bags are not
deployed in side impacts which do not ex-
ceed the system’s deployment threshold.The window curtain air bags fill up the area
indicated by the arrows.
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a po-
sition that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant’s weight is transferred to
another object in the vehicle (e.g. by lean-
ing on armrests), the OCS may not be able
to properly approximate the occupant’s
weight category.i
The system does not deactivate the front
passenger side impact air bag, the window cur-
tain air bag and the emergency tensioning de-
vice.
Page 50 of 801
49 Safety and Security
Occupant safety

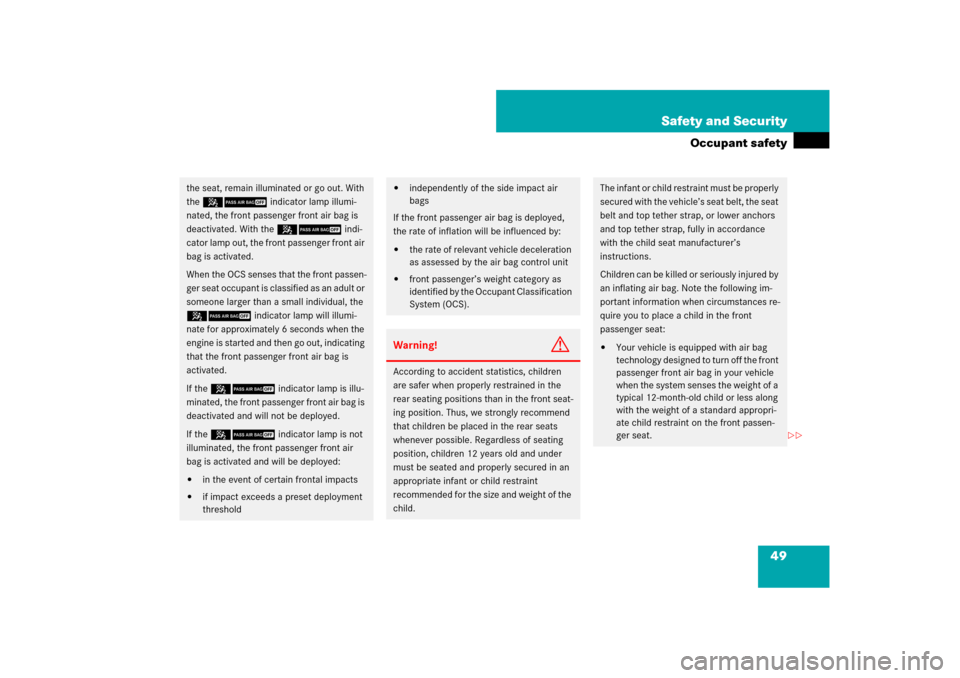

the seat, remain illuminated or go out. With
the 59indicator lamp illumi-
nated, the front passenger front air bag is
deactivated. With the 59 indi-
cator lamp out, the front passenger front air
bag is activated.
When the OCS senses that the front passen-
g e r s e a t o c c u p a n t i s c l a s s i f i e d a s a n a d u l t o r
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:
in the event of certain frontal impacts
if impact exceeds a preset deployment
threshold
independently of the side impact air
bags
If the front passenger air bag is deployed,
the rate of inflation will be influenced by:
the rate of relevant vehicle deceleration
as assessed by the air bag control unit
front passenger’s weight category as
identified by the Occupant Classification
System (OCS).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:
Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.
Page 58 of 801
57 Safety and Security
Occupant safety
If the active head restraints have been trig-
gered in an accident, the active head re-
straints must be reset. Otherwise, the
active head restraints cannot offer any ad-
ditional protection in the event of another
rear-end collision.
For information on resetting the activated
active head restraints, see “Resetting acti-
vated head restraints” (
page 710).
You cannot remove the active head re-
straint on the driver’s and front passen-
ger’s seats.
For removal contact an authorized
Mercedes-Benz Center.
For information on head restraint adjust-
ment, see “Head restraints” (
page 379).Preventive occupant safety
(PRE-SAFE
®)
Your vehicle automatically takes preven-
tive measures to better protect the occu-
pants in the following hazardous
situations.
Warning!
G
Only use seat or head restraint covers which
have been tested and approved by
Mercedes-Benz for your vehicle model.
Using other seat or head restraint covers
may interfere with or prevent the activation
of the active head restraints.
Contact an authorized Mercedes-Benz Cen-
ter for availability.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that it is as close to
the head as possible and the center of the
head restraint supports the back of the head
at eye level. This will reduce the potential for
injury to the head and neck in the event of
an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Warning!
G
The PRE-SAFE
® system is intended to re-
duce the effects of an accident on properly
seat-belted vehicle occupants. Despite
having the PRE-SAFE
® system in your vehi-
cle, the possibility of injuries occurring as a
result of an accident cannot be eliminated.
Therefore, you should always drive carefully
and adjust your driving to the prevailing
road, weather, and traffic conditions.
Page 81 of 801
80 Safety and SecurityDriving safety systemsTo maintain the proper distance to the ve-
hicle in front of you and thus prevent a
rear-end collision, you must apply the
brakes yourself.
Immediately brake the vehicle to avoid
a collision.
Under no circumstances should the
driver await the intermittent warning
sound before braking. See the follow-
ing warning note.
The intermittent warning sound ceases
and the distance warning lampl
goes out when the necessary distance
to the vehicle ahead is again
established.PRE-SAFE
® Brake can react to stationary
obstacles such as standing or parked vehi-
cles at road speeds of up to approximately
40 mph (70 km/h).
Activating and deactivating: Activate
or deactivate PRE-SAFE
® Brake using
the instrument cluster control system
(
page 303).
After the function has been activated,
indicator : appears on the
left-hand side of the multifunction dis-
play.
Warning!
G
An intermittent warning sounds and the dis-
tance warning lampl in the instrument
cluster is illuminated if PRE-SAFE
® Brake
calculates that the distance to the vehicle
ahead and your vehicle’s current speed indi-
cate that PRE-SAFE
® Brake will not be capa-
ble of slowing the vehicle sufficiently to
maintain the preset following distance,
which creates a danger of a collision.
Immediately brake your vehicle to increase
the distance between your vehicle and the
vehicle driving in front of you. The warning
sound is intended as a final caution that you
have not interceded with your own braking
inputs to avoid a potentially dangerous situ-
ation. Do not wait for the operation of the
warning signal to intercede with your own
braking, as that will result in potentially dan-
gerous emergency braking which will not al-
ways result in an impact being avoided.
Tailgating increases the risk of an accident.
Warning!
G
If you do not receive visual or acoustic warn-
ing signals, PRE-SAFE
® Brake has either not
recognized the collision risk, has been deac-
tivated or is malfunctioning. Apply the
brakes yourself to avoid a collision.
Page 103 of 801

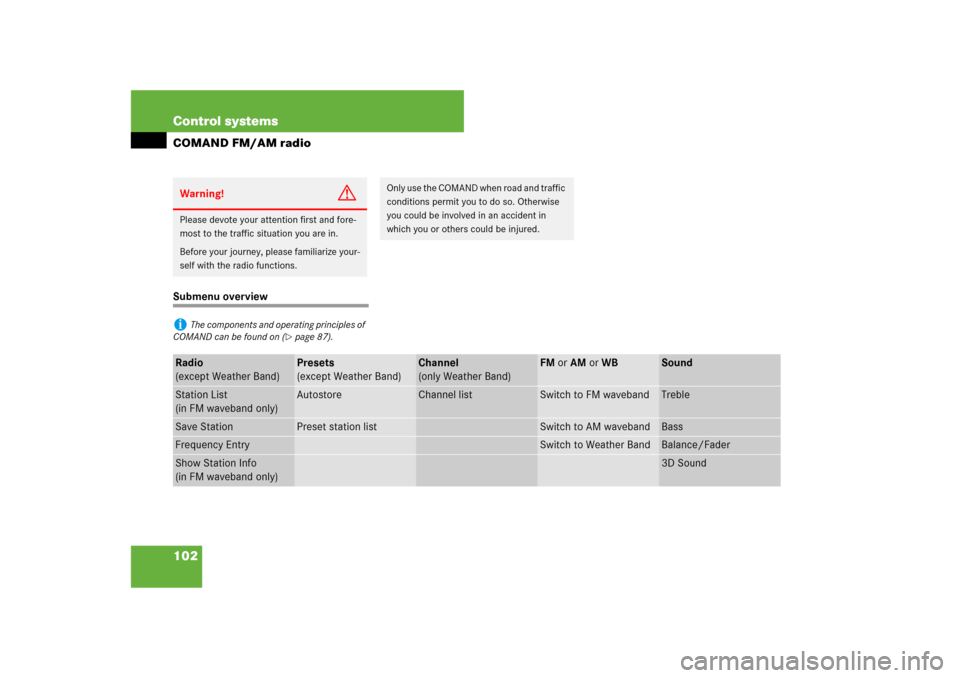

102 Control systemsCOMAND FM/AM radioSubmenu overviewWarning!
G
Please devote your attention first and fore-
most to the traffic situation you are in.
Before your journey, please familiarize your-
self with the radio functions.
Only use the COMAND when road and traffic
conditions permit you to do so. Otherwise
you could be involved in an accident in
which you or others could be injured.
i
The components and operating principles of
COMAND can be found on (
page 87).
Radio
(except Weather Band)
Presets
(except Weather Band)
Channel
(only Weather Band)
FM or AM or WB
Sound
Station List
(in FM waveband only)
Autostore
Channel list
Switch to FM waveband
Treble
Save Station
Preset station list
Switch to AM waveband
Bass
Frequency Entry
Switch to Weather Band
Balance/Fader
Show Station Info
(in FM waveband only)
3D Sound
Page 104 of 801
103 Control systems
COMAND FM/AM radio
Switching to radio mode
Select “Audio” “Audio” “FM/AM
Radio”.
or
Press the M shortcut button once or
twice.
The radio display appears once you
have switched to radio mode. You will
hear the station/channel last tuned in
in the previously selected waveband,
provided that the station/channel can
be received.
Illustration: radio mode in FM waveband1Main area with frequency display
2Preset position of selected station
3Frequency of selected station
4Name of selected station
5Sound settings
6To switch to Weather Band
7To switch to AM waveband
8Selected waveband
9Preset options
aRadio options
Switching wavebands
You can switch between the FM, AM and
WB (Weather Band) wavebands.
Select “Audio” “Audio” “FM/AM
Radio” “FM” or “AM” or “WB”.
You will hear the station last tuned in
on the selected waveband.
Selecting stations/channels
You have the following selection options:
The station list
The search function
The station presets
The manual frequency entry
The channel list
i
The number of times you have to press the
M shortcut button depends on the operating
mode currently selected.
i
Station name display 4 is available for the
FM waveband and can only be seen when it is
switched on (
page 107) and if the station
transmits a name.
