Windshield wipers
Switching the windshield wipers on/
off G
WARNING
Wiper blades are components that are subject
to wea rand tear. Replace the wipe rblades
twice a year, preferably in the spring and fall.
Otherwise the windshield will not be wiped
properly. As a result, you may not be able to
observe surrounding traffic conditions and
could cause an accident.
! Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place when
the windshield is dry.
! If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Clean the windshield using washer fluid
after washing the vehicle in an automatic
car wash. Combination switch
0005
000E Windshield wipers off
0006 0004 Intermittent wipe, low 14
0007 0005 Intermittent wipe, high 15
000B 0014 Continuous wipe, slow 000C
000F Continuous wipe, fast
0024 0005 Single wipe/ 0006To wipe the
windshield using washer fluid
X Switch on the ignition.
X Turn the combination switch to the
corresponding position.
! Intermittent wiping with rain sensor: due
to optical influences and the windshield
becoming dirty in dry weather conditions,
the windshield wipers may be activated
inadvertently. This could the ndamage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
In the 0004or0005 position, the appropriate
wiping frequency is set automatically
according to the intensity of the rain. In
the 0005 position, the rain sensor is more
sensitive than in the 0004position, causing
the windshield wipers to wipe more
frequently. Replacing the wiper blades
Important safety notes G
WARNING
For safety reasons, switch off the windshield
wipers and remove the SmartKey from the
ignition loc kbefore changing the wiper blades
(vehicles with KEYLESS-GO: make sure that
the on-board electronics are in state 0).
Otherwise, the wiper motor could be switched
on suddenly and cause injury.
! Never open the hood if a windshield wiper
arm has been folded away from the
windshield.
Never fold a windshield wiper arm without
a wiper blade back onto the windshield.
14 Rain sensor set to low sensitivity.
15 Rain sensor set to high sensitivity. Windshield wipers
289Lights and windshield wipers Z

Hold the windshield wiper arm firmly when
you change the wiper blade. If you release
the windshield wiper arm withou
tawiper
blade and it falls onto th ewindshield, the
windshield may be damaged by the force of
the impact.
Mercedes-Ben zrecommends that you have
the wiper blades replaced by aqualified
specialist workshop, e.g. at an authorized
Mercedes-Ben zCenter.
! Always position the windshield wiper
arms vertically before folding them away
from the windshield. By doing so, you will
avoid damage to the hood.
! To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper.
Changing the windshield wiper blades Moving the wiper blades to
avertical
position
Vehicles without KEYLESS-GO
X Turn the SmartKey to position 1or 2in the
ignitio nlock.
X Set the windshield wipers to
position 0014.
X When the wiper arms have reached a
vertical position, turn the SmartKey to
position 0and remove it from the ignition
lock.
Vehicles with KEYLESS-GO
X Switch off the engine.
X Remove your foot from the brake pedal.
X Set the windshield wipers to
position 0014.
X Press the Start/Stop button repeatedly
until the windshield wipers start.
X When the wiper arms have reached a
vertical position, press the Start/Stop
button. Removing the wiper blades
X
Fold the wiper arm away from the
windshield until it engages.
X Set the wiper blade at right angles to the
wiper arm. X
Remove the wiper blade from the retaining
pin on the wiper arm in the direction of the
arrow.
Installing the wiper blades
X Push the new wiper blade ontot he
retaining pin on the wiper arm in the
opposite direction to the arrow.
Make sure that the wiper blade slides fully
onto the retaining pin on the wiper arm.
X Turn the wiper blade parallel to the wiper
arm.
X Fold the wiper arm back onto the
windshield. Problems with the windshield wipers
The windshield wipers are obstructed Leaves or snow, for example, may be
obstructing the windshield wiper movement.
The wiper motor has been deactivated.
X
For safety reasons, you should remove the
SmartKey from the ignition lock.
or
X Switch off the engine using the Start/Stop
button and open the driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. 290
Windshield wipersLights and windshield wipers

The windshield wipers are inoperative
The windshield wipe
rdrive is malfunctioning.
X Select another wiper speed on the
combination switch.
X Have the windshield wipers checked at a
qualified specialist workshop.
The spray nozzles are misaligned The windshield washer fluid from the spray
nozzles no longer hits the center of the
windshield. The spray nozzles are misaligned.
X Have the spray nozzles adjusted at a
qualified specialist workshop. Windshieldw
ipers
291Lights and windshield wipers Z

292

Useful information
............................294
Overview of climate control sys-
tems ................................................... 294
Operating the climate control sys-
tems ................................................... 296
Setting the air vents .........................302 293Climate control

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Please read the information on qualified
specialist workshops (Y page 31).Overview of climate control systems
Important safety notes
G
WARNING
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before
its scheduled replacement interval. Aclogged
filter will reduce the air volume to the interior
and the windows could fog up, impairing
visibility and endangering you and others.
Have a blocked filter replaced at a Mercedes-
Ben zCenter as soon as possible. G
WARNING
Follow the recommended settings for heating
and cooling given on the following pages.
Otherwise, the windows could fog up,
impairing visibility and endangering you and
others.
Automatic climate control controls the
temperature and the humidity in the vehicle
interior and filters undesirable substances
from the air.
Automatic climate control is only operational
when the engine is running 16
.O ptimum
operation is only achieved if you drive with the
side windows and sliding sunroof/panorama
roof with power tilt/sliding panel closed. You can also set some automatic climate
contro
lfunction svia COMAND (Y page 269).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature (Y page 96).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly.
i The integrated filter can filter out most
particles of dust, and completely filters out
pollen .Aclogged filter reduces the amount
of air supplied to the vehicle interior .For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Maintenance Booklet .As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance
Booklet.
i It is possible that the blower may be
activated automatically 40 minutes after
the SmartKey is removed. The vehicle is
then ventilated for 30 minutes to dry the
air-conditioning system.
16 The residual heat function can only be activated/deactivated if the ignition is switched off. 294
Overview of climate control systemsClimate control

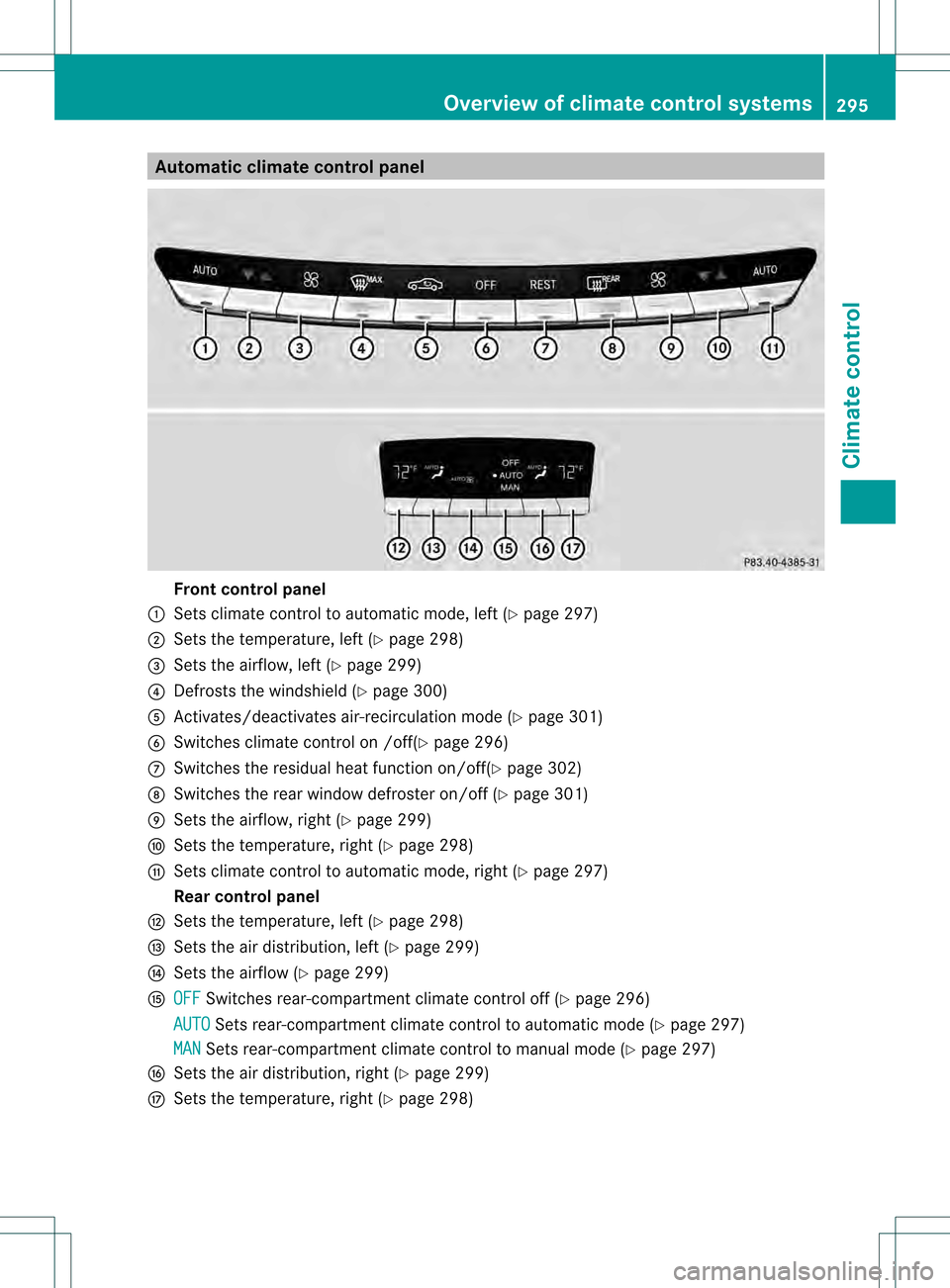

Automatic climate control panel
Front control panel
0002 Sets climate control to automatic mode, left (Y page 297)
0003 Sets the temperature, left (Y page 298)
0026 Sets the airflow, lef t(Ypage 299)
0025 Defrosts the windshield (Y page 300)
0023 Activates/deactivates air-recirculation mode (Y page 301)
0024 Switches climate control on /off(Y page 296)
0014 Switches the residual heat function on/off(Y page 302)
0015 Switches the rear window defroster on/off (Y page 301)
0016 Sets the airflow, right (Y page 299)
0017 Sets the temperature, right (Y page 298)
0018 Sets climate control to automatic mode, right (Y page 297)
Rear control panel
001C Sets the temperature, left (Y page 298)
001D Sets the air distribution, left (Y page 299)
001E Sets the airflow (Y page 299)
001F OFF Switches rear-compartment climate control off (Y
page 296)
AUTO Sets rear-compartment climate control to automatic mode (Y
page 297)
MAN Sets rear-compartment climate control to manual mode (Y
page 297)
0021 Sets the air distribution, right (Y page 299)
0022 Sets the temperature, right (Y page 298) Overview of climate control systems
295Climate control Z

Notes on using climate control
Below, you can find a numbe rofnotes and
recommendations to help you use climate
control optimally.
R Activate climate control using the 0004
rocker switch. The indicator lamp in the
0004 rocker switch lights up.
R Set the temperature to 72 ‡ (22 † ).
R Only use the "defrosting" function briefly
until the windshield is clear again.
R Only use "air-recirculation" mode briefly,
e.g. if there are unpleasant outside odors
or when in a tunnel. The windows could
otherwise fog up as in air-recirculation
mode no fresh air is drawn into the vehicle.
R Use the residual heat function if you want
to heat or ventilate the vehicle interior
when the ignition is switched off. The
"residual heat" function can only be
activated or deactivated with the ignition
switched off. Operating the climate control
systems
Activating/deactivating climate
control
Important information G
WARNING
When the climate control system is
deactivated, the outside air supply and
circulation are also deactivated. Only choose
this setting for a short time. Otherwise the
windows could fog up, impairing visibility and
endangering you and others.
i Switch on climate control primarily using
the 0004 rocker switch (Y page 297). Switching the front climate control on/
off using the front control panel X
Turn the SmartKey to position 2in the
ignition lock.
X To activate: press the0012rocker switch
up or down.
The indicator lamp in the rocker switch
goes out. The previously selected settings
come into effect again.
X To deactivate: press the0012rocker
switch up or down.
The indicator lamp in the rocker switch
lights up.
Switching the rear-compartment
climate control on/off using the front
control panel X
Turn the SmartKey to position 2in the
ignition lock.
X Activate the 0007rear compartment
function via COMAND (Y page 273).
The rear-compartment climate control can
be controlled via the front control panel
using the 0007rear compartment function.
X To activate: press the0012rocker switch
up or down.
The indicator lamp in the rocker switch
goes out. The previously selected settings
come into effect again.
X To deactivate: press the0012rocker
switch up or down.
The indicator lamp in the rocker switch
lights up. 296
Operating the climate control systemsClimate control

Switching the rear-compartment
climate control on/off using the rear
control panel X
Turn the SmartKey to position 2in the
ignition lock.
X To switch on: press rocker switch
001F(Y page 295) up or down and select
AUTO .
or
X Press rocker switch 001F(Ypage 295) up or
down and select MAN .
X To switch off: press rocker switch
001F(Y page 295) up or down and select
OFF .
Activating/deactivating cooling with
air dehumidification
Important information The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and
dehumidified according to the temperature
selected. G
WARNING
If you switch off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog up
more quickly. Window fogging may impair
visibility and endanger you and others.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a
malfunction.
You can activate or deactivate the cooling
with air dehumidification function via
COMAND (Y page 271).
i The cooling with air dehumidification
function uses refrigerant R134a. This
coolant does not contain
chlorofluorocarbons, and therefore does
not damage the ozone layer. Problems with the cooling with air
dehumidification function If you can no longer switch on the cooling with
air dehumidification function via COMAND,
the cooling with air dehumidification function
is switched off due to a malfunction.
X
Consult a qualified specialist workshop. Setting climate control to automatic
G
WARNING
If you switch off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog up
more quickly. Window fogging may impair
visibility and endanger you and others.
In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the
temperature of the dispensed air, the airflow
and the air distribution.
Automatic mode will achieve optimal
operation if cooling with air dehumidification
is also activated. If desired, cooling with air
dehumidification can be deactivated.
Controlling the front climate control
using the front control panel X
Turn the SmartKey to position 2in the
ignition lock.
X Set the desired temperature.
X To switch on: press the0004rocker
switch up or down.
The indicator lamp in the 0004rocker
switch lights up. Operating the climate control systems
297Climate control Z

X
To deactivate: press the0016rocker
switch up or down.
The indicator lamp in the 0004rocker
switch goes out.
or
X Set the ai rdistribution using COMAND
(Y page 270).
The indicator lamp in the 0004rocker
switch goes out.
Controlling the rear-compartment
climate control automatically using the
front control panel X
Turn the SmartKey to position 2in the
ignition lock.
X Activate the 0007rear compartment
function via COMAND (Y page 273).
Rear-compartment climate control can be
controlled via the front control panel using
the 0007 rear compartment function.
X Set the desired temperature.
X To switch on: press rocker switch 0004
up or down.
The indicator lamp in the 0004rocker
switch lights up.
X To deactivate: press the0016rocker
switch up or down.
The indicator lamp in the 0004rocker
switch goes out.
or
X Set the air distribution using COMAND
(Y page 270).
The indicator lamp in the 0004rocker
switch goes out.
i To return to the standard display, activate
the front climate control function via
COMAND (Y page 273).
i The rear display changes to the standard
display automatically after five seconds. Controlling the rear-compartment
climate control automatically using the
rear control panel X
Turn the SmartKey to position 2in the
ignition lock.
X Set the desired temperature.
X To activate: press rocker switch 001Fup or
down and select AUTO (Y
page 295).
X To deactivate: press rocker switch 001Fup
or down and select MAN or
OFF (Y
page 295). Setting the temperature
Climate control climate zones
You can selec
tdifferen ttemperature settings
for the driver's and front-passenger sides as
well as for the left and right sides of the rear
compartment and the footwells.
Setting the temperature in the front
compartment using the front control
panel X
Turn the SmartKey to position 2in the
ignition lock.
X To increase/reduce: press the0012
rocker switch up or down.
Only change the temperature setting in
small increments. Start at 72 ‡ (22 † ).
i You can also use COMAND to set the
temperature (Y page 270).298
Operating the climate control systemsClimate control
