MERCEDES-BENZ S-CLASS COUPE 2018 User Guide

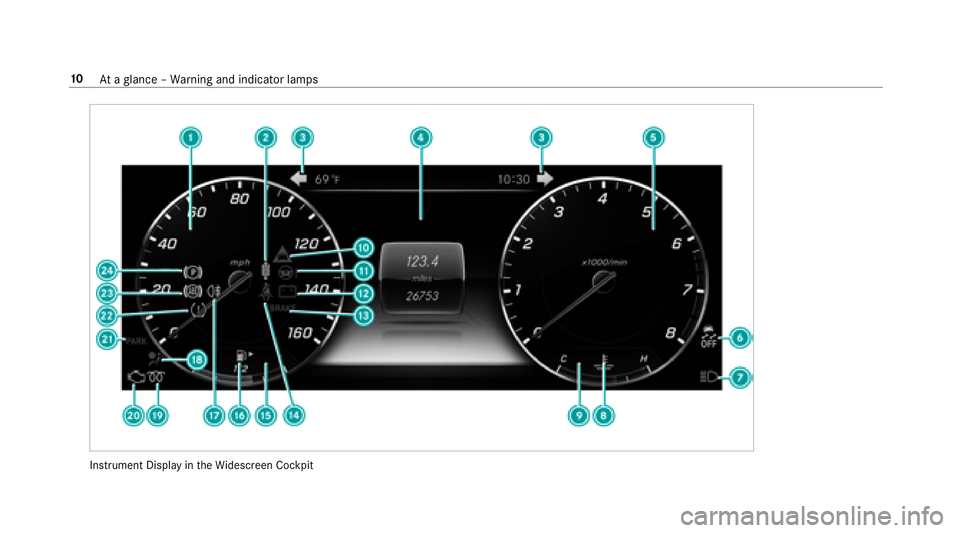

Instrument Display intheWi descreen Cockpit
10
Ataglance – Warning and indicator lamps

1Speedom eter →
204
2 AIR BODY CONTROL malfunctioning →
456
3 #! Turn signal light →
110
4 Multifunction display →
207
5 Tach ome ter →
204
6 å ESP
®OFF →
449
÷ ESP
®→
449
7 K High beam →
110
L Low beam →
109
T Parking lights →
109
8 ? Coolant too hot/cold →
458
9 Coolant temp erature gauge →
204
A · Distance warning →
456
B Ð Steering assis tance malfunction →
457
C # Electrical malfunction →
458
D Brakes (red) →
449
$ USA only
J Canada only
E ü Seat belt is not fastened →
456
F Fuel le vel display
G 8 Fuelreser vewith fuel filler flap location
indicator →
458,
458
H R Rear fog light →
110
I 6 Restra int sy stem →
34
J % Indicator lamp has no function
K ; Check Engine →
458
L Elect ric park ing brake applied (red) →
449
F USA only
! Canada only
M h Tire pressure monitoring sy stem →
462
N ! ABS malfunction →
449
O ! Electric pa rking brake (yellow) →
449
At aglance – Warning and indicator lamps 11

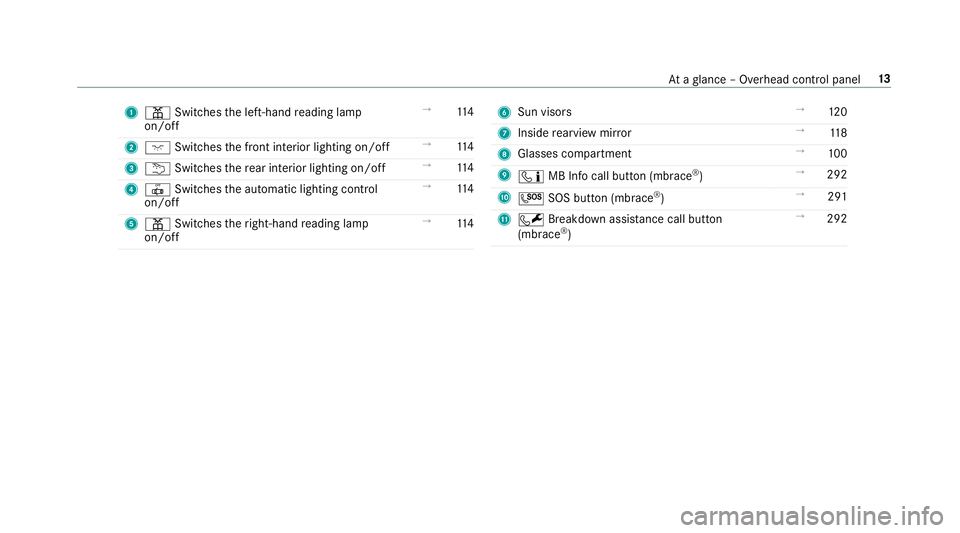

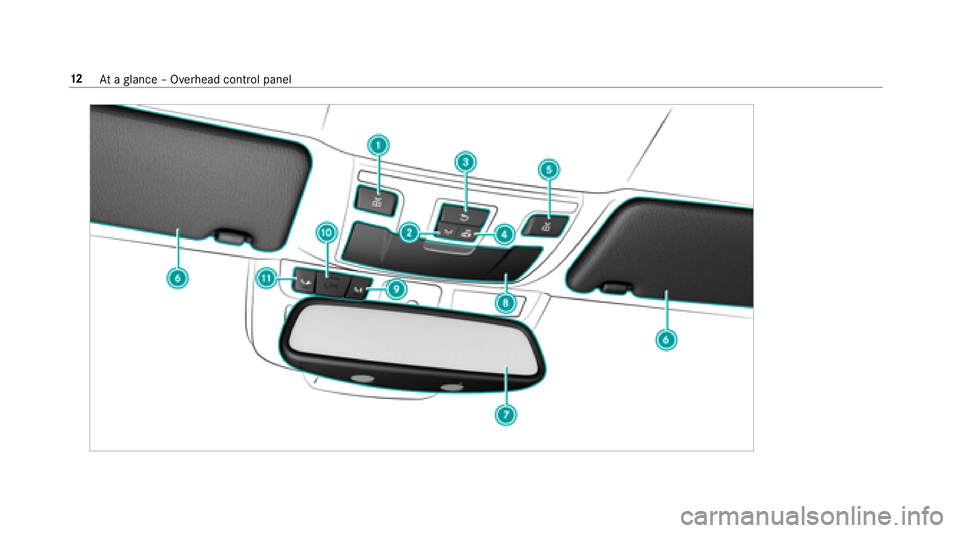

12Ataglance – Overhead control panel

1p Switches the left-hand reading lamp
on/off →
114
2 c Switches the front interior lighting on/off →
114
3 u Switches there ar interior lighting on/off →
114
4 | Switches the automatic lighting control
on/off →
114
5 p Switches theright-hand reading lamp
on/off →
1146
Sun visors →
120
7 Inside rearview mir ror →
118
8 Glasses compartment →
100
9 ï MB Info call button (mbrace
®) →
292
A G SOS button (mbrace
®) →
291
B F Breakdown assis tance call button
(mb race
®) →
292
Ataglance – Overhead control panel 13

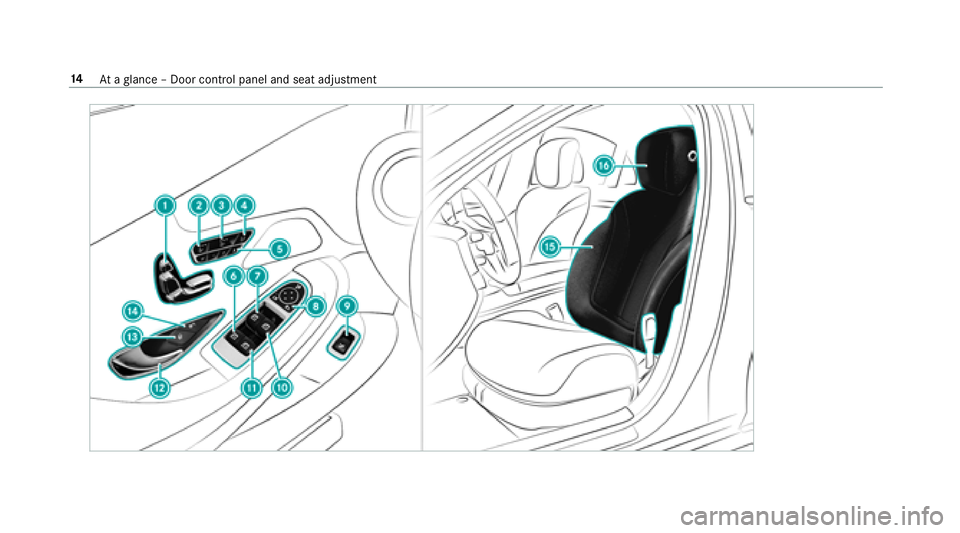

14Ataglance – Door control panel and seat adjustment

1Adjusts the seats electrically →
85
2 Switches the seat heater on/off →
90
3 Switches the seat ventilation on/off →
92
4 Adjusts the front passenger seat from the driv‐
er ’s seat →
87
5 Sets the memory function →
96
6 W Opens/closes there ar left side wind ow→
71
7 W Opens/closes the left side window →
71
8 Adjusts and folds the outside mir rors out/in
electrically →
1179
Opens/closes the trunk lid →
65
A W Opens/closes theright side window →
71
B W Opens/closes there ar right side window →
71
C Opens the door →
61
D & Lockstheve hicle →
62
E % Unlockstheve hicle →
62
F Seat adjustment using the multimedia sy stem →
89
G Adjusts the head restra ints →
87
Ataglance – Door control panel and seat adjustment 15

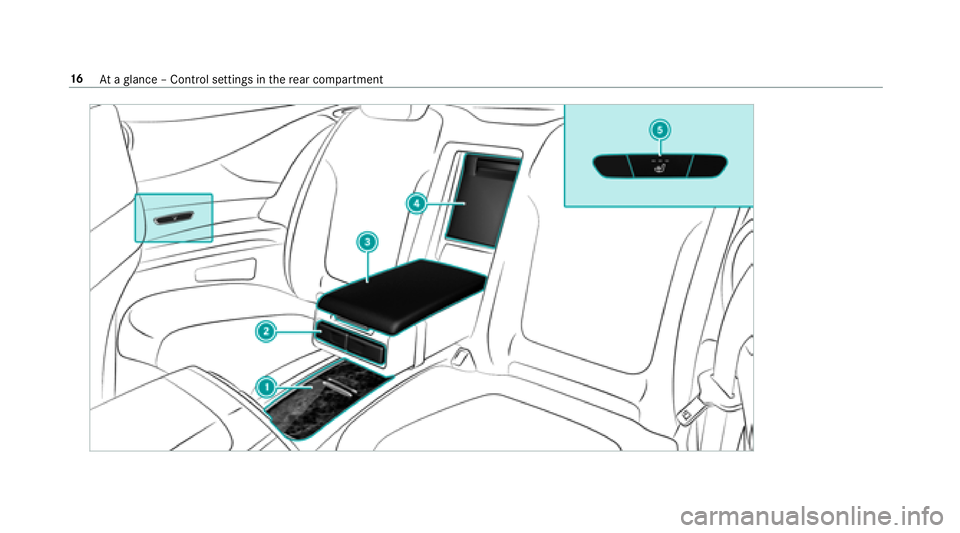

16Ataglance – Control settings in there ar compartment

1Stow age compartment in the center console →
101
Soc ket →
105
2 Cup holder →
104
3 Stow age compartment in there ar armrest →
1004
Stow age box in the seat backrest →
101
Through-loading feature →
102
5 Switches there ar seat heating on/off →
90
Ataglance – Control settings in there ar compartment 17

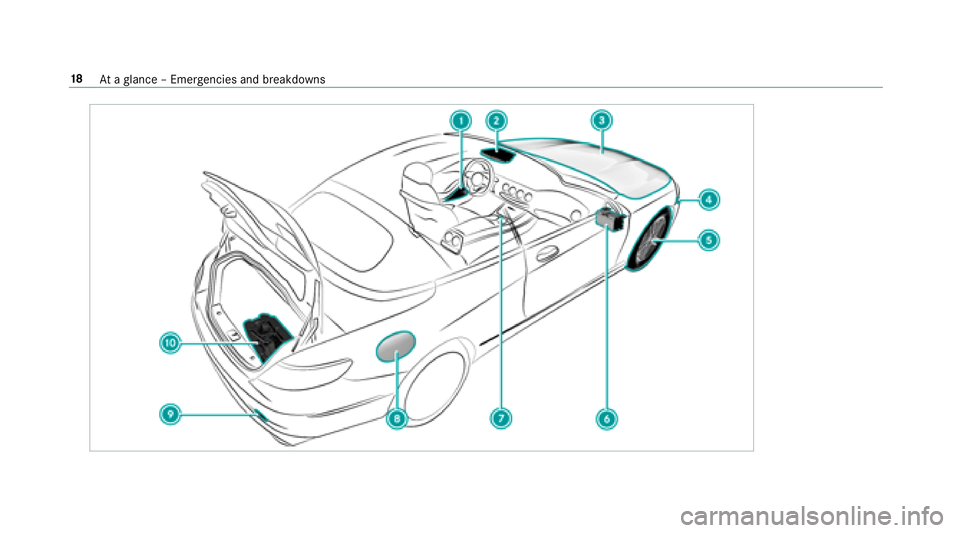

18Ataglance – Emer gencies and breakdowns
