MERCEDES-BENZ S-Class MAYBACH 2017 W222 Comand Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2017, Model line: S-Class MAYBACH, Model: MERCEDES-BENZ S-Class MAYBACH 2017 W222Pages: 230, PDF Size: 8.27 MB
Page 101 of 230

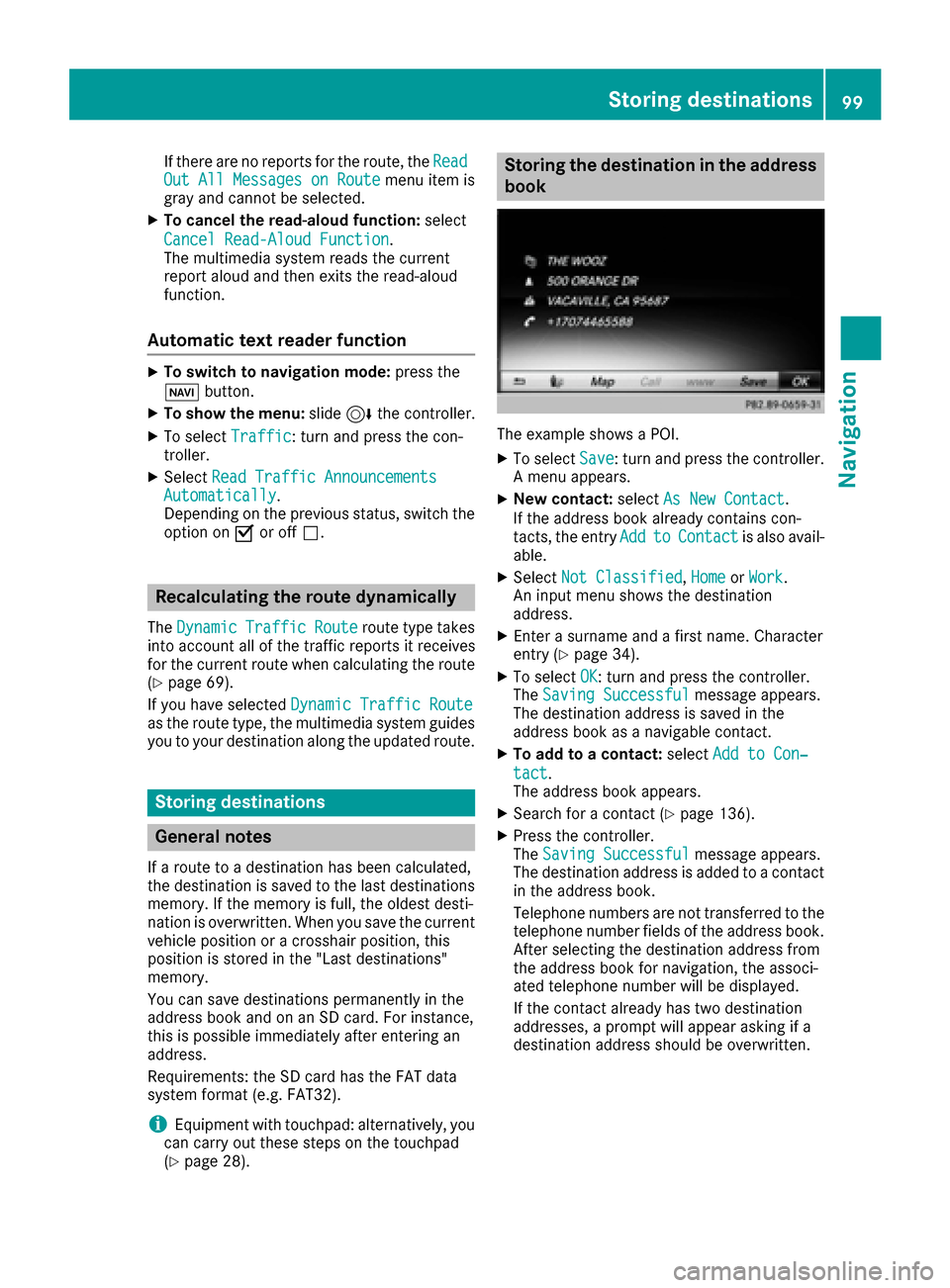

If there are no reports for the route, theReadOut All Messages on Routemenu item is
gray and cannot be selected.
XTo cancel the read-aloud function: select
Cancel Read-Aloud Function
.
The multimedia system reads the current
report aloud and then exits the read-aloud
function.
Automatic text reader function
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XSelect Read Traffic AnnouncementsAutomatically.
Depending on the previous status, switch the
option on Oor off ª.
Recalculating the route dynamically
TheDynamicTrafficRouteroute type takes
into account all of the traffic reports it receives
for the current route when calculating the route
(
Ypage 69).
If you have selected Dynamic Traffic Route
as the route type, the multimedia system guides
you to your destination along the updated route.
Storing destinations
General notes
If a route to a destination has been calculated,
the destination is saved to the last destinations
memory. If the memory is full, the oldest desti-
nation is overwritten. When you save the current
vehicle position or a crosshair position, this
position is stored in the "Last destinations"
memory.
You can save destinations permanently in the
address book and on an SD card. For instance,
this is possible immediately after entering an
address.
Requirements: the SD card has the FAT data
system format (e.g. FAT32).
iEquipment with touchpad: alternatively, you
can carry out these steps on the touchpad
(
Ypage 28).
Storing the destination in the address
book
The example shows a POI.
XTo select Save: turn and press the controller.
A menu appears.
XNew contact: selectAs New Contact.
If the address book already contains con-
tacts, the entry Add
toContactis also avail-
able.
XSelect Not Classified,Homeor Work.
An input menu shows the destination
address.
XEnter a surname and a first name. Character
entry (Ypage 34).
XTo select OK: turn and press the controller.
The Saving Successfulmessage appears.
The destination address is saved in the
address book as a navigable contact.
XTo add to a contact: selectAdd to Con‐
tact.
The address book appears.
XSearch for a contact (Ypage 136).
XPress the controller.
The Saving Successfulmessage appears.
The destination address is added to a contact in the address book.
Telephone numbers are not transferred to the
telephone number fields of the address book.
After selecting the destination address from
the address book for navigation, the associ-
ated telephone number will be displayed.
If the contact already has two destination
addresses, a prompt will appear asking if a
destination address should be overwritten.
Storing destinations99
Navigation
Z
Page 102 of 230

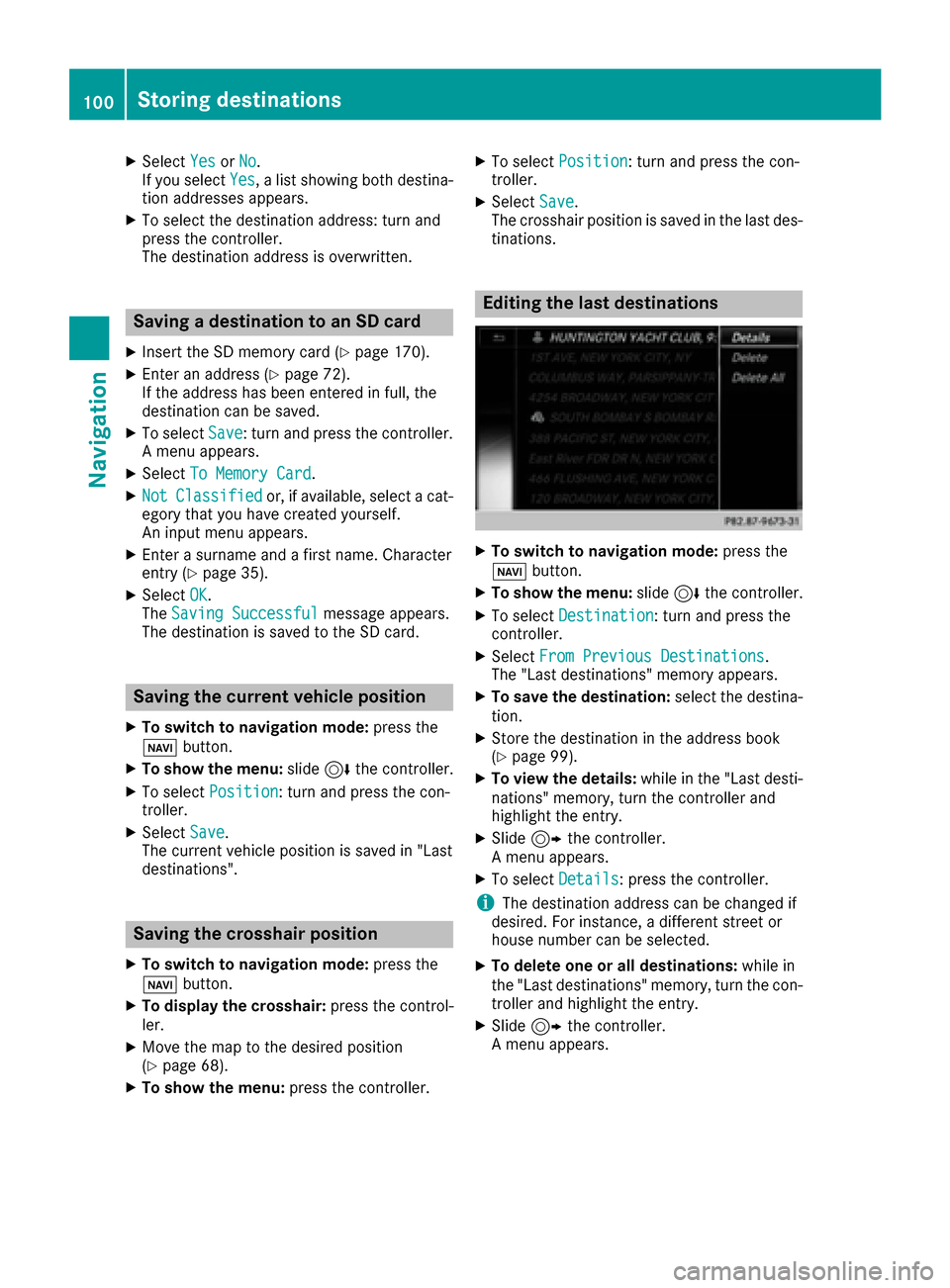

XSelectYesorNo.
If you select Yes, a list showing both destina-
tion addresses appears.
XTo select the destination address: turn and
press the controller.
The destination address is overwritten.
Saving a destination to an SD card
XInsert the SD memory card (Ypage 170).
XEnter an address (Ypage 72).
If the address has been entered in full, the
destination can be saved.
XTo select Save: turn and press the controller.
A menu appears.
XSelect To Memory Card.
XNotClassifiedor, if available, select a cat-
egory that you have created yourself.
An input menu appears.
XEnter a surname and a first name. Character
entry (Ypage 35).
XSelect OK.
The Saving Successfulmessage appears.
The destination is saved to the SD card.
Saving the current vehicle position
XTo switch to navigation mode: press the
ß button.
XTo show the menu: slide6the controller.
XTo select Position: turn and press the con-
troller.
XSelect Save.
The current vehicle position is saved in "Last
destinations".
Saving the crosshair position
XTo switch to navigation mode: press the
ß button.
XTo display the crosshair: press the control-
ler.
XMove the map to the desired position
(Ypage 68).
XTo show the menu: press the controller.
XTo selectPosition: turn and press the con-
troller.
XSelect Save.
The crosshair position is saved in the last des-
tinations.
Editing the last destinations
XTo switch to navigation mode: press the
ß button.
XTo show the menu: slide6the controller.
XTo select Destination: turn and press the
controller.
XSelect From Previous Destinations.
The "Last destinations" memory appears.
XTo save the destination: select the destina-
tion.
XStore the destination in the address book
(Ypage 99).
XTo view the details: while in the "Last desti-
nations" memory, turn the controller and
highlight the entry.
XSlide 9the controller.
A menu appears.
XTo select Details: press the controller.
iThe destination address can be changed if
desired. For instance, a different street or
house number can be selected.
XTo delete one or all destinations: while in
the "Last destinations" memory, turn the con-
troller and highlight the entry.
XSlide 9the controller.
A menu appears.
100Storing destinations
Navigation
Page 103 of 230

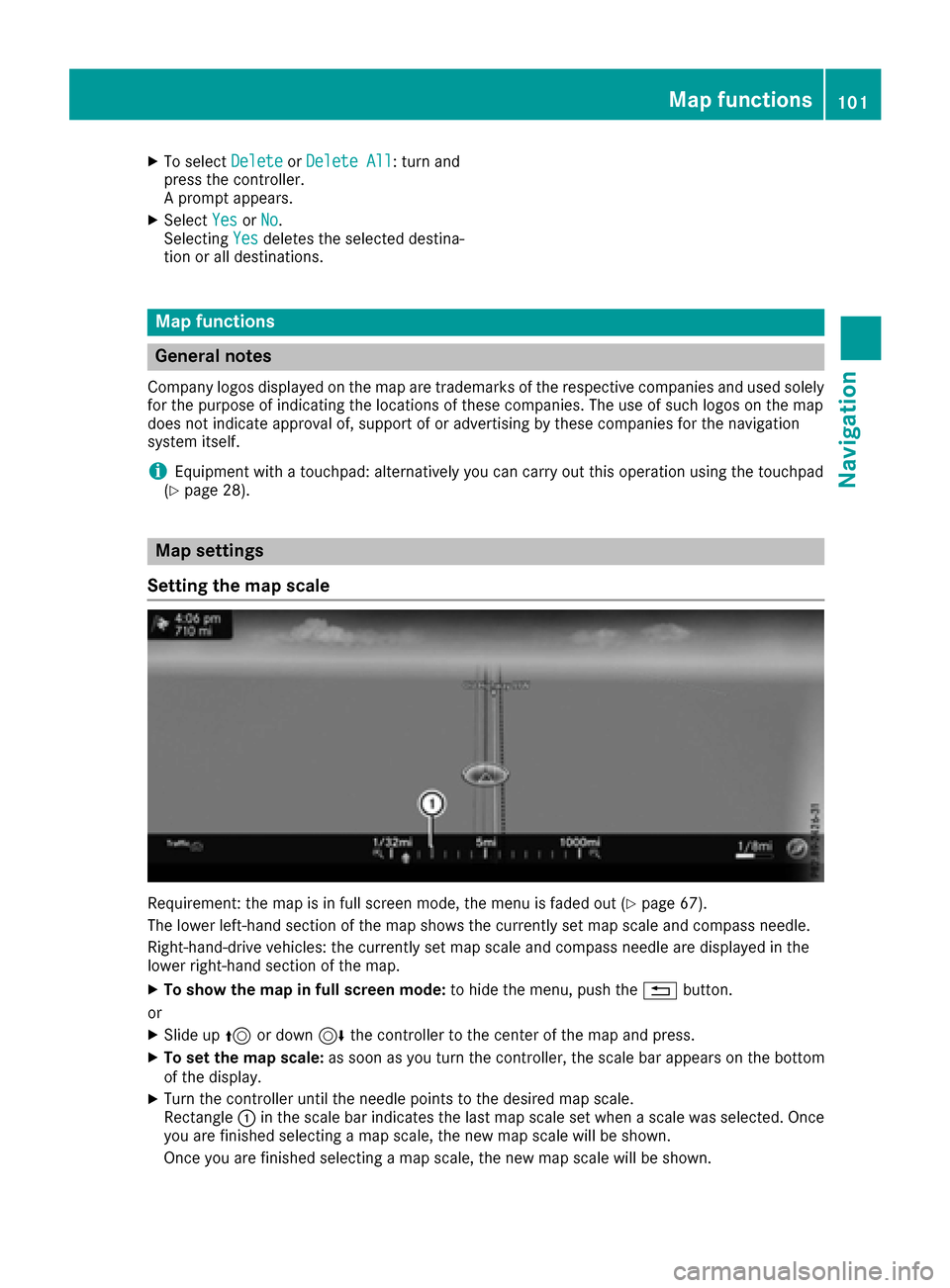

XTo selectDeleteorDelete All: turn and
press the controller.
A prompt appears.
XSelect YesorNo.
Selecting Yesdeletes the selected destina-
tion or all destinations.
Map functions
General notes
Company logos displayed on the map are trademarks of the respective companies and used solely
for the purpose of indicating the locations of these companies. The use of such logos on the map
does not indicate approval of, support of or advertising by these companies for the navigation
system itself.
iEquipment with a touchpad: alternatively you can carry out this operation using the touchpad
(Ypage 28).
Map settings
Setting the map scale
Requirement: the map is in full screen mode, the menu is faded out (Ypage 67).
The lower left-hand section of the map shows the currently set map scale and compass needle.
Right-hand-drive vehicles: the currently set map scale and compass needle are displayed in the
lower right-hand section of the map.
XTo show the map in full screen mode: to hide the menu, push the%button.
or
XSlide up 5or down 6the controller to the center of the map and press.
XTo set the map scale: as soon as you turn the controller, the scale bar appears on the bottom
of the display.
XTurn the controller until the needle points to the desired map scale.
Rectangle :in the scale bar indicates the last map scale set when a scale was selected. Once
you are finished selecting a map scale, the new map scale will be shown.
Once you are finished selecting a map scale, the new map scale will be shown.
Map functions101
Navigation
Z
Page 104 of 230

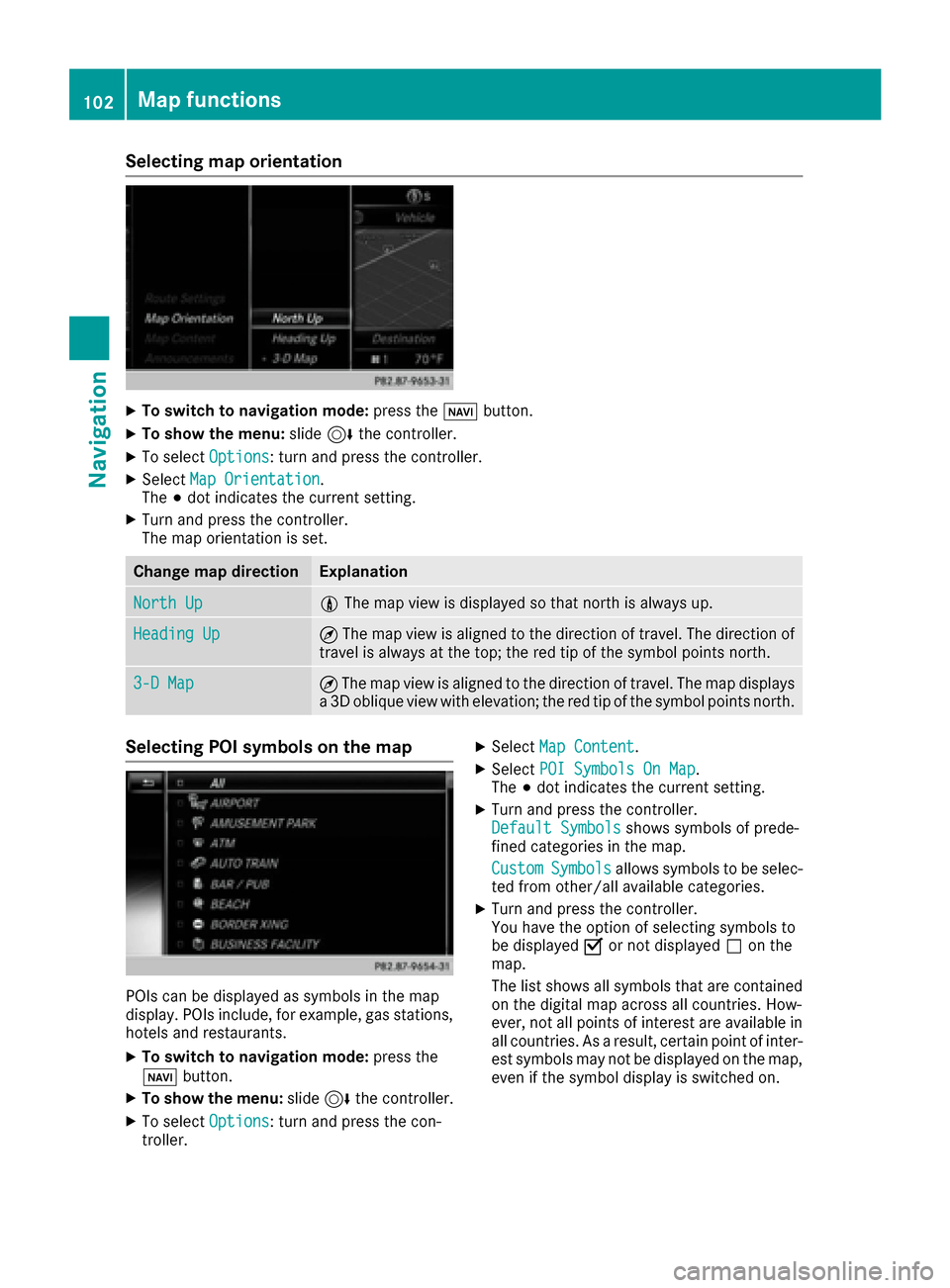

Selecting map orientation
XTo switch to navigation mode:press theßbutton.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the controller.
XSelectMap Orientation.
The #dot indicates the current setting.
XTurn and press the controller.
The map orientation is set.
Change map directionExplanation
North Up0 The map view is displayed so that north is always up.
Heading Up¤The map view is aligned to the direction of travel. The direction of
travel is always at the top; the red tip of the symbol points north.
3-D Map¤ The map view is aligned to the direction of travel. The map displays
a 3D oblique view with elevation; the red tip of the symbol points north.
Selecting POI symbols on the map
POIs can be displayed as symbols in the map
display. POIs include, for example, gas stations,
hotels and restaurants.
XTo switch to navigation mode: press the
ß button.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the con-
troller.
XSelect Map Content.
XSelectPOI Symbols On Map.
The #dot indicates the current setting.
XTurn and press the controller.
Default Symbolsshows symbols of prede-
fined categories in the map.
Custom
Symbolsallows symbols to be selec-
ted from other/all available categories.
XTurn and press the controller.
You have the option of selecting symbols to
be displayed Oor not displayed ªon the
map.
The list shows all symbols that are contained
on the digital map across all countries. How-
ever, not all points of interest are available in all countries. As a result, certain point of inter-
est symbols may not be displayed on the map,
even if the symbol display is switched on.
102Map functions
Navigation
Page 105 of 230

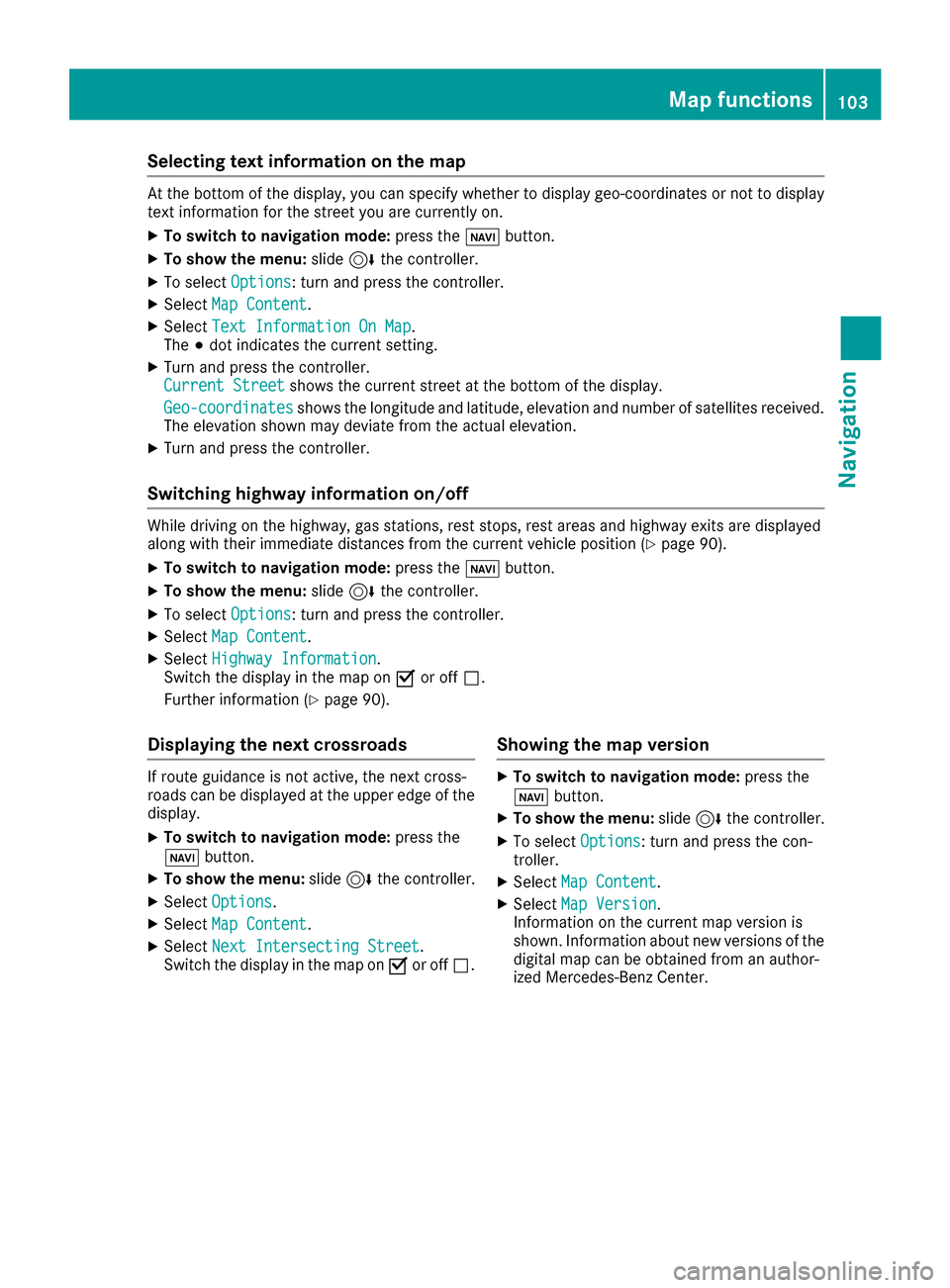

Selecting text information on the map
At the bottom of the display, you can specify whether to display geo-coordinates or not to display
text information for the street you are currently on.
XTo switch to navigation mode:press theßbutton.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the controller.
XSelectMap Content.
XSelectText Information On Map.
The #dot indicates the current setting.
XTurn and press the controller.
Current Streetshows the current street at the bottom of the display.
Geo-coordinates
shows the longitude and latitude, elevation and number of satellites received.
The elevation shown may deviate from the actual elevation.
XTurn and press the controller.
Switching highway information on/off
While driving on the highway, gas stations, rest stops, rest areas and highway exits are displayed
along with their immediate distances from the current vehicle position (Ypage 90).
XTo switch to navigation mode: press theßbutton.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the controller.
XSelectMap Content.
XSelectHighway Information.
Switch the display in the map on Oor off ª.
Further information (
Ypage 90).
Displaying the next crossroads
If route guidance is not active, the next cross-
roads can be displayed at the upper edge of the
display.
XTo switch to navigation mode: press the
ß button.
XTo show the menu: slide6the controller.
XSelect Options.
XSelectMap Content.
XSelectNext Intersecting Street.
Switch the display in the map on Oor off ª.
Showing the map version
XTo switch to navigation mode: press the
ß button.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the con-
troller.
XSelect Map Content.
XSelectMap Version.
Information on the current map version is
shown. Information about new versions of the
digital map can be obtained from an author-
ized Mercedes-Benz Center.
Map functions103
Navigation
Z
Page 106 of 230

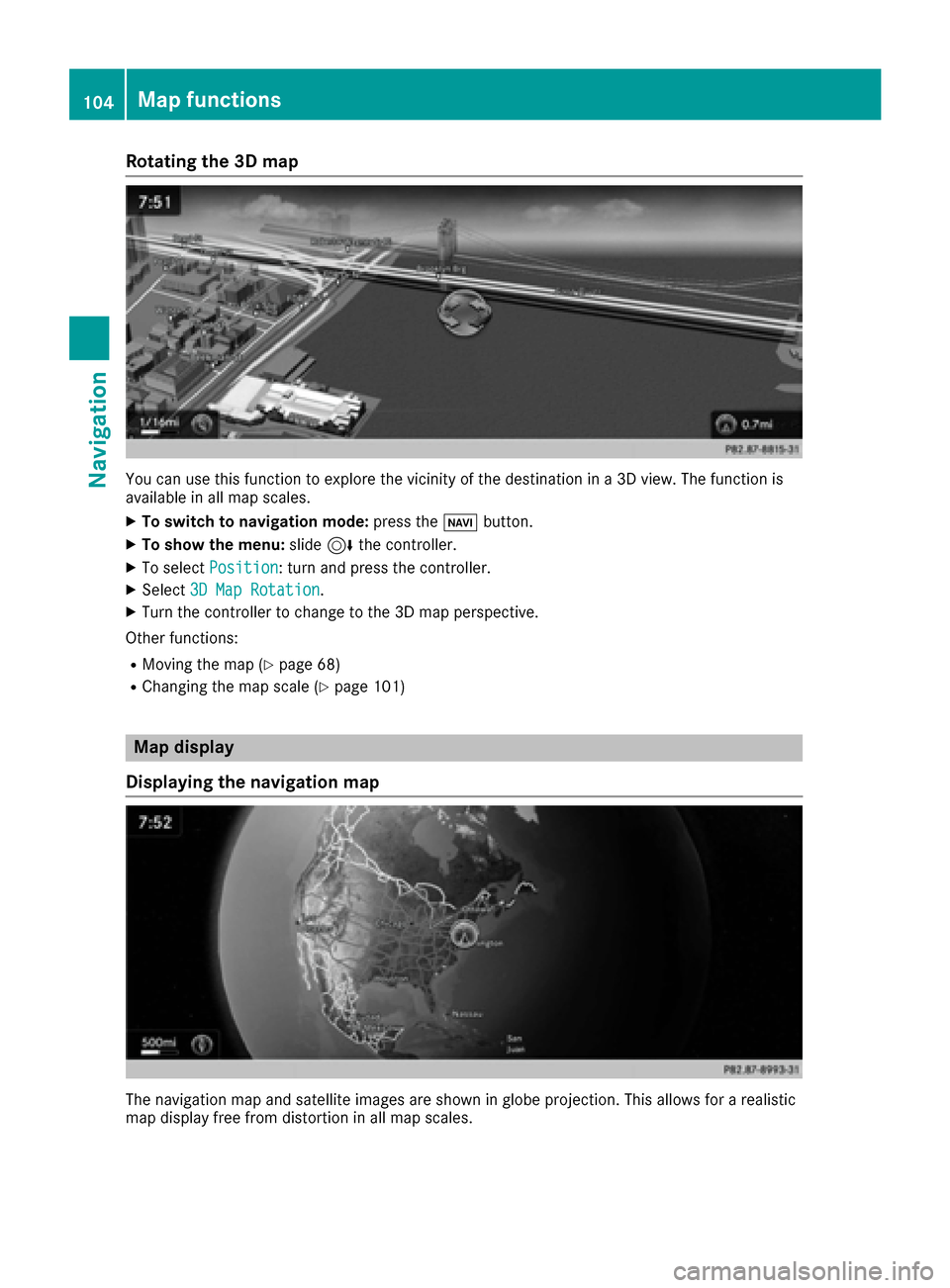

Rotating the 3D map
You can use this function to explore the vicinity of the destination in a 3D view. The function is
available in all map scales.
XTo switch to navigation mode:press theØbutton.
XTo show the menu: slide6the controller.
XTo select Position: turn and press the controller.
XSelect3D Map Rotation.
XTurn the controller to change to the 3D map perspective.
Other functions:
RMoving the map (Ypage 68)
RChanging the map scale (Ypage 101)
Map display
Displaying the navigation map
The navigation map and satellite images are shown in globe projection. This allows for a realistic
map display free from distortion in all map scales.
104Map functions
Navigation
Page 107 of 230

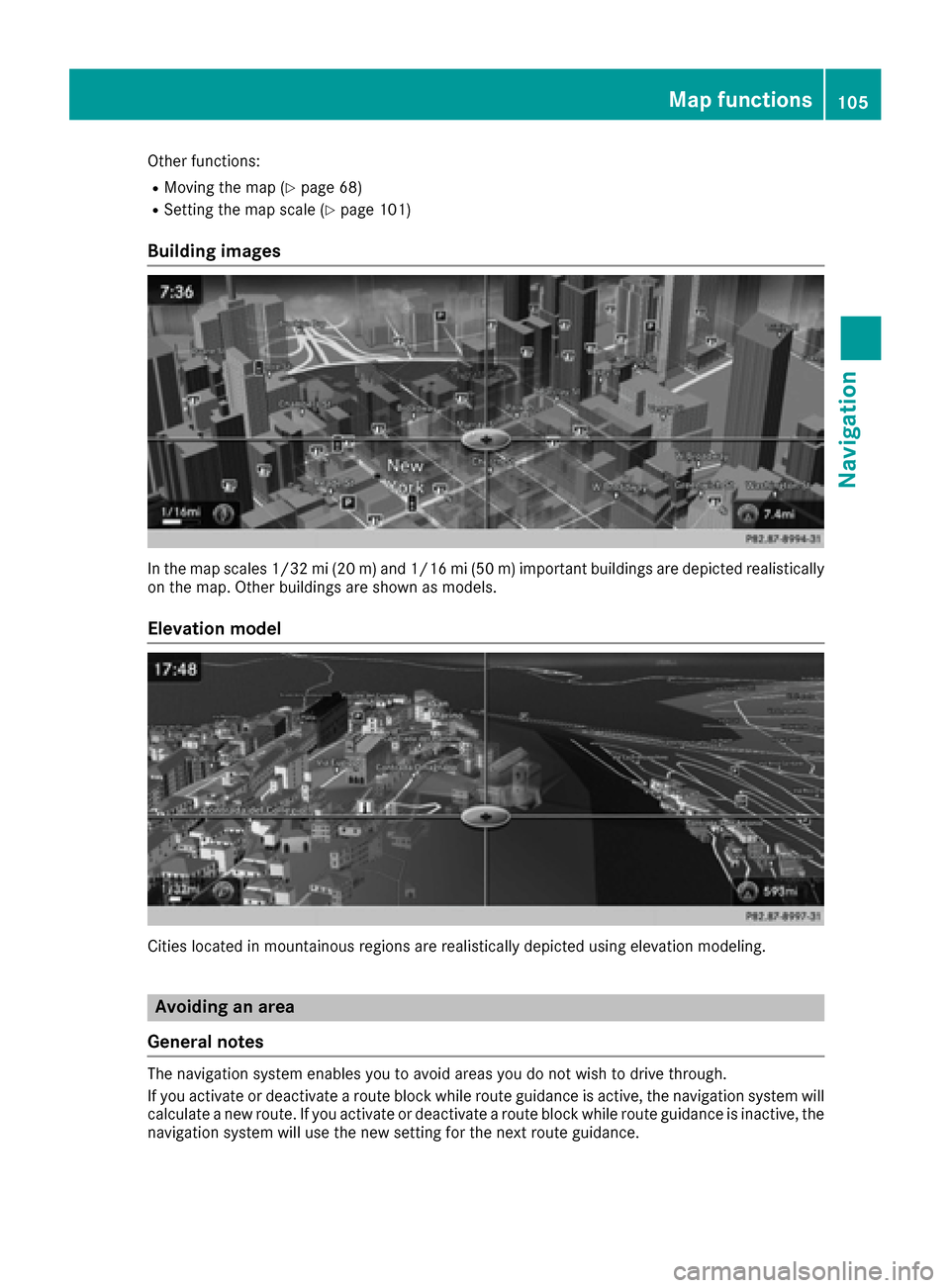

Other functions:
RMoving the map (Ypage 68)
RSetting the map scale (Ypage 101)
Building images
In the map scales 1/32 mi (20 m) and 1/16 mi (50 m) important buildings are depicted realistically
on the map. Other buildings are shown as models.
Elevation model
Cities located in mountainous regions are realistically depicted using elevation modeling.
Avoiding an area
General notes
The navigation system enables you to avoid areas you do not wish to drive through.
If you activate or deactivate a route block while route guidance is active, the navigation system will
calculate a new route. If you activate or deactivate a route block while route guidance is inactive, the
navigation system will use the new setting for the next route guidance.
Map functions105
Navigation
Z
Page 108 of 230
The calculated route may include an area to be avoided if:
Ryour destination is located in such an area
Rthere is no alternative route of comparable length available
Highways within blocked areas are always taken into consideration in the route calculation.
iEquipment with a touchpad: alternatively you can carry out this operation using the touchpad
(Ypage 28).
Avoiding a new area
XTo switch to navigation mode: press theßbutton.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the controller.
XSelectRoute Settings.
XSelectAvoid Options.
XSelectAvoid Area.
XSelectAvoid New Area.
A menu appears.
XSelect Using MaporAddress Entry.
If you select Using Map, the map with crosshair appears.
If you select Address Entry
, the address entry menu appears where you can enter the address
(Ypage 72). The map appears with the crosshair after the address is entered.
XTo select an area: when the map with crosshair appears, press the controller.
A red square appears on the map, symbolizing the area to be blocked.
XTo change the size of the area, turn the controller.
The map scale is shown at the bottom of the display. The needle is on the map scale currently
selected.
XWhen the desired size is set, press the controller.
The area is entered into the list.
106Map functions
Navigation
Page 109 of 230

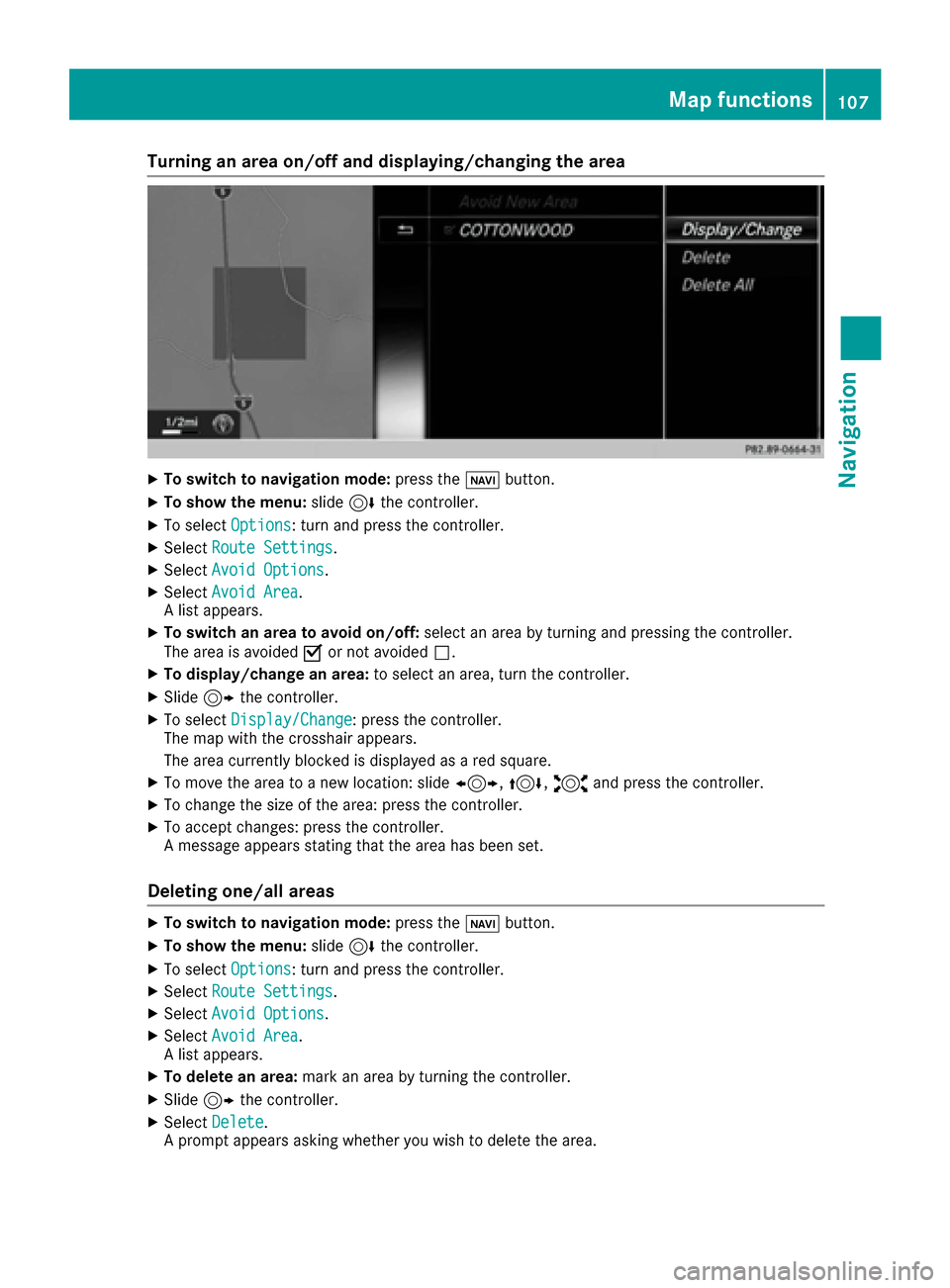

Turning an area on/off and displaying/changing the area
XTo switch to navigation mode:press theßbutton.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the controller.
XSelectRoute Settings.
XSelectAvoid Options.
XSelectAvoid Area.
A list appears.
XTo switch an area to avoid on/off: select an area by turning and pressing the controller.
The area is avoided Oor not avoided ª.
XTo display/change an area: to select an area, turn the controller.
XSlide9the controller.
XTo select Display/Change: press the controller.
The map with the crosshair appears.
The area currently blocked is displayed as a red square.
XTo move the area to a new location: slide 1,4,2and press the controller.
XTo change the size of the area: press the controller.
XTo accept changes: press the controller.
A message appears stating that the area has been set.
Deleting one/all areas
XTo switch to navigation mode: press theßbutton.
XTo show the menu: slide6the controller.
XTo select Options: turn and press the controller.
XSelectRoute Settings.
XSelectAvoid Options.
XSelectAvoid Area.
A list appears.
XTo delete an area: mark an area by turning the controller.
XSlide9the controller.
XSelect Delete.
A prompt appears asking whether you wish to delete the area.
Map functions107
Navigation
Z
Page 110 of 230

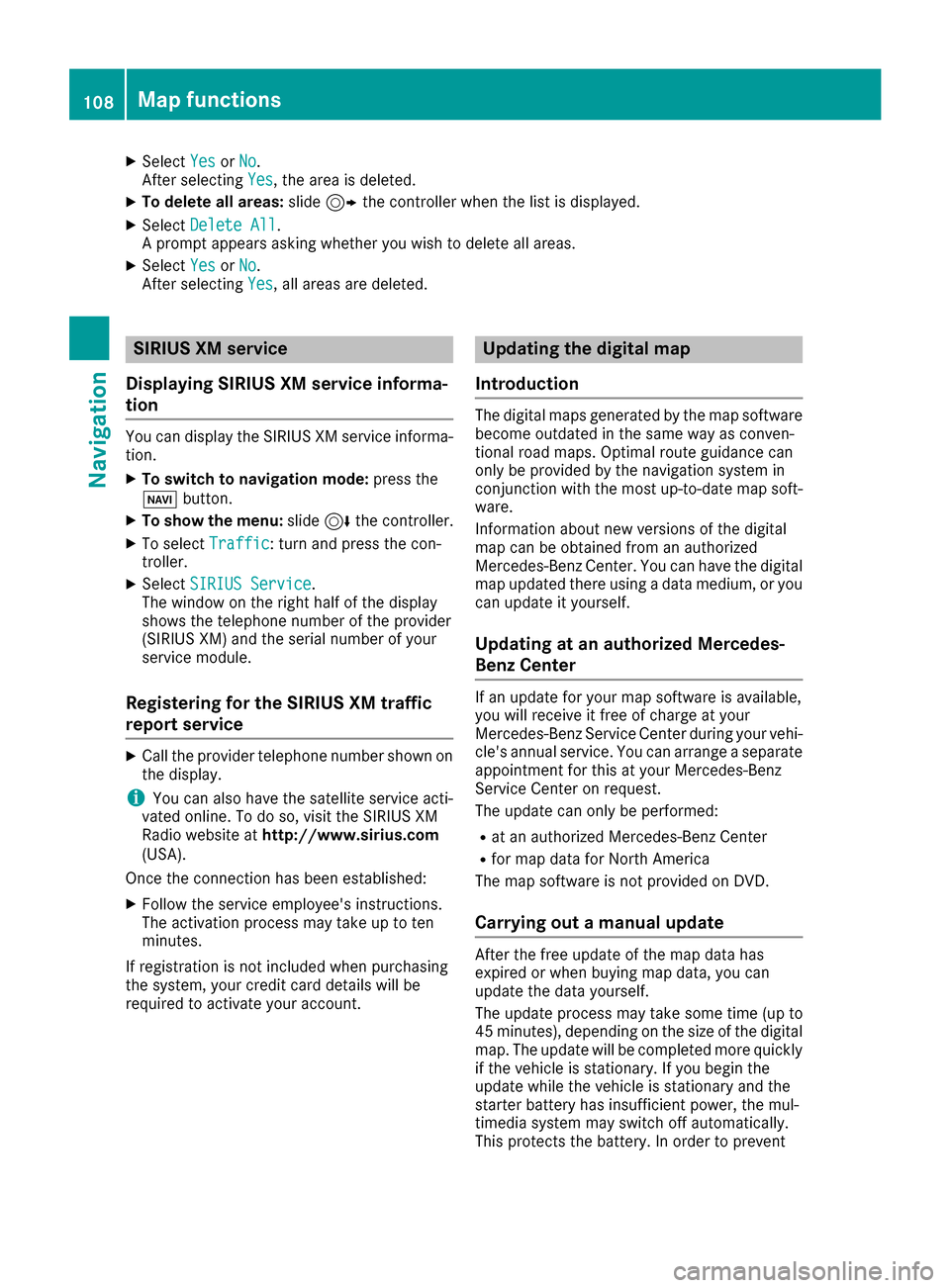

XSelectYesorNo.
After selecting Yes, the area is deleted.
XTo delete all areas: slide9 the controller when the list is displayed.
XSelect Delete All.
A prompt appears asking whether you wish to delete all areas.
XSelect YesorNo.
After selecting Yes, all areas are deleted.
SIRIUS XM service
Displaying SIRIUS XM service informa-
tion
You can display the SIRIUS XM service informa-
tion.
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XSelect SIRIUS Service.
The window on the right half of the display
shows the telephone number of the provider
(SIRIUS XM) and the serial number of your
service module.
Registering for the SIRIUS XM traffic
report service
XCall the provider telephone number shown on
the display.
iYou can also have the satellite service acti-
vated online. To do so, visit the SIRIUS XM
Radio website at http://www.sirius.com
(USA).
Once the connection has been established:
XFollow the service employee's instructions.
The activation process may take up to ten
minutes.
If registration is not included when purchasing
the system, your credit card details will be
required to activate your account.
Updating the digital map
Introduction
The digital maps generated by the map software
become outdated in the same way as conven-
tional road maps. Optimal route guidance can
only be provided by the navigation system in
conjunction with the most up-to-date map soft-
ware.
Information about new versions of the digital
map can be obtained from an authorized
Mercedes-Benz Center. You can have the digital
map updated there using a data medium, or you
can update it yourself.
Updating at an authorized Mercedes-
Benz Center
If an update for your map software is available,
you will receive it free of charge at your
Mercedes-Benz Service Center during your vehi-
cle's annual service. You can arrange a separate
appointment for this at your Mercedes-Benz
Service Center on request.
The update can only be performed:
Rat an authorized Mercedes-Benz Center
Rfor map data for North America
The map software is not provided on DVD.
Carrying out a manual update
After the free update of the map data has
expired or when buying map data, you can
update the data yourself.
The update process may take some time (up to
45 minutes), depending on the size of the digital
map. The update will be completed more quickly
if the vehicle is stationary. If you begin the
update while the vehicle is stationary and the
starter battery has insufficient power, the mul-
timedia system may switch off automatically.
This protects the battery. In order to prevent
108Map functions
Navigation
