MERCEDES-BENZ S-Class MAYBACH 2017 W222 Comand Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2017, Model line: S-Class MAYBACH, Model: MERCEDES-BENZ S-Class MAYBACH 2017 W222Pages: 230, PDF Size: 8.27 MB
Page 91 of 230

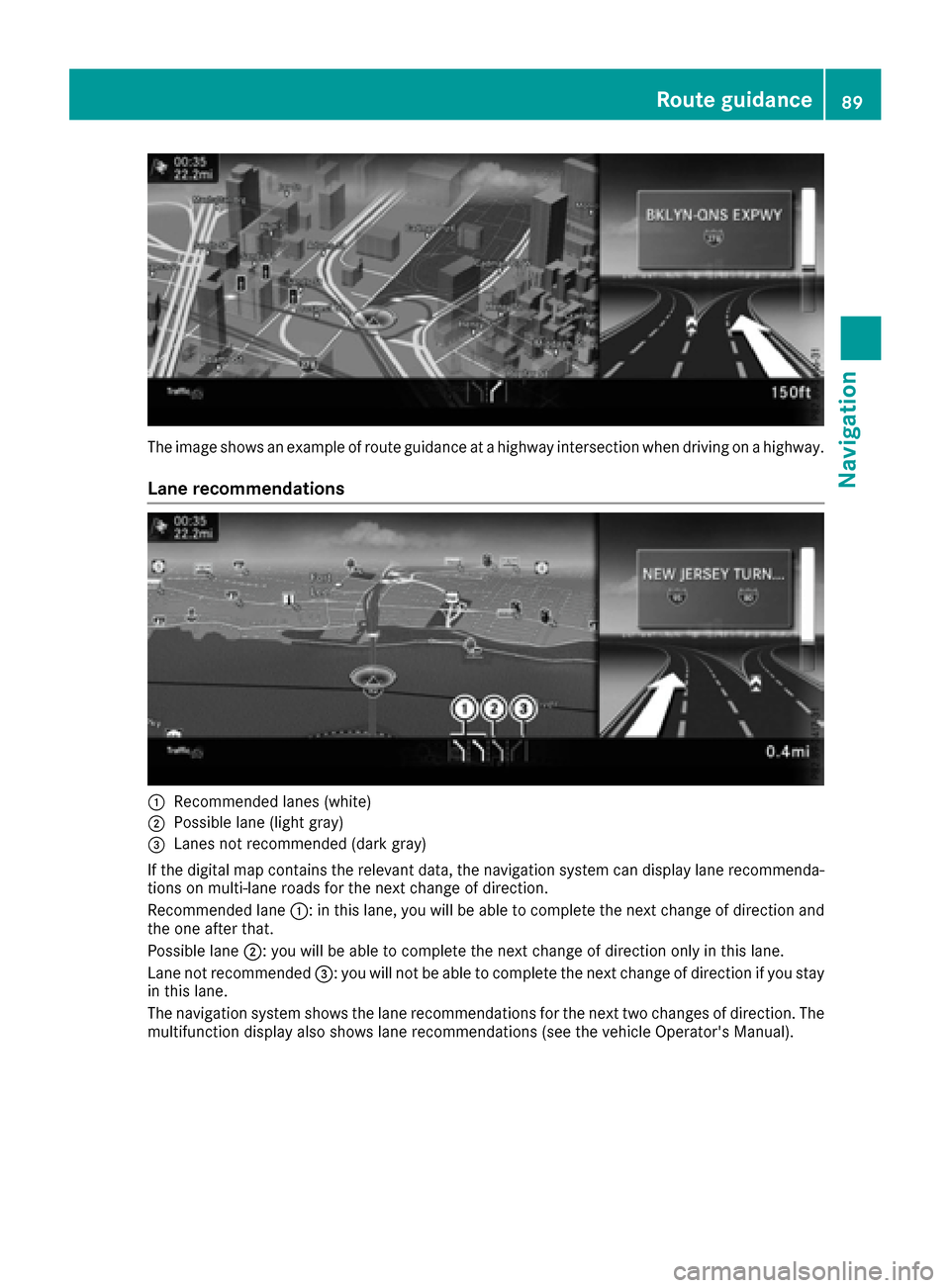

The image shows an example of route guidance at a highway intersection when driving on a highway.
Lane recommendations
:Recommended lanes (white)
;Possible lane (light gray)
=Lanes not recommended (dark gray)
If the digital map contains the relevant data, the navigation system can display lane recommenda-
tions on multi-lane roads for the next change of direction.
Recommended lane :: in this lane, you will be able to complete the next change of direction and
the one after that.
Possible lane ;: you will be able to complete the next change of direction only in this lane.
Lane not recommended =: you will not be able to complete the next change of direction if you stay
in this lane.
The navigation system shows the lane recommendations for the next two changes of direction. The multifunction display also shows lane recommendations (see the vehicle Operator's Manual).
Route guidance89
Navigation
Z
Page 92 of 230

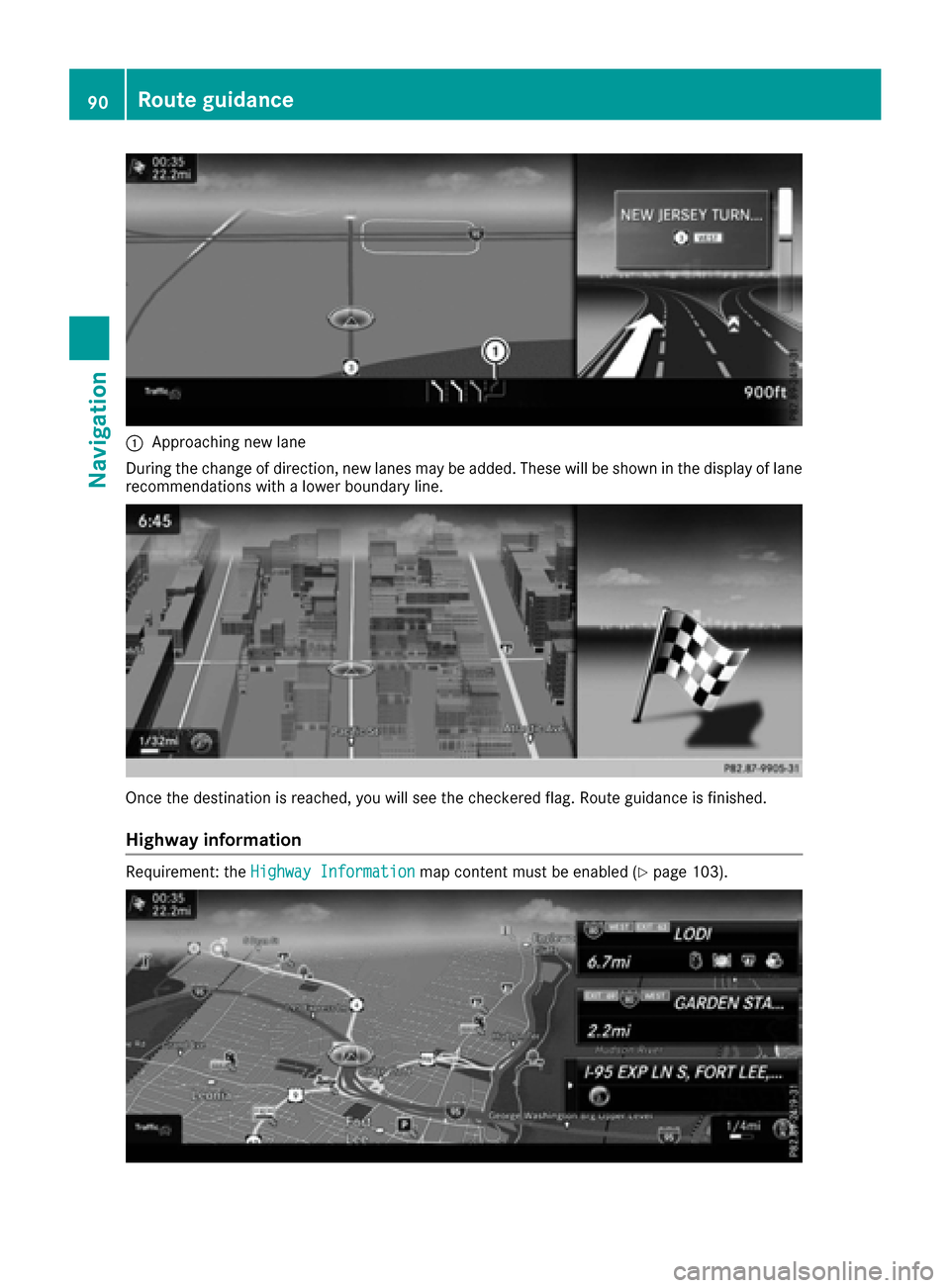

:Approaching new lane
During the change of direction, new lanes may be added. These will be shown in the display of lane
recommendations with a lower boundary line.
Once the destination is reached, you will see the checkered flag. Route guidance is finished.
Highway information
Requirement: the Highway Informationmap content must be enabled (Ypage 103).
90Route guidance
Navigation
Page 93 of 230

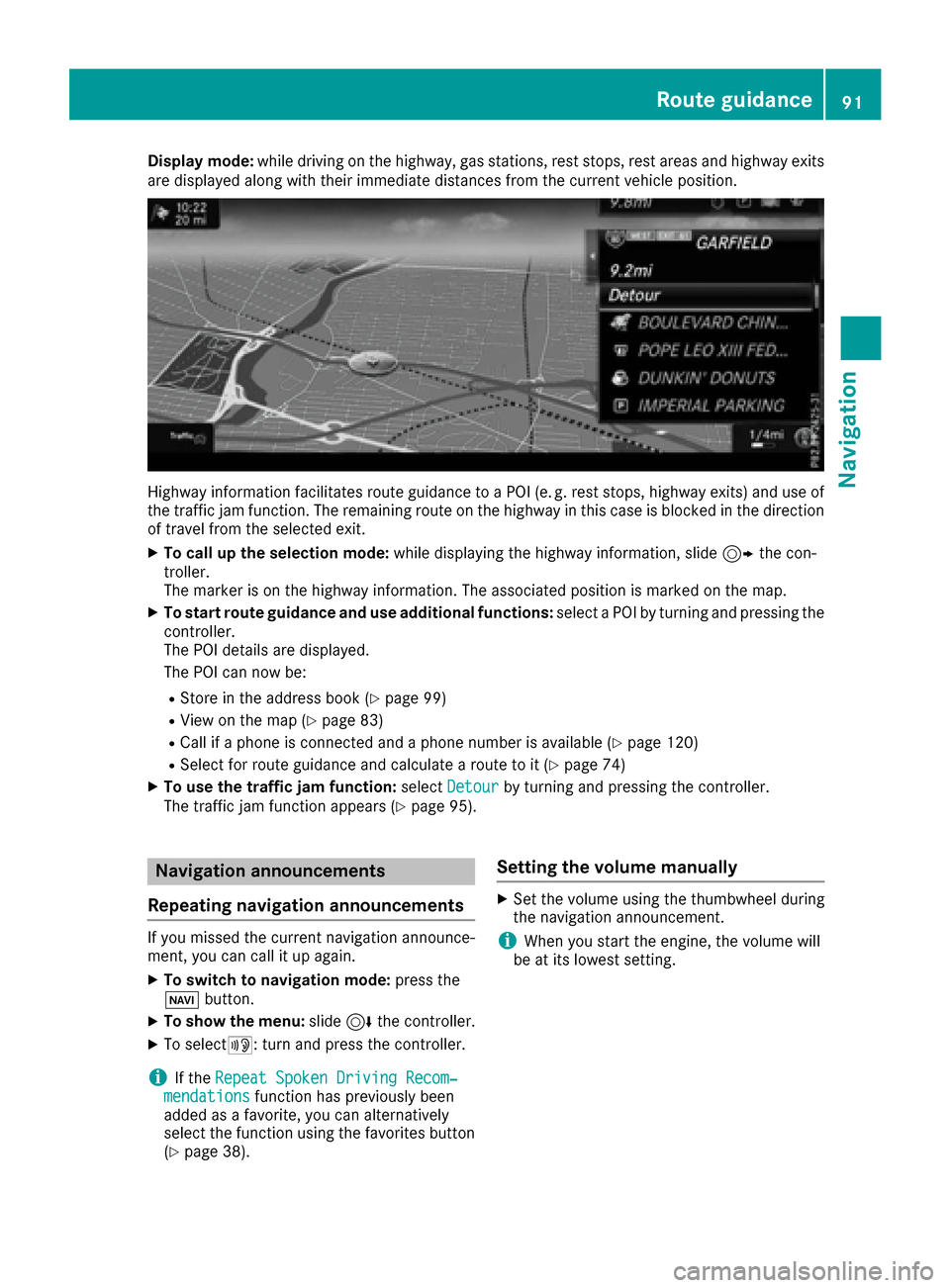

Display mode:while driving on the highway, gas stations, rest stops, rest areas and highway exits
are displayed along with their immediate distances from the current vehicle position.
Highway information facilitates route guidance to a POI (e. g. rest stops, highway exits) and use of
th e traffic jam function. The remaining route on the highway in this case is blocked in the direction
of travel from the selected exit.
XTo call up th e selection mode: while displayingthe highway information, slide 9thecon-
troller.
The marker is on the highway information. The associated position is marked on the map.
XTo start route guidance and use additional functions: select a POI by turningand pressing the
controller.
The POI details are displayed.
The POI can now be:
RStore in th e address book (Ypage 99)
RView on the map (Ypage 83)
RCall if a phone is connected and a phone number is available (Ypage 120)
RSelect for route guidance and calculat earoute to it (Ypage 74)
XTo use thetraffic ja m function: selectDetourby turning and pressing th econtroller.
The traffic jam function appear s(Ypage 95).
Navigation announcements
Repeating navigation announcements
If you missed the current navigation announce-
ment, you can call it up again.
XTo switch to navigation mode: press the
Ø button.
XTo sho wthemenu: slide6thecontroller.
XTo select+: turn and press thecontroller.
iIf th eRepeat Spoken Drivin gRecom‐mendation sfunction has previously been
added as a favorite, you can alternatively
select th e function using thefavorite s button
(
Ypage 38).
Setting the volume ma nually
XSetth e volume using the thumbwheel during
th e navigation announcement.
iWhen you start the engine, the volume will
be at its lowest setting.
Route guidance91
Navigation
Z
Page 94 of 230

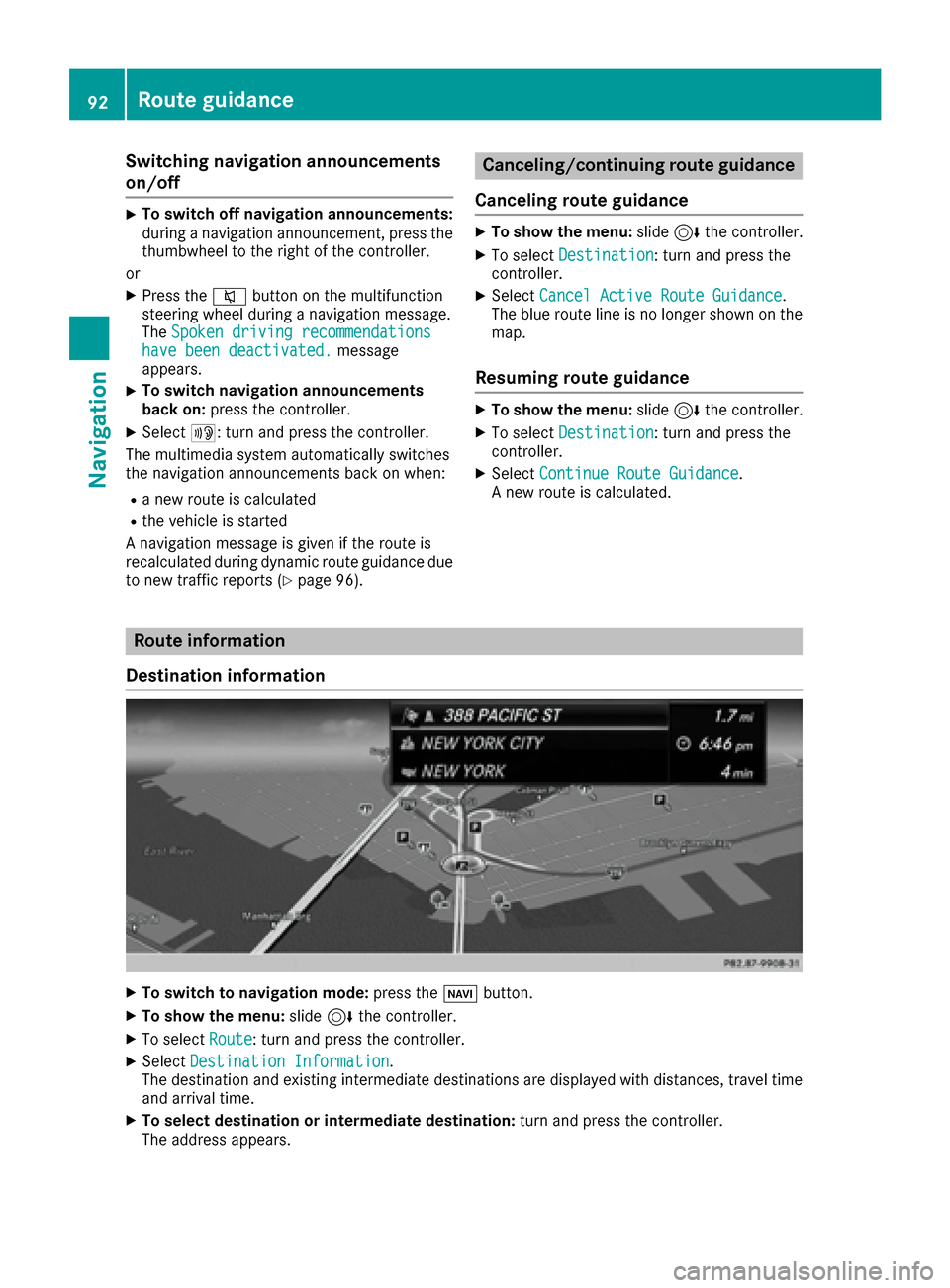

Switching navigation announcements
on/off
XTo switch off navigation announcements:
during a navigation announcement, press thethumbwheel to the right of the controller.
or
XPress the 8button on the multifunction
steering wheel during a navigation message.
The Spoken driving recommendations
have been deactivated.message
appears.
XTo switch navigation announcements
back on: press the controller.
XSelect+: turn and press the controller.
The multimedia system automatically switches
the navigation announcements back on when:
Ra new route is calculated
Rthe vehicle is started
A navigation message is given if the route is
recalculated during dynamic route guidance due
to new traffic reports (
Ypage 96).
Canceling/continuing route guidance
Canceling route guidance
XTo show the menu: slide6the controller.
XTo select Destination: turn and press the
controller.
XSelect Cancel Active Route Guidance.
The blue route line is no longer shown on the
map.
Resuming route guidance
XTo show the menu: slide6the controller.
XTo select Destination: turn and press the
controller.
XSelect Continue Route Guidance.
A new route is calculated.
Route information
Destination information
XTo switch to navigation mode: press theØbutton.
XTo show the menu: slide6the controller.
XTo select Route: turn and press the controller.
XSelectDestination Information.
The destination and existing intermediate destinations are displayed with distances, travel time
and arrival time.
XTo select destination or intermediate destination: turn and press the controller.
The address appears.
92Route guidance
Navigation
Page 95 of 230

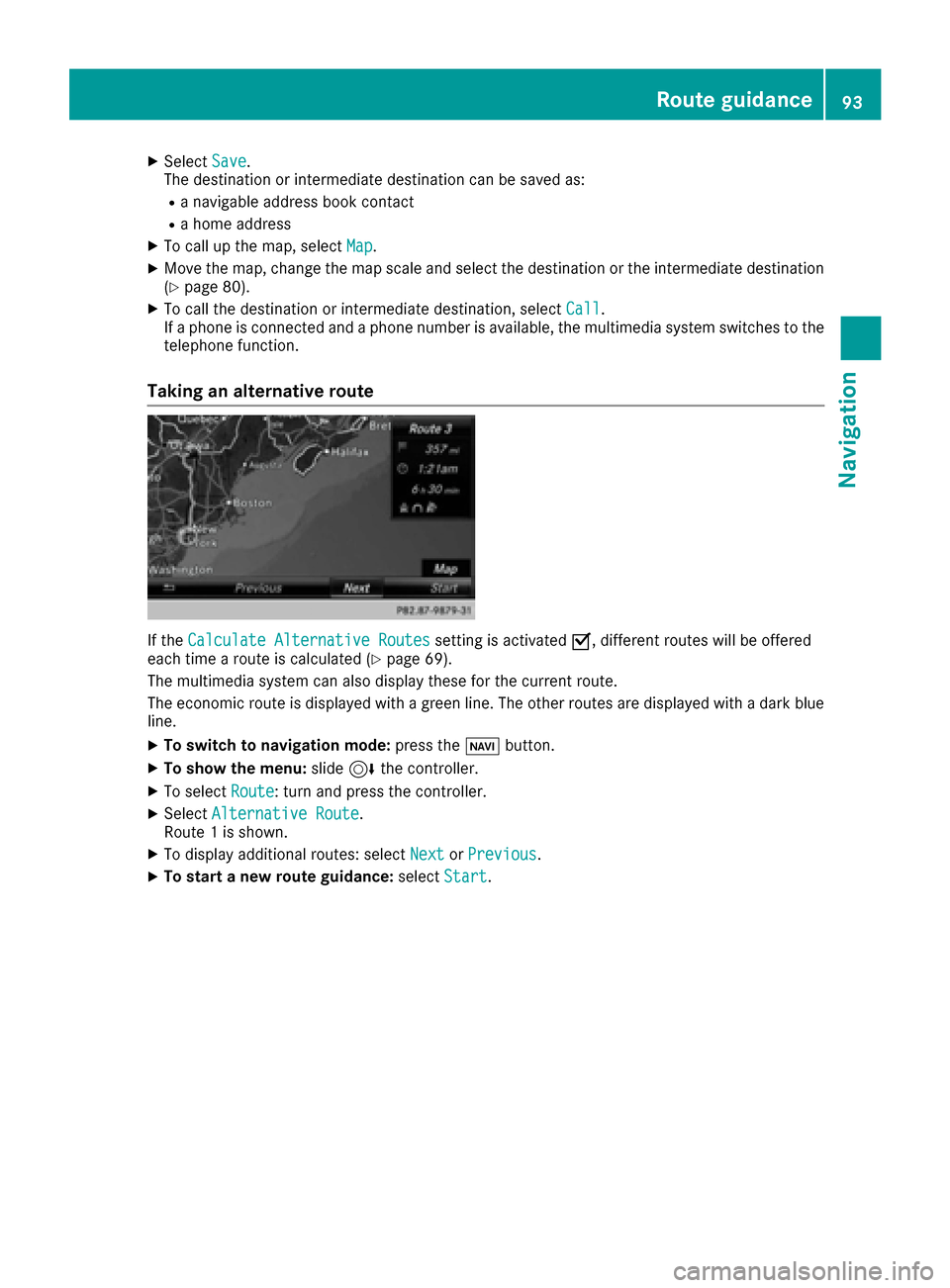

XSelectSave.
The destination or intermediate destination can be saved as:
Ra navigable address book contact
Ra home address
XTo call up the map, select Map.
XMove the map, change the map scale and select the destination or the intermediate destination
(Ypage 80).
XTo call the destination or intermediate destination, select Call.
If a phone is connected and a phone number is available, the multimedia system switches to the
telephone function.
Taking an alternative route
If the Calculate Alternative Routessetting is activated O, different routes will be offered
each time a route is calculated (Ypage 69).
The multimedia system can also display these for the current route.
The economic route is displayed with a green line. The other routes are displayed with a dark blue
line.
XTo switch to navigation mode: press theØbutton.
XTo show the menu: slide6the controller.
XTo select Route: turn and press the controller.
XSelectAlternative Route.
Route 1 is shown.
XTo display additional routes: select NextorPrevious.
XTo start a new route guidance: selectStart.
Route guidance93
Navigation
Z
Page 96 of 230
Route list
XTo switch to navigation mode:press theØbutton.
XTo show the menu: slide6the controller.
XTo select Route: turn and press the controller.
XSelectRoute List.
The route list shows the next change of direction and the immediate distances from the current
vehicle position.
XTo display additional route sections: turn the controller.
The position of the change of direction that belongs to the respective route section is indicated
on the map with a cross.
Where am I?
XTo switch to navigation mode: press theØbutton.
XTo show the menu: slide6the controller.
XTo select Position: turn and press the controller.
XSelectWhere am I?.
The street you are currently on and the previous and next intersections are displayed.
94Route guidance
Navigation
Page 97 of 230

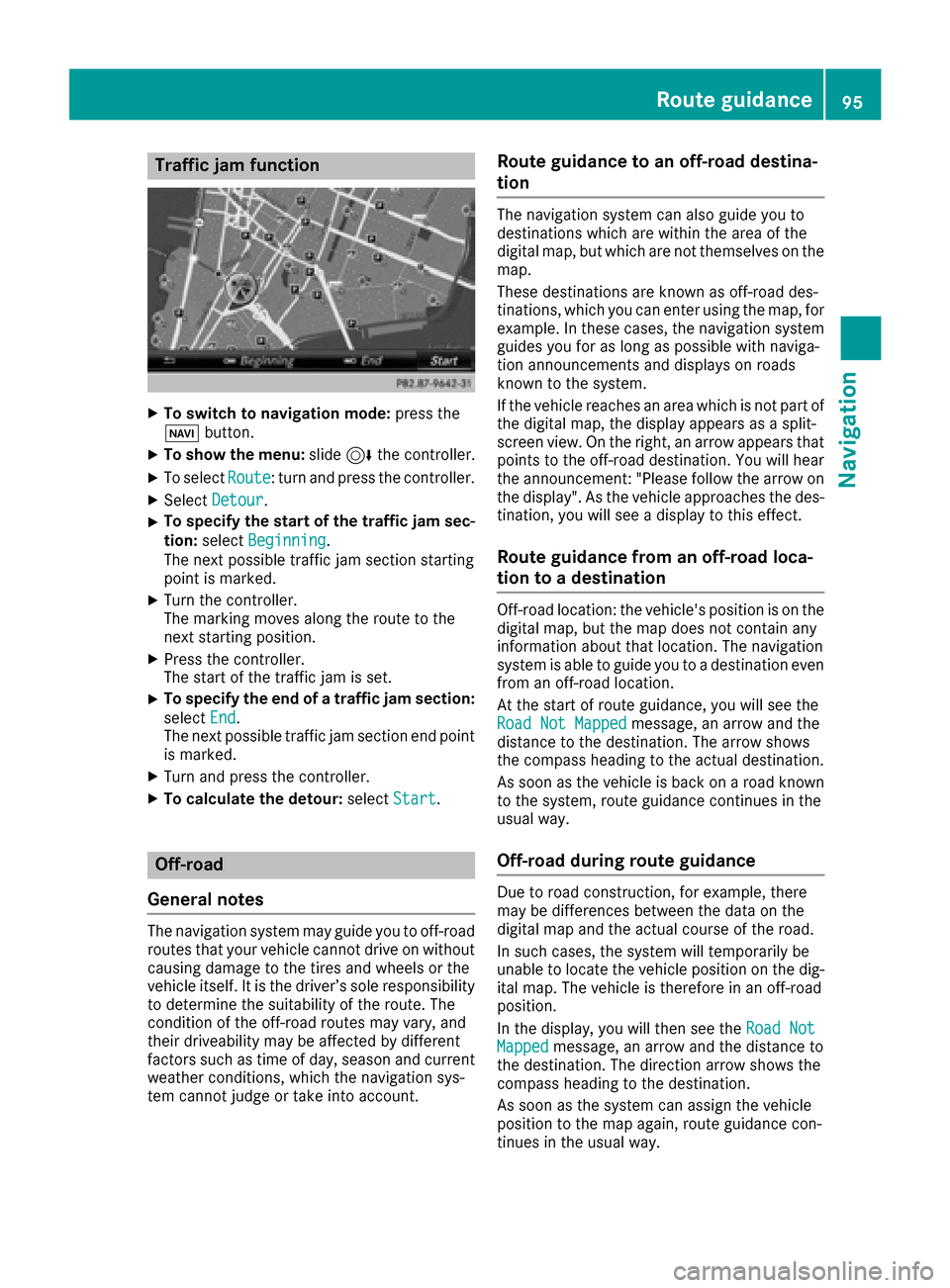

Traffic jam function
XTo switch to navigation mode:press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Route: turn and press the controller.
XSelectDetour.
XTo specify the start of the traffic jam sec-
tion: select Beginning
.
The next possible traffic jam section starting
point is marked.
XTurn the controller.
The marking moves along the route to the
next starting position.
XPress the controller.
The start of the traffic jam is set.
XTo specify the end of a traffic jam section:
select End
.
The next possible traffic jam section end point
is marked.
XTurn and press the controller.
XTo calculate the detour: selectStart.
Off-road
General notes
The navigation system may guide you to off-road
routes that your vehicle cannot drive on without
causing damage to the tires and wheels or the
vehicle itself. It is the driver’s sole responsibility to determine the suitability of the route. The
condition of the off-road routes may vary, and
their driveability may be affected by different
factors such as time of day, season and current
weather conditions, which the navigation sys-
tem cannot judge or take into account.
Route guidance to an off-road destina-
tion
The navigation system can also guide you to
destinations which are within the area of the
digital map, but which are not themselves on the
map.
These destinations are known as off-road des-
tinations, which you can enter using the map, for
example. In these cases, the navigation system
guides you for as long as possible with naviga-
tion announcements and displays on roads
known to the system.
If the vehicle reaches an area which is not part of the digital map, the display appears as a split-
screen view. On the right, an arrow appears that
points to the off-road destination. You will hear
the announcement: "Please follow the arrow on
the display". As the vehicle approaches the des- tination, you will see a display to this effect.
Route guidance from an off-road loca-
tion to a destination
Off-road location: the vehicle's position is on the
digital map, but the map does not contain any
information about that location. The navigation
system is able to guide you to a destination even
from an off-road location.
At the start of route guidance, you will see the
Road Not Mapped
message, an arrow and the
distance to the destination. The arrow shows
the compass heading to the actual destination.
As soon as the vehicle is back on a road known
to the system, route guidance continues in the
usual way.
Off-road during route guidance
Due to road construction, for example, there
may be differences between the data on the
digital map and the actual course of the road.
In such cases, the system will temporarily be
unable to locate the vehicle position on the dig-
ital map. The vehicle is therefore in an off-road
position.
In the display, you will then see the Road Not
Mappedmessage, an arrow and the distance to
the destination. The direction arrow shows the
compass heading to the destination.
As soon as the system can assign the vehicle
position to the map again, route guidance con-
tinues in the usual way.
Route guidance95
Navigation
Z
Page 98 of 230

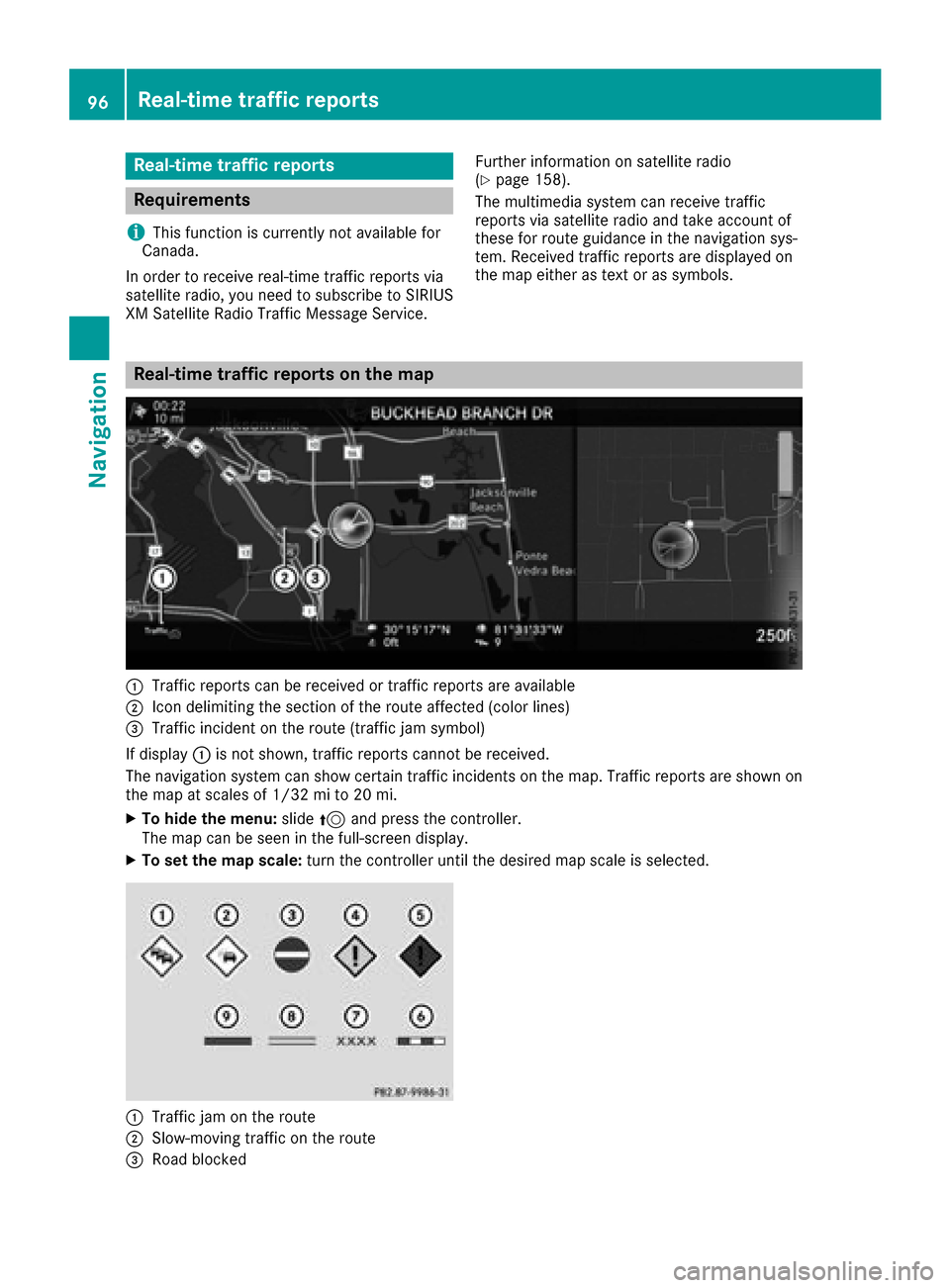

Real-time traffic reports
Requirements
i
This function is currently not available for
Canada.
In order to receive real-time traffic reports via
satellite radio, you need to subscribe to SIRIUS
XM Satellite Radio Traffic Message Service. Further information on satellite radio
(
Ypage 158).
The multimedia system can receive traffic
reports via satellite radio and take account of
these for route guidance in the navigation sys-
tem. Received traffic reports are displayed on
the map either as text or as symbols.
Real-time traffic reports on the map
:Traffic reports can be received or traffic reports are available
;Icon delimiting the section of the route affected (color lines)
=Traffic incident on the route (traffic jam symbol)
If display :is not shown, traffic reports cannot be received.
The navigation system can show certain traffic incidents on the map. Traffic reports are shown on
the map at scales of 1/32 mi to 20 mi.
XTo hide the menu: slide5and press the controller.
The map can be seen in the full-screen display.
XTo set the map scale: turn the controller until the desired map scale is selected.
:Traffic jam on the route
;Slow-moving traffic on the route
=Road blocked
96Real-time traffic reports
Navigation

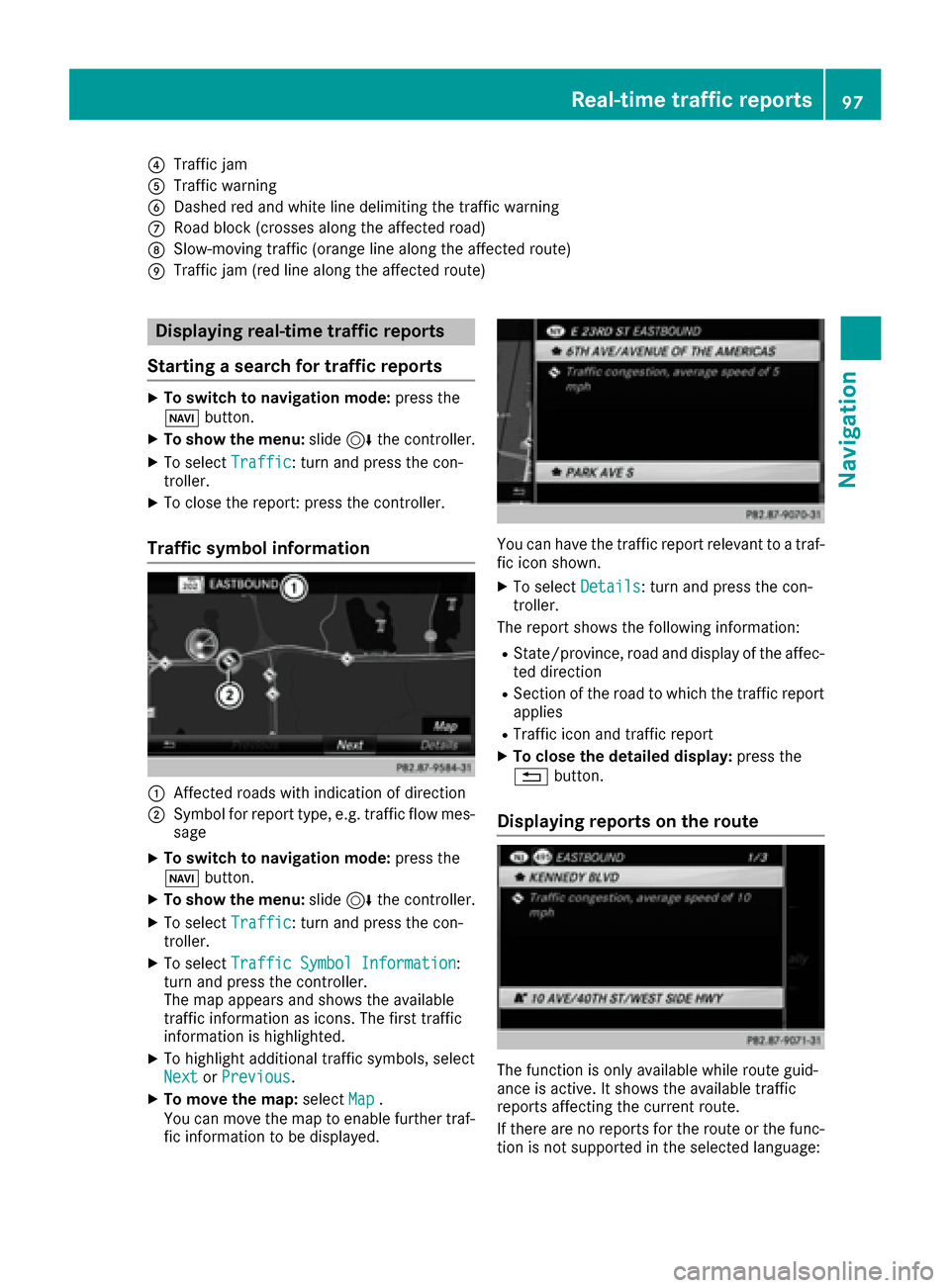

Page 99 of 230
?Traffic jam
ATraffic warning
BDashed red and white line delimiting the traffic warning
CRoad block (crosses along the affected road)
DSlow-moving traffic (orange line along the affected route)
ETraffic jam (red line along the affected route)
Displaying real-time traffic reports
Starting a search for traffic reports
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XTo close the report: press the controller.
Traffic symbol information
:Affected roads with indication of direction
;Symbol for report type, e.g. traffic flow mes-
sage
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XTo select Traffic Symbol Information:
turn and press the controller.
The map appears and shows the available
traffic information as icons. The first traffic
information is highlighted.
XTo highlight additional traffic symbols, select
Nextor Previous.
XTo move the map: selectMap.
You can move the map to enable further traf-
fic information to be displayed.
You can have the traffic report relevant to a traf-
fic icon shown.
XTo select Details: turn and press the con-
troller.
The report shows the following information:
RState/province, road and display of the affec-
ted direction
RSection of the road to which the traffic report applies
RTraffic icon and traffic report
XTo close the detailed display: press the
% button.
Displaying reports on the route
The function is only available while route guid-
ance is active. It shows the available traffic
reports affecting the current route.
If there are no reports for the route or the func-
tion is not supported in the selected language:
Real-time traffic reports97
Navigation
Z
Page 100 of 230
theMessagesOnRoutemenu item is gray and
cannot be selected.
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XTo select Messages On Route: turn and
press the controller.
The traffic report window appears. Several
traffic reports may be available for the calcu-
lated route, marked for example by 1/3.
The report shows the following information:
RState/province, road and display of the
affected direction
RSection of the road to which the traffic
report applies
RTraffic icon and traffic report
XTo display the next/previous traffic
report: turn the controller.
XTo close the display: press the%button.
Displaying all traffic reports
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XTo select All Messages: turn and press the
controller.
A list is shown containing all roads, areas or
regions affected by traffic reports. Roads,
areas or regions not on the route also appear
in the list.
XTo select the road, area or region: turn the
controller and press to confirm.
The traffic report is displayed. There may be
several traffic reports for the affected road. You can find an example of a traffic report
here: (
Ypage 97).
XTo close the display:
press the%button.
Settings for the display on the map
You can switch these displays on/off on the
map:
RIncidents
RSpeed & Flow
RFree Flow
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XTo select Traffic Information On Map:
turn and press the controller.
XSelect Incidents,Speed & Flowor FreeFlow.
The display is activated Oor deactivated ª.
Reading out traffic reports on the
route
Introduction
The text reader function is only available while
route guidance is active. It reads out traffic
reports affecting the current route.
You can select from the following text reader
properties:
RLanguage (Ypage 46)
RText reader speed (Ypage 43)
You can start the text reader function manually
or set it to automatic.
Starting the text reader function man-
ually
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: slide6the controller.
XTo select Traffic: turn and press the con-
troller.
XSelect ReadOutAllMessagesonRoute.
The multimedia system reads out the reports in sequential order.
98Real-time traffic reports
Navigation
