SIRIUS Weather
Introduction
Thisfunction is currentl yno t available for Can-
ada.
Fo rth e reception of weather forecasts via sat-
ellite radio, you will need a SIRIUS XM Satellite
Weather subscription.
If th e message: Please call SIRIUS to
activate the system at :888-539-7474ESN :SIRIUS IDappears along with theID
number of the SIRIUS device, you will need to
have the weather service activated first.
XTo select CallorCancel:turn an dpress th e
controller.
If a mobile phone is connected to the multi-
media system(
Ypage 113), when you select
Cal la call is placed to a member of the SIR-
IU S service staff. The ID number of th eSIRIU S
device will be transferred to the telephone
display.
XThis will be followed by instructions from the
service employee.
The multimedia system can receive weather
forecast sfo rth eUS A (including Alaska and
Hawaii) via satellite radio. The received weather
data can be displayed as an information chart
(daily forecast , five-day forecast, detailed infor-
mation) or on the weather map.
The weather data received from the weather
station is stored for one hour in the multimedia
system. It can therefore be displayed again
immediately after restarting the engine (for
example after refueling). Depending on which scale has been selected,
th
e weather map can display the following
weather data with symbols:
Rrain radar
Rstorm characteristics
Rhigh and low-pressure areas, weather fronts
Rcourse of tropical cyclones (hurricanes,
typhoons )
Rstorm warnings
Rwind direction and speeds
iThe rain radar cannot be displayed for
Alaska, Hawaii and Puerto Rico.
iHurricane: term used to describe the tropi-
cal cyclones that primarily develop in the
Atl antic, North Pacifi c andSouth Pacific
oceans. The wind speeds are above 74 mph
(118 km/h). Five categorie sare used to clas-
sify thestrengt h of a hurricane.
Typhoon: term used to describe a tropical
cyclone that develops in the northwestern
Pacific. The wind speeds are in the category of
a hurricane.
Switching the SIRIUS Weather display
on/off
Activating
XTo display th e main function bar: slide5
th econtroller.
XTo select ®,turn an dpress th econtroller.
The online applications menu appears.
XTo select SIRIUS Weathe r,turn an dpress
th econtroller.
The information chart shows th e daily fore-
cast at the current vehicle position.
SIRIUS Weather199
SIRIUS Weather
Page 202 of 230
You see the following information:
Rthe date and time of the weather message
received last
Rinformation on the current weather (temper-
ature, cloud coverage) and a forecast for the
next three, six and twelve hours
Rthe current highest temperature and fore-
casts
Rthe current lowest temperature and forecasts
Rthe probability of rain
Switching to the 5-day forecast:
XTo select Current: turn and press the con-
troller.
A menu appears.
XSelect 5-Day.
The information chart displays the forecast
for the next five days in the currently selected
location.
Returning to the current-day forecast:
XTo select 5-Day: turn and press the controller.
A menu appears.
XSelect Current.
The information chart shows the forecast for
the current day again.
Deactivating
XPress %.
Displaying detailed information
Besides the current temperatures, you can dis-
play information such as wind speeds and UV
index.
XTo select Currentor5-Dayin the current-day
or 5-day forecast: turn and press the control-
ler.
A menu appears.
XSelect Info.
The information chart shows detailed infor-
mation for the selected area.
Selecting the area for the weather
forecast
Introduction
You can select the following areas:
Rthe current vehicle position
Rthe vicinity of the destination
Ra winter sports area
Ran area within the USA
You can select a location in the information
chart (option 1) or in the map (option 2). You also
have the option of selecting a location from the
memory (
Ypage 202). In order to select a loca-
tion from the memory, you must have previously
saved a location.
iThe multimedia system receives weather
data for the weather forecasts from the near-
est weather station to the selected location.
200SIRIUS Weather
SIRIUS Weather
Page 203 of 230
Option 1: selecting the area in the infor-
mation chart
XTo selectPositionin the information chart:
turn and press the controller.
XTo select the current vehicle position:
select Current Position
in the menu.
The multimedia system receives weather data
for the current vehicle position from the near-
est weather station and automatically dis-
plays the data.
Requirement for "Near destination": a route to a
destination has been calculated (
Ypage 74).
The menu item is otherwise grayed out.
XTo select the vicinity of the destination:
select Near
Destination: turn and press the
controller.
XTo select a winter sports area: selectAt
Ski Areafrom the menu: turn the controller
and press to confirm.
XSelect a state, e.g. Colorado.
XSelect a winter sports area from the menu.
The weather data and other information is
displayed for the winter sports area that has
been selected. The data is supplied by the
nearest weather station.
The information chart shows the following infor-
mation (if available):
Rski slopes/ski lifts
Rsnowboarding and nighttime opening
Rsnow conditions (e.g. snow depth)
Rtemperature
The status of a facility is indicated as follows:
Rgreen check mark - open
Rred cross - closed
Rquestion mark - not known
Example: city list with character bar
Entry limitation: searching for a location using
the character bar is not possible while driving.
XTo search for a location: selectSearch
Areas: turn the controller and press to con-
firm.
XSelect Other StatesorCurrent State(ABC).
Depending on the selection, the list of states
or cities will appear with the character bar.
You can limit the search using the character
bar.
XTo select state/province or city: enter the
first few letters by turning and pressing the
controller.
XTo switch to the list without the character bar:
slide 5the controller or select ¬.
XTo cancel an entry: highlightin the
character bar and press the controller.
Pressing briefly deletes the last letter
entered.
Pressing and holding longer deletes the entire
entry.
XTo select the state/province or city from the
list: turn and press the controller.
After selecting a state (or province) the list of
locations appears.
After selecting a location, the information
chart displays the weather forecast for the
selected location. The data is supplied by the
nearest weather station.
SIRIUS Weather201
SIRIUS Weather
Page 204 of 230
Option 2: selecting the area in the
weather map
XCall up the weather map (Ypage 202).
XMove the weather map so that the crosshair isover the desired area (Ypage 202).
XPress the controller.
The information chart shows the weather
forecast for the selected area. The data is
supplied by the nearest weather station.
Memory functions
Storing the area in the weather memory
You can save locations that are called up fre-
quently in ten preset positions (0, 1-9) in the
weather memory.
XIn the weather memory: select the area for
the weather forecast (Ypage 200).
The selected location appears at the top in the status bar.
XTo select Positionin the information chart:
turn and press the controller.
XSelect Presets.
XSelect a preset using the controller.
XPress and hold the controller until you hear a
tone.
The area is entered on the selected preset.
Equipment with telephone keypad
XTo store rapidly: in the daily forecast
(Ypage 199) press and hold a number key,
e.g. l, until the preset position number is
shown in the status bar in front of the area
name.
iYou can also use this function in the five-day
forecast (Ypage 199), and in the detailed
information view (Ypage 200).
Selecting an area from the weather
memory
XDirectly from the weather memory: select
Position
from the information chart: turn
and press the controller.
XSelect Presets.
XSelect the memory position which contains
the location you require.
The weather data for the selected area is dis-
played. Equipment with telephone keypad
XQuick select:
if a location is stored in the
weather memory, for example when the cur-
rent forecast display is active, briefly press a
number key, e.g. l.
The weather data for the selected area is dis-
played.
Weather map
Calling up the weather map
XTo select Mapin the information chart: turn
and press the controller.
The weather map is shown on a 500-mi (500-
km) scale.
Moving the weather map
XSlide 4 or1 the controller.
The weather map moves in the corresponding
direction under the crosshair.
Changing the scale
XTurn the controller.
The scale bar appears.
XTurn until the desired scale is set.
Showing/hiding the menu in the
weather map
XTo show: press the controller.
XTo hide:slide5the controller.
202SIRIUS Weather
SIRIUS Weather
Page 205 of 230
Selecting a weather station in the map
XMove the weather map and crosshair to the
desired position (Ypage 202).
XTo show the menu: press the controller.
XTo selectWeather Table: press the control-
ler.
The multimedia system receives weather data
for the selected position from the nearest
weather station and displays the data as a
current-day forecast.
Switching layers on the map on/off
You can switch on different layers, for example
to display the rain radar, weather fronts and the
course of tropical storms on the map.
XDisplay the menu on the weather map
(Ypage 202).
XTo select View: turn and press the controller.
XSelect a layer.
Switch the display on Oor off ª.
Explanation of the layers on the
weather map
RRadar Map
Displays the rain radar as a colored area in all
map scales. For an explanation of the colors,
see the legend (
Ypage 207).
RStorm Characteristics
Displays the characteristics of a storm in all
map scales:
-tornadic storm:
storm cell with strong winds (super cell),
from which a tornado can develop. Torna-
does are also known as twisters.
-cyclone:
storm cells from which a tornadic storm
can develop
-hailstorm
-the likelihood of a hailstorm
RStorm watch areas
Shows areas for which storm advisories have
been issued (red areas). These are shown in
map scales 50 mi (50 km), 200 mi (200 km)
and 500 mi (500 km).
RAtmospheric Pressure
Shows the position of high and low-pressure
areas (H, L), weather fronts and isobars It is
shown in map scales 200 mi (200 km) and
500 mi (500 km).
RTropical Storm Tracking
Shows the direction and speed of propagation
(track) of a tropical storm in all map scales
with information on times and intensity.
RWinds
Shows the wind direction and wind speed in
map scale of 5 mi (5 km).
SIRIUS Weather203
SIRIUS Weather
Page 206 of 230
Sample displays of weather data in the map
Displaying the rain radar:
XActivate theRadar Mapdisplay level (Ypage 203).
The rain radar image is then displayed if weather data is available.
iYou can call up the legend for the precipitation radar (Ypage 207).
The transparency of the radar map display level can be adjusted in 5 stages.
Displaying storm characteristics:
XActivate the Storm Characteristicsdisplay level (Ypage 203).
If weather data is available, the weather map will then display the storm characteristics.
You can call up the legend for storms (
Ypage 207).
The following information on a storm cell is displayed (if available):
Rcharacteristics of the storm cell
Rdate and time of observation (time stamp)
Rdirectional movement speed and path
Displaying weather fronts:
XActivate the Atmospheric Pressuredisplay level (Ypage 203).
If weather data is available, the weather map will then display the weather fronts.
The example shows the position of high and low-pressure areas (H, L), weather fronts and isobars.
Isobars are lines that show where the air pressure is the same.
204SIRIUS Weather
SIRIUS Weather
Page 207 of 230
Legend: weather fronts
Weather frontExplanation
Cold front
(blue line with blue trian-
gles)If a cold front moves in, the weather remains changeable and there
are often rain showers and thunderstorms. The air temperature
decreases.
Warm front
(red line with red semi-cir-
cles)A warm front may cause more prolonged steady rain, more cloud
cover and a slow rise in temperature.
Stationary front
(red and blue line with red
semi-circles and blue trian-
gles)The weather front moves minimally. The weather remains change-
able in this area.
Occlusion
(purple line with purple
semi-circles and triangles)An occlusion arises when the faster cold front catches up and joins
the warm front ahead of it. The weather remains changeable and
rainy within an occlusion.
:Position on the forecast path
;Current position of the cyclone
=Position on the previous path
Displaying storm tracking information:
XActivate the Tropical Storm Trackingdisplay level (Ypage 203).
If weather data is available, the weather map will then display storm tracking information.
A dotted line shows the previous path and the forecast path of a tropical low-pressure area
(cyclone).
SIRIUS Weather205
SIRIUS Weather
Page 208 of 230
You can have more information about cyclones in the storm areas displayed (Ypage 208).
The following information is shown (if available):
Rname of the tropical storm and category
Rtime stamp
Rdirectional movement speed and path
Rmaximum wind speed
Propagation speed: the speed at which the storm cell of a tropical cyclone is advancing.
A tropical storm is separated into different categories according to the location at which it develops.
Region of origincategory
Atlantic, North and South Pacific
OceansName of tropical low-pressure system (Tropical LowPress. Sys.)
Atlantic, North and South Pacific
OceansName of tropical storm(Tropical Storm)
Atlantic, North and South Pacific
OceansName of tropical storm(Hurricane Category 3)
Displays hurricane categories 1 through 5
Northwestern Pacific OceanName of tropical storm(Tropical Low Press. Sys.)
Northwestern Pacific OceanName of tropical storm(Tropical Cyclone)
Northwestern Pacific OceanName of tropical storm(Typhoon)
Northwestern Pacific OceanName of tropical storm(Super-Typhoon)
You can also see the time stamp for the weather data on map scales of 50 miles and smaller.
The weather map shows wind directions and wind speeds.
206SIRIUS Weather
SIRIUS Weather
Page 209 of 230
Legend (precipitation radar and storms)
XDisplay the menu on the weather map (Ypage 202).
XTo selectView: turn and press the controller.
XSelectLegend.
iThe symbol for a tornadic storm is also valid for a cyclone (mesocyclone).
Precipitation typeColor scale
Rain11 shades from light (light green) to heavy (red)
MixedLight (light violet) to heavy (violet)
SnowLight (light turquoise) to heavy (turquoise)
Time stamp
The time stamp shows when the weather data was created by the weather station.
A time stamp corresponds to the time at the vehicle's current position. The changeover from sum-
mer time to standard time is performed automatically.
XDisplay the menu on the weather map (Ypage 202).
XTo select View: turn and press the controller.
XSelectTime Stamp.
Changing to the information chart
XDisplay the menu on the weather map (Ypage 202).
XTo select Weather Table: turn and press the controller.
SIRIUS Weather207
SIRIUS Weather
Page 210 of 230

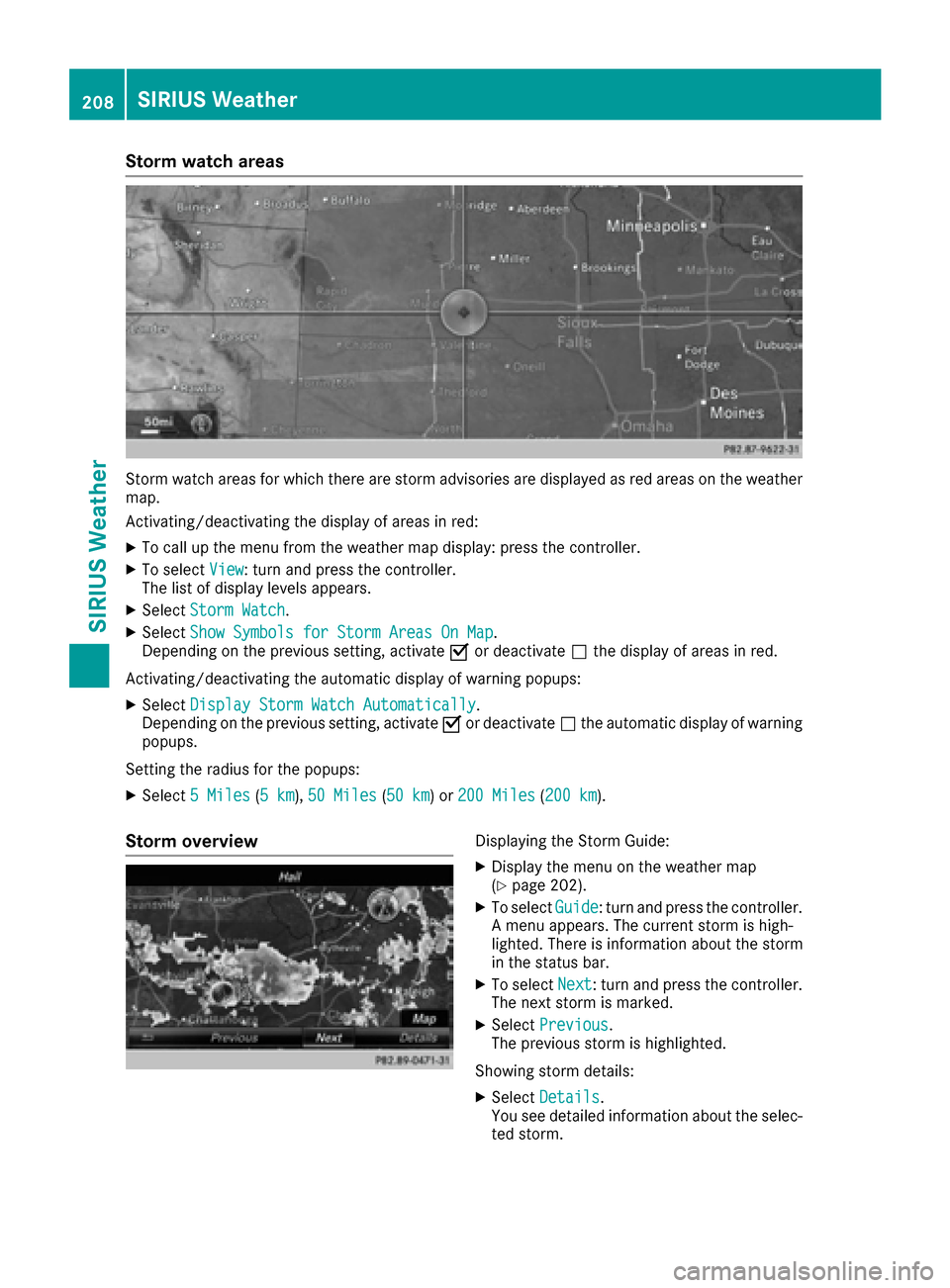

Storm watch areas
Storm watch areas for which there are storm advisories are displayed as red areas on the weather
map.
Activating/deactivating the display of areas in red:
XTo call up the menu from the weather map display: press the controller.
XTo selectView: turn and press the controller.
The list of display levels appears.
XSelect Storm Watch.
XSelectShow Symbols for Storm Areas On Map.
Depending on the previous setting, activate Oor deactivate ªthe display of areas in red.
Activating/deactivating the automatic display of warning popups:
XSelect Display Storm Watch Automatically.
Depending on the previous setting, activate Oor deactivate ªthe automatic display of warning
popups.
Setting the radius for the popups:
XSelect 5 Miles(5 km),50 Miles(50 km) or 200 Miles(200 km).
Storm overviewDisplaying the Storm Guide:
XDisplay the menu on the weather map
(Ypage 202).
XTo select Guide: turn and press the controller.
A menu appears. The current storm is high-
lighted. There is information about the storm
in the status bar.
XTo select Next: turn and press the controller.
The next storm is marked.
XSelect Previous.
The previous storm is highlighted.
Showing storm details:
XSelect Details.
You see detailed information about the selec-
ted storm.
208SIRIUS Weather
SIRIUS Weather
