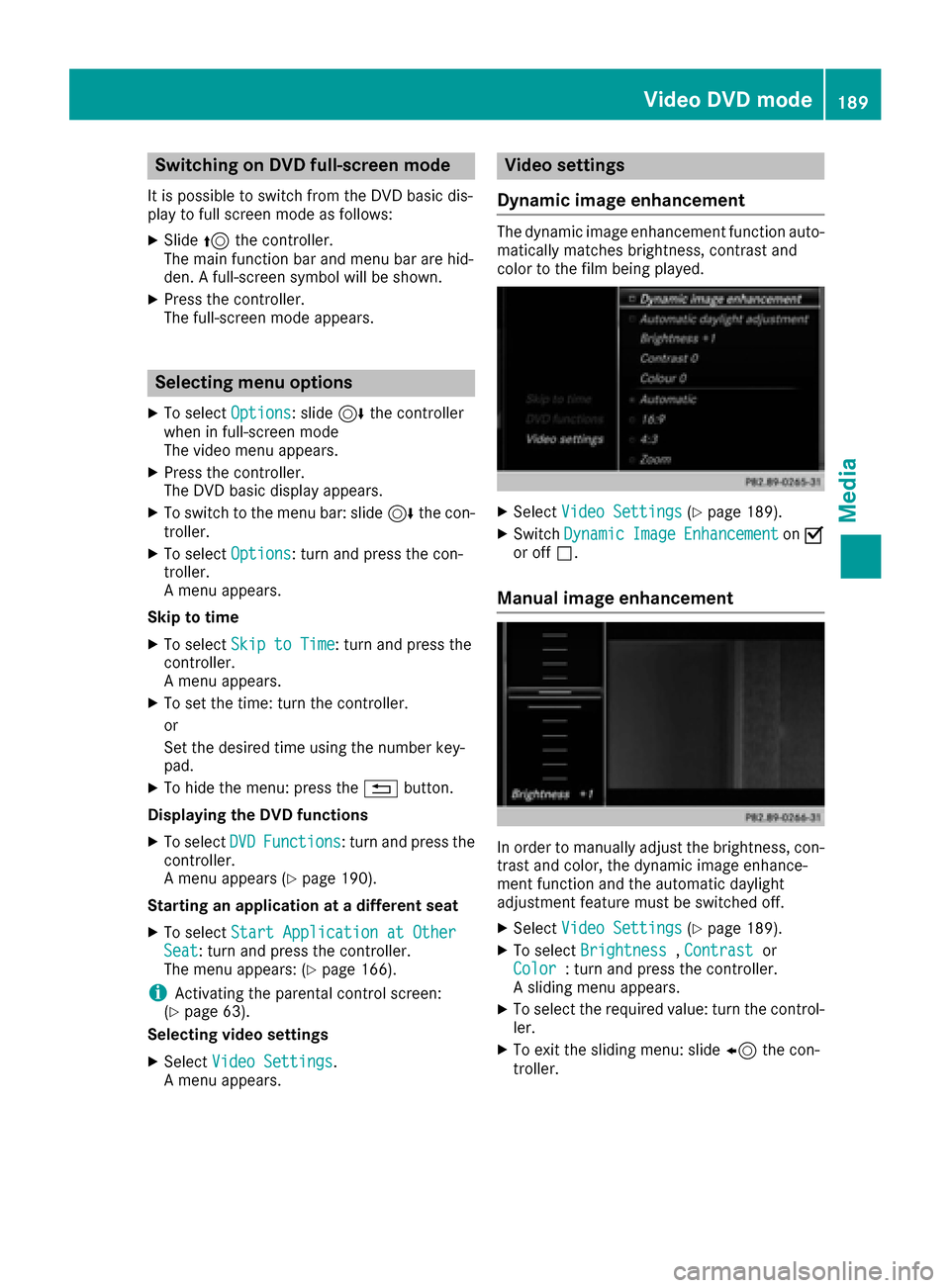

Switching on DVD full-screen mode
It is possible to switch from the DVD basic dis-
play to full screen mode as follows:
XSlide5the controller.
The main function bar and menu bar are hid-
den. A full-screen symbol will be shown.
XPress the controller.
The full-screen mode appears.
Selecting menu options
XTo select Options: slide6the controller
when in full-screen mode
The video menu appears.
XPress the controller.
The DVD basic display appears.
XTo switch to the menu bar: slide 6the con-
troller.
XTo select Options: turn and press the con-
troller.
A menu appears.
Skip to time
XTo select Skip to Time: turn and press the
controller.
A menu appears.
XTo set the time: turn the controller.
or
Set the desired time using the number key-
pad.
XTo hide the menu: press the %button.
Displaying the DVD functions
XTo select DVDFunctions: turn and press the
controller.
A menu appears (
Ypage 190).
Starting an application at a different seat
XTo select Start Application at OtherSeat: turn and press the controller.
The menu appears: (Ypage 166).
iActivating the parental control screen:
(Ypage 63).
Selecting video settings
XSelect Video Settings.
A menu appears.
Video settings
Dynamic image enhancement
The dynamic image enhancement function auto-
matically matches brightness, contrast and
color to the film being played.
XSelect Video Settings(Ypage 189).
XSwitch DynamicImageEnhancementonO
or off ª.
Manual image enhancement
In order to manually adjust the brightness, con-
trast and color, the dynamic image enhance-
ment function and the automatic daylight
adjustment feature must be switched off.
XSelect Video Settings(Ypage 189).
XTo select Brightness,Contrastor
Color: turn and press the controller.
A sliding menu appears.
XTo select the required value: turn the control-
ler.
XTo exit the sliding menu: slide 8the con-
troller.
Video DVD mode189
Media
Z
Page 192 of 230
Setting the picture format
XSelectVideo Settings(Ypage 189).
The following screen format options are availa-
ble for the DVD currently being played:
RAuto
R16:9
R4:3
RZoom
XTo set the picture format: turn and press the
controller.
The dot before the menu entry shows the
selected format.
Showing the DVD's control menu
Most DVDs have their own control menuwhich
can be operated using the controller.
Showing the DVD's control menu
XTo show DVD functions: in full screen video
mode, press the controller.
The DVD functions menu is shown.
XTo select Menufrom the DVD functions menu:
turn and press the controller.
The DVD functions menu is hidden and the
DVD's menu entries (e.g. scenes, language,
trailers) are displayed.
XTo select a menu entry: turn and press the
controller.
Operating the video menu
:Type of data medium
;Current title
=Shows the menu bars for the DVD basic dis- play
?Current scene
ATrack time Operating the video menu
XTo show the video menu: slide
6the con-
troller while the video is in full screen mode.
XTo hide the video menu: slide 5the con-
troller.
XTo select the next or previous scene: turn the controller clockwise/counter-clockwise.
XTo fast forward or rewind: slide 1the
controller and hold until the desired position
has been reached.
XTo show the menu bars for the DVD basic dis-
play: press the controller.
The video menu is hidden and the DVD basic
menu appears.
DVD functions
Showing/hiding the DVD functions
XTo show DVD functions: in full screen video
mode, press the controller.
The DVD functions menu is shown.
XTo hide DVD functions: select %from the
DVD functions.
XTo show the DVD basic display: select ò
from the DVD functions.
Overview of DVD functions
:Activates DVD control menu
;Hides DVD functions
=Shows the DVD basic display
?Confirms entry in control menu
ANavigates DVD lists
BJumps to the start of the scene
CDisplays camera perspectives
DShows subtitles
ESelects language
190Video DVD mode
Media
Page 193 of 230

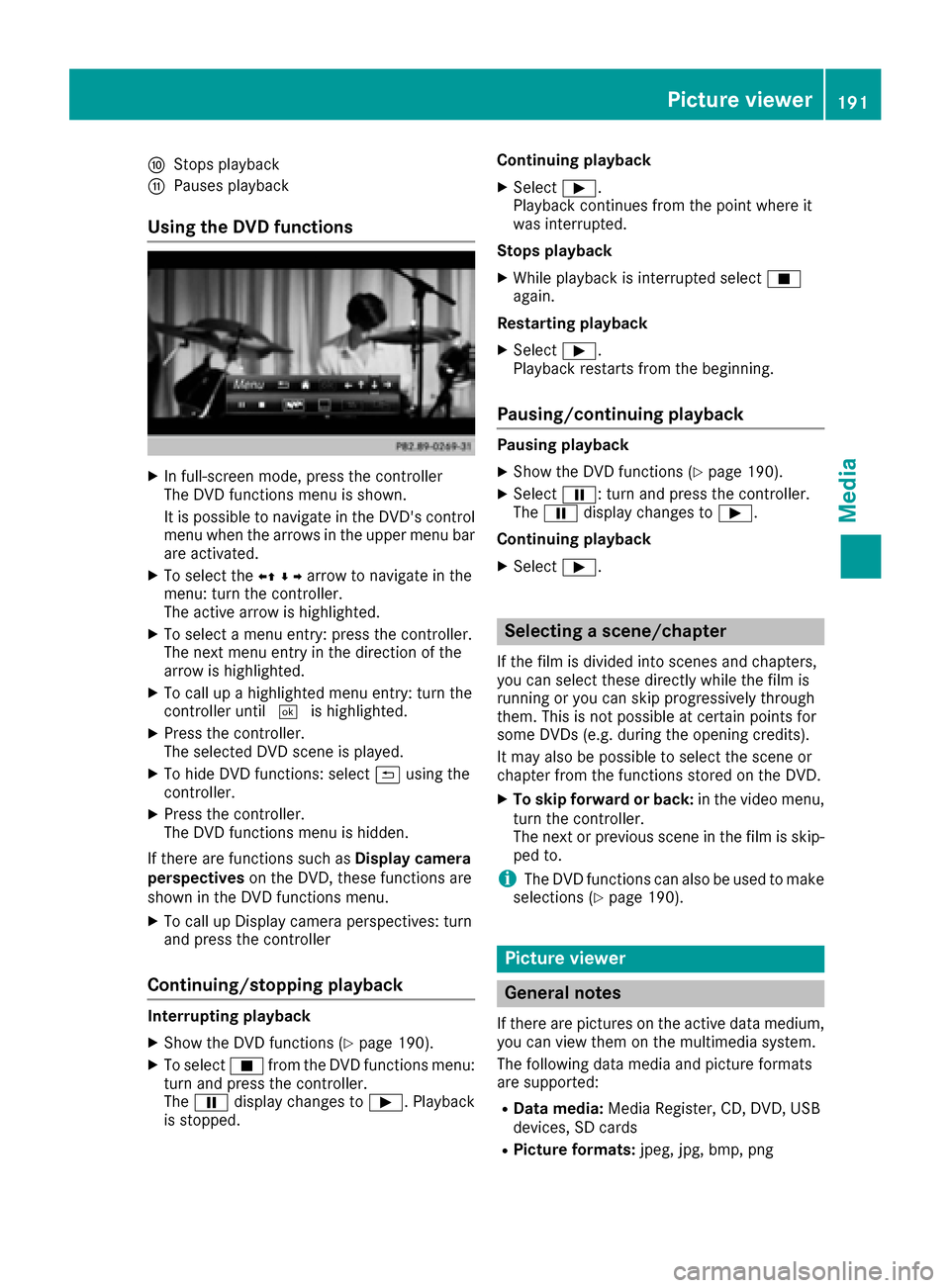

FStops playback
GPauses playback
Using the DVD functions
XIn full-screen mode, press the controller
The DVD functions menu is shown.
It is possible to navigate in the DVD's control
menu when the arrows in the upper menu bar
are activated.
XTo select theXZ¬Yarrow to navigate in the
menu: turn the controller.
The active arrow is highlighted.
XTo select a menu entry: press the controller.
The next menu entry in the direction of the
arrow is highlighted.
XTo call up a highlighted menu entry: turn the
controller until ¬is highlighted.
XPress the controller.
The selected DVD scene is played.
XTo hide DVD functions: select &using the
controller.
XPress the controller.
The DVD functions menu is hidden.
If there are functions such as Display camera
perspectives on the DVD, these functions are
shown in the DVD functions menu.
XTo call up Display camera perspectives: turn
and press the controller
Continuing/stopping playback
Interrupting playback
XShow the DVD functions (Ypage 190).
XTo select Éfrom the DVD functions menu:
turn and press the controller.
The Ë display changes to Ì. Playback
is stopped. Continuing playback
XSelect
Ì.
Playback continues from the point where it
was interrupted.
Stops playback
XWhile playback is interrupted select É
again.
Restarting playback
XSelect Ì.
Playback restarts from the beginning.
Pausing/continuing playback
Pausing playback
XShow the DVD functions (Ypage 190).
XSelect Ë: turn and press the controller.
The Ë display changes to Ì.
Continuing playback
XSelect Ì.
Selecting a scene/chapter
If the film is divided into scenes and chapters,
you can select these directly while the film is
running or you can skip progressively through
them. This is not possible at certain points for
some DVDs (e.g. during the opening credits).
It may also be possible to select the scene or
chapter from the functions stored on the DVD.
XTo skip forward or back: in the video menu,
turn the controller.
The next or previous scene in the film is skip-
ped to.
iThe DVD functions can also be used to make
selections (Ypage 190).
Picture viewer
General notes
If there are pictures on the active data medium,
you can view them on the multimedia system.
The following data media and picture formats
are supported:
RData media: Media Register, CD, DVD, USB
devices, SD cards
RPicture formats: jpeg, jpg, bmp, png
Picture viewer191
Media
Z
Page 194 of 230
The maximum image resolution is 20 megapix-
els.
It is not possible to view a picture from the driv-
er's side while the vehicle is in motion.
Displaying pictures
XIn media mode, slide6the controller.
The media menu bar is shown.
XTo select Search: turn and press the control-
ler.
The category list appears.
XTo select Photos: turn and press the control-
ler.
A directory list appears. Folders and picture
files can be shown.
XSelect a folder or picture.
If there is no picture on the data medium, an
empty list is shown.
Searching for pictures on other data media
XYou can search for pictures on other data
media.
In the directory list, slide 8the controller.
The device list appears.
XTo select a data medium with picture files:
turn the controller and press to confirm.
A directory list appears. Folders and picture
files can be shown.
XSelect a folder or picture.
Starting a slide show
XWhile viewing a picture, press the controller.
The image menu appears.
XTo select Start Slideshow: turn and press
the controller.
The slide show starts.
XTo end the slide show: press the controller.
The image menu appears.
XSelect End Slide Show.
Changing the picture view
XPress the controller.
The image menu appears.
XTo select Turn Clockwise: turn and press
the controller.
The picture rotates 90 degrees.
XSelect Turn Counterclockwise.
The picture rotates 90 degrees.
XSelect Zoom In.
The size of the picture increases.
After you have zoomed into the picture, you
can move the section of the picture.
XTo move the section of the picture: slide 4
and 1 the controller.
XTo revert to the original size: press the con-
troller
or
XPress the %button.
Closing the picture viewer
XPress the controller.
The menu appears.
XTo select Close Picture Viewer: turn and
press the controller.
The multimedia system returns to the last
accessed media function.
192Picture viewer
Media
Page 195 of 230

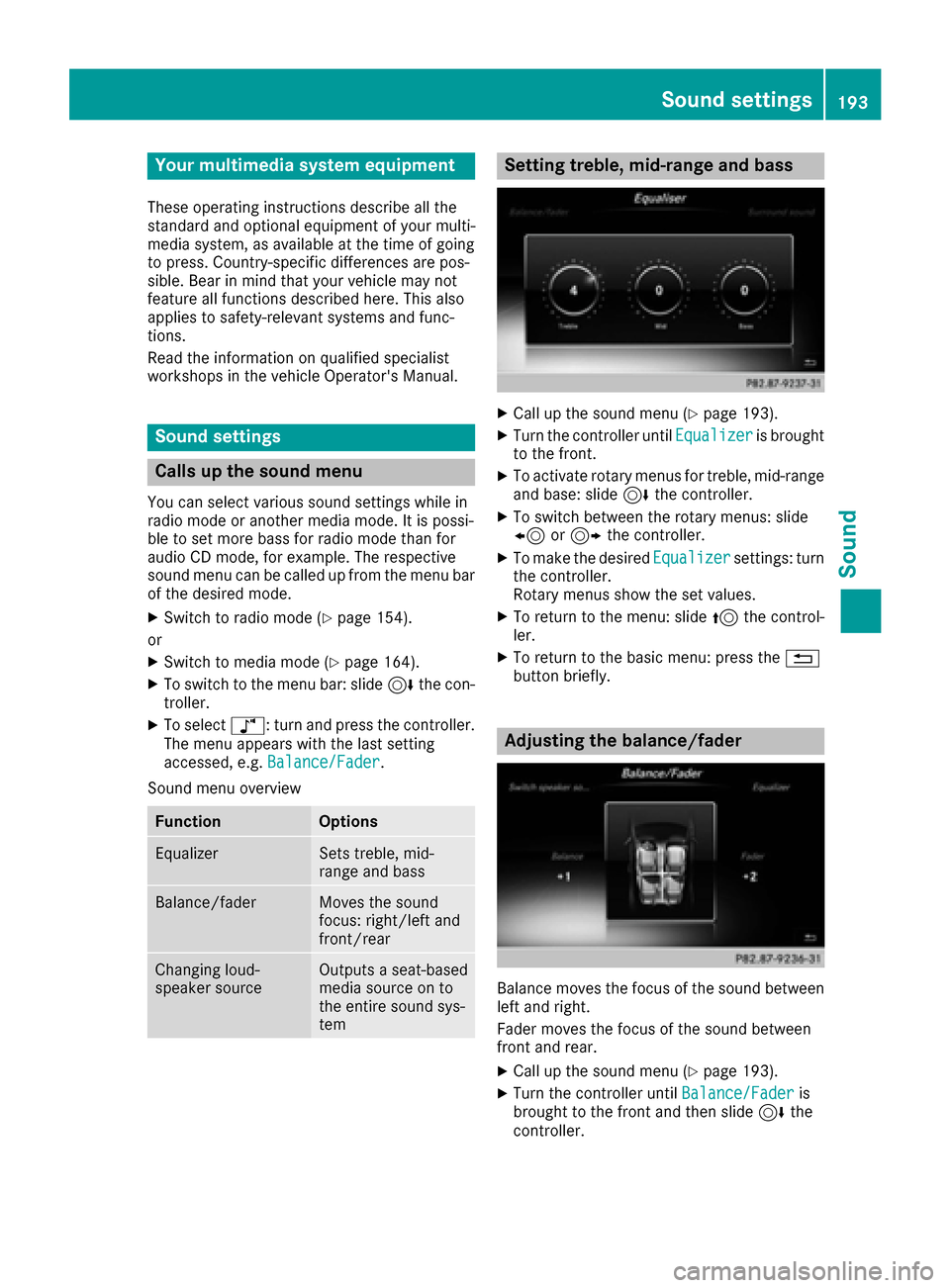

Your multimediasystem equipment
These operating instructions describe all the
standard and optional equipment of your multi-
media system, as available at the time of going
to press. Country-specifi cdifferences are pos-
sible. Bear in mind that your vehicle may not
feature all functions described here. This also
applies to safety-relevant systems andfunc-
tions.
Read the information on qualified specialist
workshop s in the vehicle Operator's Manual.
Sound settings
Calls up th e sound menu
You can select various sound setting s while in
radio mode or another media mode. It is possi-
ble to set more bass fo r radio mode than for
audio CD mode, for example. The respective
sound men u can be called up from the menu bar
of the desired mode.
XSwitch to radio mode (Ypage 154).
or
XSwitch to media mode (Ypage 164).
XTo switch to th e menu bar: slide 6thecon-
troller.
XTo select à:turn an dpress th econtroller.
The menu appears with thelast setting
accessed, e.g. Balance/Fade r
.
Sound men u overview
FunctionOptions
EqualizerSets treble, mid-
range and bass
Balance/faderMoves thesound
focus : right/left and
front/rear
Changing loud-
speaker sourceOutputsaseat-based
media source on to
th eentire sound sys-
te m
Setting treble, mid-range and bass
XCall up the sound menu(Ypage 193).
XTurnthe controller until Equalizeris brought
to th efront.
XTo activate rotary menus fo r treble, mid-range
and base: slide 6thecontroller.
XTo switch between the rotary menus: slide
8 or9 thecontroller.
XTo make the desired Equalize rsettings: turn
th econtroller.
Rotary menus show the set values.
XTo return to th e menu: slide5thecontrol-
ler.
XTo return to th e basicmenu: press th e%
button briefly.
Adjusting th e balance/fader
Balance moves th efocus of th e sound between
left and right.
Fader moves th efocus of th e sound between
fron t and rear.
XCall up the sound menu(Ypage 193).
XTurnthe controller until Balance/Faderis
brought to th efront and then slide 6the
controller.
Sound settings193
Sound
Page 196 of 230

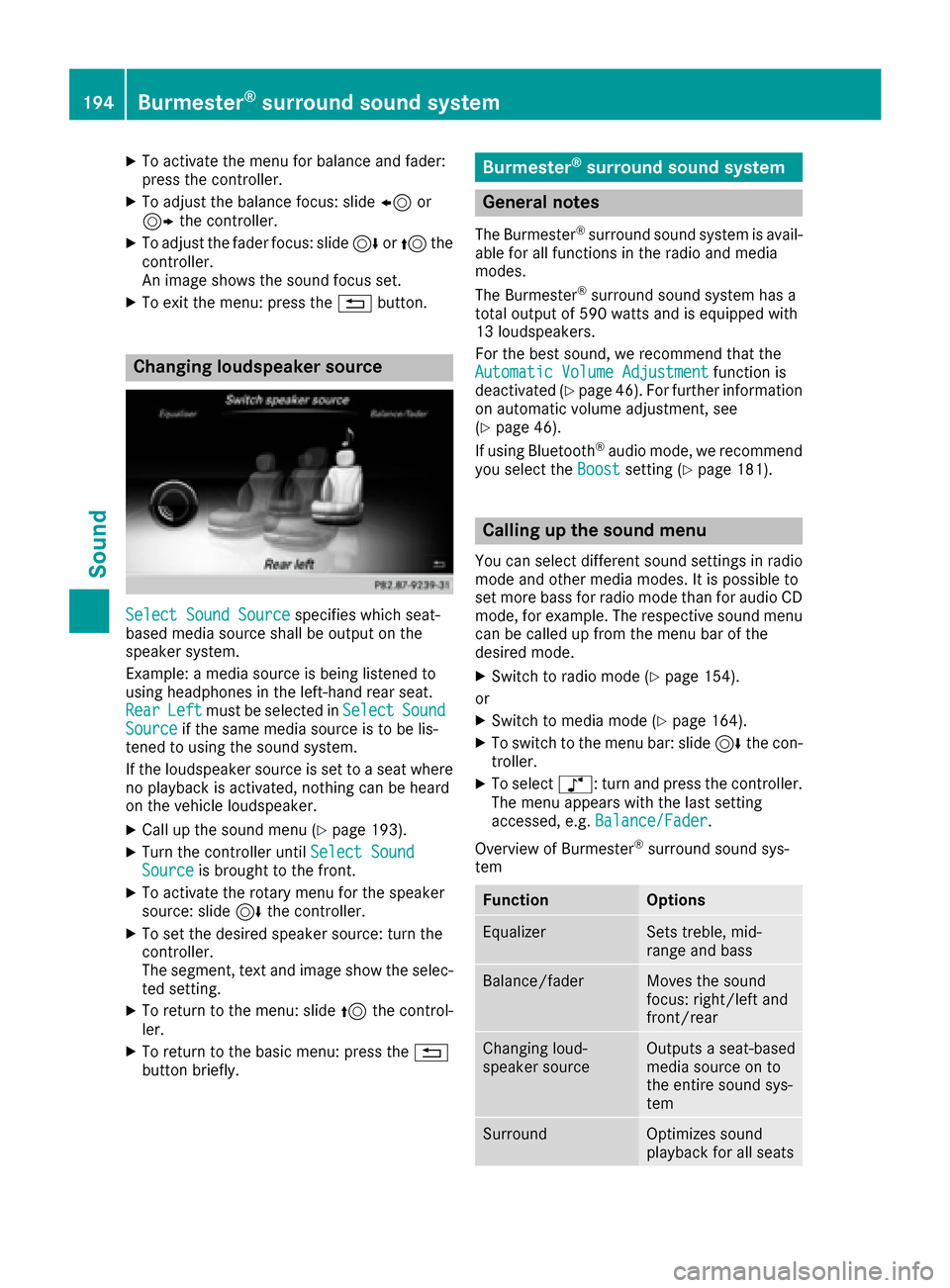

XTo activate the menu for balance and fader:
press the controller.
XTo adjust the balance focus: slide8or
9 the controller.
XTo adjust the fader focus: slide 6or5 the
controller.
An image shows the sound focus set.
XTo exit the menu: press the %button.
Changing loudspeaker source
Select Sound Sourcespecifies which seat-
based media source shall be output on the
speaker system.
Example: a media source is being listened to
using headphones in the left-hand rear seat.
Rear
Leftmust be selected in SelectSoundSourceif the same media source is to be lis-
tened to using the sound system.
If the loudspeaker source is set to a seat where
no playback is activated, nothing can be heard
on the vehicle loudspeaker.
XCall up the sound menu (Ypage 193).
XTurn the controller until Select SoundSourceis brought to the front.
XTo activate the rotary menu for the speaker
source: slide6the controller.
XTo set the desired speaker source: turn the
controller.
The segment, text and image show the selec-
ted setting.
XTo return to the menu: slide 5the control-
ler.
XTo return to the basic menu: press the %
button briefly.
Burmester®surround sound system
General notes
The Burmester®surround sound system is avail-
able for all functions in the radio and media
modes.
The Burmester
®surround sound system has a
total output of 590 watts and is equipped with
13 loudspeakers.
For the best sound, we recommend that the
Automatic Volume Adjustment
function is
deactivated (Ypage 46). For further information
on automatic volume adjustment, see
(
Ypage 46).
If using Bluetooth®audio mode, we recommend
you select the Boostsetting (Ypage 181).
Calling up the sound menu
You can select different sound settings in radio
mode and other media modes. It is possible to
set more bass for radio mode than for audio CD
mode, for example. The respective sound menu
can be called up from the menu bar of the
desired mode.
XSwitch to radio mode (Ypage 154).
or
XSwitch to media mode (Ypage 164).
XTo switch to the menu bar: slide 6the con-
troller.
XTo select à: turn and press the controller.
The menu appears with the last setting
accessed, e.g. Balance/Fader
.
Overview of Burmester
®surround sound sys-
tem
FunctionOptions
EqualizerSets treble, mid-
range and bass
Balance/faderMoves the sound
focus: right/left and
front/rear
Changing loud-
speaker sourceOutputs a seat-based
media source on to
the entire sound sys-
tem
SurroundOptimizes sound
playback for all seats
194Burmester®surround sound system
Sound
Page 197 of 230
Setting treble, mid-range and bass
XCall up the sound menu (Ypage 194).
XTurn the controller untilEqualizeris in the
center.
XSlide 6the controller.
The rotary menus for treble, mid-range and
bass are activated.
XTo switch between the rotary menus: slide
8 or9 the controller.
XTo make the desired Equalizersettings: turn
the controller.
The rotary menus show the set values.
XTo return to the menu: slide 5the control-
ler.
XTo return to the basic menu: press the %
button briefly.
Adjusting the balance/fader
Balance moves the focus of the sound between
left and right.
Fader moves the focus of the sound between
front and rear.
XCall up the sound menu (Ypage 194).
XTurn the controller until Balance/Faderis
brought to the front and then slide 6the
controller.
XTo activate the menu for balance and fader:
press the controller.
XTo adjust the balance focus: slide 8or
9 the controller.
XTo adjust the fader focus: slide 6or5 the
controller.
An image shows the sound focus set.
XTo exit the menu: press the %button.
Changing loudspeaker source
Select Sound Sourcespecifies which seat-
based media source shall be output on the
speaker system.
Example: a media source is being listened to
using headphones in Rear Right
.Rear Rightmust be selected in Select Sound Sourceif
the same media source is to be listened to using
the sound system.
XCall up the sound menu (Ypage 194).
XTurn the controller until Select SoundSourceis in the center.
XActivate the rotary menus for the SelectSound Source. Slide6the controller.
XTo set the desired speaker source: turn the
controller.
The segment, text and image show the selec-
ted setting.
XTo return to the menu: slide 5the control-
ler.
XTo return to the basic menu: press the %
button briefly.
Burmester®surround sound system195
Sound
Page 198 of 230

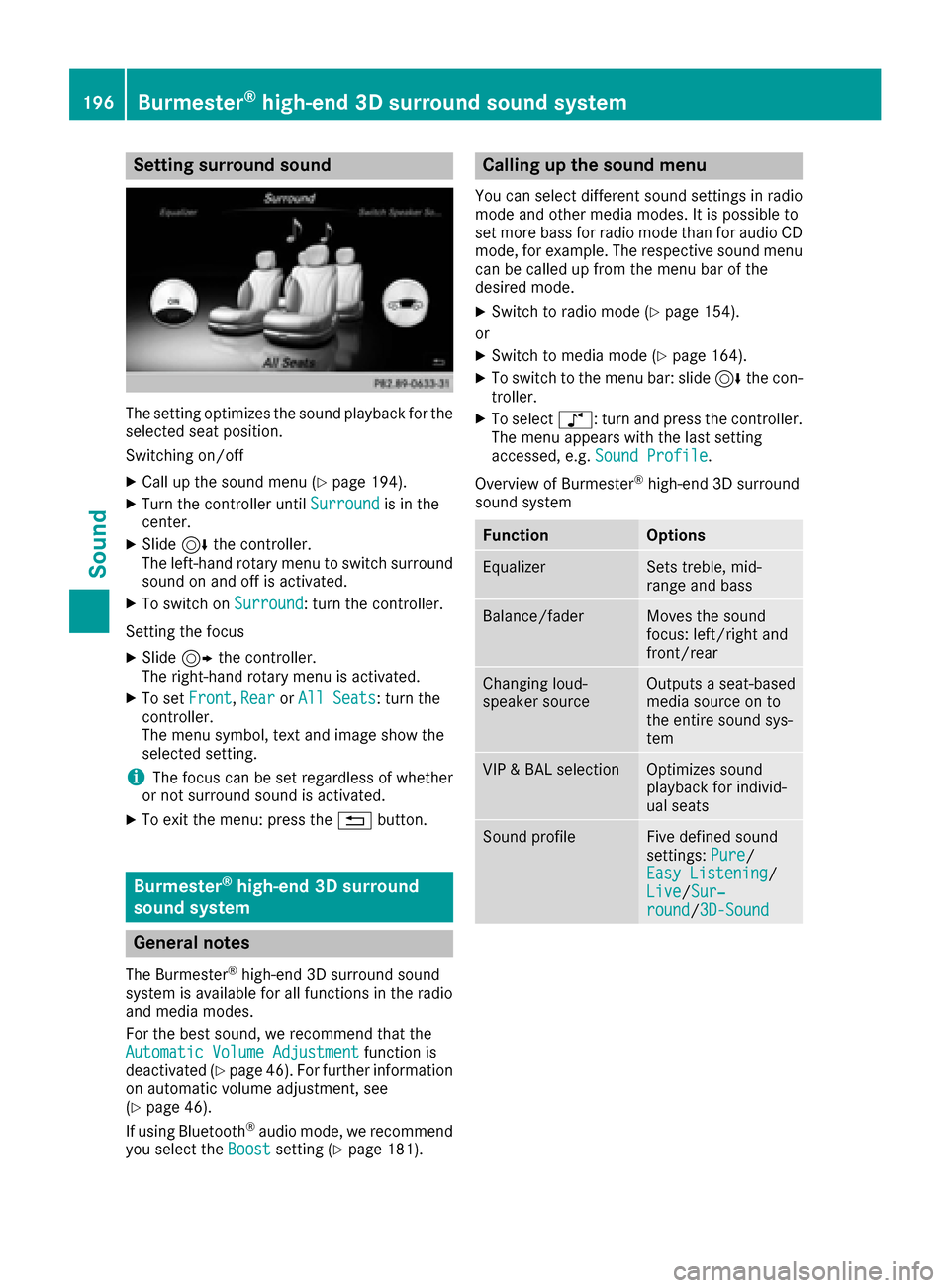

Setting surround sound
The setting optimizes the sound playback for the
selected seat position.
Switching on/off
XCall up the sound menu (Ypage 194).
XTurn the controller untilSurroundis in the
center.
XSlide 6the controller.
The left-hand rotary menu to switch surround
sound on and off is activated.
XTo switch on Surround: turn the controller.
Setting the focus
XSlide 9the controller.
The right-hand rotary menu is activated.
XTo set Front,Rearor All Seats: turn the
controller.
The menu symbol, text and image show the
selected setting.
iThe focus can be set regardless of whether
or not surround sound is activated.
XTo exit the menu: press the %button.
Burmester®high-end 3D surround
sound system
General notes
The Burmester®high-end 3D surround sound
system is available for all functions in the radio
and media modes.
For the best sound, we recommend that the
Automatic Volume Adjustment
function is
deactivated (Ypage 46). For further information
on automatic volume adjustment, see
(
Ypage 46).
If using Bluetooth®audio mode, we recommend
you select the Boostsetting (Ypage 181).
Calling up the sound menu
You can select different sound settings in radio
mode and other media modes. It is possible to
set more bass for radio mode than for audio CD
mode, for example. The respective sound menu
can be called up from the menu bar of the
desired mode.
XSwitch to radio mode (Ypage 154).
or
XSwitch to media mode (Ypage 164).
XTo switch to the menu bar: slide 6the con-
troller.
XTo select à: turn and press the controller.
The menu appears with the last setting
accessed, e.g. Sound Profile
.
Overview of Burmester
®high-end 3D surround
sound system
FunctionOptions
EqualizerSets treble, mid-
range and bass
Balance/faderMoves the sound
focus: left/right and
front/rear
Changing loud-
speaker sourceOutputs a seat-based
media source on to
the entire sound sys-
tem
VIP & BAL selectionOptimizes sound
playback for individ-
ual seats
Sound profileFive defined sound
settings: Pure/
Easy Listening/
Live/Sur‐round/3D-Sound
196Burmester®high-end 3D surround sound system
Sound
Page 199 of 230

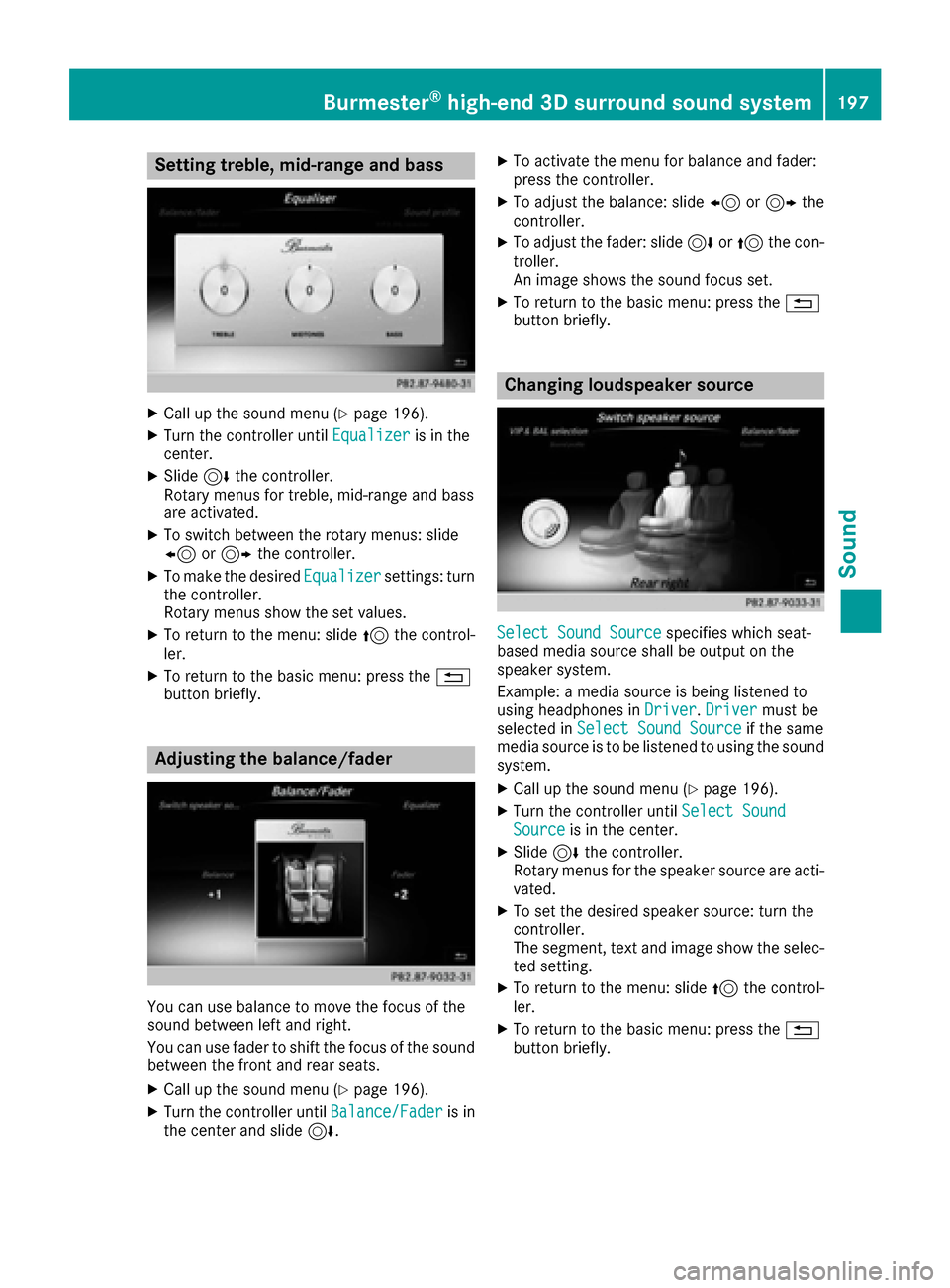

Setting treble, mid-range and bass
XCall up the sound menu (Ypage 196).
XTurn the controller untilEqualizeris in the
center.
XSlide 6the controller.
Rotary menus for treble, mid-range and bass
are activated.
XTo switch between the rotary menus: slide
8 or9 the controller.
XTo make the desired Equalizersettings: turn
the controller.
Rotary menus show the set values.
XTo return to the menu: slide 5the control-
ler.
XTo return to the basic menu: press the %
button briefly.
Adjusting the balance/fader
You can use balance to move the focus of the
sound between left and right.
You can use fader to shift the focus of the sound
between the front and rear seats.
XCall up the sound menu (Ypage 196).
XTurn the controller until Balance/Faderis in
the center and slide 6.
XTo activate the menu for balance and fader:
press the controller.
XTo adjust the balance: slide 8or9 the
controller.
XTo adjust the fader: slide 6or5 the con-
troller.
An image shows the sound focus set.
XTo return to the basic menu: press the %
button briefly.
Changing loudspeaker source
Select Sound Sourcespecifies which seat-
based media source shall be output on the
speaker system.
Example: a media source is being listened to
using headphones in Driver
.Drivermust be
selected in Select Sound Sourceif the same
media source is to be listened to using the sound
system.
XCall up the sound menu (Ypage 196).
XTurn the controller until Select SoundSourceis in the center.
XSlide6the controller.
Rotary menus for the speaker source are acti-
vated.
XTo set the desired speaker source: turn the
controller.
The segment, text and image show the selec-
ted setting.
XTo return to the menu: slide 5the control-
ler.
XTo return to the basic menu: press the %
button briefly.
Burmester®high-end 3D surround sound system197
Sound
Page 200 of 230

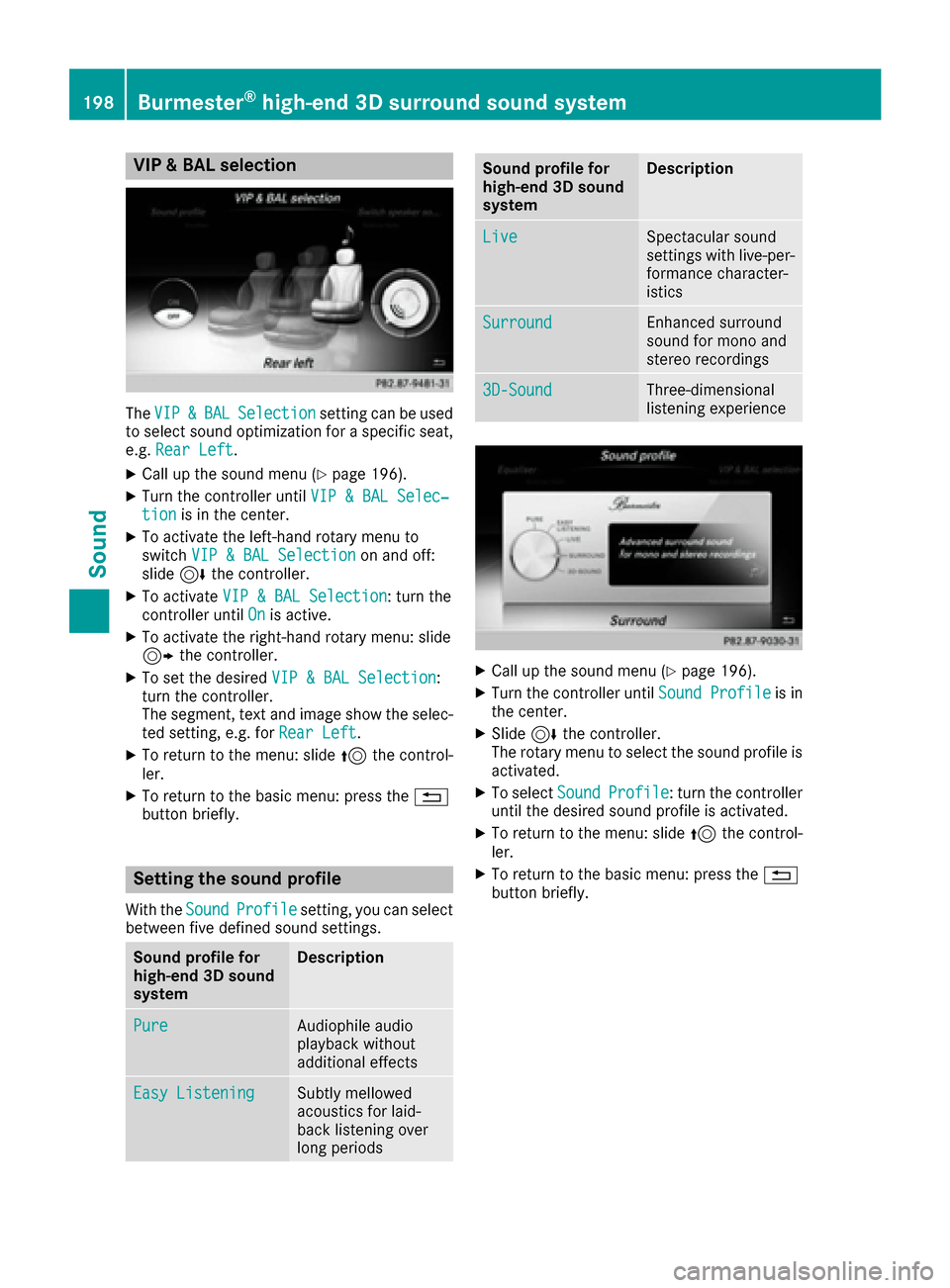

VIP & BAL selection
TheVIP&BALSelectionsetting can be used
to select sound optimization for a specific seat,
e.g. Rear Left
.
XCall up the sound menu (Ypage 196).
XTurn the controller until VIP & BAL Selec‐tionis in the center.
XTo activate the left-hand rotary menu to
switchVIP & BAL Selectionon and off:
slide 6the controller.
XTo activate VIP & BAL Selection: turn the
controller until Onis active.
XTo activate the right-hand rotary menu: slide
9the controller.
XTo set the desired VIP & BAL Selection:
turn the controller.
The segment, text and image show the selec-
ted setting, e.g. for Rear Left
.
XTo return to the menu: slide 5the control-
ler.
XTo return to the basic menu: press the %
button briefly.
Setting the sound profile
With the SoundProfilesetting, you can select
between five defined sound settings.
Sound profile for
high-end 3D sound
systemDescription
PureAudiophile audio
playback without
additional effects
Easy ListeningSubtly mellowed
acoustics for laid-
back listening over
long periods
Sound profile for
high-end 3D sound
systemDescription
LiveSpectacular sound
settings with live-per-
formance character-
istics
SurroundEnhanced surround
sound for mono and
stereo recordings
3D-SoundThree-dimensional
listening experience
XCall up the sound menu (Ypage 196).
XTurn the controller until Sound Profileis in
the center.
XSlide 6the controller.
The rotary menu to select the sound profile is
activated.
XTo select SoundProfile: turn the controller
until the desired sound profile is activated.
XTo return to the menu: slide 5the control-
ler.
XTo return to the basic menu: press the %
button briefly.
198Burmester®high-end 3D surround sound system
Sound
