160 Controls in detailControl systemConvenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:Setting key-dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel, the mirrors, and the automatic cli-
mate control should be stored separately
for each SmartKey (
page 121).

Move the selection marker with
theæ orç button to
the
CONVENIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Pressæ orç to set key-depen-
dency to
ON or
OFF
. Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you:


remove the SmartKey from the starter
switch or the KEYLESS-GO start/stop
button*


open the driver’s door
However, the engine must be turned off.
Function
Page
Setting key-dependency
160
Activating easy-entry/exit fea-
ture
160
Setting parking position for exte-
rior rear view mirror
162
Setting fold-in function for exteri-
or rear view mirrors
162
Adjusting the drive-dynamic seat
(driver’s side)
163
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry / exit feature is in operation
and the driver’s door is being opened or the
SmartKey is removed from the starter
switch.

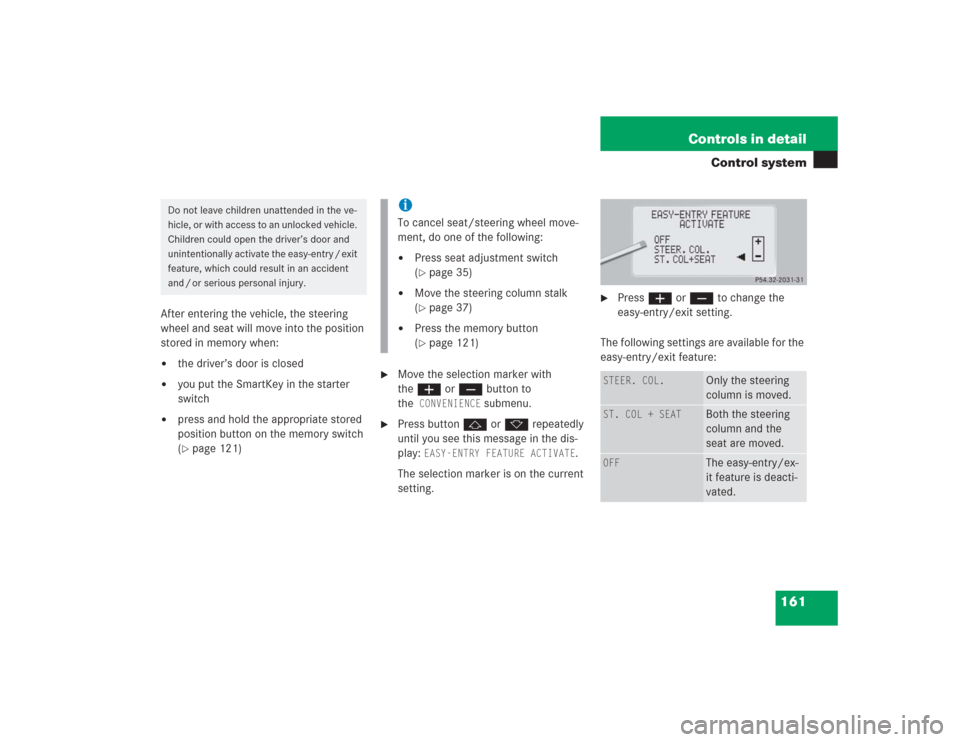

161 Controls in detail
Control system
After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when:

the driver’s door is closed


you put the SmartKey in the starter
switch


press and hold the appropriate stored
position button on the memory switch
(page 121)

Move the selection marker with
theæ orç button to
the
CONVENIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.
The selection marker is on the current
setting.

Pressæ orç to change the
easy-entry/exit setting.
The following settings are available for the
easy-entry/exit feature:
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry / exit
feature, which could result in an accident
and / or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press seat adjustment switch
(page 35)


Move the steering column stalk
(page 37)


Press the memory button
(page 121)
STEER. COL.
Only the steering
column is moved.
ST. COL + SEAT
Both the steering
column and the
seat are moved.
OFF
The easy-entry/ex-
it feature is deacti-
vated.

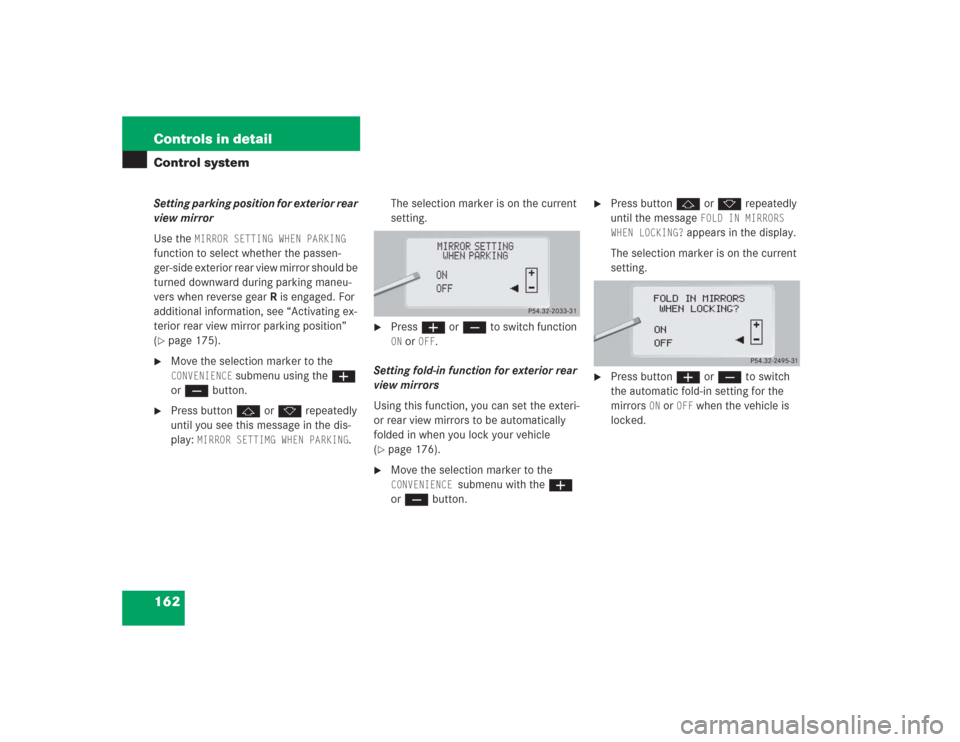

162 Controls in detailControl systemSetting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers when reverse gearR is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position”
(
page 175).

Move the selection marker to the CONVENIENCE
submenu using theæ
orç button.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
MIRROR SETTIMG WHEN PARKING
.The selection marker is on the current
setting.

Pressæ orç to switch function ON or
OFF
.
Setting fold-in function for exterior rear
view mirrors
Using this function, you can set the exteri-
or rear view mirrors to be automatically
folded in when you lock your vehicle
(
page 176).

Move the selection marker to the CONVENIENCE
submenu with the æ
or ç button.

Press buttonj or k repeatedly
until the message
FOLD IN MIRRORS
WHEN LOCKING?
appears in the display.
The selection marker is on the current
setting.

Press buttonæ or ç to switch
the automatic fold-in setting for the
mirrors
ON or
OFF
when the vehicle is
locked.

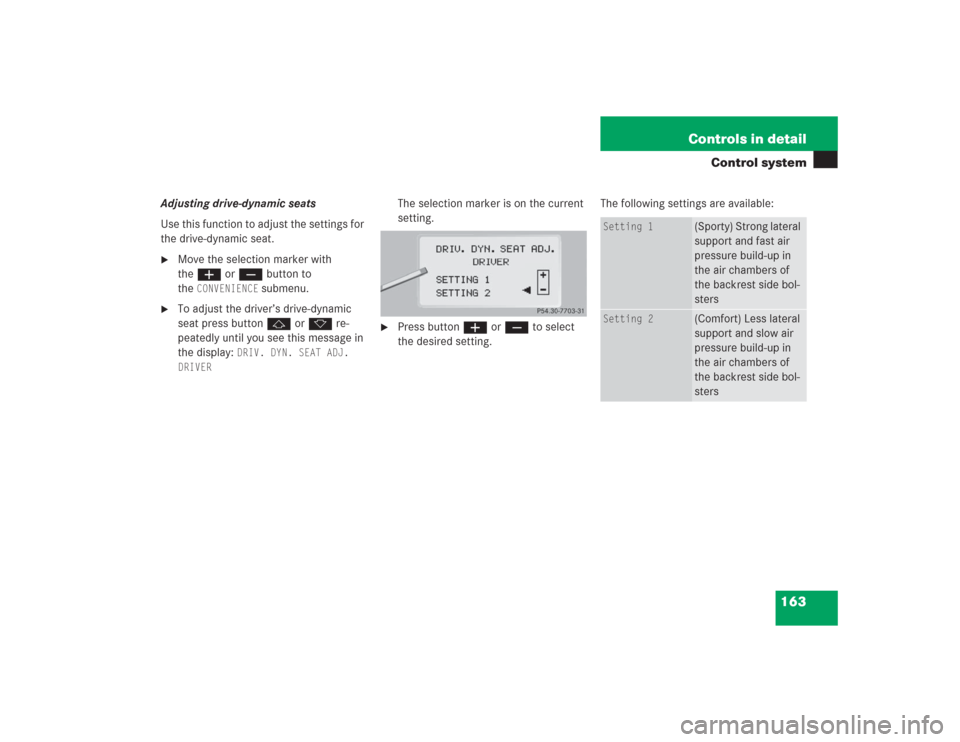

163 Controls in detail
Control system
Adjusting drive-dynamic seats
Use this function to adjust the settings for
the drive-dynamic seat.
Move the selection marker with
theæ orç button to
the
CONVENIENCE
submenu.

To adjust the driver’s drive-dynamic
seat press buttonj ork re-
peatedly until you see this message in
the display:
DRIV. DYN. SEAT ADJ.
DRIVER
The selection marker is on the current
setting.

Press buttonæ orç to select
the desired setting. The following settings are available:
Setting 1
(Sporty) Strong lateral
support and fast air
pressure build-up in
the air chambers of
the backrest side bol-
sters
Setting 2
(Comfort) Less lateral
support and slow air
pressure build-up in
the air chambers of
the backrest side bol-
sters

164 Controls in detailAutomatic transmission
Automatic transmissionFor more information on driving with an au-
tomatic transmission, see the “Getting
started” section (
page 43).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current op-
erating and driving conditions.
If the operating conditions change, the au-
tomatic transmission reacts by adjusting
its gear shift program.The automatic transmission selects indi-
vidual gears automatically, depending on:


the gear selector lever positionD with
gear ranges (
page 166)


the selected shift program (C/S)
(page 170)
or
(C/S/M) (S 55 AMG only)
(page 171)


the position of the accelerator pedal
(page 170)


the vehicle speed
The current gear selector lever position
and shift program (
C/S) or (
C/S/M) appear
in the tachometer display (
page 22).When the gear selector lever is in
positionD, you can influence transmission
shifting by:


limiting the gear range


changing gears manually
iDuring the brief warm-up, transmission
upshifting is delayed. This allows the
catalytic converter to heat up more
quickly to operating temperature.
Warning!
G
It is dangerous to shift the gear selector
lever out of P or N if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.

165 Controls in detail
Automatic transmission
One-touch gearshifting
Even with an automatic transmission you
can change the gears manually when the
gear selector lever is in positionD.
Downshifting
Briefly press the gear selector lever to
the left in the D-direction.
The transmission will shift from the current
gear to the next lower gear. This action
simultaneously limits the gear range of the
transmission (
page 166).Upshifting

Briefly press the gear selector lever to
the right in the D+direction.
The transmission will shift from the current
gear to the next higher gear as permitted
by the shift program. This action simulta-
neously extends the gear range of the
transmission.Canceling gear range limit

Press and hold the gear selector lever
in the D+ direction until
D reappears in
the tachometer display field.
The transmission will shift from the current
gear range directly to gear rangeD.
Shifting into optimal gear range

Press and hold the gear selector lever
in the D-direction.
The transmission will automatically select
the gear range suited for optimal accelera-
tion and deceleration. This will involve
shifting down one or more gears.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.
iTo avoid overrevving the engine when
the gear selector lever is moved to the
D-direction, the transmission will not
shift to a lower gear if the engine's
max. speed would be exceeded.

166 Controls in detailAutomatic transmissionGear ranges
With the gear selector lever in positionD,
you can limit the transmission’s gear range
by pressing the gear selector lever to the
left (D-), and reverse the gear range limit
by pressing the gear selector lever to the
right (D+).
The selected gear range will appear in the
tachometer display. If you press on the ac-
celerator when the engine has reached its
rpm limit, the transmission will upshift be-
yond any gear range limit selected.
Effect
ï
The transmission shifts through
sixth gear only (applies only to
vehicles with 7-speed automatic
transmission).
î
The transmission shifts through
fifth gear only (applies only to ve-
hicles with 7-speed automatic
transmission).
é
The transmission shifts through
fourth gear only.
è
The transmission shifts through
third gear only.
With this selection you can use
the braking effect of the engine.
Effect
ç
The transmission shifts through
second gear only.
Allows the use of engine’s brak-
ing power when driving

on steep downgrades


in mountainous regions


under extreme operating con-
ditions
æ
The transmission operates in
first gear only.
For maximum use of engine’s
braking effect on very steep or
lengthy downgrades.

167 Controls in detail
Automatic transmission
Gear selector lever position
Effect
ì
Park position
Gear selector lever position when
the vehicle is parked. Place gear
selector lever in positionP only
when vehicle is stopped. The
park position is not intended to
serve as a brake when the vehicle
is parked. Rather, the driver
should always set the parking
brake in addition to placing the
gear selector lever in positionP
to secure the vehicle.
EffectThe SmartKey can only be re-
moved from the starter switch
with the gear selector lever in
positionP. With the SmartKey
removed the gear selector lever is
locked in positionP.
í
Reverse gear
Place gear selector lever in
positionR only when vehicle is
stopped.
Effect
ë
Neutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the vehi-
cle can be moved freely
(pushed or towed).
To avoid damage to the transmis-
sion, never engageN while driv-
ing.
If the ESP is deactivated or mal-
functioning:
Move gear selector lever toN
only if the vehicle is in danger of
skidding, e.g. on icy roads.
ê
Drive
The transmission shifts
automatically. All forward gears
are available.

168 Controls in detailAutomatic transmission
Steering wheel gearshift control (Speedshift) S 55 AMG
You can change the gears manually on the
steering wheel or by using the gear
selector lever (
page 165).
Allow engine to warm up under low load
use. Do not place full load on the engine
until the operating temperature has been
reached. Shift into reverse gear only when
the vehicle is stopped.
!Coasting the vehicle, or driving for any
other reason with gear selector lever
inN can result in transmission damage
that is not covered by the
Mercedes-Benz Limited Warranty.Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, positionP alone is not in-
tended to or capable of preventing your ve-
hicle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 45).
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Children could move the
gear selector lever from positionP, which
could result in an accident and/or serious
personal injury.
!Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.

169 Controls in detail
Automatic transmission
The steering wheel gearshift buttons are
located to the left and right of the steering
wheel.
1Left button: downshift
2Right button: upshiftDownshifting

Press button1 on the left side of the
steering wheel.
The gear range is limited when you are not
driving in the manual program mode
(
page 166).
When driving in the manual program mode
(page 171), the transmission will shift
from the current gear to the next lower
gear (
page 172).Upshifting

Press button2 on the right side of the
steering wheel.
The gear range is extended when you are
not driving in the manual program mode
(
page 166).
When driving in the manual program mode
(page 171), the transmission will shift
from the current gear to the next higher
gear (
page 172).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.iYou cannot shift with the steering
wheel gearshift buttons when the gear
selector lever is in positionP,N orR.
iYou cannot shift with the steering
wheel gearshift buttons when the gear
selector lever is in positionP,N orR.
