190 Controls in detailAutomatic climate control
Deactivating the climate control sys-tem
Deactivating
It is possible to completely deactivate the
automatic climate control system.
Press button M (
page 182).
The display shows “0”.
Reactivating
There are several ways to reactivate the
automatic climate control system:

Press one of the following buttons,
M, P, U, a temperature con-
trol switch (
page 182) or air volume
switch 9 on the automatic climate
control panel.
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.
Press button± (
page 182).
The indicator lamp on the button±
comes on.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.

191 Controls in detail
Automatic climate control
Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.
Press± again (
page 182).
The indicator lamp on the ± button
goes out.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the SmartKey in the starter switch
to position1 or 0, or remove it from the
starter switch.

Press buttonT (
page 182).
The indicator lamp on buttonT
comes on.Deactivating

Press buttonT (
page 182).
The indicator lamp on buttonT
goes out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
!If the± button on the automatic cli-
mate control panel starts to flash, this
indicates that the air conditioning is
losing refrigerant. The compressor has
turned itself off. The air conditioning
cannot be turned on again.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting 1 regardless of the air distribu-
tion control setting.

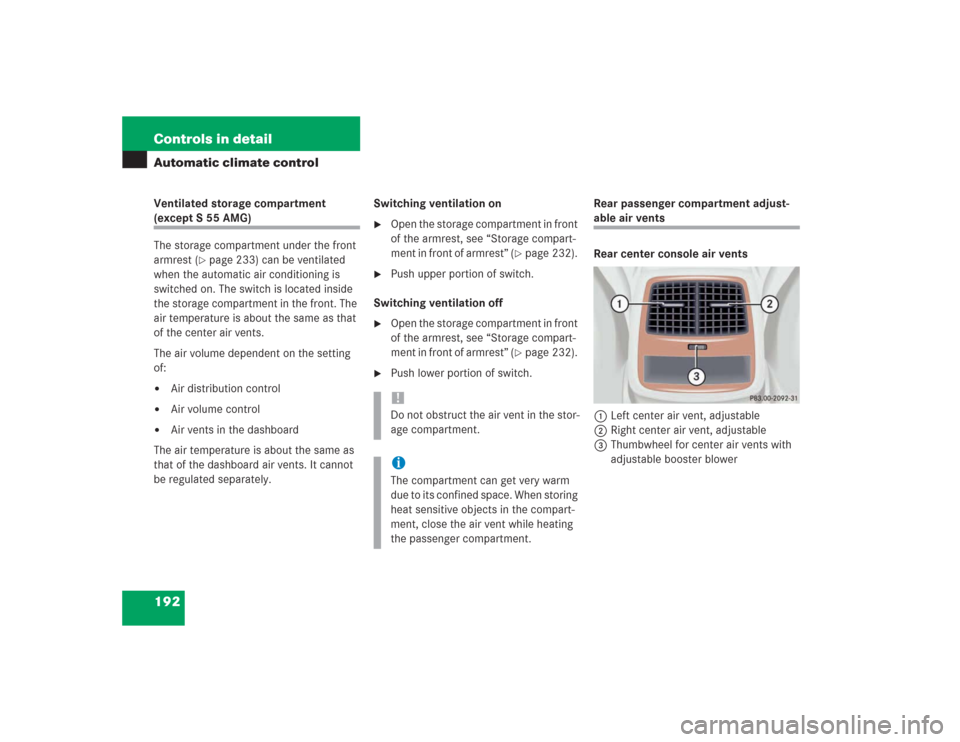

192 Controls in detailAutomatic climate controlVentilated storage compartment (except S 55 AMG)
The storage compartment under the front
armrest (
page 233) can be ventilated
when the automatic air conditioning is
switched on. The switch is located inside
the storage compartment in the front. The
air temperature is about the same as that
of the center air vents.
The air volume dependent on the setting
of:


Air distribution control


Air volume control


Air vents in the dashboard
The air temperature is about the same as
that of the dashboard air vents. It cannot
be regulated separately.Switching ventilation on

Open the storage compartment in front
of the armrest, see “Storage compart-
ment in front of armrest” (
page 232).

Push upper portion of switch.
Switching ventilation off

Open the storage compartment in front
of the armrest, see “Storage compart-
ment in front of armrest” (
page 232).

Push lower portion of switch. Rear passenger compartment adjust-
able air vents
Rear center console air vents
1Left center air vent, adjustable
2Right center air vent, adjustable
3Thumbwheel for center air vents with
adjustable booster blower
!Do not obstruct the air vent in the stor-
age compartment.iThe compartment can get very warm
due to its confined space. When storing
heat sensitive objects in the compart-
ment, close the air vent while heating
the passenger compartment.

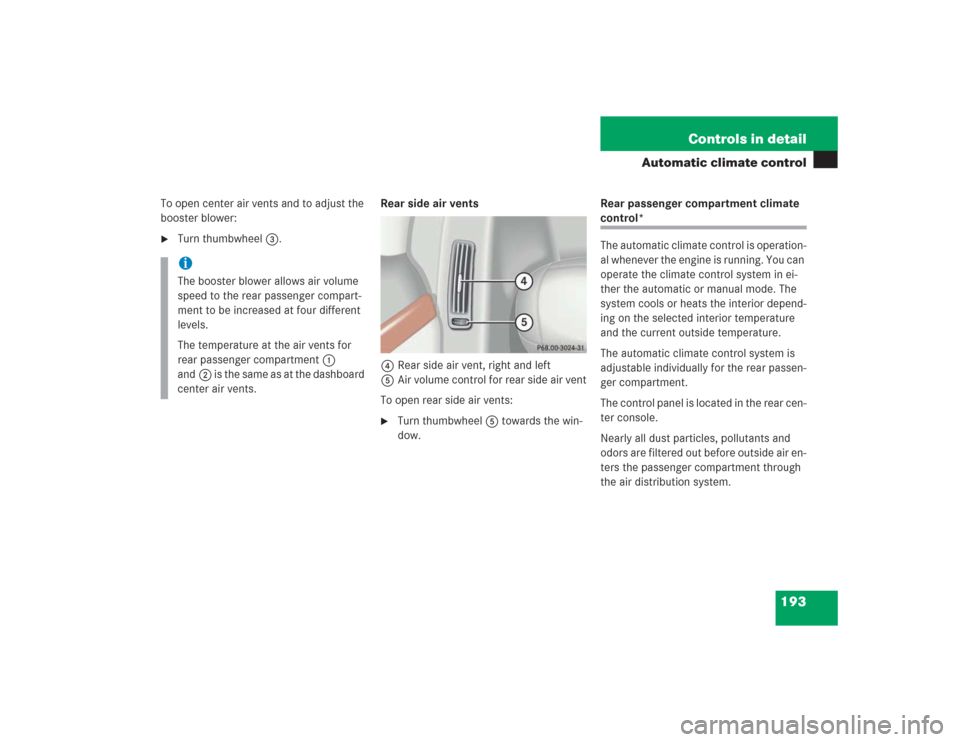

193 Controls in detail
Automatic climate control
To open center air vents and to adjust the
booster blower:
Turn thumbwheel3.Rear side air vents
4Rear side air vent, right and left
5Air volume control for rear side air vent
To open rear side air vents:

Turn thumbwheel5 towards the win-
dow.Rear passenger compartment climate
control*
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control system in ei-
ther the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
The automatic climate control system is
adjustable individually for the rear passen-
ger compartment.
The control panel is located in the rear cen-
ter console.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
iThe booster blower allows air volume
speed to the rear passenger compart-
ment to be increased at four different
levels.
The temperature at the air vents for
rear passenger compartment1
and2 is the same as at the dashboard
center air vents.

194 Controls in detailAutomatic climate controlRear automatic climate control panel
iWhen the rear seats are not occupied
(rear seat belts unbuckled) the rear cli-
mate control system adopts the set-
tings of the front climate control
system.

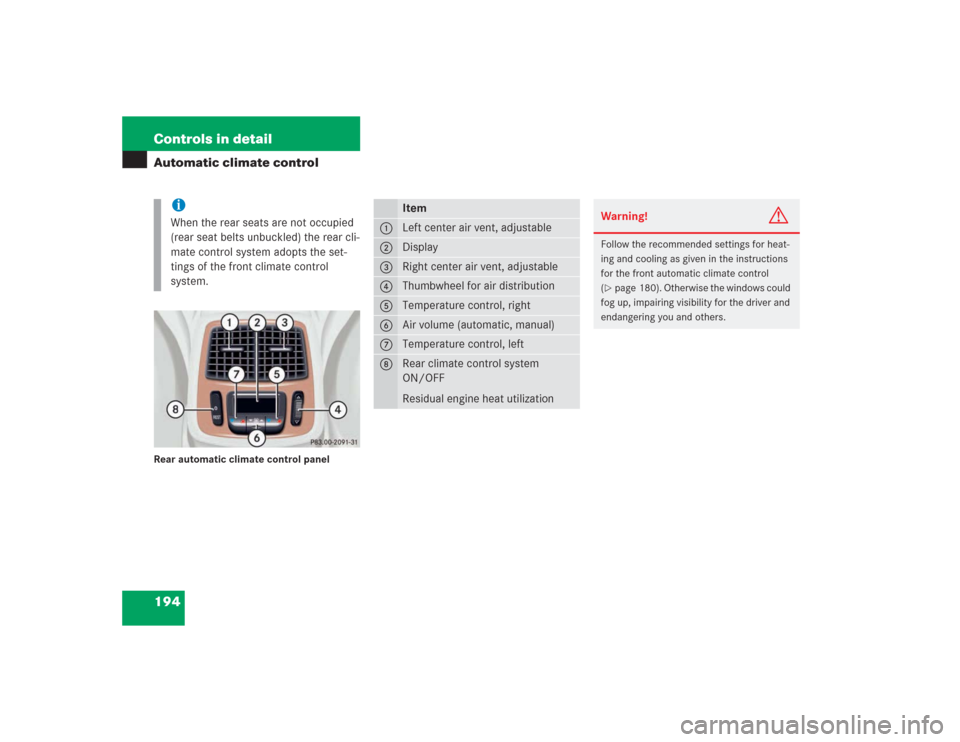

Item
1
Left center air vent, adjustable
2
Display
3
Right center air vent, adjustable
4
Thumbwheel for air distribution
5
Temperature control, right
6
Air volume (automatic, manual)
7
Temperature control, left
8
Rear climate control system
ON/OFF
Residual engine heat utilization
Warning!
G
Follow the recommended settings for heat-
ing and cooling as given in the instructions
for the front automatic climate control
(page 180). Otherwise the windows could
fog up, impairing visibility for the driver and
endangering you and others.

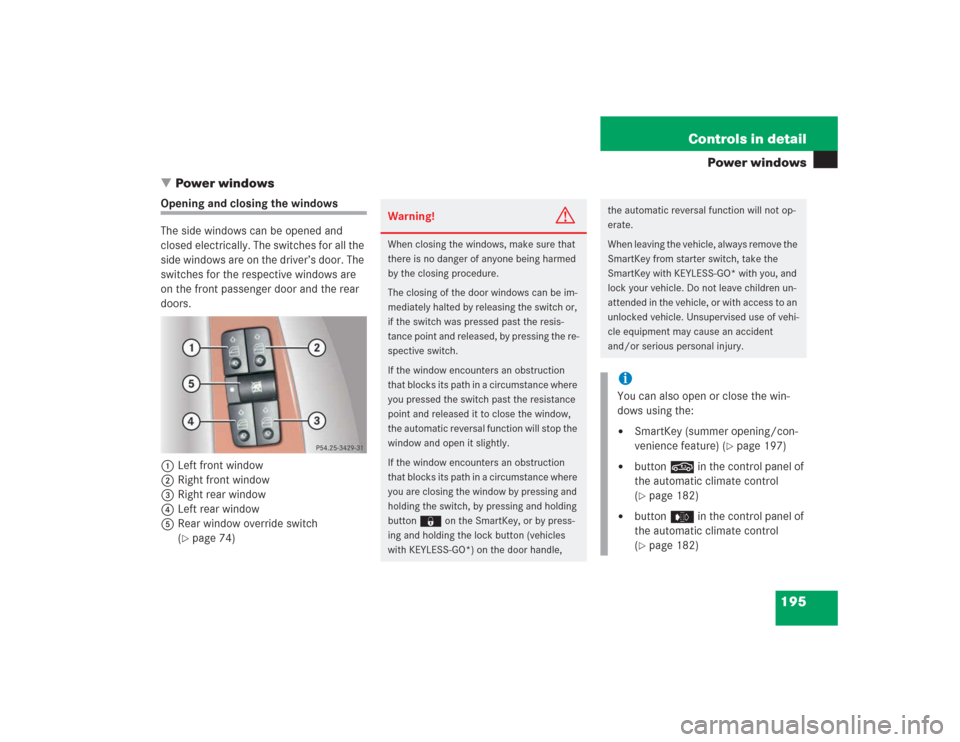

195 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
doors.
1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 74)
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if the switch was pressed past the resis-
tance point and released, by pressing the re-
spective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pressed the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
button ‹ on the SmartKey, or by press-
ing and holding the lock button (vehicles
with KEYLESS-GO*) on the door handle,
the automatic reversal function will not op-
erate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.iYou can also open or close the win-
dows using the:

SmartKey (summer opening/con-
venience feature) (
page 197)


button, in the control panel of
the automatic climate control
(page 182)


buttone in the control panel of
the automatic climate control
(page 182)

196 Controls in detailPower windows
Switch on ignition.
Opening the windows

Press switch1 to 4 at the
symbolk to the resistance point.
The corresponding window will move
downwards until you release the
switch.Closing the windows

Press switch1 to 4 at the
symbolj to the resistance point.
The corresponding window will move
upwards until you release the switch.
Fully opening the windows
(Express-open)

Press switch1 to 4 at the
symbolk past the resistance point
and release.
The corresponding window opens com-
pletely.Fully closing the windows
(Express-close)

Press switch1 to 4 at the
symbolj past the resistance point
and release.
The corresponding window closes com-
pletely.
iYou can still operate the windows when
the SmartKey is in starter switch
position0 or has been removed:

until the driver’s or front passen-
ger’s door is opened


for no more than five minutes
Warning
G
If you press and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.
!If the upward movement of the window
is blocked during the closing proce-
dure, the window will stop and open
slightly.
Remove the obstruction, press the
switchj again past the resistance
point and release.
If the window still does not close when
there is no obstruction, then hold the
switchj down. The side window
will then close without the obstruction
sensor function.

197 Controls in detail
Power windows
Stopping windows
Press respective switch again.Opening and closing the windows with
the SmartKey
The sliding/pop-up roof (
page 199) will
also be opened or closed when you oper-
ate the power windows with the SmartKey.

Aim transmitter eye at the driver’s door
handle.Opening (Summer opening feature)
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:


opening the sliding/pop-up roof


opening the side windows


turning on the seat ventilation* for the
driver’s seat
To do so, follow the instructions below:

Press and hold button Πafter un-
locking the vehicle.
The windows and sliding / pop-up roof
begin to open after approximately one
second.

Release the Πbutton to stop proce-
dure.
Warning!
G
Driver's door only:
If within five seconds you again press the
switch past the resistance point and re-
lease, the automatic reversal will not func-
tion.
Warning!
G
Never operate the windows or
sliding/pop-up roof if there is the possibility
of anyone being harmed by the opening or
closing procedure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing the remote
control button. To reverse direction of
movement press Πfor opening or
‹for closing.

198 Controls in detailPower windowsClosing (Convenience feature)
Press and hold button ‹ after lock-
ing the vehicle.
The windows and sliding/pop-up roof
begin to close after approximately one
second.

Release the ‹ button to stop proce-
dure.
Make sure all side windows and the slid-
ing/pop-up roof are properly closed before
leaving the vehicle.
Closing the windows with the
SmartKey with KEYLESS-GO* (Conve-
nience feature)
The sliding/pop-up roof (
page 199) will
also be closed when the power windows
are operated with KEYLESS-GO.

Press and hold lock button at door
(page 55) until the side windows and
the sliding/pop-up roof are closed.
Synchronizing the power windows
The power window must be resynchro-
nized each time

after the battery has been disconnect-
ed.


if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).
Synchronizing

Switch on ignition.

Press the power window switches at
the symbolj until the side win-
dows are closed.
Hold the switches for approximately
one second.
The power windows are synchronized.
Warning!
G
When closing the windows and the slid-
ing/pop-up roof, make sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
The windows will not automatically reopen if
blocked during convenience closing.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the slid-
ing/pop-up roof will open for as long as
the door handle is held but the door is
not opened.

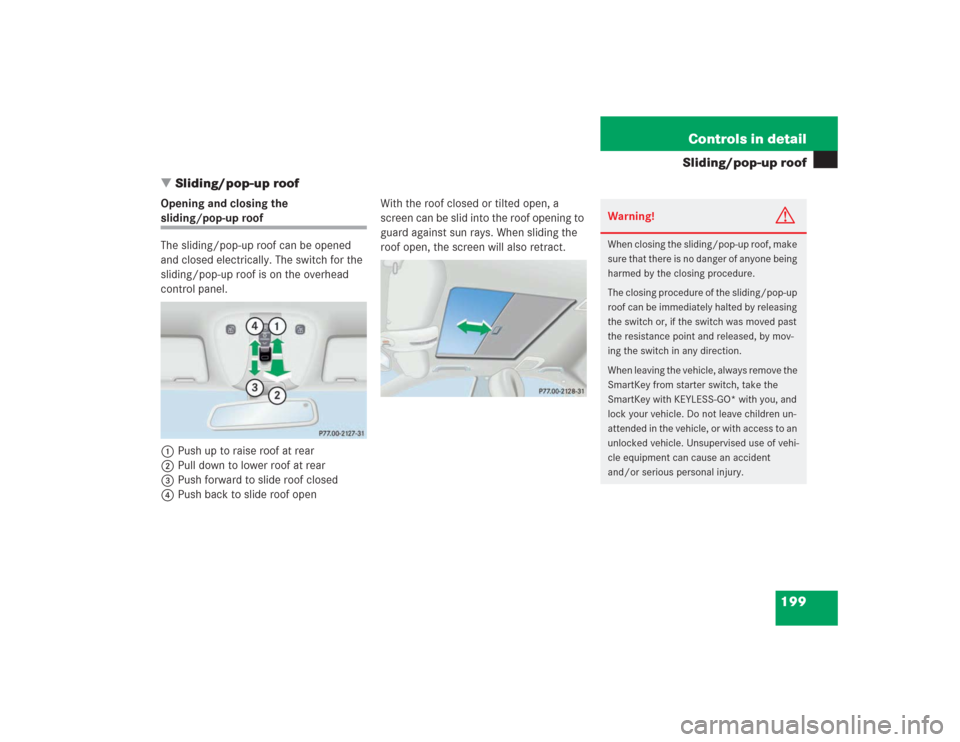

199 Controls in detail
Sliding/pop-up roof
Sliding/pop-up roof
Opening and closing the sliding/pop-up roof
The sliding/pop-up roof can be opened
and closed electrically. The switch for the
sliding/pop-up roof is on the overhead
control panel.
1Push up to raise roof at rear
2Pull down to lower roof at rear
3Push forward to slide roof closed
4Push back to slide roof openWith the roof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
roof open, the screen will also retract.
Warning!
G
When closing the sliding/pop-up roof, make
sure that there is no danger of anyone being
harmed by the closing procedure.
The closing procedure of the sliding/pop-up
roof can be immediately halted by releasing
the switch or, if the switch was moved past
the resistance point and released, by mov-
ing the switch in any direction.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment can cause an accident
and/or serious personal injury.
