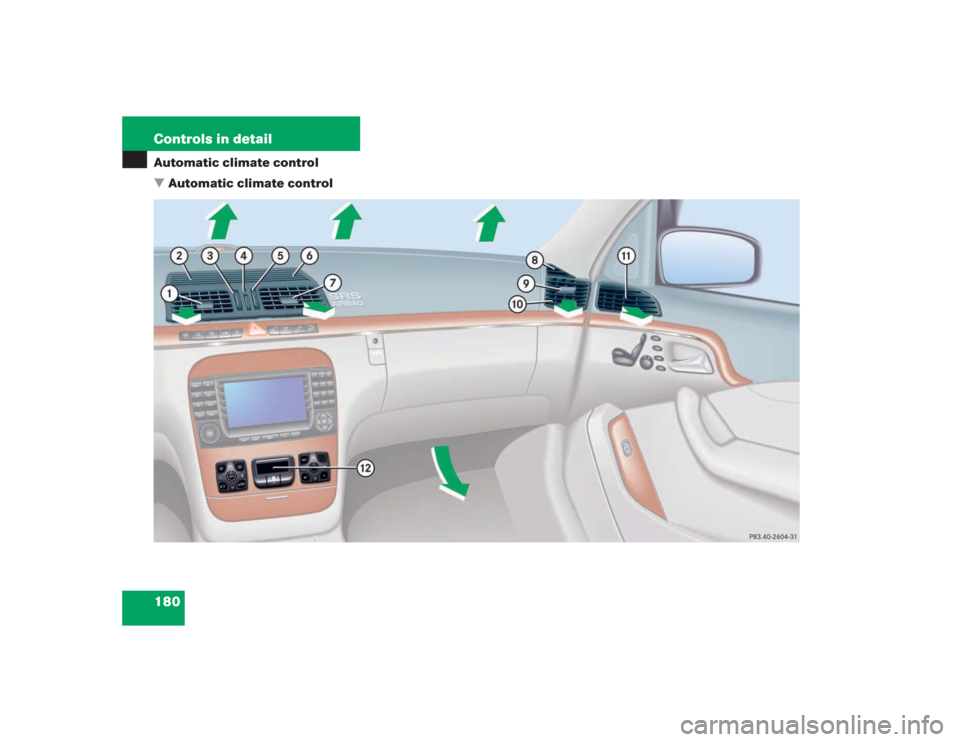

Page 181 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 180 Controls in detailAutomatic climate control
Automatic climate control

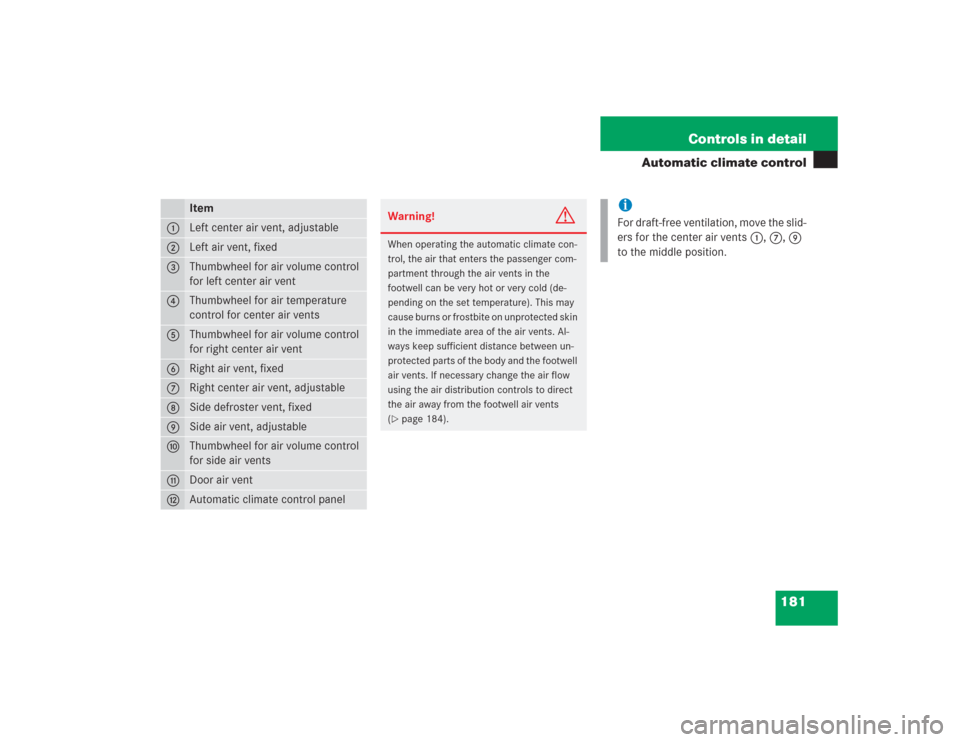

Page 182 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 181 Controls in detail
Automatic climate control
Item
1
Left center air vent, adjustable
2
Left air vent, fixed
3
Thumbwheel for air volume control
for left center air vent
4
Thumbwheel for air tempe

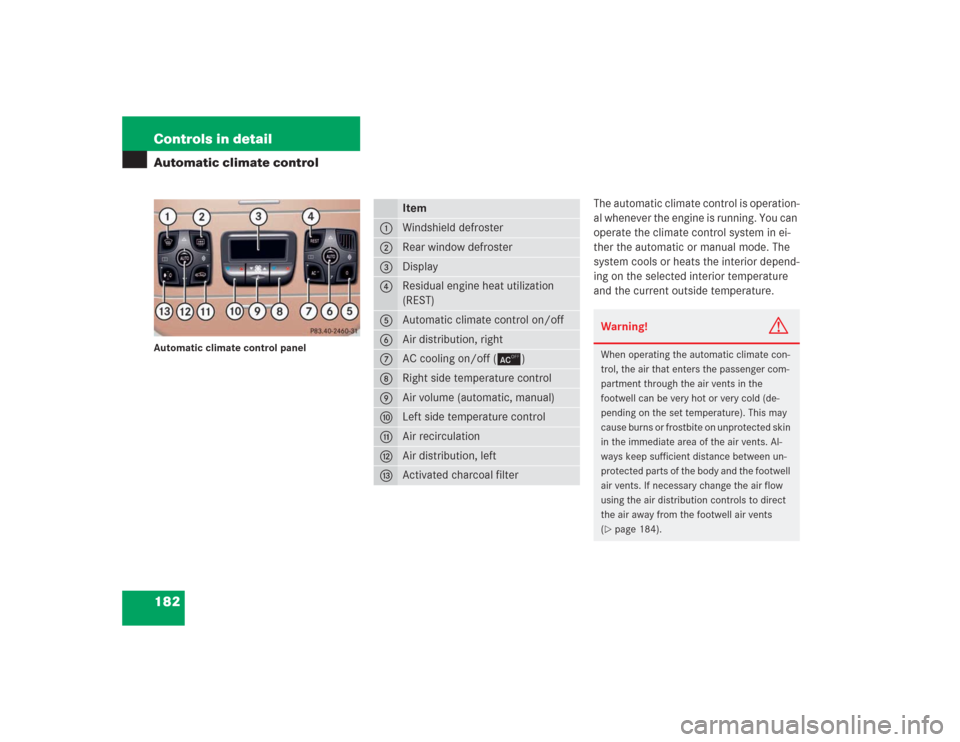

Page 183 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 182 Controls in detailAutomatic climate controlAutomatic climate control panel
The automatic climate control is operation-
al whenever the engine is running. You can
operate the climate control syste

Page 184 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 183 Controls in detail
Automatic climate control
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution s

Page 185 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 184 Controls in detailAutomatic climate controlAdjusting the temperature for center
air vents
When outside temperatures are low, you
can manually raise the air temperature for
the center and side a

Page 186 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 185 Controls in detail
Automatic climate control
Adjusting manually
Press left or right buttonU.
The button emerges and theh,
», d and csymbols become
visible.

Turn the marking on the regulator

Page 187 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 186 Controls in detailAutomatic climate controlAdjusting air volume
Use air volume control9 (
page 182) for
both automatic and manual air volume ad-
justment.
Adjusting automatically

PressA on air

Page 188 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 187 Controls in detail
Automatic climate control
Defrosting
Activating
Press buttonP (
page 182).
The indicator lamp on the button
comes on.

Switch off air recirculation, if selected.

Press bu

Page 189 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 188 Controls in detailAutomatic climate controlDeactivating
Press button, (
page 182).
The indicator lamp on the button goes
out.The air recirculation mode is deactivated
automatically:

after fi

Page 190 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 189 Controls in detail
Automatic climate control
Deactivating
Press buttone (
page 182).
The indicator lamp on the button goes
out.The system automatically switches to the
air recirculation mode i
