Page 381 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 380 Technical dataIdentification labels
Identification labels1Certification label
(below driver’s door latch)2Vehicle Identification Number (VIN)
(below right rear passenger seat)3Engine number (en

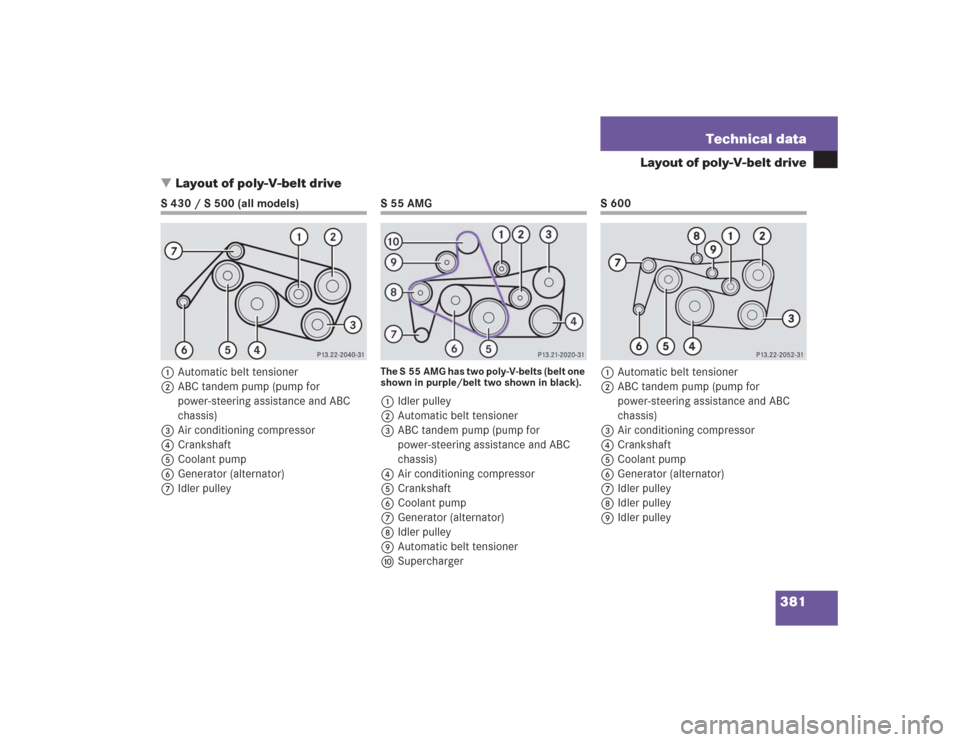

Page 382 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 381 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
S 430 / S 500 (all models)
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)

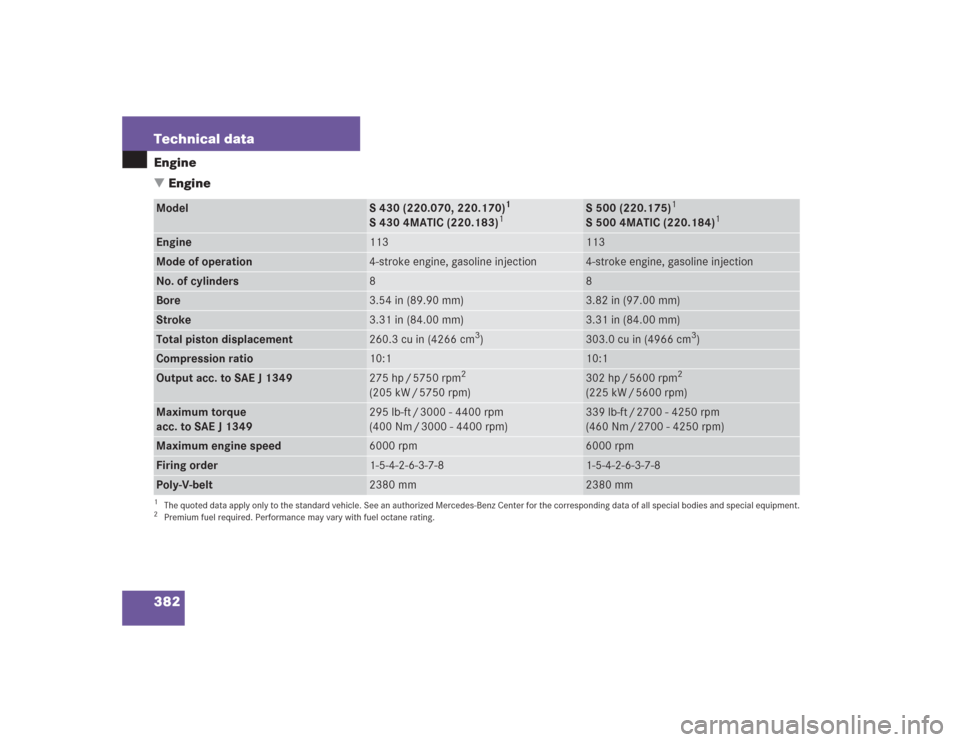

Page 383 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 382 Technical dataEngine
EngineModel
S 430 (220.070, 220.170)
1
S 430 4MATIC (220.183)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the correspond

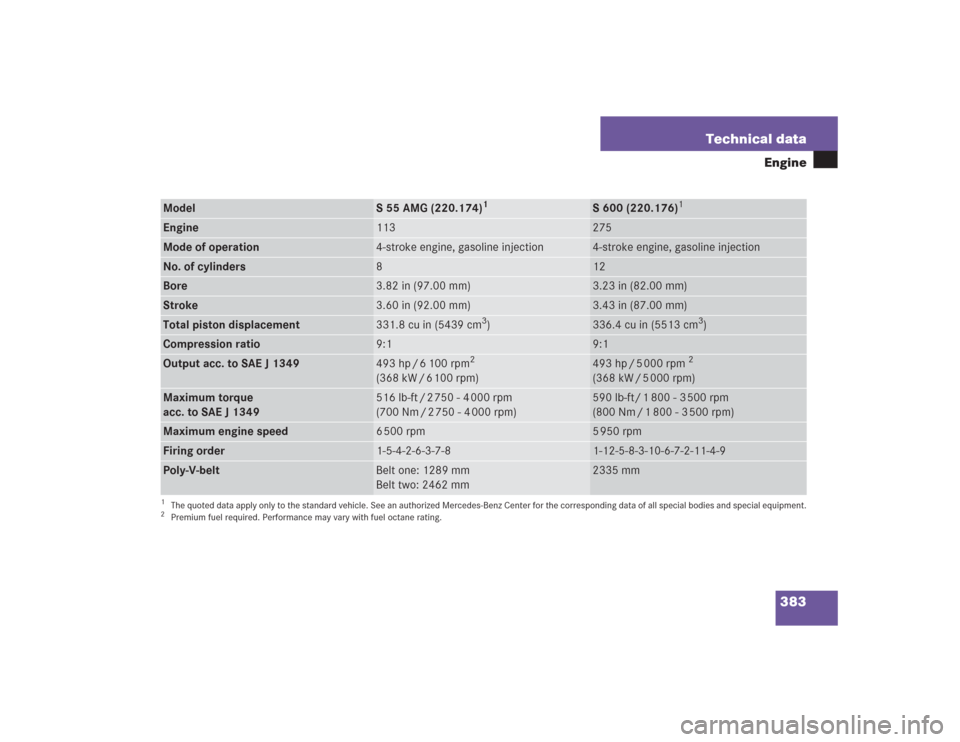

Page 384 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 383 Technical data
Engine
Model
S 55 AMG (220.174)
1
S 600 (220.176)
1
Engine
113
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bo

Page 385 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 384 Technical dataRims and tires
Rims and tiresUse only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can ha

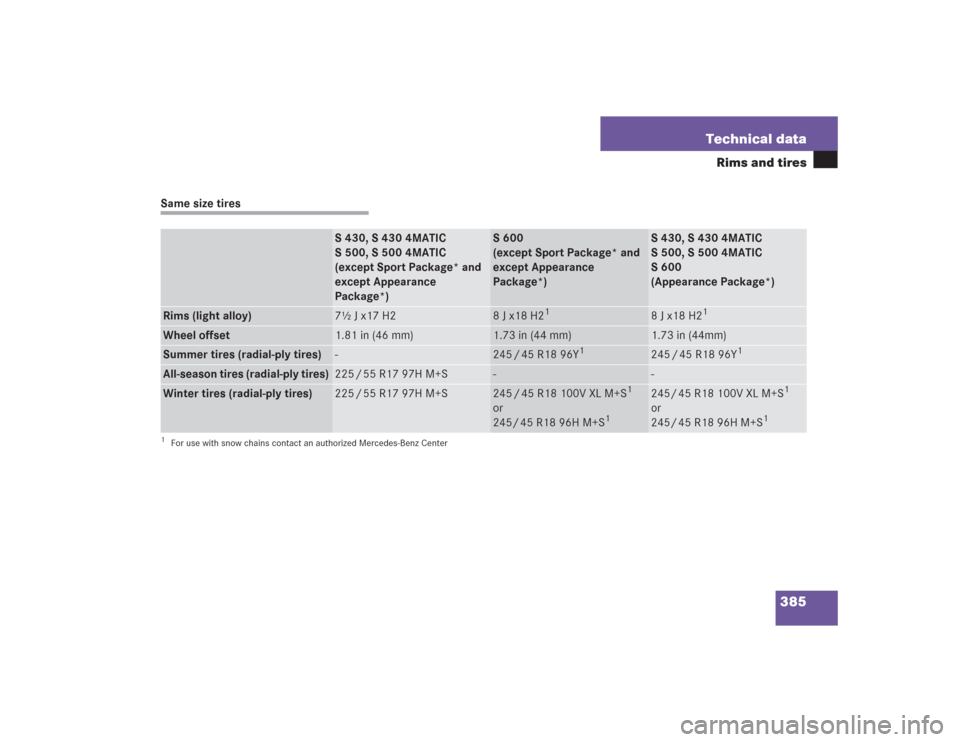

Page 386 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 385 Technical data
Rims and tires
Same size tires
S 430, S 430 4MATIC
S 500, S 500 4MATIC
(except Sport Package* and
except Appearance
Package*)
S 600
(except Sport Package* and
except Appearance

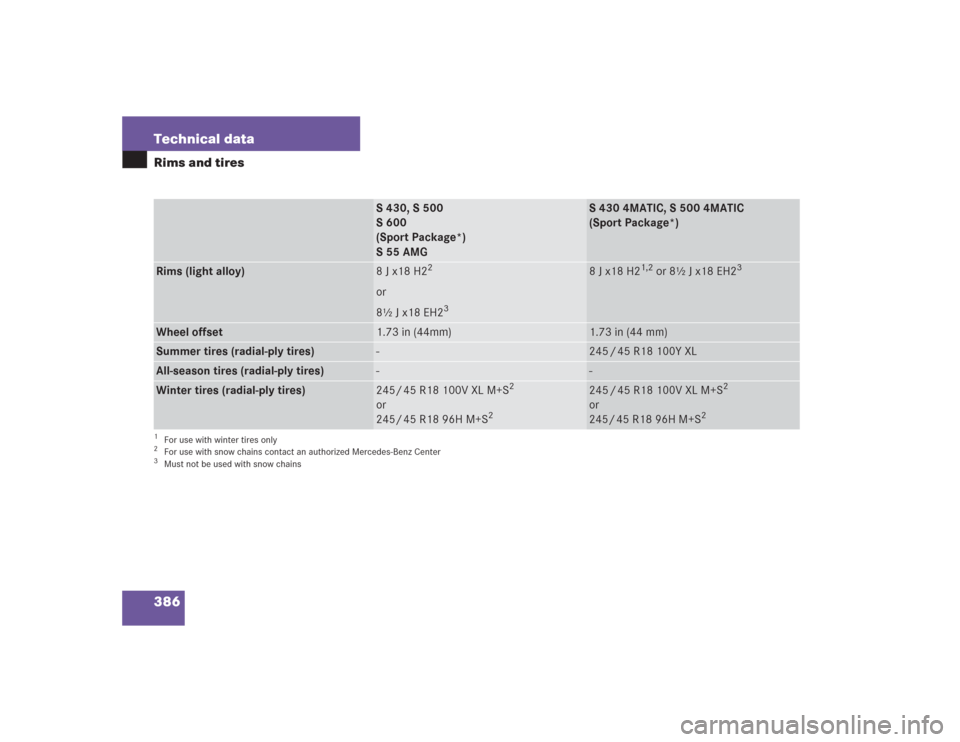

Page 387 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 386 Technical dataRims and tires
S 430, S 500
S 600
(Sport Package*)
S 55 AMG
S 430 4MATIC, S 500 4MATIC
(Sport Package*)
Rims (light alloy)
8 J x18 H2
2
or
8½ J x18 EH23
8 J x18 H2
1,2
 or 8½ J

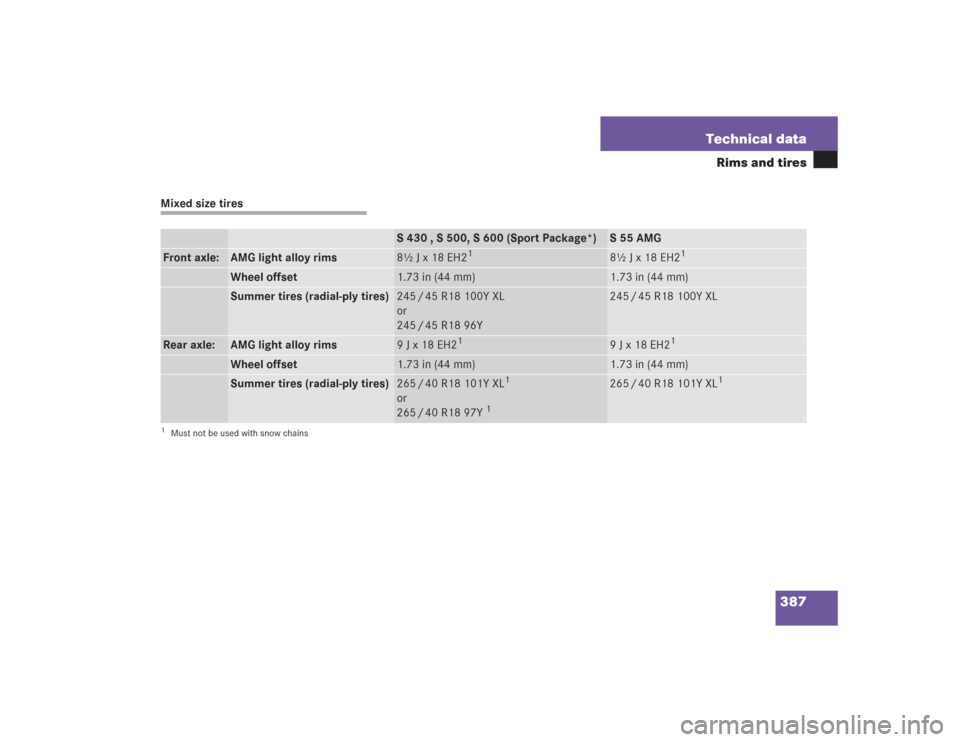

Page 388 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 387 Technical data
Rims and tires
Mixed size tires
S 430 , S 500, S 600 (Sport Package*)
S 55 AMG
Front axle:
AMG light alloy rims
8½ J x 18 EH2
1
8½ J x 18 EH2
1
Wheel offset
1.73 in (44 mm)
1.73 i

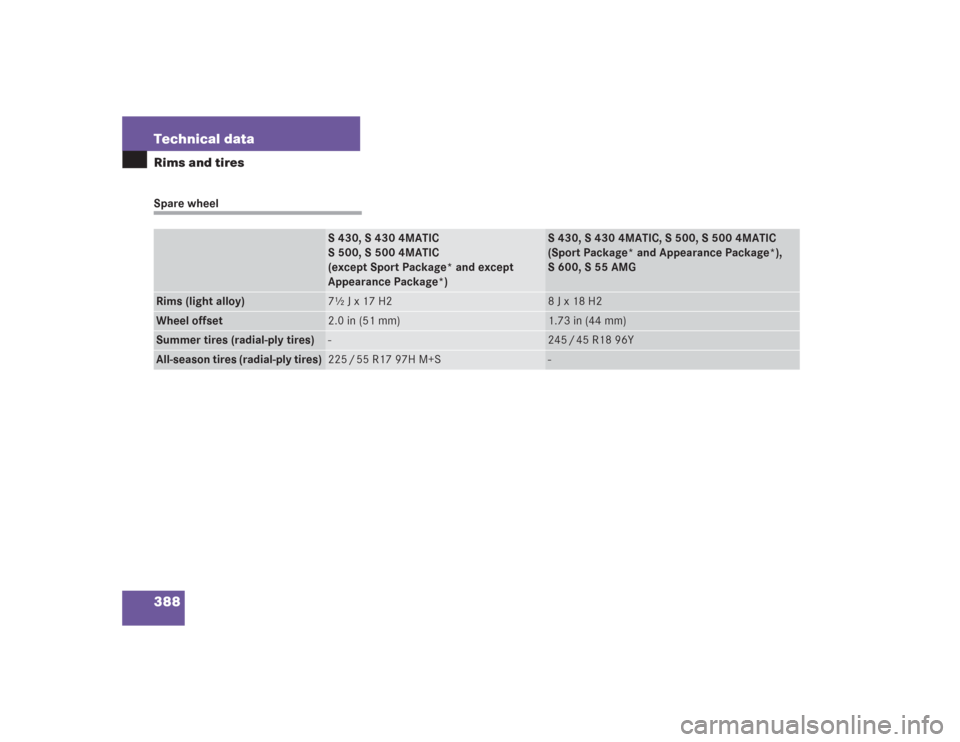

Page 389 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 388 Technical dataRims and tiresSpare wheel
S 430, S 430 4MATIC
S 500, S 500 4MATIC
(except Sport Package* and except
Appearance Package*)
S 430, S 430 4MATIC, S 500, S 500 4MATIC
(Sport Package* a

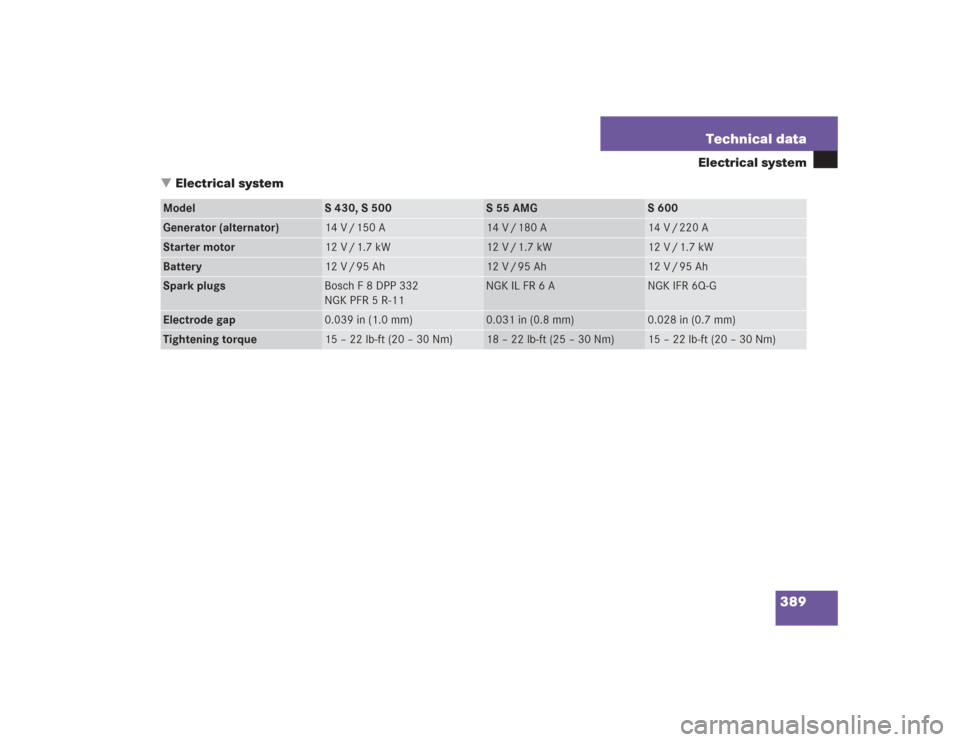

Page 390 of 435

MERCEDES-BENZ S500 2004 W220 Owners Manual 389 Technical data
Electrical system
Electrical system
Model
S 430, S 500
S 55 AMG
S 600
Generator (alternator)
14 V / 150 A
14 V / 180 A
14 V / 220 A
Starter motor
12 V / 1.7 kW
12 V / 1.7 kW
12 V /
