390 Technical dataMain dimensions and weights

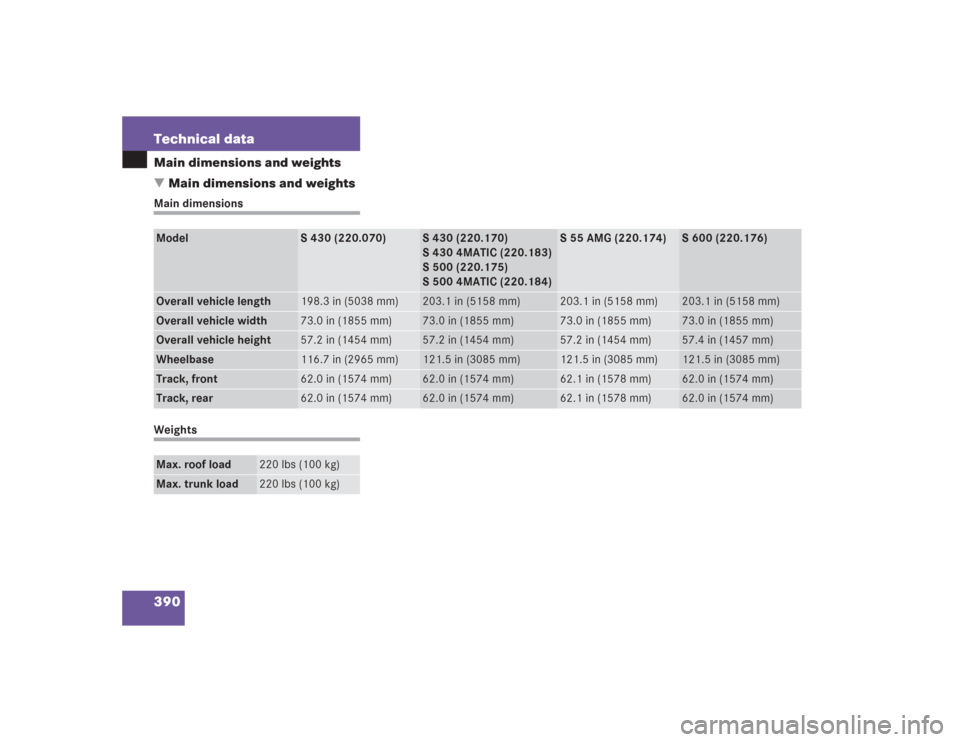

Main dimensions and weightsMain dimensionsWeightsModel
S 430 (220.070)
S 430 (220.170)
S 430 4MATIC (220.183)
S 500 (220.175)
S 500 4MATIC (220.184)
S 55 AMG (220.174)
S 600 (220.176)
Overall vehicle length
198.3 in (5038 mm)
203.1 in (5158 mm)
203.1 in (5158 mm)
203.1 in (5158 mm)
Overall vehicle width
73.0 in (1855 mm)
73.0 in (1855 mm)
73.0 in (1855 mm)
73.0 in (1855 mm)
Overall vehicle height
57.2 in (1454 mm)
57.2 in (1454 mm)
57.2 in (1454 mm)
57.4 in (1457 mm)
Wheelbase
116.7 in (2965 mm)
121.5 in (3085 mm)
121.5 in (3085 mm)
121.5 in (3085 mm)
Track, front
62.0 in (1574 mm)
62.0 in (1574 mm)
62.1 in (1578 mm)
62.0 in (1574 mm)
Track, rear
62.0 in (1574 mm)
62.0 in (1574 mm)
62.1 in (1578 mm)
62.0 in (1574 mm)
Max. roof load
220 lbs (100 kg)
Max. trunk load
220 lbs (100 kg)

391 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.

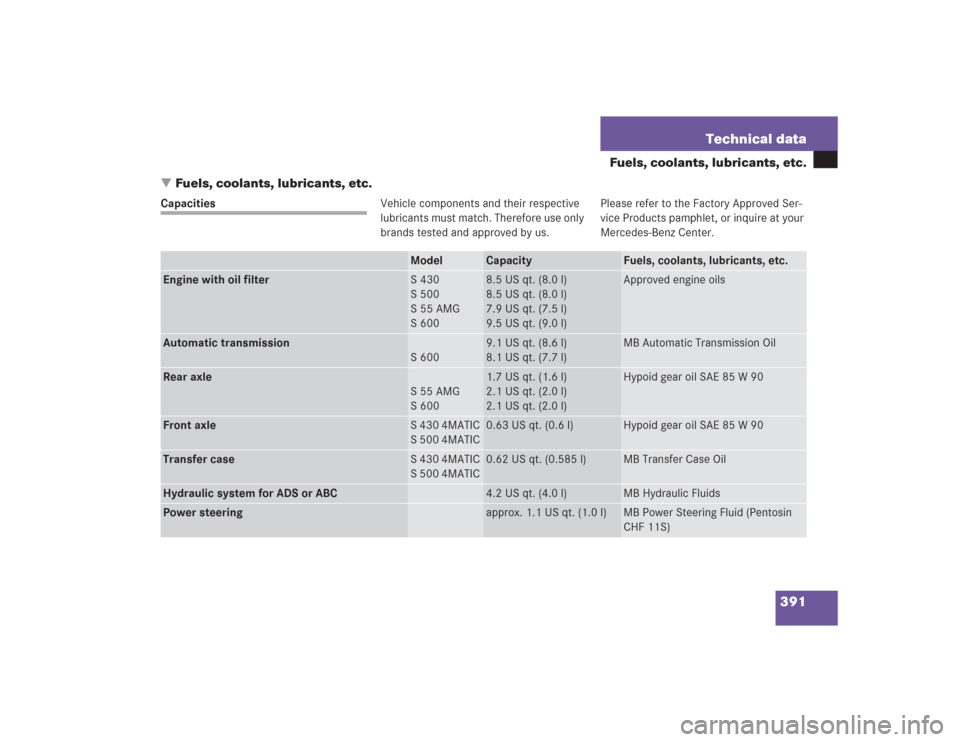

CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and approved by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
S 430
S 500
S 55 AMG
S 600
8.5 US qt. (8.0 l)
8.5 US qt. (8.0 l)
7.9 US qt. (7.5 l)
9.5 US qt. (9.0 l)
Approved engine oils
Automatic transmission
S 600
9.1 US qt. (8.6 l)
8.1 US qt. (7.7 l)
MB Automatic Transmission Oil
Rear axle
S55AMG
S 600
1.7 US qt. (1.6 l)
2.1 US qt. (2.0 l)
2.1 US qt. (2.0 l)
Hypoid gear oil SAE 85 W 90
Front axle
S 430 4MATIC
S 500 4MATIC
0.63 US qt. (0.6 l)
Hypoid gear oil SAE 85 W 90
Transfer case
S 430 4MATIC
S 500 4MATIC
0.62 US qt. (0.585 l)
MB Transfer Case Oil
Hydraulic system for ADS or ABC
4.2 US qt. (4.0 l)
MB Hydraulic Fluids
Power steering
approx. 1.1 US qt. (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)

392 Technical dataFuels, coolants, lubricants, etc.

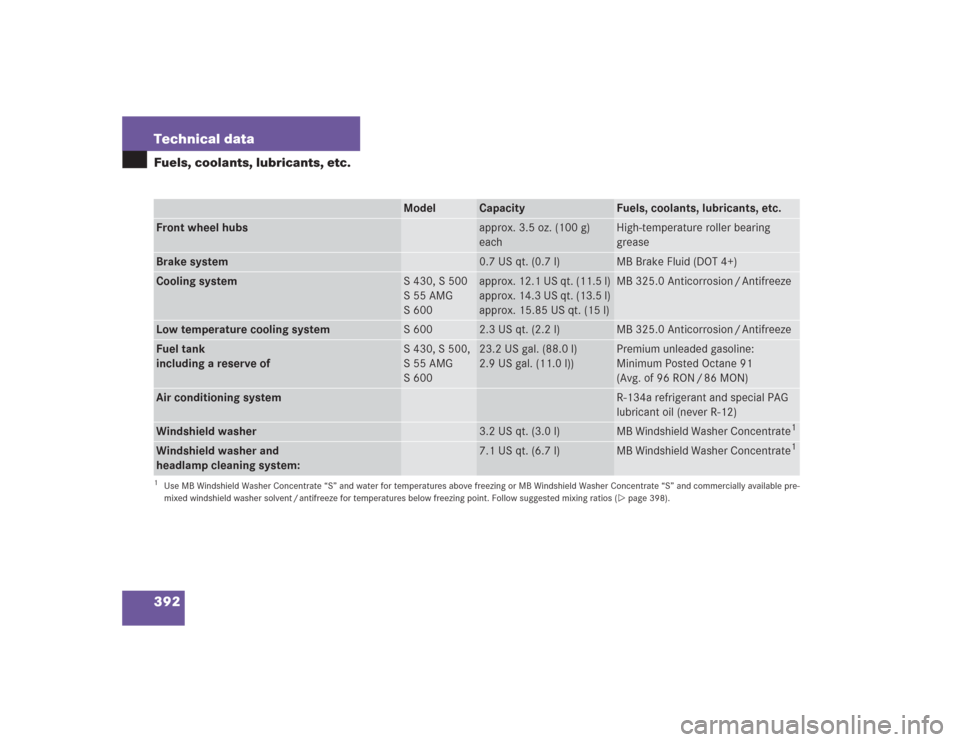

Model
Capacity
Fuels, coolants, lubricants, etc.
Front wheel hubs
approx. 3.5 oz. (100 g)
each
High-temperature roller bearing
grease
Brake system
0.7 US qt. (0.7 l)
MB Brake Fluid (DOT 4+)
Cooling system
S 430, S 500
S 55 AMG
S 600
approx. 12.1 US qt. (11.5 l)
approx. 14.3 US qt. (13.5 l)
approx. 15.85 US qt. (15 l)
MB 325.0 Anticorrosion / Antifreeze
Low temperature cooling system
S 600
2.3 US qt. (2.2 l)
MB 325.0 Anticorrosion / Antifreeze
Fuel tank
including a reserve of
S 430, S 500,
S55AMG
S 600
23.2 US gal. (88.0 l)
2.9 US gal. (11.0 l))
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
Air conditioning system
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield washer
3.2 US qt. (3.0 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 398).Windshield washer and
headlamp cleaning system:
7.1 US qt. (6.7 l)
MB Windshield Washer Concentrate
1

393 Technical data
Fuels, coolants, lubricants, etc.
Engine oils

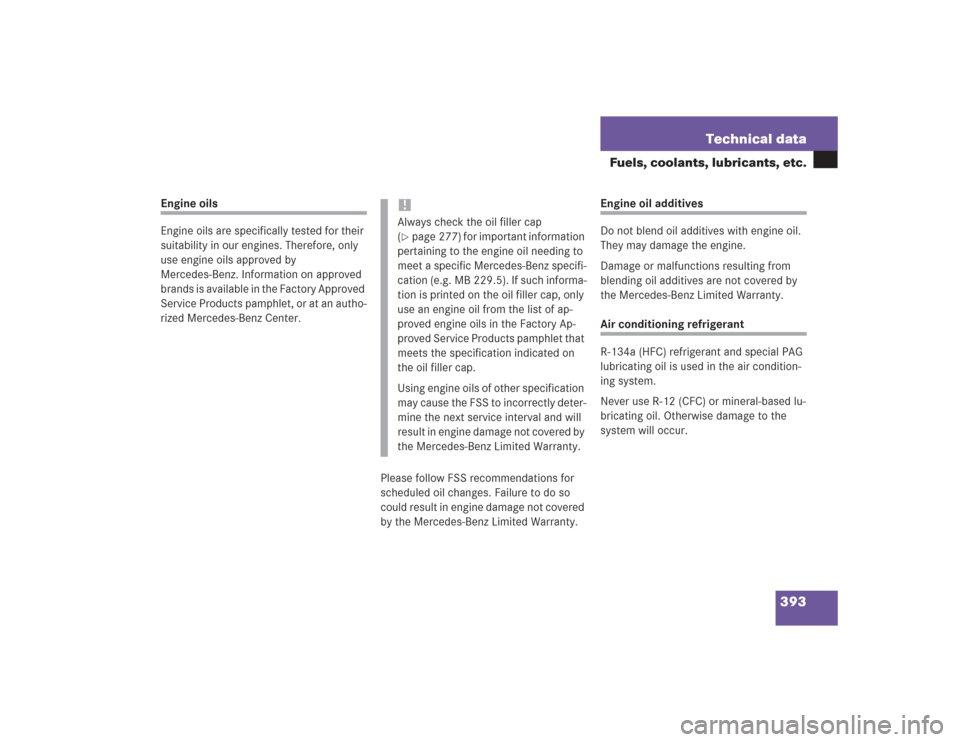

Engine oils are specifically tested for their
suitability in our engines. Therefore, only
use engine oils approved by
Mercedes-Benz. Information on approved
brands is available in the Factory Approved
Service Products pamphlet, or at an autho-
rized Mercedes-Benz Center.
Please follow FSS recommendations for
scheduled oil changes. Failure to do so
could result in engine damage not covered
by the Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
!Always check the oil filler cap
(page 277) for important information
pertaining to the engine oil needing to
meet a specific Mercedes-Benz specifi-
cation (e.g. MB 229.5). If such informa-
tion is printed on the oil filler cap, only
use an engine oil from the list of ap-
proved engine oils in the Factory Ap-
proved Service Products pamphlet that
meets the specification indicated on
the oil filler cap.
Using engine oils of other specification
may cause the FSS to incorrectly deter-
mine the next service interval and will
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.

394 Technical dataFuels, coolants, lubricants, etc.Brake fluid

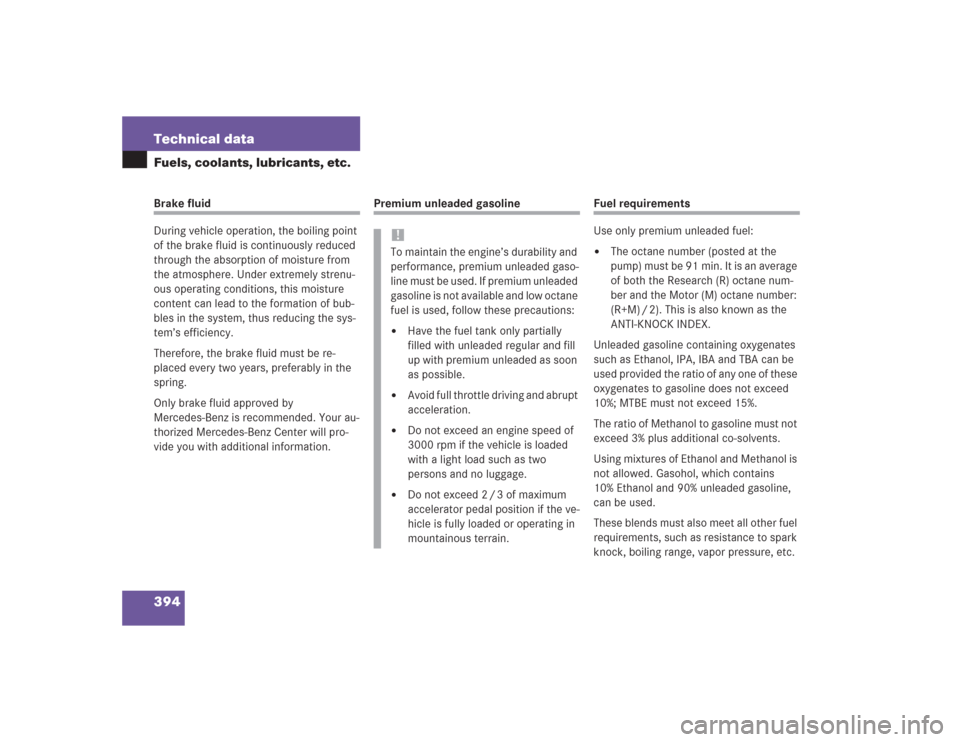

During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
Premium unleaded gasoline
Fuel requirements
Use only premium unleaded fuel:

The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M) / 2). This is also known as the
ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as Ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of Methanol to gasoline must not
exceed 3% plus additional co-solvents.
Using mixtures of Ethanol and Methanol is
not allowed. Gasohol, which contains
10% Ethanol and 90% unleaded gasoline,
can be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
gasoline is not available and low octane
fuel is used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two
persons and no luggage.


Do not exceed 2 / 3 of maximum
accelerator pedal position if the ve-
hicle is fully loaded or operating in
mountainous terrain.

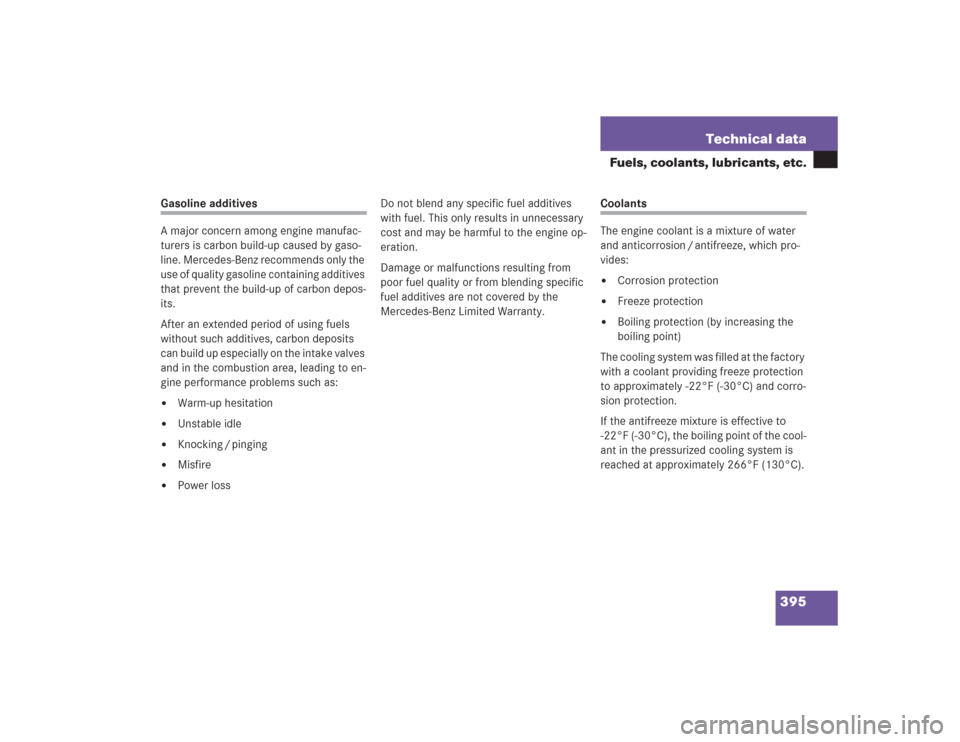

395 Technical data
Fuels, coolants, lubricants, etc.
Gasoline additives
A major concern among engine manufac-
turers is carbon build-up caused by gaso-
line. Mercedes-Benz recommends only the
use of quality gasoline containing additives
that prevent the build-up of carbon depos-
its.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to en-
gine performance problems such as:

Warm-up hesitation


Unstable idle


Knocking / pinging


Misfire


Power lossDo not blend any specific fuel additives
with fuel. This only results in unnecessary
cost and may be harmful to the engine op-
eration.
Damage or malfunctions resulting from
poor fuel quality or from blending specific
fuel additives are not covered by the
Mercedes-Benz Limited Warranty.
Coolants
The engine coolant is a mixture of water
and anticorrosion / antifreeze, which pro-
vides:

Corrosion protection


Freeze protection


Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -22°F (-30°C) and corro-
sion protection.
If the antifreeze mixture is effective to
-22°F (-30°C), the boiling point of the cool-
ant in the pressurized cooling system is
reached at approximately 266°F (130°C).

396 Technical dataFuels, coolants, lubricants, etc.The coolant solution must be used
year-round to provide the necessary corro-
sion protection and increase boil-over pro-
tection. Refer to Service Booklet for
replacement interval.
Coolant system design and coolant used
stipulate the replacement interval. The re-
placement interval published in the Ser-
vice Booklet is only applicable if MB 325.0
anticorrosion/antifreeze solution or other
Mercedes-Benz approved products of
equal specification (see Factory Approved
Service Products pamphlet) are used to re-
new the coolant concentration or bring it
back up to the proper level.

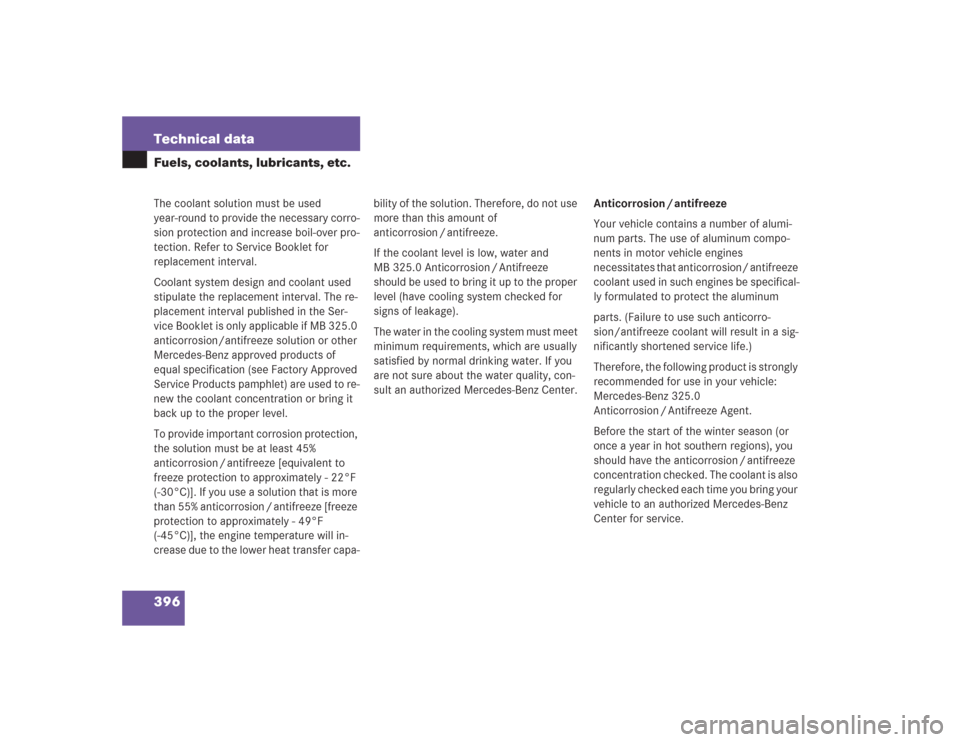

To provide important corrosion protection,
the solution must be at least 45%
anticorrosion / antifreeze [equivalent to
freeze protection to approximately - 22°F
(-30°C)]. If you use a solution that is more
than 55% anticorrosion / antifreeze [freeze
protection to approximately - 49°F
(-45°C)], the engine temperature will in-
crease due to the lower heat transfer capa-bility of the solution. Therefore, do not use
more than this amount of
anticorrosion / antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion / Antifreeze
should be used to bring it up to the proper
level (have cooling system checked for
signs of leakage).
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality, con-
sult an authorized Mercedes-Benz Center.Anticorrosion / antifreeze
Your vehicle contains a number of alumi-
num parts. The use of aluminum compo-
nents in motor vehicle engines
necessitates that anticorrosion/ antifreeze
coolant used in such engines be specifical-
ly formulated to protect the aluminum
parts. (Failure to use such anticorro-
sion/antifreeze coolant will result in a sig-
nificantly shortened service life.)
Therefore, the following product is strongly
recommended for use in your vehicle:
Mercedes-Benz 325.0
Anticorrosion / Antifreeze Agent.
Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion / antifreeze
concentration checked. The coolant is also
regularly checked each time you bring your
vehicle to an authorized Mercedes-Benz
Center for service.

397 Technical data
Fuels, coolants, lubricants, etc.
Anticorrosion / antifreeze quantityModel
Approx. freeze protection
– 35°F (– 37°C)
– 49°F (– 45°C)
S 430, S 500
6.1 US qt. (5.75 l)
6.7 US qt. (6.3 l)
S 600 (main cooling system)
7.9 US qt. (7.5 l)
8.7 US qt. (8.25 l)
S 600 (low temperature cooling system)
1.2 US qt. (1.1 l)
1.3 US qt. (1.2 l)
S 55 AMG
7.1 US qt. (6.75 l)
7.8 US qt. (7.4 l)

398 Technical dataFuels, coolants, lubricants, etc.Windshield and headlamp washer system
Both the windshield and headlamp washer
systems are supplied from the windshield
washer fluid reservoir.
The washer fluid reservoir has a capacity of
approximately:

3.2 US qt. (3.0 l) in vehicles without
headlamp cleaning system*


7.4 US qt. (7.0 l) in vehicles with head-
lamp cleaning system* or heated reser-
voir

Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer
solvent / antifreeze, depending on am-
bient temperatures).Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing point, use
MB Windshield Washer Concentrate “S”
and water:


1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 liters) water].
For temperatures below freezing point, use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent / antifreeze:


1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 liters) solvent].
Warning
G
Washer solvent /antifreeze is highly flamma-
ble. Do not spill washer solvent /antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.

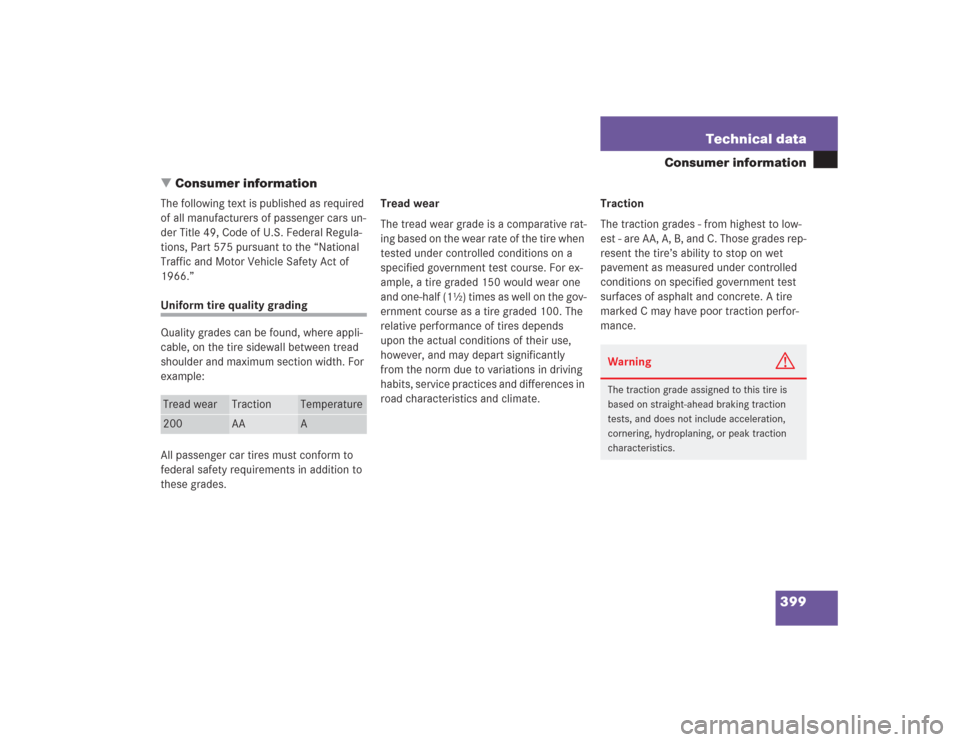

399 Technical data
Consumer information
Consumer information
The following text is published as required
of all manufacturers of passenger cars un-
der Title 49, Code of U.S. Federal Regula-
tions, Part 575 pursuant to the “National
Traffic and Motor Vehicle Safety Act of
1966.”Uniform tire quality grading
Quality grades can be found, where appli-
cable, on the tire sidewall between tread
shoulder and maximum section width. For
example:
All passenger car tires must conform to
federal safety requirements in addition to
these grades.Tread wear
The tread wear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1½) times as well on the gov-
ernment course as a tire graded 100. The
relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences in
road characteristics and climate.Traction
The traction grades - from highest to low-
est - are AA, A, B, and C. Those grades rep-
resent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.Tread wear
Traction
Temperature
200
AA
A
Warning
G
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
