MERCEDES-BENZ S550 2007 W221 Owner's Manual

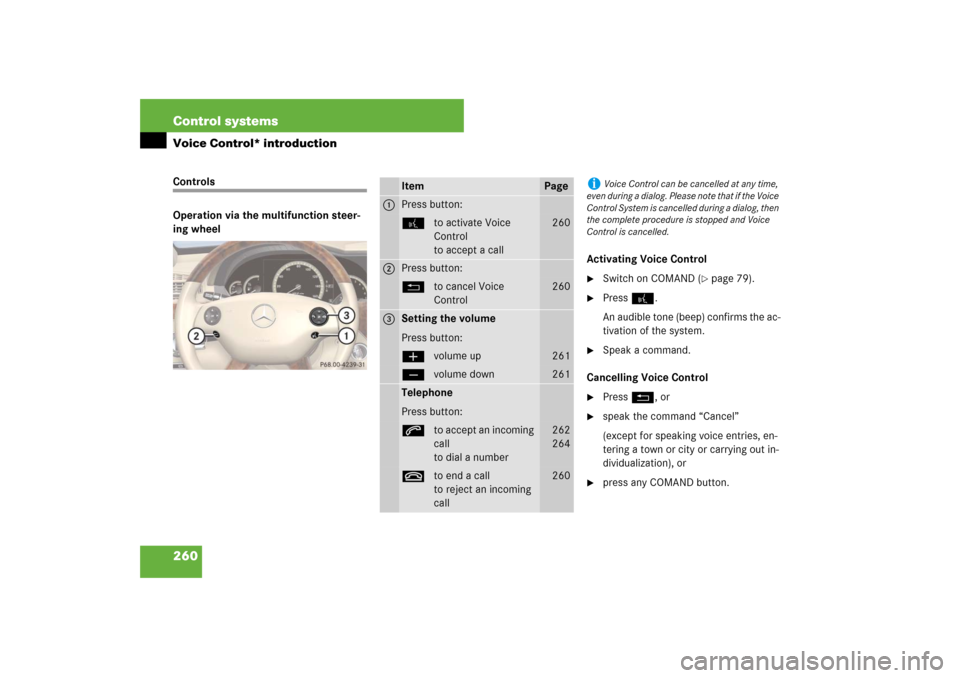

260 Control systemsVoice Control* introductionControls
Operation via the multifunction steer-
ing wheel
Activating Voice Control

Switch on COMAND (
page 79).

Press !.
An audible tone (beep) confirms the ac-
tivation of the system.

Speak a command.
Cancelling Voice Control

Press L, or

speak the command “Cancel”
(except for speaking voice entries, en-
tering a town or city or carrying out in-
dividualization), or

press any COMAND button.
Item
Page
1
Press button:!to activate Voice
Control
to accept a call
260
2
Press button:Lto cancel Voice
Control
260
3
Setting the volume
Press button:ævolume up
261
çvolume down
261
Telephone
Press button:sto accept an incoming
call
to dial a number
262
264
tto end a call
to reject an incoming
call
260
i
Voice Control can be cancelled at any time,
even during a dialog. Please note that if the Voice
Control System is cancelled during a dialog, then
the complete procedure is stopped and Voice
Control is cancelled.

261 Control systems
Voice Control* introduction
Setting volume level
Activate Voice Control.

Speak a command, for example “Help”.

Pressæ orç. The volume is in-
creased or decreased during voice out-
put, or

set volume for voice output using the
COMAND volume thumbwheel on the
lower part of the front central console
(page 89).
Displays
COMAND Display
In addition to the acoustic help function,
a visual help function (
page 215) is avail-
able on the COMAND display.
Upon activating the Voice Control, the
most important available commands for
the currently active system appear on the
COMAND display.When the Voice Control System requires
additional information from the user, a se-
lection list is shown on the COMAND dis-
play in the address book and navigation
system.
1COMAND display
Multifunction display
For example: telephone numbers are
shown on the multifunction display while
dialing when the main “Telephone” menu
is selected in the instrument cluster con-
trol system.1Multifunction display
Symbols
The following symbols are found in follow-
ing Voice Control System pages:s
This symbol stands for commands
and voice entries you are speaking.
t
This symbol stands for voice output
by the system.
u
This symbol indicates that informa-
tion is available on the COMAND
display.

262 Control systemsVoice Control* telephone
Telephone operation
The Voice Control System gives you the
following capabilities:

Enter a telephone unlock code


Dial a phone number by speaking the
telephone number


Store names and numbers in the
COMAND address book


Dial a phone number by speaking the
name of an COMAND address book en-
try


Delete an address book entry from the
address book


Have the system read out the phone
book of the address book entry by en-
try


Manage and access the automated an-
swering system/voice mail box


Redial names and numbers
The Voice Control System detects whether


your telephone is switched on


the corresponding mobile network is
logged in


it is possible to dial
If dialing is not possible, the Voice Control
System will advise you accordingly.
Before you can operate the telephone us-
ing the Voice Control System, you have to
activate the Voice Control (
page 260).

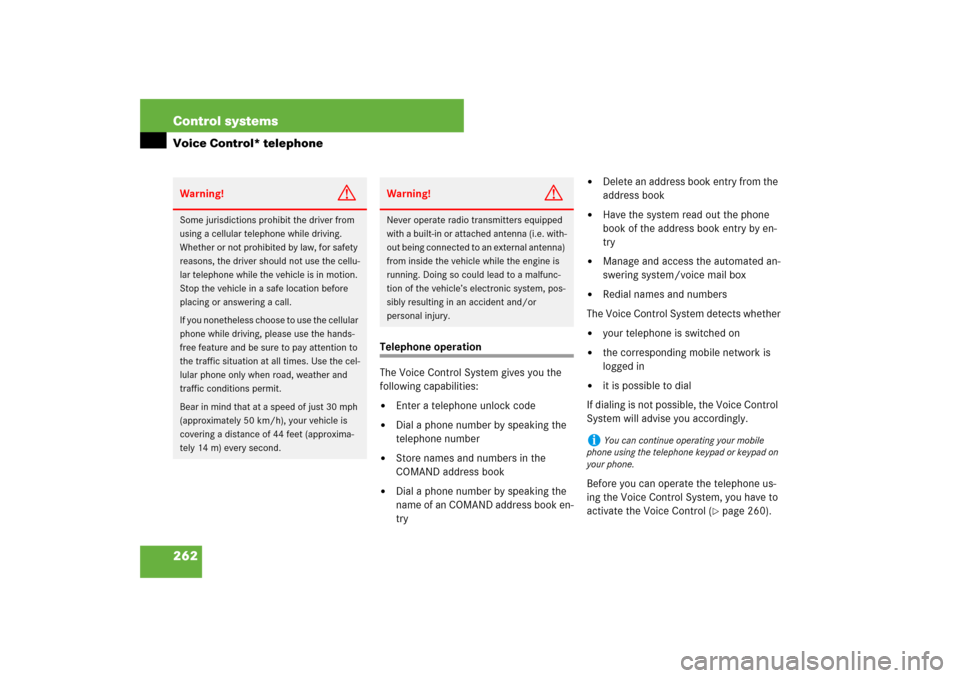

Warning!
G
Some jurisdictions prohibit the driver from
using a cellular telephone while driving.
Whether or not prohibited by law, for safety
reasons, the driver should not use the cellu-
lar telephone while the vehicle is in motion.
Stop the vehicle in a safe location before
placing or answering a call.
If you nonetheless choose to use the cellular
phone while driving, please use the hands-
free feature and be sure to pay attention to
the traffic situation at all times. Use the cel-
lular phone only when road, weather and
traffic conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approxima-
tely 14 m) every second.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
i
You can continue operating your mobile
phone using the telephone keypad or keypad on
your phone.

263 Control systems
Voice Control* telephone
Telephone commands
For a complete list of commands
(page 288).
“Telephone”
Use the command “Telephone” to activate
the telephone main menu. Use this com-
mand if you want the digits you are enter-
ing to appear on the COMAND display.
“Help telephone”
The Voice Control System features a com-
prehensive help function.
Use the command “Help telephone” and
the Voice Control System will read out an
option list of available functions and com-
mands that can be used in conjunction
with the telephone (
page 215).“Enter PIN”
Use the command “Enter PIN” to input the
code to unlock your telephone. After
speaking the command, you are prompted
to enter the code.
Speak the code


as a continuously spoken string of dig-
its, or


in digit blocks of three to five digits.Digits from “Zero” to “Nine” may be used.
After each digit block (separate the digit
blocks by using an approximately
0.5 second pause), the Voice Control Sys-
tem repeats the recognized digits and
waits until you continue speaking.
Sample dialog:
s
Enter PIN
t
Please say the PIN
s
Zero zero one one
t
Zero zero one one
s
OK
i
The PIN (only GSM mobile phones) prompt
starts automatically whenever the phone is
locked and you wish to use it.

264 Control systemsVoice Control* telephone“Dial number”
You can dial a phone number using the
command “Dial number”.
Digits from “Zero” to “Nine” may be used.
The phone number must be spoken

as a continuously spoken string of
digits, or


in digit blocks (three to five digits in
each block).
After each digit block (separate the digit
blocks by using an approx. 0.5 second
pause), the Voice Control System repeats
the recognized digits and waits until you
continue speaking.
When dialing 1800 numbers, you may pro-
nounce the first four digits as “One eight
hundred” and the system will recognize the
spoken entries as “One eight zero zero”.
All other numeric entries must be spoken
as individual numbers.Sample dialog:
s
Dial number
t
Please say the number
s
One two three
t
One two three
s
Four five six seven
t
Four five six seven
s
OK
t
Dialing“Confirm”
Using the command “Confirm” will repeat
all digits spoken up to that point. Upon re-
peating the digits, the system will prompt
you to continue your input.
Sample dialog:
s
Dial number
t
Please say the number
s
One two three
t
One two three
s
Confirm
t
One two three, please continue
s
Four five six seven
t
Four five six seven
s
OK
t
Dialing
i
You can also dial the telephone number spo-
ken by pressing buttons on the multifunc-
tion steering wheel (instead of using the
command “OK”):
You can dial the telephone number before all
numbers are recited in full.

265 Control systems
Voice Control* telephone
“Correction”
Using the command “Correct” will correct
the last entered digit block. After speaking
the command, the last digit block is delet-
ed and all previously entered digits are re-
peated. The system then prompts you to
continue your input.
Sample dialog:s
Dial number
t
Please say the number
s
One two three
t
One two three
s
Four five six seven
t
Five five six seven
s
Correction
t
One two three, please continue
s
Four five six seven
t
Four five six seven
s
OK
t
Dialing“Delete”
Using the command “Delete” will erase all
digits entered. The system then prompts
you to start your input again.
Sample dialog:
s
Dial number
t
Please say the number
s
One two three
t
One two three
s
Four five six seven
t
Four five six seven
s
Delete
t
Number deleted. Please enter the
number again
s
Four two seven three
t
Four two seven three
s
Three nine one
t
Three nine one
s
OK
t
Dialing
“Redial”
Use the command “Redial” to dial the last
dialed number.
“Save name” (COMAND address book)
Use the command “Save name” to create a
new entry in your COMAND address book.
After using the command, the system will
prompt you to enter a phone number.
Digits from “Zero” to “Nine” can be en-
tered (page 264).
Speak the telephone number


as a continuous string
or, with longer phone numbers,


in form of digit blocks (three to five dig-
its). After each digit block (separate the
digit blocks by using an approximately
0.5 second pause), the Voice Control
System repeats the recognized digits
and waits until you continue speaking.

266 Control systemsVoice Control* telephoneAfter the command “OK”, you will be
prompted up to two times to input the
name. When repeating the name, make
sure that you pronounce it in the same
manner as during the first input. Otherwise
the name cannot be saved and the Voice
Control System cancels the save proce-
dure.Sample dialog:
s
Save name
t
Please say the number first
s
One two three
t
One two three
s
Four five six seven
t
Four five six seven
s
OK
t
Please say the name
s
John Smith
t
Please repeat the name
s
John Smith
t
Do you want to save the number in
a category?
s
No
t
Name and number saved“Dial name” (COMAND address book)
Use the command “Dial name” to place a
phone call by selecting a name previously
saved in your personal address book.
Sample dialog:
s
Dial name
t
Please say the name
s
John Smith
If several telephone numbers exist
for the same entry, the Voice Con-
trol System will ask for clarification.
t
Do you want to place a work call or
a home call?
s
Work
t
John Smith work
Dialing
i
The Voice Control System may recognize
names even if not saved in your voice. For opti-
mum call-up performance, however, you should
speak and save the names you intend to use
yourself.
i
You can also add a name to an entry by call-
ing up the corresponding menu on COMAND and
saying the name twice (
page 202).

267 Control systems
Voice Control* telephone
“Call ” (Address book)
Use the command “Call ” to
place a phone call by directly selecting a
name previously stored in your address
book.
One address book entry can have up to
three different telephone numbers (mobile
phone/car/land line) for both the home
and work fields.
If only one telephone number is stored for
a given name, you can recall the entry us-
ing the command “Call John Smith”.
If several telephone numbers are associat-
ed with one entry, you can recall the de-
sired telephone number by using the
following commands:

“Call John Smith home”


“Call John Smith work”


“Call John Smith home cell phone”


“Call John Smith home car”


“Call John Smith home land line”


“Call John Smith work cell phone”


“Call John Smith work car”


“Call John Smith work land line”
The system confirms your input and the
number is dialed.
Sample dialog:
s
Call John Smith
If several telephone numbers exist
for the same entry, the Voice Con-
trol System will ask for clarification.
t
Do you want to place a work call or
a home call?
s
Work
t
John Smith work
Dialing“Delete name” (COMAND Address
book)
Use the command “Delete name” to delete
a name from the COMAND address book.
Sample dialog:
s
Delete name
t
The name, please
s
Smith office
t
Smith office: Would you like to de-
lete the voice name?
s
Yes
t
The voice name is deleted

268 Control systemsVoice Control* telephone“List phone book” and dialing a phone
number
Use the command “List phone book” to lis-
ten to all voice entries in the phone book
with a phone number stored, and select an
entry and dial that number.
Sample dialog:s
List phone book
The system reads out the complete
phone book entry by entry.Selecting an entry and dialing that
number

For the desired entry, press ! dur-
ing or immediately after voice output.
If more than one phone number exists
for a given entry, the Voice Control Sys-
tem prompts:
t
Do you want to place a work call or
a home call?
s
Home
The system reads out the name of
the selected entry and dials the cor-
responding number.
Cancelling the dialog:

Press L.
The system confirms “Cancel”.
The dialog is concluded.Managing automated answering sys-
tem/voice mail box
Activate the Voice Control System to ac-
cess and manage your answering ma-
chine/voice mail box.

Activate the Voice Control System dur-
ing a phone call (
page 260).
An audible tone (beep) confirms the ac-
tivation of the system.

Speak the required digits (“Zero” to
“Nine”).
or

Speak the required words “Star” and
“Pound”.

Speak the final command “OK”.
The system dials the number entered.

269 Control systems
Voice Control* navigation
Voice Control* navigation
Important notesWarning!
G
For safety reasons, you should only select a
destination when the vehicle is stationary.
While the navigation system provides direc-
tional assistance, the driver must remain fo-
cused on safe driving behavior, especially
attention to traffic and street signs, and
should utilize the system’s audio cues while
driving.
The navigation system does not supply any
information on stop signs, yield signs, traffic
regulations or traffic safety rules. Their ob-
servance always remains in the driver’ per-
sonal responsibility. DVD maps do not cover
all areas nor all routes within an area.
Traffic regulations always have priority over
any route recommendations given.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 13.5 m) every second.
During route guidance, you will not receive
information on:

traffic lights


stop and yield signs


parking or stopping zones


one-way streets


narrow bridges, or


other traffic regulation data.
You should therefore always strictly observe
traffic regulations while driving. Drive care-
fully and always obey traffic laws and road
signs, even if they contradict navigation sys-
tem instructions.
Warning!
G
Please do not use the Voice Control System
in an emergency, as the tone of your voice
may change in a stressful situation. This
could cause a delay in completing your
phone call in a timely manner. This could
distract you in an emergency situation and
cause you to be involved in an accident.
Warning!
G
Navigation announcements are intended to
direct you while driving without diverting
your attention from the road and driving.
Please always use this feature instead of
consulting the map display for directions.
Consulting the symbols or map display for
directions may cause you to divert your at-
tention from driving and increase your risk
of an accident.
