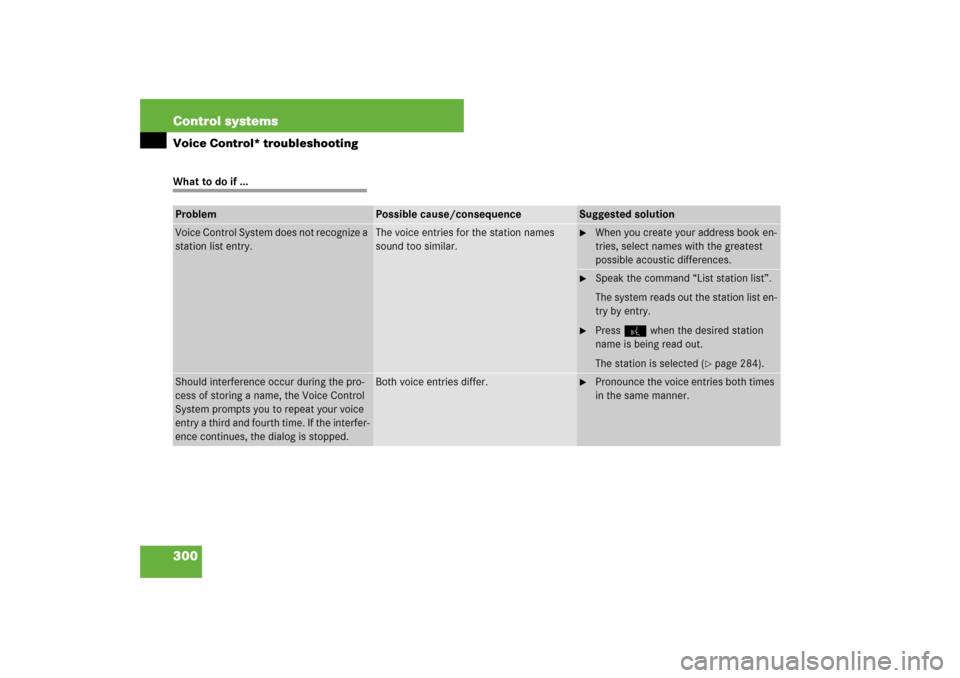

300 Control systemsVoice Control* troubleshootingWhat to do if ...Problem
Possible cause/consequence
Suggested solution
Voice Control System does not recognize a
station list entry.
The voice entries for the station names
sound too similar.

When you create your address book en-
tries, select names with the greatest
possible acoustic differences.

Speak the command “List station list”.
The system reads out the station list en-
try by entry.

Press ! when the desired station
name is being read out.
The station is selected (
page 284).
Should interference occur during the pro-
cess of storing a name, the Voice Control
System prompts you to repeat your voice
entry a third and fourth time. If the interfer-
ence continues, the dialog is stopped.
Both voice entries differ.

Pronounce the voice entries both times
in the same manner.

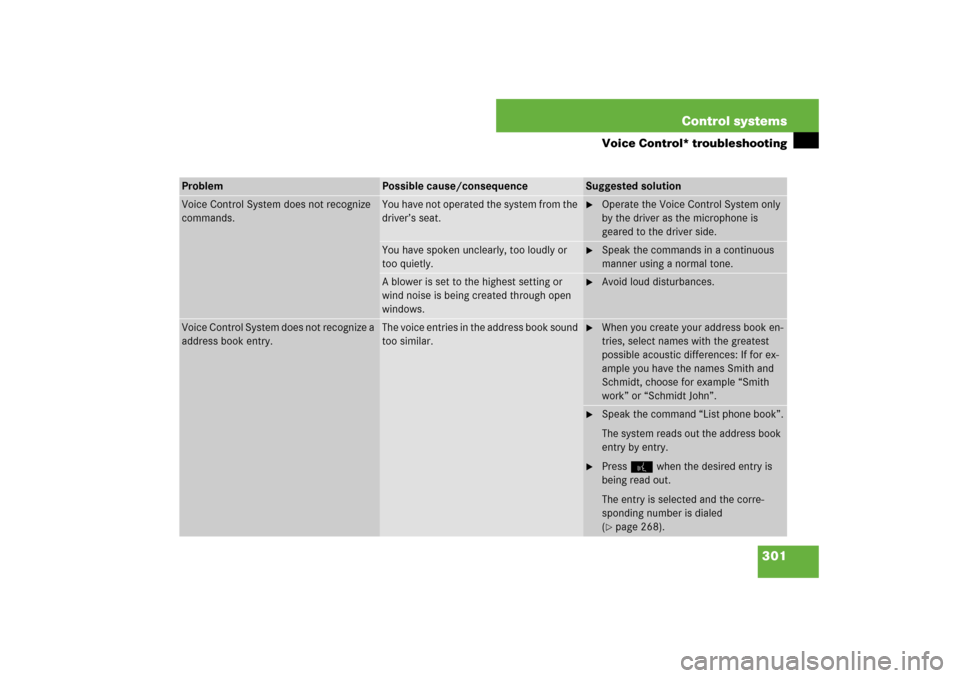

301 Control systems
Voice Control* troubleshooting
Problem
Possible cause/consequence
Suggested solution
Voice Control System does not recognize
commands.
You have not operated the system from the
driver’s seat.

Operate the Voice Control System only
by the driver as the microphone is
geared to the driver side.
You have spoken unclearly, too loudly or
too quietly.

Speak the commands in a continuous
manner using a normal tone.
A blower is set to the highest setting or
wind noise is being created through open
windows.

Avoid loud disturbances.
Voice Control System does not recognize a
address book entry.
The voice entries in the address book sound
too similar.

When you create your address book en-
tries, select names with the greatest
possible acoustic differences: If for ex-
ample you have the names Smith and
Schmidt, choose for example “Smith
work” or “Schmidt John”.

Speak the command “List phone book”.
The system reads out the address book
entry by entry.

Press! when the desired entry is
being read out.
The entry is selected and the corre-
sponding number is dialed
(page 268).

302 Control systemsVoice Control* individualizationThe individualization is used to adapt the
Voice Control System to your own voice
and to therefore improve speech recogni-
tion. This does not affect the speech rec-
ognition of other users.
Individualization consists of two stages:

Digits


Commands
You can activate individualization in the
COMAND system settings (
page 215).
A dialog and screen displays will guide you
through the individualization process.
The system can be reset to the factory set-
tings at any time.
i
The individualization can only be performed
when the vehicle is stationary.
If you drive off, the individualization will be can-
celed.
After starting the session, the system will guide
you through the individualization by means of
acoustic instructions.
i
You may wish to complete only a portion of
the individualization process.
Completing the digits portion alone may result in
an improved recognition rate.
Individualization can be exited at any time. The
data trained, however, will only be retained if a
given individualization portion is completed and
the data is stored when prompted to do so by the
system.

303 Controls in detail
Locking and unlocking
Starter switch positions
Seats
Steering wheel
Mirrors
Memory function
Fastening the seat belts
Lighting
Windshield wipers
Power windowsDriving and parking
Automatic transmission
Instrument cluster
Driving systems
Automatic climate control
Trunk
Power tilt/sliding sunroof
Panorama roof with power
tilt/sliding panel*
Loading and storing
Useful features

304 Controls in detailLocking and unlockingSmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are of differ-
ent color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with remote control1‹ Lock button
2ŠOpening button for trunk
(
page 436)
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 68)
!
To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious personal injury.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
or trunk lid opening when closing a door or
the trunk. Be especially careful when small
children are around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.

305 Controls in detail
Locking and unlocking
Factory setting
Global unlocking: Press buttonŒ.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither a door nor the trunk is opened


the SmartKey is not inserted in the
starter switch


the central locking switch is not acti-
vated

Global locking: Press button‹.
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressingŒ only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttonsŒ and‹
simultaneously for about 5 seconds un-
til battery check lamp5 (
page 304)
flashes twice.
The SmartKey will then function as fol-
lows:

Unlocking driver’s door and fuel fill-
er flap: Press buttonΠonce.
All turn signal lamps flash once. The
locking knob in the driver’s door moves
up. The anti-theft alarm system is dis-
armed.

Global unlocking: Press buttonŒ
twice.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
i
USA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
You can also open and close the door win-
dows and tilt/sliding sunroof, or the tilt/ sliding
panel* using the SmartKey (
page 355).


306 Controls in detailLocking and unlocking
Global locking: Press button‹.
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.

Restoring to factory setting: Press
and hold buttonsŒ and‹ si-
multaneously for about 5 seconds until
battery check lamp5 (
page 304)
flashes twice.
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys with
KEYLESS-GO are of different color to help
distinguish each SmartKey with
KEYLESS-GO unit.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you grasp an outside
door handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with KEYLESS-GO1‹ Lock button
2ŠOpening button for trunk
(
page 436)
3Locking tab for mechanical key
4ΠUnlock button
5Battery check lamp
6ÂPanic button (
page 68)
i
When any outside door handle other than
the driver’s outside door handle is grasped, the
vehicle is centrally unlocked.
!
To prevent possible malfunction, avoid ex-
posing the SmartKey with KEYLESS-GO to high
levels of electromagnetic radiation.


307 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. It is possible for children
to open a locked door from the inside, which
could result in an accident and/or serious
personal injury.
They could start the vehicle with a valid
SmartKey with KEYLESS-GO left in the vehi-
cle or with the KEYLESS-GO button on the
starter switch, or they could release the
electric parking brake, thereby putting
themselves and others in danger. Switch off
the engine and take the SmartKey with
KEYLESS-GO with you even if you are only
leaving the vehicle for a short while.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
or trunk lid opening when closing a door or
the trunk. Be especially careful when small
children are around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.i
USA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
You can also open and close the door win-
dows and tilt/sliding sunroof, or the tilt/ sliding
panel* using the SmartKey with KEYLESS-GO
(
page 355).

308 Controls in detailLocking and unlockingImportant notes on using KEYLESS-GO

You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey
(page 304).
The starter switch is under the
KEYLESS-GO button. Pull the
KEYLESS-GO button out in order to ac-
cess the starter switch.


You can combine KEYLESS-GO func-
tions with normal SmartKey functions
(e.g. unlocking with KEYLESS-GO and
locking with button ‹).


Always carry the SmartKey with
KEYLESS-GO with you.


Never store the SmartKey with
KEYLESS-GO together with:

Electronic items such as a mobile
phone or another SmartKey with
KEYLESS-GO


Metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.


To lock or unlock the vehicle, the
SmartKey with KEYLESS-GO must be
located outside the vehicle within ap-
proximately 3 ft. (1 m) of a door or the
trunk lid.


In order to start the engine with the
SmartKey with KEYLESS-GO:

The SmartKey with KEYLESS-GO
must be located in the vehicle.


The brake pedal must be firmly de-
pressed. Do not depress the accel-
erator.


If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle, the system may no longer recog-
nize the SmartKey with KEYLESS-GO.
The vehicle then cannot be locked or
the engine started via the KEYLESS-GO
system.


If the SmartKey with KEYLESS-GO is re-
moved from the vehicle (e.g. if passen-
ger exits the vehicle with the SmartKey
with KEYLESS-GO)


when pressing the KEYLESS-GO
start/stop button or trying to lock
the vehicle with the outside door
handle the message “Key not recog-
nized” appears in the multifunction
display


with the engine running, the mes-
sage “Key not recognized” appears
in the multifunction display while
driving off.
Find the SmartKey or change its
present location immediately
(e.g. place it on the front passenger
seat or insert it in shirt pocket).


If you have started the engine with the
KEYLESS-GO start/stop button
(page 317), you can turn it off again
with:


the KEYLESS-GO start/stop button


the SmartKey inserted in the starter
switch, when the automatic trans-
mission is in positionP

309 Controls in detail
Locking and unlocking


Remember that the engine can be
started by anyone with a SmartKey
with KEYLESS-GO that is left inside the
vehicle.
Possibility 1: (One SmartKey with
KEYLESS-GO in the vehicle, one
SmartKey with KEYLESS-GO outside
the vehicle):
If you leave the SmartKey with
KEYLESS-GO behind when exiting and
locking the vehicle, no message
appears in the multifunction display.
Possibility 2: (One SmartKey with
KEYLESS-GO in the vehicle, no
SmartKey with KEYLESS-GO outside
the vehicle):
When exiting and trying to lock the ve-
hicle, the message “Key still in vehicle”
appears in the multifunction display.
The vehicle will not be locked.Factory setting

Global unlocking: Grasp an outside
door handle.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither a door nor the trunk is opened


the central locking switch is not acti-
vated1Outside door handle

Global locking: close all doors and
touch outside of door handle1. Do
not keep your hand in the door handle
recess.
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.
i
If the vehicle has been parked for more than
72 hours, you must pull an outside door handle
in order to activate the KEYLESS-GO function.
i
The vehicle could inadvertently be unlocked
if the SmartKey with KEYLESS-GO is within 3 ft.
(1 m) of the vehicle and:


an outside door handle is splashed with wa-
ter, or


you attempt to clean an outside door handle.
