MERCEDES-BENZ S550 2007 W221 Owner's Manual

540 OperationVehicle careCleaning the windows and the wiper
blades
Make sure the hood is fully closed.

Place wiper arms in vertical position
(page 627).

Make sure the vehicle’s on-board elec-
tronics have status 0 (
page 315).

Fold the wiper arms forward until they
snap into place.

Clean the wiper blade inserts with a
clean cloth and detergent solution.

Use a soft, clean cloth and a mild win-
dow cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is recom-
mended.
!
If the windshield wipers leave smears on the
windshield after the vehicle has been driven
through an automatic car wash, wax or other res-
idue is on the windshield. Clean the windshield
with washer fluid shortly after cleaning the car in
an automatic car wash (
page 352).
!
The windshield wipers must be in a vertical
position before folding them away from the wind-
shield. They could otherwise damage the hood.
Never open the hood when the wiper arms are
folded forward.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before cleaning the windshield
and/or the wiper blades. Otherwise, the
wiper motor could suddenly turn on and
cause injury.!
While doing so, only touch the wiper arm so
as not to damage the wiper blade inserts.
!
Fold the windshield wiper arms back onto
the windshield before turning the SmartKey in
the starter switch or pressing the KEYLESS-GO*
start/stop button (vehicles with KEYLESS-GO*).
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
!
To clean the window interior, do not use a
dry cloth, abrasives, solvents or cleaners con-
taining solvents. Do not touch the inside of the
front, rear or side windows with hard objects
such as an ice scraper or ring. Doing so may
damage the windows.

541 Operation
Vehicle care
Cleaning the panorama roof with
tilt/sliding panel*
The rear part of the tilt/sliding panel has a
protective layer on the inside.
Use a soft, clean cloth and a mild win-
dow cleaning solution.
An automotive glass cleaner is recom-
mended.Light alloy wheels
If possible, clean wheels once a week.

Use Mercedes-Benz approved Wheel
Care, a soft bristle brush and a strong
spray of water for cleaning the light al-
loy wheels.Plastic and rubber parts

Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution.
Instrument cluster and cup holders

Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution.

Wipe with a cloth moistened in a luke-
warm solution.
!
Do not use a dry cloth, abrasives, solvents
or cleaners containing solvents. Do not touch
the protective layer with hard objects such as an
ice scraper or ring. Never apply strong force and
only use a soft, non-scratching cloth when clean-
ing the rear part of the tilt/sliding panel.
Otherwise you may scratch or damage the pro-
tective layer.
!
Only use acid-free cleaning materials. Acid
may cause corrosion or damage the clear coat.
!
The vehicle should not be parked for an ex-
tended period of time immediately after it has
been cleaned, especially not after the wheel rims
have been cleaned with wheel rim cleaner.
Wheel rim cleaners can lead to increased corro-
sion of the brake disks and brake pads. There-
fore, the vehicle’s brake system should always
be warmed-up before it is parked after cleaning.
To do so, please drive your vehicle for several
minutes to allow the brakes to dry.
When applying Mercedes-Benz approved Tire
Care and Mercedes-Benz approved Wheel Care
products, take care not to spray them on the
brake disks.
!
Do not use oil or wax on these parts.
!
To prevent scratches, do not use scouring
agents.

542 OperationVehicle careHard plastic trim items
Use Mercedes-Benz approved Interior
Care, a soft, lint-free cloth and apply
with light pressure.
Steering wheel

Wipe with a damp cloth and dry thor-
oughly or clean with Mercedes-Benz
approved Leather Care.
Carpets

Use Mercedes-Benz approved Carpet
and Fabric Care for cleaning the car-
pets.
Headliner and shelf below rear window

Use a soft bristle brush or a dry-sham-
poo cleaner in case of excessive dirt. Seat belts

Only use clear, lukewarm water and
soap.
Upholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.Leather upholstery

Wipe leather upholstery with a damp
cloth and dry thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Exercise particular care when cleaning per-
forated leather as its underside should not
become wet.
Wood trims

Dampen cloth using water and use
damp cloth to clean wood trims in your
vehicle.
!
To prevent scratches, do not use scouring
agents.
!
The webbing must not be treated with
chemical cleaning agents. Do not dry the web-
bing at temperatures above 176°F (80°C) or in
direct sunlight.
Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
!
Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as these
may be abrasive.
!
S 600 only: Do not cover the luxury active
head restraints*.

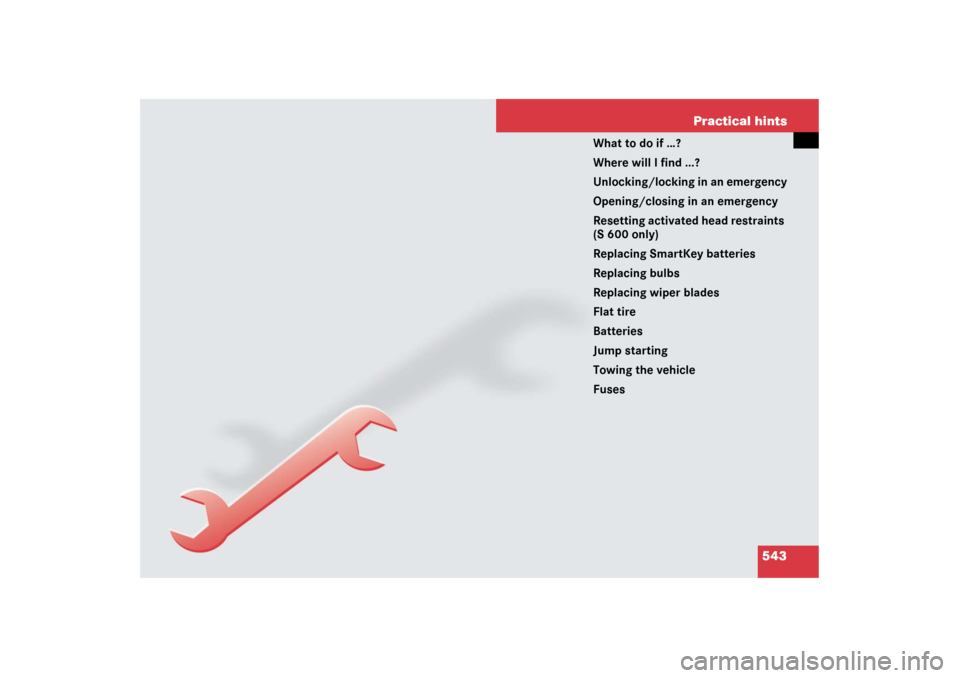

543 Practical hints
What to do if …?
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Resetting activated head restraints
(S 600 only)
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Batteries
Jump starting
Towing the vehicle
Fuses

544 Practical hintsWhat to do if …?Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during the bulb self-check when switching on the igni-
tion, have the respective bulb checked and
replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow Antilock Brake
System (ABS) indicator lamp
comes on while the engine is
running.
The ABS has detected a malfunction and
has switched off. The BAS, ESP
® and
PRE-SAFE
® are also switched off (see mes-
sages in multifunction display).
The brake system is still functioning nor-
mally but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as Parktronic*, DIS-
TRONIC Plus*, navigation system, Park As-
sist* and the automatic transmission may
also be malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 557).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery may not be charged sufficiently.
When the voltage is above this value again,
the ABS is operational again and the ABS in-
dicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and the
battery checked.

545 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution

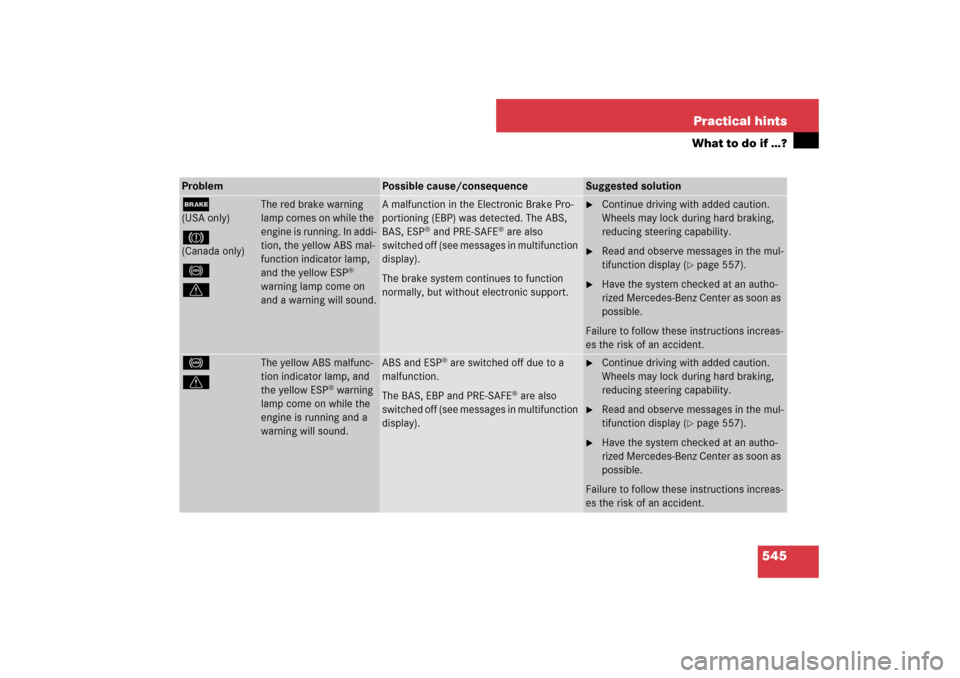

;(USA only)3(Canada only)-
v
The red brake warning
lamp comes on while the
engine is running. In addi-
tion, the yellow ABS mal-
function indicator lamp,
and the yellow ESP
®
warning lamp come on
and a warning will sound.
A malfunction in the Electronic Brake Pro-
portioning (EBP) was detected. The ABS,
BAS, ESP
® and PRE-SAFE
® are also
switched off (see messages in multifunction
display).
The brake system continues to function
normally, but without electronic support.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 557).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
-
v
The yellow ABS malfunc-
tion indicator lamp, and
the yellow ESP
® warning
lamp come on while the
engine is running and a
warning will sound.
ABS and ESP
® are switched off due to a
malfunction.
The BAS, EBP and PRE-SAFE
® are also
switched off (see messages in multifunction
display).

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 557).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.

546 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
0(USA only)!(Canada only)
The red indicator lamp
for the electric parking
brake flashes and/or the
yellow warning lamp for
the electric parking brake
is on.
The electric parking brake is malfunctioning
or defective.

Read and observe messages in the mul-
tifunction display (
page 557).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
;(USA only)3(Canada only)
The red brake warning
lamp comes on while
driving and you hear a
warning sound.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Do not drive any fur-
ther. Consult a Mercedes-Benz Center.
Under no circumstances should you top
up the brake fluid. This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot en-
gine parts and the brake fluid catching fire.
You can be seriously burned.!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

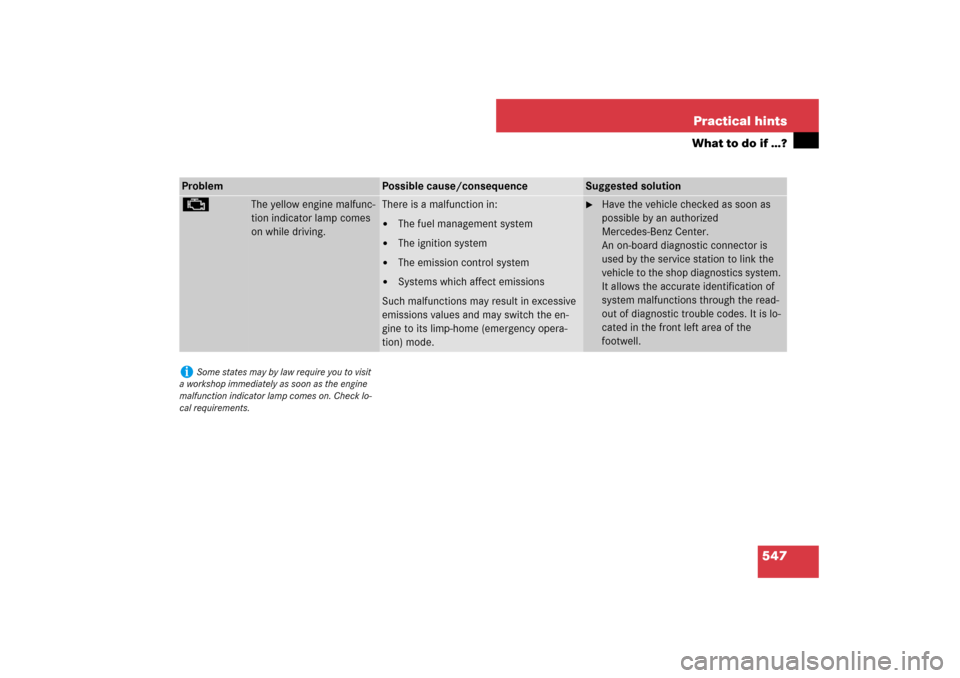

547 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
±
The yellow engine malfunc-
tion indicator lamp comes
on while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to its limp-home (emergency opera-
tion) mode.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics system.
It allows the accurate identification of
system malfunctions through the read-
out of diagnostic trouble codes. It is lo-
cated in the front left area of the
footwell.
i
Some states may by law require you to visit
a workshop immediately as soon as the engine
malfunction indicator lamp comes on. Check lo-
cal requirements.

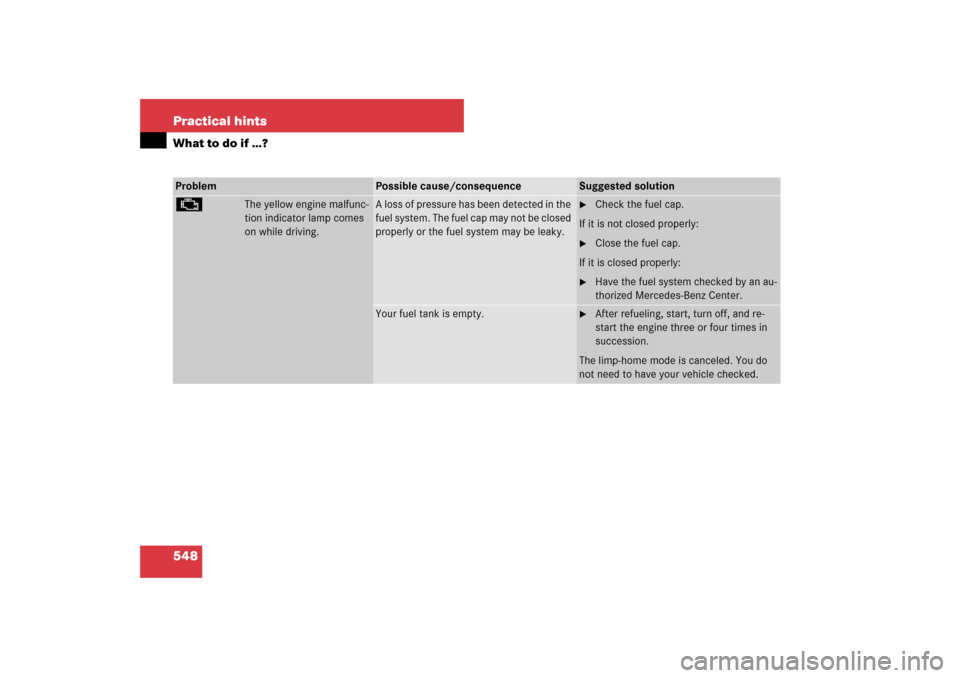

548 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
±
The yellow engine malfunc-
tion indicator lamp comes
on while driving.
A loss of pressure has been detected in the
fuel system. The fuel cap may not be closed
properly or the fuel system may be leaky.

Check the fuel cap.
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an au-
thorized Mercedes-Benz Center.
Your fuel tank is empty.

After refueling, start, turn off, and re-
start the engine three or four times in
succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.

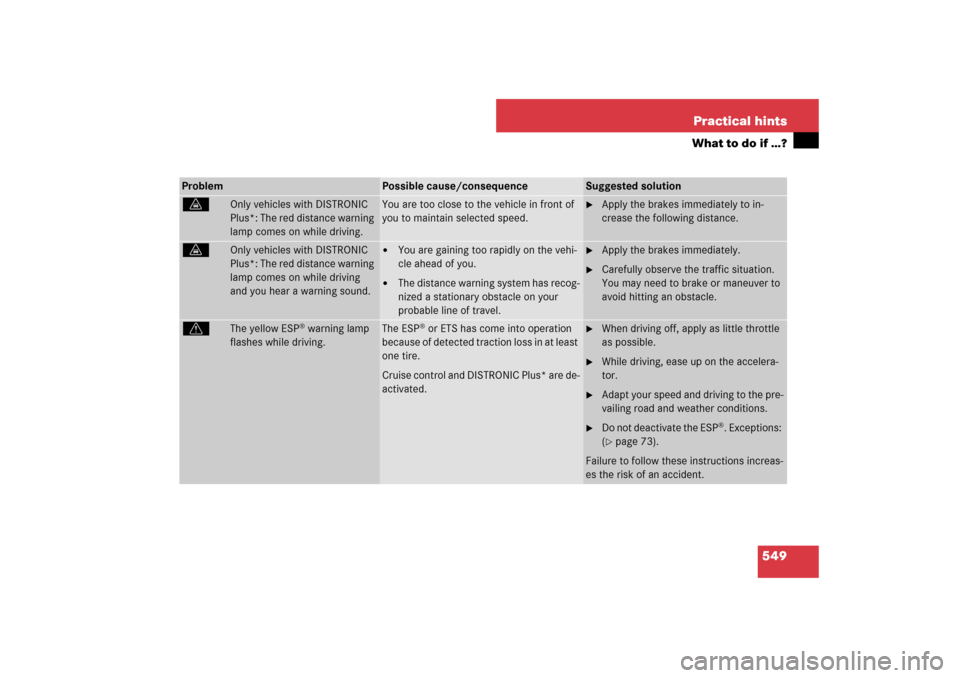

549 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
l
Only vehicles with DISTRONIC
Plus*: The red distance warning
lamp comes on while driving.
You are too close to the vehicle in front of
you to maintain selected speed.

Apply the brakes immediately to in-
crease the following distance.
l
Only vehicles with DISTRONIC
Plus*: The red distance warning
lamp comes on while driving
and you hear a warning sound.


You are gaining too rapidly on the vehi-
cle ahead of you.


The distance warning system has recog-
nized a stationary obstacle on your
probable line of travel.

Apply the brakes immediately.

Carefully observe the traffic situation.
You may need to brake or maneuver to
avoid hitting an obstacle.
v
The yellow ESP
® warning lamp
flashes while driving.
The ESP
® or ETS has come into operation
because of detected traction loss in at least
one tire.
Cruise control and DISTRONIC Plus* are de-
activated.

When driving off, apply as little throttle
as possible.

While driving, ease up on the accelera-
tor.

Adapt your speed and driving to the pre-
vailing road and weather conditions.

Do not deactivate the ESP
®. Exceptions:
(
page 73).
Failure to follow these instructions increas-
es the risk of an accident.
