MERCEDES-BENZ S550 2007 W221 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2007, Model line: S550, Model: MERCEDES-BENZ S550 2007 W221Pages: 705
Page 561 of 705
560 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
DISTRONIC PLUS
currently unavailable
See Oper. Manual
You attempt to activate DISTRONIC Plus*
even though you have switched off the ra-
dar sensors* on the vehicle.
Check if the radar sensors* may be switched on (
page 256).
Switch on the radar sensors* using the instrument cluster
control system.
DISTRONIC Plus* is switched off and is
temporarily unavailable.
DISTRONIC Plus* is deactivated if:
the DISTRONIC Plus* cover in the radia-
tor grille is dirty
the radar sensors* does not sense any
other vehicles or objects, i.e. road sign
or similar to this, for a long time
the system is overheated
its function is impaired as a result of
heavy precipitation or fog
the battery voltage is insufficient
Clean the DISTRONIC Plus* cover in the radiator grille
(page 537).
Restart the vehicle.
Try activating DISTRONIC Plus* again later.
Wait until the system cools down or the battery recovers.
DISTRONIC Plus* will be operational again without you needing to
restart the engine if:
the dirt (e.g. slush) loosens while you are driving
the system detects that the sensors* are fully available again
the message in the multifunction display disappears
DISTRONIC Plus* is switched off because
the radar sensor system* is temporarily in-
operative due to electromagnetic interfer-
ence near television and radio transmitter
stations, toll stations, speed measuring sys-
tems, etc.
Wait until the message in the multifunction display disappears.
Page 562 of 705

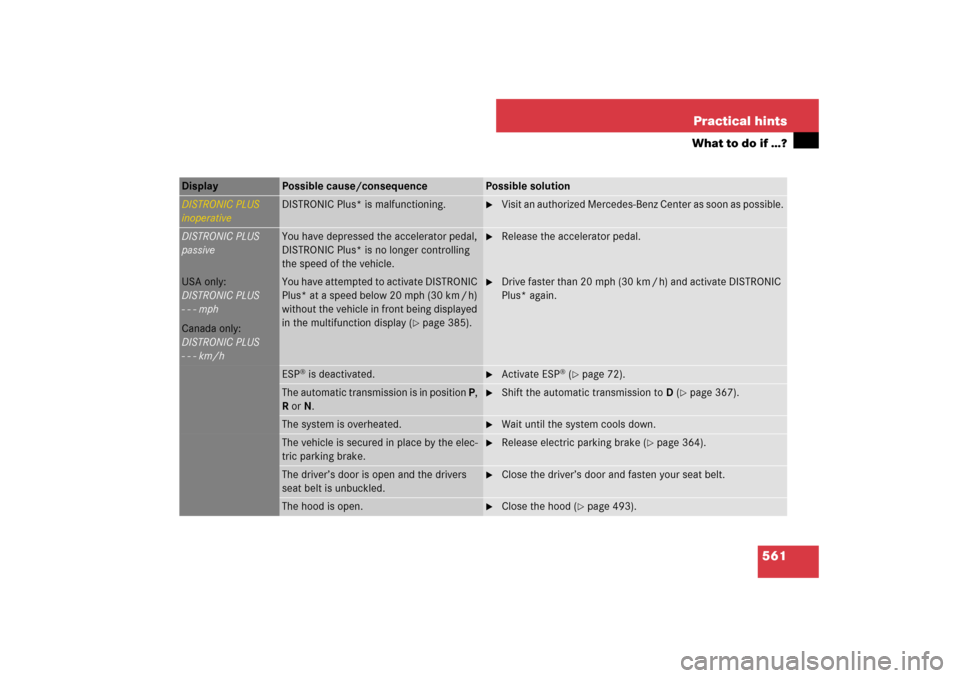

561 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
DISTRONIC PLUS
inoperative
DISTRONIC Plus* is malfunctioning.
Visit an authorized Mercedes-Benz Center as soon as possible.
DISTRONIC PLUS
passive
You have depressed the accelerator pedal,
DISTRONIC Plus* is no longer controlling
the speed of the vehicle.
Release the accelerator pedal.
USA only:
DISTRONIC PLUS
- - - mph
Canada only:
DISTRONIC PLUS
- - - km/h
You have attempted to activate DISTRONIC
Plus* at a speed below 20 mph (30 km / h)
without the vehicle in front being displayed
in the multifunction display (
page 385).
Drive faster than 20 mph (30 km / h) and activate DISTRONIC
Plus* again.
ESP
® is deactivated.
Activate ESP
® (page 72).
The automatic transmission is in position P,
R or N.
Shift the automatic transmission toD (
page 367).
The system is overheated.
Wait until the system cools down.
The vehicle is secured in place by the elec-
tric parking brake.
Release electric parking brake (
page 364).
The driver’s door is open and the drivers
seat belt is unbuckled.
Close the driver’s door and fasten your seat belt.
The hood is open.
Close the hood (
page 493).
Page 563 of 705
562 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Door Open
Vehicle not in Park
You have opened the driver’s
door and the automatic trans-
mission is still in position D, R
orN.
Before you leave the vehicle, make sure that the automatic transmission
is shift to position P and that the parking brake is engaged.
Front passenger
airbag disabled
See Oper. Manual
Front passenger front air bag is
deactivated while driving even
though an adult or someone
larger than a small individual is
occupying the front passenger
seat. Forces acting on the seat
may make the system sense a
decrease in weight.
Stop the vehicle in a safe location as soon as possible and check the front
passenger seat for the following:
Switch off the ignition (
page 315).
Have the front passenger vacate the seat and exit the vehicle.
Adjust the seat in a height position (
page 318).
Make sure that no objects which apply forces to the seat are present (e.g.
objects such as books, briefcases etc. lodged underneath, behind or
around the seat). Such forces may cause the system to sense that an oc-
cupant of a lesser weight than actually present is on the front passenger
seat.
Keep the seat unoccupied, close the front passenger door and switch on
the ignition (
page 315).
Monitor the 59indicator lamp right of the instrument cluster
(
page 53) and the multifunction display in the instrument cluster
(page 241) for the following:
(Continued on next page)
Page 564 of 705
563 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Front passenger
airbag disabled
See Oper. Manual
With the seat unoccupied and the ignition switched on (
page 315),
the 59indicator lamp right of the instrument cluster should
illuminate and remain illuminated, indicating that the OCS (
page 50)
has deactivated the air bag.
the message “Front passenger airbag enabled See Oper. Manual” or the
message “Front passenger airbag disabled See Oper. Manual” should not
appear in the multifunction display at any time the seat is unoccupied.
Wait at last 60 seconds for the system to complete the necessary check
cycles and to make sure neither message appears in the multifunction dis-
play.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS
(
page 50), the59indicator lamp will remain illuminated or go
out.
If above conditions are not met, the system is not working properly. Have the
system checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!
G
If the 59indicator lamp re-
mains illuminated with an adult occupant on
the front passenger seat even after
performing the above corrective steps, do
not have any passenger use the front pas-
senger seat until the system has been re-
paired.
Page 565 of 705
564 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Front passenger
airbag enabled
See Oper. Manual
Front passenger front air bag is
activated while driving even
though a child, small individual,
or object below the system’s
weight threshold is on the front
passenger seat, or the front pas-
senger seat is empty. Objects
on the seat or forces acting on
the seat may make the system
sense supplemental weight.
Stop the vehicle in a safe location as soon as possible and check the front
passenger seat for the following:
Switch off the ignition (
page 315).
Remove child and child restraint from front passenger seat and properly
secure the child in rear seat employing the child restraint if necessary.
Remove any other items from on and around the front passenger seat and
make sure the storage bag on the back of the front passenger seat is emp-
ty.
Make sure that no objects which apply forces to the seat are present (e.g.
objects such as books, briefcases etc. lodged behind or around the seat,
head restraints pushing against roof etc.). The system may recognize such
forces as supplemental weight and sense that an occupant on the front
passenger seat is of a greater weight than actually present.
Keep the seat unoccupied, close the front passenger door and switch on
the ignition (
page 315).
Monitor the 59indicator lamp right of the instrument cluster
(
page 53) and the multifunction display in the instrument cluster
(page 241) for the following:
(Continued on next page)
Page 566 of 705
565 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Front passenger
airbag enabled
See Oper. Manual
With the seat unoccupied and the ignition switched on (
page 315),
the 59indicator lamp right of the instrument cluster should
illuminate and remain illuminated, indicating that the OCS (
page 50)
has deactivated the air bag.
the message “Front passenger airbag enabled See Oper. Manual” or the
message “Front passenger airbag disabled See Oper. Manual” should not
appear in the multifunction display at any time the seat is unoccupied.
Wait at last 60 seconds for the system to complete the necessary check
cycles and to make sure neither message appears in the multifunction dis-
play.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS
(
page 50), the 59indicator lamp will remain illuminated or go
out.
If above conditions are not met, the system is not working properly. Have the
system checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!
G
If the 59indicator lamp re-
mains illuminated with an adult occupant on
the front passenger seat even after
performing the above corrective steps, do
not have any passenger use the front pas-
senger seat until the system has been re-
paired.
Page 567 of 705
566 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Next Service X
due in ... days
due in ... mls (km)
Service X must be carried out in ... days or
after ... miles (kilometers) (
page 532).
Have the maintenance service carried out by an authorized
Mercedes-Benz Center.
Only shift to
position 'P' when
vehicle is stationary
You have tried to Shift the automatic trans-
mission to P using the gear selector lever al-
though the vehicle is still in motion.
Stop the vehicle.
Park Assist
currently unavailable
See Oper. Manual
You attempt to activate Park Assist* even
though you have switched off the radar sen-
sors* on the vehicle.
Check if the radar sensors* may be switched on (
page 256).
Switch on the radar sensors* using the instrument cluster
control system.
Park Assist* is deactivated because the
area around the sensors* in the front or the
rear bumper (
page 538) is dirty.
Clean the front and rear bumper (
page 538).
Park Assist* is deactivated because the
battery voltage is insufficient.
Have the battery checked by an authorized Mercedes-Benz
Center.
Park Assist* is switched off because the ra-
dar sensor system* is temporarily inopera-
tive due to electromagnetic interference
near television and radio transmitter sta-
tions, toll stations, speed measuring sys-
tems, etc.
Wait until the message in the multifunction display disappears.
Page 568 of 705
567 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Park Assist
inoperative
Park Assist* is unavailable due to a mal-
function.
Visit an authorized Mercedes-Benz Center as soon as possible.
PRE-SAFE
inoperative
See Owner's Manual
PRE-SAFE
® itself has failed. All other occu-
pant safety systems, such as the air bags,
are still available.
Visit an authorized Mercedes-Benz Center as soon as possible.
Check tires
then restart
Run Flat Indicator
There was a warning message about a loss
in tire inflation pressure and the Run Flat In-
dicator* has not been restarted yet.
Check and adjust tire inflation pressure as required
(page 514).
Then restart the Run Flat Indicator* (
page 515).
Radar sensor
deactivated
See Oper. Manual
You attempt to activate DISTRONIC Plus*
or Park Assist* even though you have
switched off the radar sensors* on the vehi-
cle.
Check if the radar sensors* may be switched on (
page 256).
Switch on the radar sensors* using the instrument cluster
control system.
Run Flat Indicator
inoperative
The Run Flat Indicator* is malfunctioning.
Visit an authorized Mercedes-Benz Center as soon as possible.
Service X
due
Service X must be carried out (
page 532).
Have the maintenance service carried out by an authorized
Mercedes-Benz Center.
Service X exceeded
by X days
by XXX mls (km)
Service X must be carried within the next ...
or before you have driven ... miles (kilome-
ters) (
page 532).
Have the maintenance service carried out by an authorized
Mercedes-Benz Center as soon as possible.
Shift to P or N
to start engine
You have attempted to start the engine
while the automatic transmission was set to
position R or D.
Shift the automatic transmission to P or N (
page 367).
Page 569 of 705

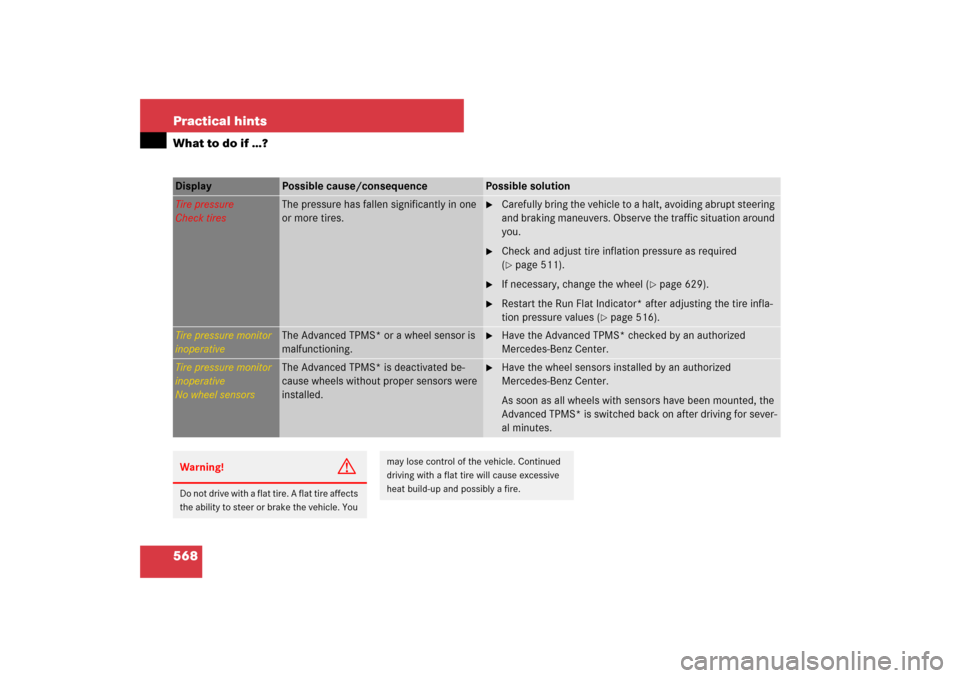

568 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
Tire pressure
Check tires
The pressure has fallen significantly in one
or more tires.
Carefully bring the vehicle to a halt, avoiding abrupt steering
and braking maneuvers. Observe the traffic situation around
you.
Check and adjust tire inflation pressure as required
(page 511).
If necessary, change the wheel (
page 629).
Restart the Run Flat Indicator* after adjusting the tire infla-
tion pressure values (
page 516).
Tire pressure monitor
inoperative
The Advanced TPMS* or a wheel sensor is
malfunctioning.
Have the Advanced TPMS* checked by an authorized
Mercedes-Benz Center.
Tire pressure monitor
inoperative
No wheel sensors
The Advanced TPMS* is deactivated be-
cause wheels without proper sensors were
installed.
Have the wheel sensors installed by an authorized
Mercedes-Benz Center.
As soon as all wheels with sensors have been mounted, the
Advanced TPMS* is switched back on after driving for sever-
al minutes.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.
Page 570 of 705

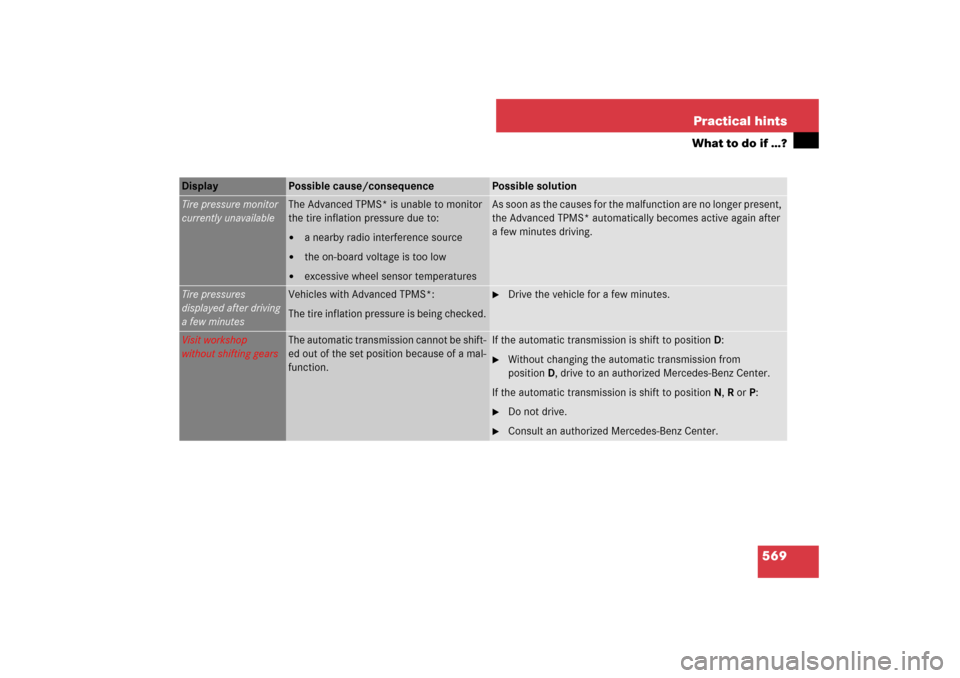

569 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Tire pressure monitor
currently unavailable
The Advanced TPMS* is unable to monitor
the tire inflation pressure due to:
a nearby radio interference source
the on-board voltage is too low
excessive wheel sensor temperatures
As soon as the causes for the malfunction are no longer present,
the Advanced TPMS* automatically becomes active again after
a few minutes driving.
Tire pressures
displayed after driving
a few minutes
Vehicles with Advanced TPMS*:
The tire inflation pressure is being checked.
Drive the vehicle for a few minutes.
Visit workshop
without shifting gears
The automatic transmission cannot be shift-
ed out of the set position because of a mal-
function.
If the automatic transmission is shift to positionD:
Without changing the automatic transmission from
positionD, drive to an authorized Mercedes-Benz Center.
If the automatic transmission is shift to positionN, R or P:
Do not drive.
Consult an authorized Mercedes-Benz Center.
