Display messagesPossible causes/consequences and 0050 SolutionsFront
Passeng.
AirbagEnabled
See Oper.
ManualThe passenger front air bag is activated while driving even
though a child, small individual, or object below the system’s
weight threshold is on the passenger seat, or the passenger
seat is empty. Objects on the seat or forces acting on the seat
may make the system sense supplemental weight.XStop the vehicle in a safe location as soon as possible.XEngage the parking brake.XSwitch off the ignition.XOpen the passenger door.XRemove child and child restraint from passenger seat.XMake sure no objects which apply supplemental weight to
the seat are present. The system may recognize such
supplemental weight and sense that an occupant on the
passenger seat is of a greater weight than actually present.XKeep the seat unoccupied, close the passenger door and
switch on the ignition.
Monitor the 007F0080 indicator lamp ( Y page 45) and the
multifunction display in the instrument cluster (Y page 30) for
the following:
With the seat unoccupied and the ignition switched on,
R the 007F0080 indicator lamp in the center console should
illuminate and remain illuminated, indicating that the OCS
( Y page 43) has deactivated the passenger front air bag.
R the message Front Passeng. Airbag Enabled See
Oper. Manual or the message Front Passeng. Airbag
Disabled See Oper. Manual should not appear in the
multifunction display at any time the seat is unoccupied.
Wait at least 60 seconds for the system to complete the
necessary check cycles and to make sure neither message
appears in the multifunction display.
If above conditions are met, you can occupy the passenger
seat again. Depending on the passenger classification sensed
by the OCS, the 007F0080 indicator lamp will remain
illuminated or go out.
If above conditions are not met, the system is not working
properly. Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Vehicle status messages in the multifunction display229Practical hints230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 229Z

GWarning!
If the 007F0080 indicator lamp remains out even after performing the above corrective steps,
do not have any children 12 years old and under and other small individuals use the passenger
seat until the system has been repaired.
Display messagesPossible causes/consequences and 0050 SolutionsFront
Passeng.
Airbag Disabled
See Oper.
ManualThe passenger front air bag is deactivated while driving even
though an adult or someone larger than a small individual is
occupying the passenger seat. Forces acting on the seat may
make the system sense a decrease in weight.XStop the vehicle in a safe location as soon as possible.XEngage the parking brake.XSwitch off the ignition.XHave the passenger vacate the seat and exit the vehicle.XKeep the seat unoccupied, close the passenger door and
switch on the ignition.
Monitor the 007F0080 indicator lamp ( Y page 45) and the
multifunction display in the instrument cluster (Y page 30) for
the following:
With the seat unoccupied and the ignition switched on,
R the 007F0080 indicator lamp should illuminate and remain
illuminated, indicating that the OCS ( Y page 43) has
deactivated the passenger front air bag.
R the message Front Passeng. Airbag Enabled See
Oper. Manual or the message Front Passeng. Airbag
Disabled See Oper. Manual should not appear in the
multifunction display at any time the seat is unoccupied.
Wait at least 60 seconds for the system to complete the
necessary check cycles and to make sure neither message
appears in the multifunction display.
If above conditions are met, you can occupy the passenger
seat again. Depending on the passenger classification sensed
by the OCS, the 007F0080 indicator lamp will remain
illuminated or go out.
If above conditions are not met, the system is not working
properly. Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
GWarning!
If the 007F0080 indicator lamp remains illuminated with an adult occupant on the passenger
seat even after performing the above corrective steps, do not have any passenger use the
passenger seat until the system has been repaired.
230Vehicle status messages in the multifunction displayPractical hints
230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 230

Driving systemsDisplay messagesPossible causes/consequences and 0050 SolutionsABCMalfunctio
n Stop CarYou have started driving although the vehicle level is still too
low.
The vehicle is being raised. The ABC message goes out after
a few seconds.XStop the vehicle in a safe location or as soon as it is safe
to do so.XWait until the message disappears from the multifunction
display.
You may then drive off.ABCMalfunctio
n Stop CarThe vehicle is losing oil.
The ABC message appears continuously.XStop the vehicle in a safe location or as soon as it is safe
to do so.XEngage the parking brake.XCall Roadside Assistance.
or
XContact an authorized Mercedes-Benz Center.ABCMalfunctio
n Stop CarThe ABC is malfunctioning.XStop the vehicle in a safe location and press the vehicle
level control button to select a higher vehicle level
( Y page 142).
If the vehicle does not raise, observe the following when you
continue to drive:
XDo not turn steering wheel too far to avoid damaging the
front fenders.XListen for scraping noises.XDo not drive faster than 50 mph (80 km/h).XContact an authorized Mercedes-Benz Center as soon as
possible.ABCMalfunctio
nThe capability of the ABC system is restricted. This can impair
handling.XDo not drive faster than 50 mph (80 km/h).XContact an authorized Mercedes-Benz Center as soon as
possible.Vehicle status messages in the multifunction display231Practical hints230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 231Z

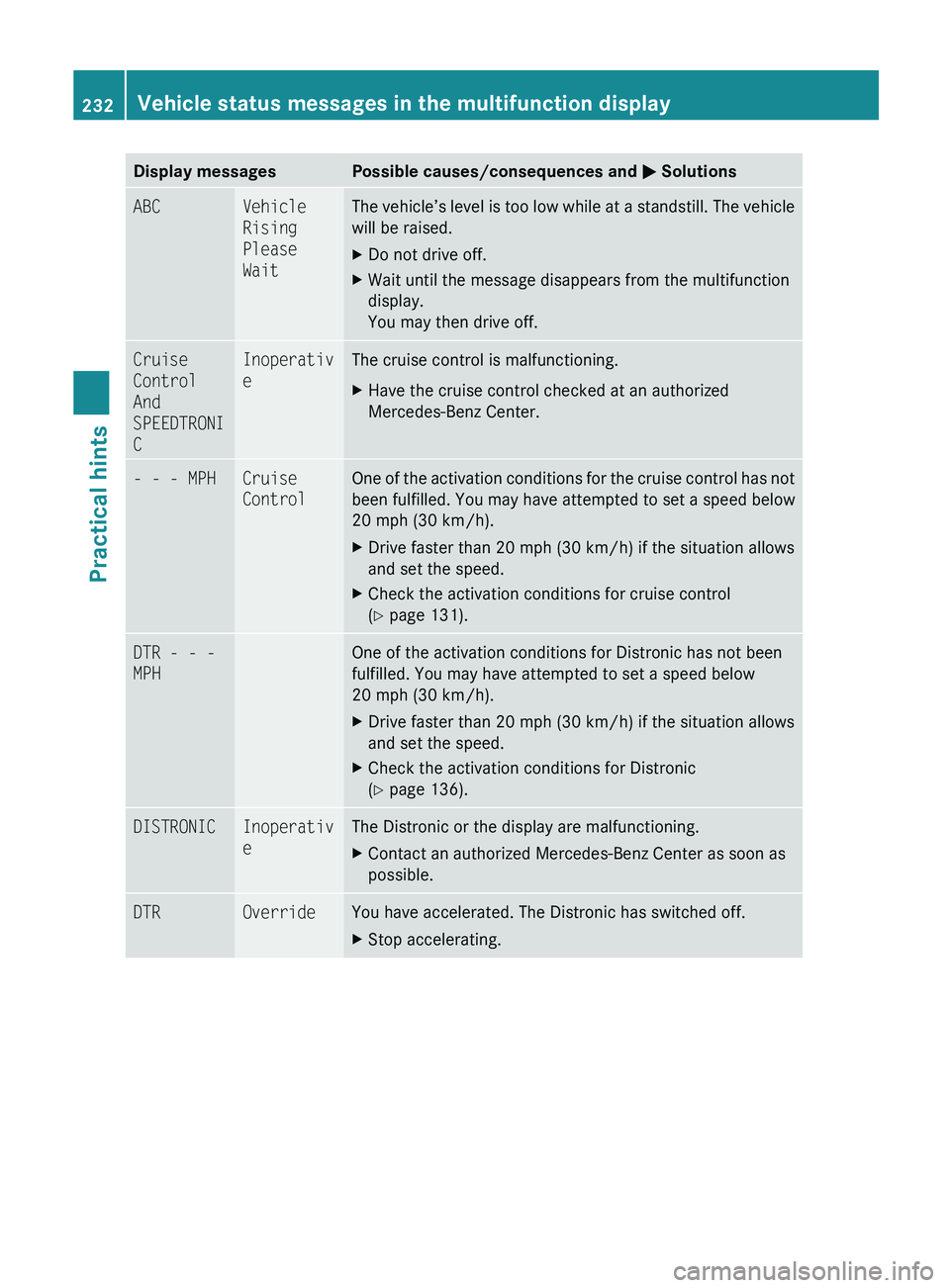

Display messagesPossible causes/consequences and 0050 SolutionsABCVehicle
Rising
Please
WaitThe vehicle’s level is too low while at a standstill. The vehicle
will be raised.XDo not drive off.XWait until the message disappears from the multifunction
display.
You may then drive off.Cruise
Control
And
SPEEDTRONI
CInoperativ
eThe cruise control is malfunctioning.XHave the cruise control checked at an authorized
Mercedes-Benz Center.- - - MPHCruise
ControlOne of the activation conditions for the cruise control has not
been fulfilled. You may have attempted to set a speed below
20 mph (30 km/h).XDrive faster than 20 mph (30 km/h) if the situation allows
and set the speed.XCheck the activation conditions for cruise control
( Y page 131).DTR - - -
MPHOne of the activation conditions for Distronic has not been
fulfilled. You may have attempted to set a speed below
20 mph (30 km/h).XDrive faster than 20 mph (30 km/h) if the situation allows
and set the speed.XCheck the activation conditions for Distronic
( Y page 136).DISTRONICInoperativ
eThe Distronic or the display are malfunctioning.XContact an authorized Mercedes-Benz Center as soon as
possible.DTROverrideYou have accelerated. The Distronic has switched off.XStop accelerating.232Vehicle status messages in the multifunction displayPractical hints
230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 232

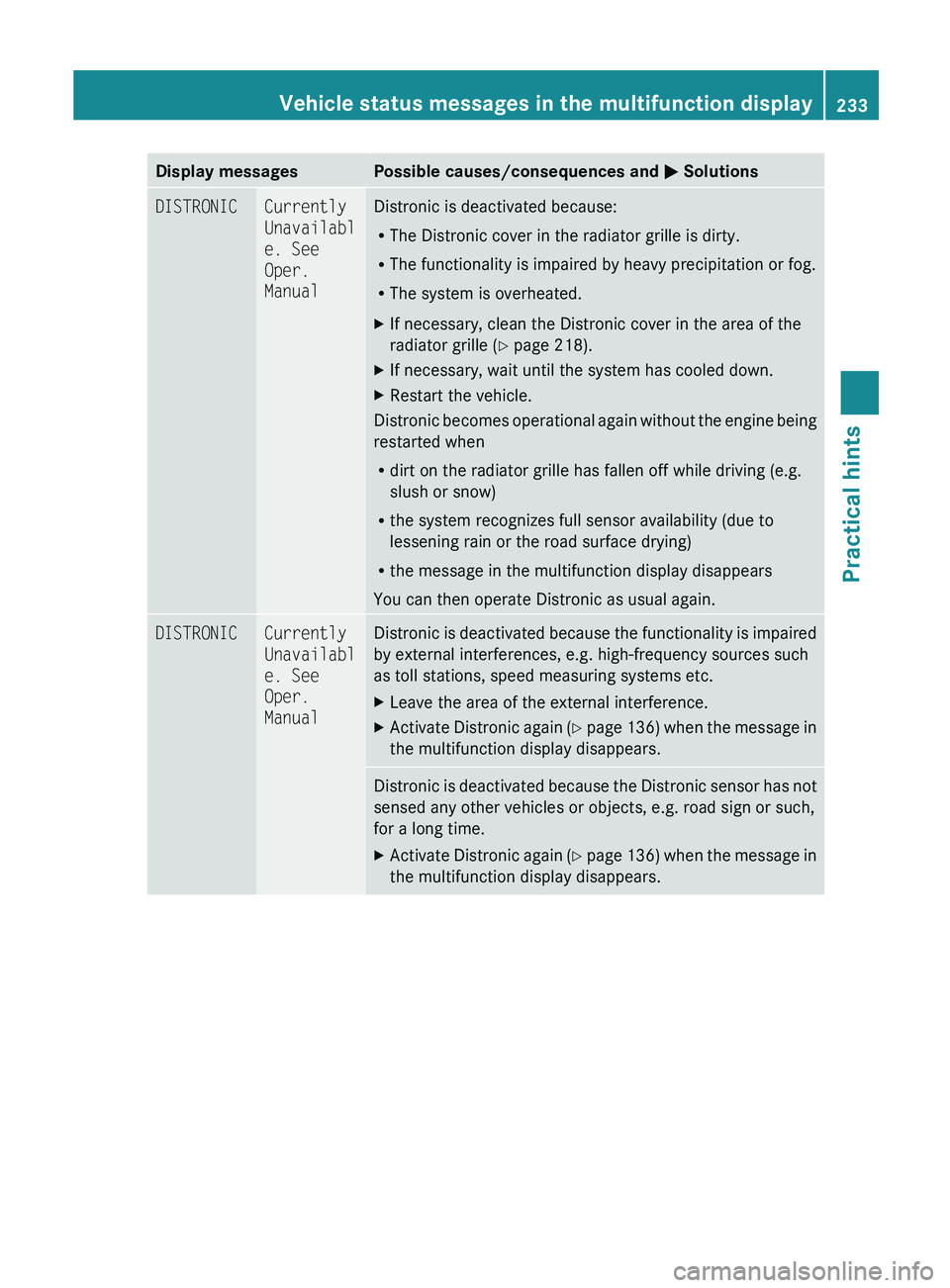

Display messagesPossible causes/consequences and 0050 SolutionsDISTRONICCurrently
Unavailabl
e. See
Oper.
ManualDistronic is deactivated because:
R The Distronic cover in the radiator grille is dirty.
R The functionality is impaired by heavy precipitation or fog.
R The system is overheated.XIf necessary, clean the Distronic cover in the area of the
radiator grille ( Y page 218).XIf necessary, wait until the system has cooled down.XRestart the vehicle.
Distronic becomes operational again without the engine being
restarted when
R dirt on the radiator grille has fallen off while driving (e.g.
slush or snow)
R the system recognizes full sensor availability (due to
lessening rain or the road surface drying)
R the message in the multifunction display disappears
You can then operate Distronic as usual again.
DISTRONICCurrently
Unavailabl
e. See
Oper.
ManualDistronic is deactivated because the functionality is impaired
by external interferences, e.g. high-frequency sources such
as toll stations, speed measuring systems etc.XLeave the area of the external interference.XActivate Distronic again (Y page 136) when the message in
the multifunction display disappears.Distronic is deactivated because the Distronic sensor has not
sensed any other vehicles or objects, e.g. road sign or such,
for a long time.XActivate Distronic again (Y page 136) when the message in
the multifunction display disappears.Vehicle status messages in the multifunction display233Practical hints230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 233Z

VehicleDisplay messagesPossible causes/consequences and 0050 SolutionsPGear
Selector
Lever To PYou have attempted to start the engine with the KEYLESS-GO
start/stop button while the automatic transmission was not
in park position P.XShift the automatic transmission into park position P.You have attempted to turn off the engine with the KEYLESS-
GO start/stop button while the automatic transmission was
not in park position P.XShift the automatic transmission into park position P.Close RearSide
WindowsYou are getting out of the vehicle and a rear side window is
still open.XClose the rear side window ( Y page 97).
Tires
Display messagesPossible causes/consequences and 0050 SolutionsTire
pressuredisplayed
after
driving
for a few
minutes.The tire inflation pressure is being checked by the Advanced
TPMS.XDrive the vehicle for a few minutes.Tire
Pressure
MonitorInoperativ
eThe Advanced TPMS is malfunctioning.XHave the Advanced TPMS checked at an authorized
Mercedes-Benz Center.Tire
Pressure
MonitorInoperativ
e No
Wheel
SensorsThere are wheels without appropriate wheel sensors mounted
(e.g. winter tires).XHave the Advanced TPMS checked at an authorized
Mercedes-Benz Center.XHave the appropriate wheel sensors installed at an
authorized Mercedes-Benz Center.234Vehicle status messages in the multifunction displayPractical hints
230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 234

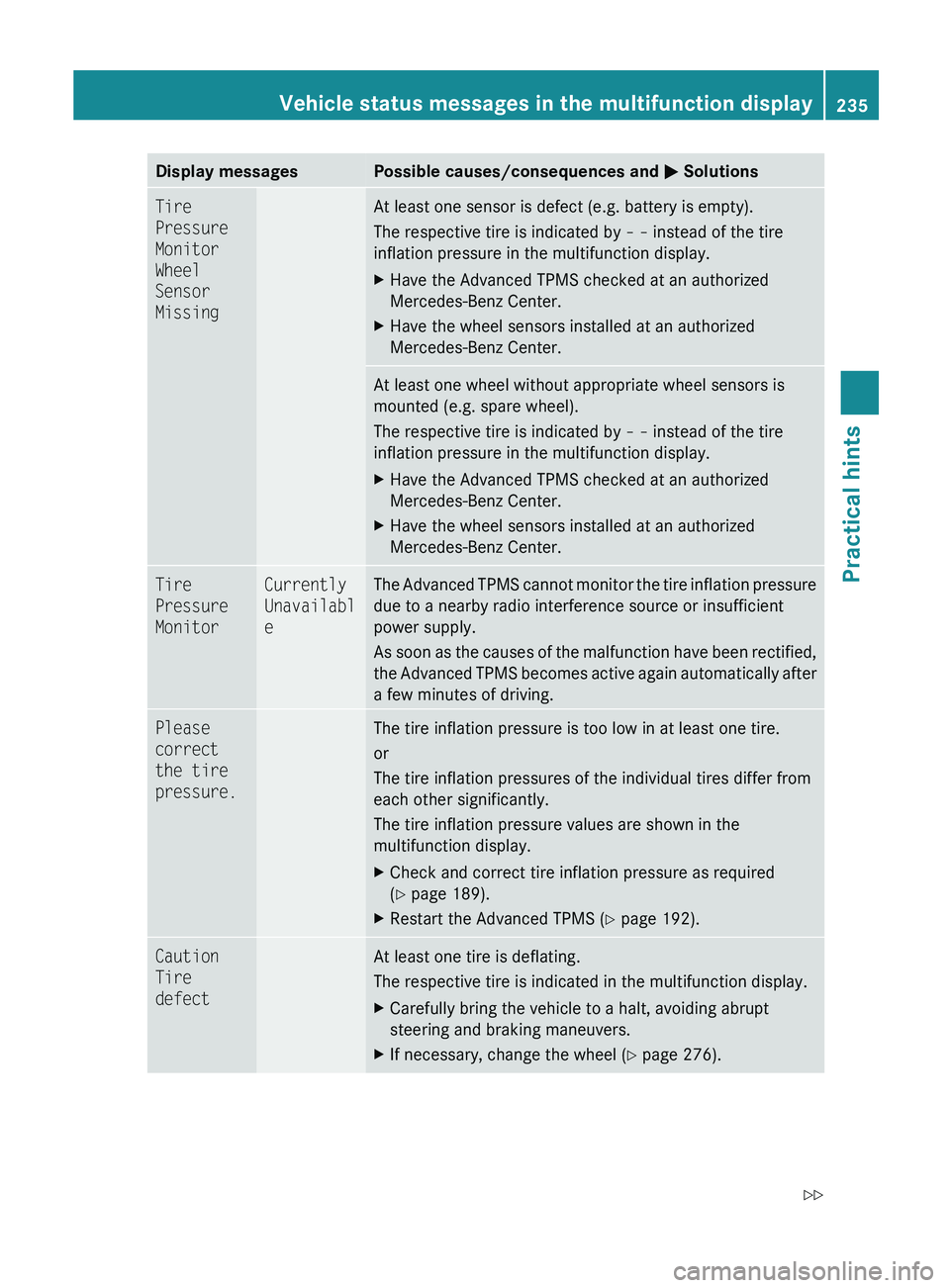

Display messagesPossible causes/consequences and 0050 SolutionsTire
Pressure
Monitor
Wheel
Sensor
MissingAt least one sensor is defect (e.g. battery is empty).
The respective tire is indicated by – – instead of the tire
inflation pressure in the multifunction display.XHave the Advanced TPMS checked at an authorized
Mercedes-Benz Center.XHave the wheel sensors installed at an authorized
Mercedes-Benz Center.At least one wheel without appropriate wheel sensors is
mounted (e.g. spare wheel).
The respective tire is indicated by – – instead of the tire
inflation pressure in the multifunction display.XHave the Advanced TPMS checked at an authorized
Mercedes-Benz Center.XHave the wheel sensors installed at an authorized
Mercedes-Benz Center.Tire
Pressure
MonitorCurrently
Unavailabl
eThe Advanced TPMS cannot monitor the tire inflation pressure
due to a nearby radio interference source or insufficient
power supply.
As soon as the causes of the malfunction have been rectified,
the Advanced TPMS becomes active again automatically after
a few minutes of driving.Please
correct
the tire
pressure.The tire inflation pressure is too low in at least one tire.
or
The tire inflation pressures of the individual tires differ from
each other significantly.
The tire inflation pressure values are shown in the
multifunction display.XCheck and correct tire inflation pressure as required
( Y page 189).XRestart the Advanced TPMS ( Y page 192).Caution
Tire
defectAt least one tire is deflating.
The respective tire is indicated in the multifunction display.XCarefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers.XIf necessary, change the wheel ( Y page 276).Vehicle status messages in the multifunction display235Practical hints230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 235Z

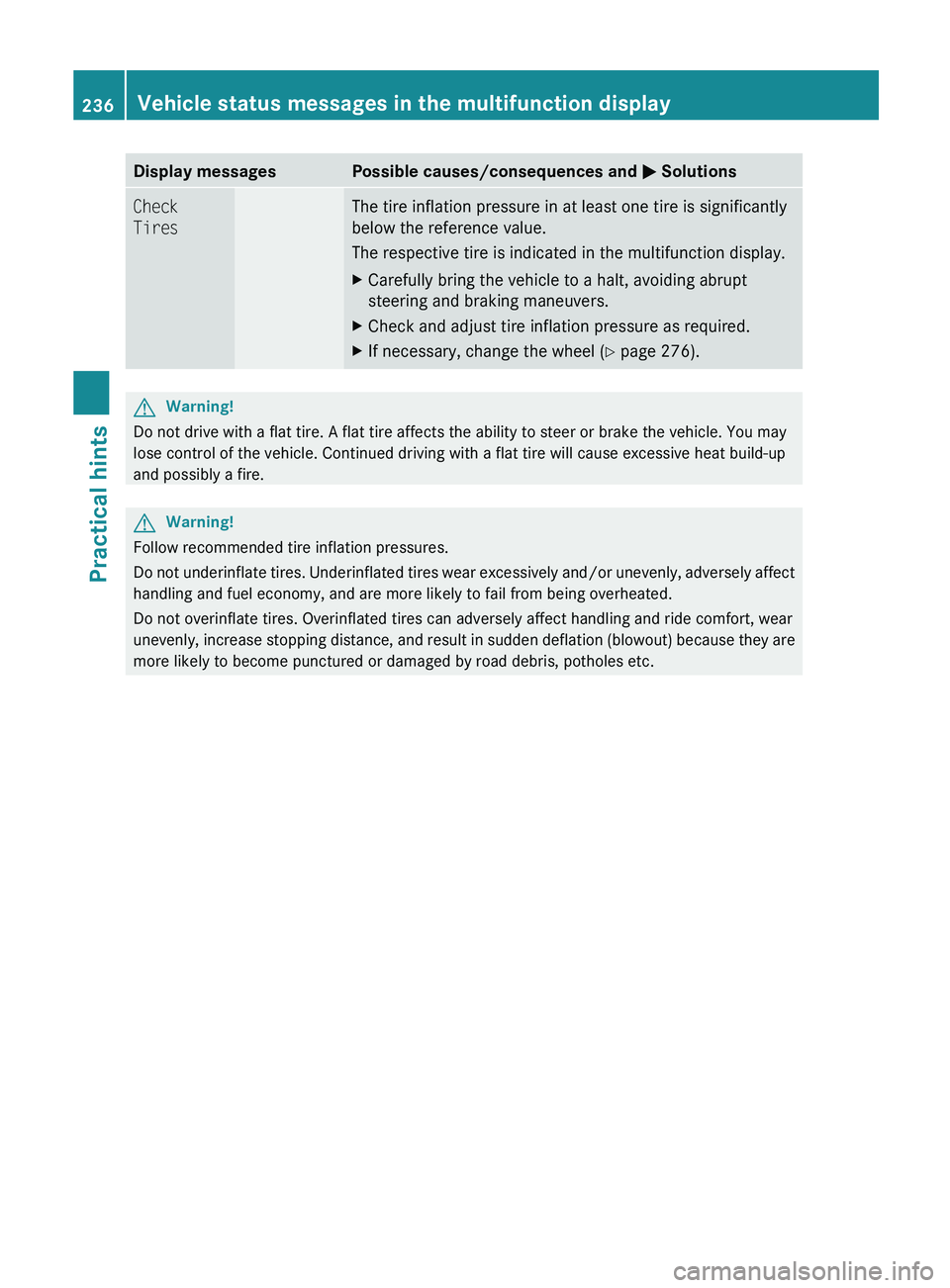

Display messagesPossible causes/consequences and 0050 SolutionsCheck
TiresThe tire inflation pressure in at least one tire is significantly
below the reference value.
The respective tire is indicated in the multifunction display.XCarefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers.XCheck and adjust tire inflation pressure as required.XIf necessary, change the wheel ( Y page 276).GWarning!
Do not drive with a flat tire. A flat tire affects the ability to steer or brake the vehicle. You may
lose control of the vehicle. Continued driving with a flat tire will cause excessive heat build-up
and possibly a fire.
GWarning!
Follow recommended tire inflation pressures.
Do not underinflate tires. Underinflated tires wear excessively and/or unevenly, adversely affect
handling and fuel economy, and are more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear
unevenly, increase stopping distance, and result in sudden deflation (blowout) because they are
more likely to become punctured or damaged by road debris, potholes etc.
236Vehicle status messages in the multifunction displayPractical hints
230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 236

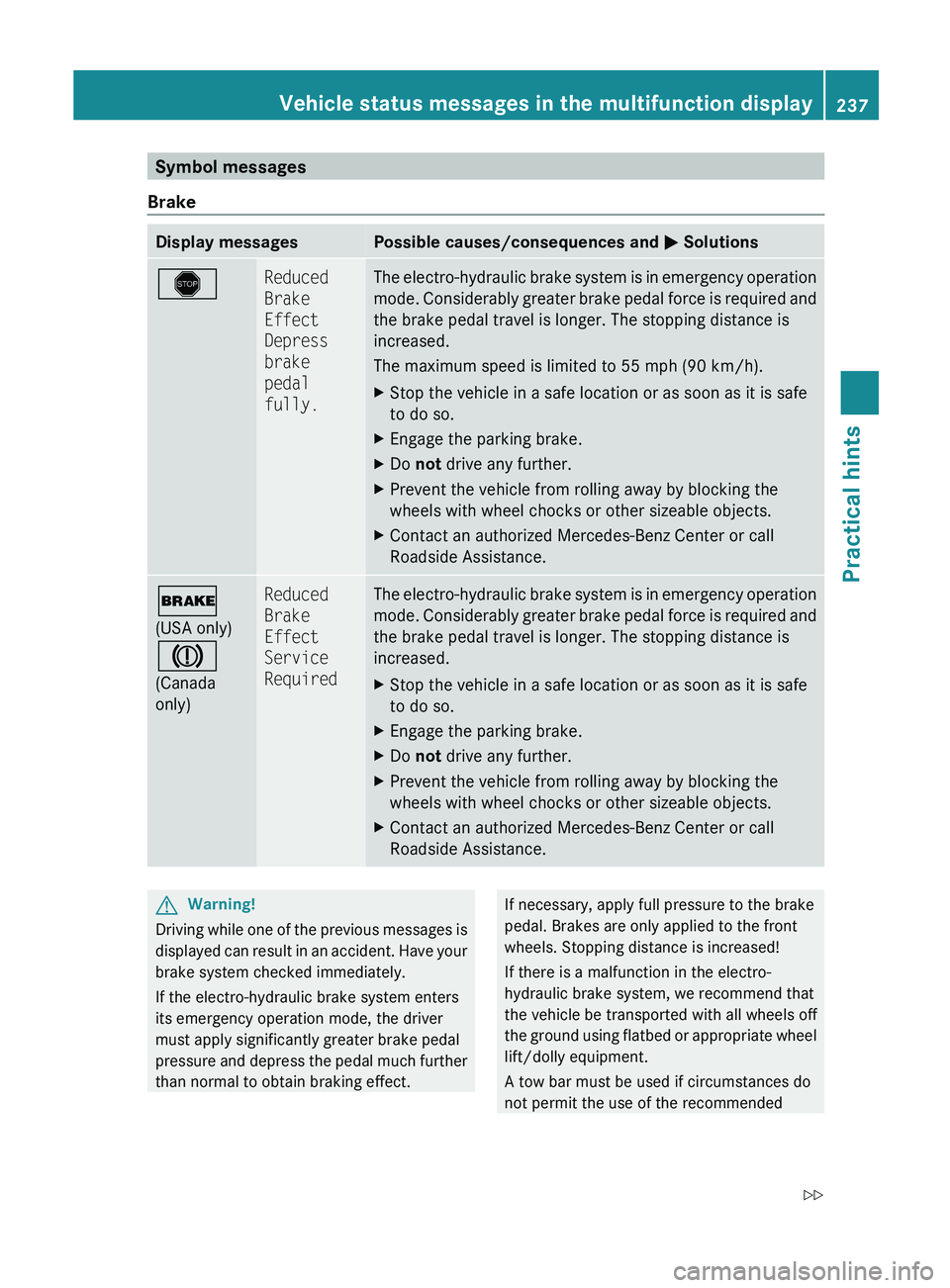

Symbol messages
BrakeDisplay messagesPossible causes/consequences and 0050 Solutions0051Reduced
Brake
Effect
Depress
brake
pedal
fully.The electro-hydraulic brake system is in emergency operation
mode. Considerably greater brake pedal force is required and
the brake pedal travel is longer. The stopping distance is
increased.
The maximum speed is limited to 55 mph (90 km/h).XStop the vehicle in a safe location or as soon as it is safe
to do so.XEngage the parking brake.XDo not drive any further.XPrevent the vehicle from rolling away by blocking the
wheels with wheel chocks or other sizeable objects.XContact an authorized Mercedes-Benz Center or call
Roadside Assistance.0027
(USA only)
004D
(Canada
only)Reduced
Brake
Effect
Service
RequiredThe electro-hydraulic brake system is in emergency operation
mode. Considerably greater brake pedal force is required and
the brake pedal travel is longer. The stopping distance is
increased.XStop the vehicle in a safe location or as soon as it is safe
to do so.XEngage the parking brake.XDo not drive any further.XPrevent the vehicle from rolling away by blocking the
wheels with wheel chocks or other sizeable objects.XContact an authorized Mercedes-Benz Center or call
Roadside Assistance.GWarning!
Driving while one of the previous messages is
displayed can result in an accident. Have your
brake system checked immediately.
If the electro-hydraulic brake system enters
its emergency operation mode, the driver
must apply significantly greater brake pedal
pressure and depress the pedal much further
than normal to obtain braking effect.
If necessary, apply full pressure to the brake
pedal. Brakes are only applied to the front
wheels. Stopping distance is increased!
If there is a malfunction in the electro-
hydraulic brake system, we recommend that
the vehicle be transported with all wheels off
the ground using flatbed or appropriate wheel
lift/dolly equipment.
A tow bar must be used if circumstances do
not permit the use of the recommendedVehicle status messages in the multifunction display237Practical hints230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 237Z

towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on the
ground is only permissible for distances up to30 miles (50 km) and at a speed not to exceed
30 mph (50 km/h). For more information, see
“Towing the vehicle”.Display messagesPossible causes/consequences and 0050 Solutions0027
(USA only)
004D
(Canada
only)Reduced
Brake
Effect
Start
EngineThe battery has insufficient voltage and cannot supply
sufficient power to the electro-hydraulic brake system.XStart the engine.
The message disappears when sufficient voltage is
available.GWarning!
Inhalation of exhaust gas is hazardous to your
health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause
unconsciousness and lead to death. Do not
run the engine in confined areas (such as a
garage) which are not properly ventilated.Display messagesPossible causes/consequences and 0050 Solutions0026Brake WearThe brake pads have reached their wear limit.XHave the brake pads replaced as soon as possible.
!
Brake pad thickness must be visually inspected by a qualified technician at the intervals
specified in the Maintenance Booklet.
GWarning!
Have brake pad replacement and other work
on the electro-hydraulic brake system carried
out by qualified technicians only. Contact an
authorized Mercedes-Benz Center for further
information.
The electro-hydraulic brake system must be
deactivated prior to working on the system.
High pressure is intermittently built up in the
system as part of its automatic self-test.
In addition, the system is automatically
activated when the vehicle is unlocked by
remote control, when the driver or passenger
door is opened, when the SmartKey in the
starter switch is turned to position 1 or the
KEYLESS-GO start/stop button is pressed
once, when the brake pedal is depressed or
when the parking brake is released. Failure to
deactivate the system prior to maintenance
will cause brake pistons to extend and brake
fluid to leak, which may result in injuries
(contusions and acid burns). Extended brake
pistons may also cause injury.238Vehicle status messages in the multifunction displayPractical hints
230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 238
