headlamp MERCEDES-BENZ SL CLASS 2011 Owner's Guide

GObserve Safety notes, see page 271.
ROnly use 12-volt bulbs of the same type and
with the specified watt rating.
RSwitch the lights off before changing a bulb
to prevent short circuits.
RAlways use a clean lint-free cloth when
handling bulbs.
RYour hands should be dry and free of oil and
grease.
RIf the newly installed bulb does not come
on, contact an authorized Mercedes-Benz
Center.
iMercedes-Benz recommends using
Longlife (LL) bulbs.

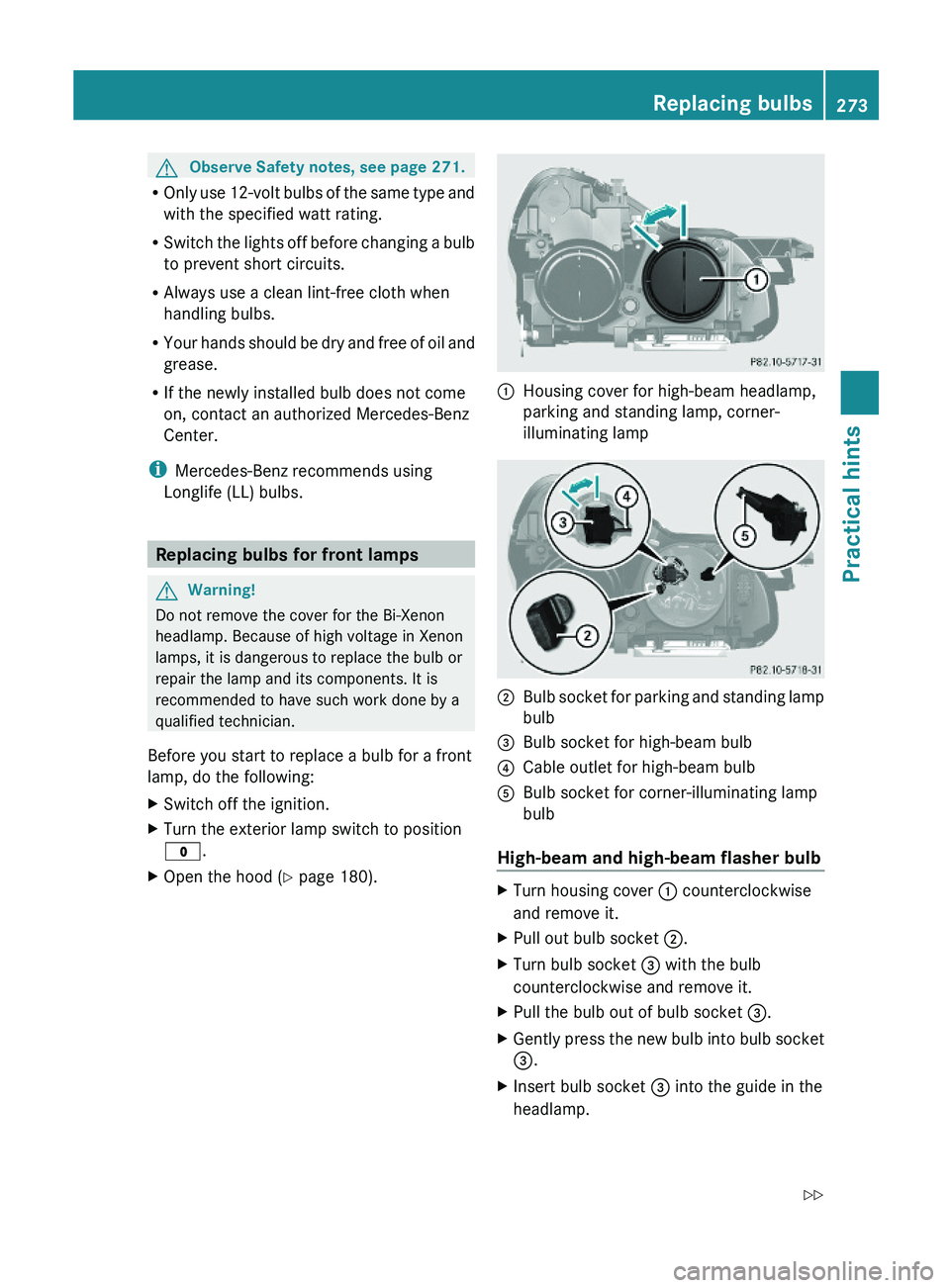

Replacing bulbs for front lamps
GWarning!
Do not remove the cover for the Bi-Xenon
headlamp. Because of high voltage in Xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. It is
recommended to have such work done by a
qualified technician.
Before you start to replace a bulb for a front
lamp, do the following:
XSwitch off the ignition.XTurn the exterior lamp switch to position
\000'.
XOpen the hood (Y page 180).\000FHousing cover for high-beam headlamp,
parking and standing lamp, corner-
illuminating lamp
\000GBulb socket for parking and standing lamp
bulb
\000

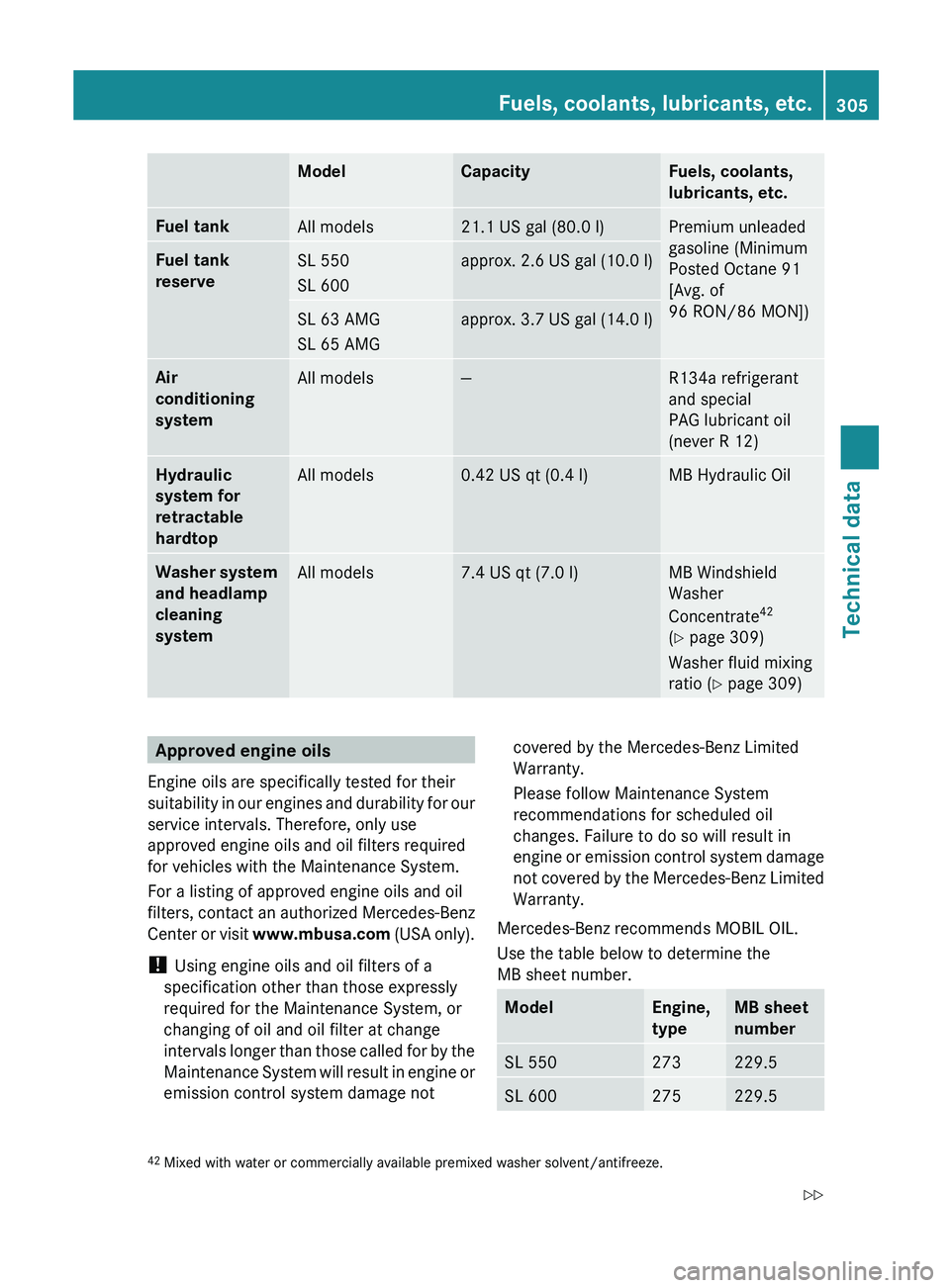

ModelCapacityFuels, coolants,
lubricants, etc.Fuel tankAll models21.1 US gal (80.0 l)Premium unleaded
gasoline (Minimum
Posted Octane 91
[Avg. of
96 RON/86 MON])Fuel tank
reserveSL 550
SL 600approx. 2.6 US gal (10.0 l)SL 63 AMG
SL 65 AMGapprox. 3.7 US gal (14.0 l)Air
conditioning
systemAll models—R134a refrigerant
and special
PAG lubricant oil
(never R 12)Hydraulic
system for
retractable
hardtopAll models0.42 US qt (0.4 l)MB Hydraulic OilWasher system
and headlamp
cleaning
systemAll models7.4 US qt (7.0 l)MB Windshield
Washer
Concentrate 42
( Y page 309)
Washer fluid mixing
ratio ( Y page 309)Approved engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for our
service intervals. Therefore, only use
approved engine oils and oil filters required
for vehicles with the Maintenance System.
For a listing of approved engine oils and oil
filters, contact an authorized Mercedes-Benz
Center or visit www.mbusa.com (USA only).
! Using engine oils and oil filters of a
specification other than those expressly
required for the Maintenance System, or
changing of oil and oil filter at change
intervals longer than those called for by the
Maintenance System will result in engine or
emission control system damage notcovered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System
recommendations for scheduled oil
changes. Failure to do so will result in
engine or emission control system damage
not covered by the Mercedes-Benz Limited
Warranty.
Mercedes-Benz recommends MOBIL OIL.
Use the table below to determine the
MB sheet number.ModelEngine,
typeMB sheet
numberSL 550273229.5SL 600275229.542 Mixed with water or commercially available premixed washer solvent/antifreeze.Fuels, coolants, lubricants, etc.305Technical data230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 305Z

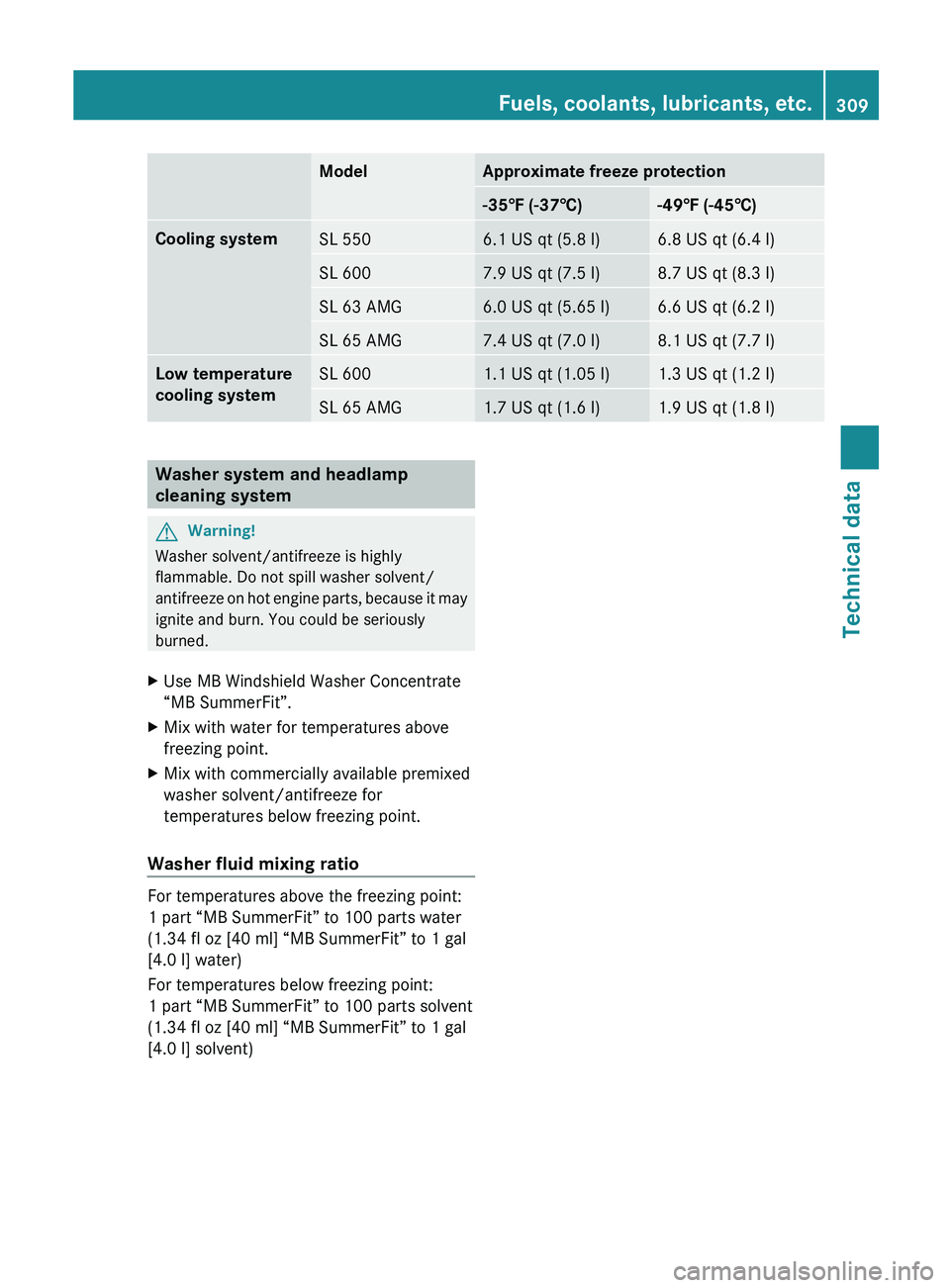

ModelApproximate freeze protection-35‡ (-37†)-49‡ (-45†)Cooling systemSL 5506.1 US qt (5.8 l)6.8 US qt (6.4 l)SL 6007.9 US qt (7.5 l)8.7 US qt (8.3 l)SL 63 AMG6.0 US qt (5.65 l)6.6 US qt (6.2 l)SL 65 AMG7.4 US qt (7.0 l)8.1 US qt (7.7 l)Low temperature
cooling systemSL 6001.1 US qt (1.05 l)1.3 US qt (1.2 l)SL 65 AMG1.7 US qt (1.6 l)1.9 US qt (1.8 l)Washer system and headlamp
cleaning systemGWarning!
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze on hot engine parts, because it may
ignite and burn. You could be seriously
burned.
XUse MB Windshield Washer Concentrate
“MB SummerFit”.XMix with water for temperatures above
freezing point.XMix with commercially available premixed
washer solvent/antifreeze for
temperatures below freezing point.
Washer fluid mixing ratio
For temperatures above the freezing point:
1 part “MB SummerFit” to 100 parts water
(1.34 fl oz [40 ml] “MB SummerFit” to 1 gal
[4.0 l] water)
For temperatures below freezing point:
1 part “MB SummerFit” to 100 parts solvent
(1.34 fl oz [40 ml] “MB SummerFit” to 1 gal
[4.0 l] solvent)
