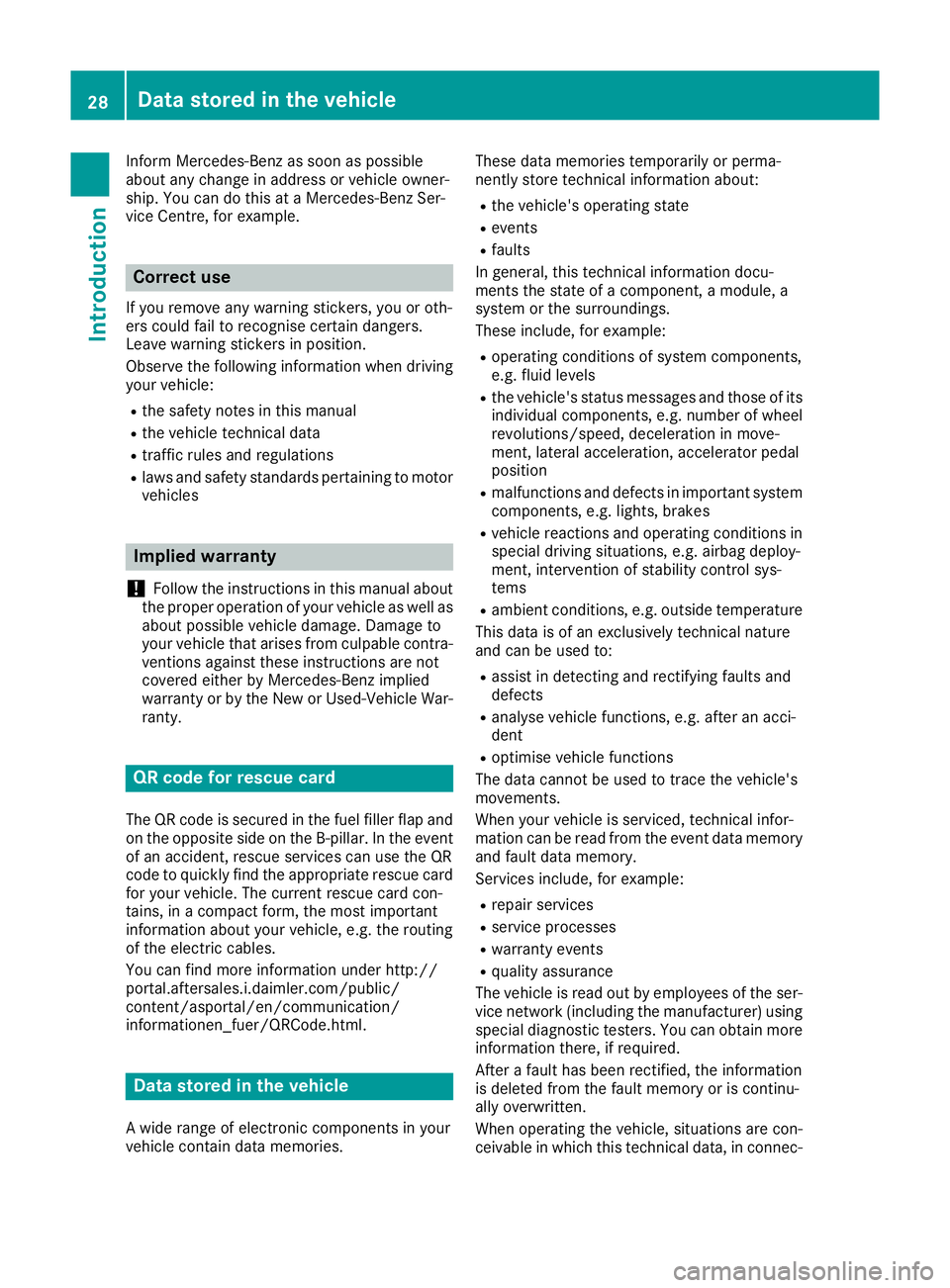

MERCEDES-BENZ SL ROADSTER 2016 Owner's Guide

Inform Mercedes-Benz as soon as possible
about any change in address or vehicle owner-
ship. You can do this at a Mercedes-Benz Ser-
vice Centre, for example. Correct use
If you remove any warning stickers, you or oth-
ers could fail to recognise certain dangers.
Leave warning stickers in position.
Observe the following information when driving your vehicle:
R the safety notes in this manual
R the vehicle technical data
R traffic rules and regulations
R laws and safety standards pertaining to motor
vehicles Implied warranty
! Follow the instructions in this manual about
the proper operation of your vehicle as well as
about possible vehicle damage. Damage to
your vehicle that arises from culpable contra- ventions against these instructions are not
covered either by Mercedes-Benz implied
warranty or by the New or Used-Vehicle War-
ranty. QR code for rescue card
The QR code is secured in the fuel filler flap and
on the opposite side on the B-pillar. In the event
of an accident, rescue services can use the QR
code to quickly find the appropriate rescue card for your vehicle. The current rescue card con-
tains, in a compact form, the most important
information about your vehicle, e.g. the routing
of the electric cables.
You can find more information under http://
portal.aftersales.i.daimler.com/public/
content/asportal/en/communication/
informationen_fuer/QRCode.html. Data stored in the vehicle
A wide range of electronic components in your
vehicle contain data memories. These data memories temporarily or perma-
nently store technical information about:
R the vehicle's operating state
R events
R faults
In general, this technical information docu-
ments the state of a component, a module, a
system or the surroundings.
These include, for example:
R operating conditions of system components,
e.g. fluid levels
R the vehicle's status messages and those of its
individual components, e.g. number of wheelrevolutions/speed, deceleration in move-
ment, lateral acceleration, accelerator pedal
position
R malfunctions and defects in important system
components, e.g. lights, brakes
R vehicle reactions and operating conditions in
special driving situations, e.g. airbag deploy-
ment, intervention of stability control sys-
tems
R ambient conditions, e.g. outside temperature
This data is of an exclusively technical nature
and can be used to:
R assist in detecting and rectifying faults and
defects
R analyse vehicle functions, e.g. after an acci-
dent
R optimise vehicle functions
The data cannot be used to trace the vehicle's
movements.
When your vehicle is serviced, technical infor-
mation can be read from the event data memory and fault data memory.
Services include, for example:
R repair services
R service processes
R warranty events
R quality assurance
The vehicle is read out by employees of the ser-
vice network (including the manufacturer) using special diagnostic testers. You can obtain more
information there, if required.
After a fault has been rectified, the information
is deleted from the fault memory or is continu-
ally overwritten.
When operating the vehicle, situations are con-
ceivable in which this technical data, in connec- 28
Data stored in the vehicleIntroduction

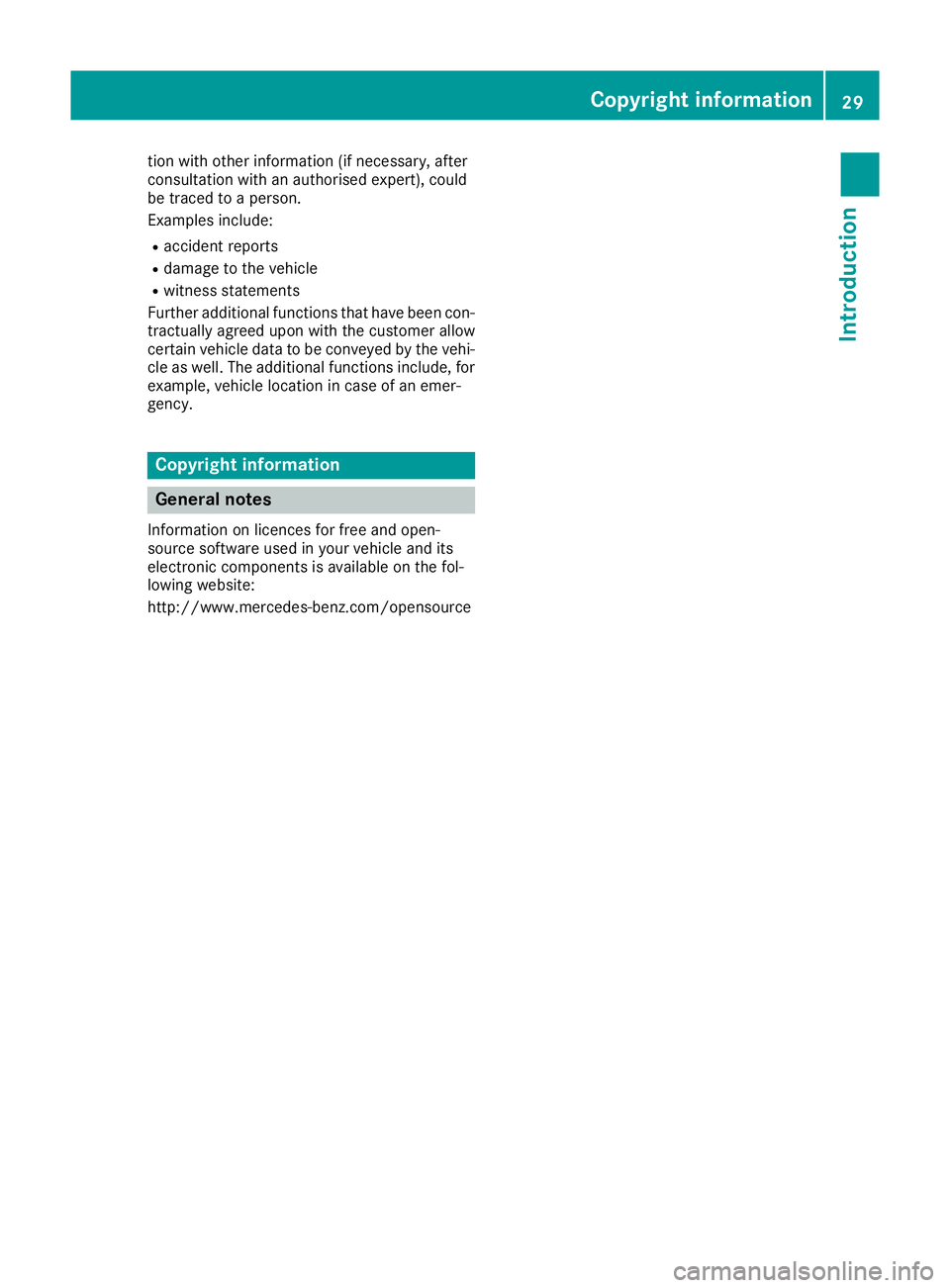

tion with other information (if necessary, after
consultation with an authorised expert), could
be traced to a person.
Examples include:
R accident reports
R damage to the vehicle
R witness statements
Further additional functions that have been con-
tractually agreed upon with the customer allow
certain vehicle data to be conveyed by the vehi-
cle as well. The additional functions include, for example, vehicle location in case of an emer-
gency. Copyright information
General notes
Information on licences for free and open-
source software used in your vehicle and its
electronic components is available on the fol-
lowing website:
http://www.mercedes-benz.com/opensource Copyright information
29Introduction Z

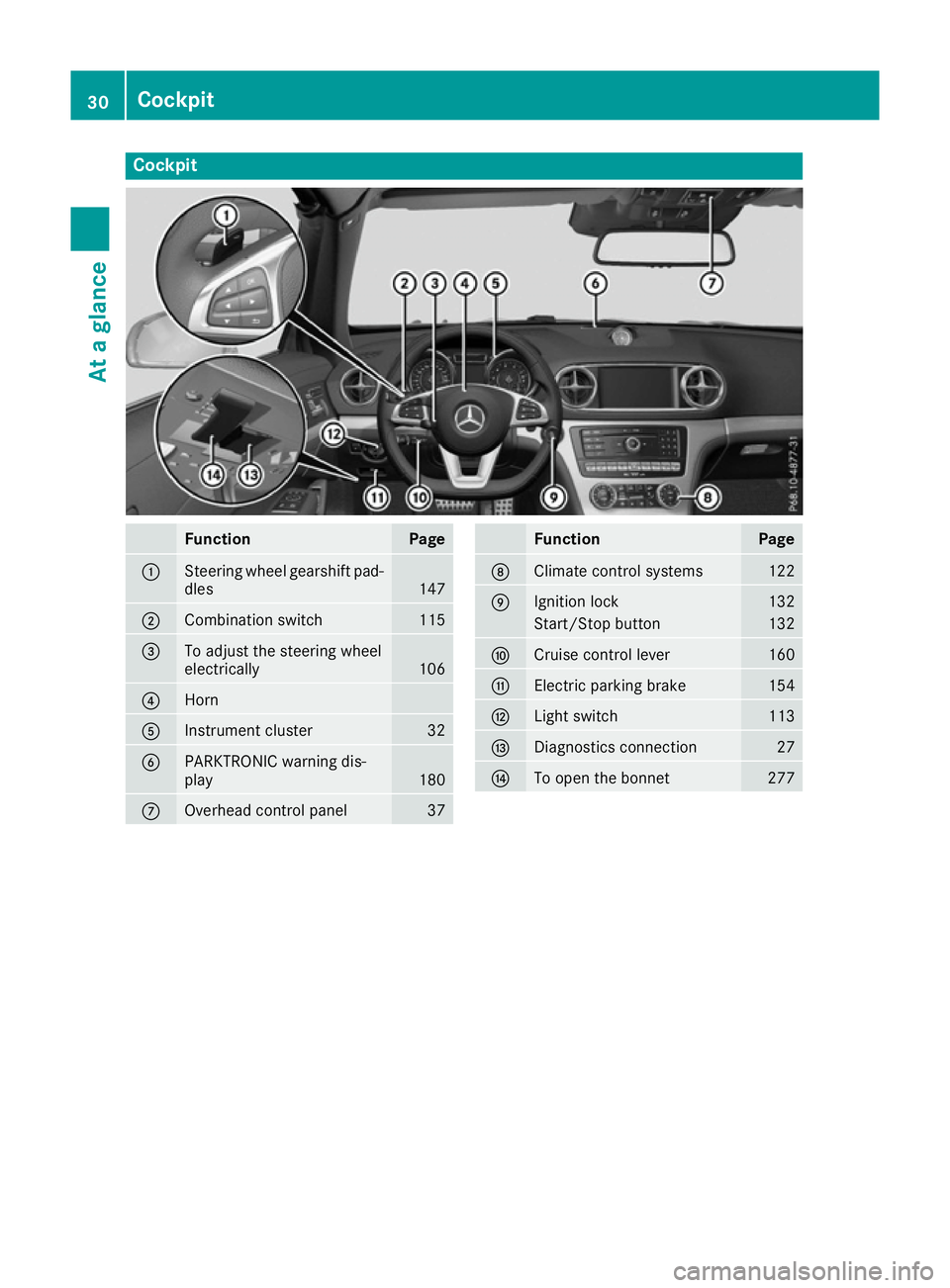

Cockpit
Function Page
:
Steering wheel gearshift pad-
dles 147
;
Combination switch 115
=
To adjust the steering wheel
electrically
106
?
Horn
A
Instrument cluster 32
B
PARKTRONIC warning dis-
play
180
C
Overhead control panel 37 Function Page
D
Climate control systems 122
E
Ignition lock 132
Start/Stop button 132
F
Cruise control lever 160
G
Electric parking brake 154
H
Light switch 113
I
Diagnostics connection 27
J
To open the bonnet 27730
CockpitAt a glance

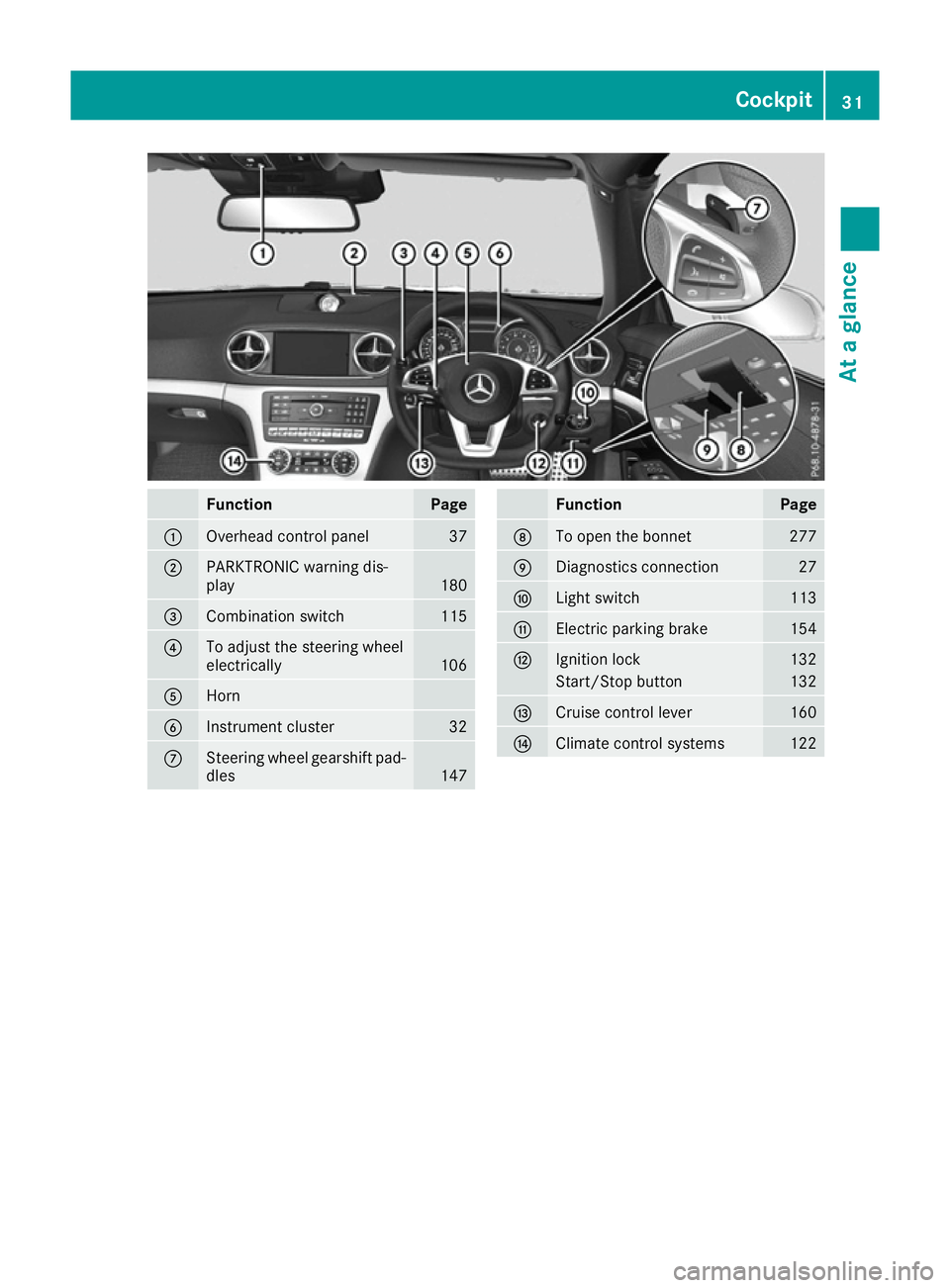

Function Page
:
Overhead control panel 37
;
PARKTRONIC warning dis-
play
180
=
Combination switch 115
?
To adjust the steering wheel
electrically
106
A
Horn
B
Instrument cluster 32
C
Steering wheel gearshift pad-
dles 147 Function Page
D
To open the bonnet 277
E
Diagnostics connection 27
F
Light switch 113
G
Electric parking brake 154
H
Ignition lock 132
Start/Stop button 132
I
Cruise control lever 160
J
Climate control systems 122Cockpit
31At a glance

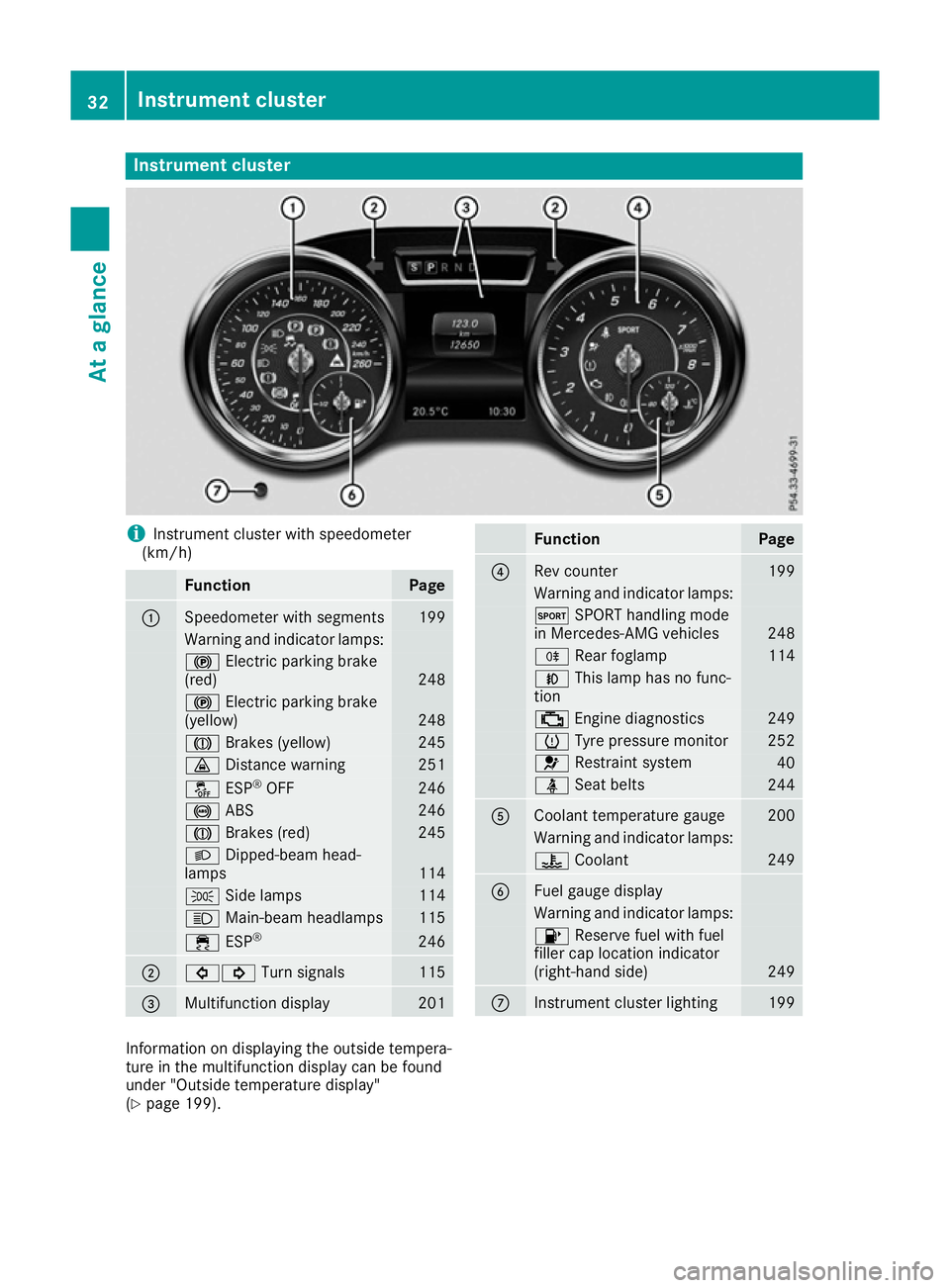

Instrument cluster
i
Instrument cluster with speedometer
(km/h) Function Page
:
Speedometer with segments 199
Warning and indicator lamps:
!
Electric parking brake
(red) 248
!
Electric parking brake
(yellow) 248
J
Brakes (yellow) 245
·
Distance warning 251
å
ESP®
OFF 246
!
ABS 246
J
Brakes (red) 245
L
Dipped-beam head-
lamps 114
T
Side lamps 114
K
Main-beam headlamps 115
÷
ESP® 246
;
#!
Turn signals 115
=
Multifunction display 201 Function Page
?
Rev counter 199
Warning and indicator lamps:
M
SPORT handling mode
in Mercedes-AMG vehicles 248
R
Rear foglamp 114
N
This lamp has no func-
tion ;
Engine diagnostics 249
h
Tyre pressure monitor 252
6
Restraint system 40
ü
Seat belts 244
A
Coolant temperature gauge 200
Warning and indicator lamps:
?
Coolant 249
B
Fuel gauge display
Warning and indicator lamps:
8
Reserve fuel with fuel
filler cap location indicator
(right-hand side) 249
C
Instrument cluster lighting 199
Information on displaying the outside tempera-
ture in the multifunction display can be found
under "Outside temperature display"
(Y
page 199). 32
Instrument clusterAt a glance

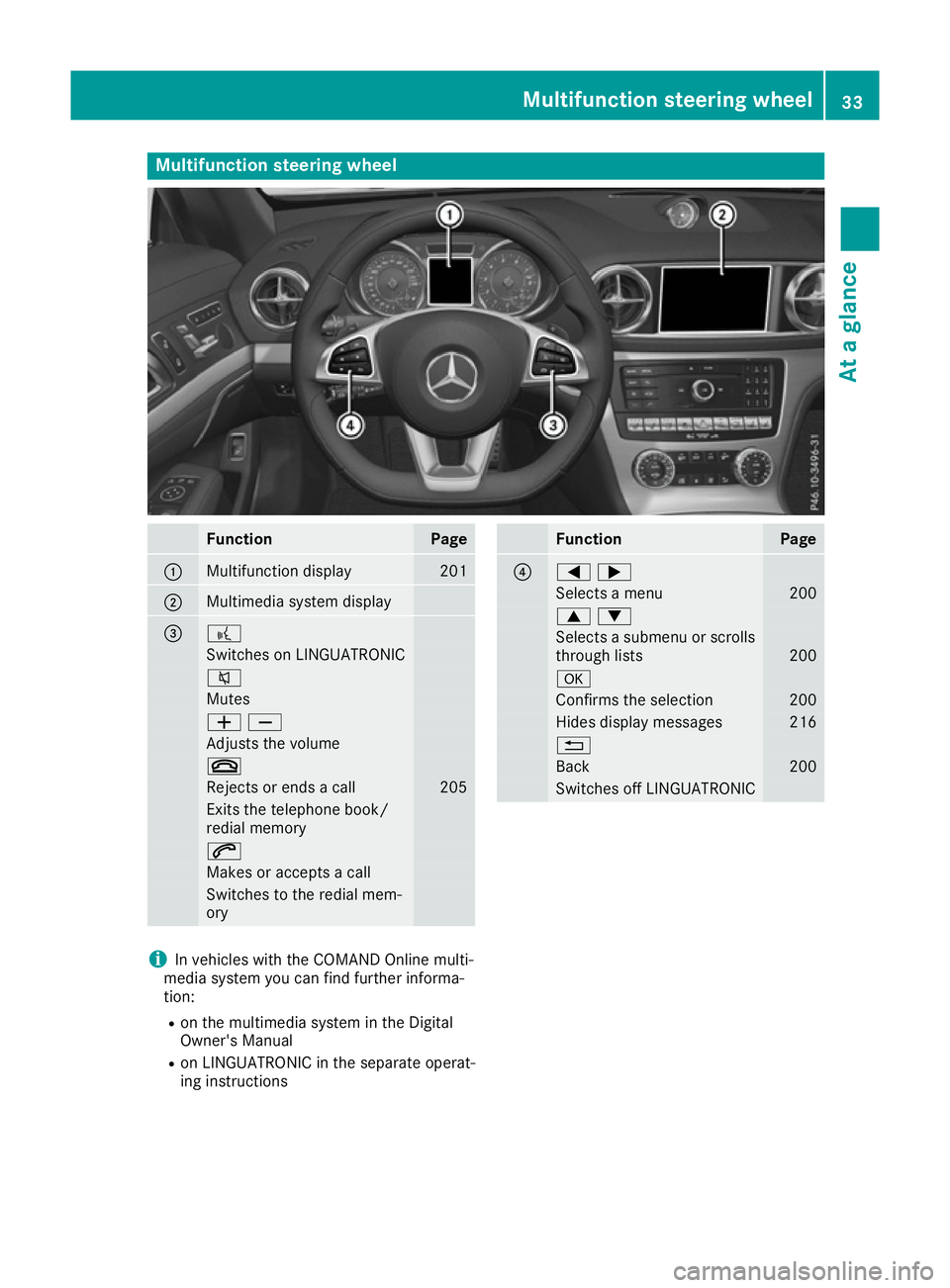

Multifunction steering wheel
Function Page
:
Multifunction display 201
;
Multimedia system display
= ?
Switches on LINGUATRONIC
8
Mutes
WX
Adjusts the volume
~
Rejects or ends a call 205
Exits the telephone book/
redial memory
6
Makes or accepts a call
Switches to the redial mem-
ory Function Page
?
=;
Selects a menu 200
9:
Selects a submenu or scrolls
through lists 200
a
Confirms the selection 200
Hides display messages 216
%
Back 200
Switches off LINGUATRONIC
i
In vehicles with the COMAND Online multi-
media system you can find further informa-
tion:
R on the multimedia system in the Digital
Owner's Manual
R on LINGUATRONIC in the separate operat-
ing instructions Multifunction steering wheel
33At a glance

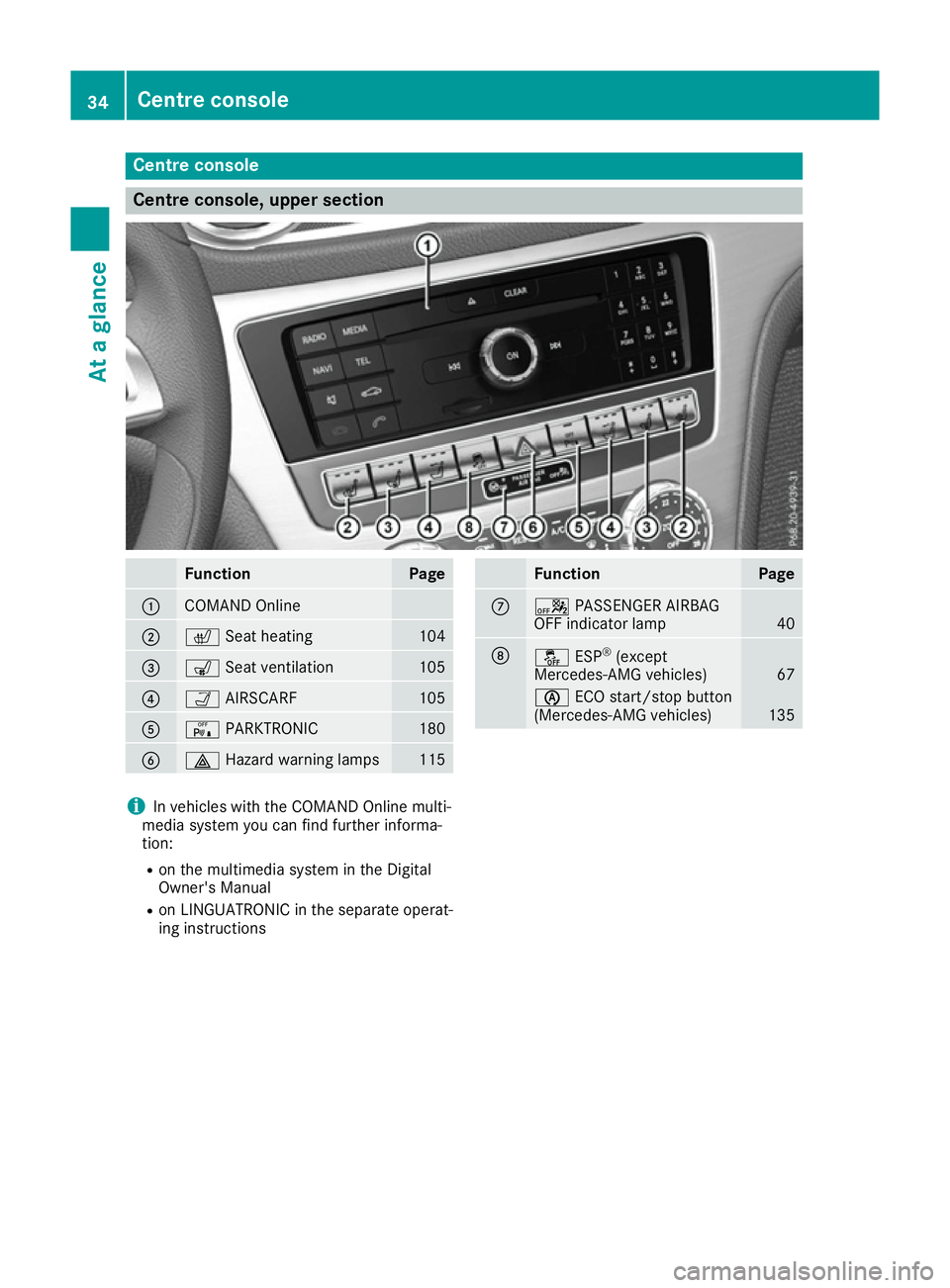

Centre console
Centre console, upper section
Function Page
:
COMAND Online
;
c
Seat heating 104
=
s
Seat ventilation 105
?
Ò
AIRSCARF 105
A
c
PARKTRONIC 180
B
£
Hazard warning lamps 115 Function Page
C
a
PASSENGER AIRBAG
OFF indicator lamp 40
D
å
ESP®
(except
Mercedes-AMG vehicles) 67
è
ECO start/stop button
(Mercedes-AMG vehicles) 135
i
In vehicles with the COMAND Online multi-
media system you can find further informa-
tion:
R on the multimedia system in the Digital
Owner's Manual
R on LINGUATRONIC in the separate operat-
ing instructions 34
Centre consoleAt a glance

Centre console, lower section (except Mercedes-AMG vehicles)
Function Page
:
Stowage compartment 263
Cup holders 266
Ashtray 267
;
COMAND controller
=
Seat adjustment
?
Favourites button
A
Roof switch 94
B
Opens/closes the side win-
dows
91
C
Extends/retracts the
draught stop 98
D
Stowage compartment with
Media Interface
Cigarette lighter 262
E
Selects park position 141
F
è
ECO start/stop button 135 Function Page
G
Shows the driving conditions
menu in the COMAND dis-
play (vehicles with Active
Body Control) 175
H
É
Adjusts the vehicle
level (vehicles with Active
Body Control) 175
I
Adjusts the suspension set-
tings Adjusts the suspension set-
tings (vehicles with Active
Body Control) 176
J
Ú
Selects the drive pro-
gram/program selector but-
ton 147
K
Transmission positions 144
L
Selector lever 141Centre console
35At a glance

Centre console, lower section (Mercedes-AMG vehicles)
Function Page
:
Stowage compartment 263
Cup holders 266
Ashtray 267
;
COMAND controller
=
Seat adjustment
?
Favourites button
A
Roof switch 94
B
Opens/closes the side win-
dows
91
C
Extends/retracts the
draught stop
98
D
Stowage compartment with
Media Interface
Cigarette lighter 262 Function Page
E
Selects park position 141
F
Drive program selector 140
G
ß
AMG button (calls up/
stores drive program or sus-
pension setting) 140
H
à
Adjusts the suspension
setting 140
I
å
ESP® 67
J
Transmission positions 144
K
Selector lever 14136
Centre consoleAt a glance

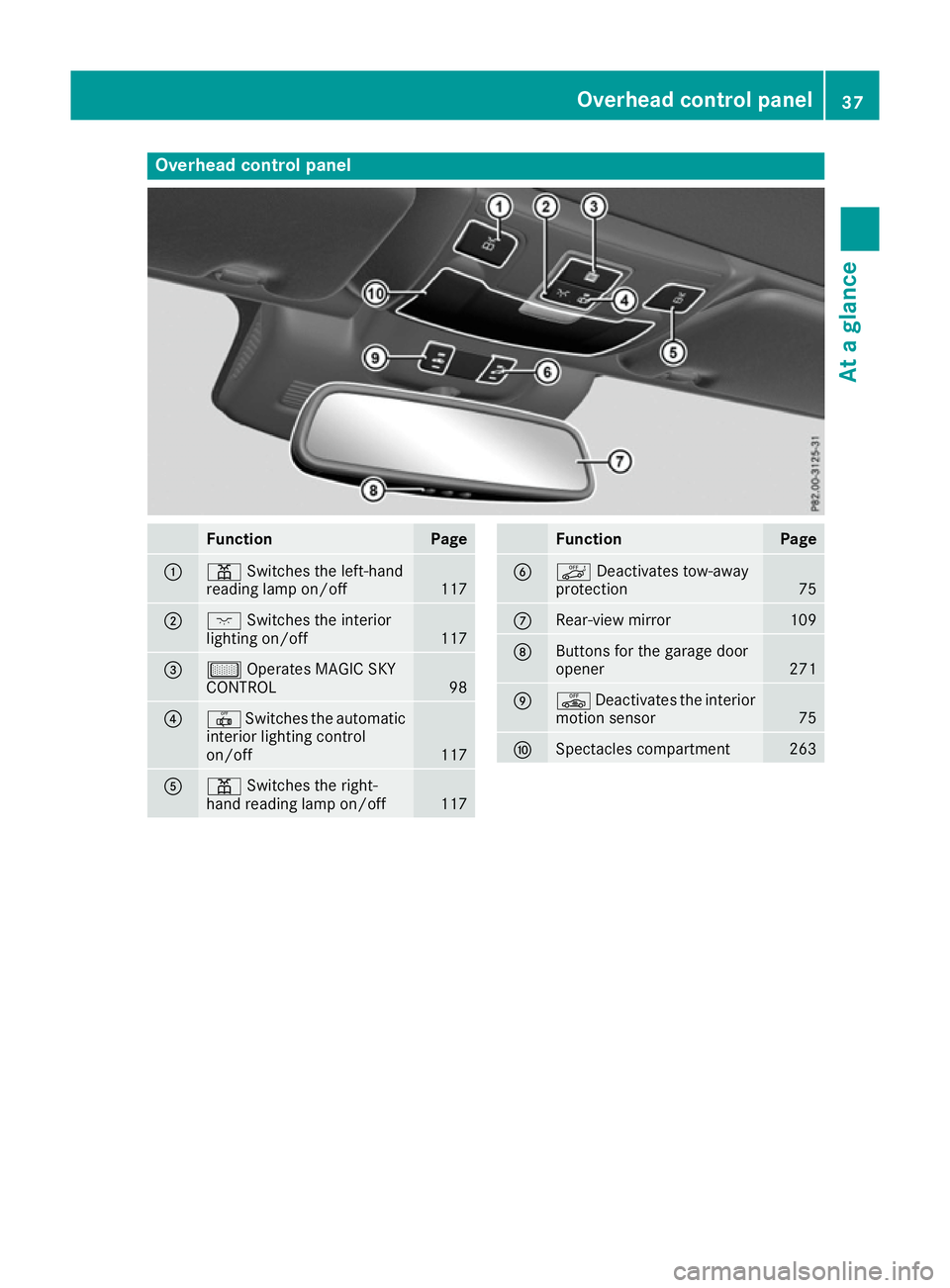

Overhead control panel
Function Page
:
p
Switches the left-hand
reading lamp on/off 117
;
c
Switches the interior
lighting on/off 117
=
µ
Operates MAGIC SKY
CONTROL 98
?
|
Switches the automatic
interior lighting control
on/off 117
A
p
Switches the right-
hand reading lamp on/off 117 Function Page
B
ë
Deactivates tow-away
protection 75
C
Rear-view mirror 109
D
Buttons for the garage door
opener
271
E
ê
Deactivates the interior
motion sensor 75
F
Spectacles compartment 263Overhead control panel
37At a glance
