161 Controls in detail
Retractable hardtop

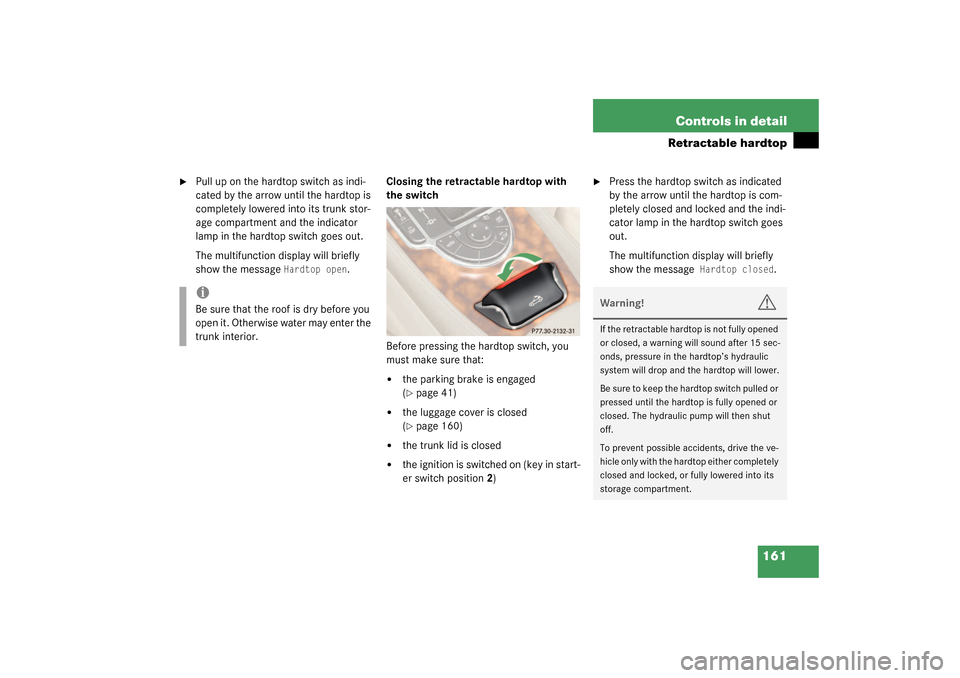

Pull up on the hardtop switch as indi-
cated by the arrow until the hardtop is
completely lowered into its trunk stor-
age compartment and the indicator
lamp in the hardtop switch goes out.
The multifunction display will briefly
show the message
Hardtop open
.Closing the retractable hardtop with
the switch
Before pressing the hardtop switch, you
must make sure that:


the parking brake is engaged
(page 41)


the luggage cover is closed
(page 160)


the trunk lid is closed


the ignition is switched on (key in start-
er switch position2)

Press the hardtop switch as indicated
by the arrow until the hardtop is com-
pletely closed and locked and the indi-
cator lamp in the hardtop switch goes
out.
The multifunction display will briefly
show the message
Hardtop closed
.
iBe sure that the roof is dry before you
open it. Otherwise water may enter the
trunk interior.
Warning!
G
If the retractable hardtop is not fully opened
or closed, a warning will sound after 15 sec-
onds, pressure in the hardtop’s hydraulic
system will drop and the hardtop will lower.
Be sure to keep the hardtop switch pulled or
pressed until the hardtop is fully opened or
closed. The hydraulic pump will then shut
off.
To prevent possible accidents, drive the ve-
hicle only with the hardtop either completely
closed and locked, or fully lowered into its
storage compartment.

162 Controls in detailRetractable hardtopLocking the retractable hardtop after
raising/lowering
If the retractable hardtop is not properly
locked, lock it as described below.Unlocked status noticed when stopped

Switch on the ignition.

To lock the hardtop in its fully closed
position, press hardtop switch forward.
The message
Hardtop Closed
will be
shown in the multifunction display.
or:

To lock the hardtop in its fully opened
position, pull up on the hardtop switch.
The message
Hardtop Open
will be
shown in the multifunction display.
Unlocked status noticed while driving

Stop the vehicle.

Leave the ignition switched on.

To lock the hardtop in its fully closed
position, press hardtop switch forward.
The message
Hardtop Closed
will be
shown in the multifunction display.
or:

To lock the hardtop in its fully opened
position, pull up on the hardtop switch.
The message
Hardtop Open
will be
shown in the multifunction display.
Warning!
G
The hardtop is not fully closed and locked or
not fully opened and locked if:

the indicator light in the hardtop switch
remains lit


the message
Hardtop in operation!

is shown in the multifunction display
and the indicator lamp in the hardtop
switch does not go out


the indicator lamp blinks and a warning
sounds for 10 seconds and the message Lock hardtop
is shown in the multi-
function display when starting to drive
Warning!
G
Stop the vehicle and lock the hardtop before
continuing to drive. You could otherwise en-
danger yourself and others.

163 Controls in detail
Retractable hardtop
Opening the retractable hardtop with
the key

Aim the transmitter eye at the door
handle.

Press and hold button
Œ
until the
retractable hardtop is completely
open.
The seat ventilation switches on. The
rear side windows open. In the tachom-
eter display you will see the message
Hardtop open
.
Warning!
G
If the retractable hardtop does not com-
pletely open or close, the roof hydraulics will
lose pressure and the retractable hardtop is
lowered

after approximately seven minutes
when the ignition is switched on


after approximately 15 seconds when
the ignition is switched off
Shortly before the hardtop is lowered, a
warning will sound and the hardtop switch
lamp will blink. In the speedometer display
you will see
K
, in the tachometer display
you will see the message
being lowered!


Properly lock the retractable hardtop
(page 162) before continuing to drive
Warning!
G
Before operating the switch for the retract-
able hardtop make sure that no persons are
injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
spective button on the SmartKey. This im-
mediately interrupts the raising or lowering
procedure. You then can operate
Œ
or
‹
to raise or lower the hardtop away
from the danger zone.

164 Controls in detailRetractable hardtopClosing the retractable hardtop with
the key
Aim the transmitter eye at the door
handle.

Press and hold button
‹
until the
retractable hardtop is completely
closed.
The retractable hardtop and the side
windows close. In the tachometer dis-
play you will see the message Hardtop
closed

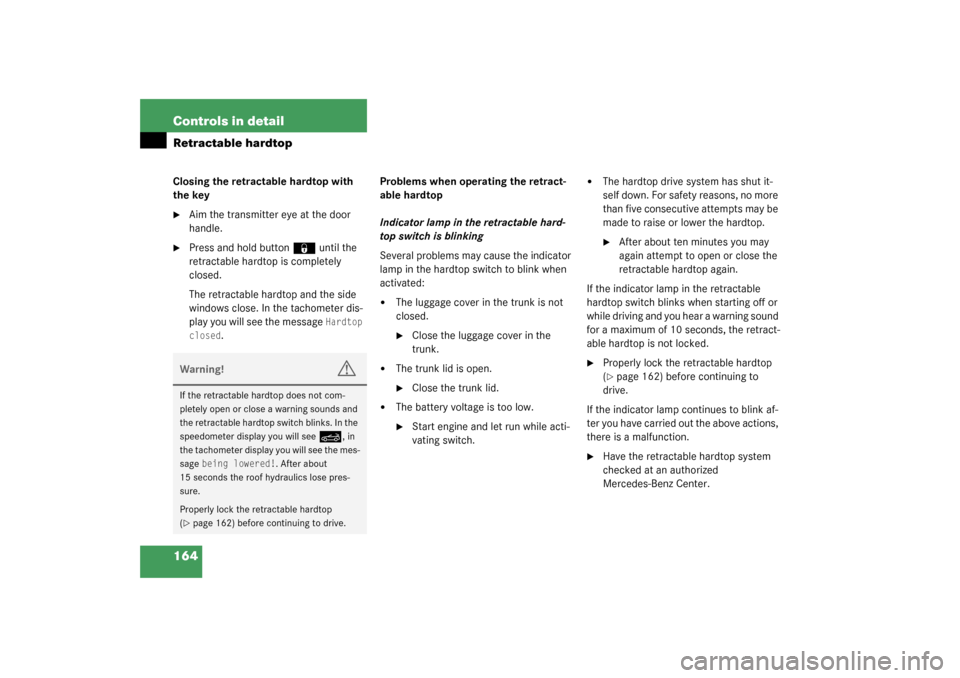

.Problems when operating the retract-
able hardtop
Indicator lamp in the retractable hard-
top switch is blinking
Several problems may cause the indicator
lamp in the hardtop switch to blink when
activated:


The luggage cover in the trunk is not
closed.
Close the luggage cover in the
trunk.


The trunk lid is open.
Close the trunk lid.


The battery voltage is too low.
Start engine and let run while acti-
vating switch.


The hardtop drive system has shut it-
self down. For safety reasons, no more
than five consecutive attempts may be
made to raise or lower the hardtop.
After about ten minutes you may
again attempt to open or close the
retractable hardtop again.
If the indicator lamp in the retractable
hardtop switch blinks when starting off or
while driving and you hear a warning sound
for a maximum of 10 seconds, the retract-
able hardtop is not locked.

Properly lock the retractable hardtop
(page 162) before continuing to
drive.
If the indicator lamp continues to blink af-
ter you have carried out the above actions,
there is a malfunction.

Have the retractable hardtop system
checked at an authorized
Mercedes-Benz Center.
Warning!
G
If the retractable hardtop does not com-
pletely open or close a warning sounds and
the retractable hardtop switch blinks. In the
speedometer display you will see
K
, in
the tachometer display you will see the mes-
sage
being lowered!
. After about
15 seconds the roof hydraulics lose pres-
sure.
Properly lock the retractable hardtop
(
page 162) before continuing to drive.

165 Controls in detail
Retractable hardtop
Indicator lamp in the retractable hard-
top switch lights when vehicle is
stopped
If the indicator lamp in the retractable
hardtop switch lights while the vehicle is
standing still and the switch was not acti-
vated, then the retractable hardtop is not
locked.
Properly lock the retractable hardtop
(page 162) before continuing to
drive.
The retractable hardtop will not lock
There is a malfunction in the retractable
hardtop system.

Notify an authorized Mercedes-Benz
Center.Wind screen
The wind screen deflects drafts away from
the driver and passenger when the hardtop
is lowered. It is stored in a separate stor-
age bag.
Installing

Leave the wind screen folded and place
it on the roll bar.1Guide tabs

Slide the wind screen into the roll bar
until the guide taps on each side latch
underneath the roll bar. Make sure that
the fastening straps do not get caught.

Raise the roll bar slightly (
page 61).
Warning!
G
The wind screen can restrict the driver’s vi-
sion to the rear of the vehicle. To prevent a
possible accident when visibility is limited
(e.g. in darkness), the upper part of the wind
screen should be folded back.

166 Controls in detailRetractable hardtop2Close the fastening straps
Guide the fastening straps around the
top of the roll bar and close the buck-
les.

Tighten the fastening straps if neces-
sary.

Lower the roll bar.

Fold the upper section of the wind
screen up towards the head restraints
until it stops.Removing

Fold the upper section of the wind
screen back down.

Raise the roll bar slightly (
page 61).
1Release button

Undo the buckles on the upper section
of the roll bar by pressing the release
button1.

Lower the roll bar. Make sure that the
fastening straps do not get caught.

Pull the wind screen out towards the
front of the vehicle. Be careful not to
damage interior trim with the guide
tabs.

Place the wind screen back into the
bag.
Sunshade for panorama roof*
The sunshade protects you from excessive
sunlight coming in through the panorama
roof.Warning!
G
Do not operate the sunshade while driving.
Adjusting the sunshade while driving could
cause the driver to lose control of the vehi-
cle.

167 Controls in detail
Retractable hardtop

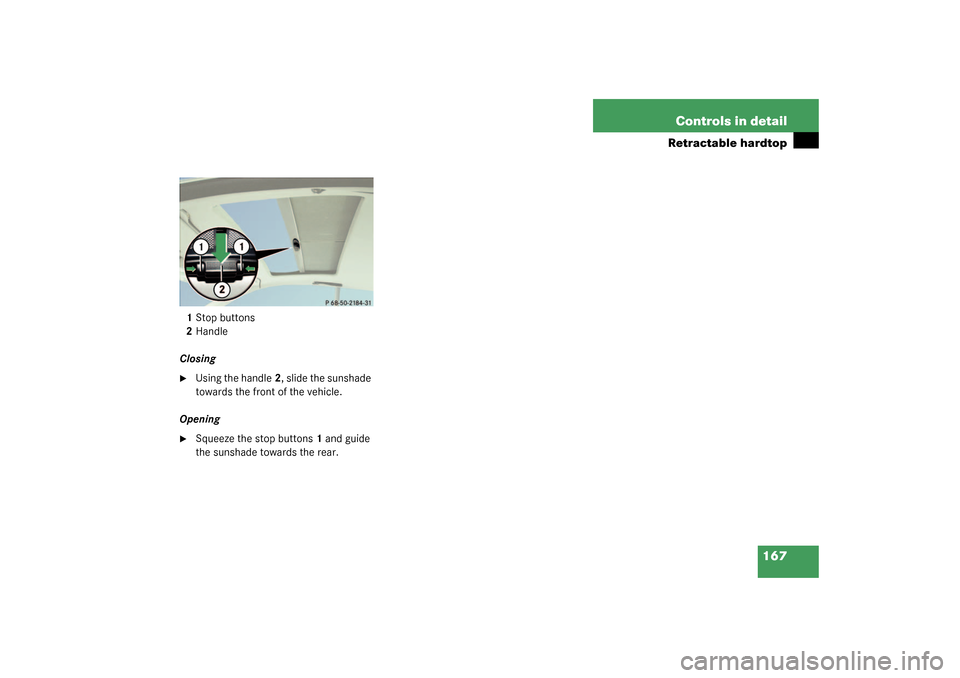

1Stop buttons
2Handle
Closing
Using the handle2, slide the sunshade
towards the front of the vehicle.
Opening

Squeeze the stop buttons1 and guide
the sunshade towards the rear.

168 Controls in detailDriving systems

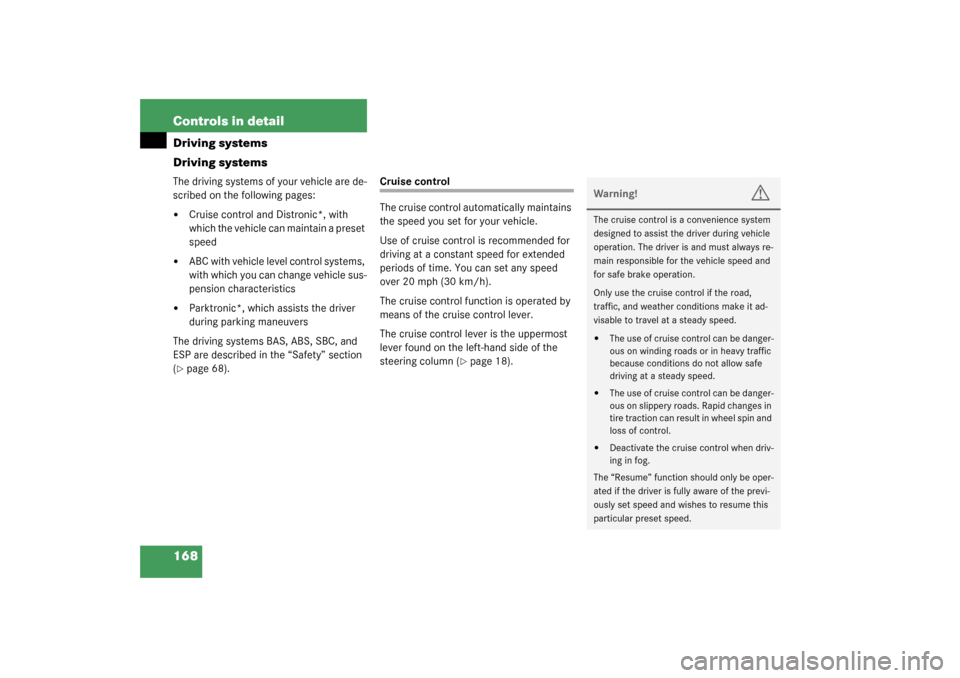

Driving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed


ABC with vehicle level control systems,
with which you can change vehicle sus-
pension characteristics


Parktronic*, which assists the driver
during parking maneuvers
The driving systems BAS, ABS, SBC, and
ESP are described in the “Safety” section
(
page 68).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set any speed
over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 18).
Warning!
G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must always re-
main responsible for the vehicle speed and
for safe brake operation.
Only use the cruise control if the road,
traffic, and weather conditions make it ad-
visable to travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate the cruise control when driv-
ing in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

169 Controls in detail
Driving systems

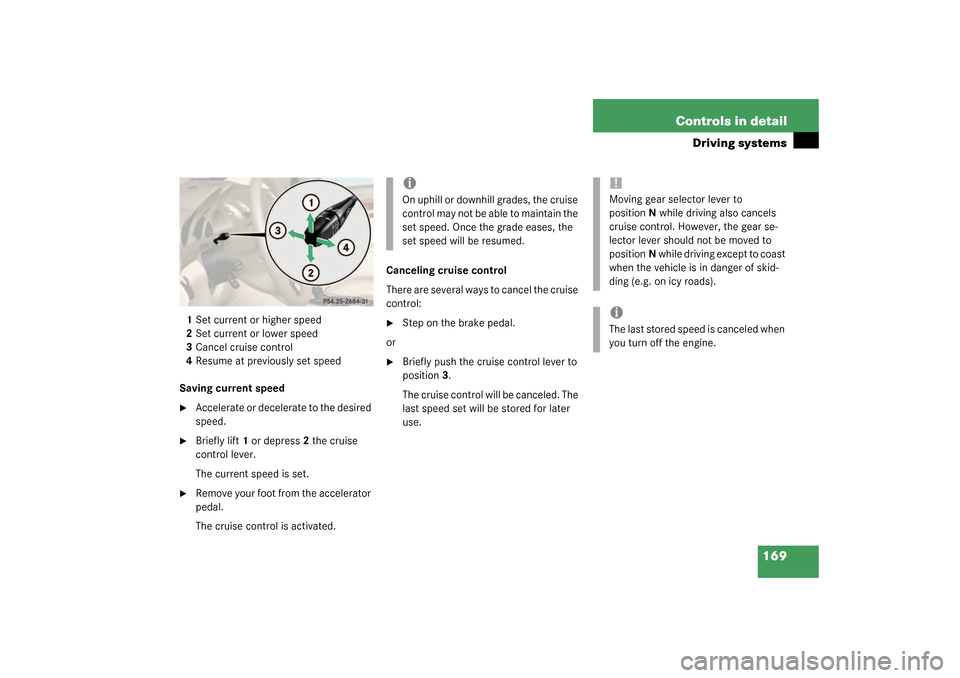

1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume at previously set speed

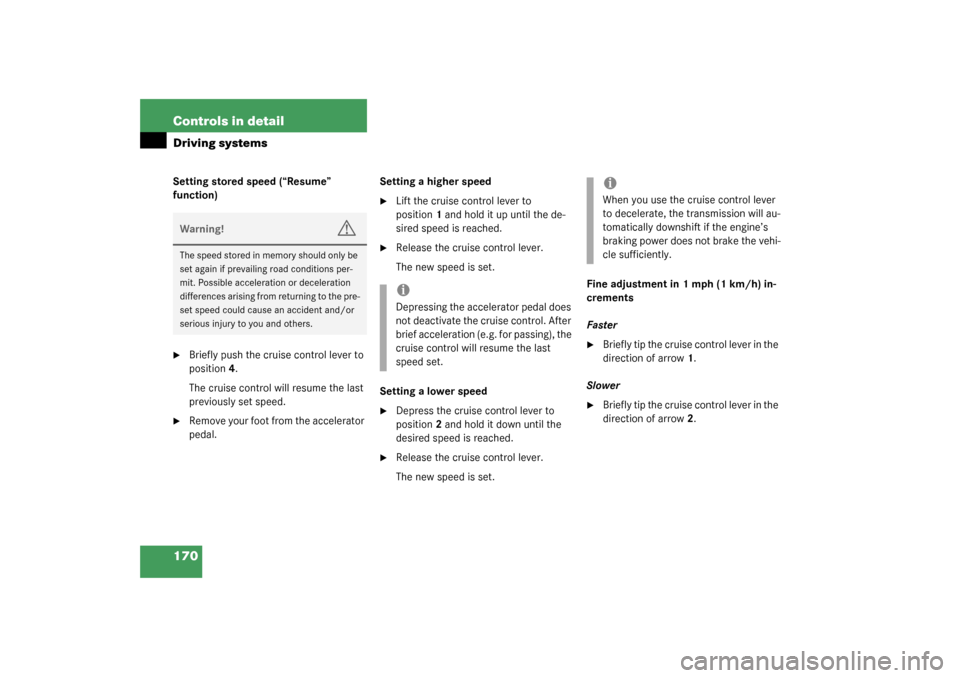

Saving current speed
Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
The cruise control is activated.Canceling cruise control
There are several ways to cancel the cruise
control:

Step on the brake pedal.
or

Briefly push the cruise control lever to
position3.
The cruise control will be canceled. The
last speed set will be stored for later
use.iOn uphill or downhill grades, the cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Moving gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).iThe last stored speed is canceled when
you turn off the engine.

170 Controls in detailDriving systemsSetting stored speed (“Resume”
function)
Briefly push the cruise control lever to
position4.
The cruise control will resume the last
previously set speed.

Remove your foot from the accelerator
pedal.Setting a higher speed

Lift the cruise control lever to
position1 and hold it up until the de-
sired speed is reached.

Release the cruise control lever.
The new speed is set.
Setting a lower speed

Depress the cruise control lever to
position2 and hold it down until the
desired speed is reached.

Release the cruise control lever.
The new speed is set.Fine adjustment in 1 mph (1 km/h) in-
crements
Faster

Briefly tip the cruise control lever in the
direction of arrow1.
Slower

Briefly tip the cruise control lever in the
direction of arrow2.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.
iDepressing the accelerator pedal does
not deactivate the cruise control. After
brief acceleration (e.g. for passing), the
cruise control will resume the last
speed set.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the engine’s
braking power does not brake the vehi-
cle sufficiently.
