Page 311 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 311 Practical hints
Flat tire

After driving vehicle for an initial
10 minutes, check tire pressure using
the pressure gauge on the air pump.

Visit an authorized Mercedes-Benz
Center as soon as

Page 312 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 312 Practical hintsFlat tireMounting the spare wheel Preparing the vehicle
Prepare the vehicle as described above
(
page 302).

Turn spare wheel bracket counter-
clockwise to loosen.

Take the whe

Page 313 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 313 Practical hints
Flat tire

On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench).
The jack support tubes are located behind
the front

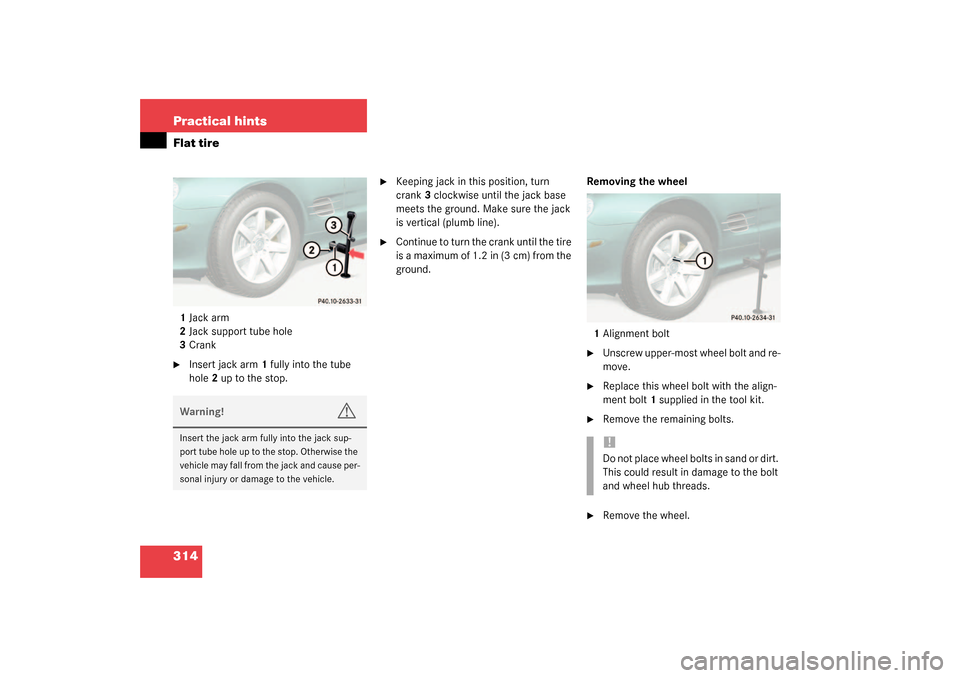

Page 314 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 314 Practical hintsFlat tire1Jack arm
2Jack support tube hole
3Crank
Insert jack arm1 fully into the tube
hole2 up to the stop.

Keeping jack in this position, turn
crank3 clockwise until the jack

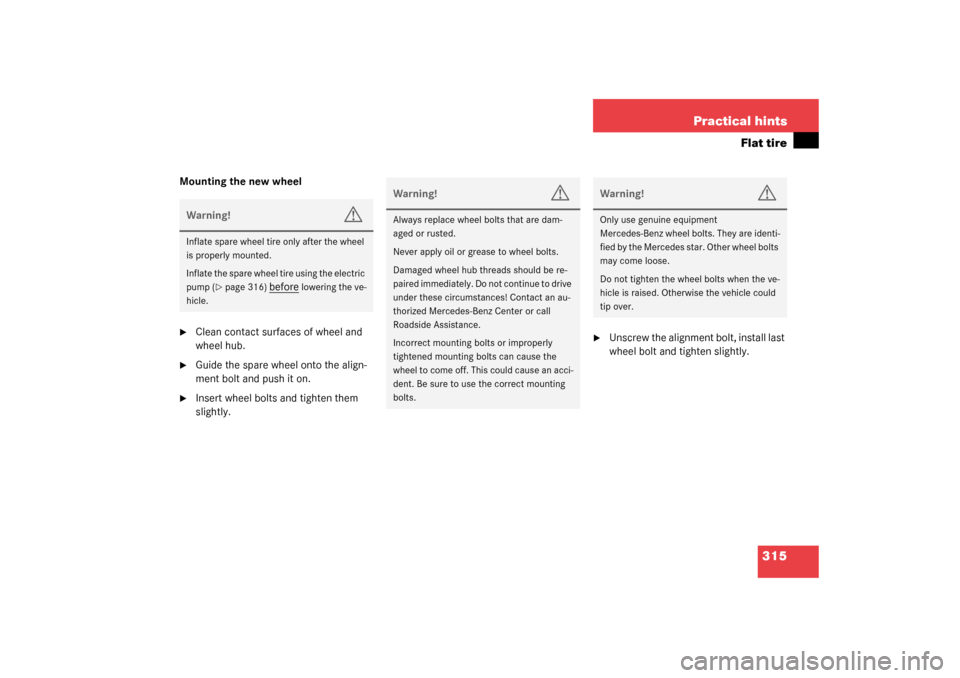

Page 315 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 315 Practical hints
Flat tire
Mounting the new wheel
Clean contact surfaces of wheel and
wheel hub.

Guide the spare wheel onto the align-
ment bolt and push it on.

Insert wheel bolts and tighten

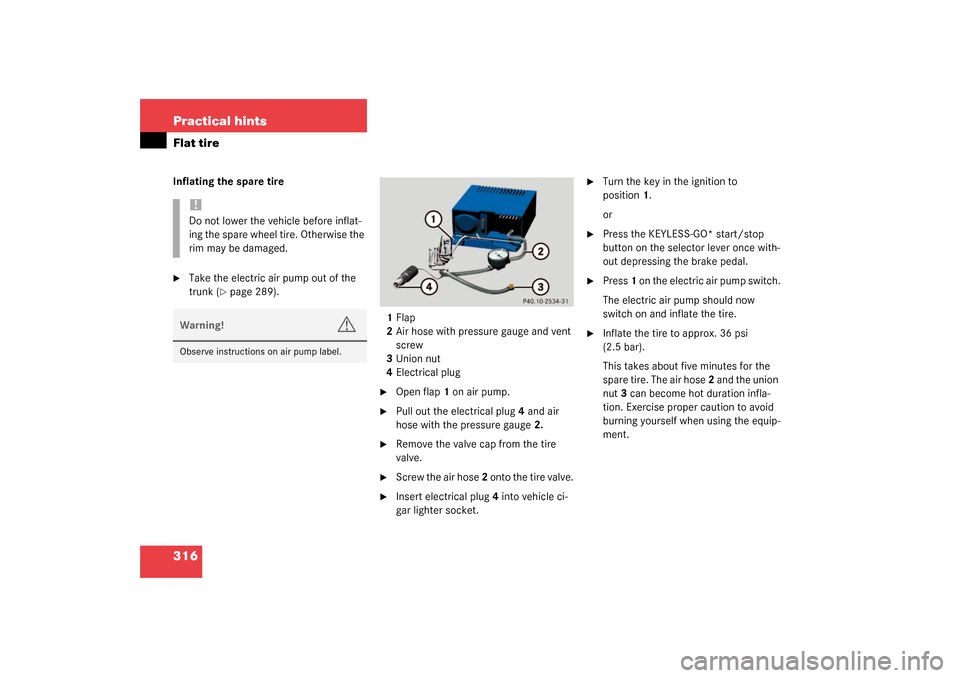

Page 316 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 316 Practical hintsFlat tireInflating the spare tire
Take the electric air pump out of the
trunk (
page 289).
1Flap
2Air hose with pressure gauge and vent
screw
3Union nut
4Electrical plug

Open

Page 317 of 376

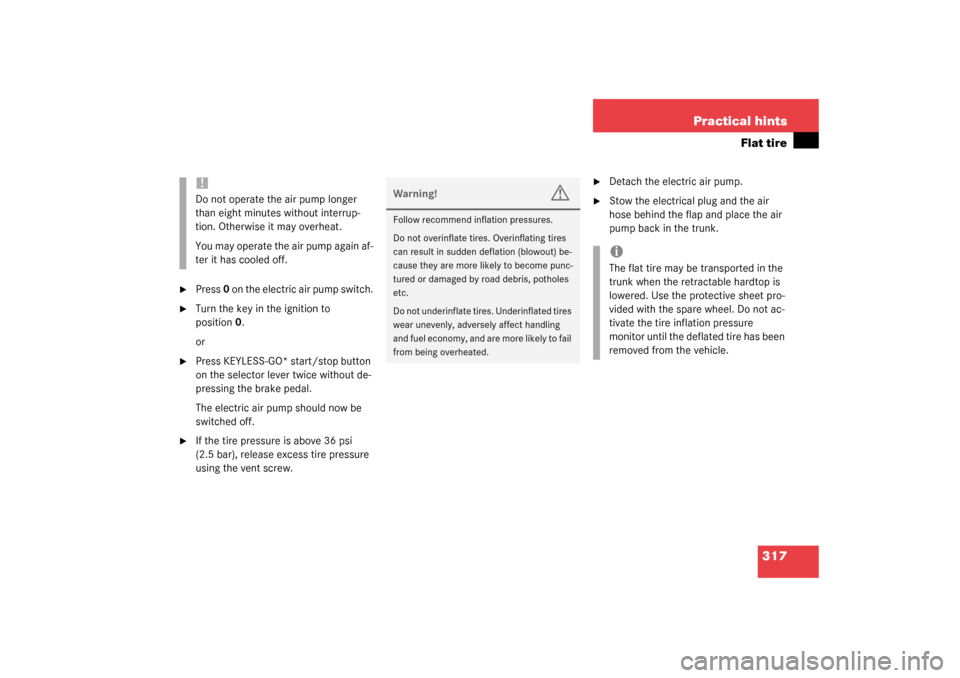

MERCEDES-BENZ SL500 2003 R230 Owners Manual 317 Practical hints
Flat tire

Press 0 on the electric air pump switch.

Turn the key in the ignition to
position0.
or

Press KEYLESS-GO* start/stop button
on the selector lever twice without de-

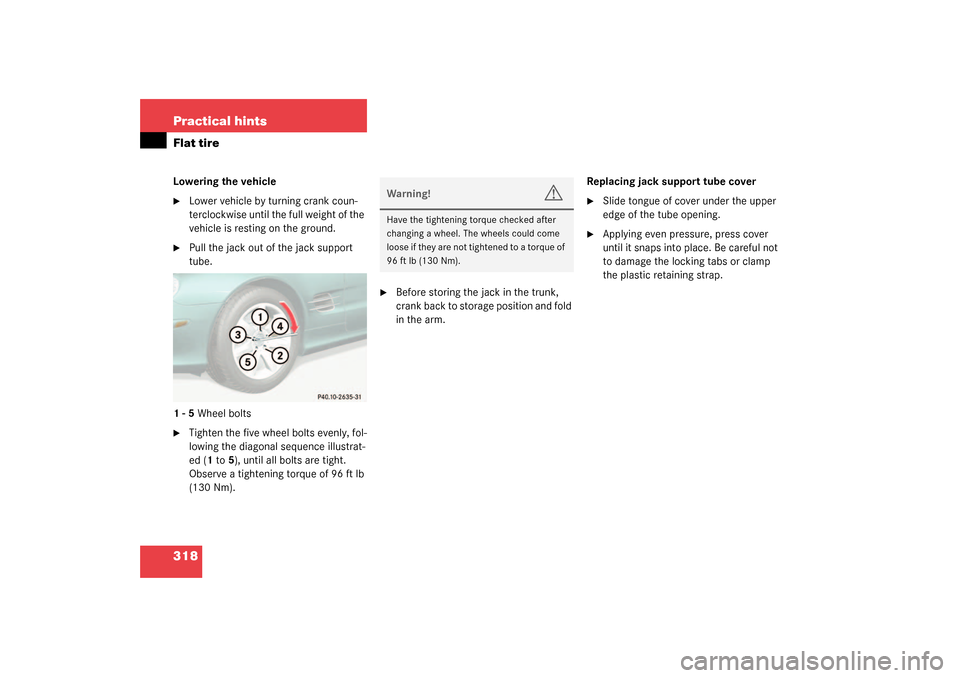

Page 318 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 318 Practical hintsFlat tireLowering the vehicle
Lower vehicle by turning crank coun-
terclockwise until the full weight of the
vehicle is resting on the ground.

Pull the jack out of the jack sup

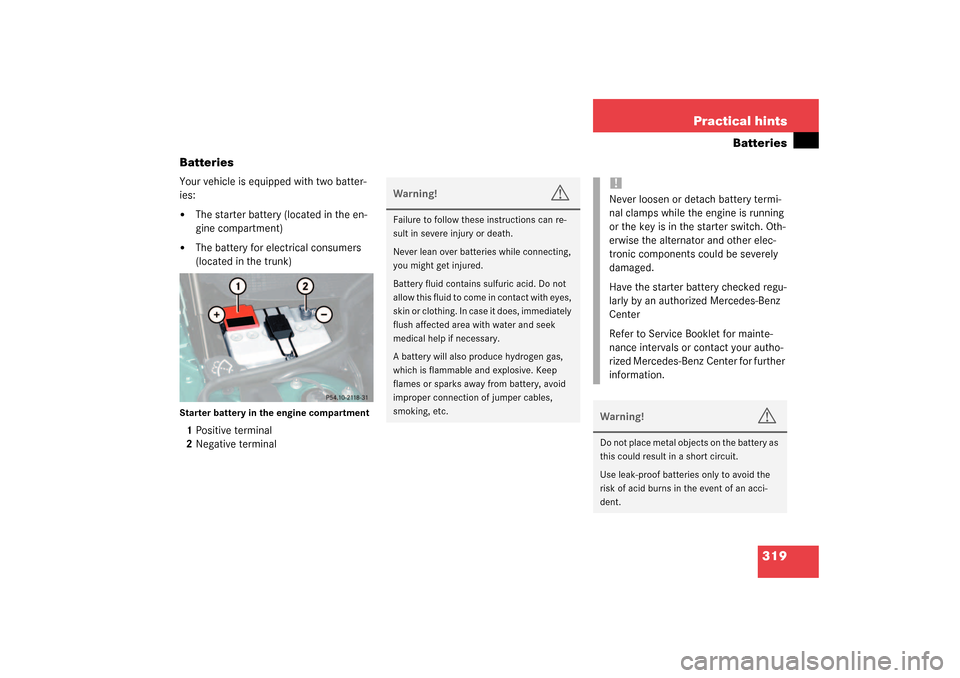

Page 319 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 319 Practical hints
Batteries
Batteries
Your vehicle is equipped with two batter-
ies:
The starter battery (located in the en-
gine compartment)

The battery for electrical consumers
(located in th

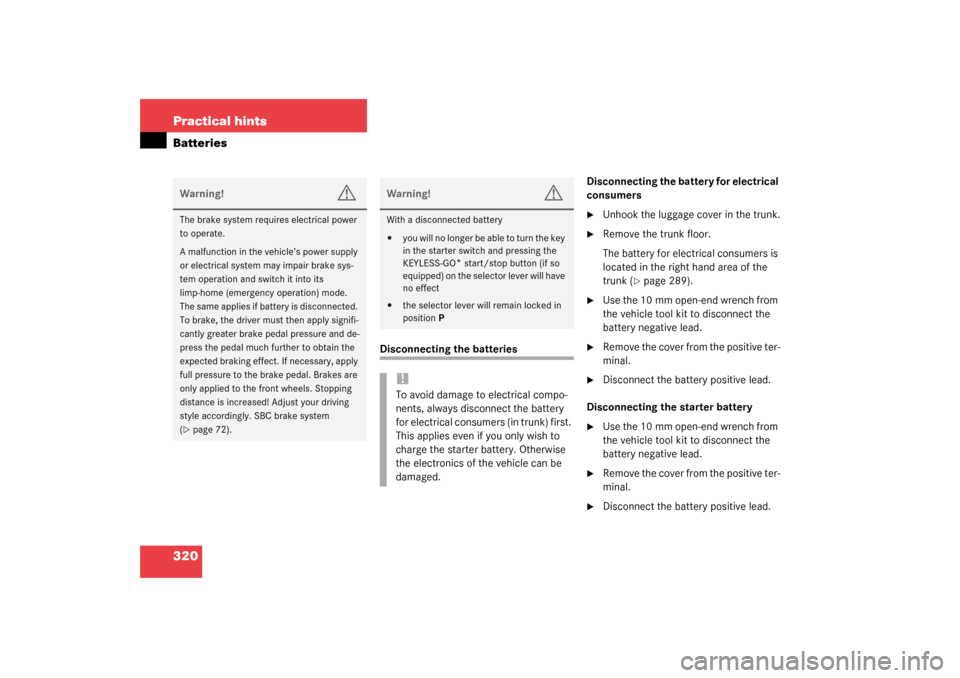

Page 320 of 376

MERCEDES-BENZ SL500 2003 R230 Owners Manual 320 Practical hintsBatteries
Disconnecting the batteriesDisconnecting the battery for electrical
consumers

Unhook the luggage cover in the trunk.

Remove the trunk floor.
The battery for electrica
