MERCEDES-BENZ SL65AMG 2008 R230 Owner's Manual

140 Controls in detail
Instrument cluster
For a full view illustration of the instrument
cluster, see “Instrument cluster”
(
page 26).
1Reset button
The instrument cluster is activated when
you

open a door

switch on the ignition (page 40)

press reset button 1

switch on the exterior lamps
Opening a door will activate the instrument
cluster only for about 30 seconds.You can change the instrument cluster
settings in the Instrument cluster submenu
of the control system (
page 160).Adjusting instrument cluster
illumination
Use the reset button to adjust the illumina-
tion brightness for the instrument cluster
and the switches on the center console.
To brighten illumination
Turn reset button 1 in the instrument
cluster clockwise.
The instrument cluster illumination will
brighten.
To dim illumination
Turn reset button 1 in the instrument
cluster counterclockwise.
The instrument cluster illumination will
dim.
Warning!G
No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see
information about your driving conditions,
such as speed or outside temperature,
warning/indicator lamps,
malfunction/warning messages or the
failure of any systems. Driving characteris-
tics may be impaired.
If you must continue to drive, do so with
added caution. Visit an authorized
Mercedes-Benz Center as soon as possible.iThe instrument cluster illumination is
dimmed or brightened to suit ambient light
conditions.

141 Controls in detail
Instrument cluster
Coolant temperature gaugeResetting trip odometer
Make sure you are viewing the trip
odometer display (
page 143).
If it is not displayed, press the
jork button on the multi-
function steering wheel repeatedly
until the trip odometer appears.
Press and hold reset button1
(
page 140) until the trip odometer is
reset.
Warning!G

Driving when your engine is overheated
can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously
burned.

Steam from an overheated engine can
cause serious burns which can occur
just by opening the hood. Stay away
from the engine if you see or hear steam
coming from it.
Stop the vehicle in a safe location away from
other traffic. Turn off the engine, get out of
the vehicle and do not stand near the vehicle
until the engine has cooled down.
!Excessive coolant temperature triggers the
coolant temperature warning lamp (
page 348)
and a warning in the multifunction display
(
page 383).
The engine should not be operated with the cool-
ant temperature above 248°F (120°C). Doing so
may cause serious engine damage which is not
covered by the Mercedes-Benz Limited
Warranty.
iDuring severe operating conditions, e.g.
stop-and-go traffic, the coolant temperature may
rise close to 248°F (120°C).

142 Controls in detail
Instrument cluster
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.Outside temperature indicator
The outside temperature is displayed in
the left or right multifunction display
(
page 160).The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. There-
fore, the accuracy of the displayed temper-
ature can only be verified by comparison to
a thermometer placed next the sensor, not
by comparison to external displays, e.g.
bank signs, etc.
When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate
temperature indications caused by heat
radiated from the engine during idling or
slow driving.
!Avoid driving at excessive engine speeds, as
it may result in serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
Warning!G
The outside temperature indicator is not
designed to serve as an ice-warning device
and is therefore unsuitable for that purpose.
Indicated temperatures just above the
freezing point do not guarantee that the
road surface is free of ice. The road may still
be icy, especially in wooded areas or on
bridges.

143 Controls in detail
Control system
Control system
The control system is activated as soon
as the SmartKey in the starter switch is
turned to position1 or as soon as the
KEYLESS-GO start/stop button is in
position 1. The control system enables
you to

call up information about your vehicle

change vehicle settings
For example, you can use the control
system to find out when your vehicle is
next due for service, to set the language
for messages in the instrument cluster
display, and much more.
The control system relays information to
the multifunction display.

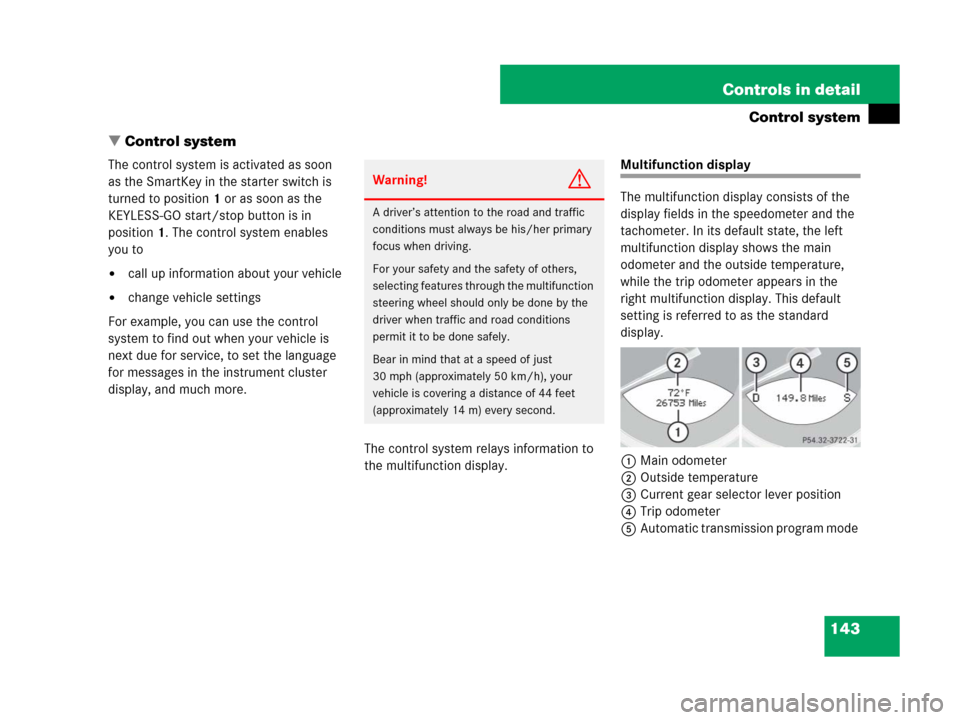

Multifunction display
The multifunction display consists of the
display fields in the speedometer and the
tachometer. In its default state, the left
multifunction display shows the main
odometer and the outside temperature,
while the trip odometer appears in the
right multifunction display. This default
setting is referred to as the standard
display.
1Main odometer
2Outside temperature
3Current gear selector lever position
4Trip odometer
5Automatic transmission program mode
Warning!G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others,
selecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions
permit it to be done safely.
Bear in mind that at a speed of just
30 mph (approximately 50 km/h), your
vehicle is covering a distance of 44 feet
(approximately 14 m) every second.

144 Controls in detail
Control system

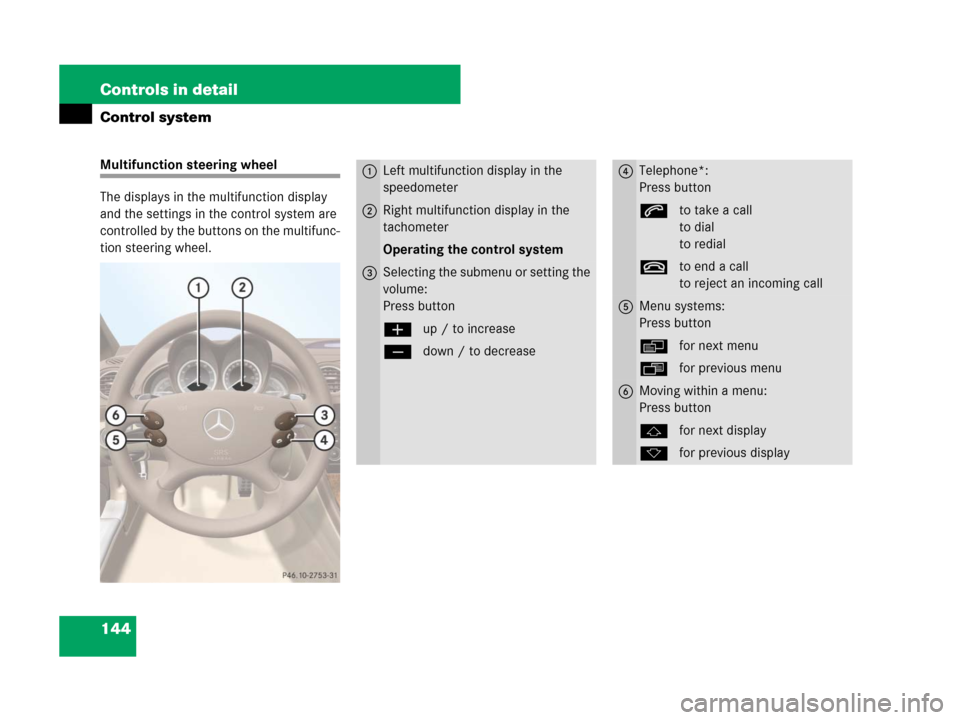

Multifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel.1Left multifunction display in the
speedometer
2Right multifunction display in the
tachometer
Operating the control system
3Selecting the submenu or setting the
volume:
Press button
æup / to increase
çdown / to decrease
4Telephone*:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an incoming call
5Menu systems:
Press button
èfor next menu
ÿfor previous menu
6Moving within a menu:
Press button
jfor next display
kfor previous display

145 Controls in detail
Control system
Depending on the selected menu, pressing
the buttons on the multifunction steering
wheel will alter what appears in the multi-
function display.
The information available in the multifunc-
tion display are arranged in menus and
accompanying functions or submenus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
AUDIO, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.It is helpful to think of the menus, and the
functions within each menu, as being ar-
ranged in a circular pattern.

If you press button è or ÿ re-
peatedly, you will pass through each
menu one after the other.

If you press button k or j re-
peatedly, you will pass through each
function display, one after the other, in
the current menu. In the
Settings menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For in-
structions on using these submenus, see
“Settings menu” (
page 157).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.

146 Controls in detail
Control system

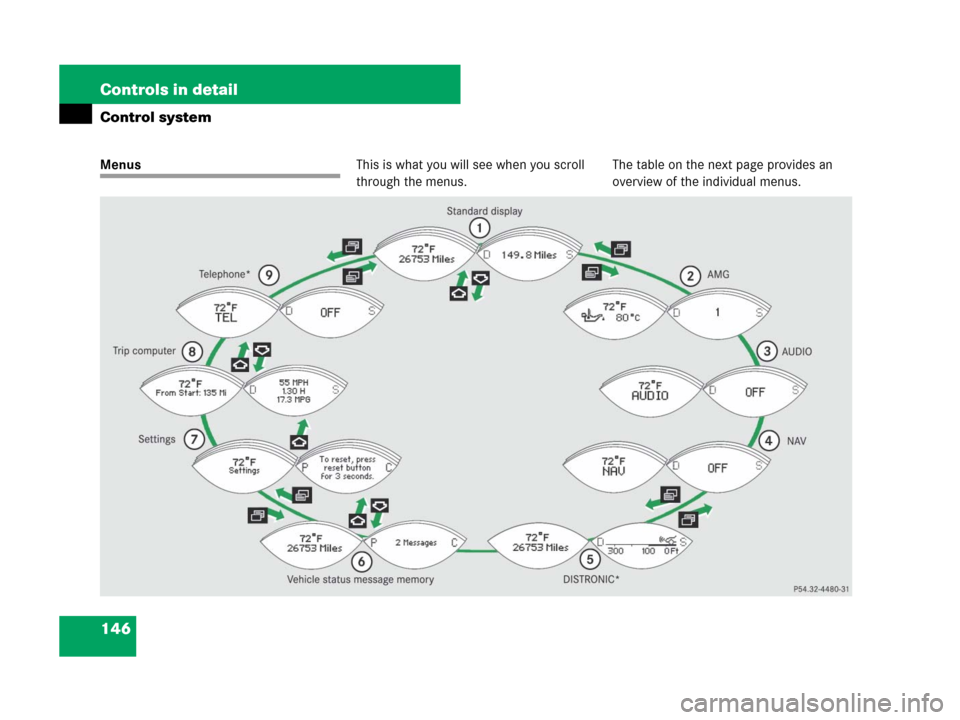

MenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.

147 Controls in detail
Control system
Menus, submenus and functions
Table continued on next page.
Menu 1Menu 2Menu 3Menu 4Menu 5
Standard displayAMG1AUDIO NAVDistronic*
(page 149)(page 150)(page 153)(page 155)(page 156)
Commands/submenus
Calling up digital
speedometer/Outside
temperatureEngine oil temperatureSelecting radio stationShow route guidance
instructions, current
direction traveledCalling up settings
Calling up maintenance
service indicatorVehicle supply voltageSelecting satellite radio
station
Checking tire inflation
pressureRACETIMEROperating CD player
Checking engine oil
level*Overall analysis
Lap analysis
1AMG vehicles only.

148 Controls in detail
Control system

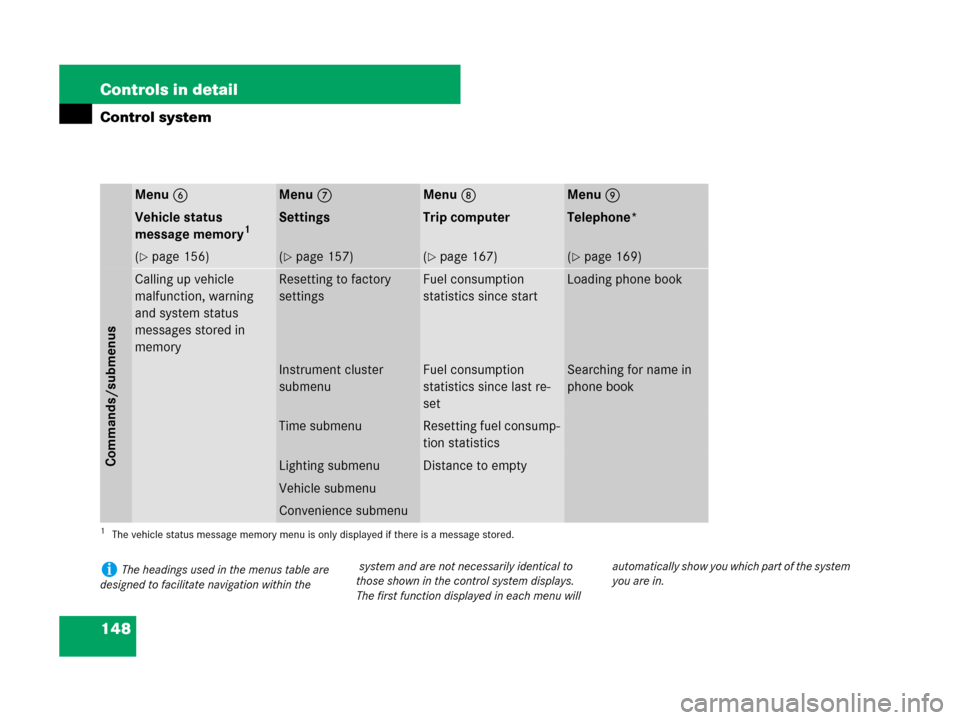

Menu 6Menu 7Menu 8Menu 9
Vehicle status
message memory1SettingsTrip computerTelephone*
(page 156)(page 157)(page 167)(page 169)
Commands/submenus
Calling up vehicle
malfunction, warning
and system status
messages stored in
memoryResetting to factory
settingsFuel consumption
statistics since startLoading phone book
Instrument cluster
submenuFuel consumption
statistics since last re-
setSearching for name in
phone book
Time submenuResetting fuel consump-
tion statistics
Lighting submenuDistance to empty
Vehicle submenu
Convenience submenu
1The vehicle status message memory menu is only displayed if there is a message stored.
iThe headings used in the menus table are
designed to facilitate navigation within the system and are not necessarily identical to
those shown in the control system displays.
The first function displayed in each menu willautomatically show you which part of the system
you are in.

149 Controls in detail
Control system
Standard display menu
1Main odometer
2Outside temperature
3Current gear selector lever position
4Trip odometer
5Automatic transmission program mode
Press button è or ÿ repeatedly
until you see the standard display
menu in the multifunction display.You can modify the standard display menu.
Instead of outside temperature 2, you
can choose the digital speedometer to be
displayed in the left multifunction display
by changing the setting in the
Select
Display
function of the Inst. Cluster
submenu (
page 161).
Press button k or jto select
the functions in the standard display
menu.
The following functions are available:Calling up digital speedometer or out-
side temperature
Press button k or juntil the
digital speedometer or, depending on
the chosen setting, the outside temper-
ature appears in the right multifunction
display.
FunctionPage
Calling up digital speedometer or
outside temperature149
Calling up maintenance service
indicator332
Checking tire inflation pressure302
Checking engine oil level*284
iIf you have selected the digital speedometer
for the standard display (
page 161), select the
outside temperature display here.
