Page 101 of 489
100 Safety and Security
Anti-theft systems
Canceling the alarm
To cancel the alarm:
With the SmartKey
Insert the SmartKey in the starter
switch.
or
Press theŒor‹button on the
SmartKey.
With KEYLESS-GO*
Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or
Press the KEYLESS-GO start/stop but-
ton (
page 41).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle. Arming tow-away alarm
Lock your vehicle with the SmartKey or
KEYLESS-GO*
The tow-away alarm is automatically
armed after about 30 seconds.
Disarming tow-away alarm
To prevent triggering the tow-away alarm,
disable the tow-away alarm feature before
towing the vehicle, or when parking on a
surface subject to movement, such as a
ferry or auto train.
The button is located on the center
console between the driver’s seat and the
passenger seat.
iIf the alarm stays on for more than
30 seconds, a call to the Response Center is
initiated automatically by the Tele Aid system
(
page 252) provided Tele Aid service was
subscribed to and properly activated, and that
necessary cellular service and GPS coverage are
available.
iWhen you unlock your vehicle, the tow-away
protection disarms automatically. The tow-away
alarm remains disarmed until you lock the
vehicle again.
Page 102 of 489
101 Safety and Security
Anti-theft systems
1Tow-away alarm off button
2Indicator lamp
Switch off the ignition and remove the
SmartKey from the starter switch.
Press button1.
The indicator lamp2 in the switch
comes on briefly.
Exit and lock your vehicle with the
SmartKey or (vehicles with
KEYLESS-GO*) with the lock button on
a door handle.
The tow-away alarm remains disarmed un-
til you lock the vehicle again.
Canceling the alarm
To cancel the alarm:
With the SmartKey
Insert the SmartKey in the starter
switch.
or
Press theŒor‹button on the
SmartKey.With KEYLESS-GO*
Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or
Press the KEYLESS-GO start/stop
button (
page 41).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iYou cannot disarm the tow-away alarm
when the ignition is switched on.
Page 103 of 489
102
Page 104 of 489

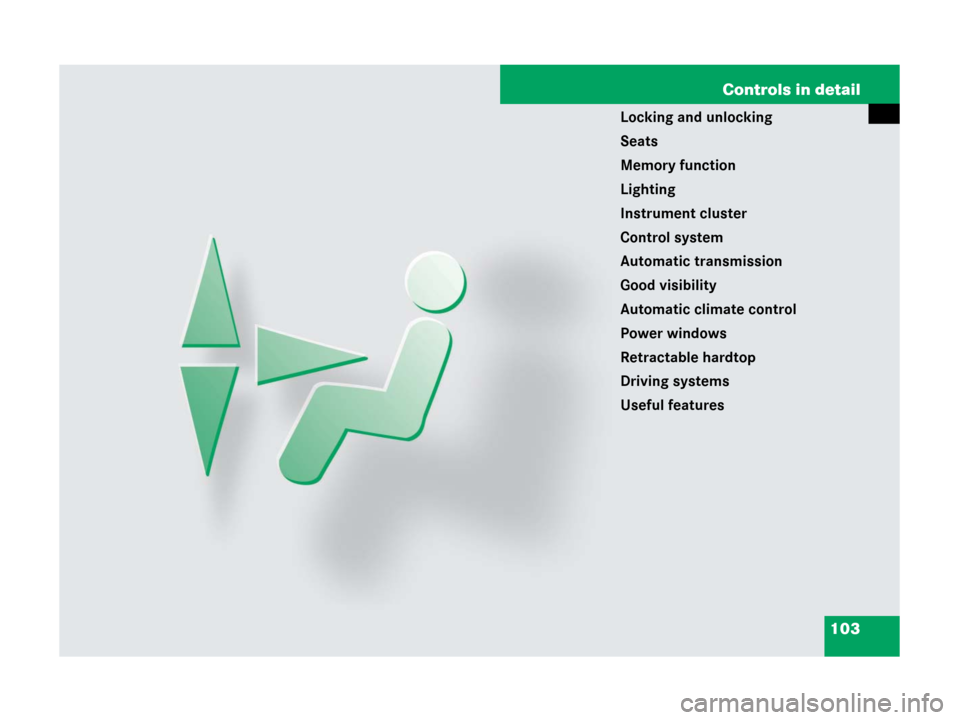

103 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Automatic climate control
Power windows
Retractable hardtop
Driving systems
Useful features
Page 105 of 489
104 Controls in detail
In the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
For more information on locking and un-
locking, see the “Getting started” section
(
page 38).
Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:
the doors
the trunk lid
the glove box
the storage compartment under the
armrest
the storage compartment in the rear
the fuel filler flap
SmartKey with remote control
1‹Lock button
2Š Opening button for trunk
(
page 114)
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 88)
Page 106 of 489
105 Controls in detail
Locking and unlocking
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
!To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also open and close the power win-
dows (
page 201) and the retractable hardtop
using the SmartKey (
page 206).
!If you cannot lock or unlock the vehicle
with the SmartKey, then the batteries in the
SmartKey are discharged, the SmartKey is mal-
functioning or the vehicle battery is drained.
Check the batteries in the SmartKey
(
page 113) and replace them if necessary
(
page 407).
Use the mechanical key to unlock the
driver’s door (
page 403) and the trunk
(
page 404).
Have the vehicle batteries and their
connections checked (
page 427).
Use the mechanical key to lock or unlock the
doors (
page 405).
If the SmartKey is malfunctioning, contact
Roadside Assistance or an authorized
Mercedes-Benz Center.
Page 107 of 489
106 Controls in detail
Locking and unlocking
Factory settingGlobal unlocking
Press button Œ.
All turn signal lamps flash once.
An acoustic warning sounds once.
The locking knobs in the doors
move up.
The anti-theft alarm system is
disarmed.
The vehicle will lock again automatically
and rearm the alarm system within approx-
imately 40 seconds of unlocking if:
neither door nor trunk is opened
the SmartKey is not inserted in the
starter switch
the central locking switch is not
activatedGlobal locking
Press button ‹.
With the trunk and both doors closed:
All turn signal lamps flash three
times.
An acoustic warning sounds three
times.
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.
iWhen unlocking or locking the vehicle with
the SmartKey, an acoustic signal sounds. The
signal is activated at the factory. If you wish to
deactivate the feature or adjust its signal
volume, contact an authorized Mercedes-Benz
Center.
Page 108 of 489
107 Controls in detail
Locking and unlocking
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that press-
ing buttonŒ only unlocks the driver’s
door, interior lockable storage compart-
ments and the fuel filler flap.
Press and hold buttonsŒand‹
simultaneously for about 5 seconds
until battery check lamp5 flashes
twice.
The SmartKey will then function as
follows:Unlocking driver’s door and fuel filler
flap
Press button Πonce.
All turn signal lamps flash once.
An acoustic warning sounds once.
The locking knob in the driver’s
door moves up.
The anti-theft alarm system is
disarmed.
Global unlocking
Press button Πtwice.
All turn signal lamps flash once.
An acoustic warning sounds once.
The locking knobs in the doors
move up.
The anti-theft alarm system is
disarmed.Global locking
Press button ‹.
With all doors and the trunk closed:
All turn signal lamps flash three
times.
An acoustic warning sounds three
times.
The locking knobs in the doors
move down.
The anti-theft alarm system is
armed.
Restoring to factory setting
Press and hold buttons Œ and ‹
simultaneously for about 5 seconds
until battery check lamp5
(
page 104) flashes twice.
Page 109 of 489
108 Controls in detail
Locking and unlocking
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote controls and a remov-
able mechanical key.
The function of the SmartKey overrules the
KEYLESS-GO function.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you grasp a door
handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks
the doors
the trunk lid
the glove box
the storage compartment under the
armrest
the storage compartments in the rear
the fuel filler flap
SmartKey with KEYLESS-GO
1‹Lock button
2Š Opening button for trunk
(
page 114)
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6Â Panic button (
page 88)
For information on using the SmartKey
buttons, see “SmartKey” (
page 104).
Warning!G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
!To prevent possible malfunction, avoid
exposing the SmartKey with KEYLESS-GO to
high levels of electromagnetic radiation.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
Page 110 of 489
109 Controls in detail
Locking and unlocking
Important notes on using KEYLESS-GO
You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey
(
page 104).
You can combine KEYLESS-GO func-
tions with normal SmartKey functions
(e.g. unlocking with KEYLESS-GO and
locking with the ‹button).
Always carry the SmartKey with
KEYLESS-GO with you.
Never store the SmartKey with
KEYLESS-GO together with:
Electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO
Metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iYou can also close the power windows
(
page 201) and the retractable hardtop using
the SmartKey with KEYLESS-GO (
page 206).
iWhen you unlock the vehicle, the
electro-hydraulic brake system is activated.
!If you cannot lock or unlock the vehicle with
the SmartKey with KEYLESS-GO, then the
batteries in the SmartKey are discharged, the
SmartKey with KEYLESS-GO is malfunctioning or
the vehicle battery is drained.
Check the batteries in the SmartKey with
KEYLESS-GO (
page 113) and replace
them if necessary (
page 407).
Use the mechanical key to unlock the
driver’s door (
page 403) and the
trunk (
page 404).
Have the vehicle batteries and their
connections checked (
page 427).
Use the mechanical key to lock or unlock the
doors (
page 405).
If the SmartKey with KEYLESS-GO is malfunc-
tioning, contact Roadside Assistance or an
authorized Mercedes-Benz Center.
