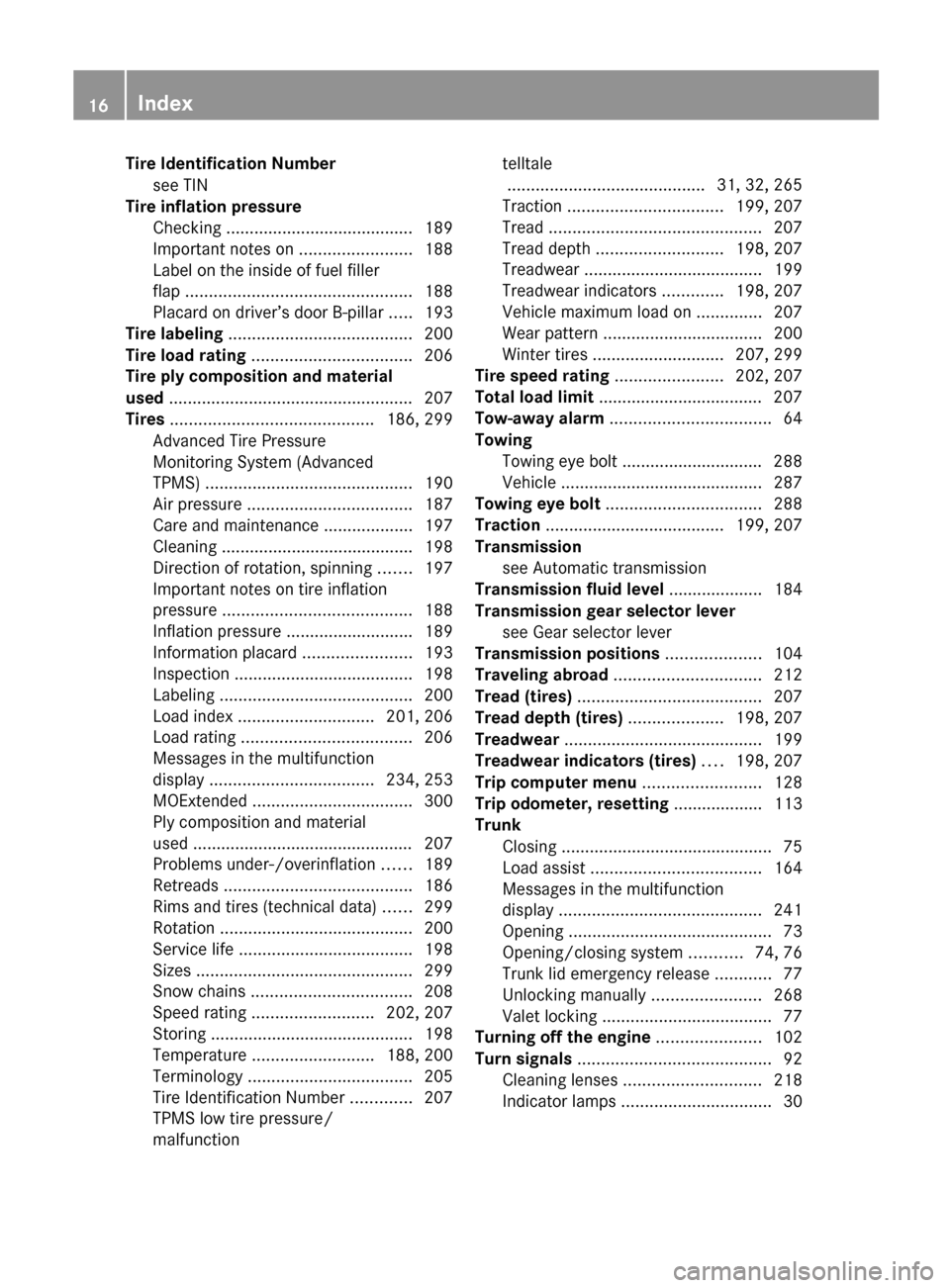

Tire Identification Numbersee TIN
Tire inflation pressure
Checking ........................................ 189
Important notes on ........................188
Label on the inside of fuel filler
flap ................................................ 188
Placard on driver’s door B-pillar .....193
Tire labeling ....................................... 200
Tire load rating .................................. 206
Tire ply composition and material
used .................................................... 207
Tires ........................................... 186, 299
Advanced Tire Pressure
Monitoring System (Advanced
TPMS) ............................................ 190
Air pressure ................................... 187
Care and maintenance ...................197
Cleaning ......................................... 198
Direction of rotation, spinning .......197
Important notes on tire inflation
pressure ........................................ 188
Inflation pressure ........................... 189
Information placard .......................193
Inspection ...................................... 198
Labeling ......................................... 200
Load index ............................. 201, 206
Load rating .................................... 206
Messages in the multifunction
display ................................... 234, 253
MOExtended .................................. 300
Ply composition and material
used ............................................... 207
Problems under-/overinflation ......189
Retreads ........................................ 186
Rims and tires (technical data) ......299
Rotation ......................................... 200
Service life ..................................... 198
Sizes .............................................. 299
Snow chains .................................. 208
Speed rating .......................... 202, 207
Storing ........................................... 198
Temperature .......................... 188, 200
Terminology ................................... 205
Tire Identification Number .............207
TPMS low tire pressure/
malfunctiontelltale
.......................................... 31, 32, 265
Traction ................................. 199, 207
Tread ............................................. 207
Tread depth ........................... 198, 207
Treadwear ...................................... 199
Treadwear indicators .............198, 207
Vehicle maximum load on ..............207
Wear pattern .................................. 200
Winter tires ............................ 207, 299
Tire speed rating ....................... 202, 207
Total load limit ................................... 207
Tow-away alarm .................................. 64
Towing
Towing eye bolt .............................. 288
Vehicle ........................................... 287
Towing eye bolt ................................. 288
Traction ...................................... 199, 207
Transmission see Automatic transmission
Transmission fluid level .................... 184
Transmission gear selector lever see Gear selector lever
Transmission positions .................... 104
Traveling abroad ............................... 212
Tread (tires) ....................................... 207
Tread depth (tires) .................... 198, 207
Treadwear .......................................... 199
Treadwear indicators (tires) .... 198, 207
Trip computer menu ......................... 128
Trip odometer, resetting ................... 113
Trunk
Closing ............................................. 75
Load assist .................................... 164
Messages in the multifunction
display ........................................... 241
Opening ........................................... 73
Opening/closing system ...........74, 76
Trunk lid emergency release ............77
Unlocking manually .......................268
Valet locking .................................... 77
Turning off the engine ...................... 102
Turn signals ......................................... 92
Cleaning lenses ............................. 218
Indicator lamps ................................ 3016Index230_AKB; 6; 22, en-USd2ureepe,Version: 2.11.8.12009-07-28T18:49:58+02:00 - Seite 16

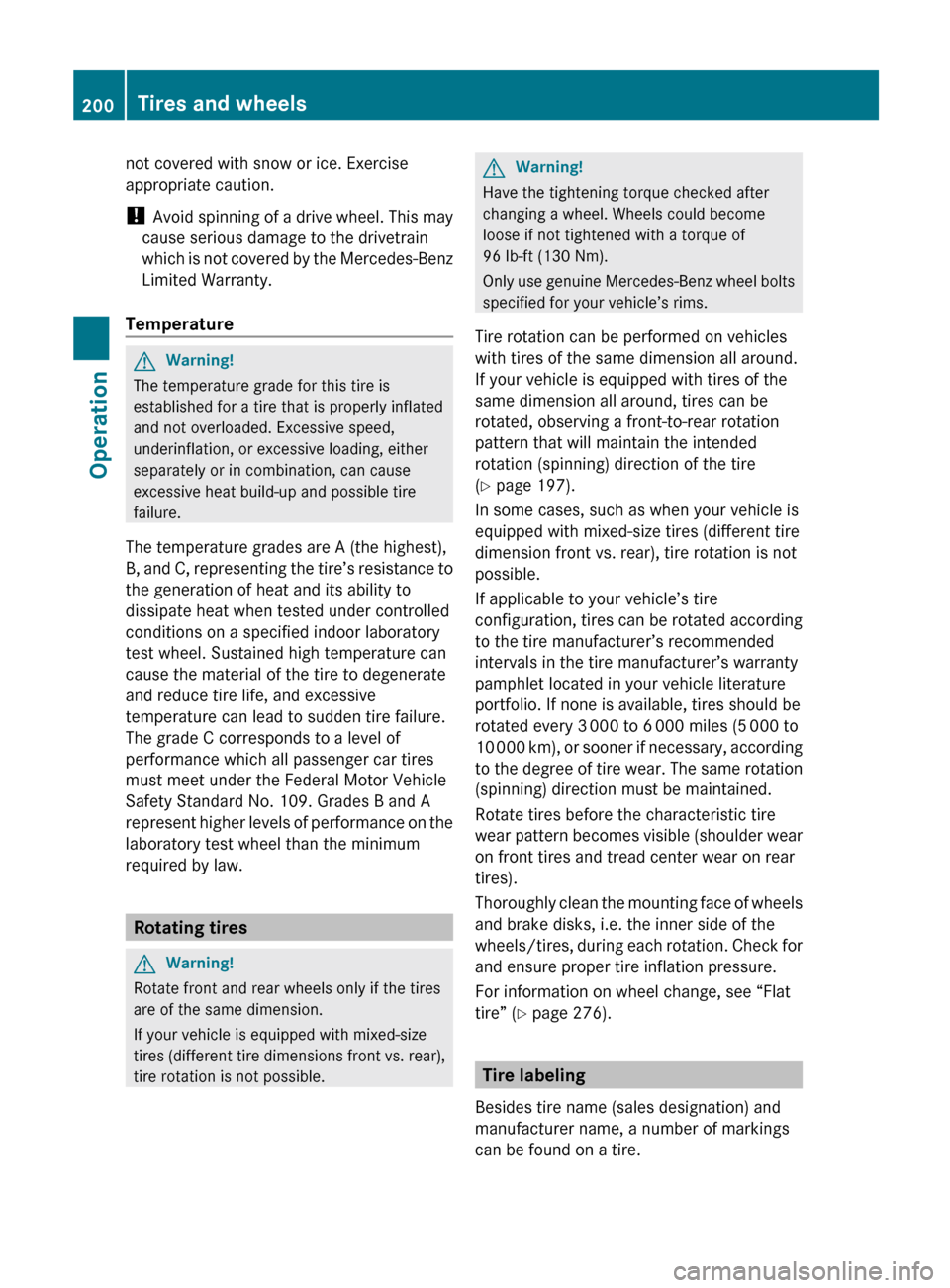

not covered with snow or ice. Exercise
appropriate caution.
! Avoid spinning of a drive wheel. This may
cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.
Temperature GWarning!
The temperature grade for this tire is
established for a tire that is properly inflated
and not overloaded. Excessive speed,
underinflation, or excessive loading, either
separately or in combination, can cause
excessive heat build-up and possible tire
failure.
The temperature grades are A (the highest),
B, and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden tire failure.
The grade C corresponds to a level of
performance which all passenger car tires
must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A
represent higher levels of performance on the
laboratory test wheel than the minimum
required by law.
Rotating tires
GWarning!
Rotate front and rear wheels only if the tires
are of the same dimension.
If your vehicle is equipped with mixed-size
tires (different tire dimensions front vs. rear),
tire rotation is not possible.
GWarning!
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
96 lb-ft (130 Nm).
Only use genuine Mercedes-Benz wheel bolts
specified for your vehicle’s rims.
Tire rotation can be performed on vehicles
with tires of the same dimension all around.
If your vehicle is equipped with tires of the
same dimension all around, tires can be
rotated, observing a front-to-rear rotation
pattern that will maintain the intended
rotation (spinning) direction of the tire
( Y page 197).
In some cases, such as when your vehicle is
equipped with mixed-size tires (different tire
dimension front vs. rear), tire rotation is not
possible.
If applicable to your vehicle’s tire
configuration, tires can be rotated according
to the tire manufacturer’s recommended
intervals in the tire manufacturer’s warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should be
rotated every 3 000 to 6 000 miles (5 000 to
10 000 km), or sooner if necessary, according
to the degree of tire wear. The same rotation
(spinning) direction must be maintained.
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder wear
on front tires and tread center wear on rear
tires).
Thoroughly clean the mounting face of wheels
and brake disks, i.e. the inner side of the
wheels/tires, during each rotation. Check for
and ensure proper tire inflation pressure.
For information on wheel change, see “Flat
tire” ( Y page 276).
Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
