MERCEDES-BENZ SLK55AMG 2006 R171 Owner's Manual

360 OperationVehicle careHeadliner and shelf below rear window
Use a soft bristle brush or a dry-sham-
poo cleaner in case of excessive dirt.
Seat belts

Use only clear, lukewarm water and
soap.Upholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.
Leather upholstery

Wipe leather upholstery with a damp
cloth and dry thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Exercise particular care when cleaning per-
forated leather as its underside should not
become wet.Wood trims

Dampen cloth using water and use
damp cloth to clean wood trims in your
vehicle.
!The webbing must not be treated with
chemical cleaning agents. Do not dry
the webbing at temperatures above
176°F (80°C) or in direct sunlight.Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
!Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as
these may be abrasive.

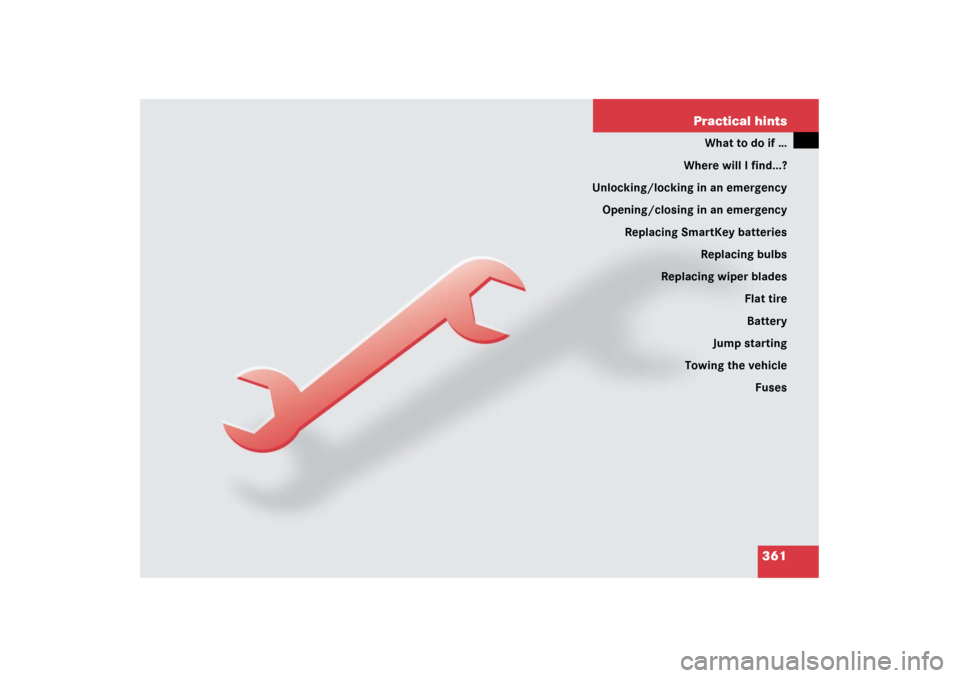

361 Practical hints
What to do if …
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

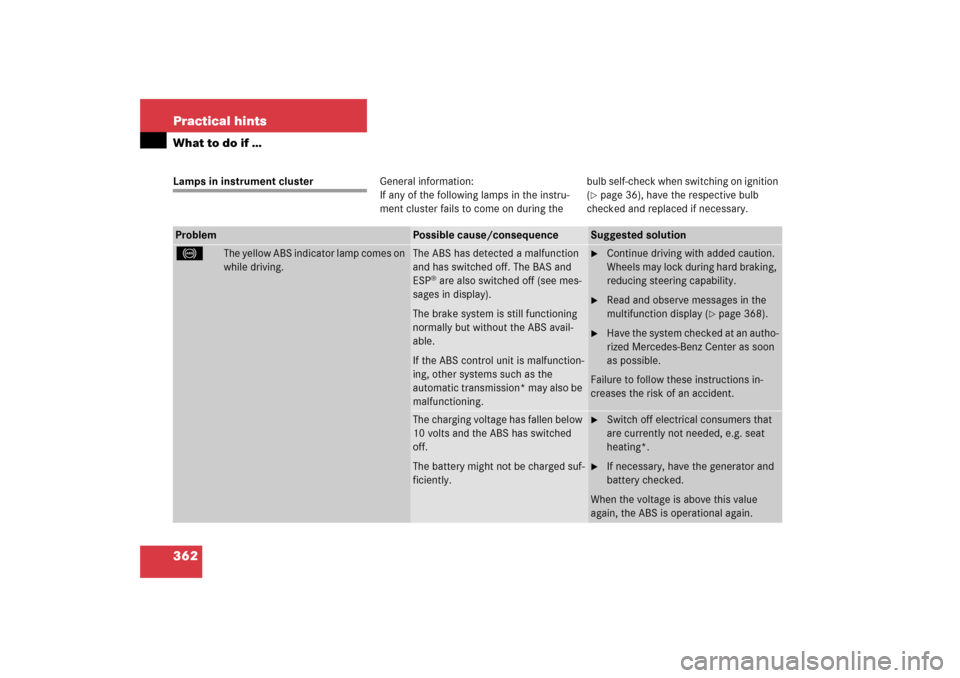

362 Practical hintsWhat to do if …Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on ignition
(
page 36), have the respective bulb
checked and replaced if necessary.
Problem
Possible cause/consequence
Suggested solution
-
The yellow ABS indicator lamp comes on
while driving.
The ABS has detected a malfunction
and has switched off. The BAS and
ESP
® are also switched off (see mes-
sages in display).
The brake system is still functioning
normally but without the ABS avail-
able.
If the ABS control unit is malfunction-
ing, other systems such as the
automatic transmission* may also be
malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the
multifunction display (
page 368).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS has switched
off.
The battery might not be charged suf-
ficiently.

Switch off electrical consumers that
are currently not needed, e.g. seat
heating*.

If necessary, have the generator and
battery checked.
When the voltage is above this value
again, the ABS is operational again.

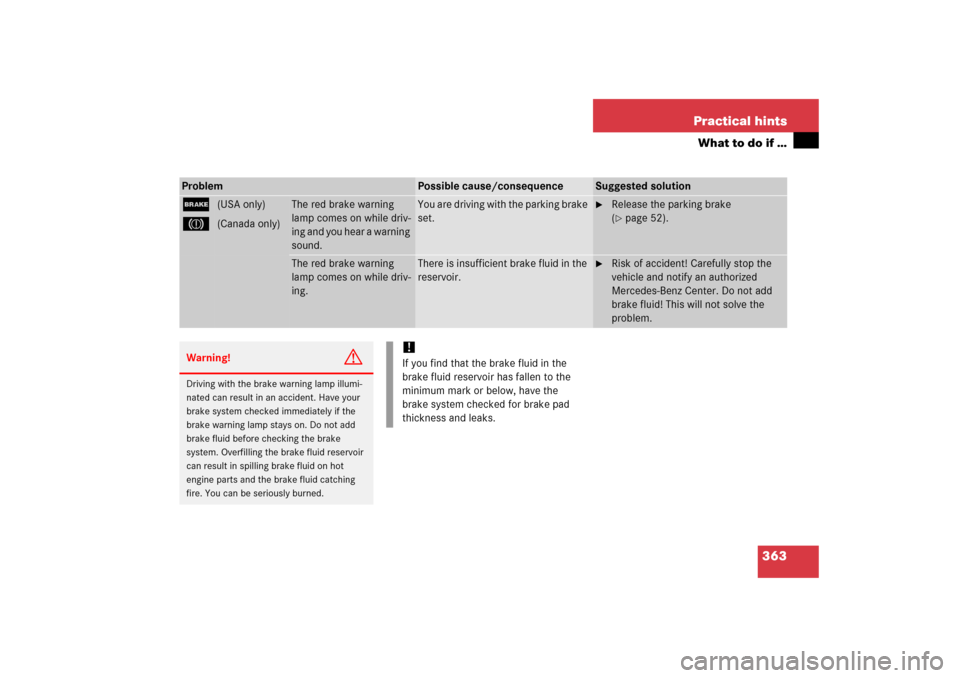

363 Practical hints
What to do if …
Problem
Possible cause/consequence
Suggested solution
;
3
(USA only)
(Canada only)
The red brake warning
lamp comes on while driv-
ing and you hear a warning
sound.
You are driving with the parking brake
set.

Release the parking brake
(page 52).
The red brake warning
lamp comes on while driv-
ing.
There is insufficient brake fluid in the
reservoir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

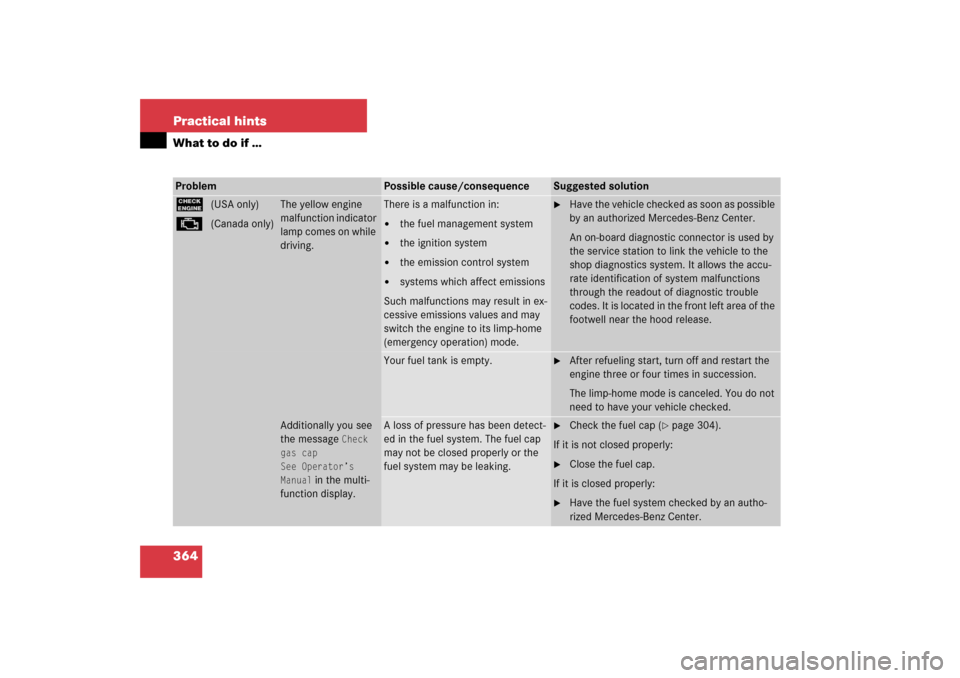

364 Practical hintsWhat to do if …Problem
Possible cause/consequence
Suggested solution
?
±
(USA only)
(Canada only)
The yellow engine
malfunction indicator
lamp comes on while
driving.
There is a malfunction in:

the fuel management system


the ignition system


the emission control system


systems which affect emissions
Such malfunctions may result in ex-
cessive emissions values and may
switch the engine to its limp-home
(emergency operation) mode.

Have the vehicle checked as soon as possible
by an authorized Mercedes-Benz Center.
An on-board diagnostic connector is used by
the service station to link the vehicle to the
shop diagnostics system. It allows the accu-
rate identification of system malfunctions
through the readout of diagnostic trouble
cod es . It is l oc ate d i n the f ront l ef t a rea of the
footwell near the hood release.
Your fuel tank is empty.

After refueling start, turn off and restart the
engine three or four times in succession.
The limp-home mode is canceled. You do not
need to have your vehicle checked.
Additionally you see
the message
Check
gas cap
See Operator’s
Manual
in the multi-
function display.
A loss of pressure has been detect-
ed in the fuel system. The fuel cap
may not be closed properly or the
fuel system may be leaking.

Check the fuel cap (
page 304).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an autho-
rized Mercedes-Benz Center.

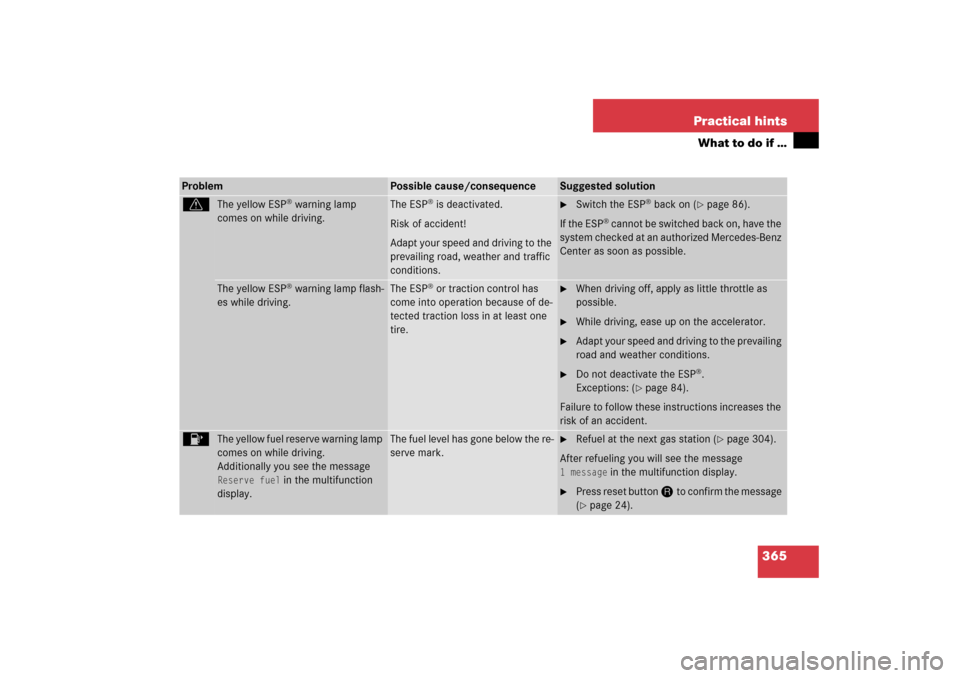

365 Practical hints
What to do if …
v
The yellow ESP
® warning lamp
comes on while driving.
The ESP
® is deactivated.
Risk of accident!
Adapt your speed and driving to the
prevailing road, weather and traffic
conditions.

Switch the ESP
® back on (
page 86).
If the ESP
® cannot be switched back on, have the
system checked at an authorized Mercedes-Benz
Center as soon as possible.
The yellow ESP
® warning lamp flash-
es while driving.
The ESP
® or traction control has
come into operation because of de-
tected traction loss in at least one
tire.

When driving off, apply as little throttle as
possible.

While driving, ease up on the accelerator.

Adapt your speed and driving to the prevailing
road and weather conditions.

Do not deactivate the ESP
®.
Exceptions: (
page 84).
Failure to follow these instructions increases the
risk of an accident.
4
The yellow fuel reserve warning lamp
comes on while driving.
Additionally you see the message Reserve fuel
in the multifunction
display.
The fuel level has gone below the re-
serve mark.

Refuel at the next gas station (
page 304).
After refueling you will see the message
1 message
in the multifunction display.

Press reset buttonJ to confirm the message
(page 24).
Problem
Possible cause/consequence
Suggested solution

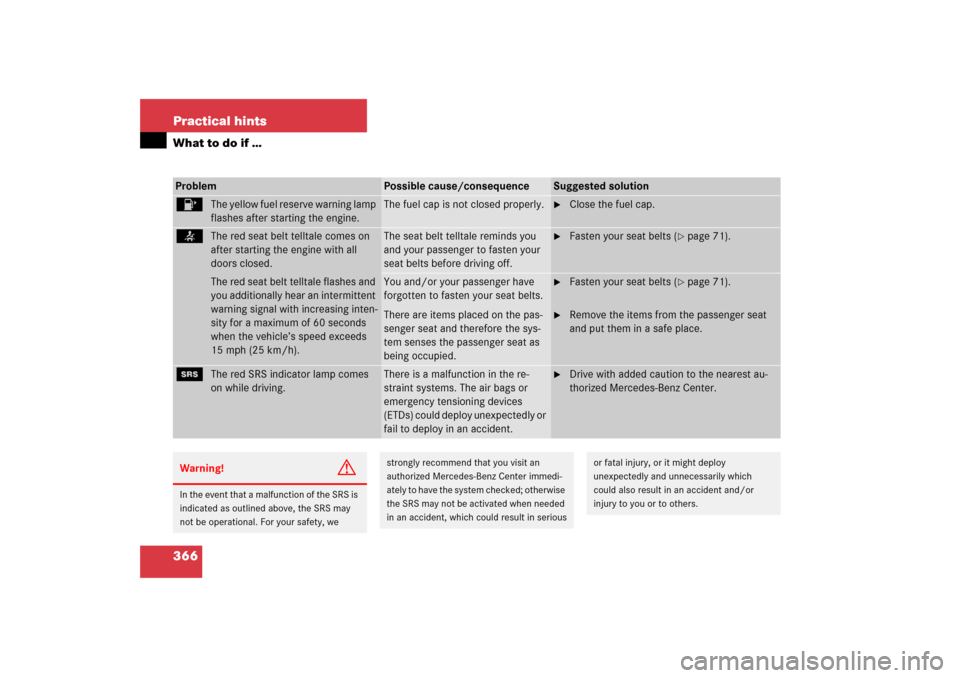

366 Practical hintsWhat to do if …4
The yellow fuel reserve warning lamp
flashes after starting the engine.
The fuel cap is not closed properly.

Close the fuel cap.
<
The red seat belt telltale comes on
after starting the engine with all
doors closed.
The seat belt telltale reminds you
and your passenger to fasten your
seat belts before driving off.

Fasten your seat belts (
page 71).
The red seat belt telltale flashes and
you additionally hear an intermittent
warning signal with increasing inten-
sity for a maximum of 60 seconds
when the vehicle’s speed exceeds
15 mph (25 km/h).
You and/or your passenger have
forgotten to fasten your seat belts.
There are items placed on the pas-
senger seat and therefore the sys-
tem senses the passenger seat as
being occupied.

Fasten your seat belts (
page 71).

Remove the items from the passenger seat
and put them in a safe place.
1
The red SRS indicator lamp comes
on while driving.
There is a malfunction in the re-
straint systems. The air bags or
emergency tensioning devices
(ETDs) could deploy unexpectedly or
fail to deploy in an accident.

Drive with added caution to the nearest au-
thorized Mercedes-Benz Center.
Problem
Possible cause/consequence
Suggested solution
Warning!
G
In the event that a malfunction of the SRS is
indicated as outlined above, the SRS may
not be operational. For your safety, we
strongly recommend that you visit an
authorized Mercedes-Benz Center immedi-
ately to have the system checked; otherwise
the SRS may not be activated when needed
in an accident, which could result in serious
or fatal injury, or it might deploy
unexpectedly and unnecessarily which
could also result in an accident and/or
injury to you or to others.

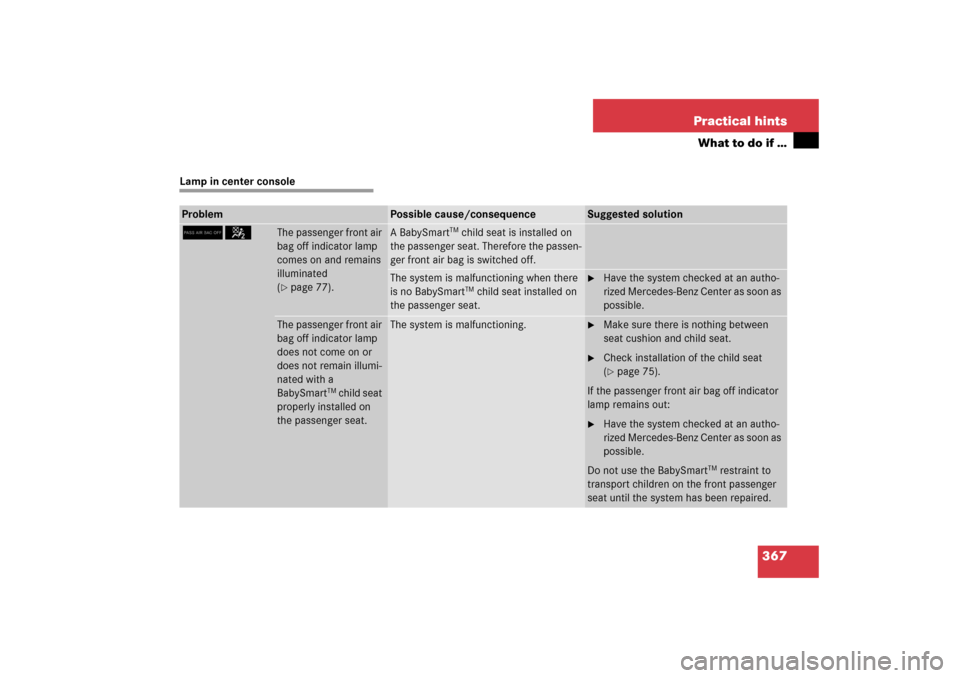

367 Practical hints
What to do if …
Lamp in center consoleProblem
Possible cause/consequence
Suggested solution
75
The passenger front air
bag off indicator lamp
comes on and remains
illuminated
(page 77).
A BabySmart
TM child seat is installed on
the passenger seat. Therefore the passen-
ger front air bag is switched off.
The system is malfunctioning when there
is no BabySmart
TM child seat installed on
the passenger seat.

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
The passenger front air
bag off indicator lamp
does not come on or
does not remain illumi-
nated with a
BabySmart
TM child seat
properly installed on
the passenger seat.
The system is malfunctioning.

Make sure there is nothing between
seat cushion and child seat.

Check installation of the child seat
(page 75).
If the passenger front air bag off indicator
lamp remains out:

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Do not use the BabySmart
TM restraint to
transport children on the front passenger
seat until the system has been repaired.

368 Practical hintsWhat to do if …Vehicle status messages in the multifunction display
Warning and malfunction messages ap-
pear in the multifunction display located in
the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(page 132) displays both cleared and
uncleared messages.
High-priority messages appear in the
multifunction display in red color.Certain messages of high priority cannot
be cleared from the multifunction display
using the reset buttonJ (
page 24) or
buttonj, k, ·, orè on the
steering wheel.
Other high-priority messages and messag-
es of less immediate priority (regular dis-
play colors) can be cleared from the
multifunction display using the reset
buttonJ (
page 24) or buttonj,
k, ·, orè on the steering
wheel. They are then stored in the vehicle
status message memory (
page 132). Re-
member that clearing a message will only
make the message disappear. Clearing a
message will not correct the condition that
caused the message to appear.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.

369 Practical hints
What to do if …
On the pages that follow, you will find
a compilation of the most important warn-
ing and malfunction messages that may
appear in the multifunction display.
For your convenience the messages are
divided into two sections:

Text messages (
page 370)


Symbol messages (
page 374)
Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact your nearest authorized
Mercedes-Benz Center.
iSwitching on ignition (
page 36)
causes all instrument cluster lamps
(except high beam headlamp indicator
lamp and turn signal indicator lamps
unless activated) as well as the multi-
function display to come on. Make sure
the lamps and multifunction display are
in working order before starting your
journey.
