MERCEDES-BENZ SLK55AMG 2006 R171 Owner's Manual

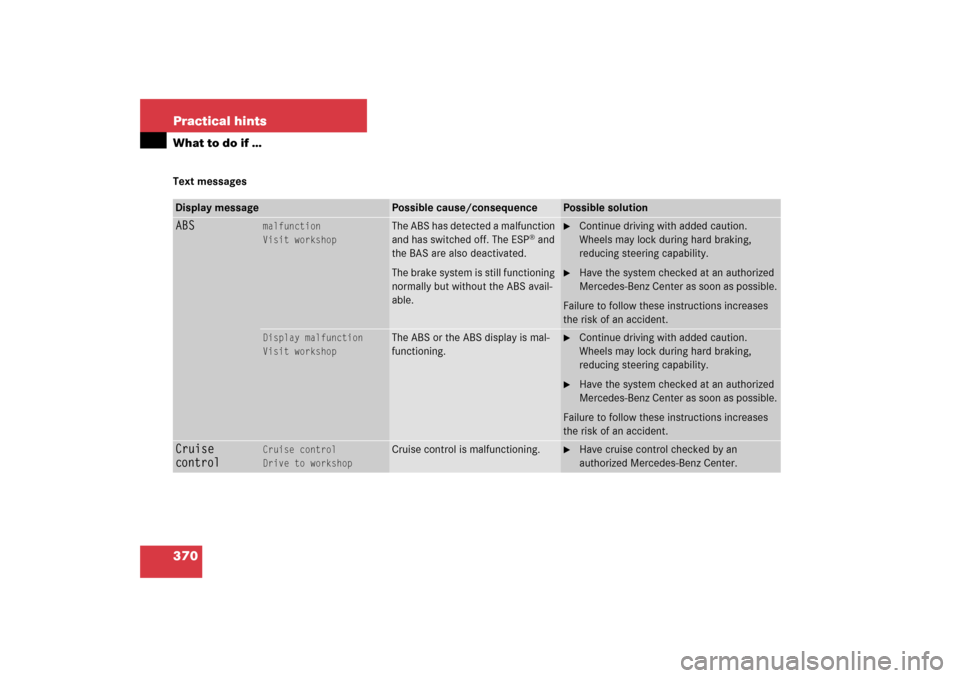

370 Practical hintsWhat to do if …Text messagesDisplay message
Possible cause/consequence
Possible solution
ABS
malfunction
Visit workshop
The ABS has detected a malfunction
and has switched off. The ESP
® and
the BAS are also deactivated.
The brake system is still functioning
normally but without the ABS avail-
able.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
Display malfunction
Visit workshop
The ABS or the ABS display is mal-
functioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
Cruise
control
Cruise control
Drive to workshop
Cruise control is malfunctioning.

Have cruise control checked by an
authorized Mercedes-Benz Center.

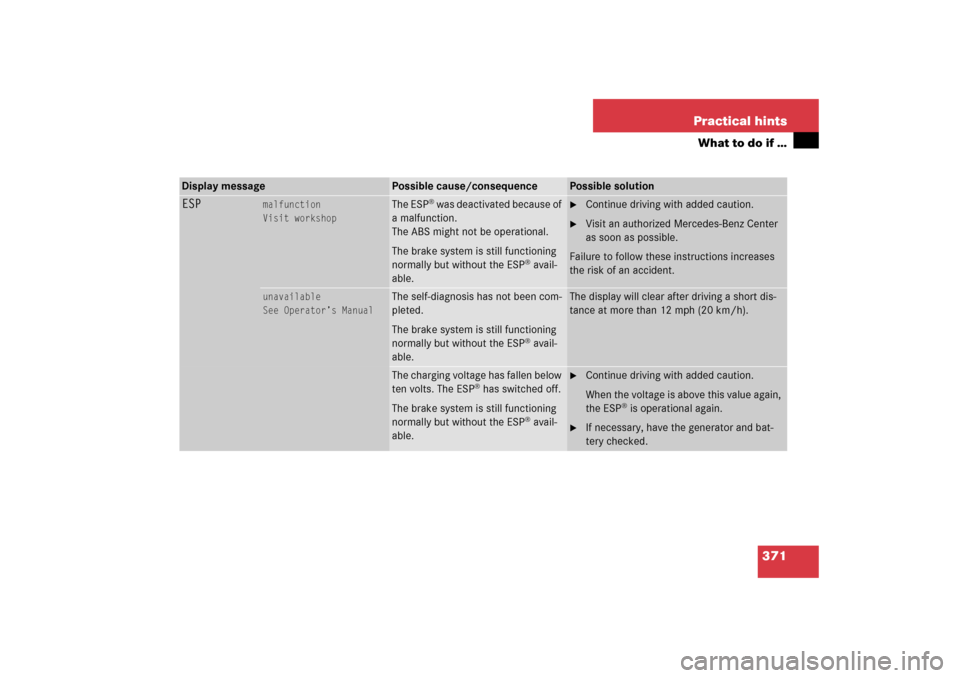

371 Practical hints
What to do if …
Display message
Possible cause/consequence
Possible solution
ESP
malfunction
Visit workshop
The ESP
® was deactivated because of
a malfunction.
The ABS might not be operational.
The brake system is still functioning
normally but without the ESP
® avail-
able.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
unavailable
See Operator’s Manual
The self-diagnosis has not been com-
pleted.
The brake system is still functioning
normally but without the ESP
® avail-
able.
The display will clear after driving a short dis-
tance at more than 12 mph (20 km/h).
The charging voltage has fallen below
ten volts. The ESP
® has switched off.
The brake system is still functioning
normally but without the ESP
® avail-
able.

Continue driving with added caution.
When the voltage is above this value again,
the ESP
® is operational again.

If necessary, have the generator and bat-
tery checked.

372 Practical hintsWhat to do if …Display message
Possible cause/consequence
Possible solution
ESP
Display malfunction
Visit workshop
The ESP
® or the ESP
® display is mal-
functioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
SRS
Restraint system
malfunction
Drive to workshop
The SRS system is malfunctioning.

Drive with added caution to the nearest
authorized Mercedes-Benz Center.
Transmis-
sion
Visit workshop
Vehicles with automatic transmis-
sion*:
The provided operating safety of the
automatic transmission is reduced.

Drive with added caution to the nearest
authorized Mercedes-Benz Center.

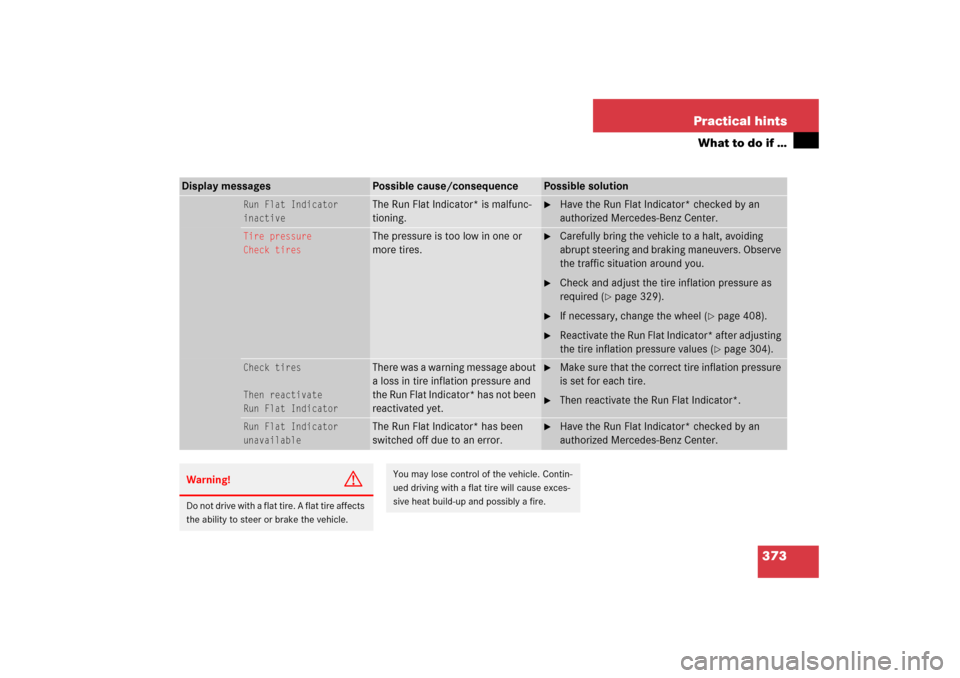

373 Practical hints
What to do if …
Display messages
Possible cause/consequence
Possible solution
Run Flat Indicator
inactive
The Run Flat Indicator* is malfunc-
tioning.

Have the Run Flat Indicator* checked by an
authorized Mercedes-Benz Center.
Tire pressure
Check tires
The pressure is too low in one or
more tires.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Observe
the traffic situation around you.

Check and adjust the tire inflation pressure as
required (
page 329).

If necessary, change the wheel (
page 408).

Reactivate the Run Flat Indicator* after adjusting
the tire inflation pressure values (
page 304).
Check tires
Then reactivate
Run Flat Indicator
There was a warning message about
a loss in tire inflation pressure and
the Run Flat Indicator* has not been
reactivated yet.

Make sure that the correct tire inflation pressure
is set for each tire.

Then reactivate the Run Flat Indicator*.
Run Flat Indicator
unavailable
The Run Flat Indicator* has been
switched off due to an error.

Have the Run Flat Indicator* checked by an
authorized Mercedes-Benz Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

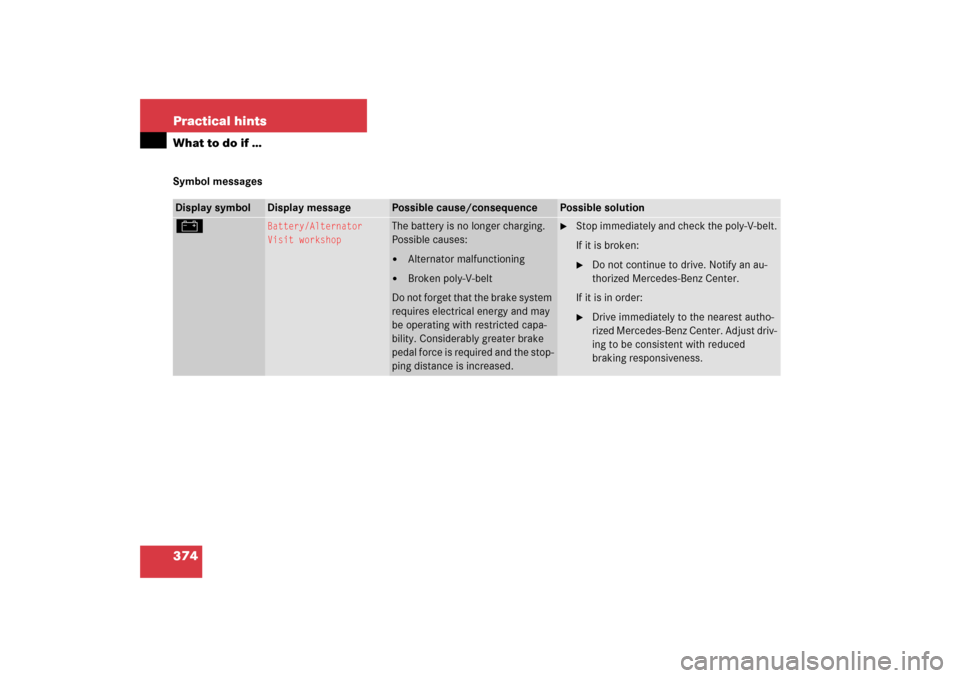

374 Practical hintsWhat to do if …Symbol messagesDisplay symbol
Display message
Possible cause/consequence
Possible solution
#
Battery/Alternator
Visit workshop
The battery is no longer charging.
Possible causes:

Alternator malfunctioning


Broken poly-V-belt
Do not forget that the brake system
requires electrical energy and may
be operating with restricted capa-
bility. Considerably greater brake
pedal force is required and the stop-
ping distance is increased.

Stop immediately and check the poly-V-belt.
If it is broken:
Do not continue to drive. Notify an au-
thorized Mercedes-Benz Center.
If it is in order:

Drive immediately to the nearest autho-
rized Mercedes-Benz Center. Adjust driv-
ing to be consistent with reduced
braking responsiveness.

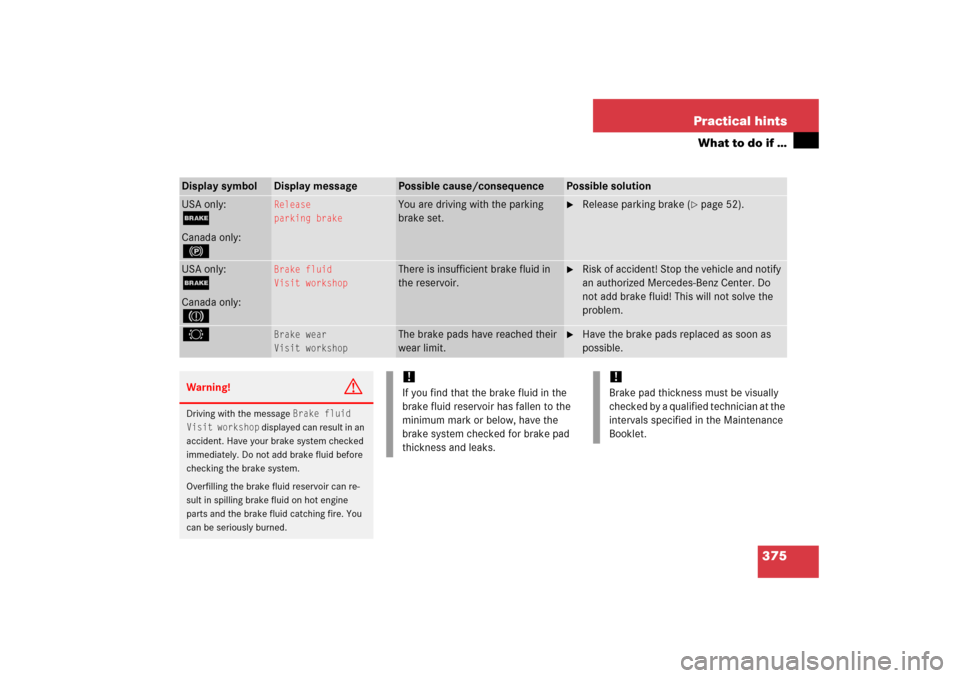

375 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
USA only:;Canada only:!
Release
parking brake
You are driving with the parking
brake set.

Release parking brake (
page 52).
USA only:;Canada only:3
Brake fluid
Visit workshop
There is insufficient brake fluid in
the reservoir.

Risk of accident! Stop the vehicle and notify
an authorized Mercedes-Benz Center. Do
not add brake fluid! This will not solve the
problem.
2
Brake wear
Visit workshop
The brake pads have reached their
wear limit.

Have the brake pads replaced as soon as
possible.
Warning!
G
Driving with the message
Brake fluid
Visit workshop
displayed can result in an
accident. Have your brake system checked
immediately. Do not add brake fluid before
checking the brake system.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
!Brake pad thickness must be visually
checked by a qualified technician at the
intervals specified in the Maintenance
Booklet.

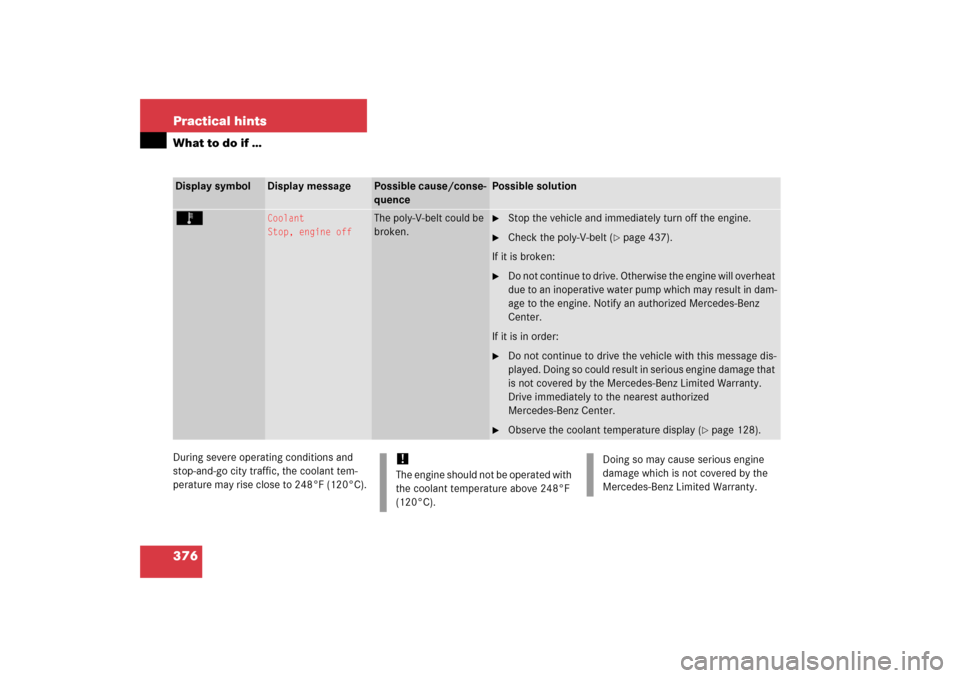

376 Practical hintsWhat to do if …During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).Display symbol
Display message
Possible cause/conse-
quence
Possible solution
Ï
Coolant
Stop, engine off
The poly-V-belt could be
broken.

Stop the vehicle and immediately turn off the engine.

Check the poly-V-belt (
page 437).
If it is broken:

Do not continue to drive. Otherwise the engine will overheat
due to an inoperative water pump which may result in dam-
age to the engine. Notify an authorized Mercedes-Benz
Center.
If it is in order:

Do not continue to drive the vehicle with this message dis-
played. Doing so could result in serious engine damage that
is not covered by the Mercedes-Benz Limited Warranty.
Drive immediately to the nearest authorized
Mercedes-Benz Center.

Observe the coolant temperature display (
page 128).
!The engine should not be operated with
the coolant temperature above 248°F
(120°C).
Doing so may cause serious engine
damage which is not covered by the
Mercedes-Benz Limited Warranty.

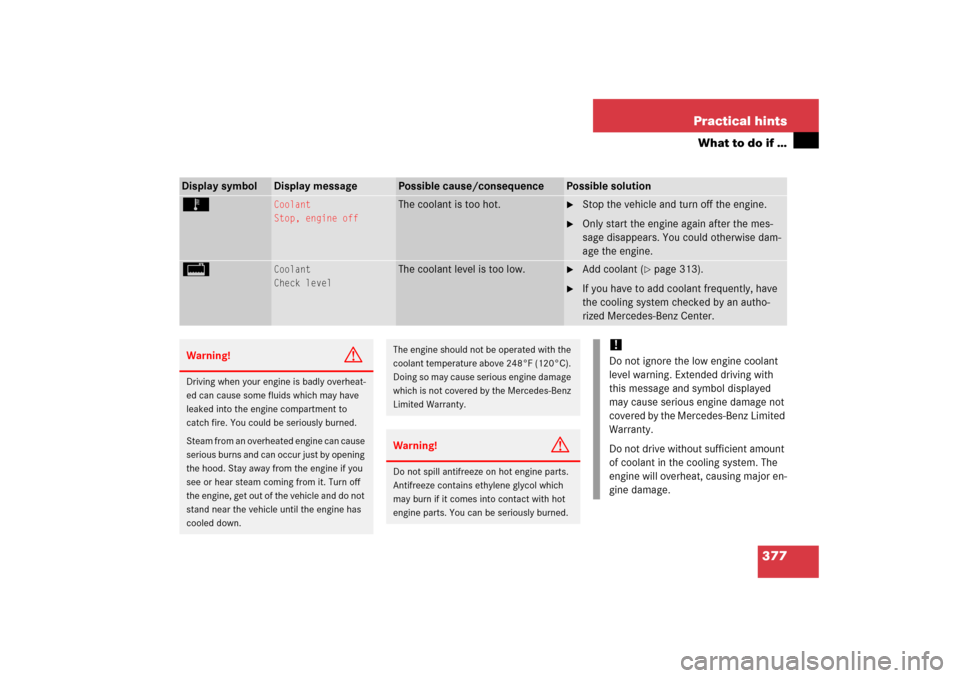

377 Practical hints
What to do if …
Display symbol
Display message
Possible cause/consequence
Possible solution
Ï
Coolant
Stop, engine off
The coolant is too hot.

Stop the vehicle and turn off the engine.

Only start the engine again after the mes-
sage disappears. You could otherwise dam-
age the engine.
/
Coolant
Check level
The coolant level is too low.

Add coolant (
page 313).

If you have to add coolant frequently, have
the cooling system checked by an autho-
rized Mercedes-Benz Center.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it. Turn off
the engine, get out of the vehicle and do not
stand near the vehicle until the engine has
cooled down.
The engine should not be operated with the
coolant temperature above 248°F (120°C).
Doing so may cause serious engine damage
which is not covered by the Mercedes-Benz
Limited Warranty.Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.
!Do not ignore the low engine coolant
level warning. Extended driving with
this message and symbol displayed
may cause serious engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Do not drive without sufficient amount
of coolant in the cooling system. The
engine will overheat, causing major en-
gine damage.

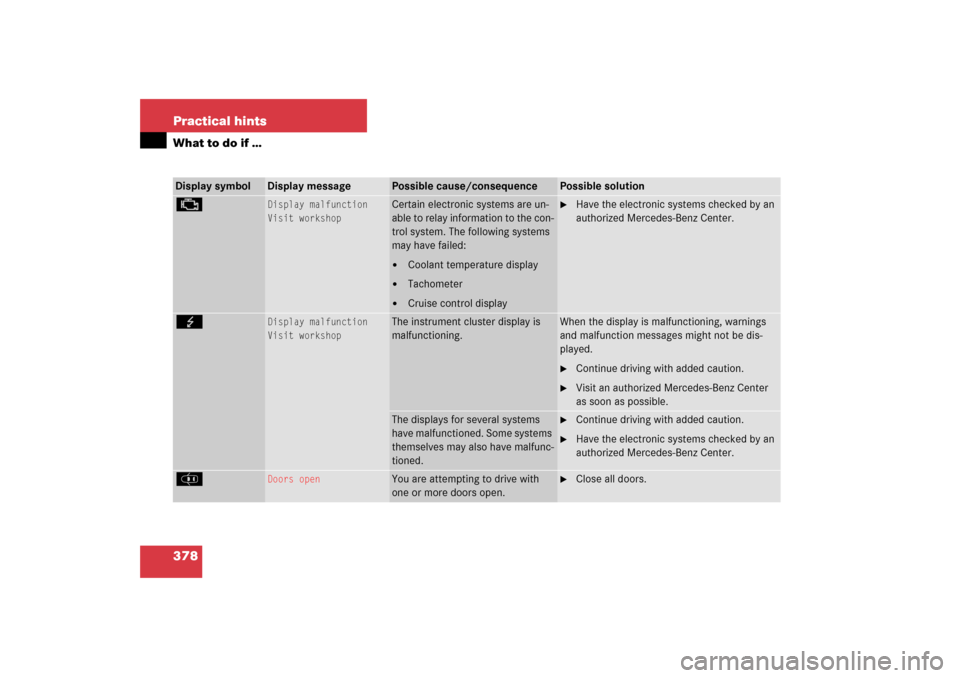

378 Practical hintsWhat to do if …Display symbol
Display message
Possible cause/consequence
Possible solution
±
Display malfunction
Visit workshop
Certain electronic systems are un-
able to relay information to the con-
trol system. The following systems
may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems checked by an
authorized Mercedes-Benz Center.
G
Display malfunction
Visit workshop
The instrument cluster display is
malfunctioning.
When the display is malfunctioning, warnings
and malfunction messages might not be dis-
played.
Continue driving with added caution.

Visit an authorized Mercedes-Benz Center
as soon as possible.
The displays for several systems
have malfunctioned. Some systems
themselves may also have malfunc-
tioned.

Continue driving with added caution.

Have the electronic systems checked by an
authorized Mercedes-Benz Center.
J
Doors open
You are attempting to drive with
one or more doors open.

Close all doors.

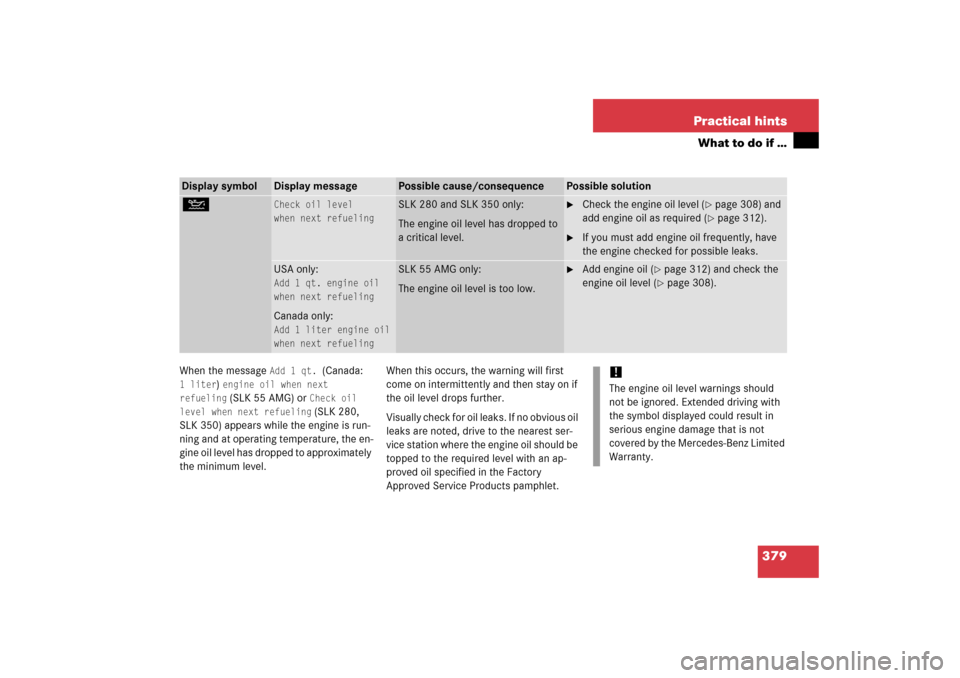

379 Practical hints
What to do if …
When the message
Add 1 qt.
(Canada:
1 liter
) engine oil when next
refueling (SLK 55 AMG) or
Check oil
level when next refueling (SLK 280,
SLK 350) appears while the engine is run-
ning and at operating temperature, the en-
gine oil level has dropped to approximately
the minimum level.When this occurs, the warning will first
come on intermittently and then stay on if
the oil level drops further.
Visually check for oil leaks. If no obvious oil
leaks are noted, drive to the nearest ser-
vice station where the engine oil should be
topped to the required level with an ap-
proved oil specified in the Factory
Approved Service Products pamphlet.
Display symbol
Display message
Possible cause/consequence
Possible solution
N
Check oil level
when next refueling
SLK 280 and SLK 350 only:
The engine oil level has dropped to
a critical level.

Check the engine oil level (
page 308) and
add engine oil as required (page 312).

If you must add engine oil frequently, have
the engine checked for possible leaks.
USA only:Add 1 qt. engine oil
when next refuelingCanada only:Add 1 liter engine oil
when next refueling
SLK 55 AMG only:
The engine oil level is too low.

Add engine oil (
page 312) and check the
engine oil level (page 308).
!The engine oil level warnings should
not be ignored. Extended driving with
the symbol displayed could result in
serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
