MERCEDES-BENZ SLK55AMG 2006 R171 Owner's Manual

400 Practical hintsReplacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp ad-
justment.
iIf the headlamps are fogged up on the
inside as a result of high humidity,
driving the vehicle a short distance with
the lights on should clear up the
fogging.
iBackup bulbs will be brought into use
when lamps malfunction. Observe the
messages in the multifunction display
(page 382).

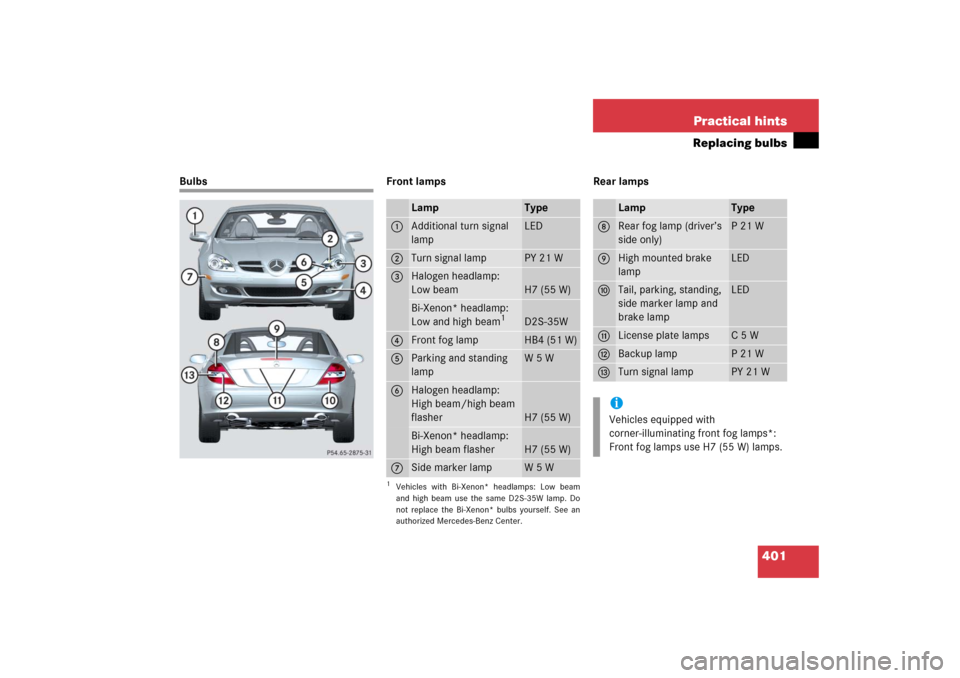

401 Practical hints
Replacing bulbs
Bulbs Front lamps Rear lamps
Lamp
Type
1
Additional turn signal
lamp
LED
2
Turn signal lamp
PY 21 W
3
Halogen headlamp:
Low beam
H7 (55 W)
Bi-Xenon* headlamp:
Low and high beam
1
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Bi-Xenon* bulbs yourself. See an
authorized Mercedes-Benz Center.
D2S-35W
4
Front fog lamp
HB4 (51 W)
5
Parking and standing
lamp
W5W
6
Halogen headlamp:
High beam/high beam
flasher
H7 (55 W)
Bi-Xenon* headlamp:
High beam flasher
H7 (55 W)
7
Side marker lamp
W5W
Lamp
Type
8
Rear fog lamp (driver’s
side only)
P21W
9
High mounted brake
lamp
LED
a
Tail, parking, standing,
side marker lamp and
brake lamp
LED
b
License plate lamps
C5W
c
Backup lamp
P21W
d
Turn signal lamp
PY 21 W
iVehicles equipped with
corner-illuminating front fog lamps*:
Front fog lamps use H7 (55 W) lamps.

402 Practical hintsReplacing bulbs
Notes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


Additional turn signal lamps in the
exterior rear view mirrors


Bi-Xenon* lamps


Front fog lamps


High mounted brake lamp


Brake lamps


Front and rear side marker lamps


Parking/standing lamps in the tail
lamp assemblies

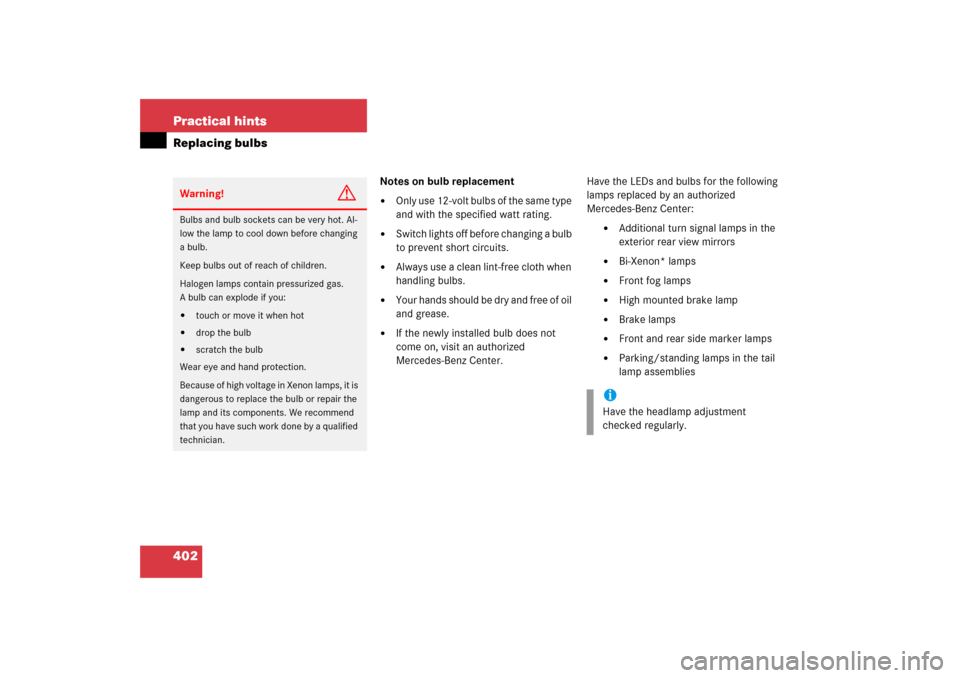

Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
iHave the headlamp adjustment
checked regularly.

403 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 110).

Open the hood (
page 307).

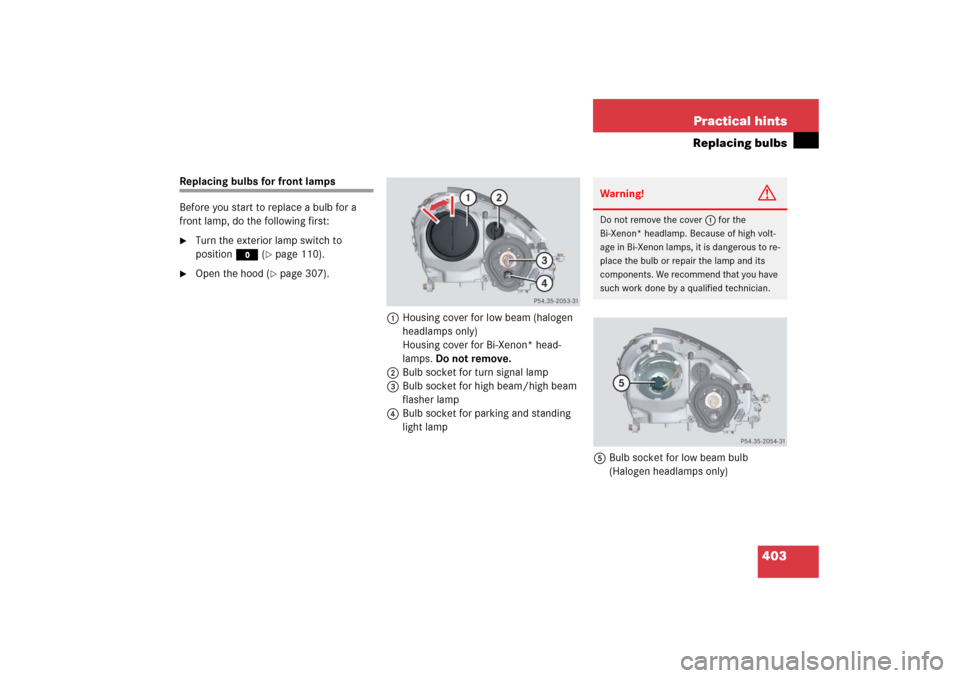

1Housing cover for low beam (halogen
headlamps only)
Housing cover for Bi-Xenon* head-
lamps. Do not remove.
2Bulb socket for turn signal lamp
3Bulb socket for high beam/high beam
flasher lamp
4Bulb socket for parking and standing
light lamp
5Bulb socket for low beam bulb
(Halogen headlamps only)
Warning!
G
Do not remove the cover1 for the
Bi-Xenon* headlamp. Because of high volt-
age in Bi-Xenon lamps, it is dangerous to re-
place the bulb or repair the lamp and its
components. We recommend that you have
such work done by a qualified technician.

404 Practical hintsReplacing bulbsLow beam bulb (Halogen headlamps
only)
Turn housing cover1 counterclock-
wise and remove.

Turn bulb socket5 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket5.

Press the new bulb into bulb socket5.

Place bulb socket5 back into the
lamp and turn it clockwise.

Reinstall housing cover1.High beam/high beam flasher bulb
(Halogen headlamps) / High beam
flasher bulb (Bi-Xenon* headlamps)

Turn bulb socket3 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket3.

Press the new bulb into bulb socket3.

Place bulb socket3 back into the
lamp and turn it clockwise.Front turn signal bulb

Turn bulb socket2 with the bulb
counterclockwise and remove.

Press gently onto the bulb and turn it
counterclockwise out of bulb
socket2.

Press the new bulb gently into bulb
socket2 and turn it clockwise.

Place bulb socket2 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb

Turn bulb socket4 with the bulb
counterclockwise and remove.

Pull the bulb out of bulb socket4.

Press the new bulb into bulb socket4.

Place bulb socket4 back into the
lamp and turn it clockwise.

405 Practical hints
Replacing bulbs
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 110).

Open the trunk lid (
page 98).

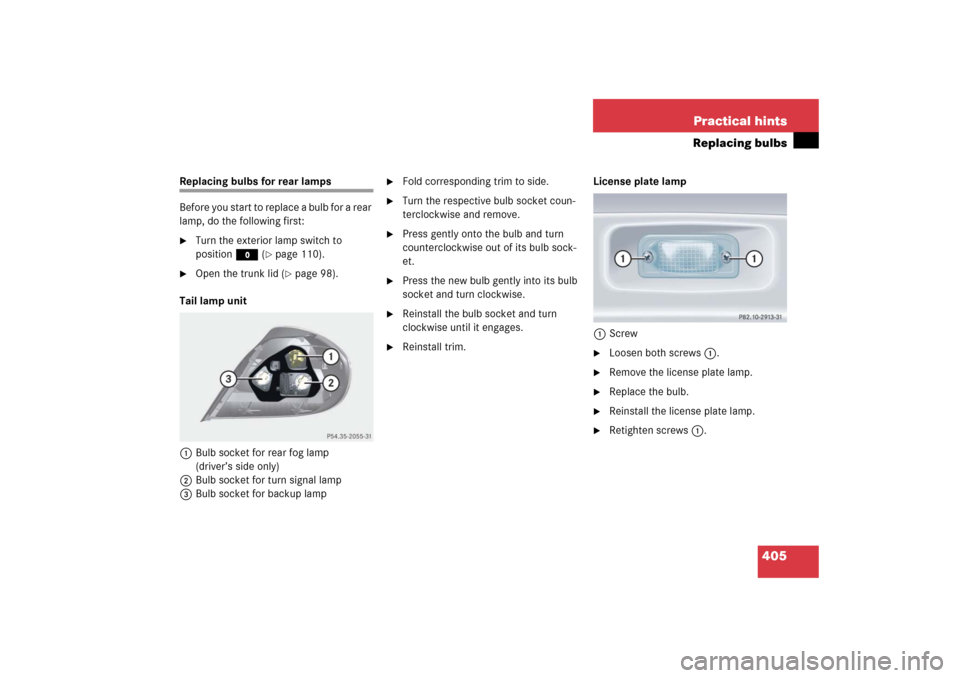

Tail lamp unit
1Bulb socket for rear fog lamp
(driver’s side only)
2Bulb socket for turn signal lamp
3Bulb socket for backup lamp

Fold corresponding trim to side.

Turn the respective bulb socket coun-
terclockwise and remove.

Press gently onto the bulb and turn
counterclockwise out of its bulb sock-
et.

Press the new bulb gently into its bulb
socket and turn clockwise.

Reinstall the bulb socket and turn
clockwise until it engages.

Reinstall trim.License plate lamp
1Screw

Loosen both screws1.

Remove the license plate lamp.

Replace the bulb.

Reinstall the license plate lamp.

Retighten screws1.

406 Practical hintsReplacing wiper bladesRemoving wiper blades

Turn the SmartKey in the starter switch
to position1.

Turn combination switch to wiper
settingII (
page 56).

With wiper arms in vertical position,
turn the SmartKey in the starter switch
to position0.

Fold the wiper arms forward until they
engage.

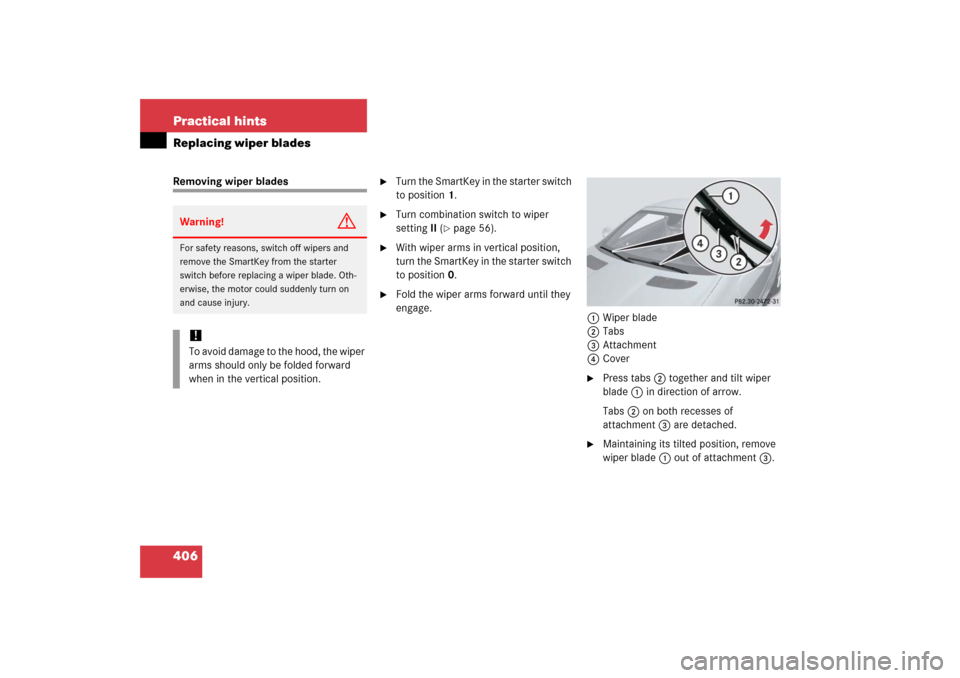

1Wiper blade
2Tabs
3Attachment
4Cover

Press tabs2 together and tilt wiper
blade1 in direction of arrow.
Tabs2 on both recesses of
attachment3 are detached.

Maintaining its tilted position, remove
wiper blade1 out of attachment3.
Warning!
G
For safety reasons, switch off wipers and
remove the SmartKey from the starter
switch before replacing a wiper blade. Oth-
erwise, the motor could suddenly turn on
and cause injury.!To avoid damage to the hood, the wiper
arms should only be folded forward
when in the vertical position.

407 Practical hints
Replacing wiper blades
Installing wiper blades

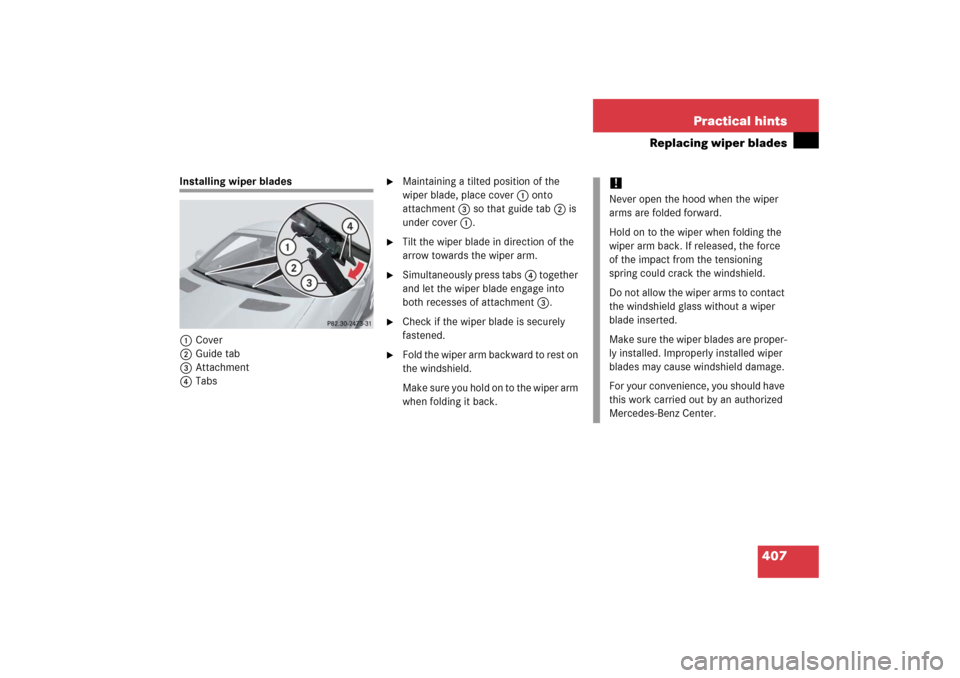

1Cover
2Guide tab
3Attachment
4Tabs

Maintaining a tilted position of the
wiper blade, place cover1 onto
attachment3 so that guide tab2 is
under cover1.

Tilt the wiper blade in direction of the
arrow towards the wiper arm.

Simultaneously press tabs4 together
and let the wiper blade engage into
both recesses of attachment3.

Check if the wiper blade is securely
fastened.

Fold the wiper arm backward to rest on
the windshield.
Make sure you hold on to the wiper arm
when folding it back.
!Never open the hood when the wiper
arms are folded forward.
Hold on to the wiper when folding the
wiper arm back. If released, the force
of the impact from the tensioning
spring could crack the windshield.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make sure the wiper blades are proper-
ly installed. Improperly installed wiper
blades may cause windshield damage.
For your convenience, you should have
this work carried out by an authorized
Mercedes-Benz Center.

408 Practical hintsFlat tireThe SLK 55 AMG with Performance
Package* is equipped with a TIREFIT kit.Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Turn the steering wheel so that the
front wheels are in a straight ahead po-
sition.

Set the parking brake (
page 52).

Move the gear selector lever* toP
(manual transmission to first or reverse
gear).

Turn off the engine (
page 61).

Remove the SmartKey from the starter
switch.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Sealing tires with TIREFIT
Small tire punctures, particularly those in
the tread, can be sealed with TIREFIT.
TIREFIT can be used in ambient tempera-
tures down to -4°F (-20°C).
iOpen door only when conditions are
safe to do so.
iSLK 55 AMG with Performance
Package* only.Warning!
G
Keep TIREFIT away from sparks, open flame
or heat source.
Do not smoke.

409 Practical hints
Flat tire

Foreign objects (e.g. screws or nails)
should not be removed from the tire.

Take TIREFIT, the sticker, and the elec-
tric air pump out of the trunk.

Attach the sticker where it will be easily
seen by the driver on the instrument
cluster.1TIREFIT container
2Flap
3Notch
4Electrical plug
5Air hose
6Flange

Open flap2 on the electric air pump.

Pull plug4 and air hose5 out of the
pump housing.
Warning!
G
TIREFIT is a limited repair device. TIREFIT
cannot be used for cuts or punctures larger
than approx. 0.16 in (4 mm) and tire dam-
age caused by driving with extremely low
tire inflation pressure, or on a flat tire, or a
damaged wheel.
Do not drive the vehicle under such circum-
stances.
Contact your nearest Mercedes-Benz
Center for assistance or call Roadside
Assistance.
Warning!
G
Take care not to allow the contents of
T I R E F I T t o c o m e i n c o n t a c t w i t h h a i r , e y e s o r
clothing. TIREFIT is harmful if inhaled, swal-
lowed or absorbed through the skin - causes
skin, eye and respiratory irritation.
Any contact with eyes or skin should be
flushed immediately with plenty of water.
If clothing comes in contact with TIREFIT,
change clothing as soon as possible.
In case of allergic reaction or rash, consult a
physician immediately.Warning!
G
Keep TIREFIT out of reach of children.
If swallowed, rinse mouth immediately with
plenty of water and drink plenty of water.
Do not induce vomiting!
Consult a physician immediately.
Keep away from open flame or heat source.
iIf sealant has leaked out, let it dry. You
can then peel it off.
