MERCEDES-BENZ SLK55AMG 2006 R171 Owner's Manual

440 Technical dataRims and tires
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Sport Package etc.), equipping
your vehicle with winter tires approved
for your vehicle model may also require
the purchase of two or four wheel rims
of the recommended size for use with
these winter tires. See an authorized
Mercedes-Benz Center for more infor-
mation.

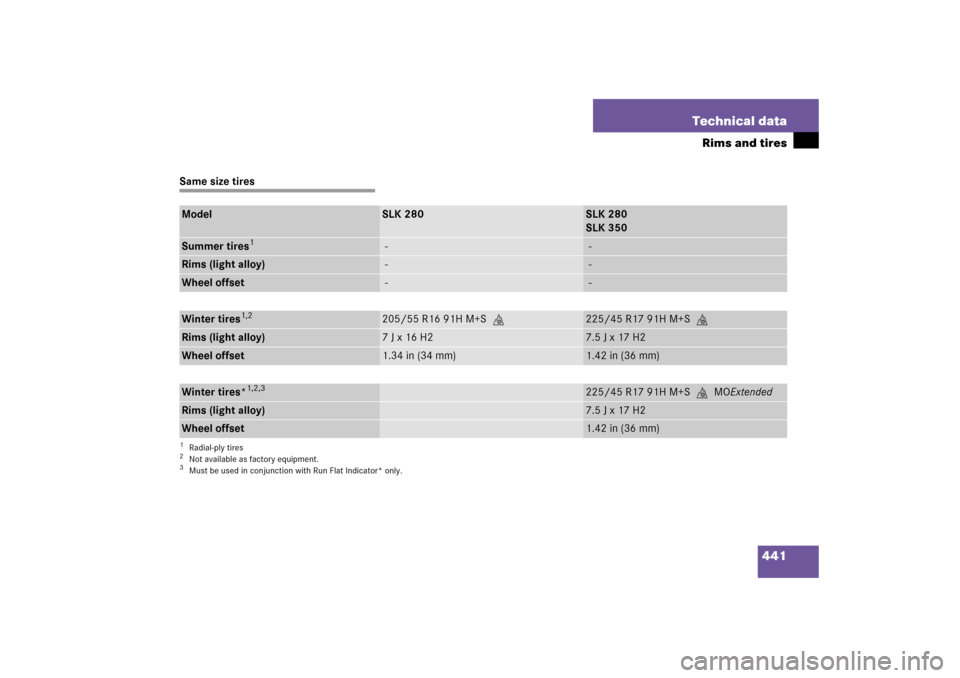

441 Technical data
Rims and tires
Same size tiresModel
SLK 280
SLK 280
SLK 350
Summer tires
1
1Radial-ply tires
-
-
Rims (light alloy)
-
-
Wheel offset
-
-
Winter tires
1,2
2Not available as factory equipment.
205/55 R16 91H M+S.
225/45 R17 91H M+S.
Rims (light alloy)
7Jx16H2
7.5 J x 17 H2
Wheel offset
1.34 in (34 mm)
1.42 in (36 mm)
Winter tires*
1,2,3
3Must be used in conjunction with Run Flat Indicator* only.
225/45 R17 91H M+S.MOExtended
Rims (light alloy)
7.5 J x 17 H2
Wheel offset
1.42 in (36 mm)

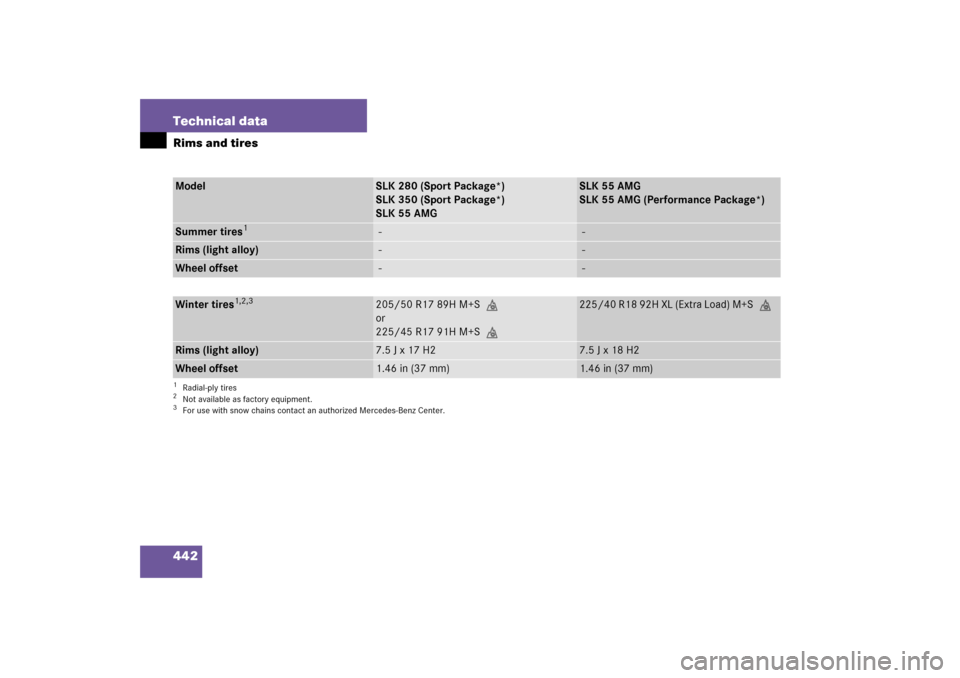

442 Technical dataRims and tiresModel
SLK 280 (Sport Package*)
SLK 350 (Sport Package*)
SLK 55 AMG
SLK 55 AMG
SLK 55 AMG (Performance Package*)
Summer tires
1
1Radial-ply tires
-
-
Rims (light alloy)
-
-
Wheel offset
-
-
Winter tires
1,2,3
2Not available as factory equipment.3For use with snow chains contact an authorized Mercedes-Benz Center.
205/50 R17 89H M+S.
or
225/45 R17 91H M+S.
225/40 R18 92H XL (Extra Load) M+S.
Rims (light alloy)
7.5 J x 17 H2
7.5 J x 18 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)

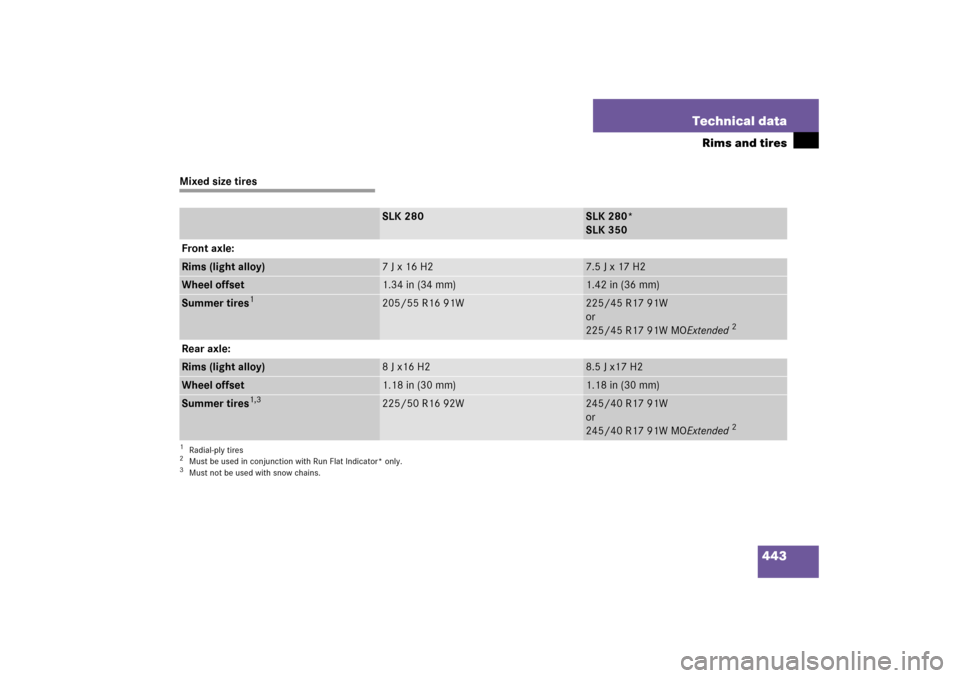

443 Technical data
Rims and tires
Mixed size tires
SLK 280
SLK 280*
SLK 350
Front axle:
Rims (light alloy)
7 J x 16 H2
7.5 J x 17 H2
Wheel offset
1.34 in (34 mm)
1.42 in (36 mm)
Summer tires
1
205/55 R16 91W
225/45 R17 91W
or
225/45 R17 91W MOExtended
2
Rear axle:Rims (light alloy)
8 J x16 H2
8.5 J x17 H2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
1,3
225/50 R16 92W
245/40 R17 91W
or
245/40 R17 91W MOExtended
2
1Radial-ply tires2Must be used in conjunction with Run Flat Indicator* only.3Must not be used with snow chains.

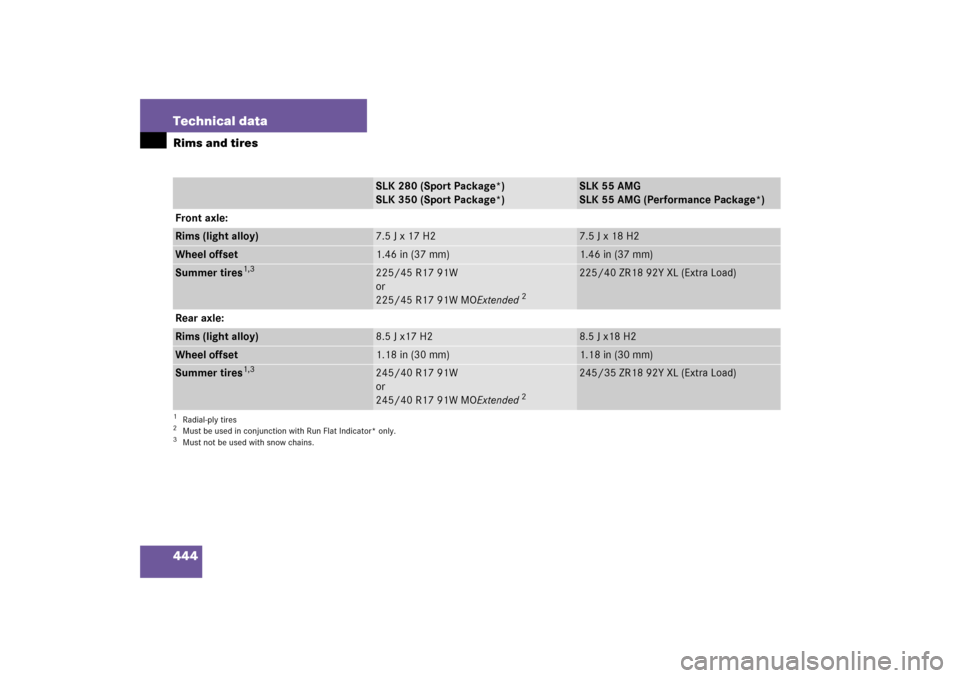

444 Technical dataRims and tires
SLK 280 (Sport Package*)
SLK 350 (Sport Package*)
SLK 55 AMG
SLK 55 AMG (Performance Package*)
Front axle:
Rims (light alloy)
7.5 J x 17 H2
7.5 J x 18 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
Summer tires
1,3
1Radial-ply tires
225/45 R17 91W
or
225/45 R17 91W MOExtended
2
2Must be used in conjunction with Run Flat Indicator* only.
225/40 ZR18 92Y XL (Extra Load)
Rear axle:
Rims (light alloy)
8.5 J x17 H2
8.5 J x18 H2
Wheel offset
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires
1,3
3Must not be used with snow chains.
245/40 R17 91W
or
245/40 R17 91W MOExtended
2
245/35 ZR18 92Y XL (Extra Load)

445 Technical data
Rims and tires
Spare wheel with collapsible tire
All models
Rim (light alloy)
4.5 B x 17 H2
Wheel offset
0.47 in (12 mm)
Collapsible tire
145/70-17 92P
1
1Must not be used with snow chains.!Please compare the recommended tire
inflation pressure for your vehicle with
the tire inflation pressure on the yellow
label located on the spare wheel rim.
If the tire inflation pressure on the yel-
low label on the spare wheel rim differs
from the values given in this Operator’s
Manual, inflate the collapsible tire to
the recommended tire inflation pres-
sure given on the yellow label on the
spare wheel rim.
iPlease note that the tire inflation
pressure of the collapsible tire differs
from the tire inflation pressure of the
road tires.
Inflate the collapsible tire to approxi-
mately 51 psi (3.5 bar).iThe SLK 55 AMG with Performance
Package* does not have a spare wheel.
The SLK 55 AMG with Performance
Package* is equipped with TIREFIT
(page 408).

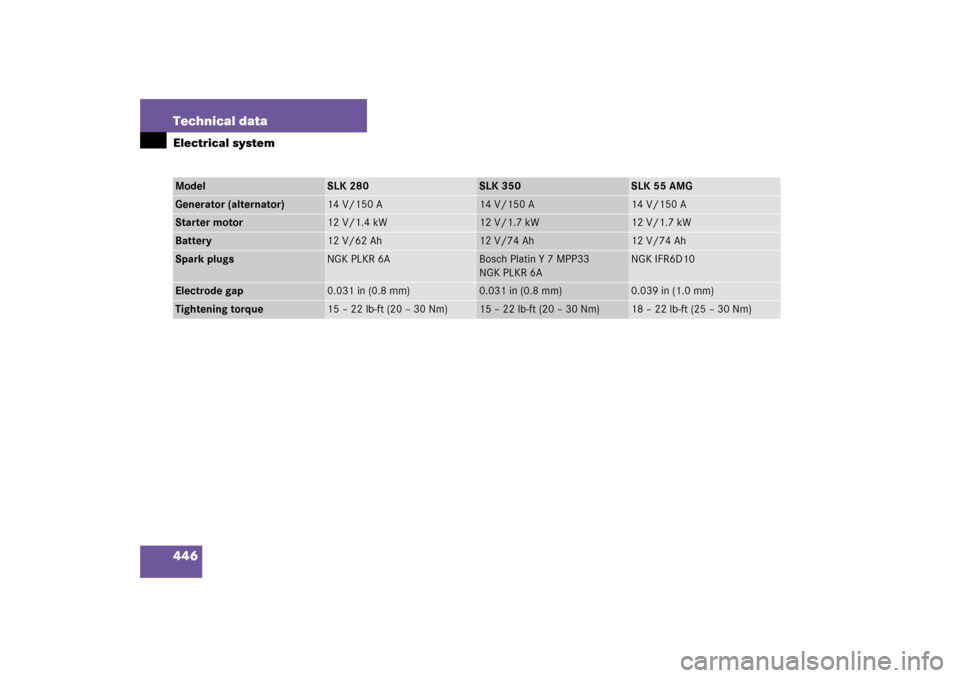

446 Technical dataElectrical systemModel
SLK 280
SLK 350
SLK 55 AMG
Generator (alternator)
14 V/150 A
14 V/150 A
14 V/150 A
Starter motor
12 V/1.4 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/62 Ah
12 V/74 Ah
12 V/74 Ah
Spark plugs
NGK PLKR 6A
Bosch Platin Y 7 MPP33
NGK PLKR 6A
NGK IFR6D10
Electrode gap
0.031 in (0.8 mm)
0.031 in (0.8 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)
18 – 22 lb-ft (25 – 30 Nm)

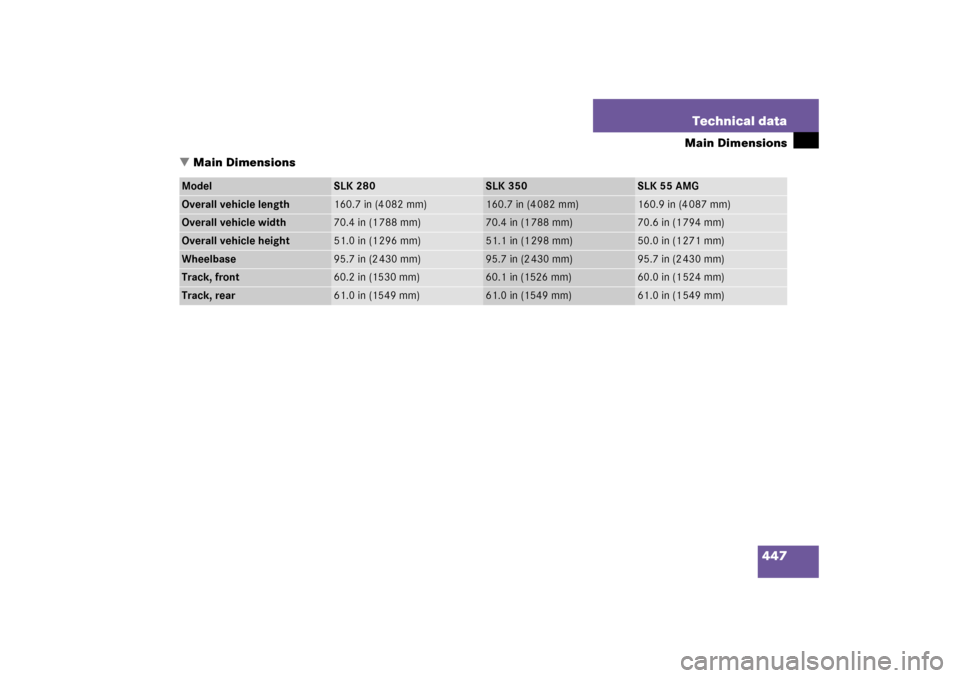

447 Technical data
Main Dimensions
Main Dimensions
Model
SLK 280
SLK 350
SLK 55 AMG
Overall vehicle length
160.7 in (4 082 mm)
160.7 in (4 082 mm)
160.9 in (4 087 mm)
Overall vehicle width
70.4 in (1 788 mm)
70.4 in (1 788 mm)
70.6 in (1 794 mm)
Overall vehicle height
51.0 in (1 296 mm)
51.1 in (1 298 mm)
50.0 in (1 271 mm)
Wheelbase
95.7 in (2 430 mm)
95.7 in (2 430 mm)
95.7 in (2 430 mm)
Track, front
60.2 in (1530 mm)
60.1 in (1526 mm)
60.0 in (1 524 mm)
Track, rear
61.0 in (1549 mm)
61.0 in (1549 mm)
61.0 in (1 549 mm)

448 Technical dataWeightsModel
SLK 280
SLK 350
SLK 55 AMG
Maximum roof load
110lb (50kg)
110lb (50kg)
Maximum trunk load
220 lb (100 kg)
220 lb (100 kg)
!This vehicle is not designed to carry
items on its roof. Roof rails and any
roof-mounted devices, unless express-
ly approved by Mercedes-Benz for use
on this vehicle model, must not be used
as they will damage the vehicle and
retractable hardtop.
At time of printing, Mercedes-Benz
does not offer any roof racks or any
other roof-mounted devices for use on
this vehicle.
!This vehicle is not designed to carry
any items on its trunk lid or accommo-
date any type of trunk lid rack or de-
vice. Using such devices may damage
the vehicle and retractable hardtop
mechanism.

449 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore, only use
products tested and approved by
Mercedes-Benz.Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your authorized Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
SLK 280, SLK 350
8.5 US qt (8.0 l)
Approved engine oils
SLK 55 AMG
8.5 US qt (8.0 l)
Automatic transmission*
SLK 280, SLK 350
10.4 US qt (9.8 l)
MB Automatic Transmission Fluid
SLK 55 AMG
10.4 US qt (9.8 l)
Manual transmission
SLK 280, SLK 350
1.6 US qt (1.5 l)
MB Manual Transmission Oil
Rear axle
SLK 280
1.1 US qt (1.0 l)
Hypoid gear oil SAE 85 W 90
SLK 350
1.2 US qt (1.1 l)
SLK 55 AMG
1.3 US qt (1.2 l)
Power steering
SLK 280, SLK 350
1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin CHF 11S)
SLK 55 AMG
1.1 US qt (1.0 l)
Front wheel hubs
approx. 2.1oz (60g) each
High temperature roller bearing grease
Brake system
0.5 US qt (0.5 l)
MB Brake Fluid (DOT 4+)
