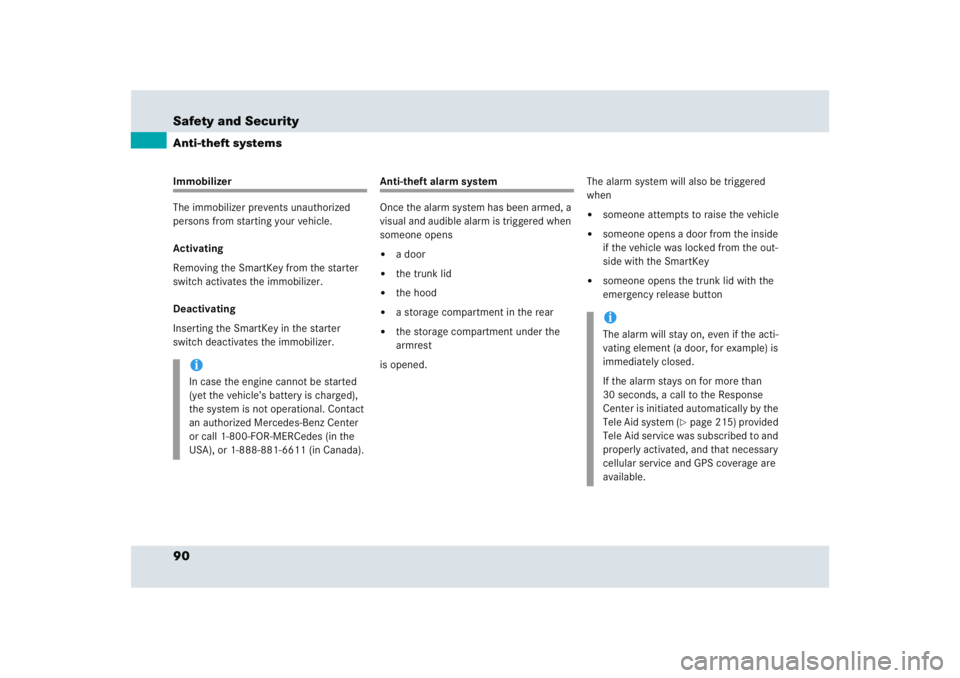

90 Safety and SecurityAnti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
Removing the SmartKey from the starter
switch activates the immobilizer.
Deactivating
Inserting the SmartKey in the starter
switch deactivates the immobilizer.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk lid


the hood


a storage compartment in the rear


the storage compartment under the
armrest
is opened.The alarm system will also be triggered
when


someone attempts to raise the vehicle


someone opens a door from the inside
if the vehicle was locked from the out-
side with the SmartKey


someone opens the trunk lid with the
emergency release button
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-888-881-6611 (in Canada).
iThe alarm will stay on, even if the acti-
vating element (a door, for example) is
immediately closed.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 215) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.

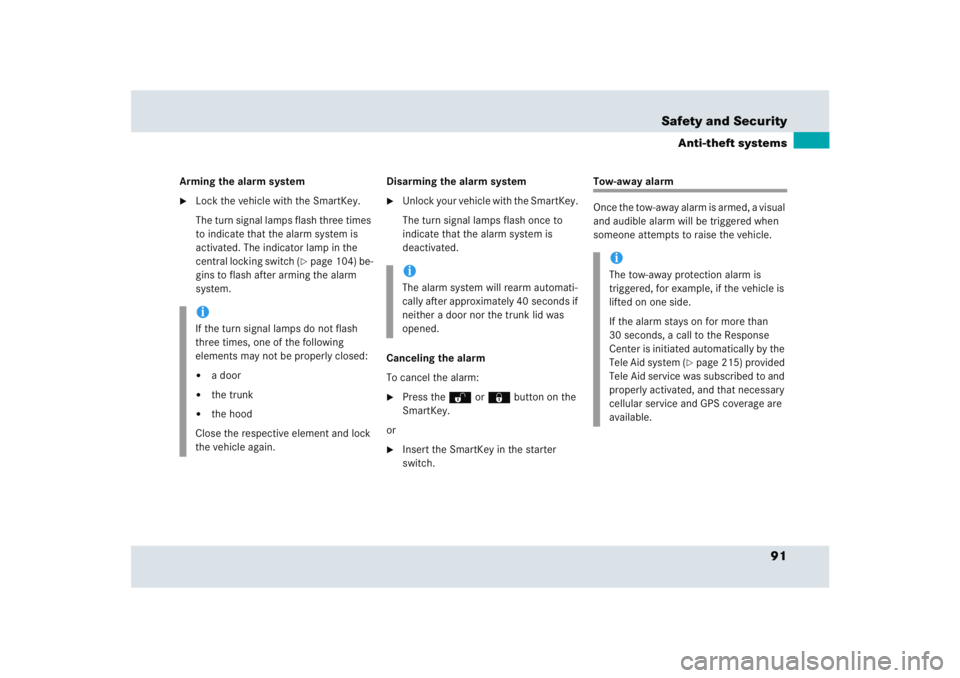

91 Safety and Security
Anti-theft systems
Arming the alarm system
Lock the vehicle with the SmartKey.
The turn signal lamps flash three times
to indicate that the alarm system is
activated. The indicator lamp in the
central locking switch (
page 104) be-
gins to flash after arming the alarm
system.Disarming the alarm system

Unlock your vehicle with the SmartKey.
The turn signal lamps flash once to
indicate that the alarm system is
deactivated.
Canceling the alarm
To cancel the alarm:

Press theŒ or‹ button on the
SmartKey.
or

Insert the SmartKey in the starter
switch.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iIf the turn signal lamps do not flash
three times, one of the following
elements may not be properly closed:

a door


the trunk


the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
neither a door nor the trunk lid was
opened.
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 215) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.

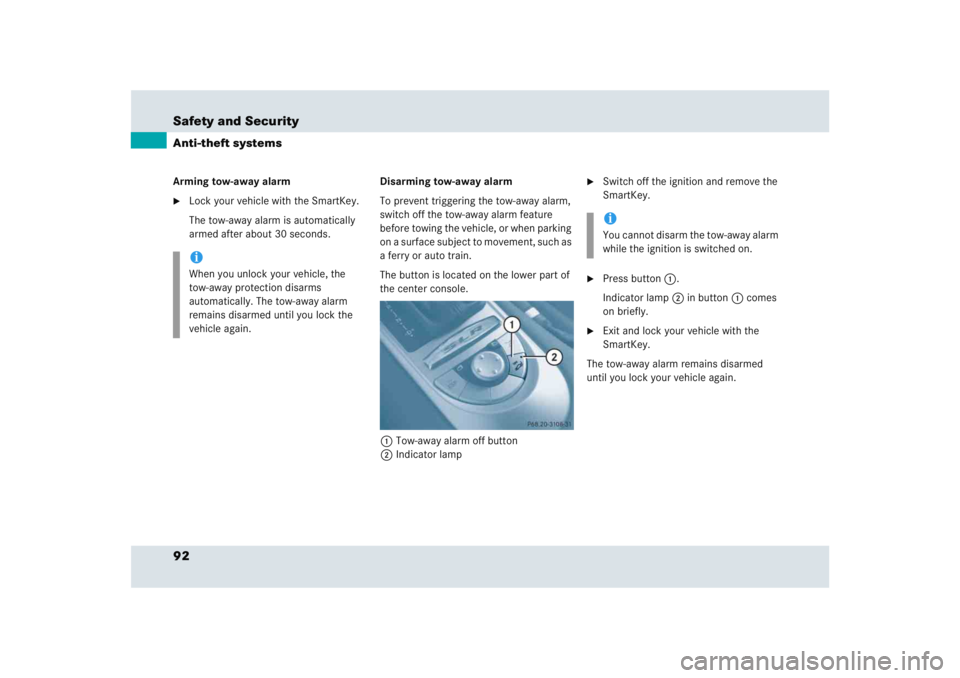

92 Safety and SecurityAnti-theft systemsArming tow-away alarm
Lock your vehicle with the SmartKey.
The tow-away alarm is automatically
armed after about 30 seconds.Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.
The button is located on the lower part of
the center console.
1Tow-away alarm off button
2Indicator lamp

Switch off the ignition and remove the
SmartKey.

Press button 1.
Indicator lamp2 in button1 comes
on briefly.

Exit and lock your vehicle with the
SmartKey.
The tow-away alarm remains disarmed
until you lock your vehicle again.
iWhen you unlock your vehicle, the
tow-away protection disarms
automatically. The tow-away alarm
remains disarmed until you lock the
vehicle again.
iYou cannot disarm the tow-away alarm
while the ignition is switched on.

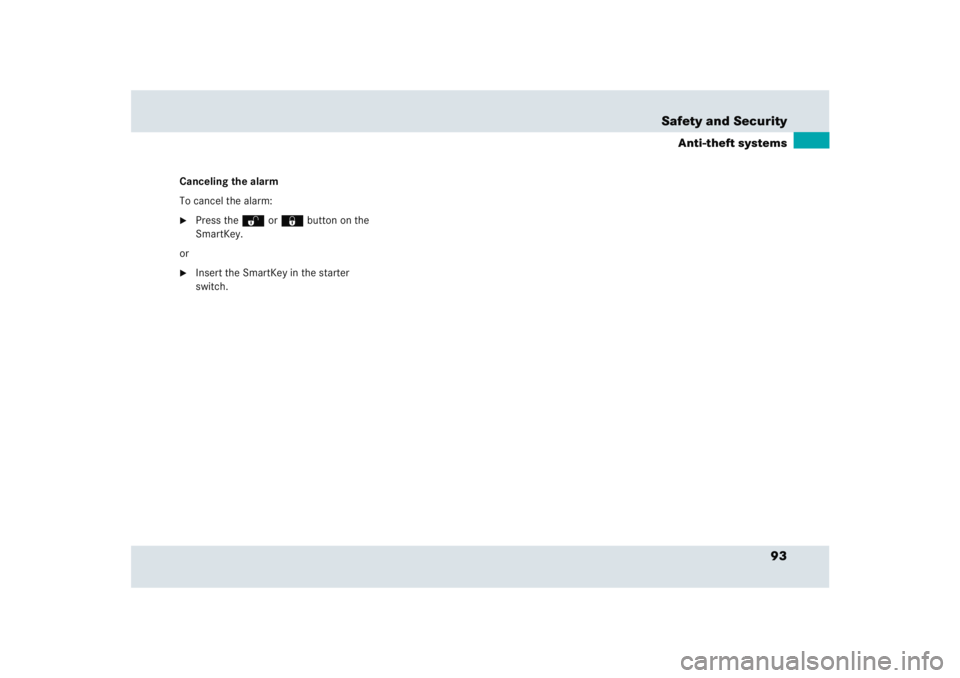

93 Safety and Security
Anti-theft systems
Canceling the alarm
To cancel the alarm:
Press theŒ or‹ button on the
SmartKey.
or

Insert the SmartKey in the starter
switch.

Controls in detailLocking and unlocking
Lighting
Instrument cluster
Control system
Audio system
Automatic transmission
Good visibility
Automatic climate control
Power windows
Driving systems
Useful features

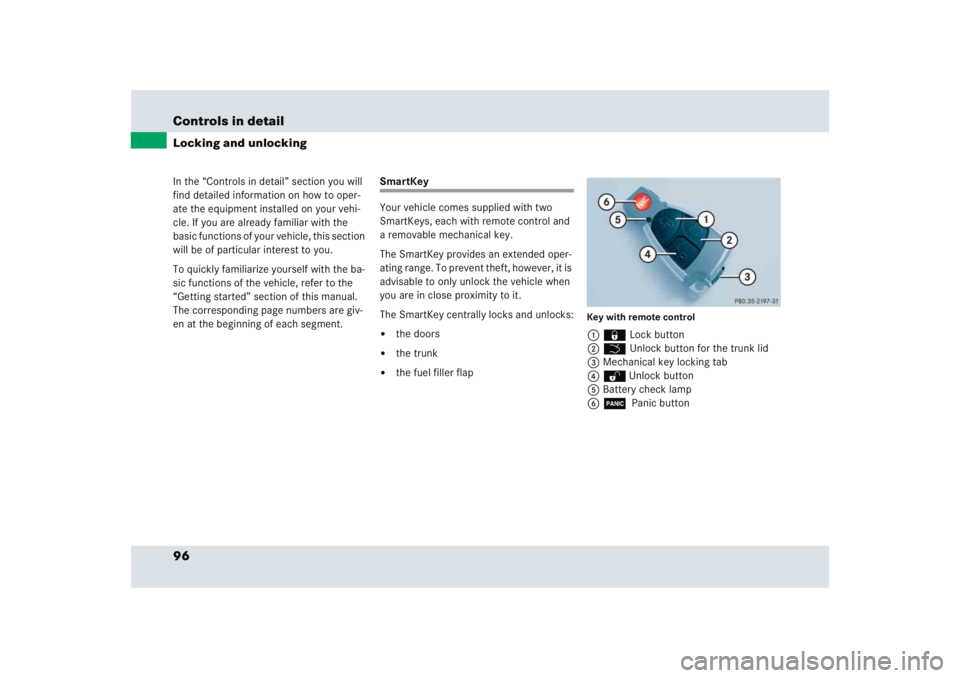

96 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
Key with remote control1‹ Lock button
2Š Unlock button for the trunk lid
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6Â Panic button

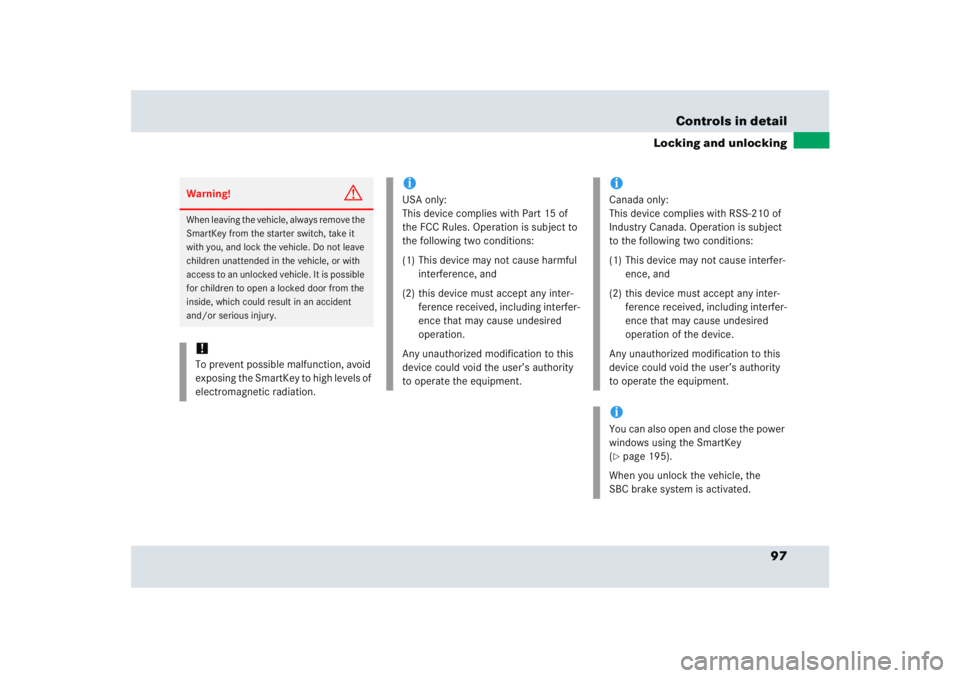

97 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a locked door from the
inside, which could result in an accident
and/or serious injury.!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iYou can also open and close the power
windows using the SmartKey
(page 195).
When you unlock the vehicle, the
SBC brake system is activated.

98 Controls in detailLocking and unlockingFactory setting
Global unlocking
Press buttonŒ.
All turn signal lamps flash once. The
anti-theft alarm system is disarmed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither door nor trunk is opened


the SmartKey is not inserted in the
starter switch


the central locking switch is not
activated
Global locking

Press button‹.
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The anti-theft alarm system is
armed.Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressingŒ only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttonsŒ and‹
simultaneously for about five seconds
until battery check lamp5 flashes
twice.
The SmartKey will then function as
follows:
Unlocking driver’s door and fuel filler
flap

Press buttonΠonce.
All turn signal lamps flash once. The
anti-theft alarm system is disarmed.Global unlocking

Press buttonΠtwice.
All turn signal lamps flash once. The
anti-theft alarm system is disarmed.
Global locking

Press button‹.
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The anti-theft alarm system is
armed.

99 Controls in detail
Locking and unlocking
Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about six seconds
until battery check lamp5
(page 96) flashes twice.Checking the batteries

Press button ‹ or Œ.
Battery check lamp5 (
page 96)
comes on briefly to indicate that the
SmartKey batteries are in order.Unlocking and opening the trunk lid
You can unlock the trunk separately.
A minimum height clearance of
5.5 ft (1.65 m) is required to open the
trunk lid.

Press and hold buttonŠ until the
trunk unlocks and opens slightly.
!If you can no longer lock or unlock the
vehicle with the SmartKey, then either
the batteries in the SmartKey are dis-
charged, the SmartKey is malfunction-
ing or the vehicle battery is drained.

Check the batteries in the
SmartKey (
page 99) and replace
them if necessary (
page 344).


Use the mechanical key to unlock
the vehicle (
page 342).


Have the vehicle battery and the
battery connections checked. Con-
tact an authorized Mercedes-Benz
Center.
If the SmartKey is malfunctioning,
contact an authorized Mercedes-Benz
Center.
!If battery check lamp5 does not
come on briefly during check, then the
SmartKey batteries are discharged.

Replace the batteries (
page 344).
You can obtain the required batteries
at any authorized Mercedes-Benz
Center.
iIf the batteries are checked within
signal range of the vehicle, pressing
the‹ orŒ button will lock or
unlock the vehicle accordingly.
iIf the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally when closed. The turn signals will
flash three times to confirm locking.
