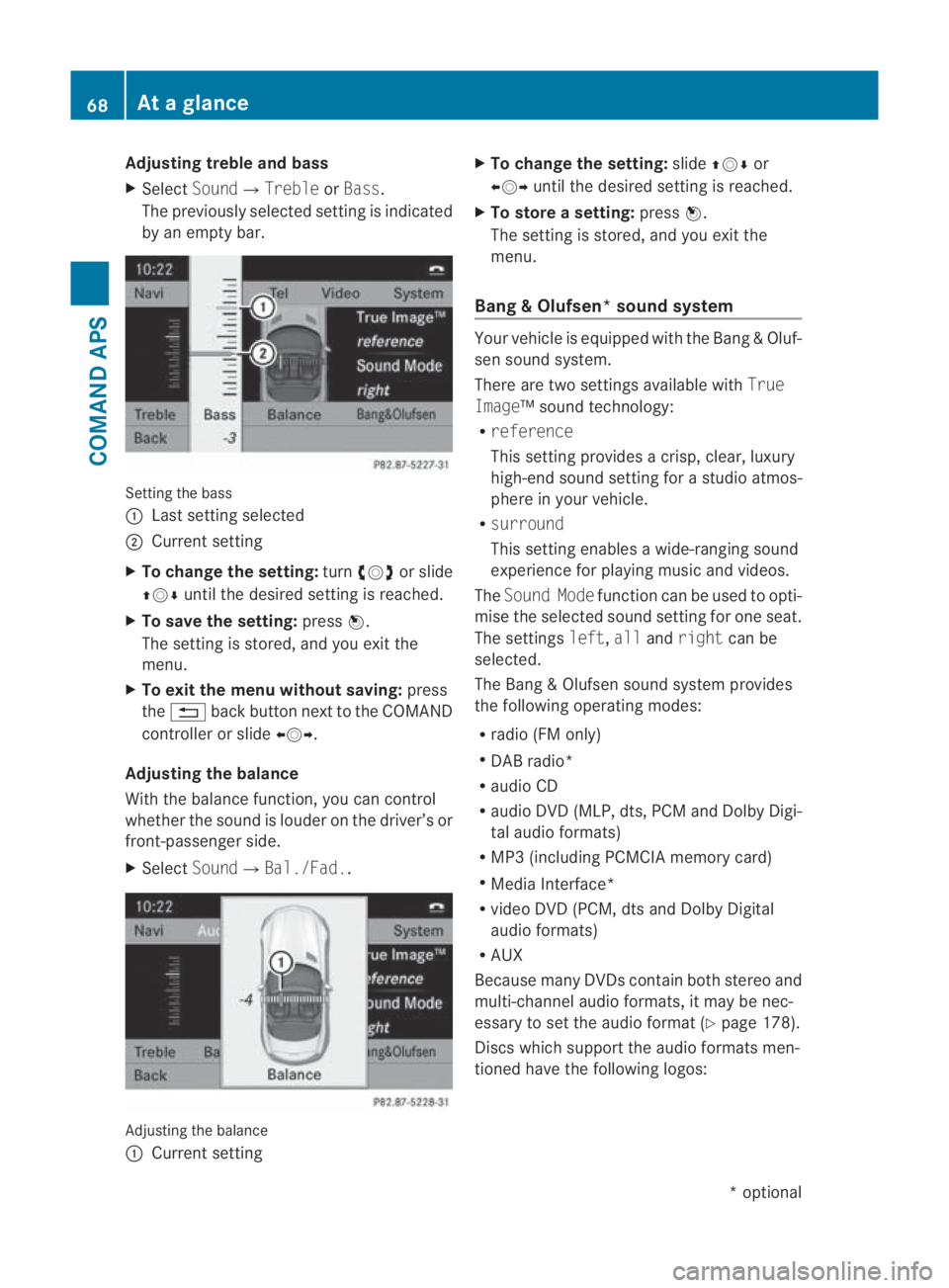

Adjusting treble and bass
X
Select Sound0004 TrebleorBass.
The previously selected setting is indicated
by an empty bar. Setting the bass
0001
Last setting selected
0002 Current setting
X To change the setting: turn002800130029 or slide
001F0013000D until the desired setting is reached.
X To save the setting: press0017.
The setting is stored, and you exit the
menu.
X To exit the menu without saving: press
the 0001 back butto nnext to the COMAND
controller or slide 002B0013002C.
Adjusting the balance
With the balance function, you can control
whether the sound is louder on the driver’s or
front-passenger side.
X Select Sound0004Bal./Fad.. Adjusting the balance
0001
Current setting X
To change the setting: slide001F0013000D or
002B0013002C until the desired setting is reached.
X To store asetting: press0017.
The setting is stored, and you exit the
menu.
Bang & Olufsen* sound system Your vehicle is equipped with the Bang
&Oluf-
sen sound system.
There are two settings available with True
Image™s ound technology:
R reference
This setting provides a crisp, clear, luxury
high-end sound setting for a studio atmos-
phere in your vehicle.
R surround
This setting enables a wide-ranging sound
experience for playing music and videos.
The Sound Mode function can be used to opti-
mise the selected sound setting for one seat.
The settings left,allandright can be
selected.
The Bang &Olufsen sound system provides
the following operating modes:
R radio (FM only)
R DAB radio*
R audio CD
R audio DV D(MLP, dts, PCM and Dolby Digi-
tal audio formats)
R MP3 (including PCMCIA memory card)
R Media Interface*
R video DVD (PCM, dts and Dolby Digital
audio formats)
R AUX
Because many DVDs contain both stereo and
multi-channel audio formats, it may be nec-
essary to set the audio format (Y page 178).
Discs which support the audio formats men-
tioned have the following logos: 68
At
ag lanceCOMAND APS
*optional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 68

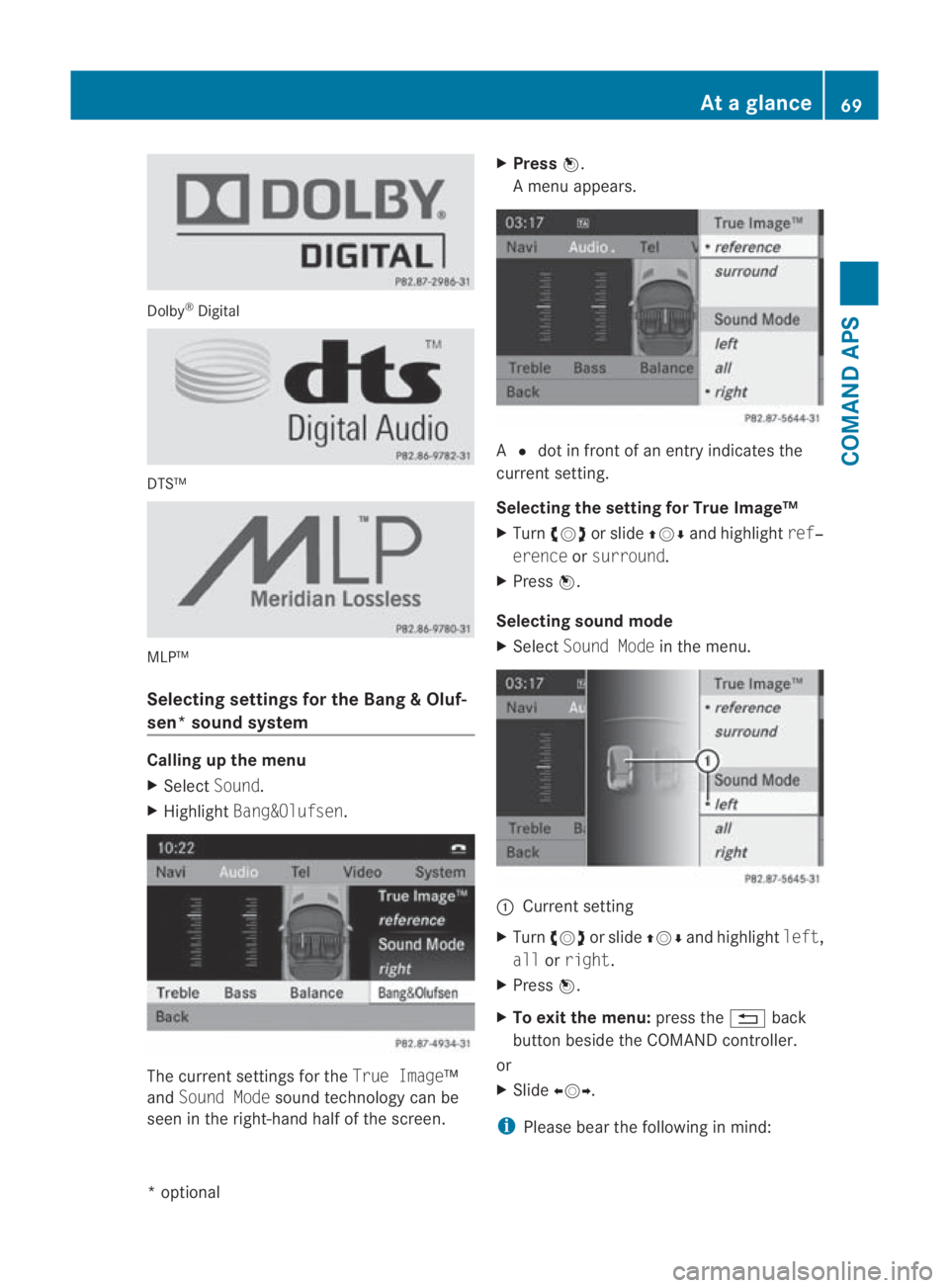

Dolby
®
Digital DTS™
MLP™
Selecting settings fo
rthe Bang &Oluf-
sen* sound system Calling up the menu
X
Select Sound.
X Highlight Bang&Olufsen . The current settings for the
True Image™
and Sound Mode sound technology can be
seen in the right-hand half of the screen. X
Press 0017.
Am enu appears. A
0023 dot in front of an entry indicates the
current setting.
Selecting the setting for True Image™
X Turn 002800130029 or slide 001F0013000Dand highlight ref‐
erence orsurround.
X Press 0017.
Selecting sound mode
X Select Sound Mode in the menu. 0001
Current setting
X Turn 002800130029 or slide 001F0013000Dand highlight left,
all orright.
X Press 0017.
X To exit the menu: press the0001back
button beside the COMAND controller.
or
X Slide 002B0013002C.
i Please bear the following in mind: At
ag lance
69COMAND APS
*optional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 69 Z

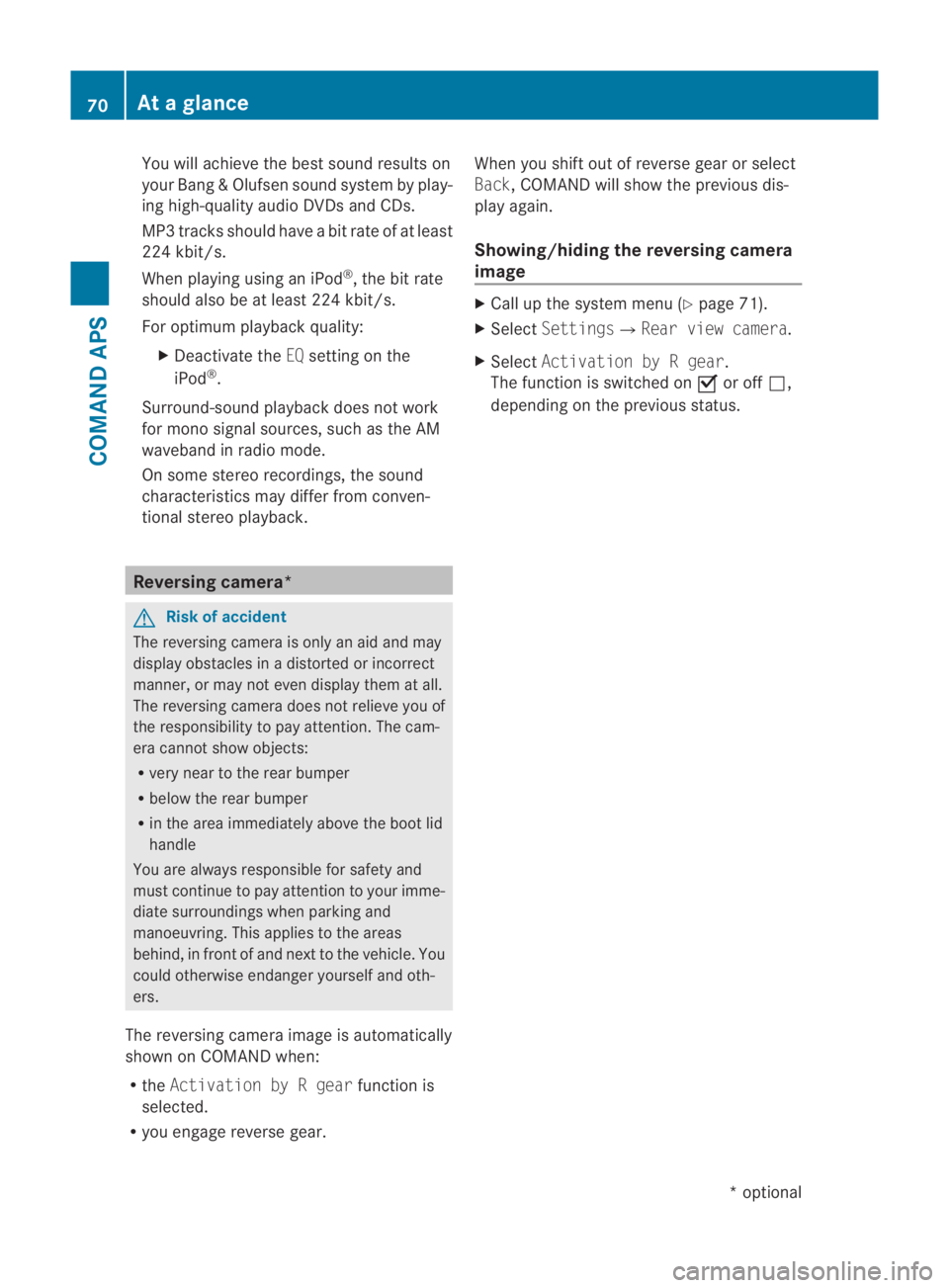

You will achieve the best sound results on
your Bang &Olufsen sound system by play-
ing high-quality audio DVDs and CDs.
MP3 tracks should have abit rate of at least
224 kbit/s.
When playing using an iPod ®
, the bit rate
should also be at least 224 kbit/s.
For optimum playback quality:
XDeactivate the EQsetting on the
iPod ®
.
Surround-sound playback does not work
for mono signal sources, such as the AM
waveband in radio mode.
On some stereo recordings, the sound
characteristics may differ from conven-
tional stereo playback. Reversing camera*
G
Risk of accident
The reversing camera is only an aid and may
display obstacles in a distorted or incorrect
manner, or may not even display the matall.
The reversing camera does not relieve you of
the responsibility to pay attention. The cam-
era cannot show objects:
R very near to the rear bumper
R below the rear bumper
R in the area immediately above the boot lid
handle
You are always responsible for safety and
must continue to pay attention to your imme-
diate surroundings when parking and
manoeuvring. This applies to the areas
behind, in front of and nex tto the vehicle. You
could otherwise endanger yourself and oth-
ers.
The reversing camera image is automatically
shown on COMAND when:
R the Activation by R gear function is
selected.
R you engage reverse gear. When you shift out of reverse gear or select
Back, COMAND will show the previous dis-
play again.
Showing/hiding the reversing camera
image X
Call up the system menu (Y page 71).
X Select Settings0004Rear view camera.
X Select Activation by R gear.
The function is switched on 0019or off 0004,
depending on the previous status. 70
At
ag lanceCOMAND APS
*optional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 70

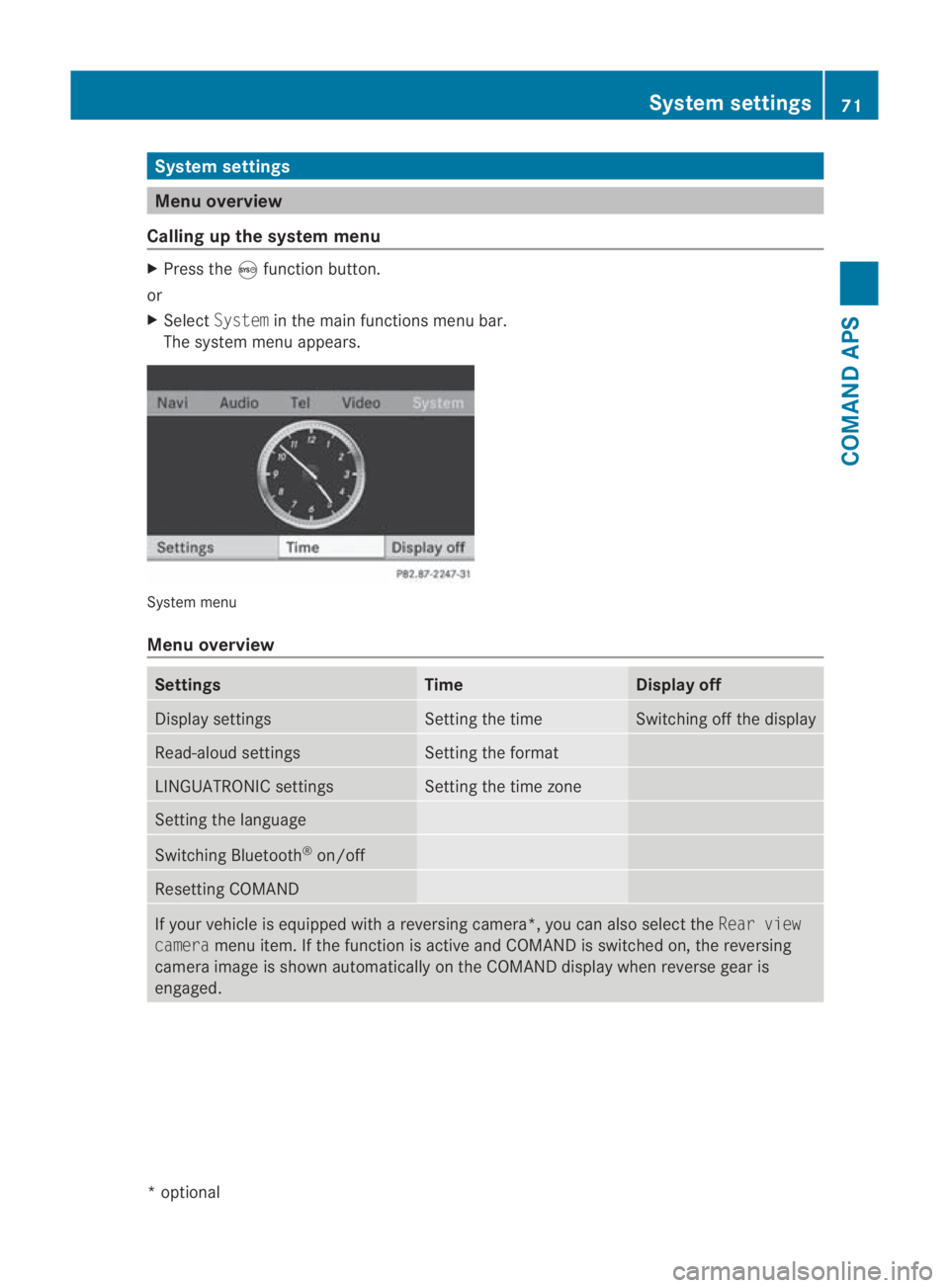

System settings
Menu overview
Calling up the system menu X
Press the 0023function button.
or
X Select System in the main functions menu bar.
The system menu appears. System menu
Menu overview
Settings Time Display off
Display settings Setting the time Switching off the display
Read-aloud settings Setting the format
LINGUATRONIC settings Setting the time zone
Setting the language
Switching Bluetooth
®
on/off Resetting COMAND
If your vehicle is equipped with a reversing camera*
,you can also select the Rear view
camera menu item. If the function is active and COMAND is switched on, the reversing
camera image is shown automatically on the COMAND display when reverse gear is
engaged. System settings
71COMAND APS
*optional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 71 Z

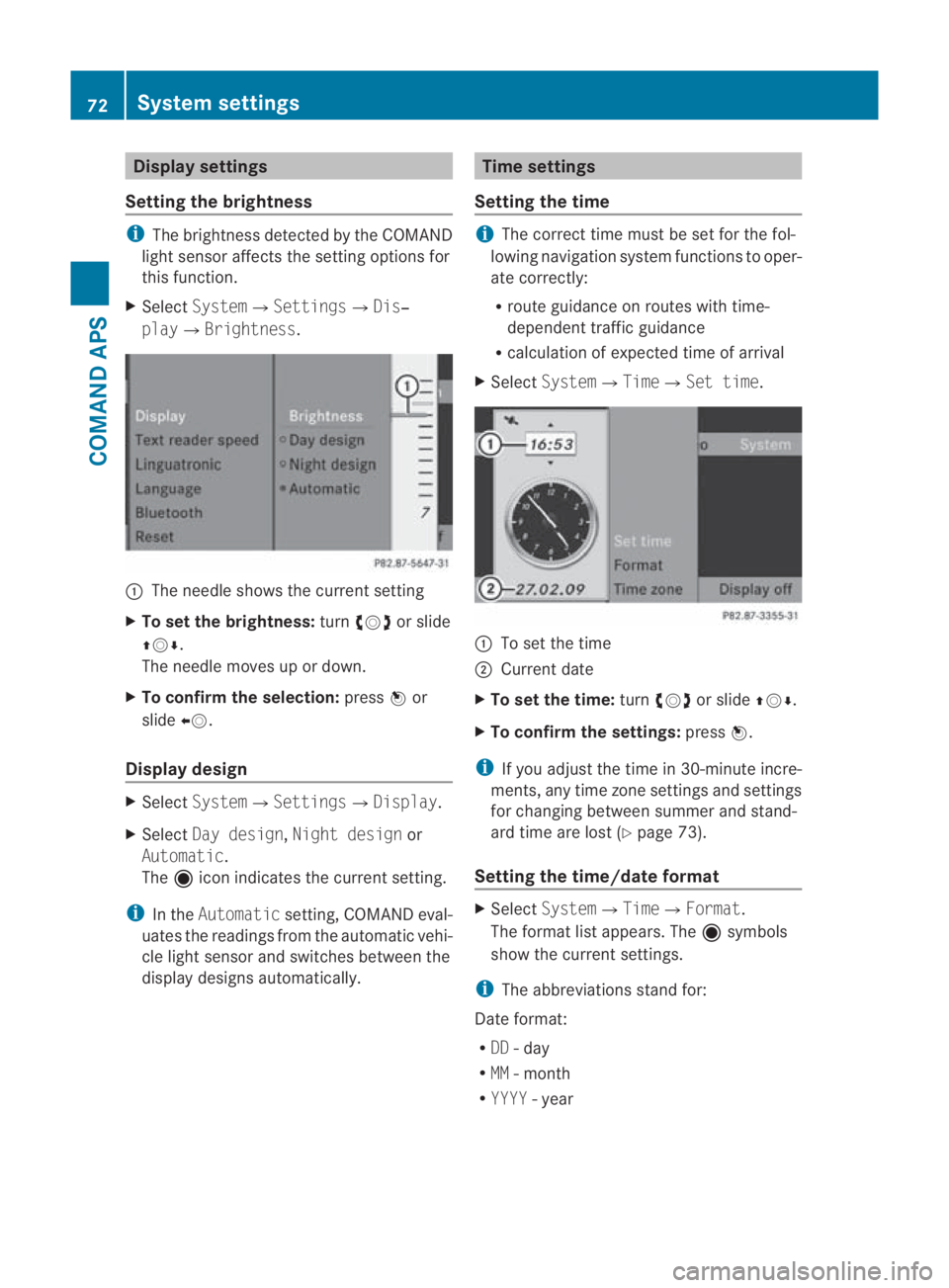

Display settings
Setting the brightness i
The brightness detected by the COMAND
ligh tsensor affects the setting options for
this function.
X Select System0004 Settings0004Dis‐
play0004Brightness. 0001
The needle shows the curren tsetting
X To set the brightness: turn002800130029 or slide
001F0013000D.
The needle moves up or down.
X To confirm the selection: press0017or
slide 002B0013.
Display design X
Select System0004 Settings0004Display.
X Select Day design, Night design or
Automatic.
The äicon indicates the current setting.
i In the Automatic setting, COMAND eval-
uates the readings from the automatic vehi-
cle light sensor and switches between the
display designs automatically. Time settings
Setting the time i
The correct time must be set for the fol-
lowing navigation system functions to oper-
ate correctly:
R route guidance on routes with time-
dependen ttraffic guidance
R calculation of expected time of arrival
X Select System0004Time0004Set time. 0001
To set the time
0002 Current date
X To set the time: turn002800130029 or slide 001F0013000D.
X To confirm the settings: press0017.
i If you adjust the time in 30-minute incre-
ments, any time zone settings and settings
for changing between summe rand stand-
ard time are lost (Y page 73).
Setting the time/date format X
Select System 0004Time0004 Format.
The format list appears. The äsymbols
show the current settings.
i The abbreviations stand for:
Date format:
R DD - day
R MM - month
R YYYY -year 72
System settingsCOMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 72

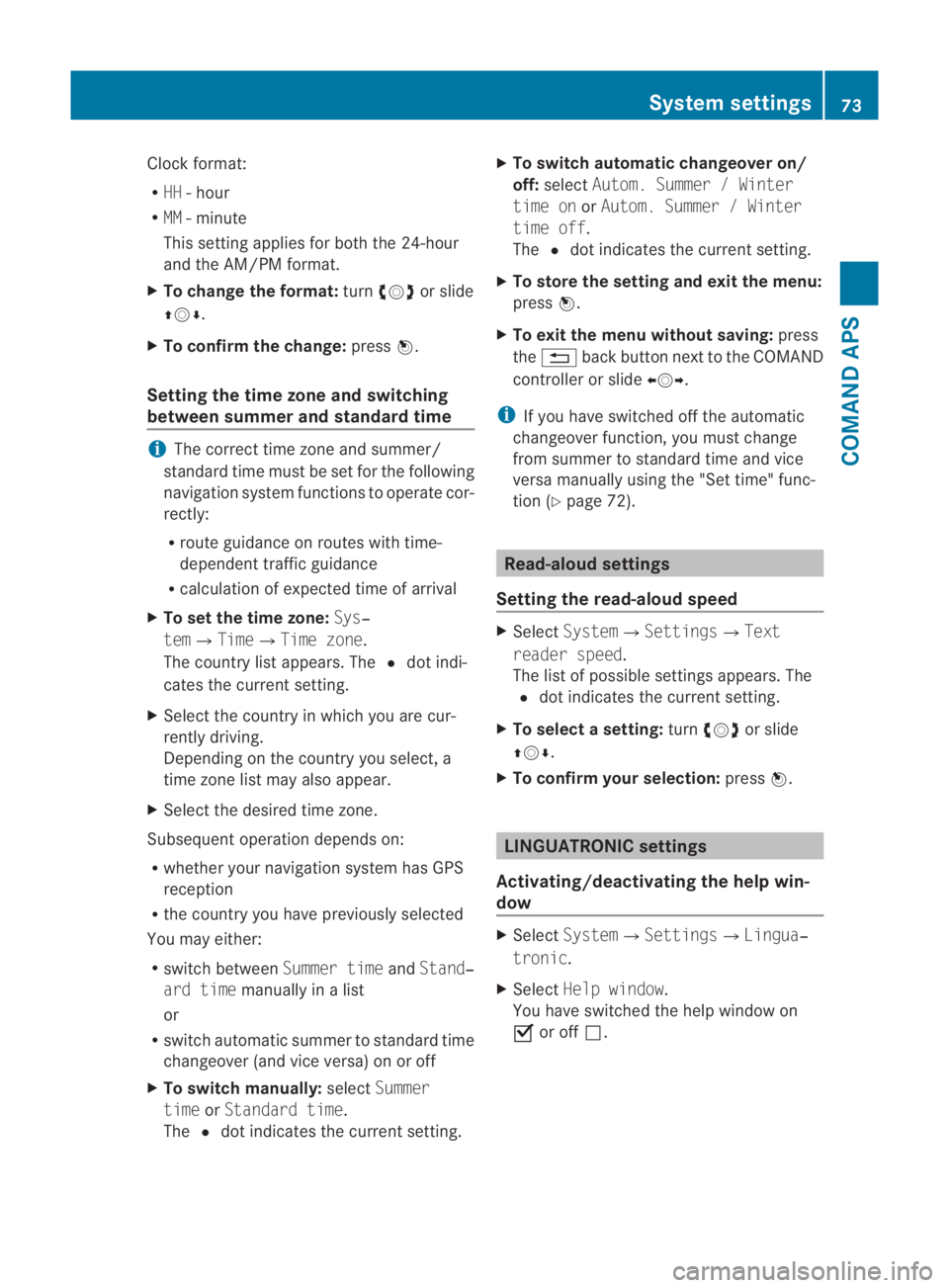

Clock format:
R
HH -hour
R MM - minute
This setting applies for both the 24-hour
and the AM/PM format.
X To change the format: turn002800130029 or slide
001F0013000D.
X To confirm the change: press0017.
Setting the time zone and switching
between summer and standard time i
The correct time zone and summer/
standard time must be set for the following
navigation system functions to operate cor-
rectly:
R route guidance on routes with time-
dependent traffic guidance
R calculation of expected time of arrival
X To set the time zone: Sys‐
tem0004Time0004Time zone.
The country list appears. The 0023dot indi-
cates the current setting.
X Select the country in which you are cur-
rently driving.
Depending on the country you select, a
time zone list may also appear.
X Select the desired time zone.
Subsequent operation depends on:
R whether your navigation system has GPS
reception
R the country you have previously selected
You may either:
R switch between Summer timeandStand‐
ard time manually in a list
or
R switch automatic summer to standard time
changeover (and vice versa) on or off
X To switch manually: selectSummer
time orStandard time.
The 0023dot indicates the current setting. X
To switch automatic changeover on/
off: select Autom. Summer / Winter
time on orAutom. Summer / Winter
time off.
The 0023dot indicates the current setting.
X To store the setting and exit the menu:
press 0017.
X To exit the menu without saving: press
the 0001 back button next to the COMAND
controller or slide 002B0013002C.
i If you have switched off the automatic
changeover function, you must change
from summer to standard time and vice
versa manually using the "Set time" func-
tion (Y page 72). Read-aloud settings
Setting the read-aloud speed X
Select System0004Settings0004Text
reader speed.
The list of possible settings appears. The
0023 dot indicates the current setting.
X To select asetting: turn002800130029 or slide
001F0013000D .
X To confir myour selection: press0017. LINGUATRONIC settings
Activating/deactivating the help win-
dow X
Select System 0004Settings 0004Lingua‐
tronic .
X Select Help window .
You have switched the help window on
0019 or off 0004. System settings
73COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeuV ersion: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 73 Z

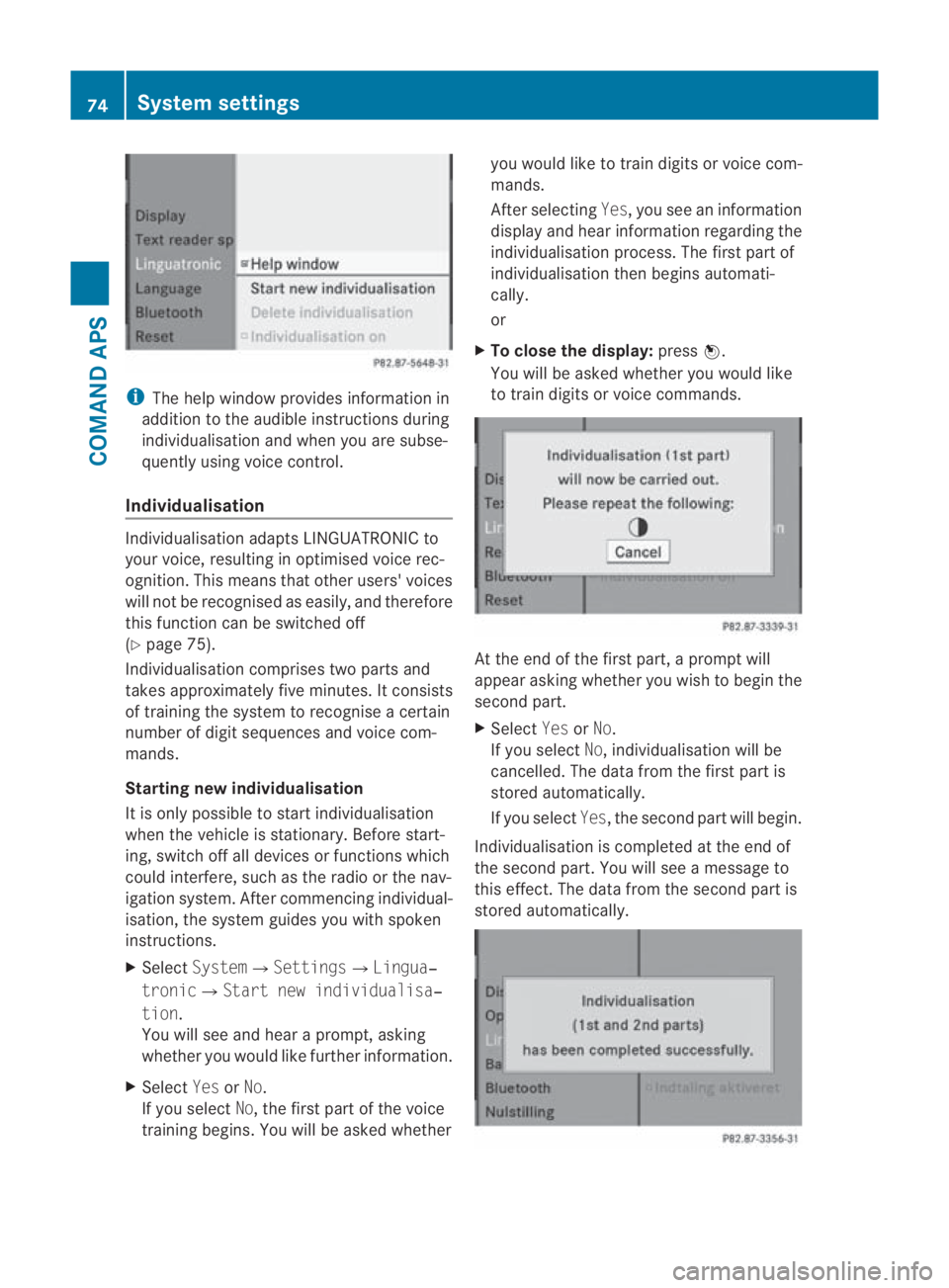

i
The help window provides information in
addition to the audible instructions during
individualisation and when you are subse-
quently using voice control.
Individualisation Individualisation adapts LINGUATRONIC to
your voice, resulting in optimised voice rec-
ognition .This means that other users' voices
will not be recognised as easily, and therefore
this function can be switched off
(Y page 75).
Individualisation comprises two parts and
takes approximately five minutes. It consists
of training the system to recognise a certain
number of digit sequences and voice com-
mands.
Starting new individualisation
It is only possible to start individualisation
when the vehicle is stationary. Before start-
ing, switch off all devices or functions which
could interfere, such as the radio or the nav-
igation system. After commencing individual-
isation, the system guides you with spoken
instructions.
X Select System0004Settings0004Lingua‐
tronic0004Start new individualisa‐
tion.
You will see and hear a prompt, asking
whether you would like further information.
X Select YesorNo.
If you select No, the first part of the voice
training begins. You will be asked whether you would like to train digits or voice com-
mands.
After selecting
Yes, you see an information
display and hear information regarding the
individualisation process. The first part of
individualisation then begins automati-
cally.
or
X To close the display: press0017.
You will be asked whether you would like
to train digits or voice commands. At the end of the first part, a prompt will
appeara
sking whether you wish to begin the
second part.
X Select YesorNo.
If you select No, individualisation will be
cancelled. The data from the first part is
stored automatically.
If you select Yes, the second part will begin.
Individualisation is completed at the end of
the second part. You will see a message to
this effect. The data from the second part is
stored automatically. 74
System settingsCOMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 74

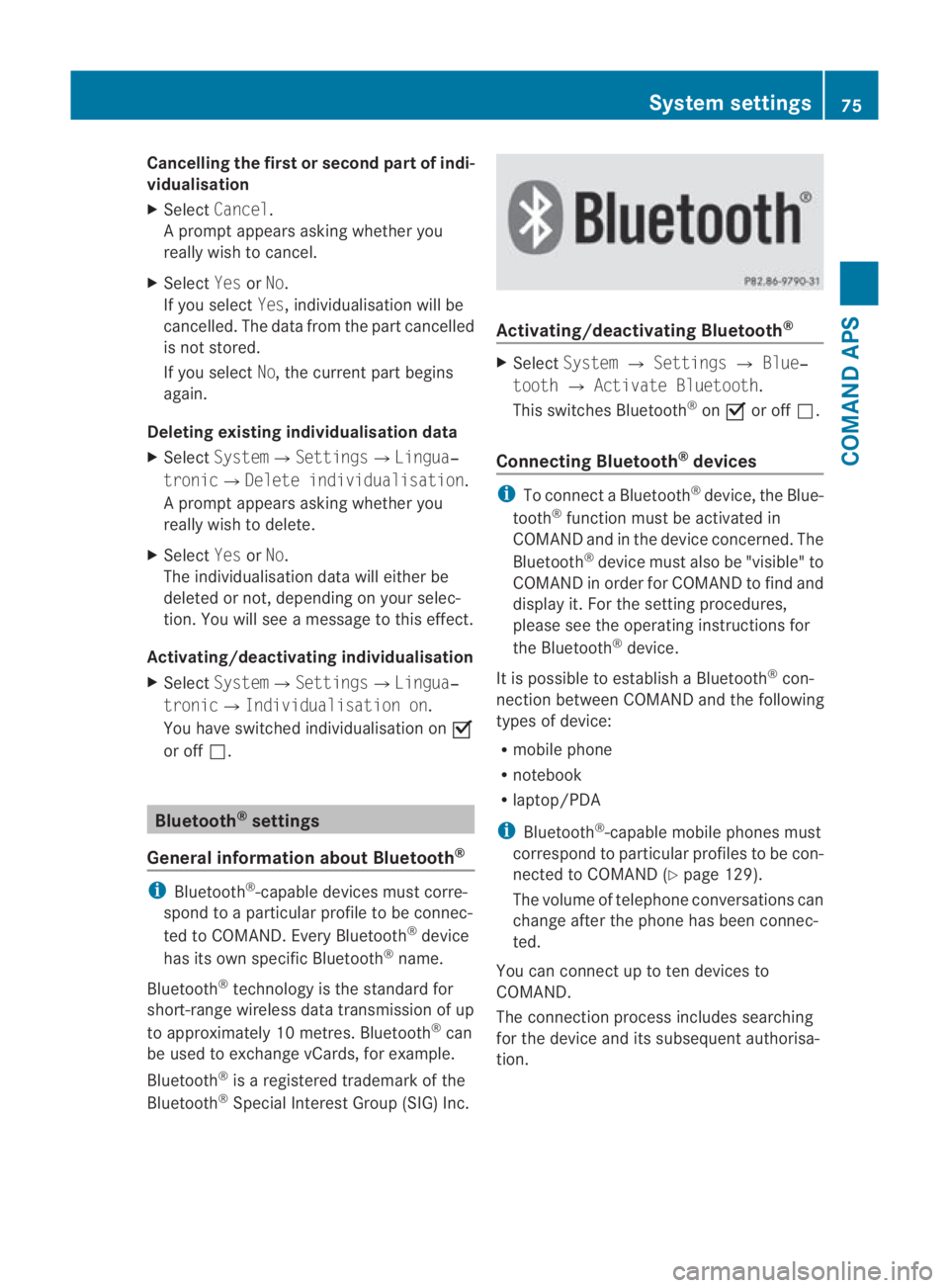

Cancelling the first or second part of indi-
vidualisation
X Select Cancel .
Ap rompt appears asking whethe ryou
really wish to cancel.
X Select YesorNo.
If you select Yes, individualisation will be
cancelled. The data from the part cancelled
is not stored.
If you select No, the current part begins
again.
Deleting existing individualisation data
X Select System0004Settings0004Lingua‐
tronic0004Delete individualisation.
Ap rompt appears asking whethe ryou
really wish to delete.
X Select YesorNo.
The individualisation data will either be
deleted or not, depending on your selec-
tion. You will see a message to this effect.
Activating/deactivating individualisation
X Select System0004Settings0004Lingua‐
tronic0004Individualisation on.
You have switched individualisation on 0019
or off 0004. Bluetooth
®
settings
General information about Bluetooth ®i
Bluetooth ®
-capable devices must corre-
spond to a particular profile to be connec-
ted to COMAND. Every Bluetooth ®
device
has its own specific Bluetooth ®
name.
Bluetooth ®
technology is the standard for
short-range wireless data transmission of up
to approximately 10 metres. Bluetooth ®
can
be used to exchange vCards, for example.
Bluetooth ®
is a registered trademark of the
Bluetooth ®
Special Interest Group (SIG) Inc. Activating/deactivating Bluetooth
® X
Select System 0004Settings 0004Blue‐
tooth 0004Activate Bluetooth.
This switches Bluetooth ®
on 0019 or off 0004.
Connecting Bluetooth ®
devices i
To connect a Bluetooth ®
device, the Blue-
tooth ®
function must be activated in
COMAND and in the device concerned. The
Bluetooth ®
device must also be "visible" to
COMAND in order for COMAND to find and
display it. For the setting procedures,
please see the operating instructions for
the Bluetooth ®
device.
It is possible to establish a Bluetooth ®
con-
nection between COMAND and the following
types of device:
R mobile phone
R notebook
R laptop/PDA
i Bluetooth ®
-capable mobile phones must
correspond to particular profiles to be con-
nected to COMAND (Y page 129).
The volume of telephone conversations can
change after the phone has been connec-
ted.
You can connect up to ten devices to
COMAND.
The connection process includes searching
for the device and its subsequent authorisa-
tion. System settings
75COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 75 Z

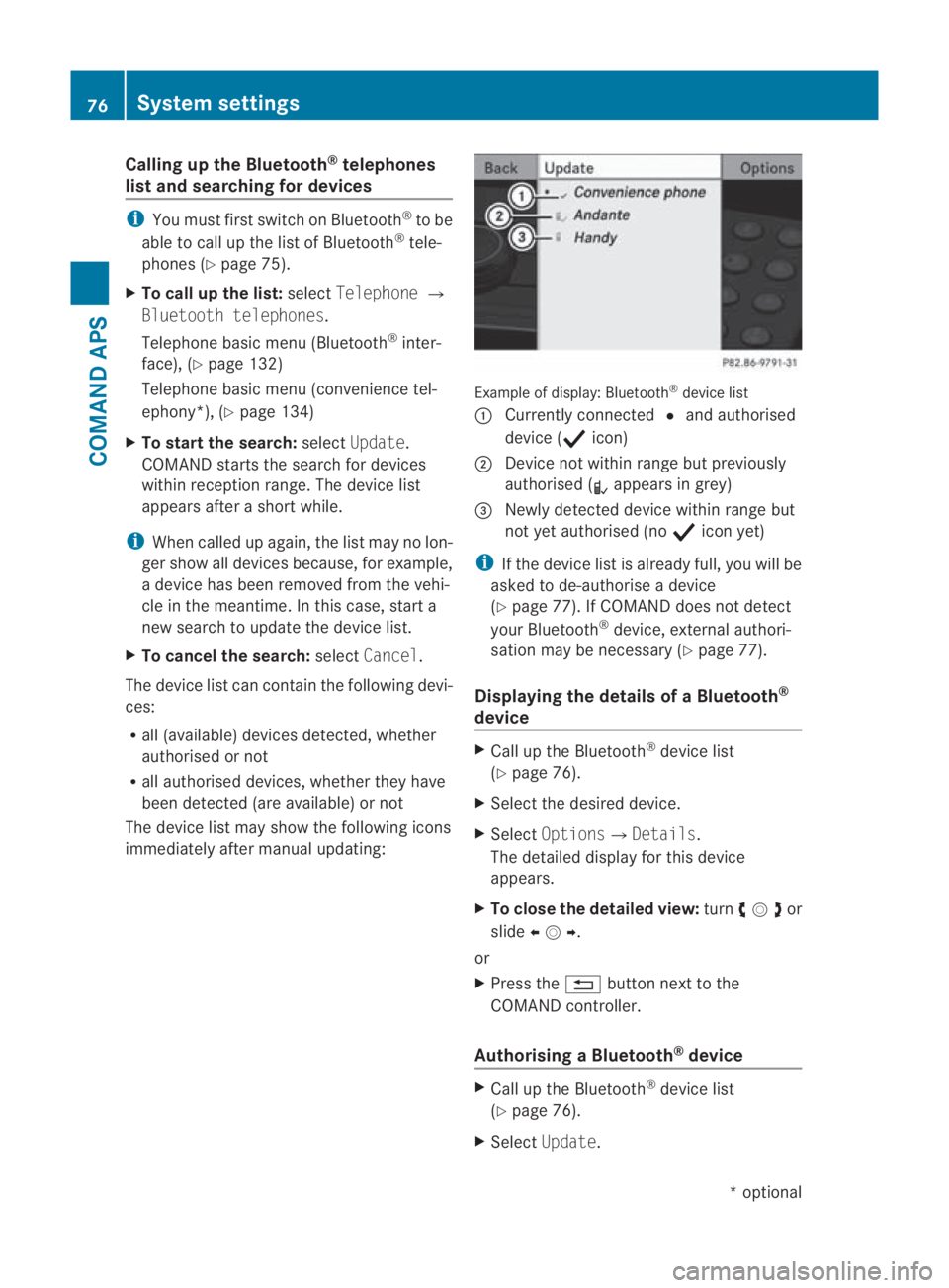

Calling up the Bluetooth
®
telephones
list and searching for devices i
You must first switch on Bluetooth ®
to be
able to call up the list of Bluetooth ®
tele-
phones (Y page 75).
X To call up the list: selectTelephone 0004
Bluetooth telephones.
Telephone basic menu (Bluetooth ®
inter-
face), (Y page 132)
Telephone basic menu (convenience tel-
ephony*), (Y page 134)
X To start the search: selectUpdate .
COMAND starts the search for devices
within reception range. The device list
appears after a short while.
i When called up again, the list may no lon-
ger show all devices because, for example,
a device has been removed from the vehi-
cle in the meantime. In this case, start a
new search to update the device list.
X To cancel the search: selectCancel .
The device list can contain the following devi-
ces:
R all (available) devices detected, whether
authorised or not
R all authorised devices, whether they have
been detected (are available) or not
The device list may show the following icons
immediately after manual updating: Example of display: Bluetooth
®
device list
0001 Currently connected 0023and authorised
device (0011 icon)
0002 Device no twithin range but previously
authorised ( 0018appears in grey)
0015 Newly detected device within range but
not yet authorised (no 0011icon yet)
i If the device list is already full, you will be
asked to de-authorise a device
(Y page 77). If COMAND does not detect
your Bluetooth ®
device, external authori-
satio nmay be necessary (Y page 77).
Displaying the details of a Bluetooth ®
device X
Call up the Bluetooth ®
device list
(Y page 76).
X Select the desired device.
X Select Options0004Details .
The detailed display for this device
appears.
X To close the detailed view: turn002800130029or
slide 002B0013002C .
or
X Press the 0001button next to the
COMAND controller.
Authorising aBluetooth ®
device X
Call up the Bluetooth ®
device list
(Y page 76).
X Select Update. 76
System settingsCOMAND APS
*o
ptional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 76

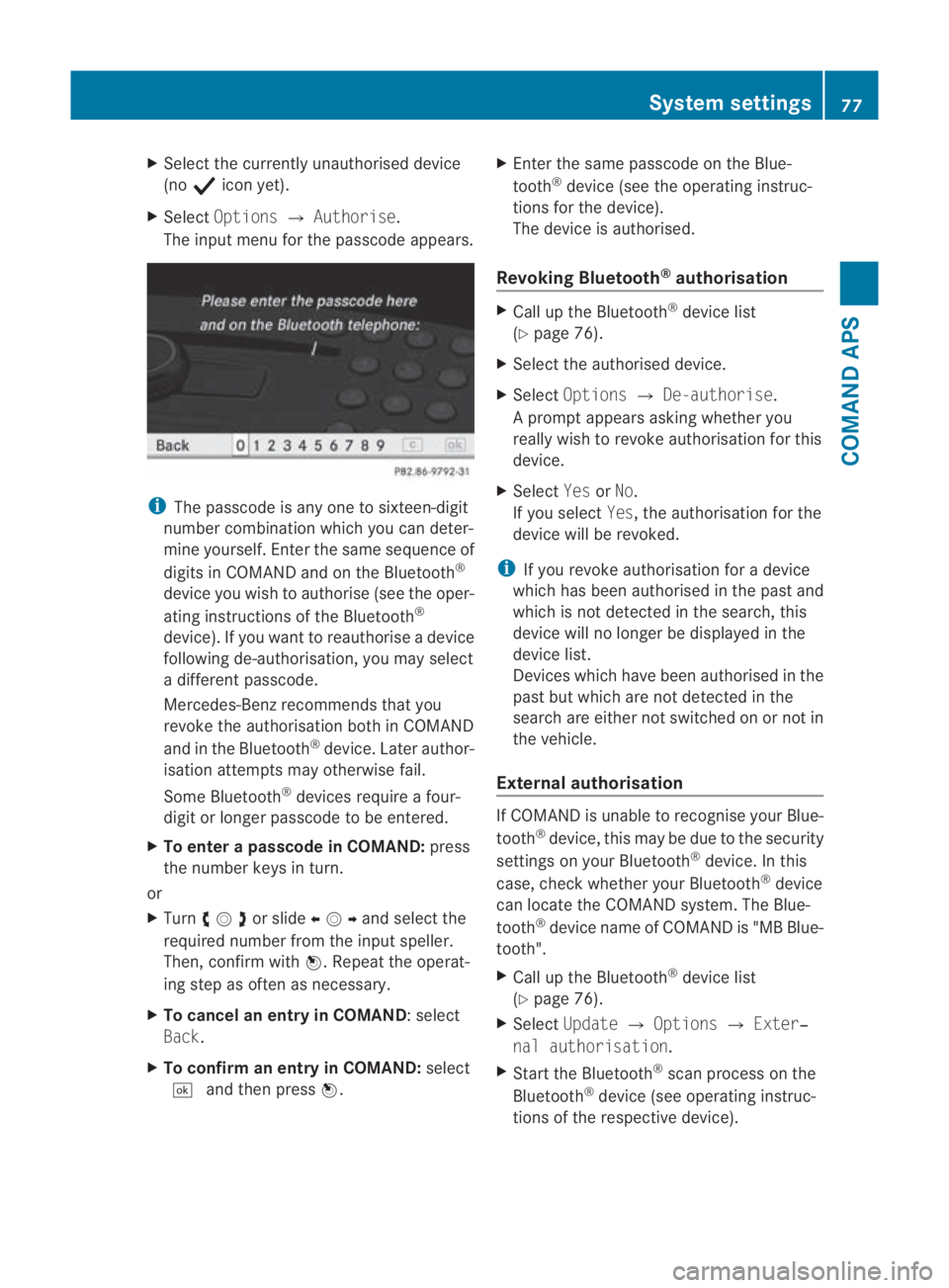

X
Select the currently unauthorised device
(no 0011 icony et).
X Select Options 0004Authorise.
The input menu for the passcode appears. i
The passcode is any one to sixteen-digit
number combination which you can deter-
mine yourself. Enter the same sequence of
digits in COMAND and on the Bluetooth ®
device you wish to authorise (see the oper-
ating instructions of the Bluetooth ®
device). If you want to reauthorise a device
following de-authorisation, you may select
a differen tpasscode.
Mercedes-Ben zrecommends that you
revoke the authorisation both in COMAND
and in the Bluetooth ®
device. Later author-
isation attempts may otherwise fail.
Some Bluetooth ®
devices require a four-
digit or longer passcode to be entered.
X To enter apasscode in COMAND: press
the number keys in turn.
or
X Turn 002800130029or slide 002B0013002Cand selec tthe
required number from the input speller.
Then, confirm with 0017.Repeat the operat-
ing step as often as necessary.
X To cancel an entry in COMAND :select
Back.
X To confirm an entry in COMAND: select
0005 and then press 0017. X
Enter the same passcode on the Blue-
tooth ®
device (see the operating instruc-
tions for the device).
The device is authorised.
Revoking Bluetooth ®
authorisation X
Call up the Bluetooth ®
device list
(Y page 76).
X Select the authorised device.
X Select Options 0004De-authorise.
Ap rompt appears asking whethe ryou
really wish to revoke authorisation for this
device.
X Select YesorNo.
If you select Yes, the authorisation for the
device will be revoked.
i If you revoke authorisation for a device
which has been authorised in the past and
which is not detected in the search, this
device will no longer be displayed in the
device list.
Devices which have been authorised in the
past but which are not detected in the
search are either not switched on or not in
the vehicle.
External authorisation If COMAND is unable to recognise your Blue-
tooth
®
device, this may be due to the security
settings on your Bluetooth ®
device. In this
case, check whether your Bluetooth ®
device
can locate the COMAND system. The Blue-
tooth ®
device name of COMAND is "MB Blue-
tooth".
X Call up the Bluetooth ®
device list
(Y page 76).
X Select Update 0004Options 0004Exter‐
nal authorisation.
X Start the Bluetooth ®
scan process on the
Bluetooth ®
device (see operating instruc-
tions of the respective device). System settings
77COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 77 Z
