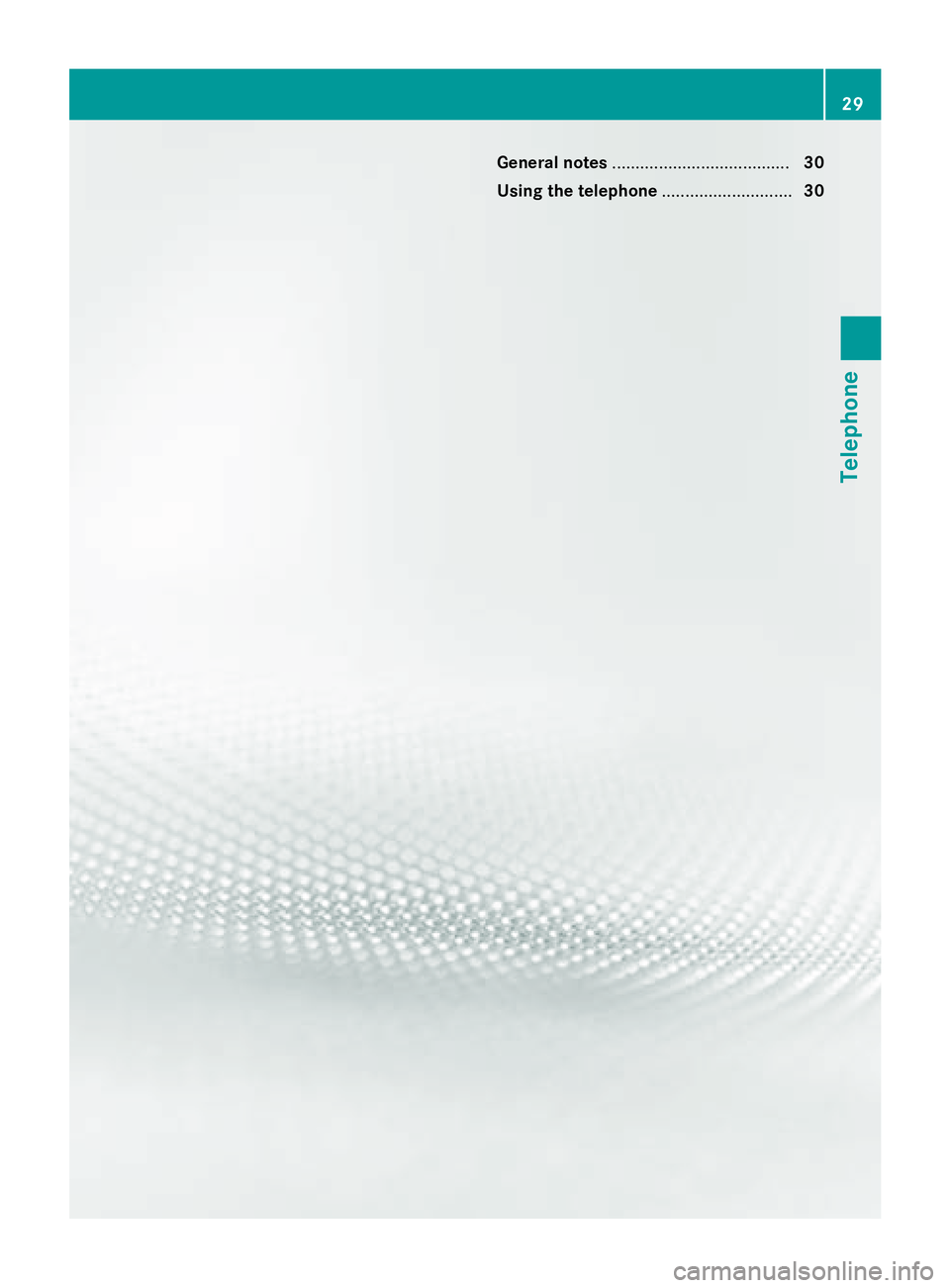

MERCEDES-BENZ SPRINTER 2015 MY15 Audio Manual

General notes
...................................... 30
Using the telephone ............................30 29Telephone

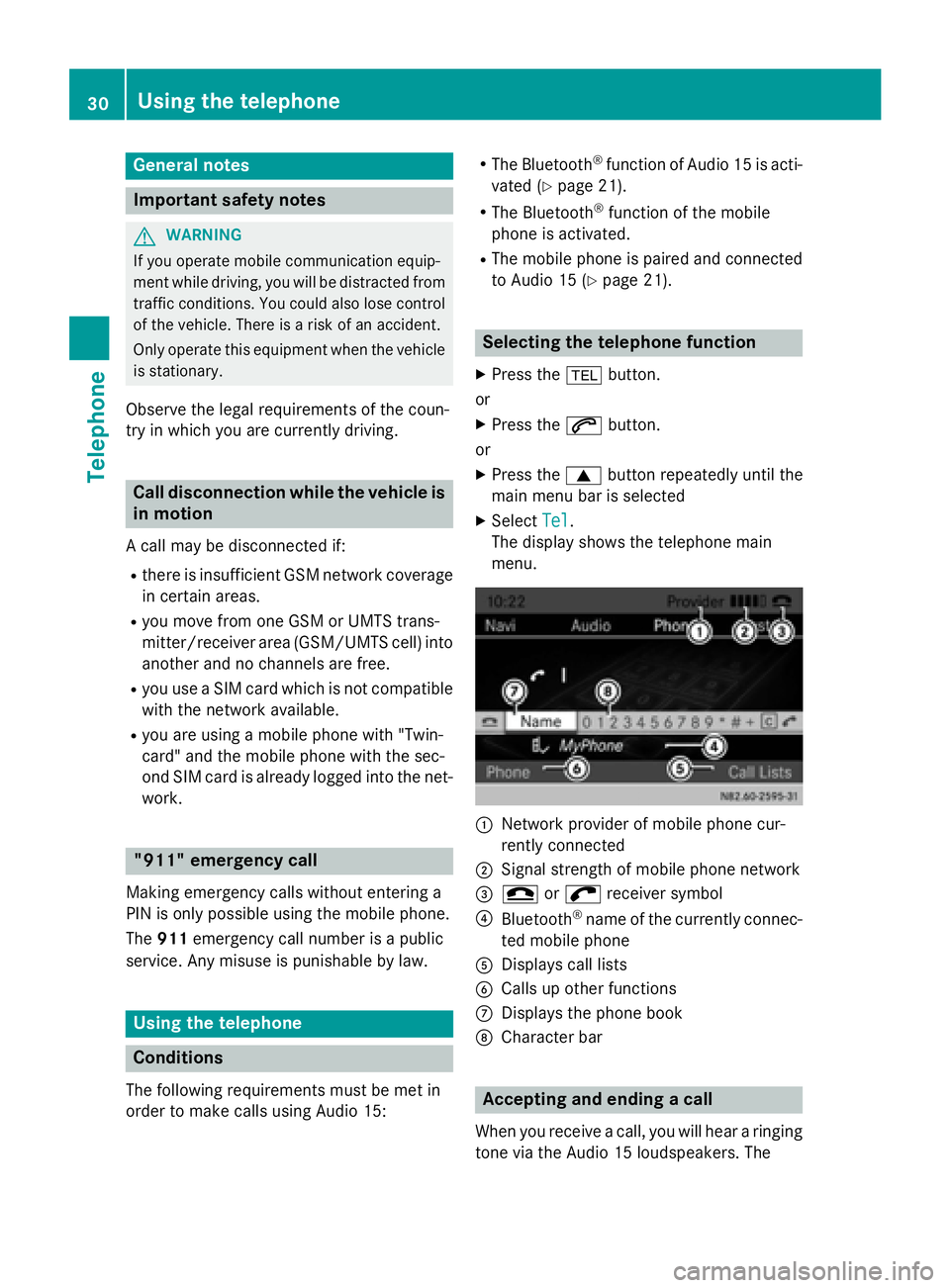

General notes
Important safety notes
G
WARNING
If you operate mobile communication equip-
ment while driving, you will be distracted from traffic conditions. You could also lose controlof the vehicle. There is a risk of an accident.
Only operate this equipment when the vehicle is stationary.
Observe the legal requirements of the coun-
try in which you are currently driving. Call disconnection while the vehicle is
in motion
A call may be disconnected if: R there is insufficient GSM network coverage
in certain areas.
R you move from one GSM or UMTS trans-
mitter/receiver area (GSM/UMTS cell) into
another and no channels are free.
R you use a SIM card which is not compatible
with the network available.
R you are using a mobile phone with "Twin-
card" and the mobile phone with the sec-
ond SIM card is already logged into the net- work. "911" emergency call
Making emergency calls without entering a
PIN is only possible using the mobile phone.
The 911 emergency call number is a public
service. Any misuse is punishable by law. Using the telephone
Conditions
The following requirements must be met in
order to make calls using Audio 15: R
The Bluetooth ®
function of Audio 15 is acti-
vated (Y page 21).
R The Bluetooth ®
function of the mobile
phone is activated.
R The mobile phone is paired and connected
to Audio 15 (Y page 21). Selecting the telephone function
X Press the 002Bbutton.
or
X Press the 0061button.
or
X Press the 0063button repeatedly until the
main menu bar is selected
X Select Tel Tel.
The display shows the telephone main
menu. 0043
Network provider of mobile phone cur-
rently connected
0044 Signal strength of mobile phone network
0087 005A or0066 receiver symbol
0085 Bluetooth ®
name of the currently connec-
ted mobile phone
0083 Displays call lists
0084 Calls up other functions
006B Displays the phone book
006C Character bar Accepting and ending a call
When you receive a call, you will hear a ringing

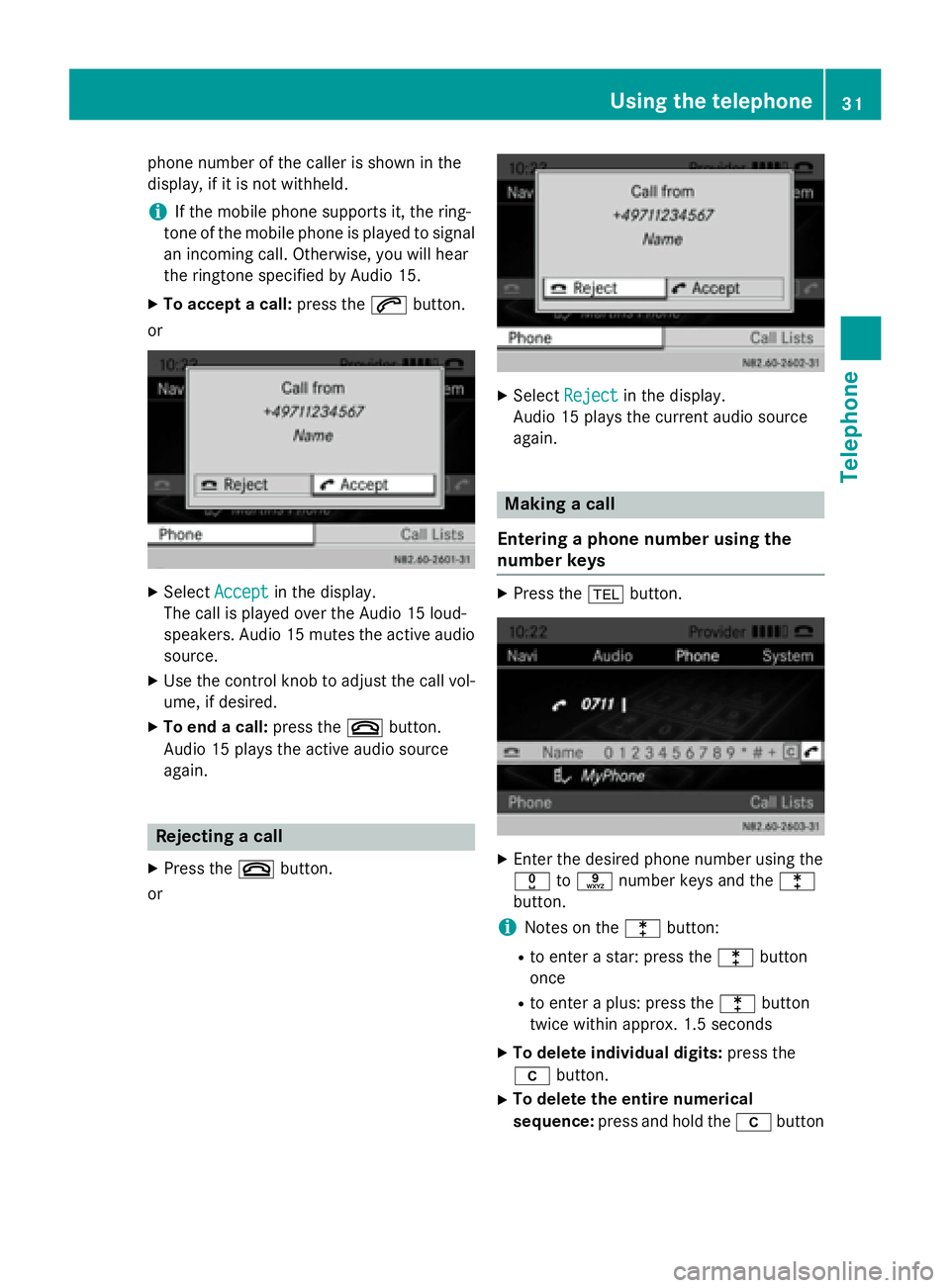

tone via the Audio 15 loudspeakers. The 30
Using the telephoneTelephone

phone number of the caller is shown in the
display, if it is not withheld.
i If the mobile phone supports it, the ring-
tone of the mobile phone is played to signal
an incoming call. Otherwise, you will hear
the ringtone specified by Audio 15.
X To accept a call: press the0061button.
or X
Select Accept Accept in the display.
The call is played over the Audio 15 loud-
speakers. Audio 15 mutes the active audio source.
X Use the control knob to adjust the call vol-
ume, if desired.
X To end a call: press the0076button.
Audio 15 plays the active audio source
again. Rejecting a call
X Press the 0076button.
or X
Select Reject Reject in the display.
Audio 15 plays the current audio source
again. Making a call
Entering a phone number using the
number keys X
Press the 002Bbutton. X
Enter the desired phone number using the
004A to0089 number keys and the 003E
button.
i Notes on the 003Ebutton:
R to enter a star: press the 003Ebutton
once
R to enter a plus: press the 003Ebutton
twice within approx. 1.5 seconds
X To delete individual digits: press the
00DD button.
X To delete the entire numerical

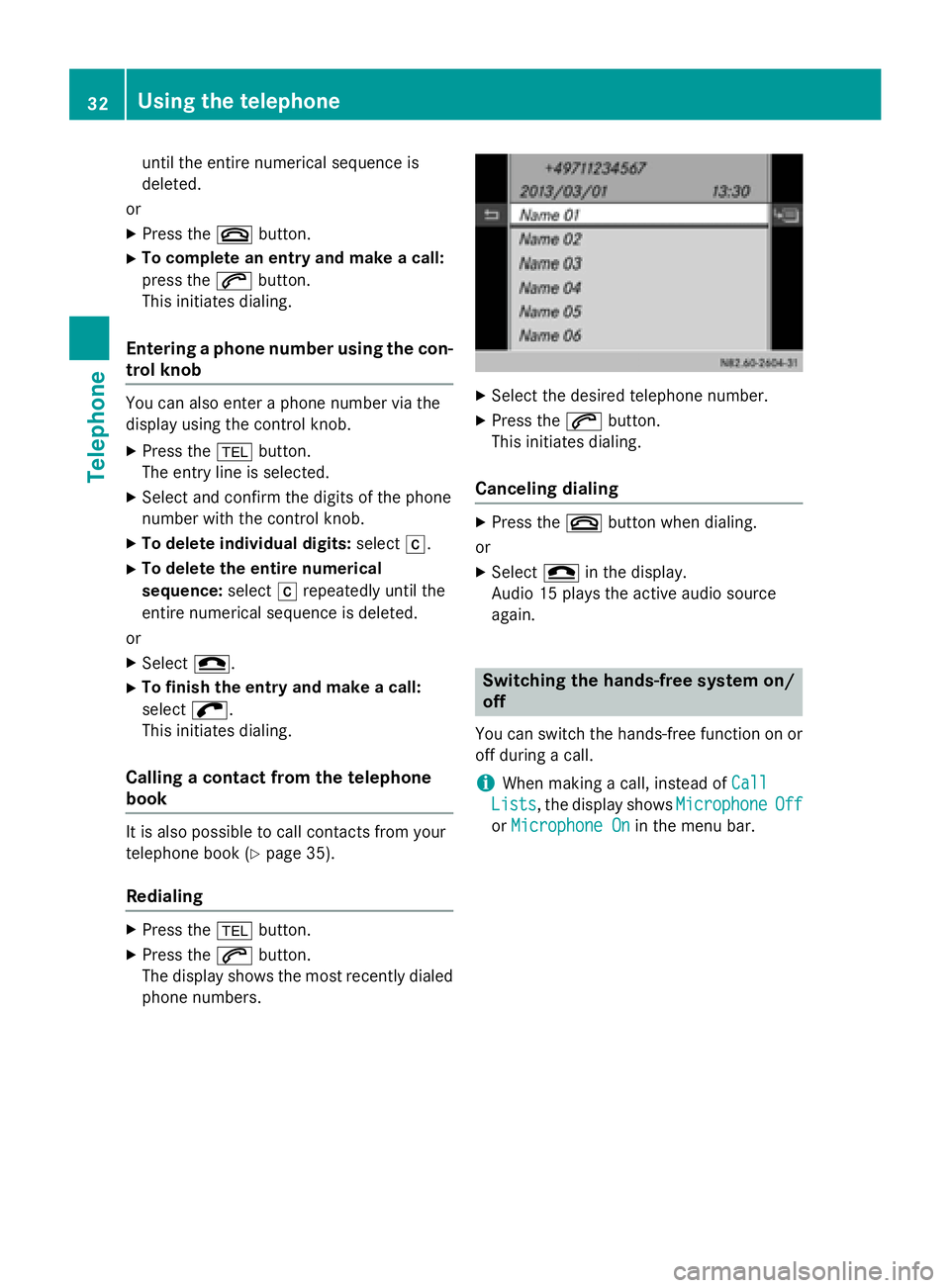

sequence: press and hold the 00DDbutton Using the telephone
31Telephone Z

until the entire numerical sequence is
deleted.
or
X Press the 0076button.
X To complete an entry and make a call:
press the 0061button.
This initiates dialing.
Entering a phone number using the con-
trol knob You can also enter a phone number via the
display using the control knob.
X Press the 002Bbutton.
The entry line is selected.
X Select and confirm the digits of the phone
number with the control knob.
X To delete individual digits: select0065.
X To delete the entire numerical
sequence: select0065repeatedly until the
entire numerical sequence is deleted.
or
X Select 005A.
X To finish the entry and make a call:
select 0066.
This initiates dialing.
Calling a contact from the telephone
book It is also possible to call contacts from your
telephone book (Y
page 35).
Redialing X
Press the 002Bbutton.
X Press the 0061button.
The display shows the most recently dialed phone numbers. X
Select the desired telephone number.
X Press the 0061button.
This initiates dialing.
Canceling dialing X
Press the 0076button when dialing.
or X Select 005Ain the display.
Audio 15 plays the active audio source
again. Switching the hands-free system on/
off
You can switch the hands-free function on or off during a call.
i When making a call, instead of
Call Call
Lists
Lists, the display shows Microphone
MicrophoneOff
Off
or Microphone On
Microphone On in the menu bar.32
Using the telephoneTelephone

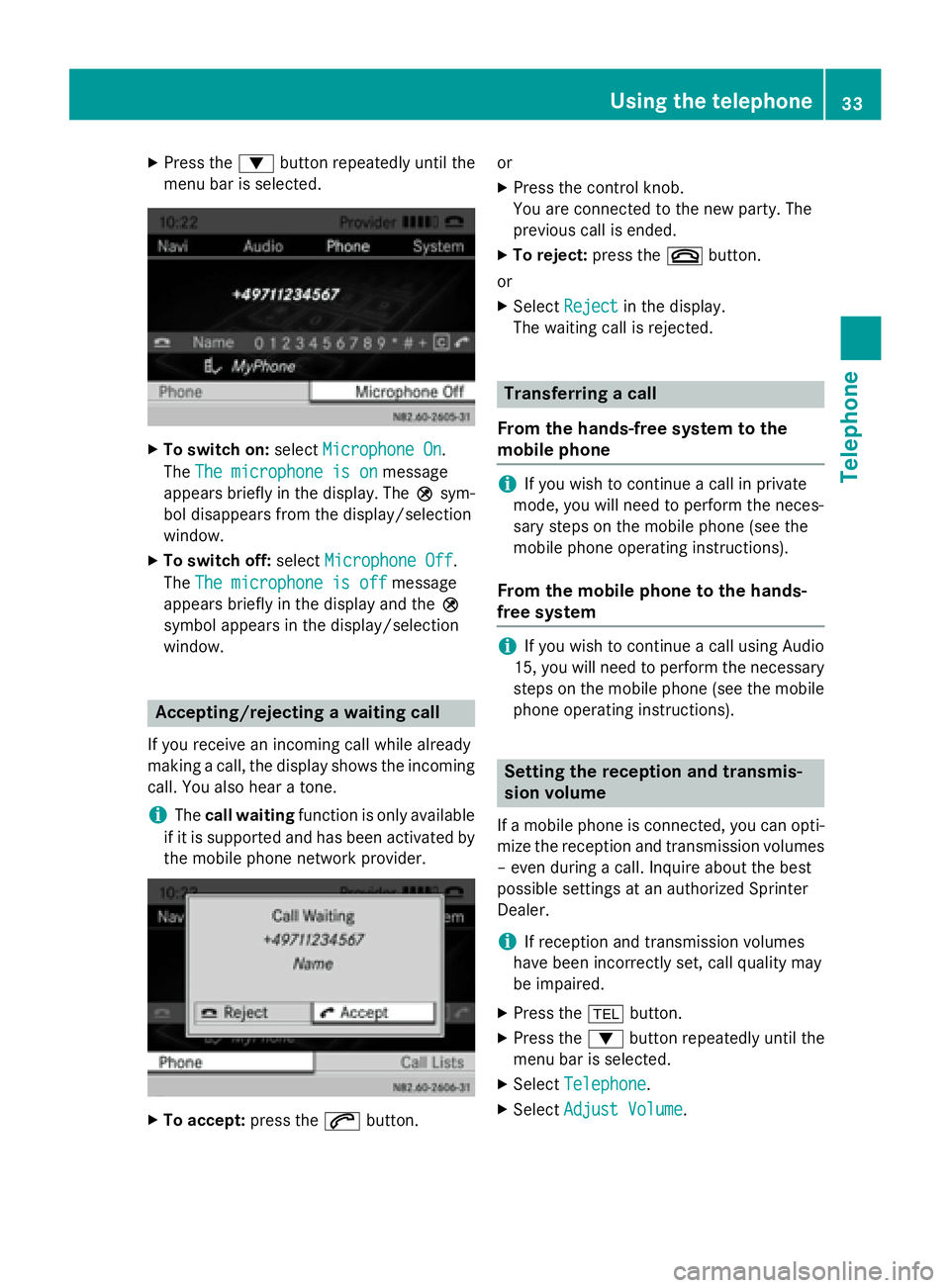

X
Press the 0064button repeatedly until the
menu bar is selected. X
To switch on: selectMicrophone On
Microphone On.
The The microphone is on
The microphone is on message
appears briefly in the display. The 004Dsym-
bol disappears from the display/selection
window.
X To switch off: selectMicrophone Off
Microphone Off.
The The microphone is off
The microphone is off message
appears briefly in the display and the 004D
symbol appears in the display/selection
window. Accepting/rejecting a waiting call
If you receive an incoming call while already
making a call, the display shows the incoming call. You also hear a tone.
i The
call waiting function is only available
if it is supported and has been activated by
the mobile phone network provider. X
To accept: press the0061button. or
X Press the control knob.
You are connected to the new party. The
previous call is ended.
X To reject: press the0076button.
or X Select Reject Reject in the display.
The waiting call is rejected. Transferring a call
From the hands-free system to the
mobile phone i
If you wish to continue a call in private
mode, you will need to perform the neces-
sary steps on the mobile phone (see the
mobile phone operating instructions).
From the mobile phone to the hands-
free system i
If you wish to continue a call using Audio
15, you will need to perform the necessary
steps on the mobile phone (see the mobile phone operating instructions). Setting the reception and transmis-
sion volume
If a mobile phone is connected, you can opti-
mize the reception and transmission volumes – even during a call. Inquire about the best
possible settings at an authorized Sprinter
Dealer.
i If reception and transmission volumes
have been incorrectly set, call quality may
be impaired.

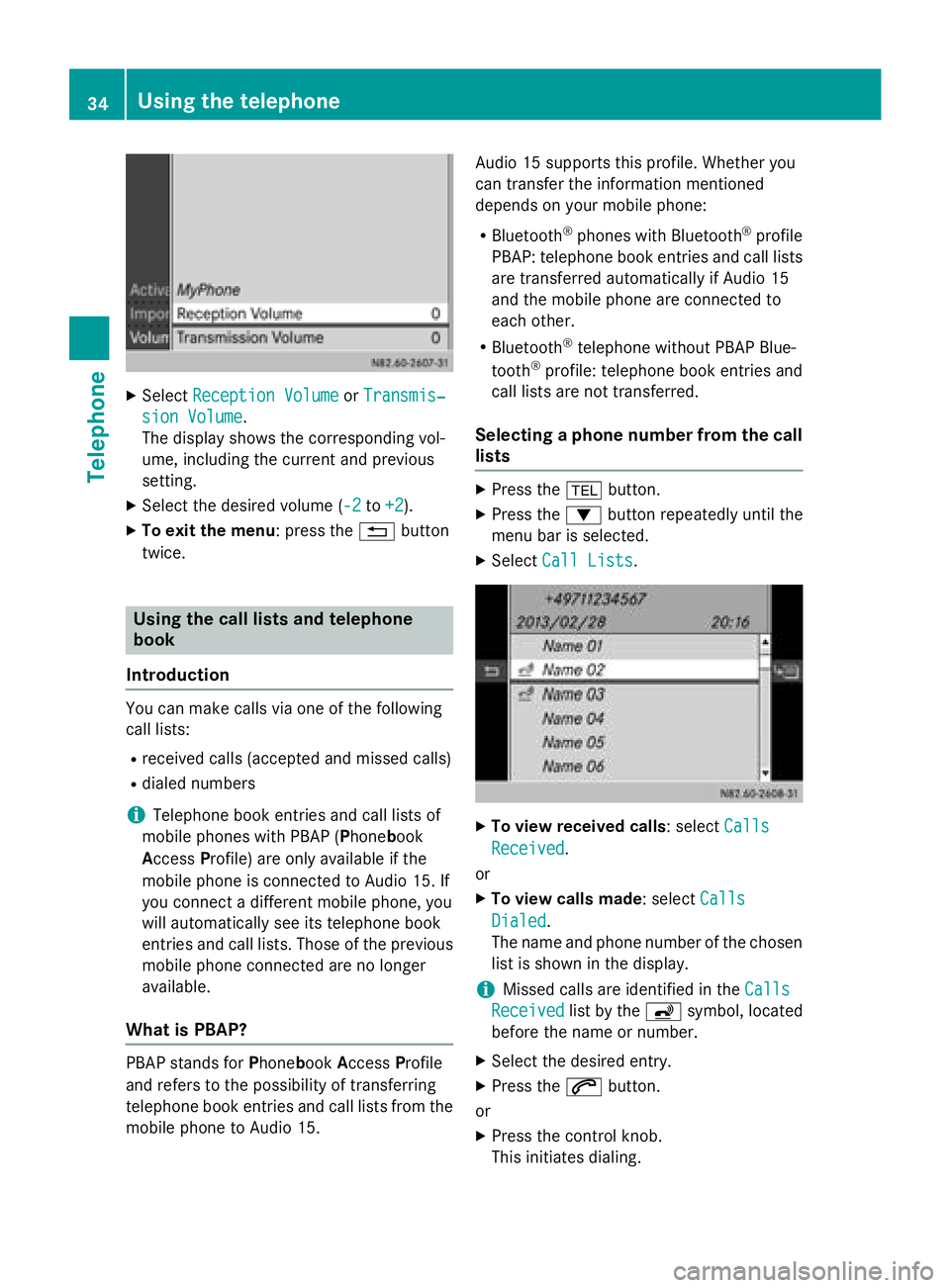

X Press the 002Bbutton.
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Telephone Telephone .
X Select Adjust Volume
Adjust Volume. Using the telephone
33Telephone Z

X
Select Reception Volume
Reception Volume orTransmis‐
Transmis‐
sion Volume
sion Volume .
The display shows the corresponding vol-
ume, including the current and previous
setting.
X Select the desired volume (-2 -2to+2
+2).
X To exit the menu: press the 0038button
twice. Using the call lists and telephone
book
Introduction You can make calls via one of the following
call lists:
R received calls (accepted and missed calls)
R dialed numbers
i Telephone book entries and call lists of
mobile phones with PBAP (Phone book
Access Profile) are only available if the
mobile phone is connected to Audio 15. If
you connect a different mobile phone, you
will automatically see its telephone book
entries and call lists. Those of the previous
mobile phone connected are no longer
available.
What is PBAP? PBAP stands for
PhonebookAccess Profile
and refers to the possibility of transferring
telephone book entries and call lists from the mobile phone to Audio 15. Audio 15 supports this profile. Whether you
can transfer the information mentioned
depends on your mobile phone:
R Bluetooth ®
phones with Bluetooth ®
profile
PBAP: telephone book entries and call lists
are transferred automatically if Audio 15
and the mobile phone are connected to
each other.
R Bluetooth ®
telephone without PBAP Blue-
tooth ®
profile: telephone book entries and
call lists are not transferred.
Selecting a phone number from the call
lists X
Press the 002Bbutton.
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Call Lists
Call Lists. X
To view received calls: select Calls Calls
Received
Received.
or X To view calls made: select Calls
Calls
Dialed
Dialed .
The name and phone number of the chosen list is shown in the display.
i Missed calls are identified in the
Calls
Calls
Received
Received list by the00D1symbol, located
before the name or number.
X Select the desired entry.
X Press the 0061button.
or
X Press the control knob.
This initiates dialing. 34
Using the telephoneTelephone

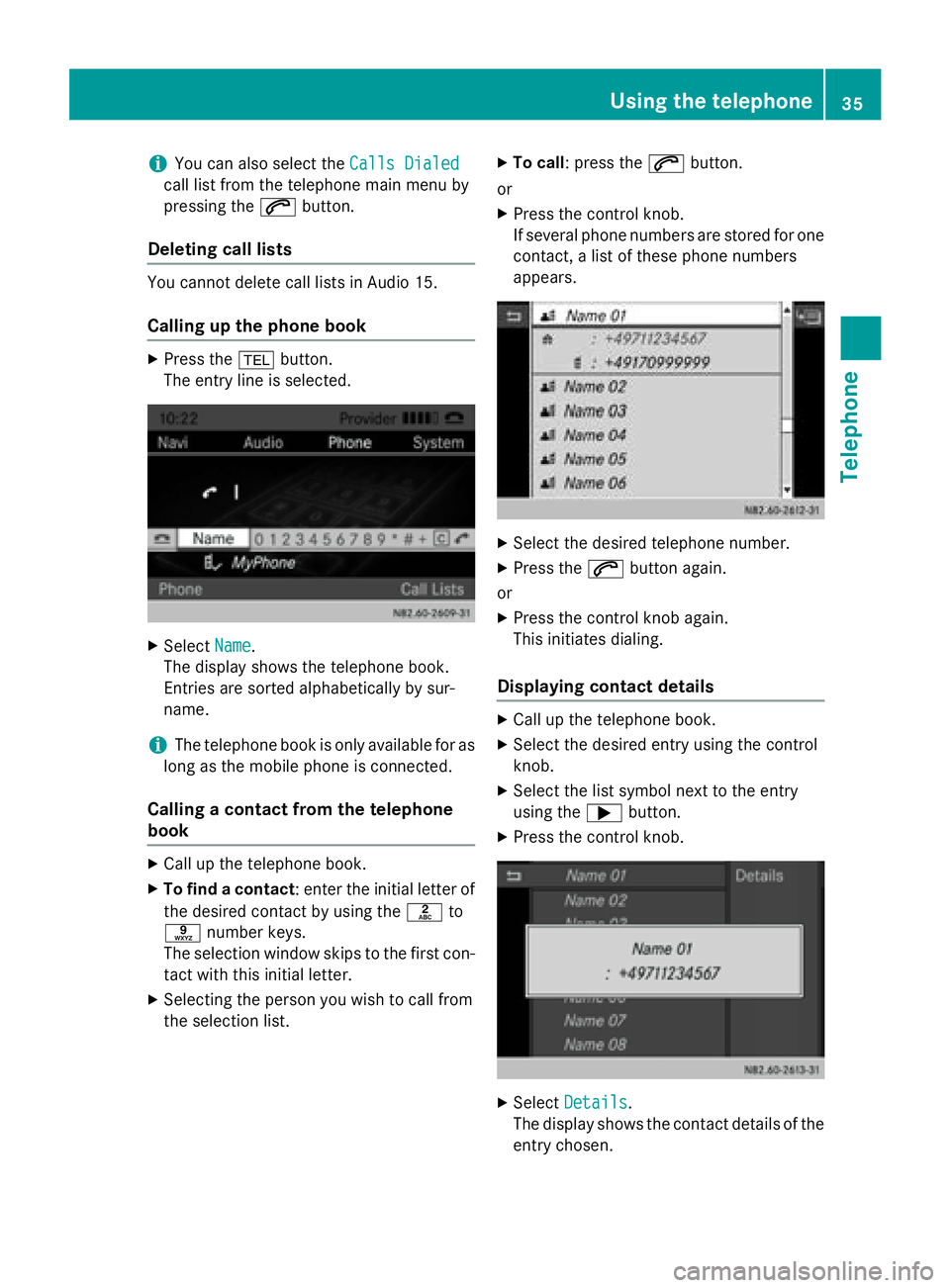

i
You can also select the
Calls Dialed
Calls Dialed
call list from the telephone main menu by
pressing the 0061button.
Deleting call lists You cannot delete call lists in Audio 15.
Calling up the phone book X
Press the 002Bbutton.
The entry line is selected. X
Select Name Name.
The display shows the telephone book.
Entries are sorted alphabetically by sur-
name.
i The telephone book is only available for as
long as the mobile phone is connected.
Calling a contact from the telephone
book X
Call up the telephone book.
X To find a contact : enter the initial letter of
the desired contact by using the 0082to
0089 number keys.
The selection window skips to the first con-
tact with this initial letter.
X Selecting the person you wish to call from
the selection list. X
To call: press the 0061button.
or X Press the control knob.
If several phone numbers are stored for one
contact, a list of these phone numbers
appears. X
Select the desired telephone number.
X Press the 0061button again.
or
X Press the control knob again.
This initiates dialing.

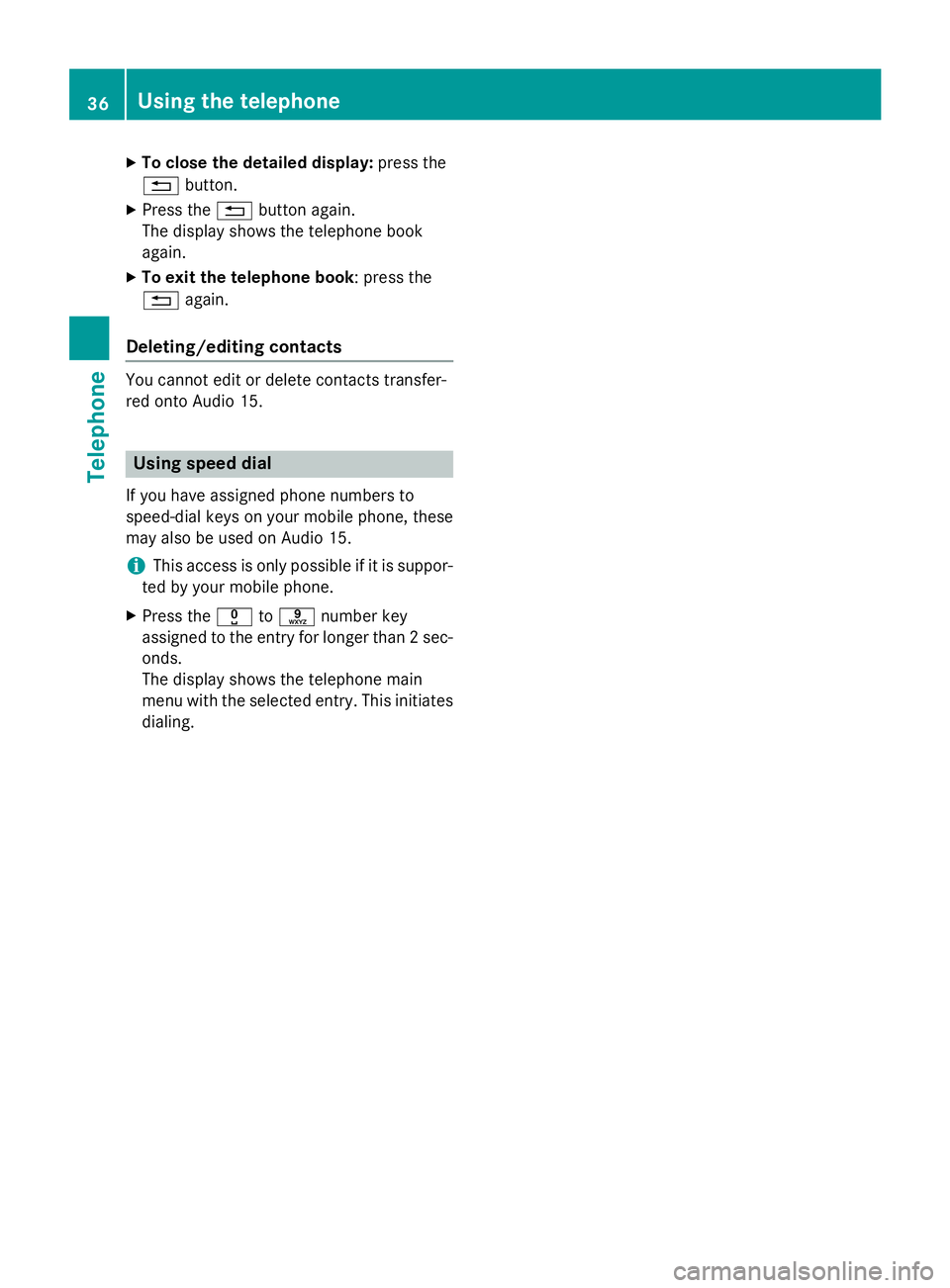

Displaying contact details X
Call up the telephone book.
X Select the desired entry using the control
knob.
X Select the list symbol next to the entry
using the 0065button.
X Press the control knob. X
Select Details Details.
The display shows the contact details of the entry chosen. Using the telephone
35Telephone Z

X
To close the detailed display: press the
0038 button.
X Press the 0038button again.
The display shows the telephone book
again.
X To exit the telephone book: press the
0038 again.
Deleting/editing contacts You cannot edit or delete contacts transfer-
red onto Audio 15. Using speed dial
If you have assigned phone numbers to
speed-dial keys on your mobile phone, these
may also be used on Audio 15.
i This access is only possible if it is suppor-
ted by your mobile phone.
X Press the 004Ato0089 number key
assigned to the entry for longer than 2 sec- onds.
The display shows the telephone main
menu with the selected entry. This initiates
dialing. 36
Using the telephoneTelephone

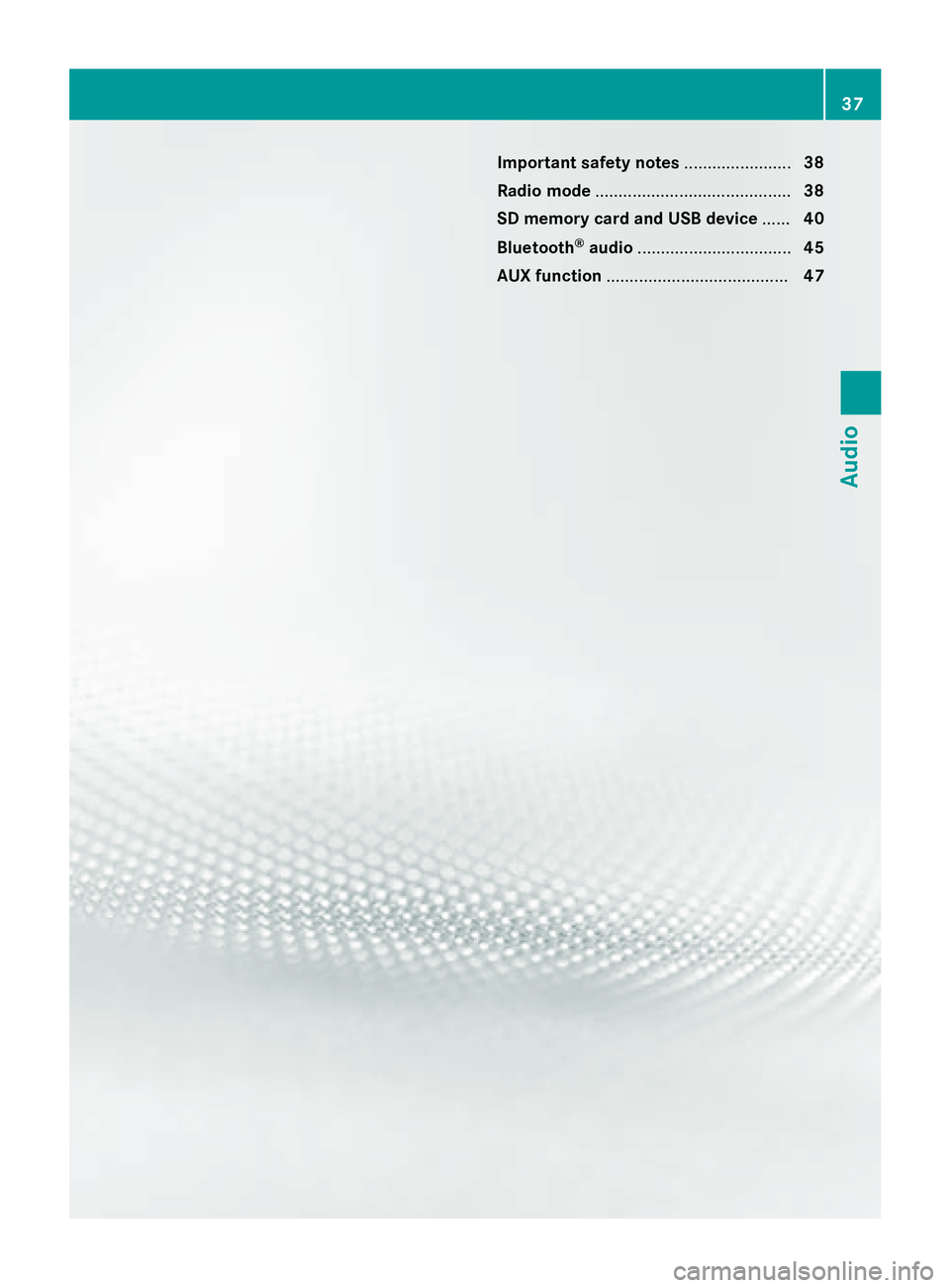

Important safety notes
.......................38
Radio mode .......................................... 38
SD memory card and USB device ......40
Bluetooth ®
audio ................................. 45
AUX function ....................................... 47 37Audio

Important safety notes
G
WARNING
Handling discs while driving may distract you from traffic conditions. You could also lose
control of the vehicle. There is a risk of an
accident.
Handle discs only when the vehicle is station-
ary. G
WARNING
If you handle or operate mobile audio/video
sources when driving, you will be distracted
from the traffic conditions. You could also
lose control of the vehicle. There is a risk of an accident.
Only handle or operate these mobile audio/
video sources when the vehicle is stationary.
Only operate mobile audio/video sources
using the communication equipment integra-
ted in the vehicle when traffic conditions per-
mit. If this is not the case, park the vehicle
paying attention to traffic conditions and
operate the equipment when the vehicle is
stationary. G
WARNING
If you operate information systems and com-
munication equipment integrated in the vehi- cle while driving, you will be distracted from
traffic conditions. You could also lose control of the vehicle. There is a risk of an accident.
Only operate the equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
to traffic conditions and operate the equip-
ment when the vehicle is stationary.
Observe the legal requirements of the coun-
try in which you are currently driving. Radio mode
Selecting the radio
X Press the 002Abutton.
You will hear the last station selected. Selecting a station
Station search X
Press the 0048or0049 button briefly.
You will hear the next receivable station.
Setting stations manually X
Press and hold the 0048or0049 button
until the desired frequency is reached.
You will hear the selected station if it is
receivable.
Setting the frequency manually X
Press the 003Ebutton.
X Using the 004Ato0089 number keys, enter
the desired frequency 0043.
or X Press the 0064button repeatedly until the
menu bar is selected.
X Select Radio Radio.
The display shows the Radio menu.
X Select Enter Frequency
Enter Frequency .
X Using the 004Ato0089 number keys, enter
the desired frequency 0043.
i You can only enter frequencies in the
waveband that has been set (Y page 40).38
Radio modeAudio
