MERCEDES-BENZ SPRINTER 2015 MY15 Audio Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2015, Model line: SPRINTER, Model: MERCEDES-BENZ SPRINTER 2015Pages: 54, PDF Size: 1.14 MB

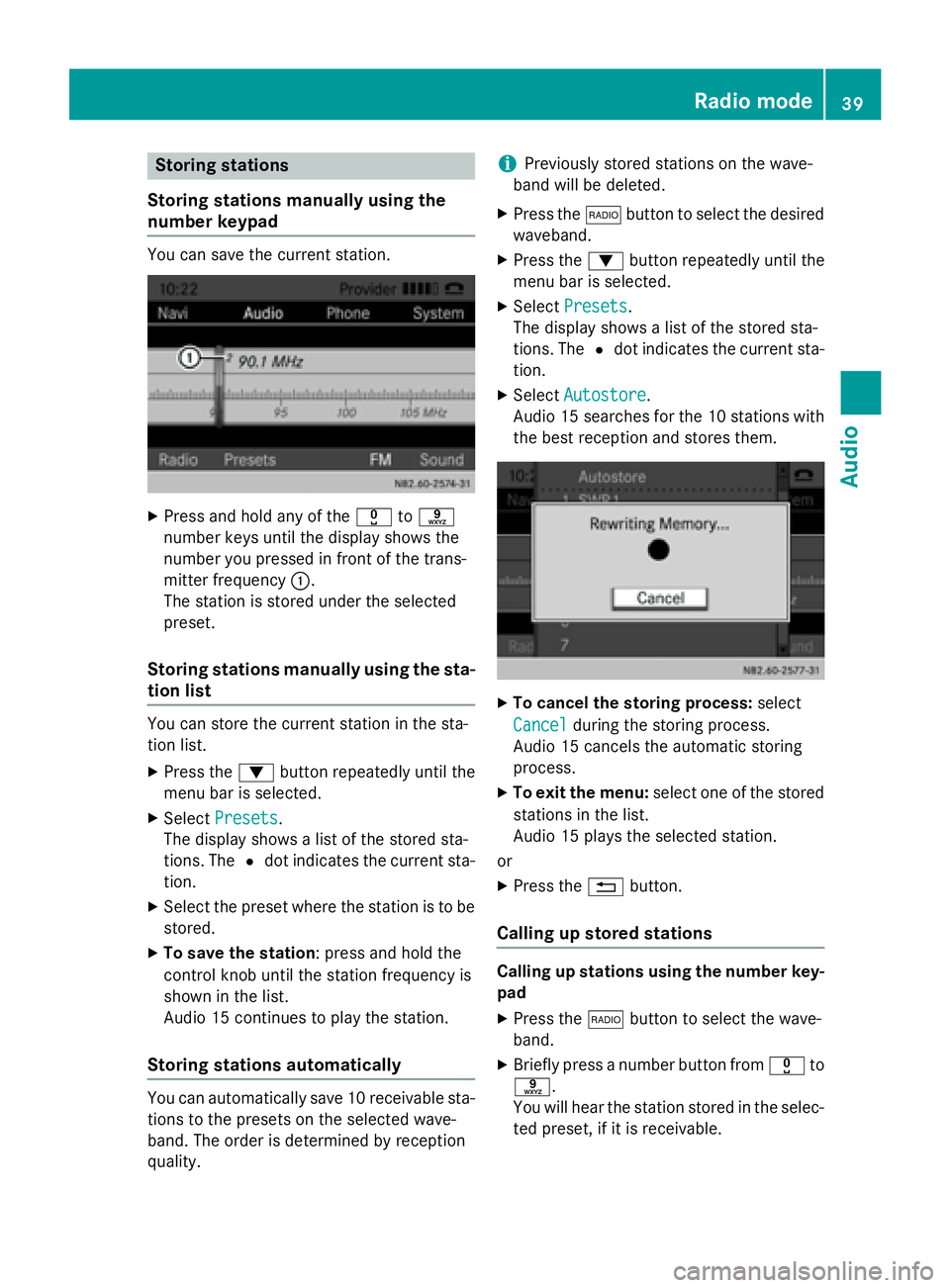

Page 41 of 54
Storing stations
Storing stations manually using the
number keypad You can save the current station.
X
Press and hold any of the 004Ato0089
number keys until the display shows the
number you pressed in front of the trans-
mitter frequency 0043.
The station is stored under the selected
preset.
Storing stations manually using the sta- tion list You can store the current station in the sta-
tion list.
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Presets Presets.
The display shows a list of the stored sta-
tions. The 0036dot indicates the current sta-
tion.
X Select the preset where the station is to be
stored.
X To save the station: press and hold the
control knob until the station frequency is
shown in the list.
Audio 15 continues to play the station.
Storing stations automatically You can automatically save 10 receivable sta-
tions to the presets on the selected wave-
band. The order is determined by reception
quality. i
Previously stored stations on the wave-
band will be deleted.
X Press the 002Abutton to select the desired
waveband.
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Presets Presets.
The display shows a list of the stored sta-
tions. The 0036dot indicates the current sta-
tion.
X Select Autostore Autostore.
Audio 15 searches for the 10 stations with the best reception and stores them. X
To cancel the storing process: select
Cancel
Cancel during the storing process.
Audio 15 cancels the automatic storing
process.
X To exit the menu: select one of the stored
stations in the list.
Audio 15 plays the selected station.
or
X Press the 0038button.
Calling up stored stations Calling up stations using the number key-
pad
X Press the 002Abutton to select the wave-
band.
X Briefly press a number button from 004Ato
0089.
You will hear the station stored in the selec-
ted preset, if it is receivable. Radio mode
39Audio Z

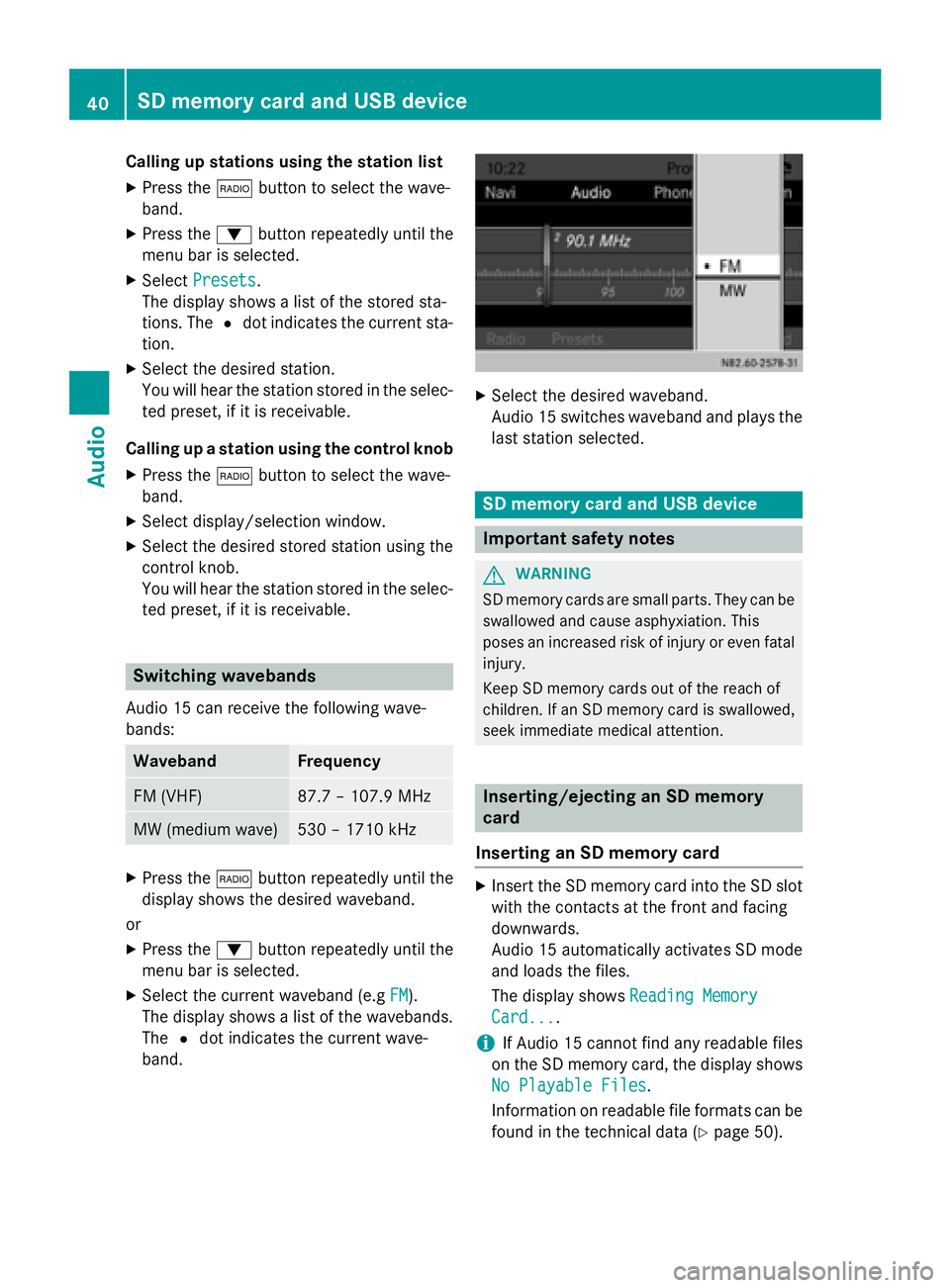

Page 42 of 54
Calling up stations using the station list
X Press the 002Abutton to select the wave-
band.
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Presets
Presets.
The display shows a list of the stored sta-
tions. The 0036dot indicates the current sta-
tion.
X Select the desired station.
You will hear the station stored in the selec-
ted preset, if it is receivable.
Calling up a station using the control knob
X Press the 002Abutton to select the wave-
band.
X Select display/selection window.
X Select the desired stored station using the
control knob.
You will hear the station stored in the selec- ted preset, if it is receivable. Switching wavebands
Audio 15 can receive the following wave-
bands: Waveband Frequency
FM (VHF) 87.7 – 107.9 MHz
MW (medium wave) 530 – 1710 kHz
X
Press the 002Abutton repeatedly until the
display shows the desired waveband.
or X Press the 0064button repeatedly until the
menu bar is selected.
X Select the current waveband (e.g FM FM).
The display shows a list of the wavebands.
The 0036dot indicates the current wave-
band. X
Select the desired waveband.
Audio 15 switches waveband and plays the
last station selected. SD memory card and USB device
Important safety notes
G
WARNING
SD memory cards are small parts. They can be swallowed and cause asphyxiation. This
poses an increased risk of injury or even fatal injury.
Keep SD memory cards out of the reach of
children. If an SD memory card is swallowed,
seek immediate medical attention. Inserting/ejecting an SD memory
card
Inserting an SD memory card X
Insert the SD memory card into the SD slot
with the contacts at the front and facing
downwards.
Audio 15 automatically activates SD mode
and loads the files.
The display shows Reading Memory Reading Memory
Card...
Card....
i If Audio 15 cannot find any readable files
on the SD memory card, the display shows
No Playable Files
No Playable Files.
Information on readable file formats can be found in the technical data (Y page 50).40
SD memory card and USB deviceAudio

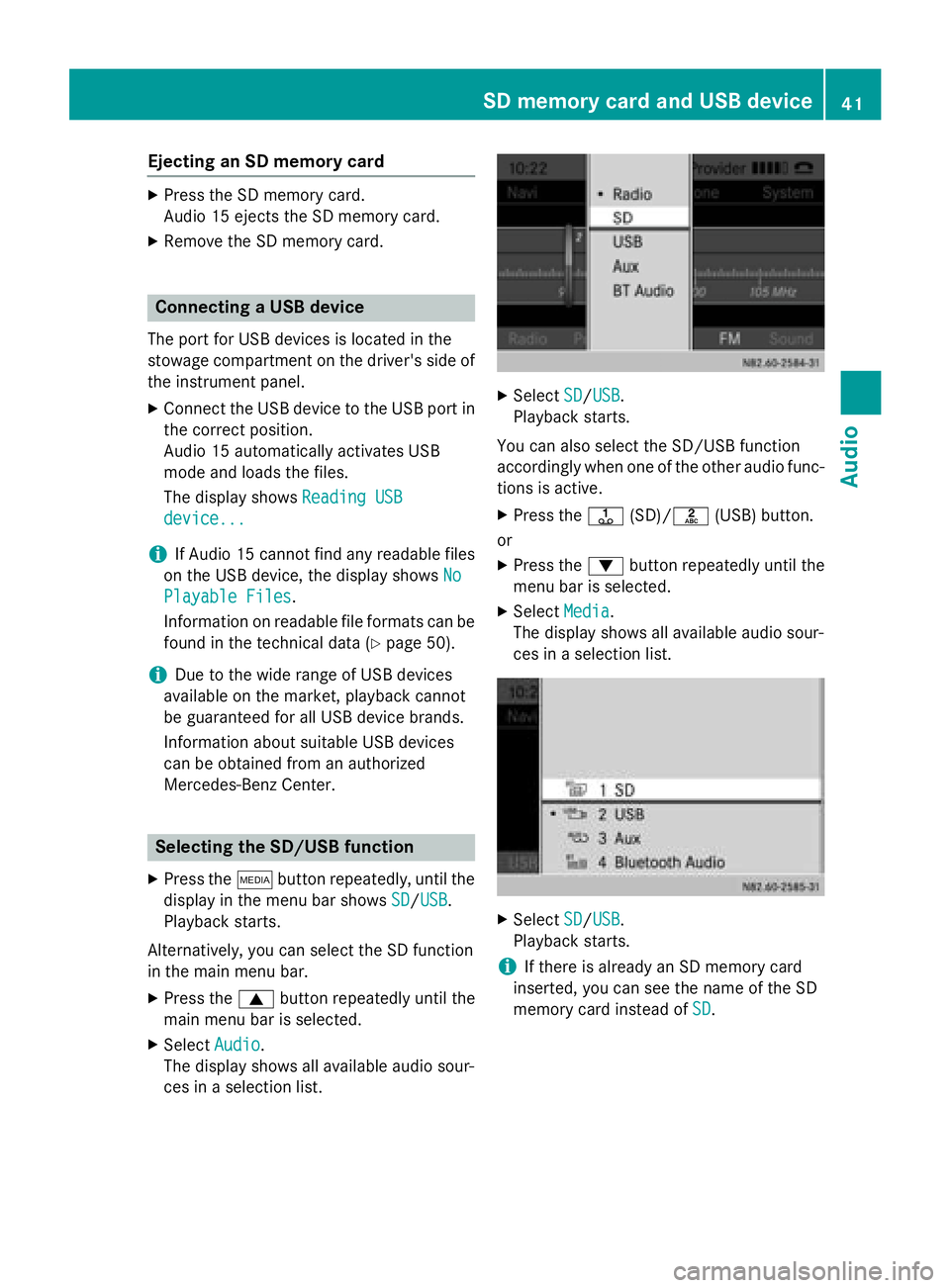

Page 43 of 54
Ejecting an SD memory card
X
Press the SD memory card.
Audio 15 ejects the SD memory card.
X Remove the SD memory card. Connecting a USB device
The port for USB devices is located in the
stowage compartment on the driver's side of
the instrument panel.
X Connect the USB device to the USB port in
the correct position.
Audio 15 automatically activates USB
mode and loads the files.
The display shows Reading USB Reading USB
device...
device...
i If Audio 15 cannot find any readable files
on the USB device, the display shows No
No
Playable Files
Playable Files.
Information on readable file formats can be
found in the technical data (Y page 50).
i Due to the wide range of USB devices
available on the market, playback cannot
be guaranteed for all USB device brands.
Information about suitable USB devices
can be obtained from an authorized
Mercedes-Benz Center. Selecting the SD/USB function
X Press the 00FDbutton repeatedly, until the
display in the menu bar shows SD
SD/USB USB.
Playback starts.
Alternatively, you can select the SD function
in the main menu bar.
X Press the 0063button repeatedly until the
main menu bar is selected.
X Select Audio
Audio.
The display shows all available audio sour-
ces in a selection list. X
Select SD SD/USB
USB.
Playback starts.
You can also select the SD/USB function
accordingly when one of the other audio func-
tions is active.
X Press the 0080(SD)/0082 (USB) button.
or
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Media Media.
The display shows all available audio sour-
ces in a selection list. X
Select SD SD/USB
USB.
Playback starts.
i If there is already an SD memory card
inserted, you can see the name of the SD
memory card instead of SD
SD. SD memory card and USB device
41Audio Z

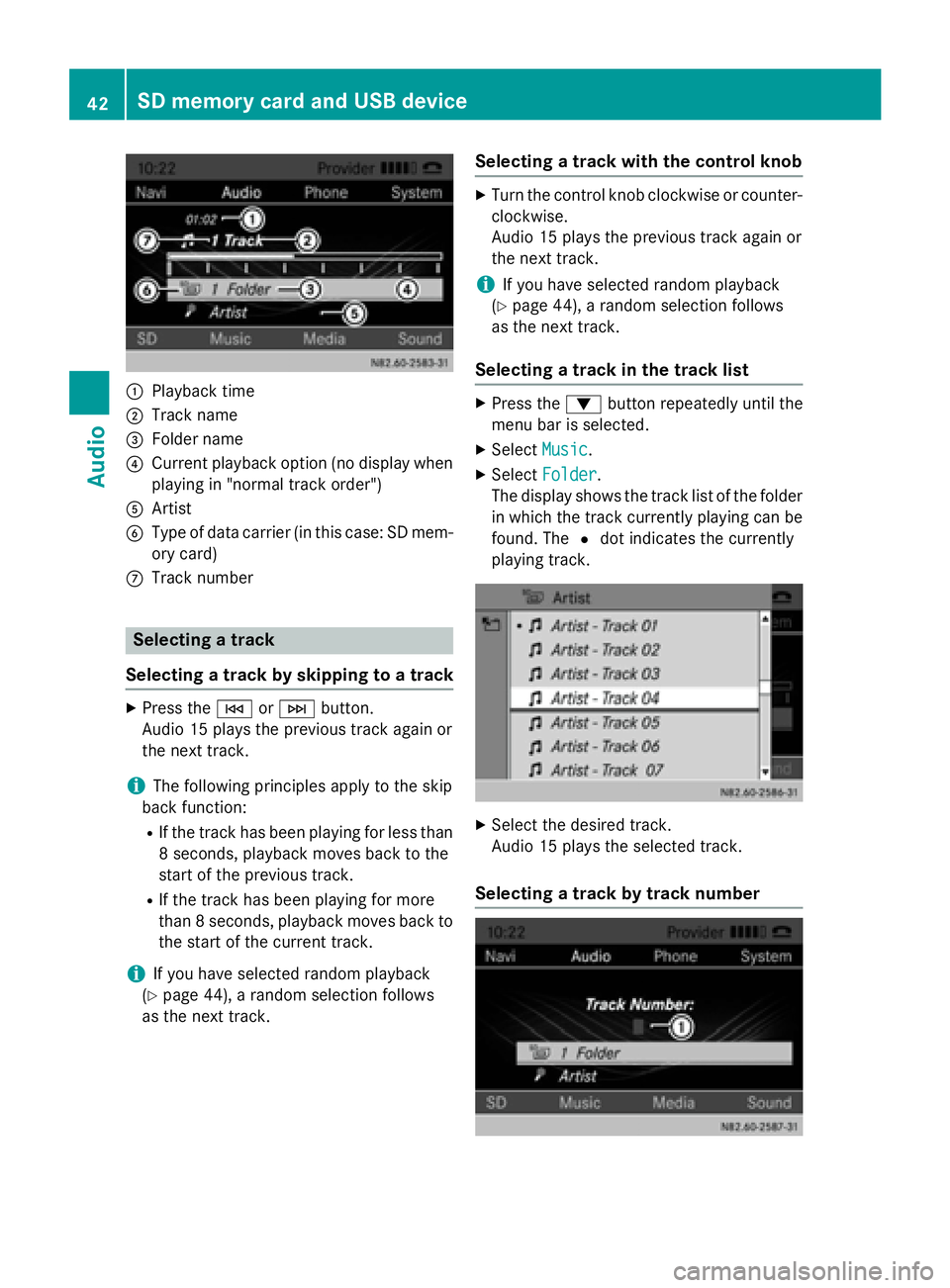

Page 44 of 54
0043
Playback time
0044 Track name
0087 Folder name
0085 Current playback option (no display when
playing in "normal track order")
0083 Artist
0084 Type of data carrier (in this case: SD mem-
ory card)
006B Track number Selecting a track
Selecting a track by skipping to a track X
Press the 0048or0049 button.
Audio 15 plays the previous track again or
the next track.
i The following principles apply to the skip
back function:
R If the track has been playing for less than
8 seconds, playback moves back to the
start of the previous track.
R If the track has been playing for more
than 8 seconds, playback moves back to
the start of the current track.
i If you have selected random playback
(Y page 44), a random selection follows
as the next track. Selecting a track with the control knob X
Turn the control knob clockwise or counter-
clockwise.
Audio 15 plays the previous track again or
the next track.
i If you have selected random playback
(Y page 44), a random selection follows
as the next track.
Selecting a track in the track list X
Press the 0064button repeatedly until the
menu bar is selected.
X Select Music Music.
X Select Folder
Folder.
The display shows the track list of the folder
in which the track currently playing can be found. The 0036dot indicates the currently
playing track. X
Select the desired track.
Audio 15 plays the selected track.
Selecting a track by track number 42
SD memory card and USB deviceAudio

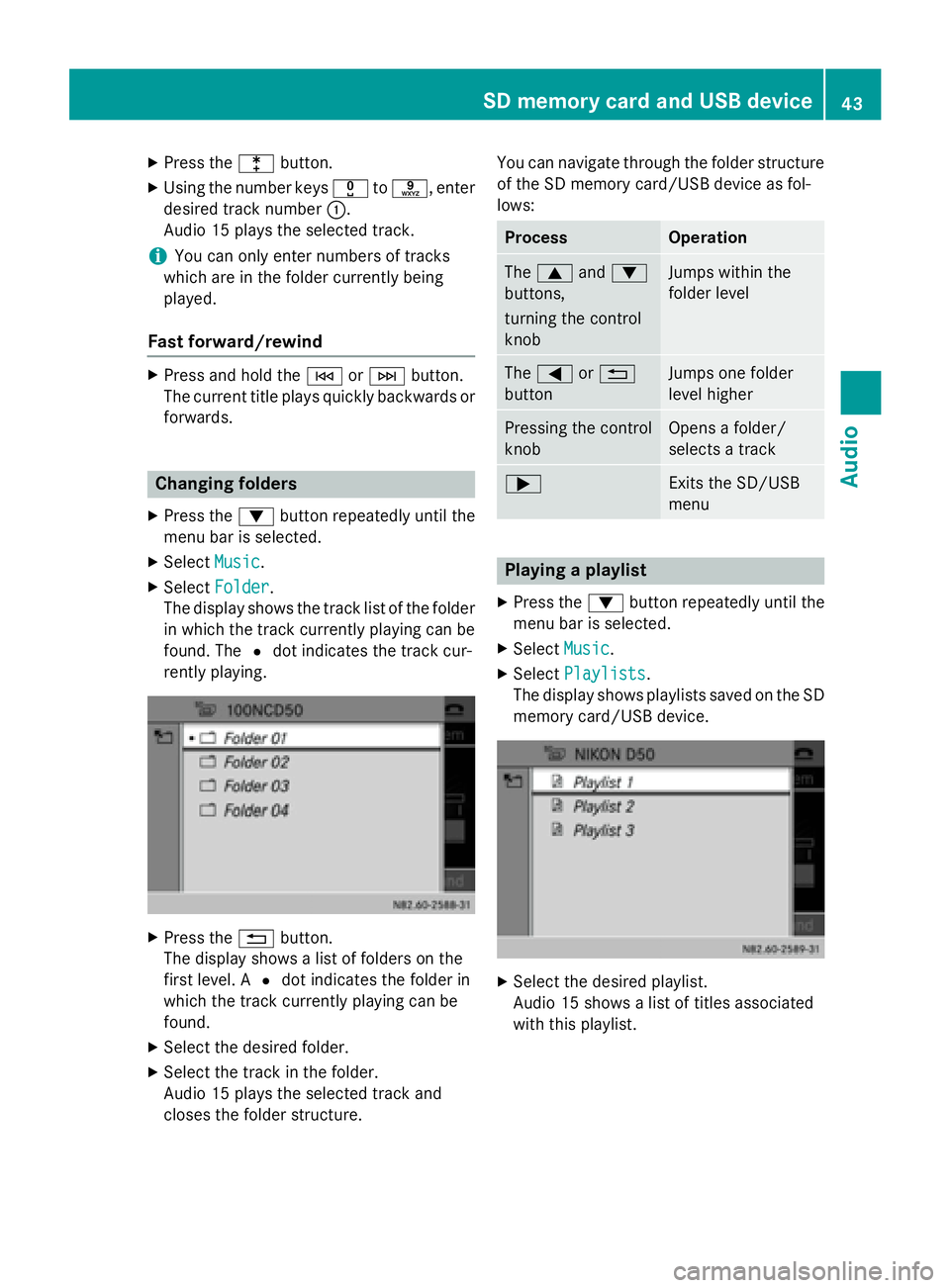

Page 45 of 54
X
Press the 003Ebutton.
X Using the number keys 004Ato0089, enter
desired track number 0043.
Audio 15 plays the selected track.
i You can only enter numbers of tracks
which are in the folder currently being
played.
Fast forward/rewind X
Press and hold the 0048or0049 button.
The current title plays quickly backwards or
forwards. Changing folders
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Music Music.
X Select Folder
Folder.
The display shows the track list of the folder
in which the track currently playing can be found. The 0036dot indicates the track cur-
rently playing. X
Press the 0038button.
The display shows a list of folders on the
first level. A 0036dot indicates the folder in
which the track currently playing can be
found.
X Select the desired folder.
X Select the track in the folder.
Audio 15 plays the selected track and
closes the folder structure. You can navigate through the folder structure
of the SD memory card/USB device as fol-
lows: Process Operation
The
0063 and0064
buttons,
turning the control
knob Jumps within the
folder level
The
0059 or0038
button Jumps one folder
level higher
Pressing the control
knob Opens a folder/
selects a track
0065
Exits the SD/USB
menu
Playing a playlist
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Music Music.
X Select Playlists
Playlists .
The display shows playlists saved on the SD memory card/USB device. X
Select the desired playlist.
Audio 15 shows a list of titles associated
with this playlist. SD memory card and USB device
43Audio Z

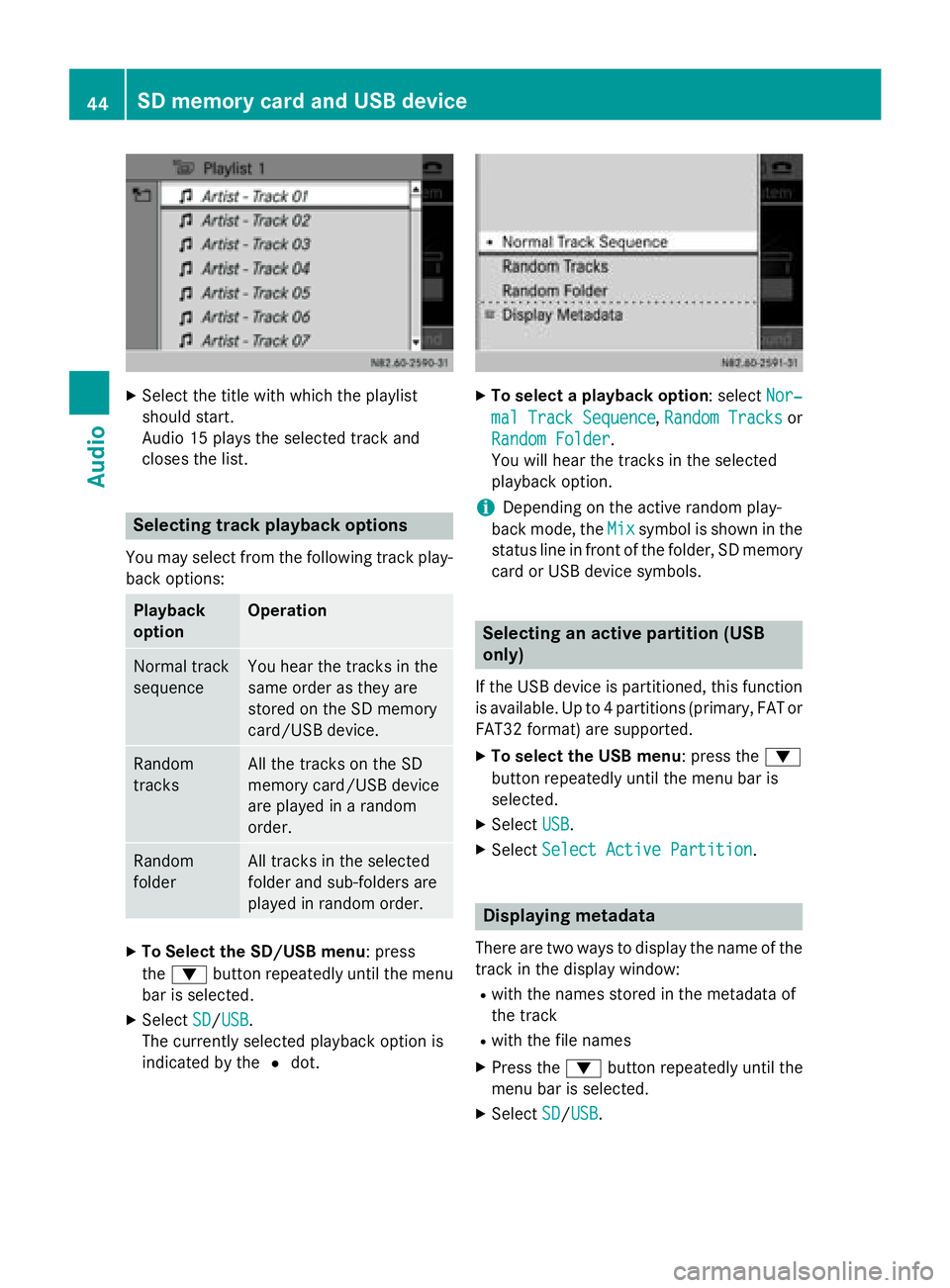

Page 46 of 54
X
Select the title with which the playlist
should start.
Audio 15 plays the selected track and
closes the list. Selecting track playback options
You may select from the following track play- back options: Playback
option Operation
Normal track
sequence You hear the tracks in the
same order as they are
stored on the SD memory
card/USB device.
Random
tracks All the tracks on the SD
memory card/USB device
are played in a random
order. Random
folder All tracks in the selected
folder and sub-folders are
played in random order. X
To Select the SD/USB menu: press
the 0064 button repeatedly until the menu
bar is selected.
X Select SD
SD/USB USB.
The currently selected playback option is
indicated by the 0036dot. X
To select a playback option : selectNor‐ Nor‐
mal Track Sequence
mal Track Sequence ,Random Tracks
Random Tracks or
Random Folder
Random Folder .
You will hear the tracks in the selected
playback option.
i Depending on the active random play-
back mode, the Mix Mixsymbol is shown in the
status line in front of the folder, SD memory card or USB device symbols. Selecting an active partition (USB
only)
If the USB device is partitioned, this function
is available. Up to 4 partitions (primary, FAT or FAT32 format) are supported.
X To select the USB menu: press the 0064
button repeatedly until the menu bar is
selected.
X Select USB USB.
X Select Select Active Partition
Select Active Partition . Displaying metadata
There are two ways to display the name of the
track in the display window:
R with the names stored in the metadata of
the track
R with the file names
X Press the 0064button repeatedly until the
menu bar is selected.
X Select SD SD/USBUSB. 44
SD memory card and USB deviceAudio

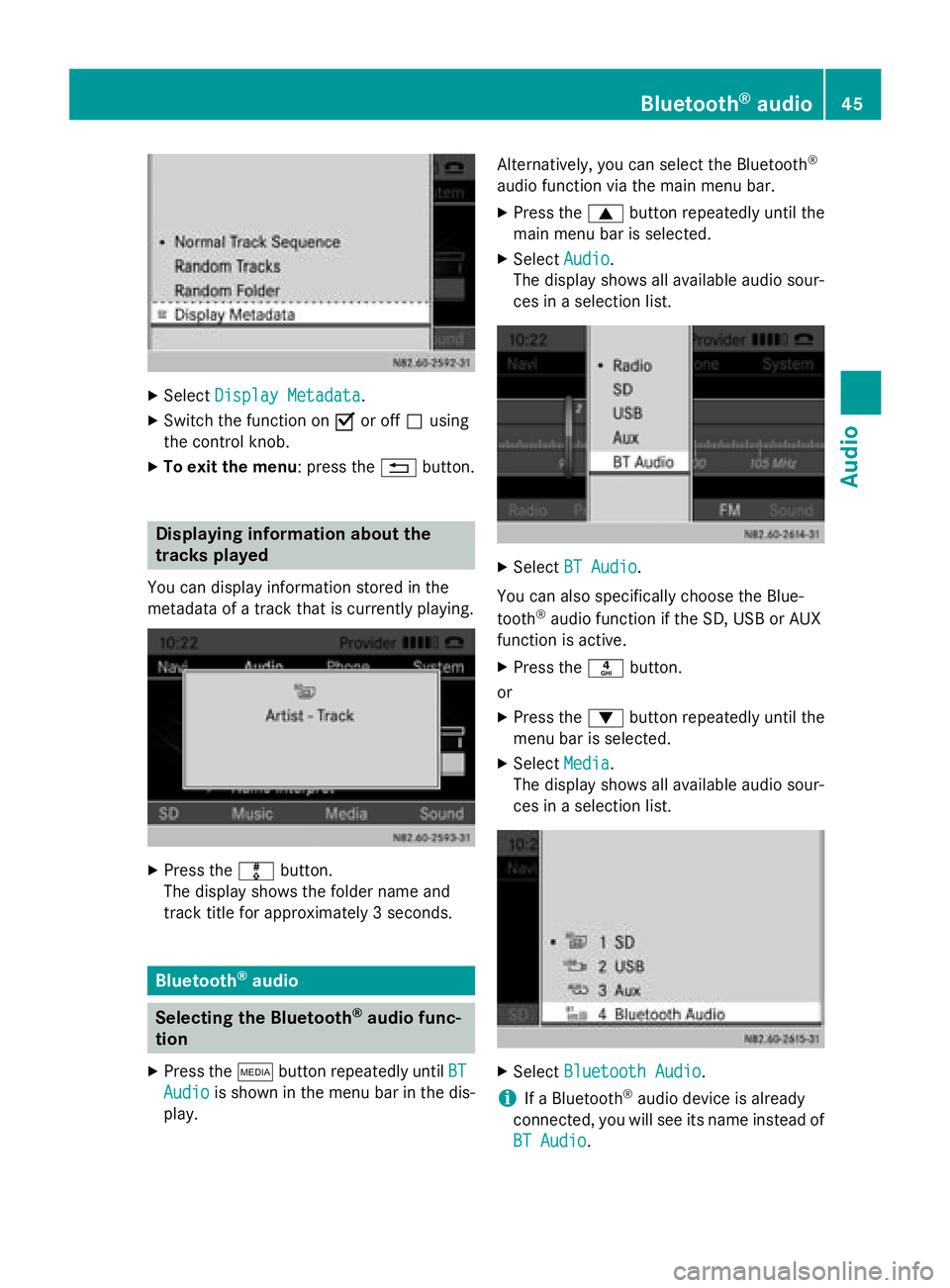

Page 47 of 54
X
Select Display Metadata
Display Metadata.
X Switch the function on 0073or off 0053using
the control knob.
X To exit the menu : press the0038button. Displaying information about the
tracks played
You can display information stored in the
metadata of a track that is currently playing. X
Press the 003Fbutton.
The display shows the folder name and
track title for approximately 3 seconds. Bluetooth
®
audio Selecting the Bluetooth
®
audio func-
tion
X Press the 00FDbutton repeatedly until BT
BT
Audio Audio is shown in the menu bar in the dis-
play. Alternatively, you can select the Bluetooth
®
audio function via the main menu bar. X Press the 0063button repeatedly until the
main menu bar is selected.
X Select Audio Audio.
The display shows all available audio sour-
ces in a selection list. X
Select BT Audio BT Audio.
You can also specifically choose the Blue-
tooth ®
audio function if the SD, USB or AUX
function is active.
X Press the 0084button.
or X Press the 0064button repeatedly until the
menu bar is selected.
X Select Media Media.
The display shows all available audio sour-
ces in a selection list. X
Select Bluetooth Audio
Bluetooth Audio.
i If a Bluetooth ®
audio device is already
connected, you will see its name instead of
BT Audio
BT Audio. Bluetooth
®
audio 45Audio Z
Page 48 of 54

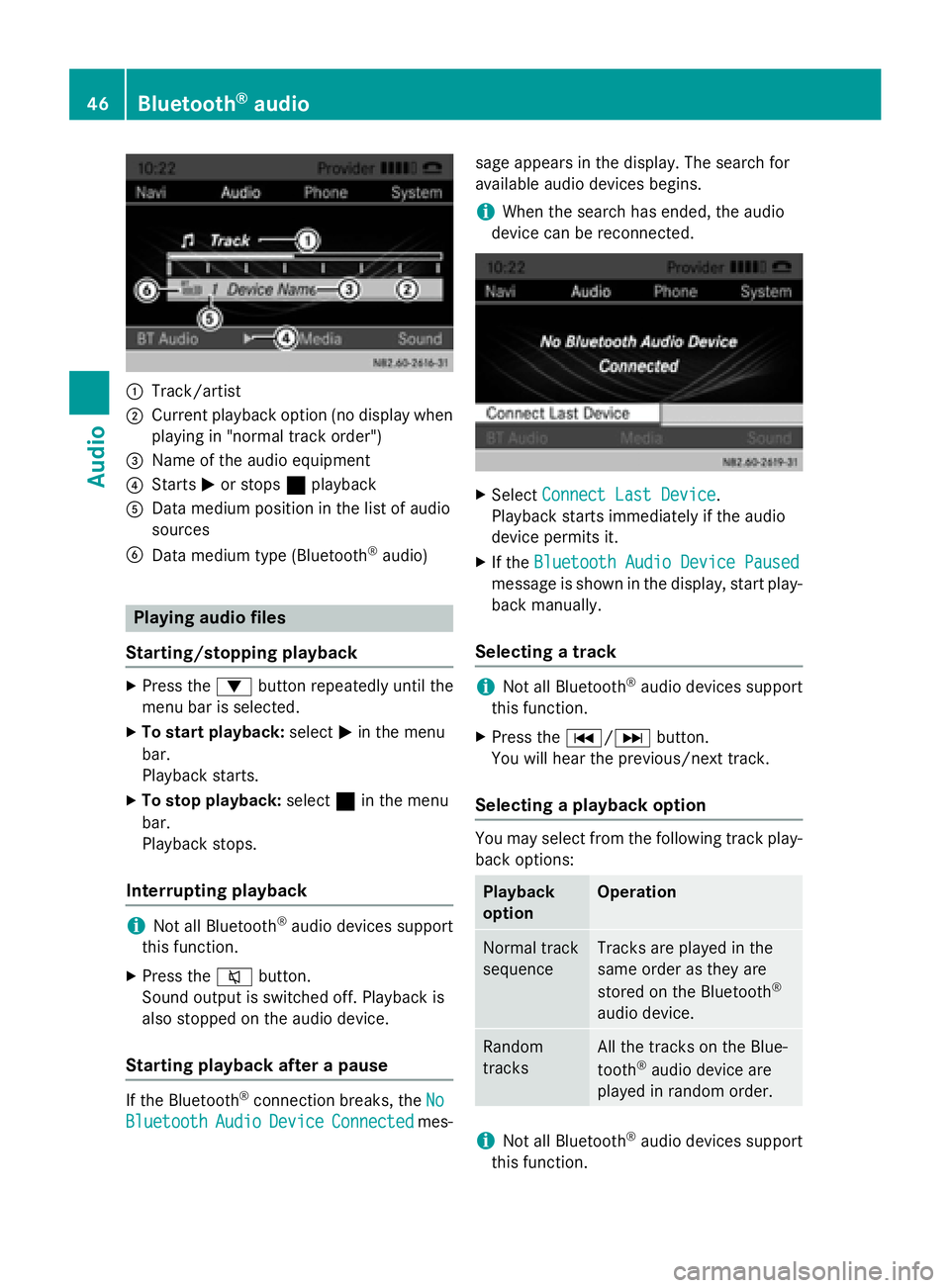

0043
Track/artist
0044 Current playback option (no display when
playing in "normal track order")
0087 Name of the audio equipment
0085 Starts 0050or stops 00A1playback
0083 Data medium position in the list of audio
sources
0084 Data medium type (Bluetooth ®
audio) Playing audio files
Starting/stopping playback X
Press the 0064button repeatedly until the
menu bar is selected.
X To start playback: select0050in the menu
bar.
Playback starts.
X To stop playback: select00A1in the menu
bar.
Playback stops.
Interrupting playback i
Not all Bluetooth ®
audio devices support
this function.
X Press the 0063button.
Sound output is switched off. Playback is
also stopped on the audio device.
Starting playback after a pause If the Bluetooth
®
connection breaks, the No No
Bluetooth
Bluetooth Audio
AudioDevice
Device Connected
Connected mes-sage appears in the display. The search for
available audio devices begins.
i When the search has ended, the audio
device can be reconnected. X
Select Connect Last Device
Connect Last Device.
Playback starts immediately if the audio
device permits it.
X If the Bluetooth Audio Device Paused Bluetooth Audio Device Paused
message is shown in the display, start play-
back manually.
Selecting a track i
Not all Bluetooth ®
audio devices support
this function.
X Press the 0054/0055 button.
You will hear the previous/next track.
Selecting a playback option You may select from the following track play-
back options: Playback
option Operation
Normal track
sequence Tracks are played in the
same order as they are
stored on the Bluetooth
®
audio device. Random
tracks All the tracks on the Blue-
tooth
®
audio device are
played in random order. i
Not all Bluetooth ®
audio devices support
this function. 46
Bluetooth ®
audioAudio
Page 49 of 54

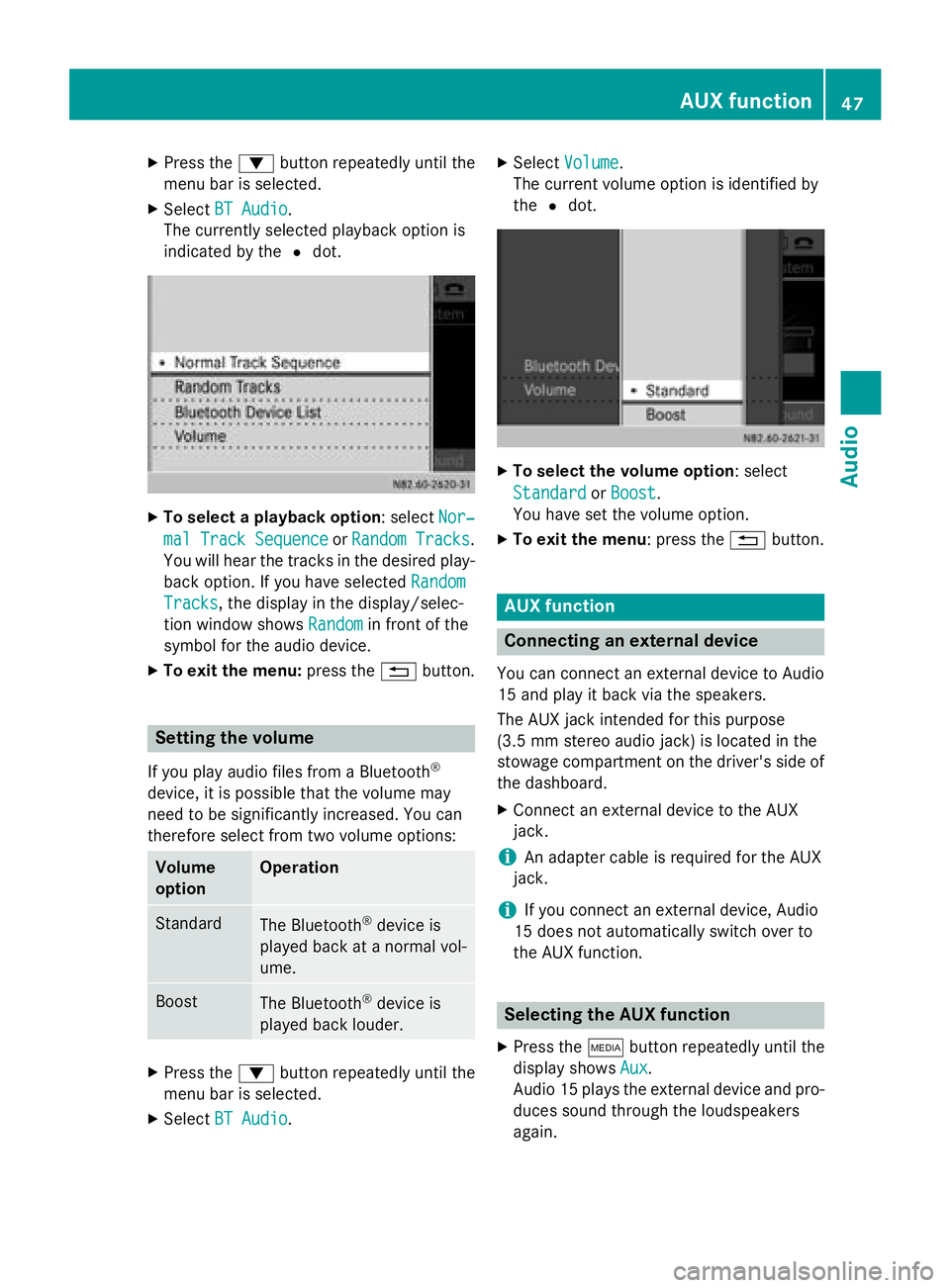

X
Press the 0064button repeatedly until the
menu bar is selected.
X Select BT Audio
BT Audio.
The currently selected playback option is
indicated by the 0036dot. X
To select a playback option : selectNor‐ Nor‐
mal Track Sequence
mal Track Sequence orRandom Tracks
Random Tracks .
You will hear the tracks in the desired play-
back option. If you have selected Random
Random
Tracks
Tracks, the display in the display/selec-
tion window shows Random Randomin front of the
symbol for the audio device.
X To exit the menu: press the0038button. Setting the volume
If you play audio files from a Bluetooth ®
device, it is possible that the volume may
need to be significantly increased. You can
therefore select from two volume options: Volume
option Operation
Standard
The Bluetooth
®
device is
played back at a normal vol-
ume. Boost
The Bluetooth
®
device is
played back louder. X
Press the 0064button repeatedly until the
menu bar is selected.
X Select BT Audio
BT Audio. X
Select Volume Volume.
The current volume option is identified by
the 0036dot. X
To select the volume option : select
Standard Standard orBoost
Boost.
You have set the volume option.
X To exit the menu : press the0038button. AUX function
Connecting an external device
You can connect an external device to Audio
15 and play it back via the speakers.
The AUX jack intended for this purpose
(3.5 mm stereo audio jack) is located in the
stowage compartment on the driver's side of
the dashboard.
X Connect an external device to the AUX
jack.
i An adapter cable is required for the AUX
jack.
i If you connect an external device, Audio
15 does not automatically switch over to
the AUX function. Selecting the AUX function
X Press the 00FDbutton repeatedly until the
display shows Aux Aux.
Audio 15 plays the external device and pro-
duces sound through the loudspeakers
again. AUX function
47Audio Z
Page 50 of 54

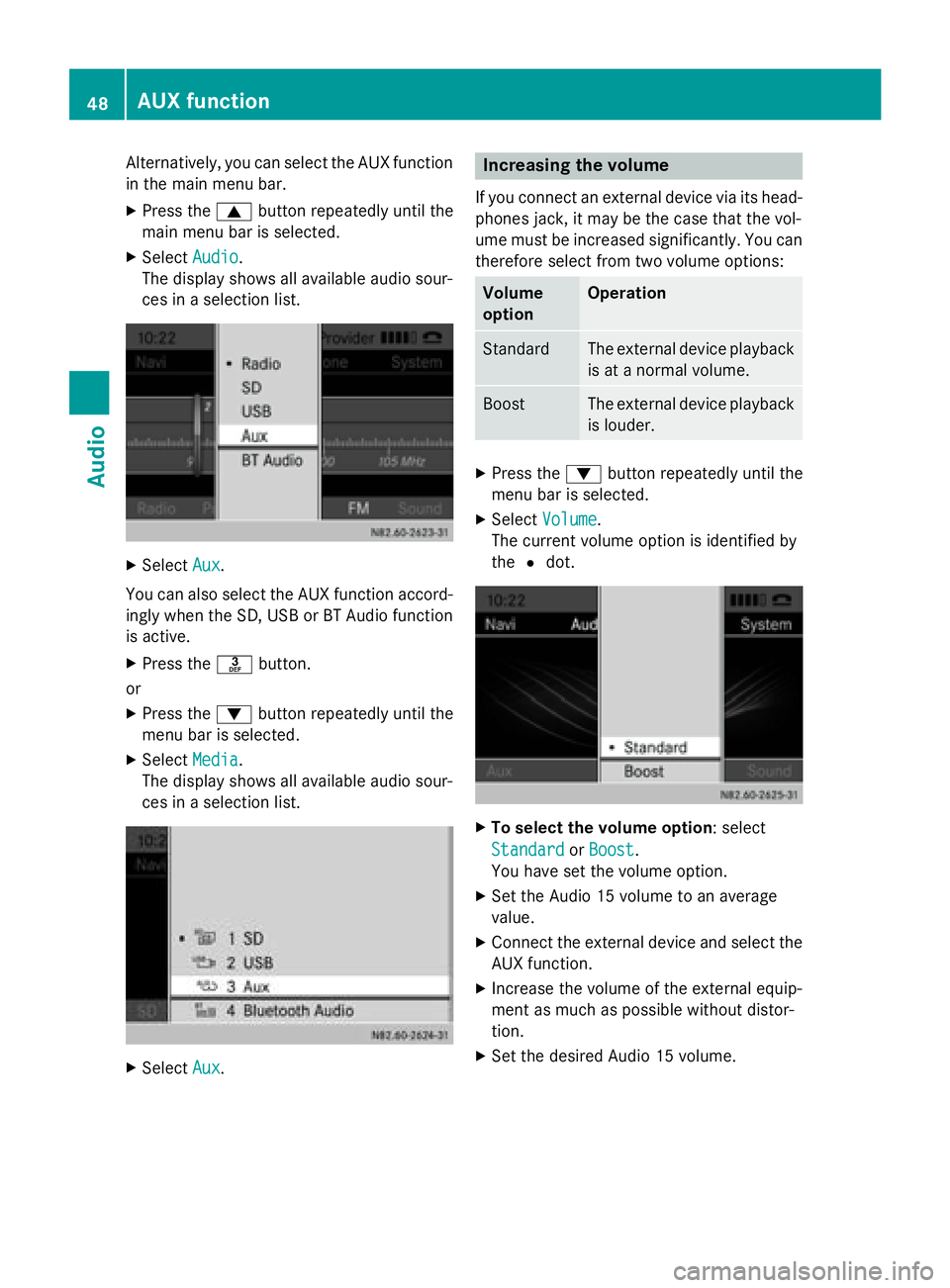

Alternatively, you can select the AUX function
in the main menu bar.
X Press the 0063button repeatedly until the
main menu bar is selected.
X Select Audio
Audio.
The display shows all available audio sour-
ces in a selection list. X
Select Aux
Aux.
You can also select the AUX function accord-
ingly when the SD, USB or BT Audio function
is active.
X Press the 0083button.
or
X Press the 0064button repeatedly until the
menu bar is selected.
X Select Media Media.
The display shows all available audio sour-
ces in a selection list. X
Select Aux Aux. Increasing the volume
If you connect an external device via its head-
phones jack, it may be the case that the vol-
ume must be increased significantly. You can therefore select from two volume options: Volume
option Operation
Standard The external device playback
is at a normal volume. Boost The external device playback
is louder. X
Press the 0064button repeatedly until the
menu bar is selected.
X Select Volume
Volume .
The current volume option is identified by
the 0036dot. X
To select the volume option: select
Standard Standard orBoost Boost.
You have set the volume option.
X Set the Audio 15 volume to an average
value.
X Connect the external device and select the
AUX function.
X Increase the volume of the external equip-
ment as much as possible without distor-
tion.
X Set the desired Audio 15 volume. 48
AUX functionAudio
