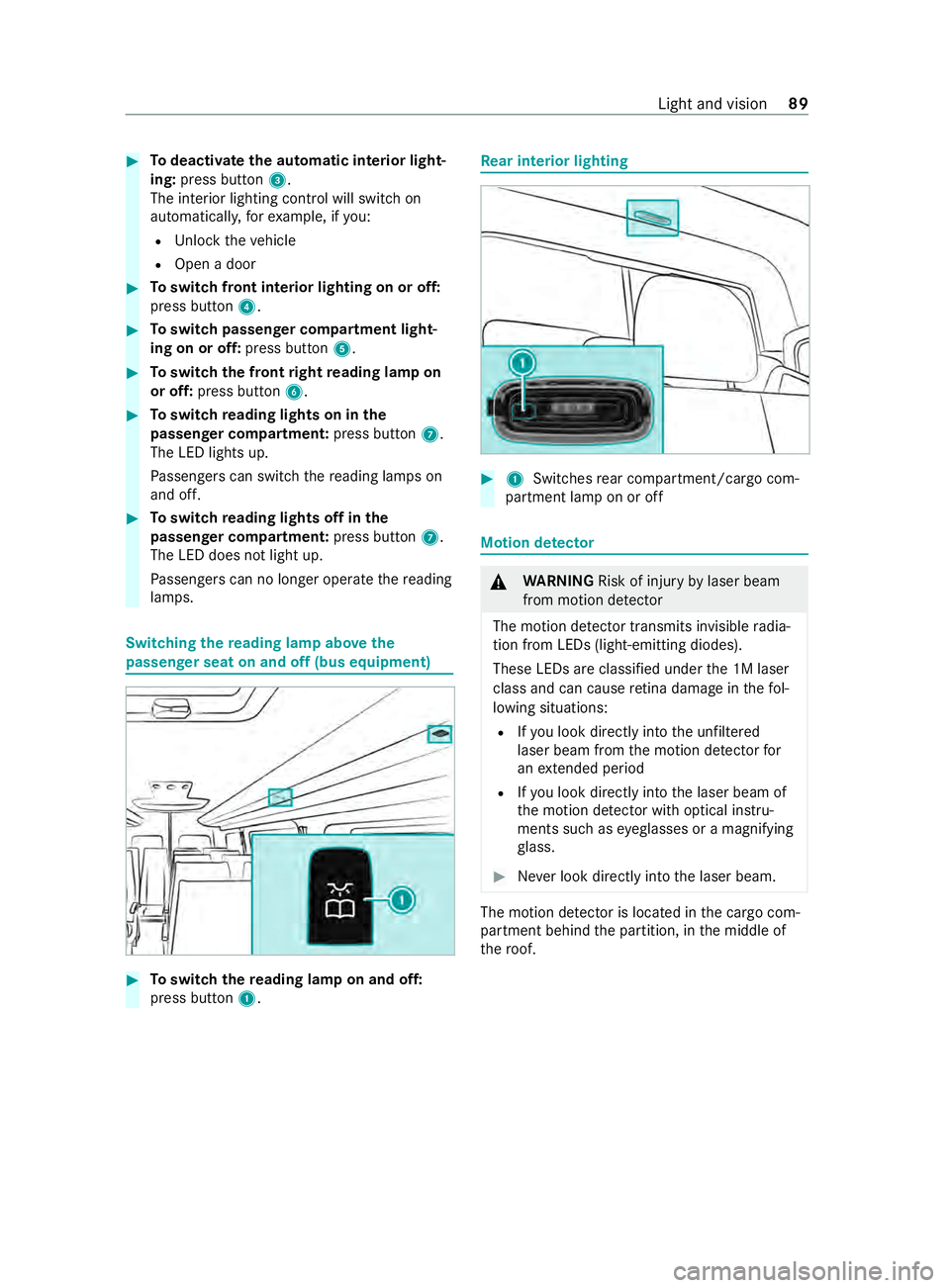

MERCEDES-BENZ SPRINTER 2020 MY20 with 7” screen

#
Todeactivat ethe automati cinterio rlight‐
ing: press button 3.
The interior lighting control will switc hon
au tomatical ly,f or example, if you:
R Unloc kthe vehicle
R Open adoor #
Toswitc hfront interior lighting on or off:
press button 4. #
Toswitc hpassenger compartment light‐
ing on or off: press button5. #
Toswitc hthe front right reading lam pon
or off: press button 6. #
Toswitc hreading light soninthe
passenger compartment: press button7.
The LED lights up.
Pa ssenger scan switc hthe reading lamps on
and off. #
Toswitc hreading light soffin the
passenger compa rtment: press button 7.
The LED does no tlight up.
Pa ssenger scan no longer operat ethe reading
lamps. Swit
ching ther eading lam pabove the
pa ssenger seat on and of f(bus equipment) #
Toswitc hthe reading lam ponand off:
press button 1. Re
ar interior lighting #
1 Switches rear compartment/cargo com‐
partment lam ponoroff Motion de
tector &
WARNING Risk of inju ryby laser beam
from motion de tector
The motion de tector transmits invisible radia‐
tion from LED s(light-emitting diodes).
These LED sareclassified under the1Ml aser
class and can cause retina dama geinthef ol‐
lowing situations:
R Ifyo ul ook directly int othe unfiltered
laser beam from them otion de tector for
an extende dperiod
R Ifyo ul ook direct lyint ot he laser beam of
th em otion de tector wi thoptical instru‐
mentss uchase yeglasses or amagnifying
gl ass. #
Neverlook directly int othe laser beam. The motion de
tector is loca tedint he cargo com‐
partment behind thep artition ,inthe middle of
th er oof. Light and vision
89

1

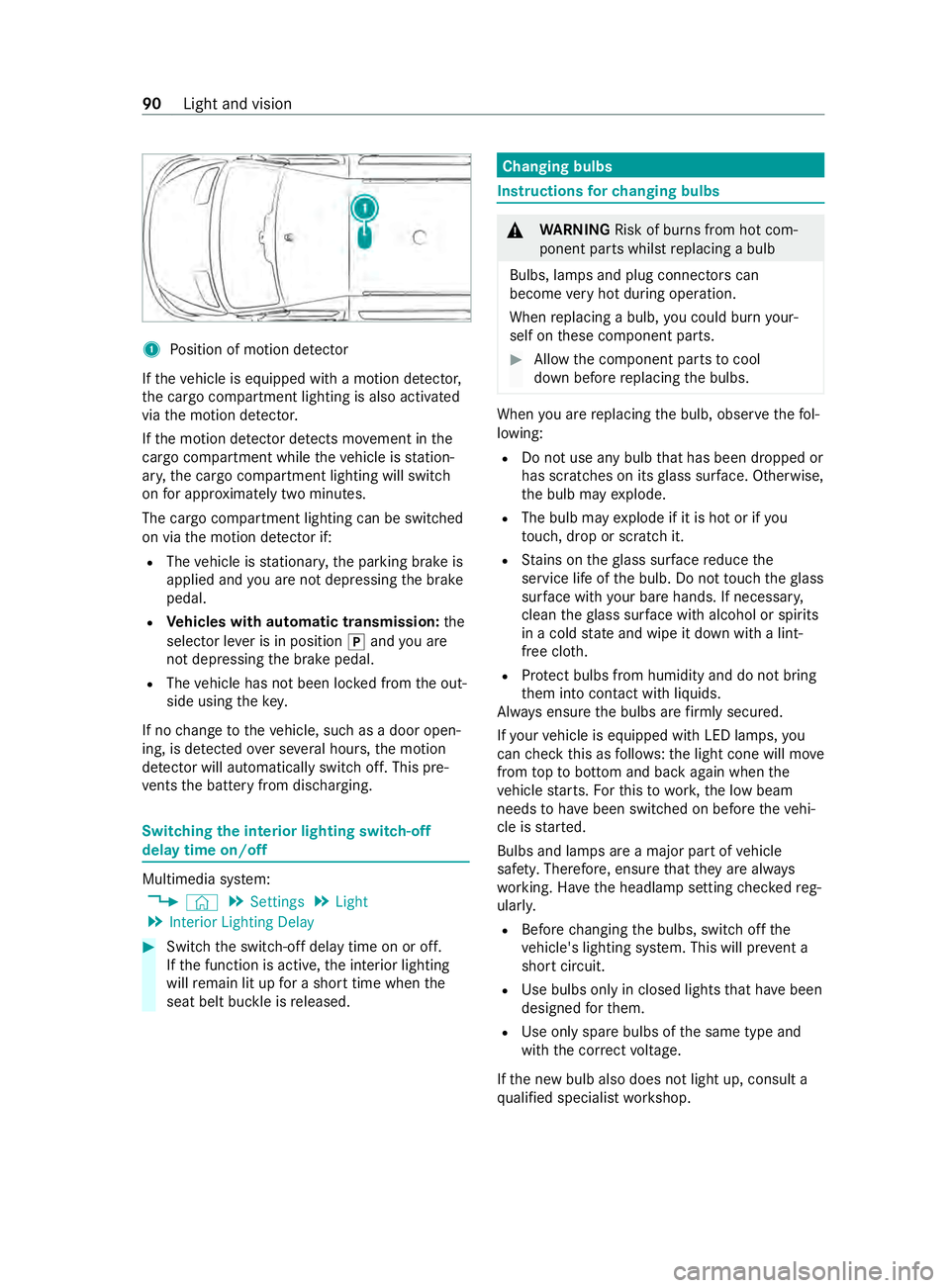

Position of motion de tector
If th ev ehicle is equipped wit hamotion de tector,
th ec argo compartmen tlighting is also activated
via them otion de tector.
If th em otion de tector de tects mo vement in the
cargo compa rtment whil ethe vehicle is station‐
ar y, thec argo compartmen tlighting will switch
on fora pproxima tely tw om inutes.
The cargo compartment lighting can be switched
on via them otion de tector if:
R The vehicle is stationar y,thep arking brak eis
applied and youa renotd epressing theb rake
pedal.
R Vehicles with automatic transmission: the
selector le verisinp osition005Dand youa re
no td epressing theb rake pedal.
R The vehicle has no tbeen loc kedf romt he out‐
side using thek ey.
If no chang etot hevehicle, suc hasadoor open‐
ing, is de tected over se veralh ours, them otion
de tector will au tomatically switc hoff.T his pre‐
ve nts theb atter yfromd ischarging. Switching
thei nterior lighting switch-off
dela ytimeo n/off Multimedia sy
stem:
4 © 5
Settings 5
Light
5 Interior Lightin gDelay #
Switc hthe switch-of fdela ytime on or off.
If th ef unction is active, thei nterior lighting
will remain lit up foras horttime when the
seat belt buckle is released. Changin
gbulbs Instruction
sfor changing bulbs &
WARNING Risk of bu rnsf romh otcom‐
ponent parts whils treplacing abulb
Bulbs, lamps and plug connector scan
become very hotd uring operation.
When replacing abulb, youc oul db urny our‐
self on these componen tparts. #
Allowthe component parts tocool
down befor ereplacing theb ulbs. When
youa re re placing theb ulb, obser vethef ol‐
lowing:
R Do no tuse an ybulb that has been dropped or
has scratches on its glass sur face. Otherwise,
th eb ulb ma yexplode.
R Theb ulb ma yexplod eifitish otor if you
to uch, drop or sc ratchi t.
R Stains on theg lass sur face reduce the
service lif eofthe bulb. Do no ttouc hthe glass
sur face wi thyour bar ehands. If necessar y,
clea nthe glass sur face wi thalcohol or spirits
in ac olds tate and wipe it down wit halint-
free clo th.
R Protect bulbs from humidity and do no tbring
th em int ocontact wit hliquids.
Alw ayse nsur ethe bulbs ar efirml ysecured.
If yo ur vehicle is equipped wit hLED lamps, you
can checkt his as follo ws :the light cone will mo ve
from toptob ottomand bac kagain when the
ve hicle starts .For this to wo rk,the lo wbeam
needs tohave been switched on befor ethe vehi‐
cle is star ted.
Bulbs and lamps ar eamajor par tofvehicle
saf ety. Therefore, ensur ethat they area lways
wo rking. Ha vetheh eadlam psetting checkedr eg‐
ularly.
R Befor echanging theb ulbs, switc hoffthe
ve hicle's lighting sy stem. This will pr event a
sho rtcircuit.
R Use bulbs only in closed lights that ha vebeen
designed fort hem.
R Use onl yspar ebulbs of thes ame type and
wit hthe cor rect voltage.
If th en ew bulb also does no tlight up, consult a
qu alified specialis tworks hop. 90
Light and vision

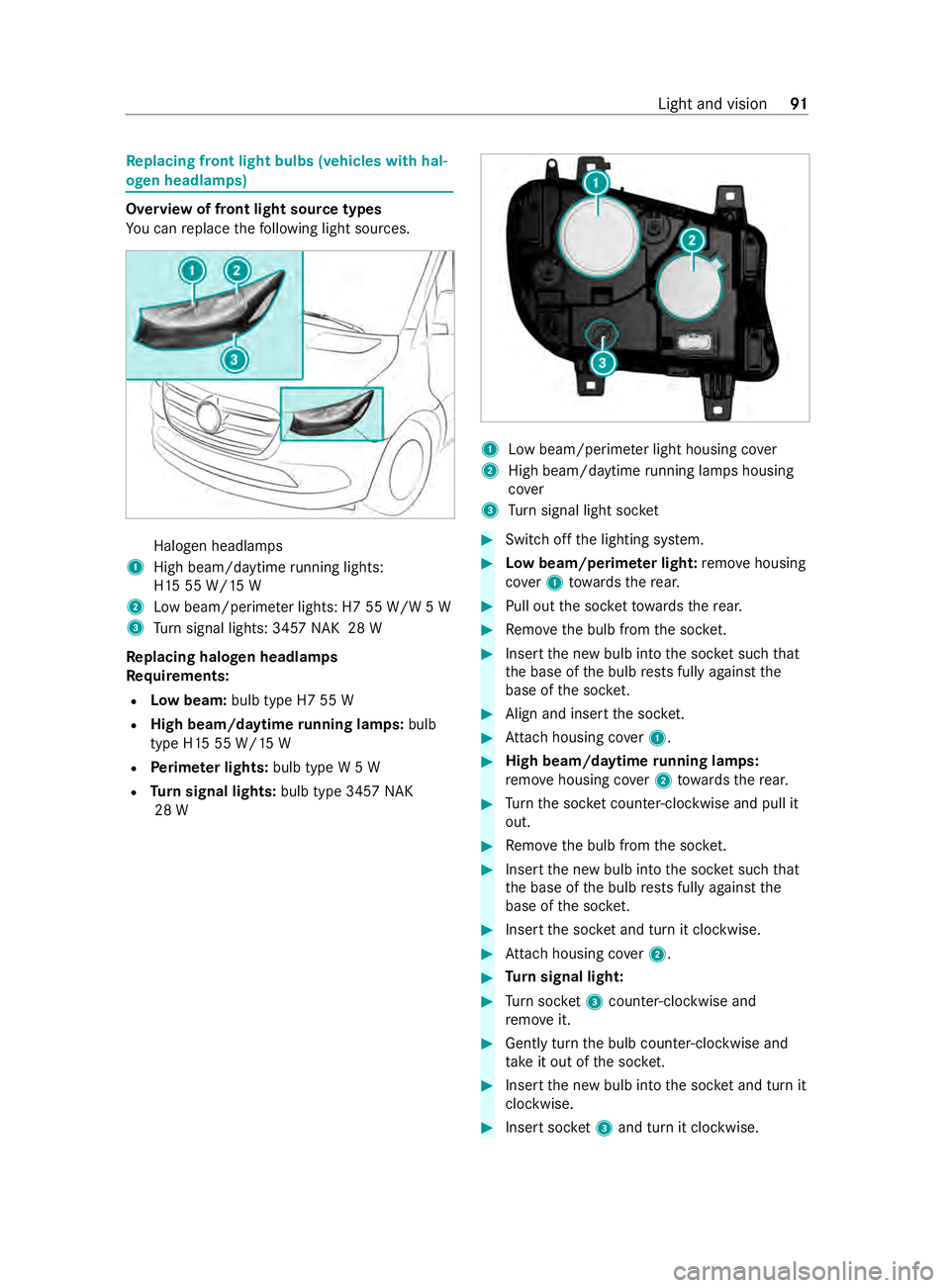

Re
placing fron tlight bulbs (vehicles with hal‐
ogen headlamps) Overvie
woffront light sou rcet ypes
Yo uc an replace thef ollowing light sources. Halogen headlamps
1 High beam/d aytime running lights:
H1 555W /15W
2 Lowb eam/pe rime terl ights: H7 55 W/W 5W
3 Turn signal lights: 345 7NAK 28 W
Re placing halo genh eadla mps
Re quirements:
R Lowb eam: bulb type H7 55 W
R High beam/daytim erunnin glamps: bulb
type H1 555W/15W
R Perime terl ights: bulb typ eW5W
R Turn signal lights: bulb type 3457NAK
28 W 1
Lowb eam/perime terl igh thousing co ver
2 High beam/daytim erunnin glamps housing
co ver
3 Turn signal light soc ket #
Switc hoffthel ighting sy stem. #
Lowb eam/perime terl ight: remo vehousing
co ver 1towa rdst he rear. #
Pull out thes ockettow ards ther ear. #
Remo vetheb ulb from thes ocket. #
Inse rtthen ew bulb int othe soc kets ucht hat
th eb ase of theb ulb restsf ullya gains tthe
base of thes ocket. #
Align and inser tthe soc ket. #
Attach housing co ver1. #
High beam/daytime running lamps:
re mo vehousing co ver2towa rdst he rear. #
Turn thes ocketc ounter-clo ckwise and pull it
out. #
Remo vetheb ulb from thes ocket. #
Inse rtthen ew bulb int othe soc kets ucht hat
th eb ase of theb ulb restsf ullya gains tthe
base of thes ocket. #
Inse rtthes ocketa nd tur nitclock wise. #
Attach housing co ver2. #
Turn signal light: #
Turn soc ket 3counter-clo ckwise and
re mo veit. #
Gently tur nthe bulb counter-clockwise and
ta ke it out of thes ocket. #
Inse rtthen ew bulb int othe soc keta nd tur nit
clo ckwise. #
Inser tsocket 3and tur nitclock wise. Light and vision
91

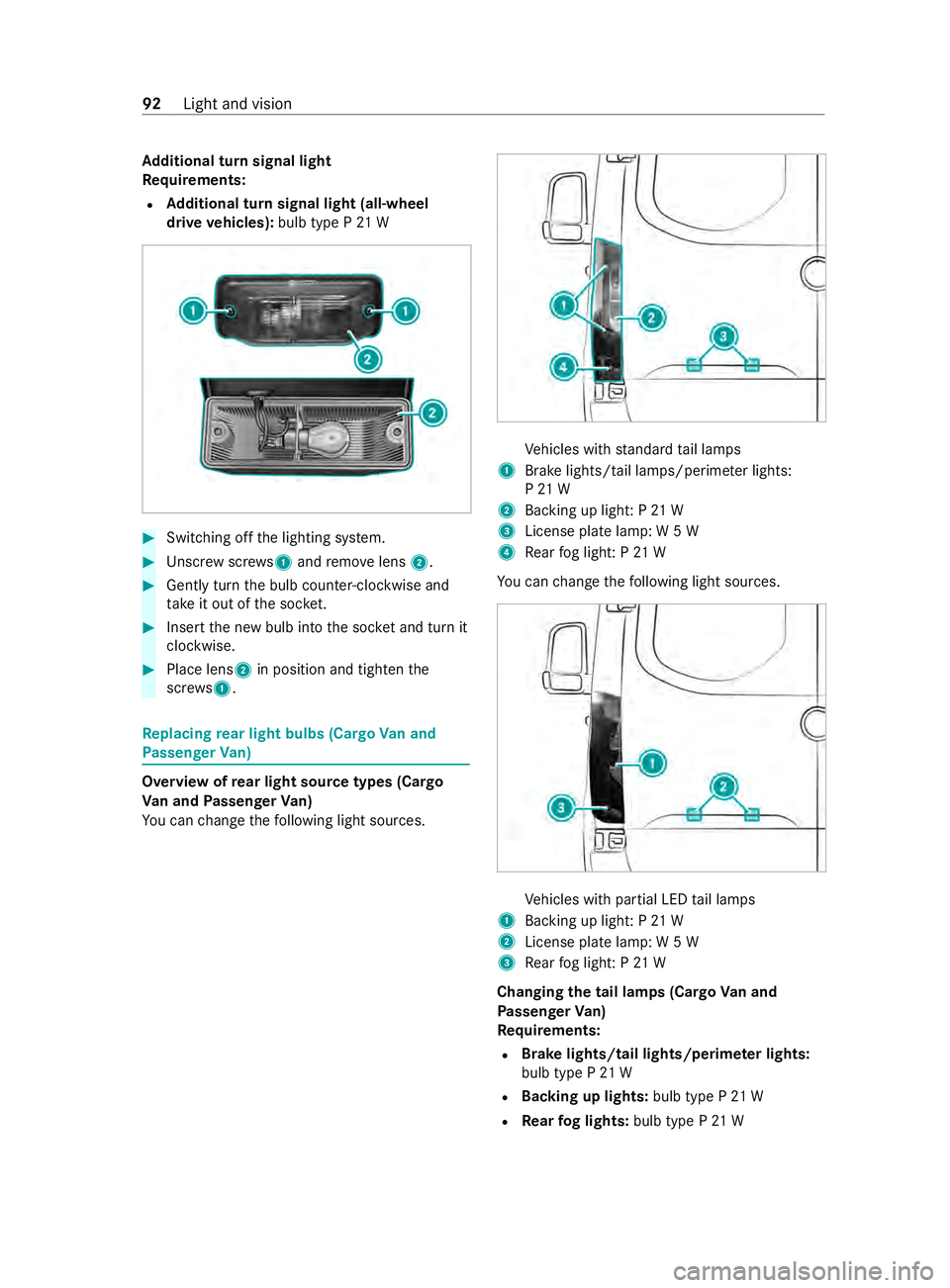

Ad
ditional tur nsignal light
Re quirements:
R Ad
ditional tur nsignal light (all-wheel
driv evehicles): bulb typeP21W #
Switching of fthe lighting sy stem. #
Unscr ewscrews 1and remo velens 2. #
Gently tur nthe bulb counter-clockwise and
ta ke it out of thes ocket. #
Inse rtthen ew bulb int othe soc keta nd tur nit
clo ckwise. #
Place lens 2in position and tigh tent he
scr ews 1. Re
placing rear light bulb s(Cargo Vana nd
Pa ssenger Van) Overvie
wofrear light sou rcet ypes (Cargo
Va na nd Passenger Van)
Yo uc an chang ethe following light sources. Ve
hicles wit hstandar dtail lamps
1 Brak elights/tail lamps/pe rime terl ights:
P21W
2 Backing up light :P21W
3 License plate lamp:W5W
4 Rear fogl ight :P21W
Yo uc an chang ethe following light sources. Ve
hicles wit hpartial LED tail lamps
1 Backin guplight:P21W
2 License plate lamp:W5W
3 Rear fogl ight :P21W
Changing thet ail lamps (Cargo Vana nd
Pa ssenger Van)
Re quirements:
R Brak
elights/tail lights/perime terl ights:
bulb typ eP21W
R Backin guplights: bulb typ eP21W
R Rear fogl ights: bulb type P21W 92
Light and vision

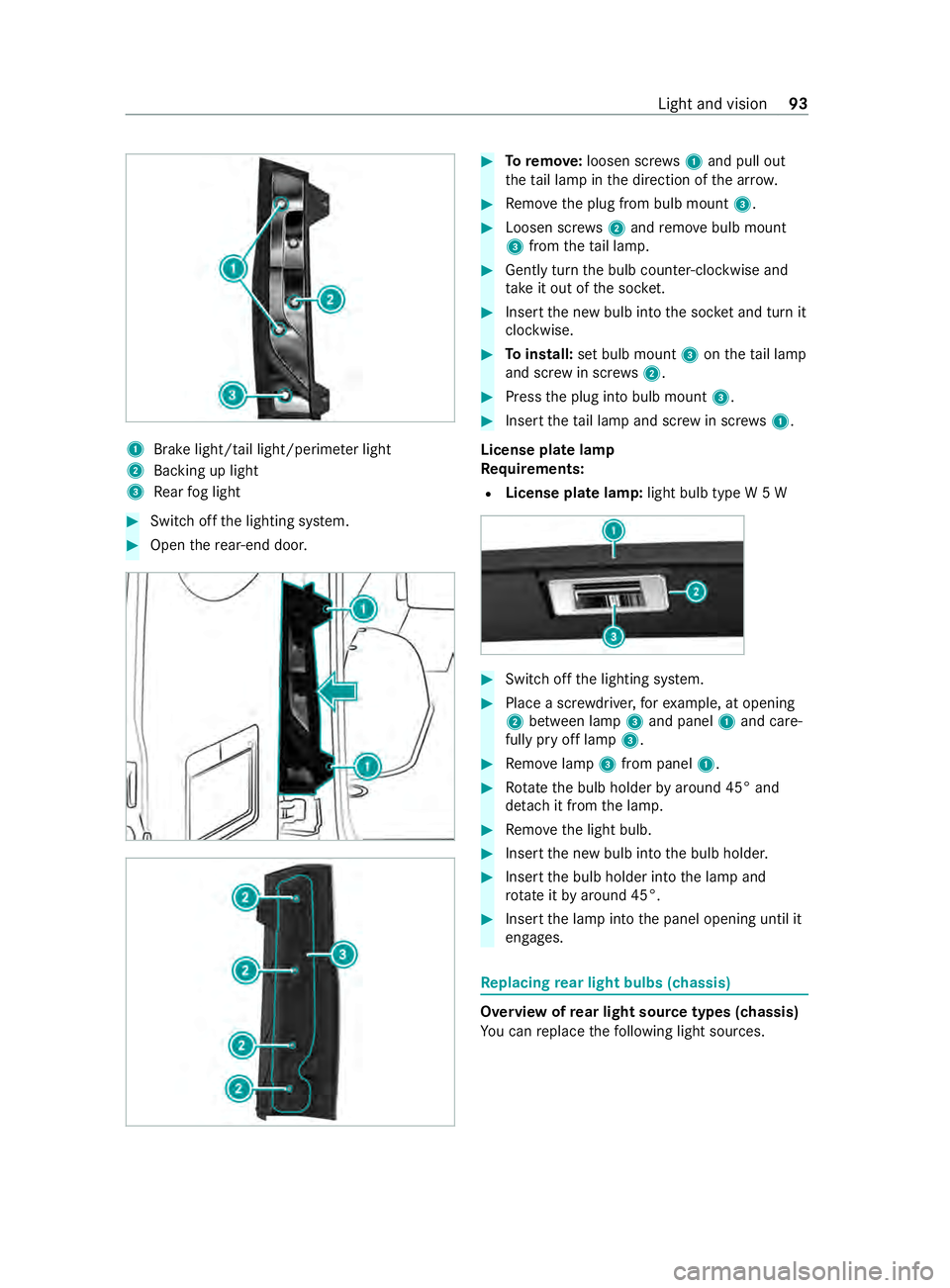

1
Brak elight/tai llig ht/pe rime terl ight
2 Backing up light
3 Rear fogl ight #
Switc hoffthel ighting sy stem. #
Open ther ear-end door. #
Toremo ve: loose nscrews 1and pull out
th et ail lam pinthe direction of thea rrow. #
Remo vethep lug from bulb mount 3. #
Loosen scr ews2and remo vebulb mount
3 from thet ail lamp. #
Gently tur nthe bulb counter-clockwise and
ta ke it out of thes ocket. #
Inse rtthen ew bulb int othe soc keta nd tur nit
clo ckwise. #
Toinstall: setb ulb mount 3onthet ail lamp
and scr ewin scr ews2. #
Press thep lug int obulb mount 3. #
Inser tthe tail lam pand scr ewin scr ews1.
License plat elamp
Re quirements:
R License plat elamp: light bulb type W5W #
Swit chofft he lighting sy stem. #
Place ascrew driver ,for example, at opening
2 between lamp 3and panel 1and care‐
full ypryofflamp 3. #
Remo velamp 3from panel 1. #
Rotate theb ulb holder byaround 45 °and
de tach it from thel amp. #
Remo vethel ight bulb. #
Inser tthe ne wbulb int othe bulb holder. #
Inser tthe bulb holder int othe lam pand
ro tate itby around 45°. #
Inser tthe lam pintot he panel opening until it
engages. Re
placing rear light bulb s(ch assis) Overvie
wofrear light sou rcet ypes (chassis)
Yo uc an replace thef ollowing light sources. Light and vision
93

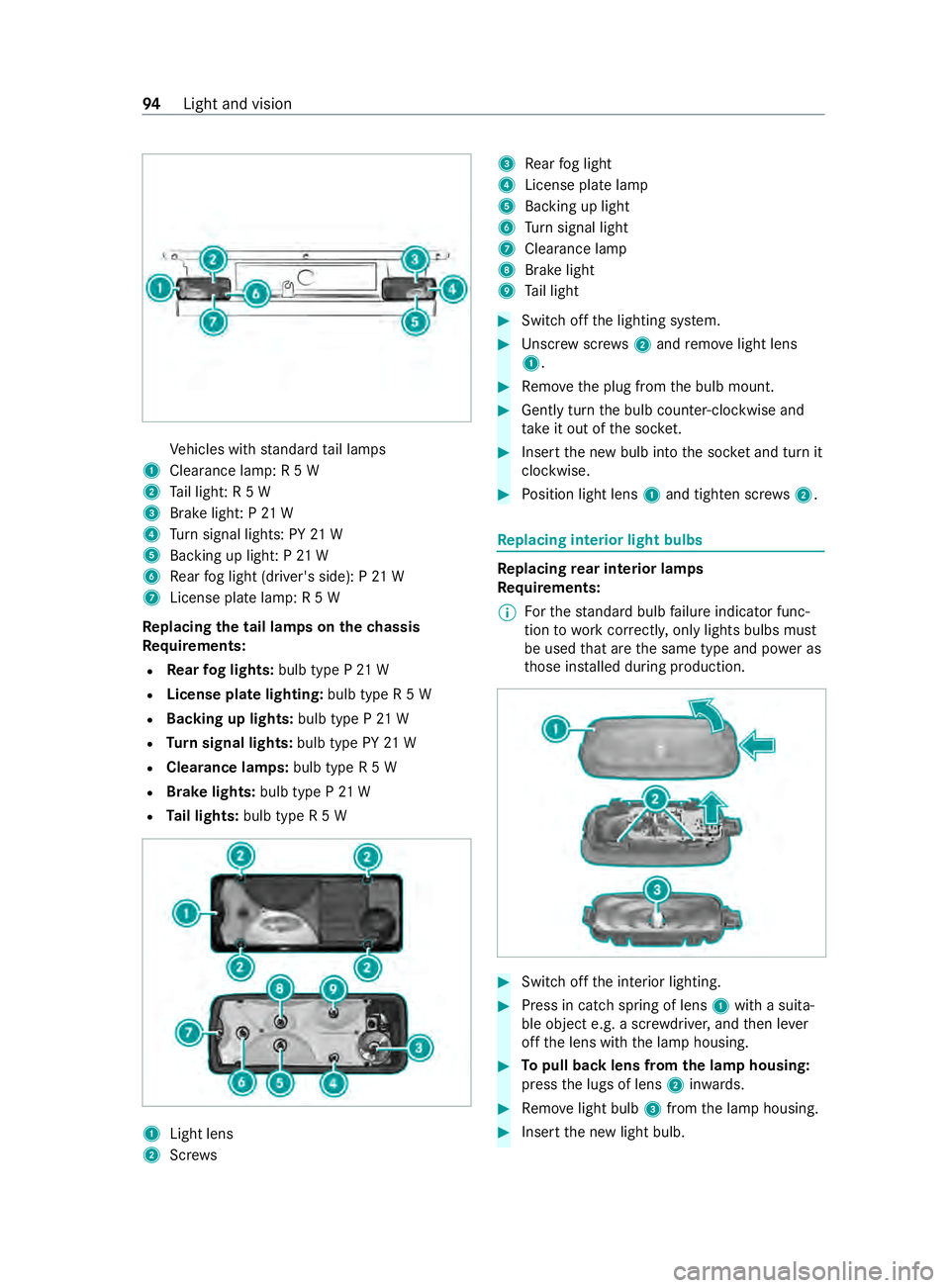

Ve
hicles wit hstandar dtail lamps
1 Clearance lamp: R5W
2 Tail light :R5W
3 Brak elight :P21W
4 Turn signal lights: PY 21 W
5 Backing up light :P21W
6 Rear fogl ight (driver's side): P21W
7 License plate lamp:R5W
Re placing the tai llamps on the chassis
Re quirements:
R Rear fogl ights: bulb type P21W
R License pla telighting: bulb type R5W
R Backing up lights: bulb typeP21W
R Turn signal lights: bulb type PY21 W
R Clearance lamps: bulb typeR5W
R Brak elights: bulb type P21W
R Tail lights: bulb type R5W 1
Light lens
2 Screws 3
Rear fogl ight
4 License plat elamp
5 Backing up light
6 Turn signal light
7 Cleara nce lamp
8 Brak elight
9 Tail light #
Swit chofft he lighting sy stem. #
Unscr ewscrews 2and remo velight lens
1. #
Remo vethep lug from theb ulb mount. #
Gentl yturnt he bulb counter-clockwise and
ta ke it out of thes ocket. #
Inse rtthen ew bulb int othe soc keta nd tur nit
clo ckwise. #
Position light lens 1and tighten scr ews2. Re
placing interio rlight bulbs Re
placing rear interior lamps
Re quirements:
% Fo
rthe standar dbulb failur eindicator func‐
tion towo rkcor rectly ,only lights bulbs must
be use dthat ar ethe same type and po weras
th ose ins talled during production. #
Swit chofft he interior lighting. #
Press in catc hspring of lens 1withas uita‐
ble object e.g. ascrew driver ,and then le ver
of ft he lens wit hthe lam phousing. #
Topull bac klen sf romt he lam phousing:
press thel ugs of lens 2inwa rds. #
Remo velight bulb 3from thel am ph ousing. #
Inser tthe ne wlight bulb. 94
Light and vision

#
Inser tthe lens in thel am ph ousing until it
engages. #
Place thel ens wit hthe lam phousing in posi‐
tion and engag eit. Wi

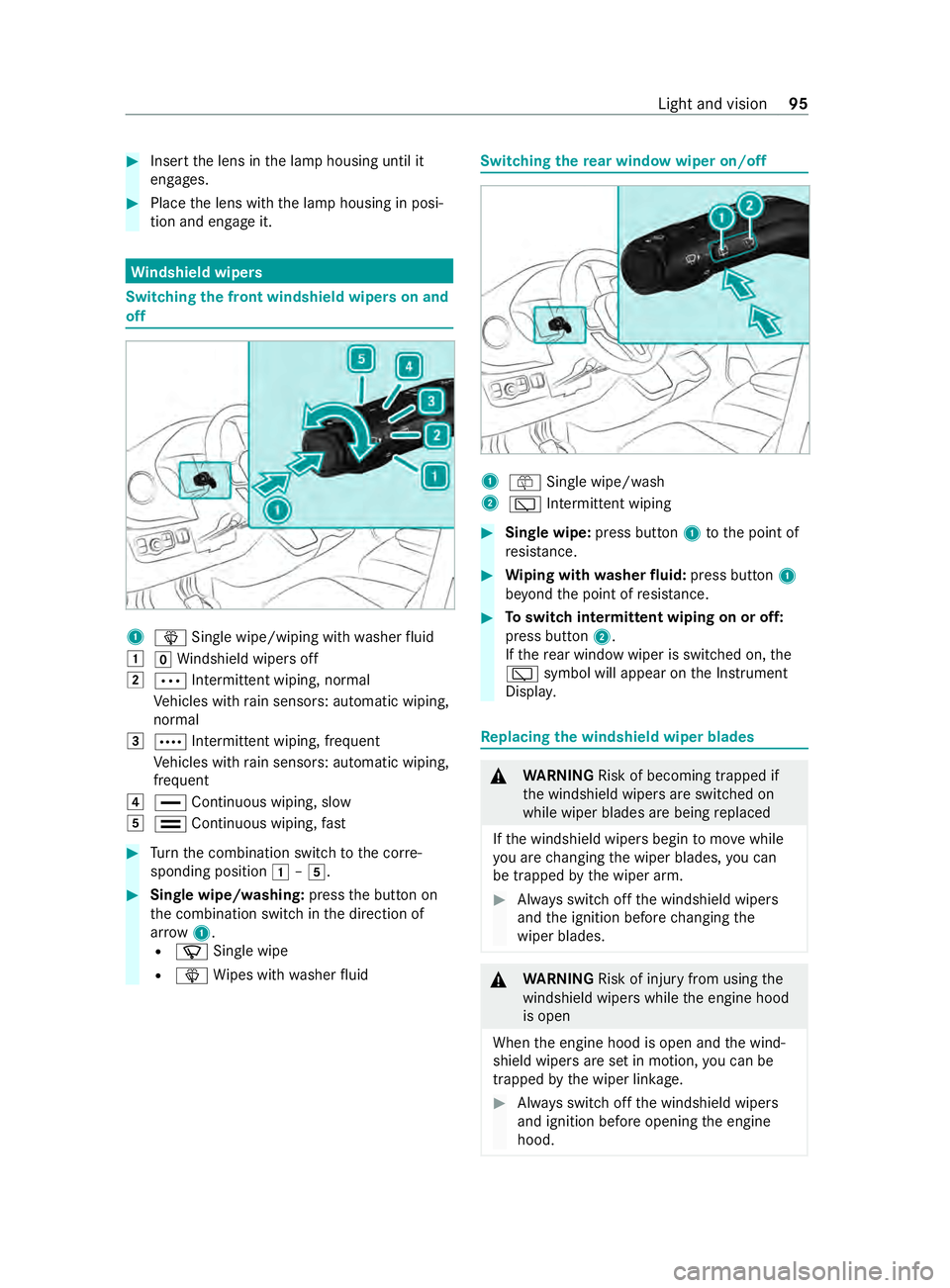

ndshield wipers Switching
thef ront windshield wiper sonand
off 1
00D4 Singlew ipe/wiping wit hwashe rfluid
0047 005AWindshield wipe rsoff
0048 0062 Intermittent wiping, normal
Ve hicles wit hrain sensors: automatic wiping,
normal
0049 0063 Intermit tent wiping, frequent
Ve hicles wit hrain sensors: automatic wiping,
frequent
004A 00AA Continuous wiping, slow
004B 00A9 Continuous wiping, fast#
Turn thec ombination switc htothe cor re‐
sponding position 0047–004B. #
Single wipe/washing: presstheb utton on
th ec ombination switc hinthe direction of
ar row 1.
R 00D3 Single wipe
R 00D4 Wipes wit hwashe rfluid Switching
ther ear windo wwiperon/off 1
00E2 Single wipe/wash
2 00C5 Intermittent wiping #
Single wipe: press button1tothep oint of
re sis tance. #
Wiping with washer fluid: press button 1
be yond thep oint of resis tan ce. #
Toswitc hintermittent wiping on or off:
press button 2.
If th er ear windo wwiper is swit ched on, the
00C5 symbol will appearont he Instrument
Displa y. Re
placing the windshiel dwiper blades &
WARNING Risk of becoming trapped if
th ew indshield wiper sareswitched on
while wiper blades ar ebeing replaced
If th ew indshield wiper sbegin tomo vewhile
yo ua rechanging thew iper blades, youc an
be trapped bythew iper arm. #
Alwayss witc hoffthew indshield wipers
and thei gnition befor echanging the
wiper blades. &
WARNING Risk of inju ryfrom using the
windshield wiper swhile thee ngine hood
is open
When thee ngine hood is open and thew ind‐
shield wiper saresetinm otion, youc an be
trapped bythew iper linkage. #
Alwayss witc hoffthew indshield wipers
and ignition befor eopening thee ngine
hood. Light and vision
95

%

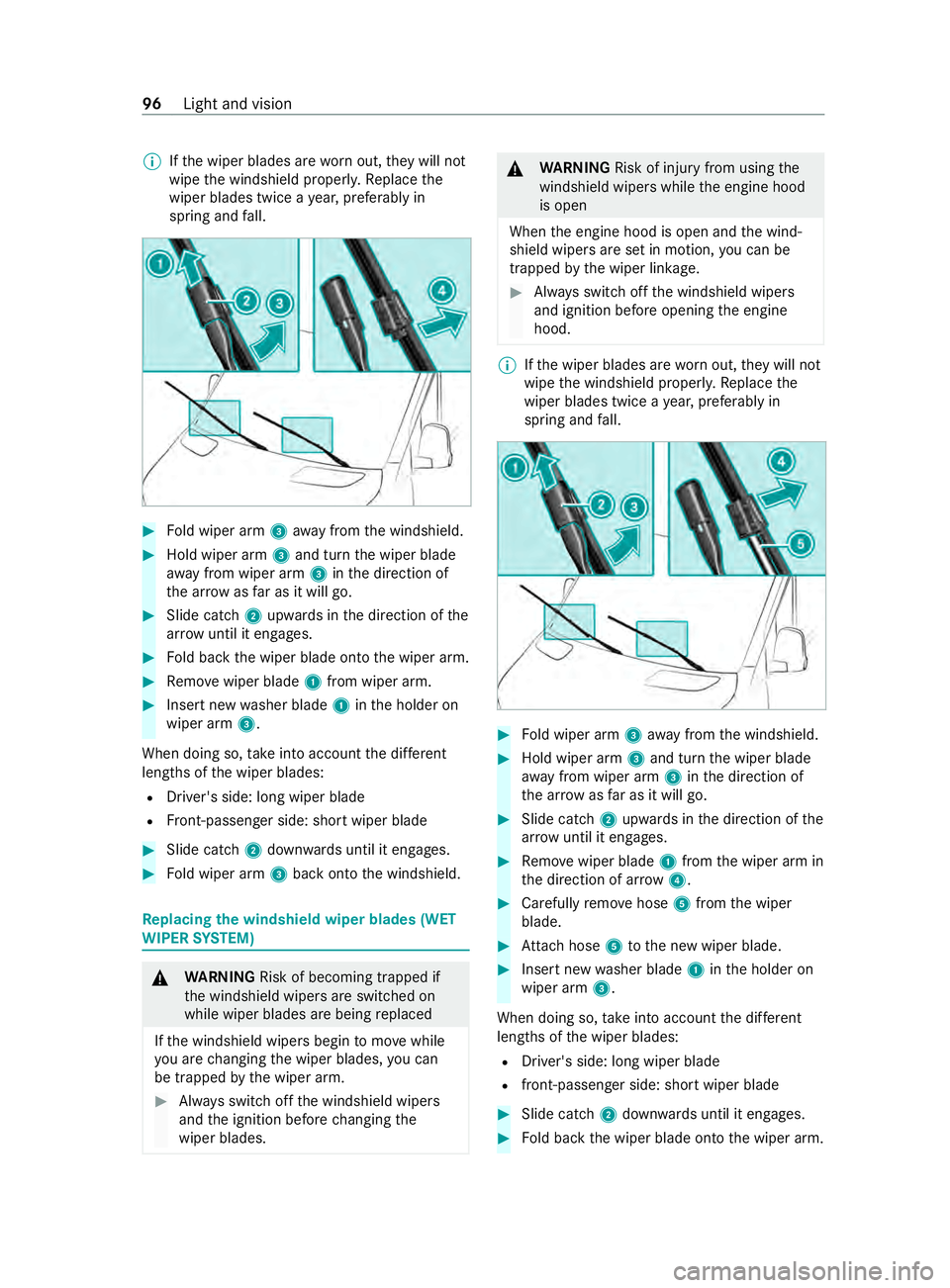

If
th ew iper blades ar eworno ut, they will not
wipe thew indshield proper ly.R eplace the
wiper blades twic eayear,prefera blyin
spring and fall. #
Fold wiper arm 3away from thew indshield. #
Hold wiper arm 3and tur nthe wiper blade
aw ay from wiper arm 3inthed irection of
th ea rrow asfarasitw illg o. #
Slide catch 2upwards in thed irection of the
ar row until it engages. #
Fold bac kthe wiper blade ont othe wiper arm. #
Remo vewiper blade 1from wiper arm. #
Inser tnew wa sher blade 1intheh older on
wiper arm 3.
When doing so, take intoa ccount thed iffe re nt
lengths of thew iper blades:
R Driver's side: long wiper blade
R Front-passenger side: shor twiper blade #
Slide catch 2down wardsu ntil it engages. #
Fold wiper arm 3bac kontot he windshield. Re
placing the windshiel dwiper blades (WET
WIPER SYSTEM) &
WARNING Risk of becoming trapped if
th ew indshield wiper sareswitched on
while wiper blades ar ebeing replaced
If th ew indshield wiper sbegin tomo vewhile
yo ua rechanging thew iper blades, youc an
be trapped bythew iper arm. #
Alwayss witc hoffthew indshield wipers
and thei gnition befor echanging the
wiper blades. &
WARNING Risk of inju ryfrom using the
windshield wiper swhile thee ngine hood
is open
When thee ngine hood is open and thew ind‐
shield wiper saresetinm otion, youc an be
trapped bythew iper linkage. #
Alwayss witc hoffthew indshield wipers
and ignition befor eopening thee ngine
hood. %
If
th ew iper blades ar eworno ut, they will not
wipe thew indshield proper ly.R eplace the
wiper blades twic eayear,prefera blyin
spring and fall. #
Fold wiper arm 3away from thew indshield. #
Hold wiper arm 3and tur nthe wiper blade
aw ay from wiper arm 3inthed irection of
th ea rrow asfarasitw illg o. #
Slide catch 2upwards in thed irection of the
ar row until it engages. #
Remo vewiper blade 1from thew iper ar min
th ed irection of ar row4. #
Carefull yremo vehose 5from thew iper
blade. #
Attach hose 5tothen ew wiper blade. #
Inser tnew wa sher blade 1intheh older on
wiper arm 3.
When doing so, take intoa ccount thed iffe re nt
lengths of thew iper blades:
R Driver's side: long wiper blade
R front-passen gers ide :shor twiper blade #
Slide catch 2down wardsu ntil it engages. #
Fold bac kthe wiper blade ont othe wiper arm. 96
Light and vision

#

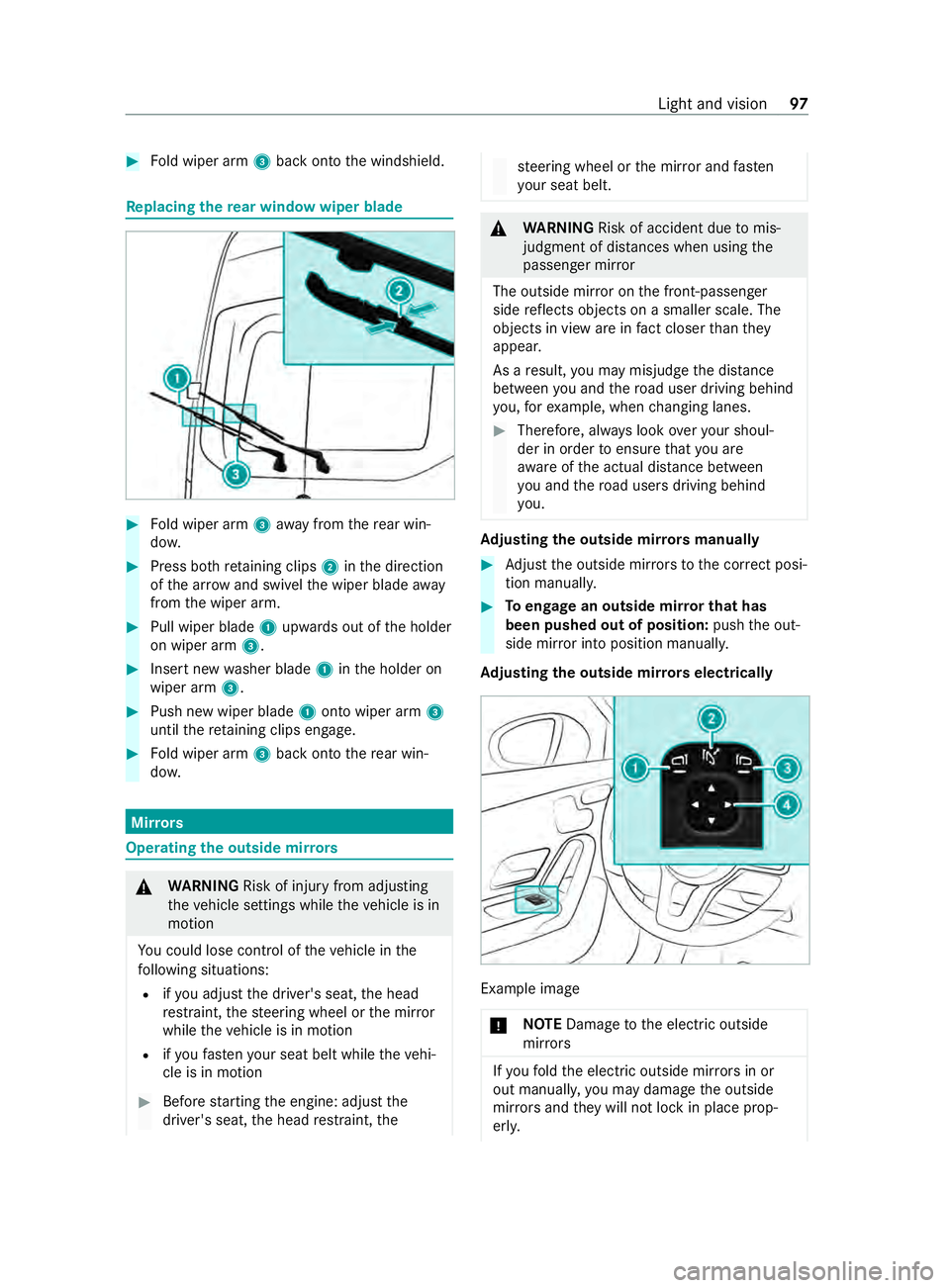

Fold wiper arm 3bac kontot he windshield. Re
placing the rear windo wwiperblade #
Fold wiper arm 3away from ther ear win‐
do w. #
Press bo thretainin gclips 2inthed irection
of thea rrow and swivel thew iper blade away
from thew iper arm. #
Pull wiper blade 1upwards out of theh older
on wiper arm 3. #
Inser tnew wa sher blade 1intheh older on
wiper arm 3. #
Push ne wwiper blade 1ontow iper arm 3
until ther etainin gclips engage. #
Fold wiper arm 3bac kontot he rear win‐
do w. Mir
rors Operating
theo utside mir rors &
WARNING Risk of inju ryfrom adju sting
th ev ehicle settings while thev ehicle is in
motion
Yo uc oul dlose control of thev ehicle in the
fo llowing situations:
R ifyo ua djus tthe driver's seat, theh ead
re stra int ,the steering wheel or them irror
while thev ehicle is in motion
R ifyo uf asteny our seat belt whilet hevehi‐
cle is in motion #
Befor estarti ngthee ngine: adjus tthe
driver's seat, theh ead restra int ,the st
eering wheel or them irro ra nd fast en
yo ur seat belt. &
WARNING Risk of accident du etomis‐
judgment of dis tances when using the
passenger mir ror
The outside mir roront he front-passenger
side reflects object sonasmaller scale. The
object sinviewa reinfact closer than they
appear.
As aresult, youm aymisjudg ethe dis tance
between youa nd ther oad user driving behi nd
yo u, fore xamp le, when changing lanes. #
Therefore, alw aysl ook overyour shoul‐
der in order toensur ethat youa re
aw areoft he actual dis tance between
yo ua nd ther oad user sdrivin gb ehind
yo u. Ad
justin gthe outside mir rors manually #
Adjus tthe outside mir rors to thec orrect posi‐
tion manually. #
Toengag eano utside mir rort hat has
been pushed out of position: pushtheo ut‐
side mir rorint op osition manually.
Ad justin gthe outside mir rors electrically Example image
* NO
TEDama getothee lectric outside
mir rors If
yo uf old thee lectric outside mir rors in or
out manuall y,yo um aydamag ethe outside
mir rors and they will no tloc kinp lace prop‐
er ly. Light and vision
97

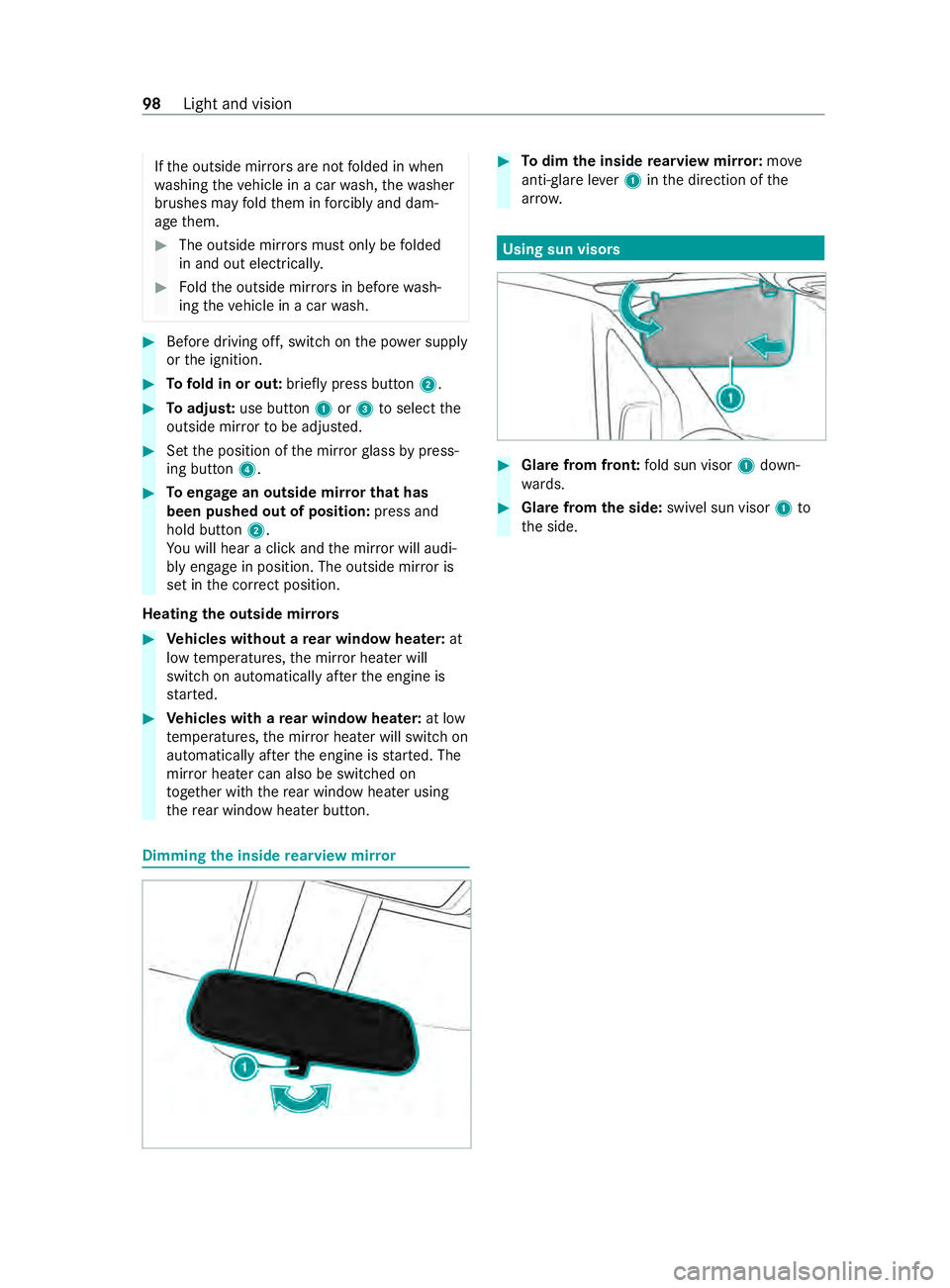

If
th eo utside mir rors aren otfolded in when
wa shing thev ehicle in acarwa sh, thew asher
brushes ma yfold them in forc ibl ya nd dam‐
ag et hem. #
The outside mir rors mus tonly be folded
in and out elect rical ly. #
Foldtheo utside mir rors in befor ewash‐
ing thev ehicle in acarwa sh. #
Befor edriving off, switc honthe powersupp ly
or thei gnition. #
Tofold in or out: brieflypress button 2. #
Toadjus t:use button 1or3 toselect the
outside mir rortobea djusted. #
Setthe position of them irro rg lass bypress‐
ing button 4. #
Toengag eano utside mir rort hat has
been pushed out of position: press and
hol db utton 2.
Yo uw ill hear aclicka nd them irro rw illa udi‐
bly engag einposition. The outsid emirro ris
se tint he cor rect position.
Heating the outside mir rors #
Vehicles without arear windo wheater: at
lo wt emperatures, them irro rh eater will
switc hona utomatically af tert he engine is
st ar ted. #
Vehicles with arear windo wheater: at low
te mp eratures, them irro rh eater wills witchon
automatically af tert he engine is star ted. The
mir rorh eater can also be switched on
to ge ther wit hthe rear wind owheater using
th er ear windo wheater button. Dimming
thei nsid erearvie wmirror #
Todim the inside rearvie wmirro r:mo ve
anti-glar elever 1inthed irection of the
ar row. Using sun visors
#
Glar efromf ront: fold sun visor 1down‐
wa rds. #
Glar efromt he side: swivels un visor 1to
th es ide. 98
Light and vision
